Model Whirlpool MDG16PRAEW GAS DRYER – Common Parts & Diagrams

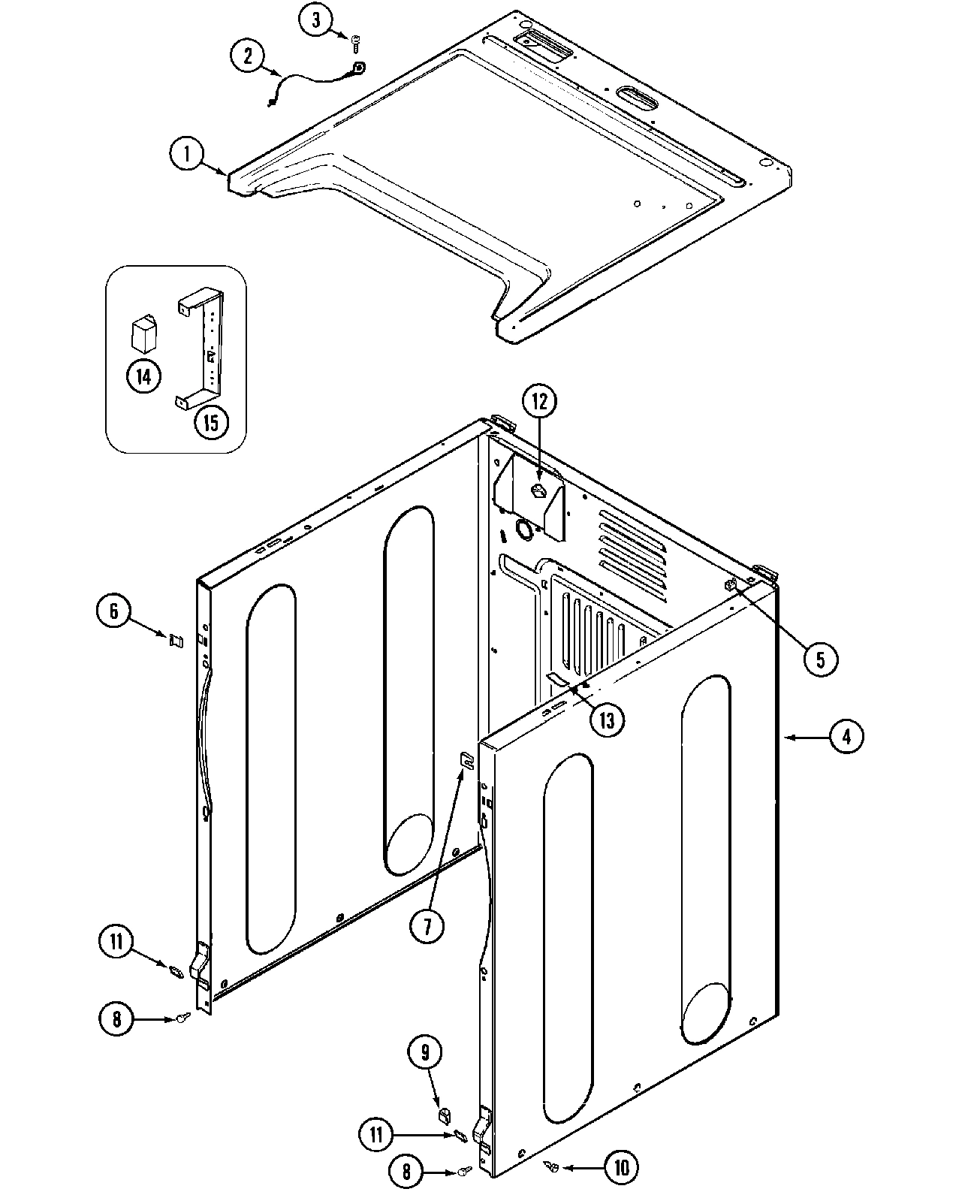

02 - CABINET-FRONT

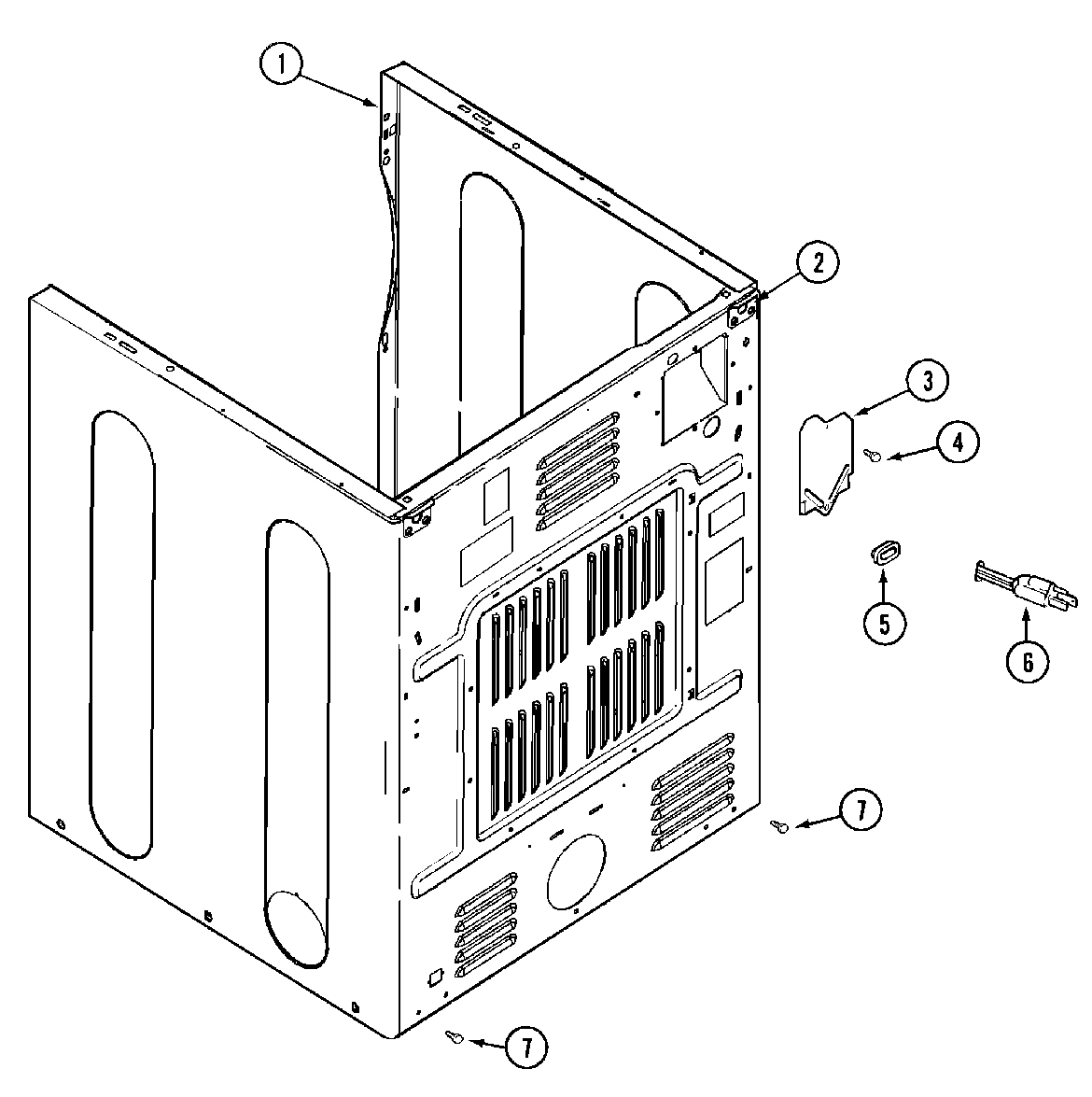

04 - CABINET-REAR

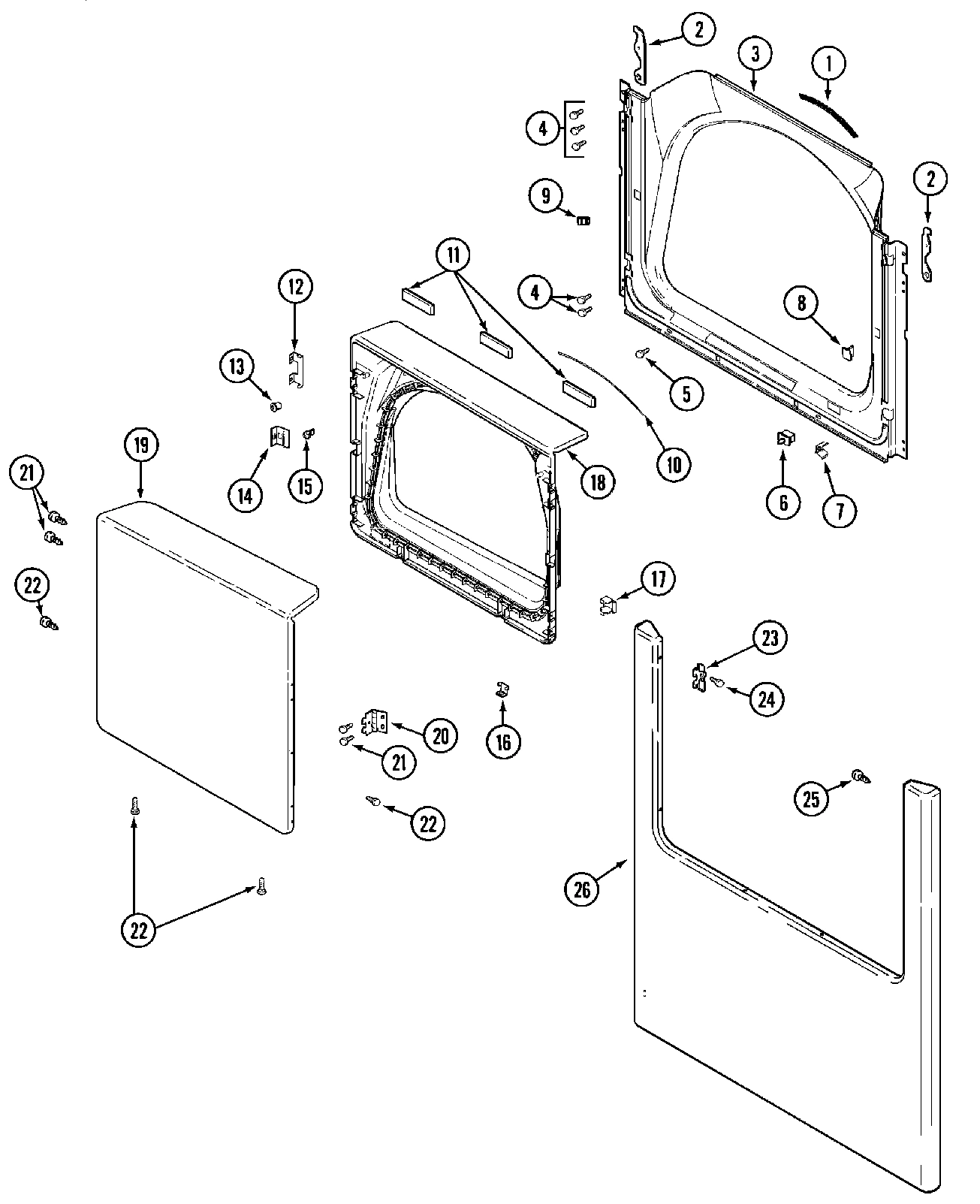

03 - DOOR
05 - GAS VALVE
07 - WIRING INFORMATION

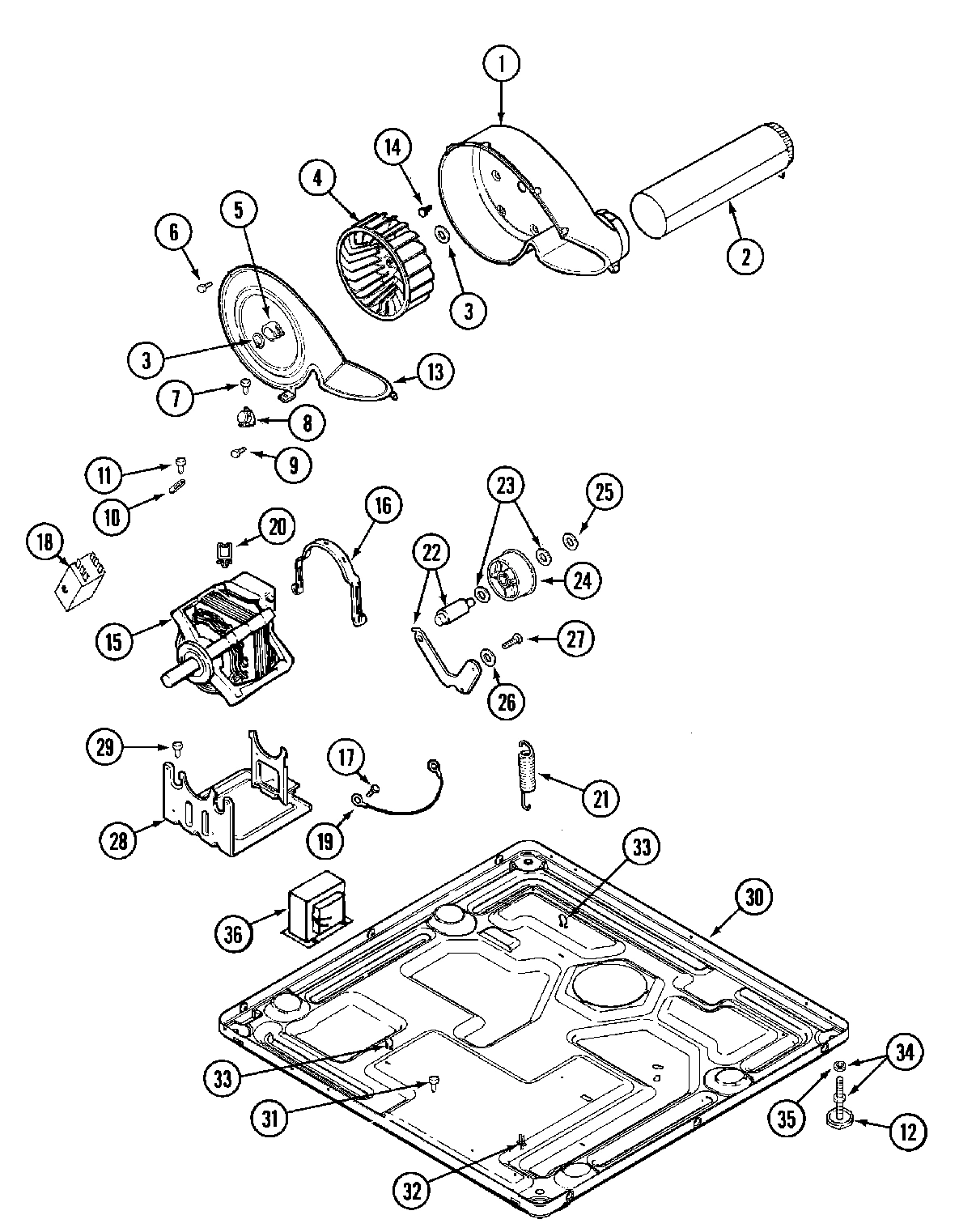

06 - MOTOR DRIVE

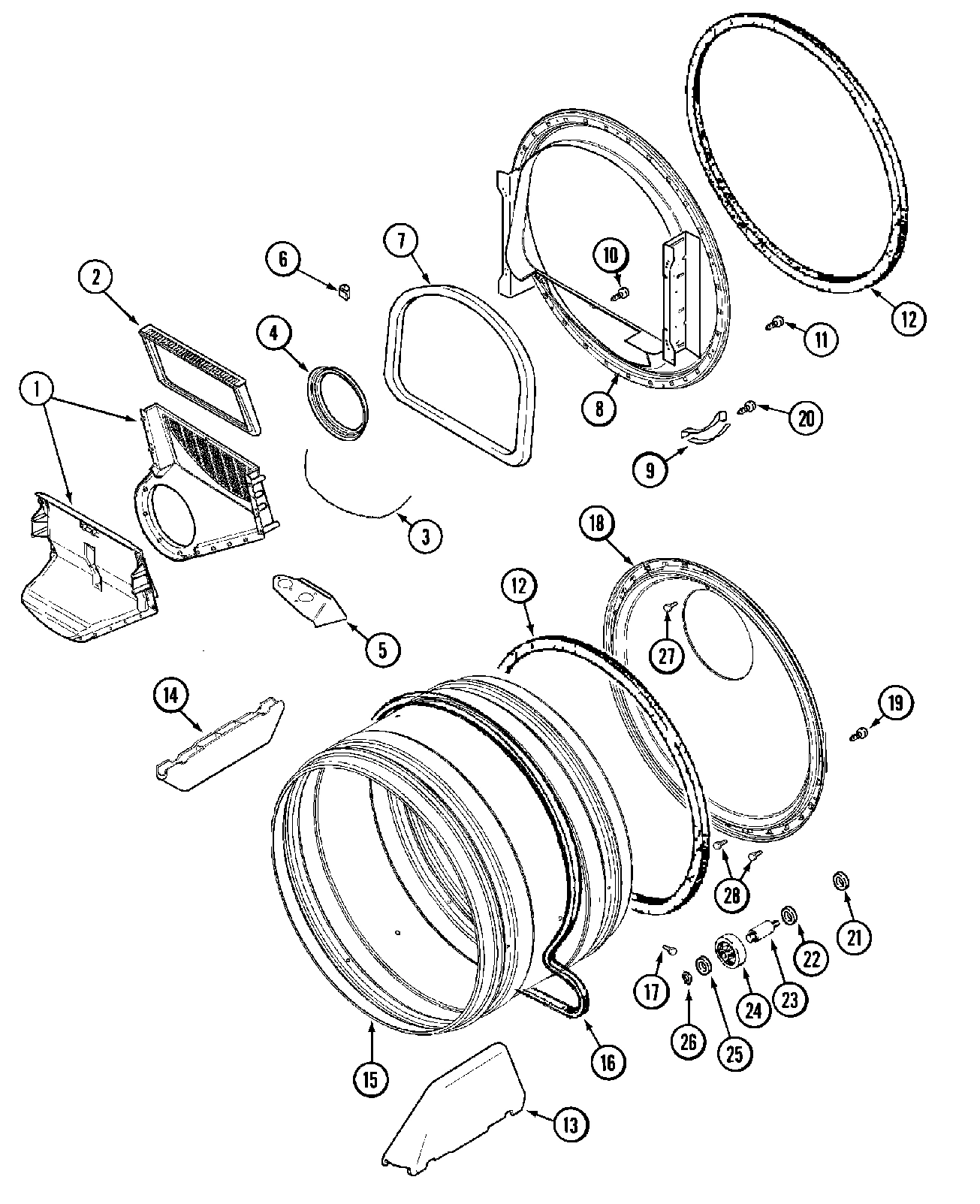

08 - TUMBLER

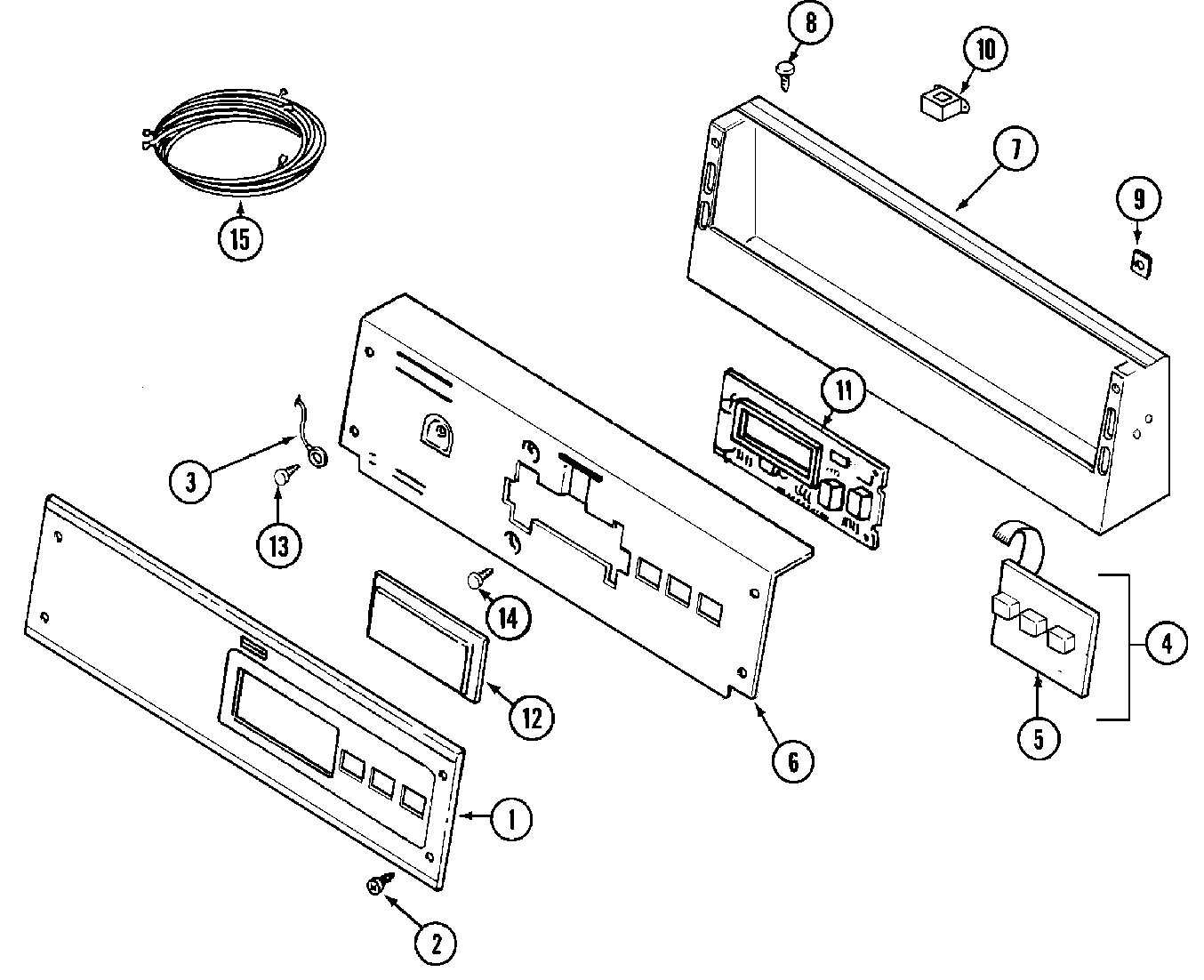

01 - CONTROL PANEL
Common parts from model Whirlpool MDG16PRAEW GAS DRYER
001
CONV KIT (NATURAL TO LP) ----S WPL Y308378 Contact Us For Availability
001
OUTLET DUCT ASSEMBLY WPL 33001799 Contact Us For Availability
001
PANEL, CONTROL WPL 33001955 Contact Us For Availability
002
HOOK, SECURITY WPL 22002247 Contact Us For Availability
002
CONVERSION KIT (LP TO NATURAL) WPL Y308377 Contact Us For Availability
002
DUCT ASSY., EXHAUST WPL 33001800 Contact Us For Availability
003
COVER, TERMINAL BLOCK WPL 33001795 Contact Us For Availability
003
SHROUD (WHT) WPL 33001954 Contact Us For Availability
003
SCREW, IGNITER WPL 304971 Contact Us For Availability
003
WIRE, GROUND WPL 22001959 Contact Us For Availability
004
SCREW, TERMINAL BLOCK GROUND WPL Y912873 Contact Us For Availability
004
SEAL, BLOWER WPL 33001758 Contact Us For Availability
004
CONTROL SWITCH ASSEMBLY WPL 33002165 Contact Us For Availability
005
GROMMET, CORD EXPORT WPL 216183 Contact Us For Availability
005
SCREW, SHROUD & OUTLET DUCT WPL 33001768 Contact Us For Availability
005
COVER, THERMOSTAT (ELEC ONLY) WPL 33001837 Contact Us For Availability
006
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
006
CORD, POWER (EXPORT) WPL 208749 Contact Us For Availability
006
VALVE, GAS WPL 307927 Contact Us For Availability
006
DEFLECTOR, WATER (W/ADHESIVE) WPL 22001511 Contact Us For Availability
006
BRACKET, BACK (WHT) WPL 33001956 Contact Us For Availability
006
BRACKET, BACK (WHT) WPL 33002523 Contact Us For Availability
007
SEAL, SHROUD WPL 33001767 Contact Us For Availability
007
BRACKET, HINGE WPL 33001760 Contact Us For Availability
007
CONSOLE (WHT) WPL 22003101 Contact Us For Availability
007
CONSOLE (WHT) WPL 33001957 Contact Us For Availability
008
FRONT, TUMBLER (W/SEAL) WPL 33001802 Contact Us For Availability
009
CLIP, SCREW WPL 215003 Contact Us For Availability
010
SCREW, OUTLET DUCT (PHILLIPS) WPL NLA Contact Us For Availability
010
TRANSFORMER WPL 33001948 Contact Us For Availability
011
PAD, DOOR WPL 33001268 Contact Us For Availability
011
STANDOFF, CIRCUIT BOARD WPL 33001204 Contact Us For Availability
012
CLIP, DOOR (DOUBLE) WPL 22002038 Contact Us For Availability
013
STRAP, TOP COVER SUPPORT WPL 33001836 Contact Us For Availability
013
BUSHING, INNER DOOR WPL 33001771 Contact Us For Availability
013
COVER, BLOWER HOUSING WPL 33001796 Contact Us For Availability
014
RELAY, SPST 24VDC WPL 206824 Contact Us For Availability
014
PIPE & BRACKET ASSY. WPL 33001735 Contact Us For Availability
014
SCREW, BLOWER HOUSING WPL 314818 Contact Us For Availability
014
SCREW, CONTROL BOARD WPL 215526 Contact Us For Availability
015
BRACKET, RELAY WPL 314627 Contact Us For Availability
015
STRIKE, DOOR (MALE) WPL 33001761 Contact Us For Availability
015
TUMBLER WPL 33001794 Contact Us For Availability
015
WIRE HARNESS, MAIN WPL 33001973 Contact Us For Availability
015
WIRE HARNESS, MAIN WPL 33002168 Contact Us For Availability
016
CLIP, DOOR (SINGLE) WPL 22002039 Contact Us For Availability
016
INLET DUCT ASSEMBLY WPL 33001810 Contact Us For Availability
016
HARNESS, PR SERVICE WPL 22001973 Contact Us For Availability
016
READER HARNESS KIT WPL 33001856 Contact Us For Availability
017
PLUG, INNER DOOR WPL 33001763 Contact Us For Availability
017
SCREW, BAFFLE WPL 33001788 Contact Us For Availability
018
DOOR, INNER (WHT) WPL 33001899 Contact Us For Availability
018
BACK, TUMBLER (W/SEAL) WPL 33001801 Contact Us For Availability
019
SCREW (No.10-3/8``) WPL 33002190 Contact Us For Availability
019
DOOR, OUTER (WHT) WPL 33001904 Contact Us For Availability
019
CONE ASSY., COMBUSTION WPL 33001946 Contact Us For Availability
019
GROMMET WPL 33002157 Contact Us For Availability
019
PLUG FOR SPRING WPL 33002461 Contact Us For Availability
021
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
022
SCREW No.8-18AB WAFER HD WPL 22002063 Contact Us For Availability
022
CAP, GAS PIPE WPL 33001693 Contact Us For Availability
022
BEARING, IDLER ASSEMBLY WPL 33001783 Contact Us For Availability
024
ADAPTOR, GAS CONNECTION WPL 33002107 Contact Us For Availability
025
CLIP, GROUNDING WPL 22002244 Contact Us For Availability
026
FASTENER, FRONT PANEL WPL 213280 Contact Us For Availability
026
CLIP, LOWER FRONT PANEL WPL 22002239 Contact Us For Availability
026
PANEL, FRONT (WHT) WPL 33001901 Contact Us For Availability
026
SUPPORT, MOTOR WPL 33001752 Contact Us For Availability
026
SUPPORT, MOTOR WPL 33002466 Contact Us For Availability
027
SCREW, MOTOR & BLOWER WPL Y313561 Contact Us For Availability
027
SCREW, INLET DUCT WPL 210932 Contact Us For Availability
030
RETAINER, WIRE WPL 315471 Contact Us For Availability
031
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
032
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
× ![]()
