Model Whirlpool MDG14PDAEW GAS DRYER – Common Parts & Diagrams
05 - CABINET-REAR

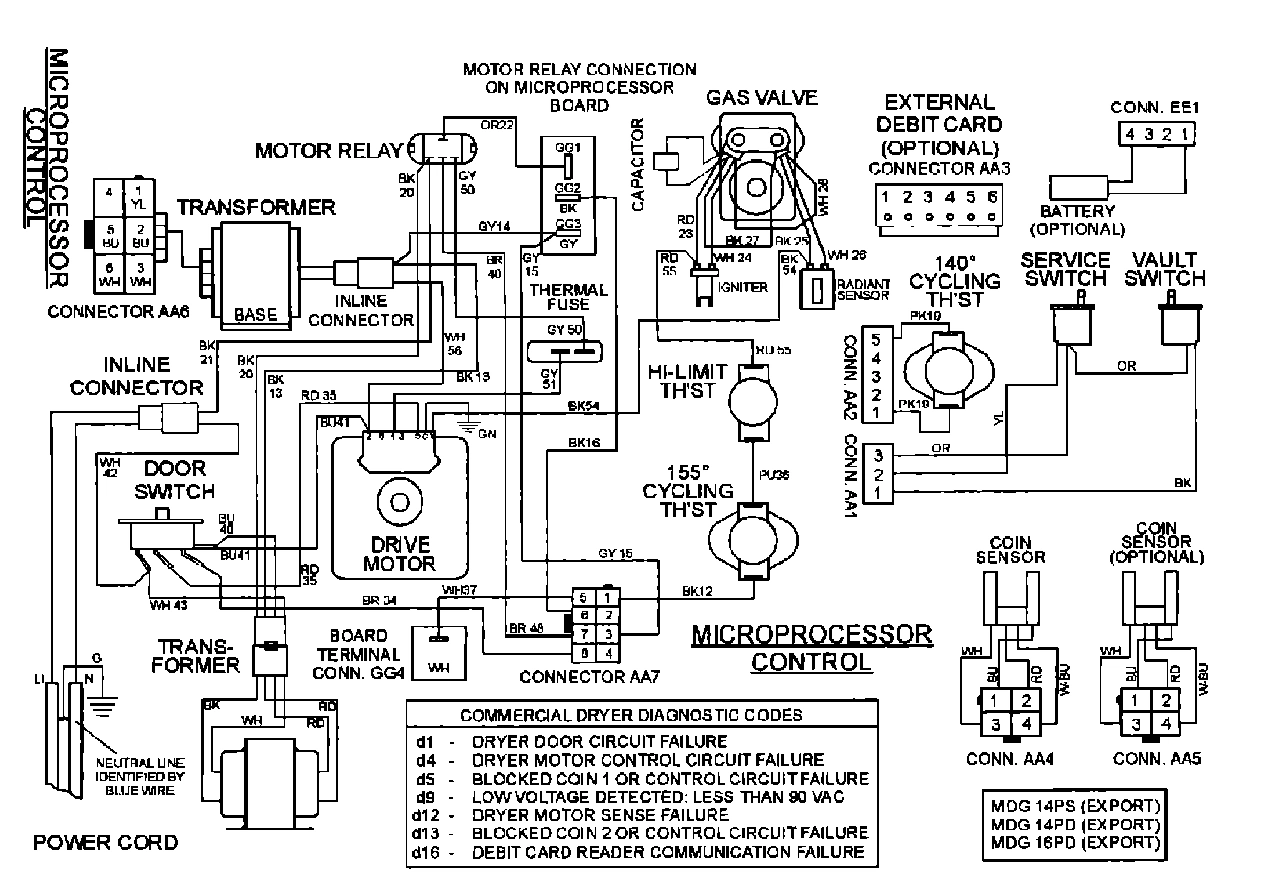

08 - WIRING INFORMATION

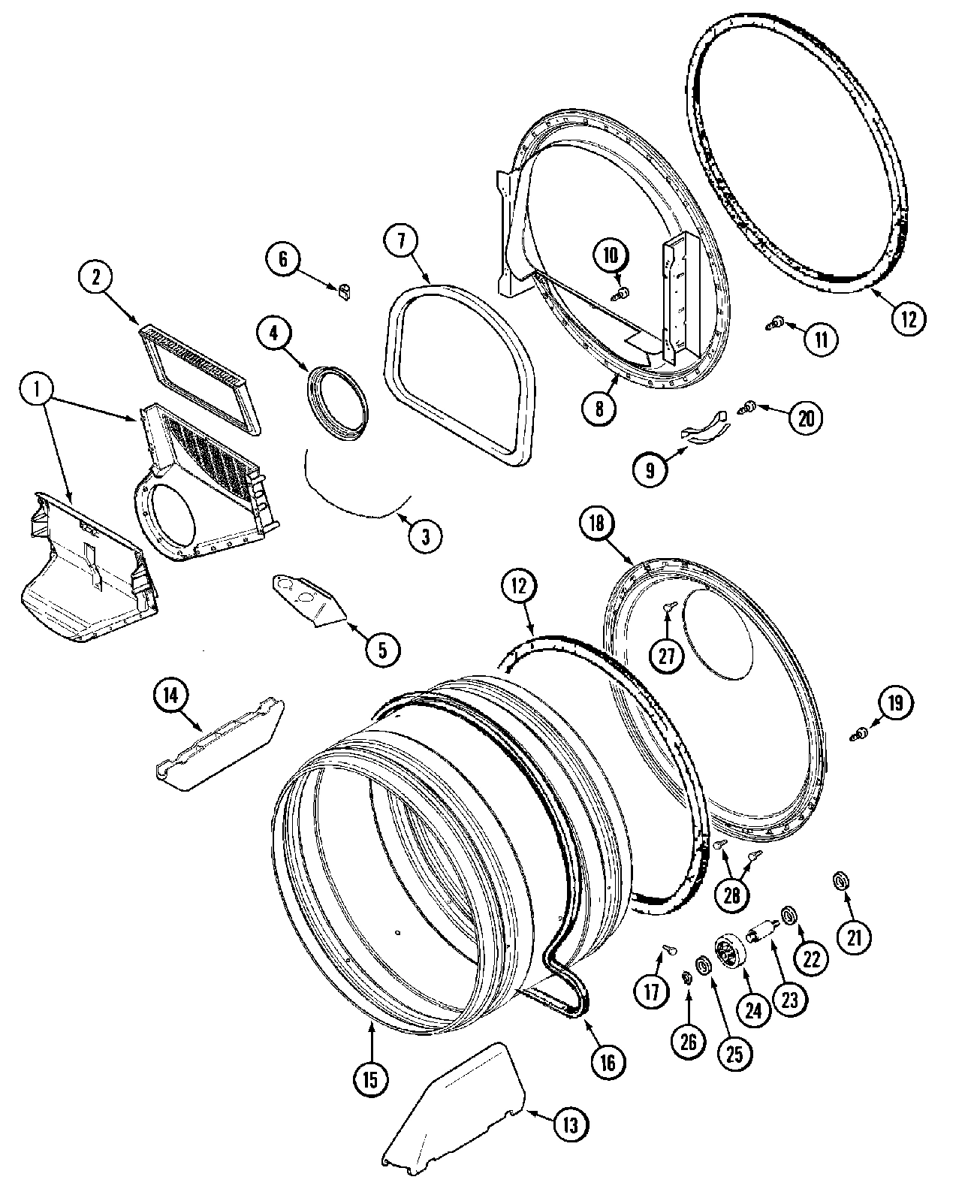

09 - TUMBLER

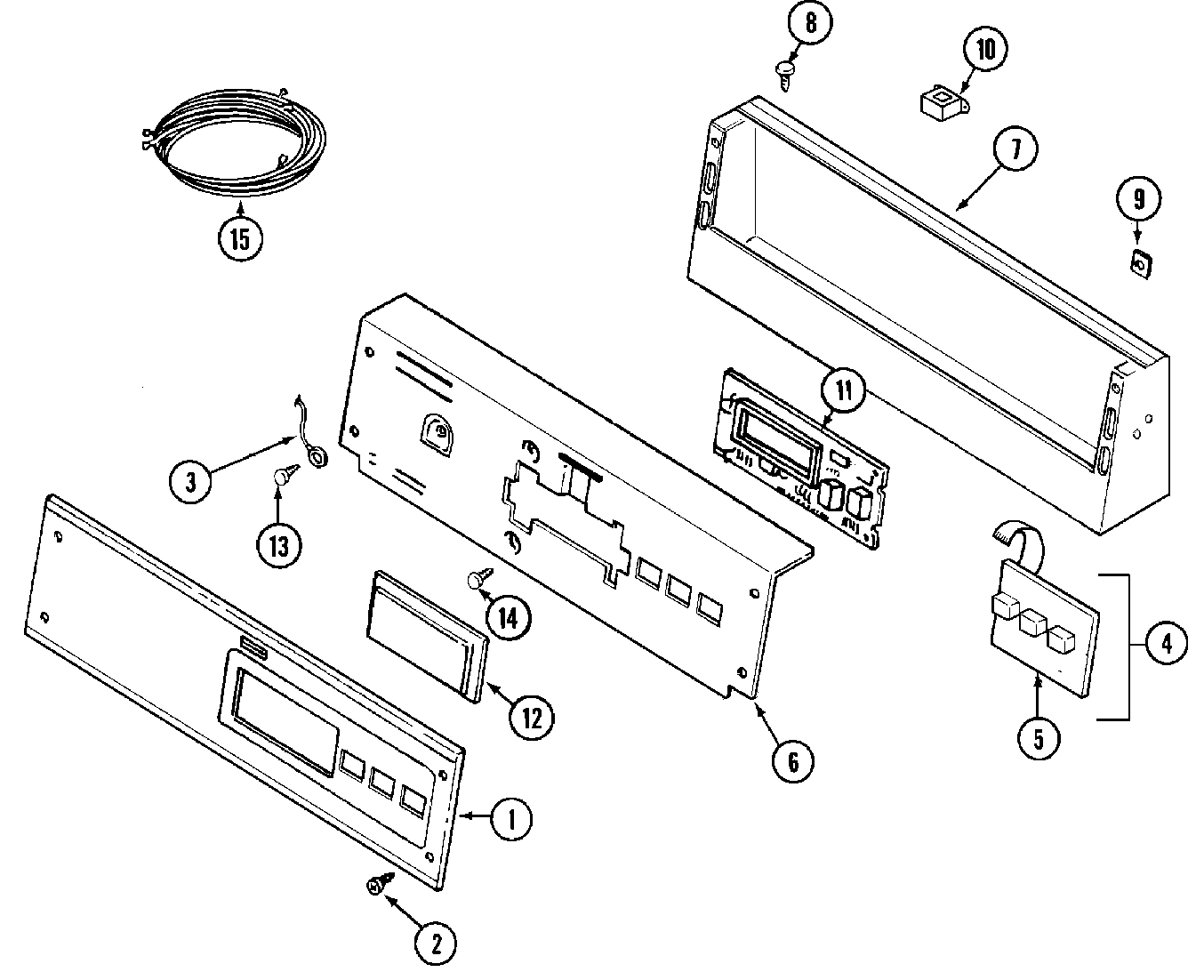

01 - CONTROL PANEL

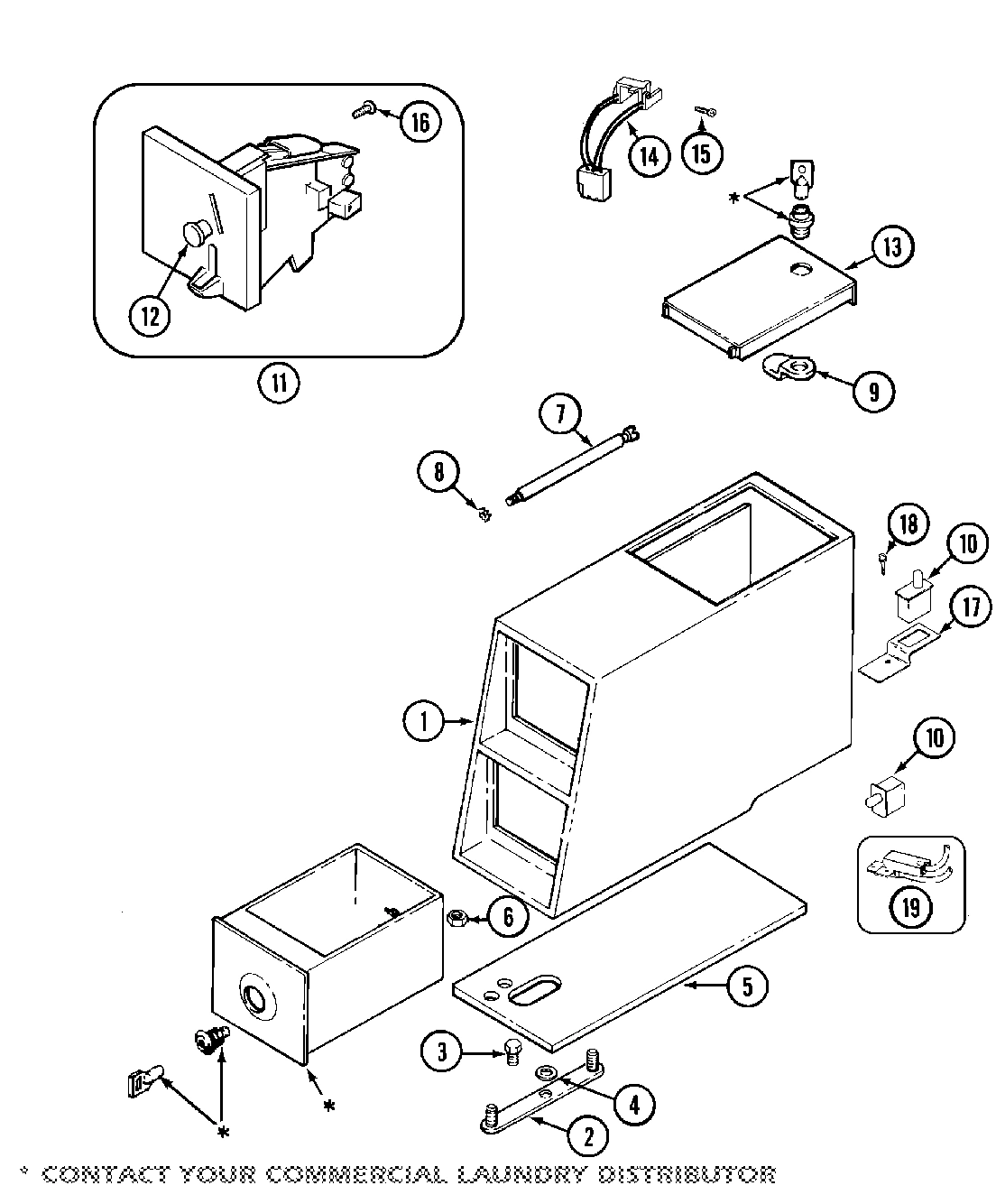

02 - CONTROL CENTER (PD)

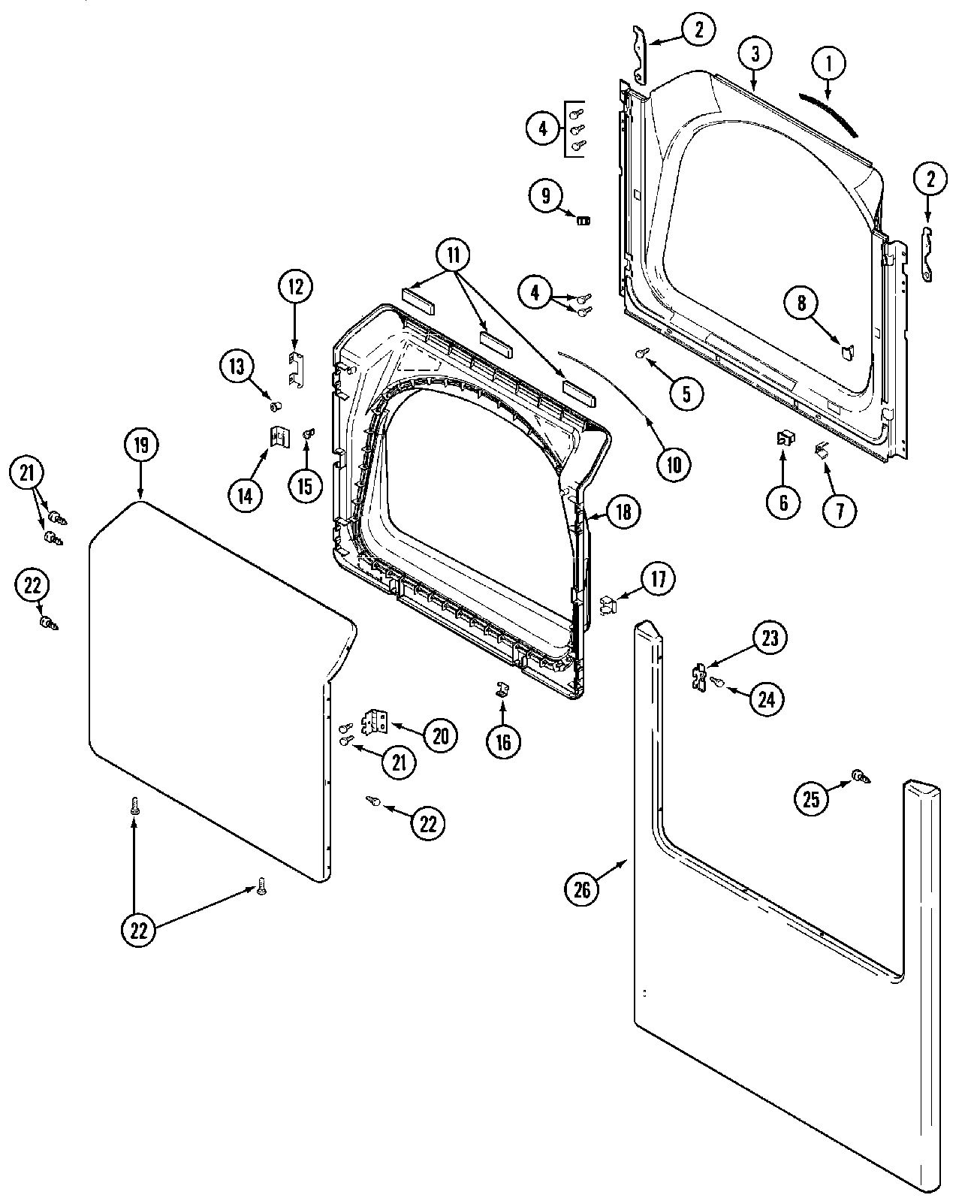

04 - DOOR
06 - GAS VALVE

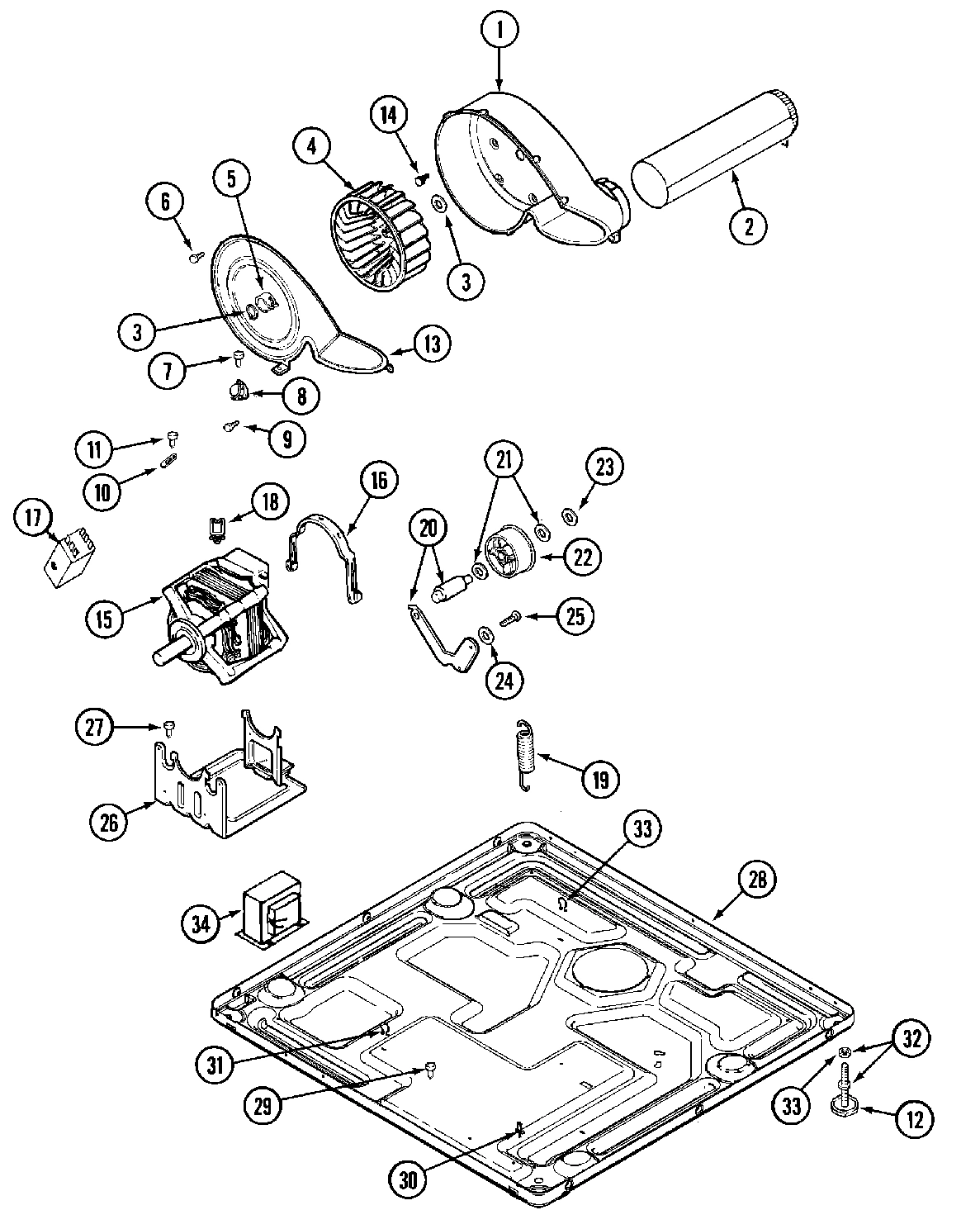

07 - MOTOR DRIVE

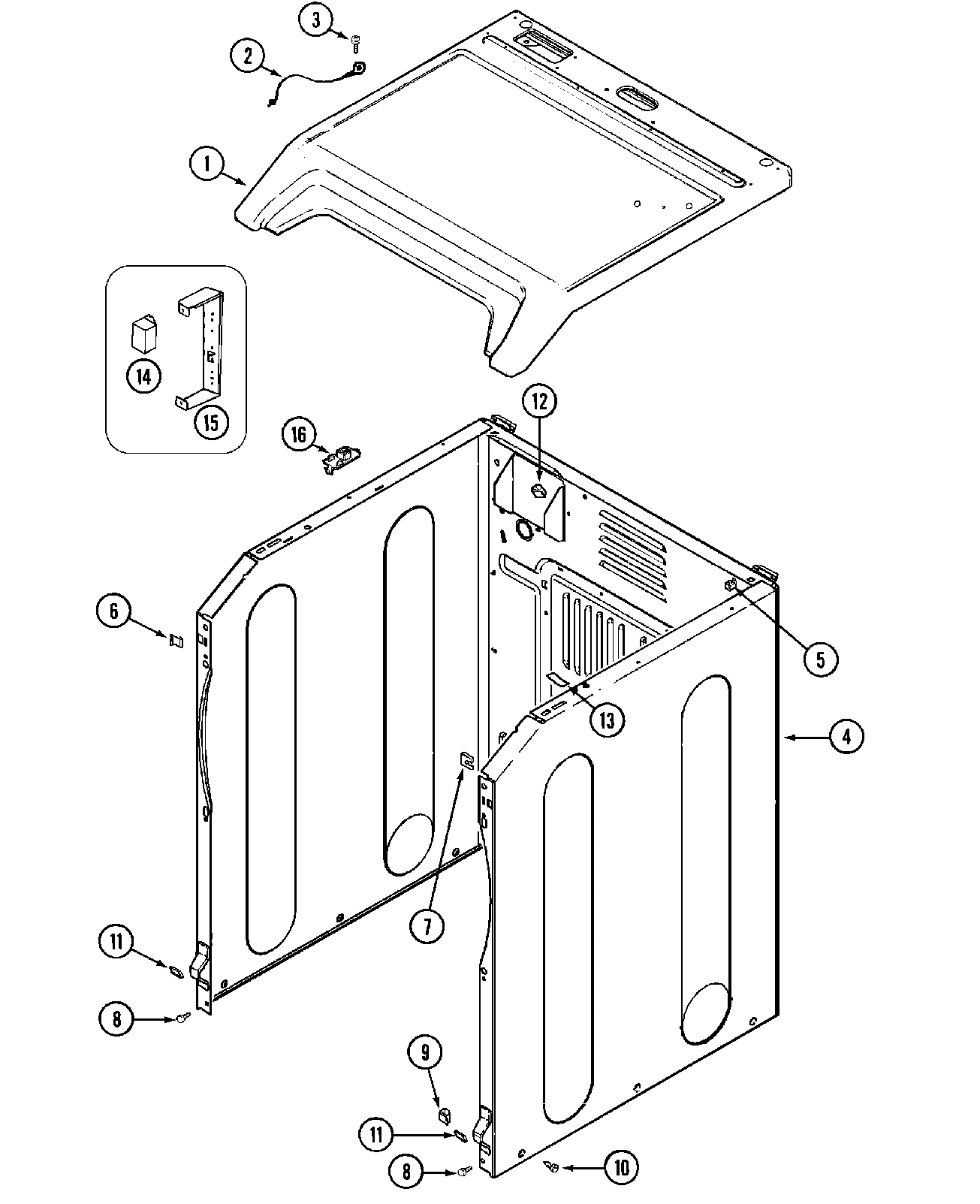

03 - CABINET-FRONT
Common parts from model Whirlpool MDG14PDAEW GAS DRYER
001
OUTLET DUCT ASSEMBLY WPL 33001799 Contact Us For Availability
001
SEAL, SHROUD WPL 33001767 Contact Us For Availability
001
PANEL, CONTROL WPL 33001784 Contact Us For Availability
001
CONVERSION KIT (NAT TO LP) WPL Y308378 Contact Us For Availability
001
COVER, TOP (WHT) WPL 33001797 Contact Us For Availability
001
COVER, TOP (WHT-AS PK) WPL 33002629 Contact Us For Availability
002
WIRE, GROUND WPL 22001959 Contact Us For Availability
002
STRAP, MOUNTING WPL 22001810 Contact Us For Availability
002
HOOK, SECURITY WPL 22002247 Contact Us For Availability
002
CONVERSION KIT (LP TO NAT.) WPL Y308377 Contact Us For Availability
002
DUCT ASSY., EXHAUST WPL 33001800 Contact Us For Availability
003
SHROUD (WHT) WPL 33002033 Contact Us For Availability
003
SCREW, IGNITER WPL 304971 Contact Us For Availability
004
CABINET (WHT) WPL NLA Contact Us For Availability
004
SEAL, BLOWER WPL 33001758 Contact Us For Availability
004
CONTROL SWITCH ASSEMBLY WPL 33002165 Contact Us For Availability
004
WASHER, STRAP SCREW WPL 910309 Contact Us For Availability
004
HINGE, PLASTIC WPL 22003367 Contact Us For Availability
004
CABINET ASSY. (WHT AS PK) WPL 22003639 Contact Us For Availability
005
GROMMET, CORD WPL 22002532 Contact Us For Availability
005
COVER, THERMOSTAT (ELEC ONLY) WPL 33001837 Contact Us For Availability
005
GASKET, CONTROL CENTER (WHT) WPL 22002072 Contact Us For Availability
005
SCREW, SHROUD & OUTLET DUCT WPL 33001768 Contact Us For Availability
005
FASTENER WPL 310933 Contact Us For Availability
006
CORD, POWER (EXPORT) WPL 208749 Contact Us For Availability
006
CORD, POWER (KOREA) WPL 22001558 Contact Us For Availability
006
CORD, POWER WPL 33001819 Contact Us For Availability
006
DEFLECTOR, WATER (W/ADHESIVE) WPL 22001511 Contact Us For Availability
006
BRACKET, BACK (WHT) WPL 33001785 Contact Us For Availability
006
BRACKET, BACK (WHT) WPL 33002519 Contact Us For Availability
006
SWITCH, DOOR WPL 33001436 Contact Us For Availability
006
VALVE, GAS (240V-50HZ) WPL 307927 Contact Us For Availability
007
CONSOLE (WHT) WPL 22002329 Contact Us For Availability
007
CONSOLE (WHT) WPL 22003089 Contact Us For Availability
007
BOLT, LOCKING WPL 213035 Contact Us For Availability
007
BRACKET, HINGE WPL 33001760 Contact Us For Availability
007
RETAINER, SHROUD WPL 213280 Contact Us For Availability
008
FRONT, TUMBLER (W/SEAL) WPL 33001802 Contact Us For Availability
008
LOCKWASHER, LOCKING BOLT WPL 910181 Contact Us For Availability
009
CLIP, SCREW WPL 215003 Contact Us For Availability
010
SCREW, TRANSFORMER WPL 211251 Contact Us For Availability
010
TRANSFORMER (STEP-DOWN COMM) WPL 22002139 Contact Us For Availability
010
SWITCH, SENSOR WPL 22002536 Contact Us For Availability
011
STANDOFF, CIRCUIT BOARD WPL 33001204 Contact Us For Availability
011
SINGLE FACEPLATE WPL 22002144 Contact Us For Availability
011
PAD, DOOR WPL 33001268 Contact Us For Availability
011
CLIP, LOWER FRONT PANEL WPL 22002239 Contact Us For Availability
012
CLIP, CABLE WPL Y310376 Contact Us For Availability
012
BUTTON, RETURN WPL 216200 Contact Us For Availability
012
CLIP, DOOR (DOUBLE) WPL 22002038 Contact Us For Availability
013
DOOR, ACCESS (WHT) WPL 22001910 Contact Us For Availability
013
BUSHING, INNER DOOR WPL 33001771 Contact Us For Availability
013
COVER, BLOWER HOUSING WPL 33001796 Contact Us For Availability
013
STRAP, TOP COVER SUPPORT WPL 33001836 Contact Us For Availability
014
SCREW, CONTROL BOARD WPL 215526 Contact Us For Availability
014
PIPE & BRACKET ASSY. WPL 33001735 Contact Us For Availability
014
SCREW, BLOWER HOUSING WPL 314818 Contact Us For Availability
014
RELAY, HEATER (SPST) WPL 206824 Contact Us For Availability
015
TUMBLER WPL 33001794 Contact Us For Availability
015
WIRE HARNESS, MAIN WPL 33001973 Contact Us For Availability
015
WIRE HARNESS, MAIN WPL 33002168 Contact Us For Availability
015
STRIKE, DOOR (MALE) WPL 33001761 Contact Us For Availability
015
BRACKET, RELAY WPL 314627 Contact Us For Availability
016
SCREW, COIN DROP WPL 216068 Contact Us For Availability
016
CLIP, DOOR (SINGLE) WPL 22002039 Contact Us For Availability
016
INLET DUCT ASSEMBLY WPL 33001810 Contact Us For Availability
016
PIN, LOCATOR WPL 33001872 Contact Us For Availability
017
SCREW, BAFFLE WPL 33001788 Contact Us For Availability
017
BRACKET, SWITCH WPL 22001404 Contact Us For Availability
017
PLUG, INNER DOOR WPL 33001763 Contact Us For Availability
018
BACK, TUMBLER (W/SEAL) WPL 33001801 Contact Us For Availability
018
DOOR, INNER/ W SEAL (WHT) WPL 33001750 Contact Us For Availability
019
SCREW (No.10-3/8``) WPL 33002190 Contact Us For Availability
019
HARNESS, SENSOR SWITCH WPL 22001966 Contact Us For Availability
019
DOOR, OUTER (WHT-W/DAMPER) WPL 22001979 Contact Us For Availability
019
CONE ASSY., COMBUSTION WPL 33001946 Contact Us For Availability
019
PLUG FOR SPRING WPL 33002461 Contact Us For Availability
021
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
022
SCREW No.8-18AB WAFER HD WPL 22002063 Contact Us For Availability
022
CAP, GAS PIPE WPL 33001693 Contact Us For Availability
022
BEARING, IDLER ASSEMBLY WPL 33001783 Contact Us For Availability
025
CLIP, GROUNDING WPL 22002244 Contact Us For Availability
026
PANEL, FRONT (WHT) WPL 22002241 Contact Us For Availability
026
SUPPORT, MOTOR WPL 33001752 Contact Us For Availability
026
SUPPORT, MOTOR WPL 33002466 Contact Us For Availability
027
SCREW, INLET DUCT WPL 210932 Contact Us For Availability
027
SCREW, MOTOR & BLOWER WPL Y313561 Contact Us For Availability
028
BASE, (LWR) WPL 33002622 Contact Us For Availability
030
RETAINER, WIRE WPL 315471 Contact Us For Availability
031
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
032
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
034
TRANSFORMER WPL 33001948 Contact Us For Availability
× ![]()
