Model Whirlpool MDE9206AYW ELECTRIC DRYER – Common Parts &amp; Diagrams

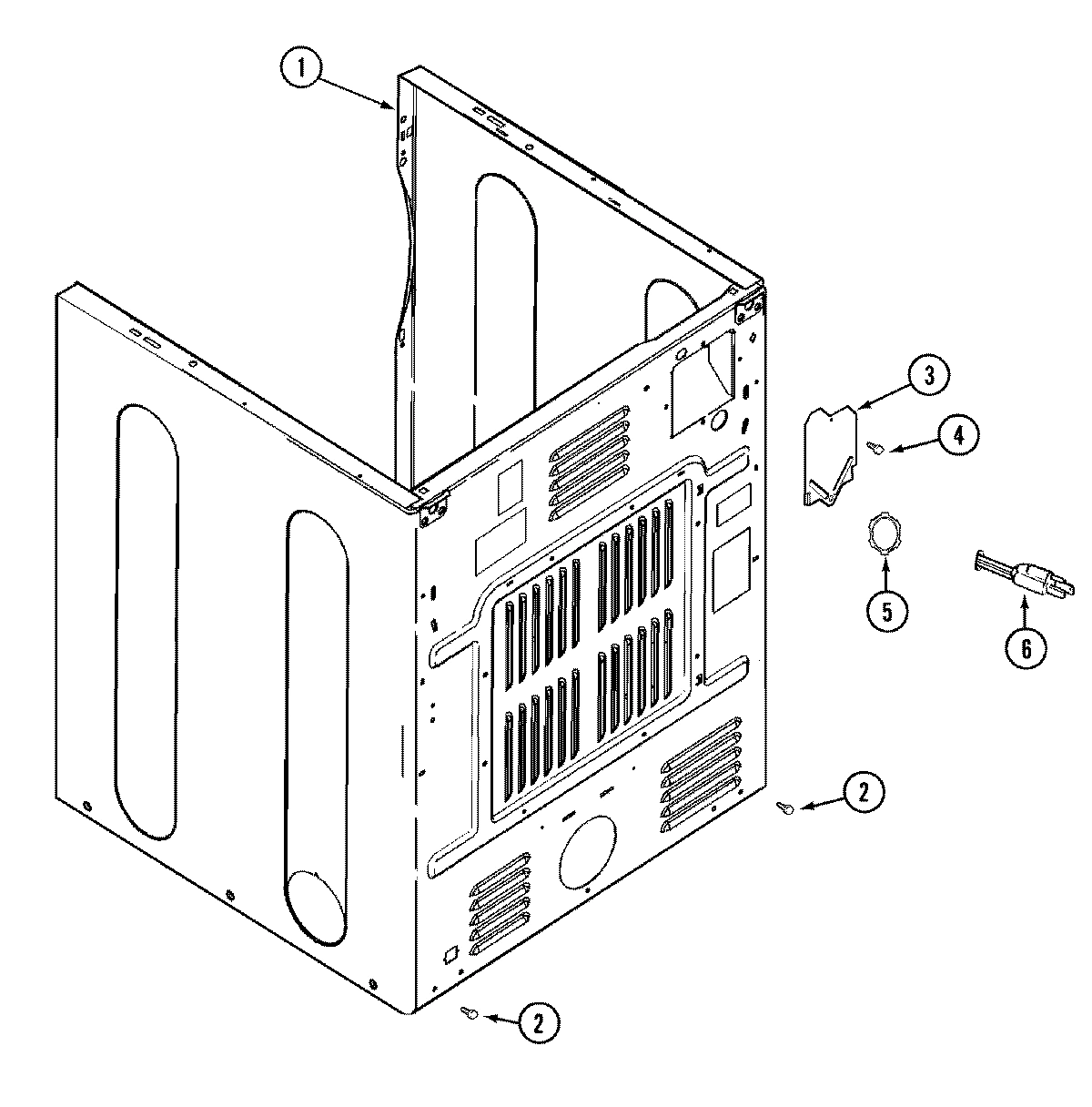

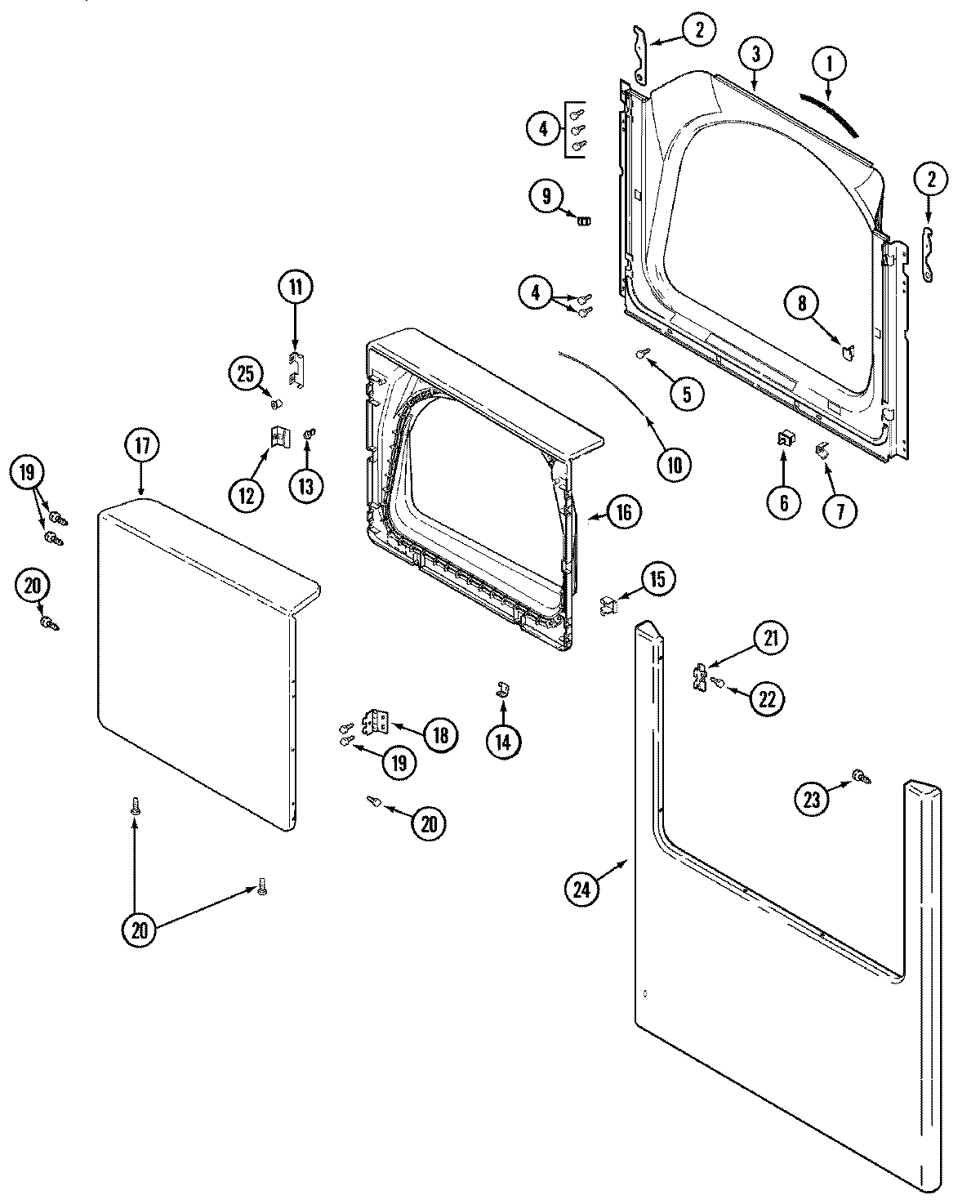

1

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

1

CABINET ASSY. (WHT AS PK) WPL 22003643 Contact Us For Availability

1

CABINET (WHT) WPL 33001897 Contact Us For Availability

1

CABINET, ASSY. (WHT-AS PK) WPL 33002624 Contact Us For Availability

1

HINGE, PLASTIC WPL 22003367 Contact Us For Availability

1

PANEL, CONTROL (WHT) WPL 33001918 Contact Us For Availability

1

SEAL, SHROUD WPL 33001767 Contact Us For Availability

1

OUTLET DUCT ASSEMBLY WPL 33001799 Contact Us For Availability

2

WP33001621 Whirlpool Dial Knob In Stock WPL WP33001621 $16.65

2

WP33001808 Whirlpool Lint Filter In Stock WPL WP33001808 $39.64

2

DUCT ASSY., INLET WPL 33001803 Contact Us For Availability

2

INLET DUCT ASSEMBLY (ELECTRIC) WPL 33002767 Contact Us For Availability

2

DUCT ASSY., EXHAUST WPL 33001800 Contact Us For Availability

2

HOOK, SECURITY WPL 22002247 Contact Us For Availability

3

WP22001659 Whirlpool Timer Knob In Stock WPL WP22001659 $18.86

3

COVER, TERMINAL BLOCK WPL 33001795 Contact Us For Availability

3

HEATER ENCLOSURE WPL 314995 Contact Us For Availability

3

SHROUD (WHT) WPL 33001900 Contact Us For Availability

3

SEAL, BLOWER WPL 33001758 Contact Us For Availability

4

33001790 Whirlpool Blower Wheel In Stock WPL 33001790 $21.72

4

W11573574 Whirlpool Screw In Stock WPL W11573574 $11.38

4

WP22001664 Whirlpool Timer Knob Backorder WPL WP22001664 $4.82

4

INSULATOR, TERMINAL WPL 314998 Contact Us For Availability

4

SCREW (No.10-3/8``) WPL 33002190 Contact Us For Availability

5

WP312967 Whirlpool Clamp In Stock WPL WP312967 $7.29

5

WPY308612 Whirlpool Heating Element In Stock WPL WPY308612 $233.86

5

CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability

5

BUTTON, PUSH TO START (WHT) WPL 33001619 Contact Us For Availability

5

SCREW, SHROUD WPL 33001768 Contact Us For Availability

6

W10169313 Whirlpool Door Switch Kit In Stock WPL W10169313 $21.70

6

FRONT, TUMBLER (W/SEAL) WPL 33001802 Contact Us For Availability

6

SHIELD, RADIANT WPL 314999 Contact Us For Availability

7

WP33001624 Whirlpool Timer Backorder WPL WP33001624 $253.40

7

SCREW WPL 314554 Contact Us For Availability

7

BRACKET, HINGE WPL 33001760 Contact Us For Availability

7

COVER, THERMOSTAT (ELEC ONLY) WPL 33001837 Contact Us For Availability

8

306508 Whirlpool Dryer Front Glide Kit In Stock WPL 306508 $6.28

8

LA-1003 Whirlpool Dryer Door Catch and Metal In Stock WPL LA-1003 $13.15

8

WP303396 Whirlpool Thermostat In Stock WPL WP303396 $32.51

8

WP307249 Whirlpool Thermostat In Stock WPL WP307249 $100.00

8

BACK, CONSOLE PANEL WPL 33001806 Contact Us For Availability

9

306436 Whirlpool Washer Dryer Door Catch and In Stock WPL 306436 $3.54

9

WP210720 Whirlpool Rivet Backorder WPL WP210720 $8.89

9

WP307178 Whirlpool Element In Stock WPL WP307178 $261.68

9

STRAP, GROUND WPL Y312184 Contact Us For Availability

9

CONSOLE (WHT) WPL 22002285 Contact Us For Availability

W10850756 Whirlpool Screw Backorder WPL W10850756 $4.82

WP33001762 Whirlpool Dryer Thermal Fuse In Stock WPL WP33001762 $39.97

WP33002094 Whirlpool Door Seal Backorder WPL WP33002094 $90.86

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

WPY307173 Whirlpool Wire Jumper Backorder WPL WPY307173 $4.82

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $4.82

WP307473 Whirlpool Thermal Fuse In Stock WPL WP307473 $47.97

BUZZER, NON-ADJUSTABLE WPL 33001623 Contact Us For Availability

CLIP, DOOR (DOUBLE) WPL 22002038 Contact Us For Availability

SCREW, No.8 X 9/16 CTSK WPL 210932 Contact Us For Availability

WP311093 Whirlpool Washer 7 Backorder WPL WP311093 $4.82

WP33001793 Whirlpool Bracket Spring Backorder WPL WP33001793 $4.82

CLIP, GROUNDING WPL 22002244 Contact Us For Availability

SWITCH, PUSH TO START (WHT) WPL 33001861 Contact Us For Availability

SCREW----NA WPL 312311 Contact Us For Availability

WP33002917 Whirlpool Screw Backorder WPL WP33002917 $4.82

BRACKET, THERMAL FUSE WPL 315346 Contact Us For Availability

COVER, BLOWER HOUSING----NA WPL 33001873 Contact Us For Availability

WIRE HARNESS, MAIN WPL 33001920 Contact Us For Availability

STRIKE, DOOR (MALE) WPL 33001761 Contact Us For Availability

WP33001807 Whirlpool Felt Seal In Stock WPL WP33001807 $12.54

CONVERSION KIT (240V TO 208V) WPL Y308590 Contact Us For Availability

SCREW WPL 314818 Contact Us For Availability

SWITCH, TEMPERATURE (ELC.) WPL 33001642 Contact Us For Availability

W10410997 Whirlpool Drive Motor In Stock WPL W10410997 $123.19

WP22001663 Whirlpool Selector Knob Backorder WPL WP22001663 $40.58

WP33002032 Whirlpool Drum Baffle In Stock WPL WP33002032 $21.91

WP33002795 Whirlpool Drive Motor In Stock WPL WP33002795 $243.32

FRONT PANEL BRACKET/FASTENER WPL 213280 Contact Us For Availability

PLUG, INNER DOOR WPL 33001763 Contact Us For Availability

WP33001755 Whirlpool Drum Baffle In Stock WPL WP33001755 $26.50

WPY015825 Whirlpool Motor Clip Backorder WPL WPY015825 $13.87

DOOR, INNER (WHT) WPL 33001899 Contact Us For Availability

MANUAL, USE & CARE WPL 33002457 Contact Us For Availability

MANUAL, USE & CARE (FRC) WPL 33002531 Contact Us For Availability

CLIP, DOOR (SINGLE) WPL 22002039 Contact Us For Availability

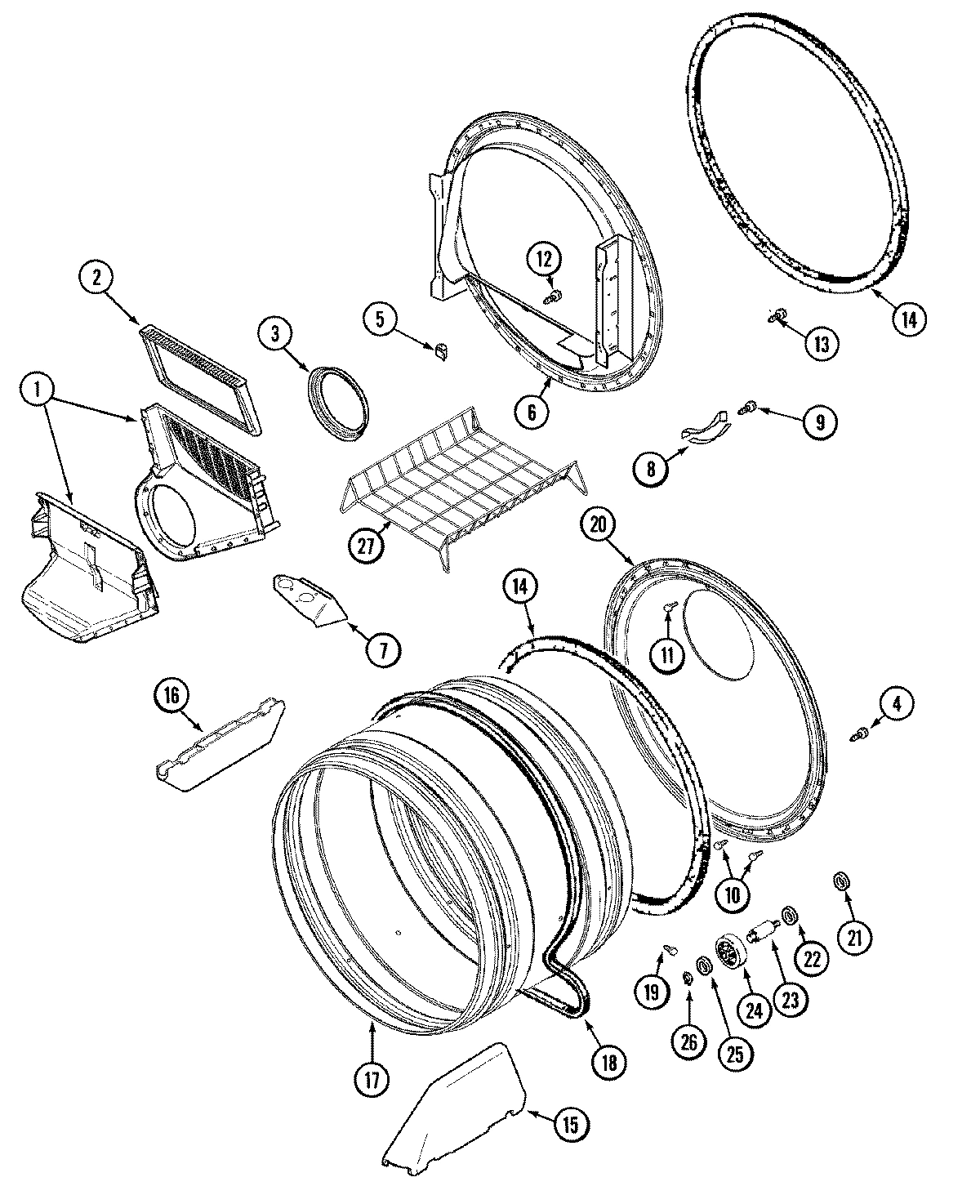

17

TUMBLER WPL 33001889 Contact Us For Availability

17

DOOR, OUTER (WHT) WPL 33001904 Contact Us For Availability

17

CORD, POWER (AS WRAP) WPL 33002494 Contact Us For Availability

33002459 Whirlpool Idler Spring Backorder WPL 33002459 $4.82

WP33001759 Whirlpool Door Hinge Backorder WPL WP33001759 $56.66

WP33002535 Whirlpool Dryer Drive Belt In Stock WPL WP33002535 $24.91

GROMMET WPL 33002157 Contact Us For Availability

PLUG FOR SPRING WPL 33002461 Contact Us For Availability

19

WP6-3705180 Whirlpool Idler Pulley Lever In Stock WPL WP6-3705180 $53.48

19

WP98006631 Whirlpool Screw Backorder WPL WP98006631 $4.82

19

SCREW, BAFFLE WPL 33001788 Contact Us For Availability

20

WPY312527 Whirlpool Dryer Idler Shaft Washer In Stock WPL WPY312527 $6.84

20

SCREW No.8-18AB WAFER HD WPL 22002063 Contact Us For Availability

20

BACK, TUMBLER (W/SEAL) WPL 33001801 Contact Us For Availability

21

WP33001443 Whirlpool Hex Nut Backorder WPL WP33001443 $4.82

21

BEARING, IDLER ASSEMBLY WPL 33001783 Contact Us For Availability

22

WP33001787 Whirlpool Screw Backorder WPL WP33001787 $7.38

22

WP354987 Whirlpool C-Clip In Stock WPL WP354987 $6.38

23

WP315772 Whirlpool Sleeve Backorder WPL WP315772 $7.92

24

12001541 Whirlpool Dryer Drum Roller Kit In Stock WPL 12001541 $11.73

24

WPY014874 Whirlpool Screw Backorder WPL WPY014874 $4.82

24

PANEL, FRONT (WHT) WPL 33001901 Contact Us For Availability

WP312535 Whirlpool Washer Backorder WPL WP312535 $7.09

SUPPORT, MOTOR WPL 33001752 Contact Us For Availability

SUPPORT, MOTOR WPL 33002466 Contact Us For Availability

BUSHING, INNER DOOR WPL 33001771 Contact Us For Availability

26

WP9703438 Whirlpool Snap Retaining Ring In Stock WPL WP9703438 $2.43

26

SCREW----NA WPL Y313561 Contact Us For Availability

BASE WPL 33001845 Contact Us For Availability

BASE, (LWR)----NA WPL 33002465 Contact Us For Availability

BASE, (LWR) WPL 33002622 Contact Us For Availability

RACK, DRYING WPL 33001917 Contact Us For Availability

28

SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability

29

ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available

30

WP62739 Whirlpool Nut Backorder WPL WP62739 $4.82

32

CLIP, LOWER FRONT PANEL WPL 22002239 Contact Us For Availability

33

SCREW WPL Y310632 Contact Us For Availability

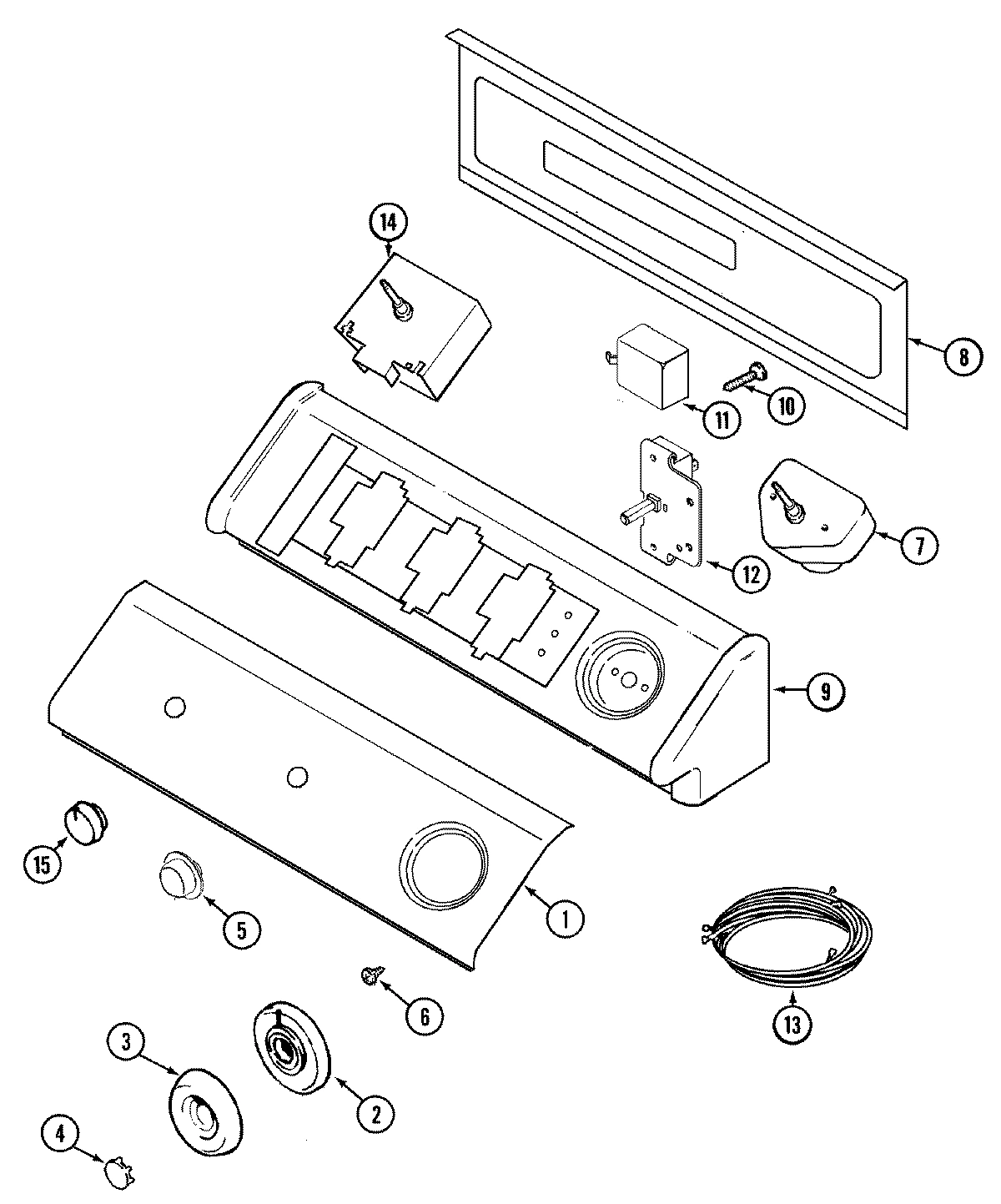

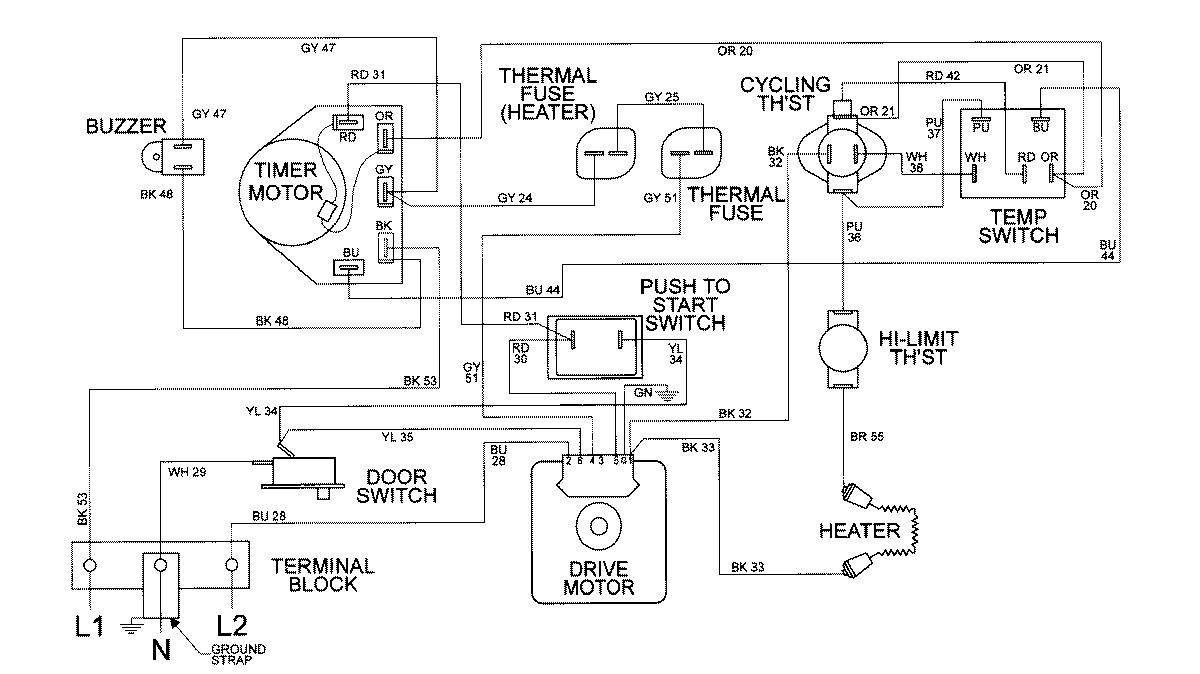

NI

WIRING INFORMATION WPL 15002303 Contact Us For Availability
