Model Whirlpool MDE6800AYW ELECTRIC DRYER – Common Parts & Diagrams

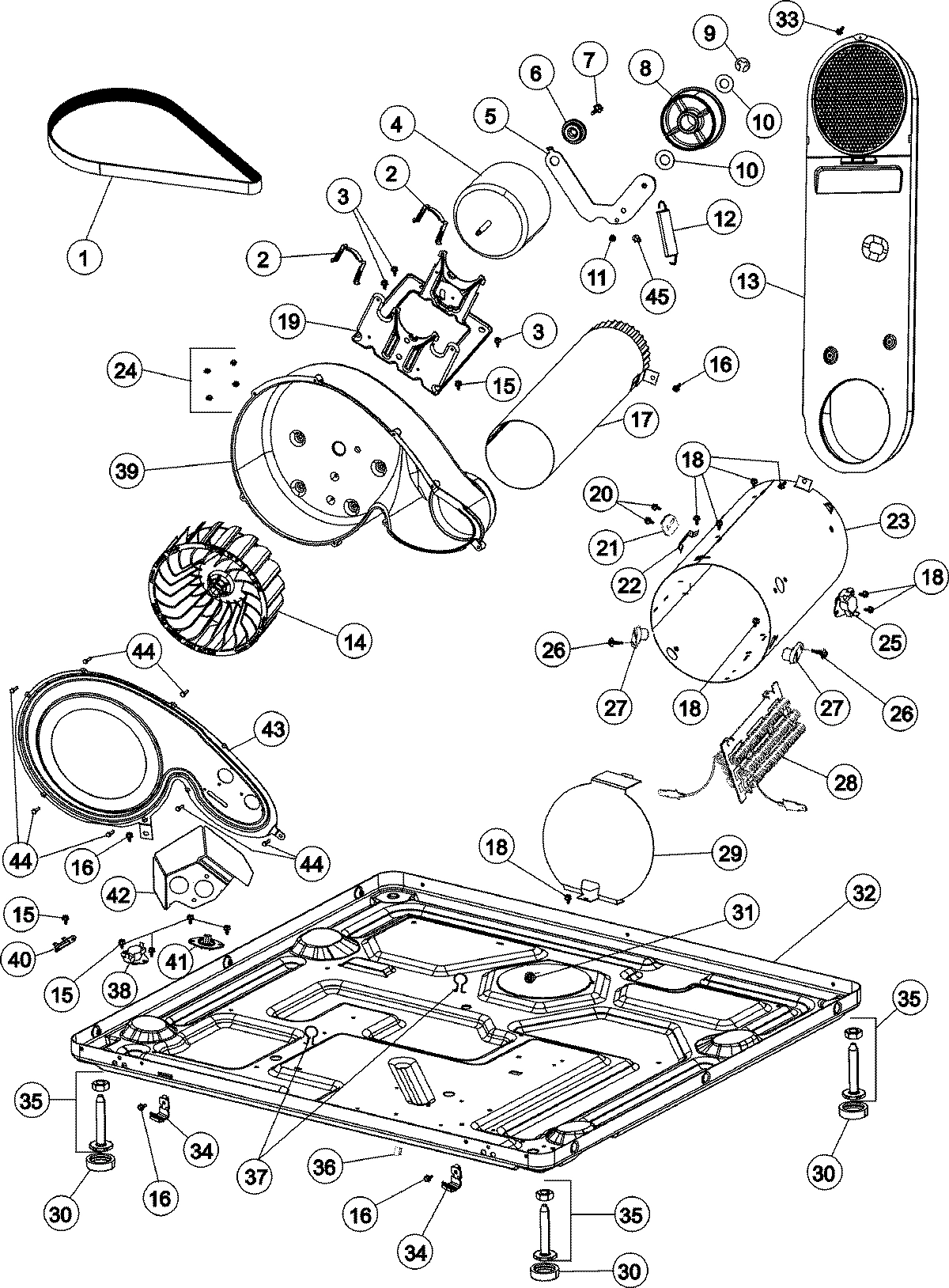

01 - BASE (ELEC)
04 - SUPPLEMENTAL INFORMATION

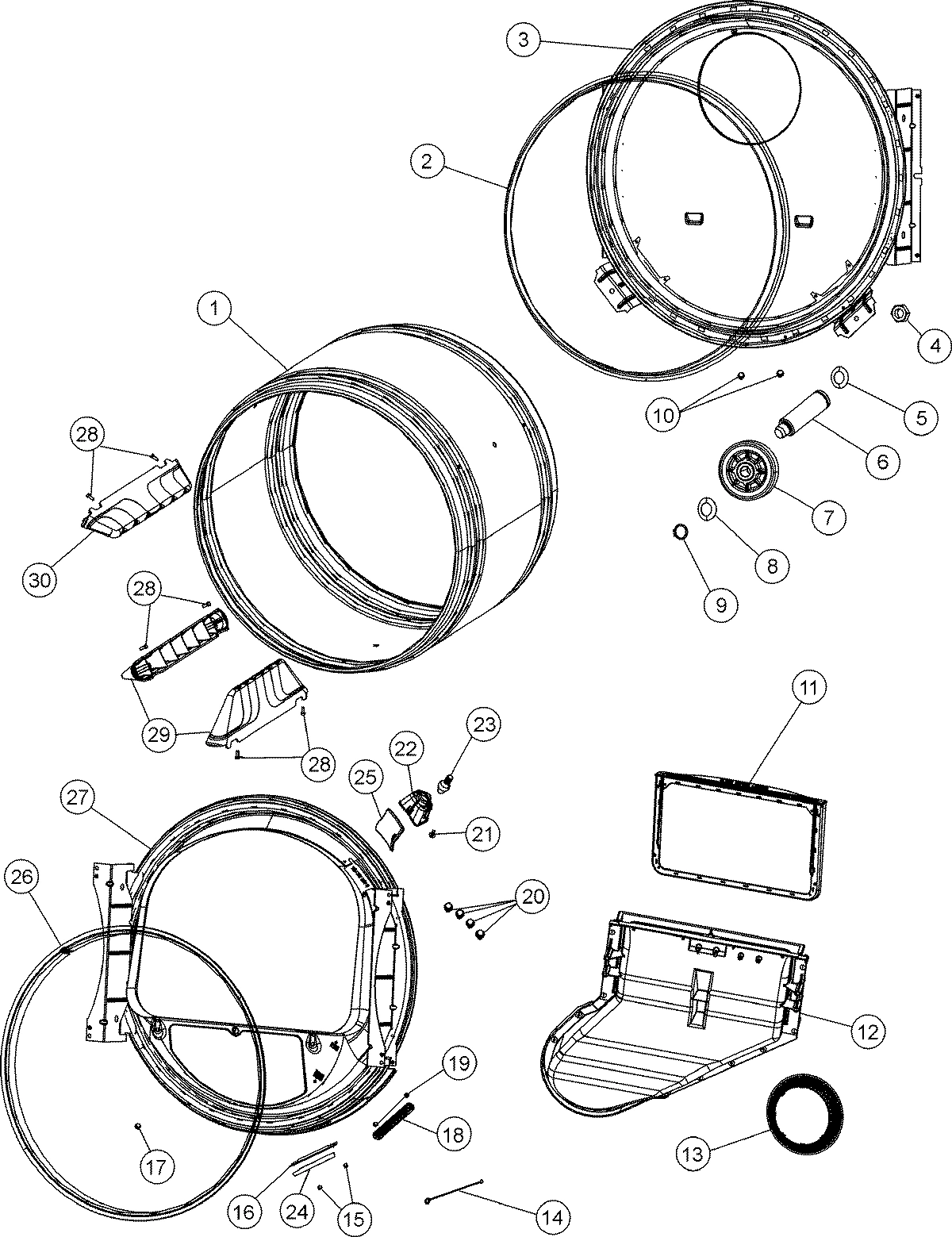

05 - TUMBLER

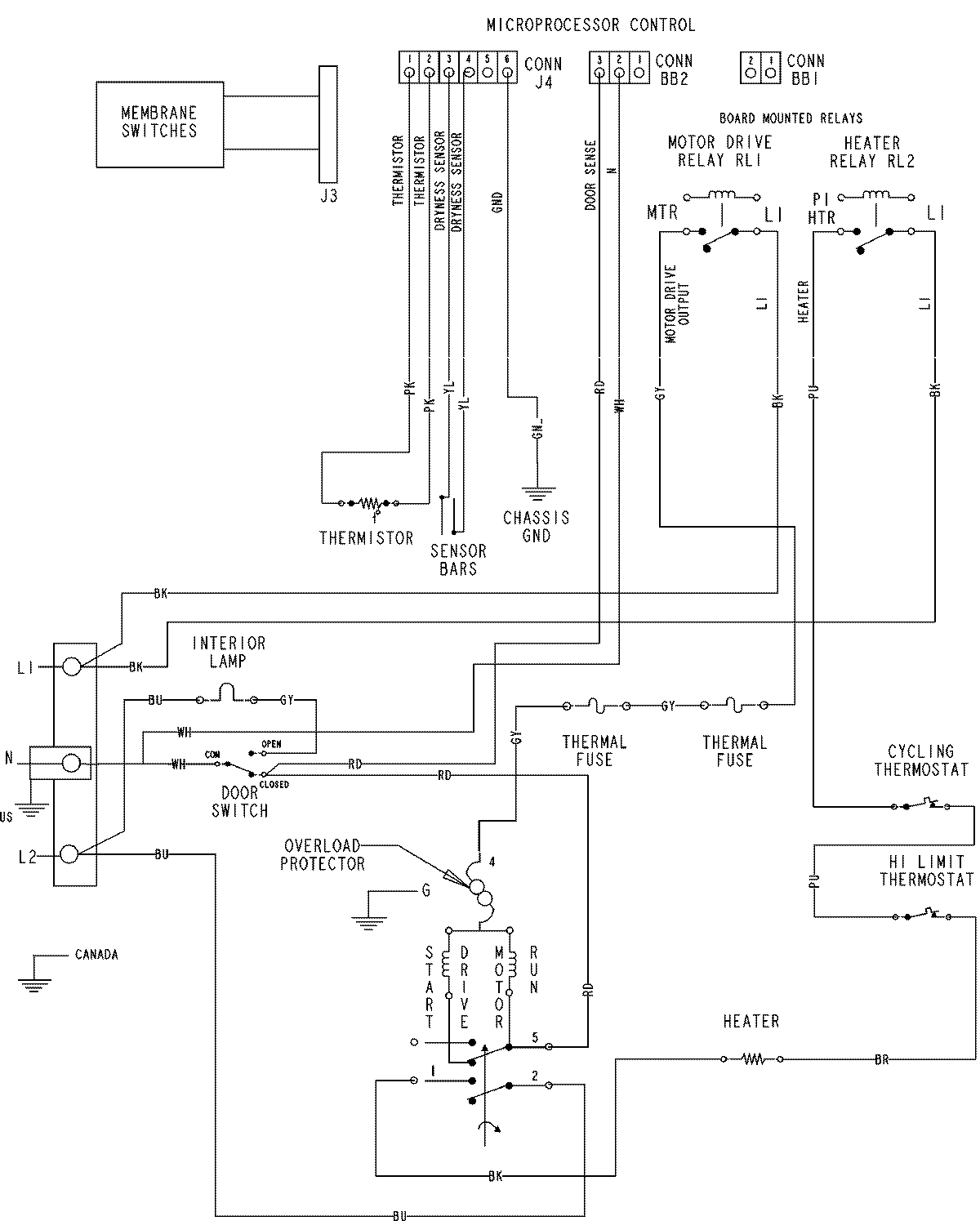

07 - WIRING INFORMATION

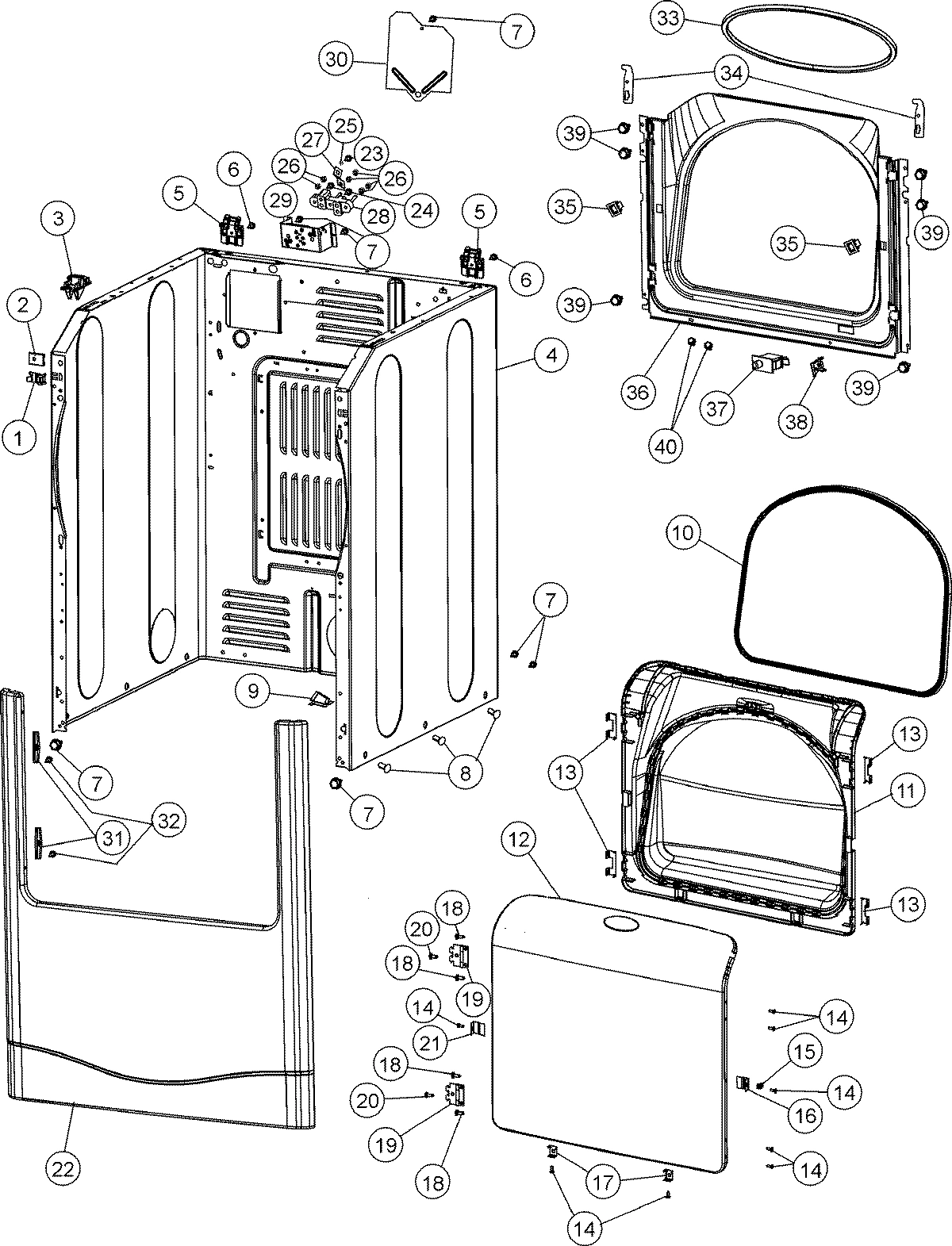

02 - CABINET

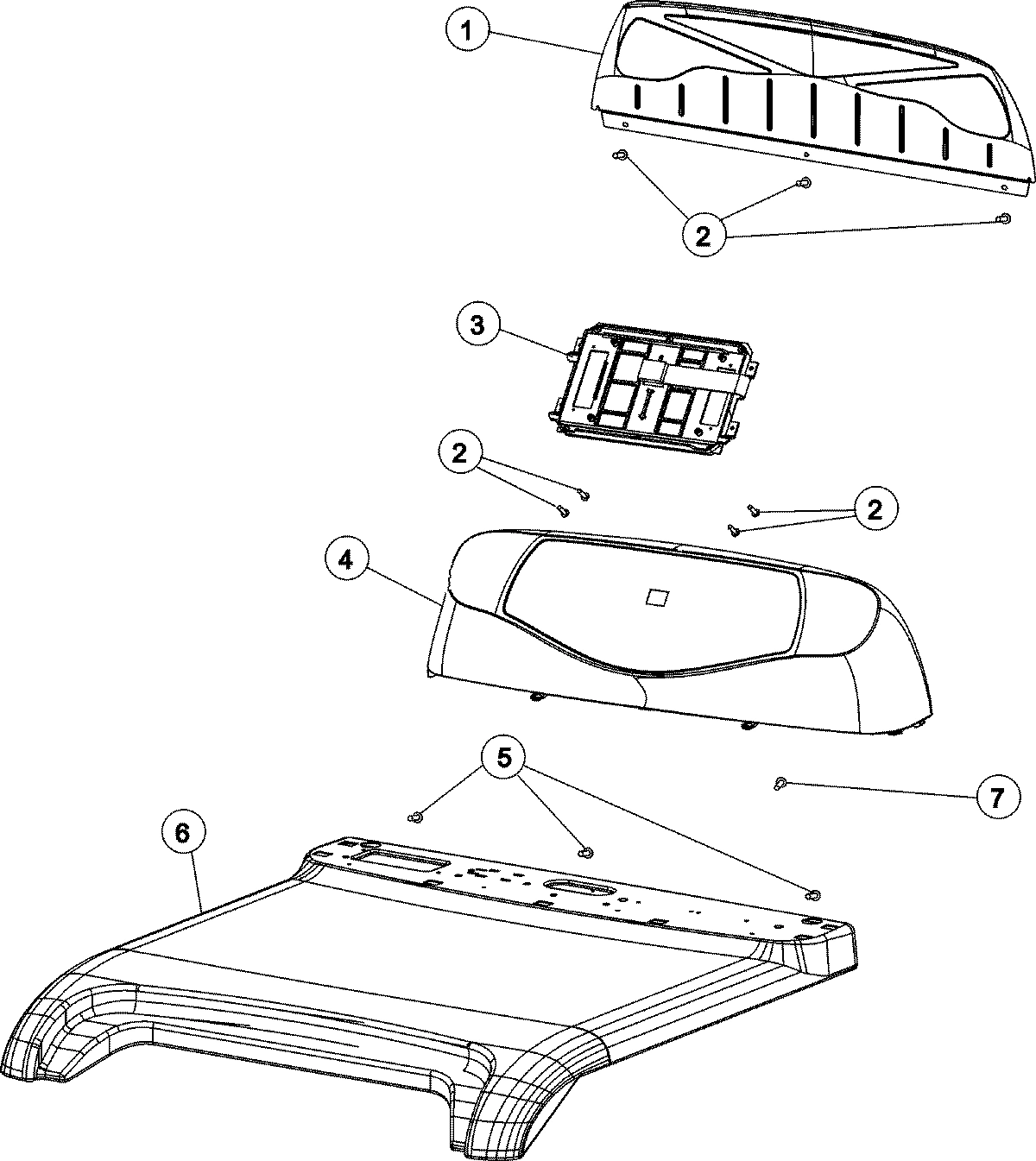

03 - CONTROL PANEL & TOP

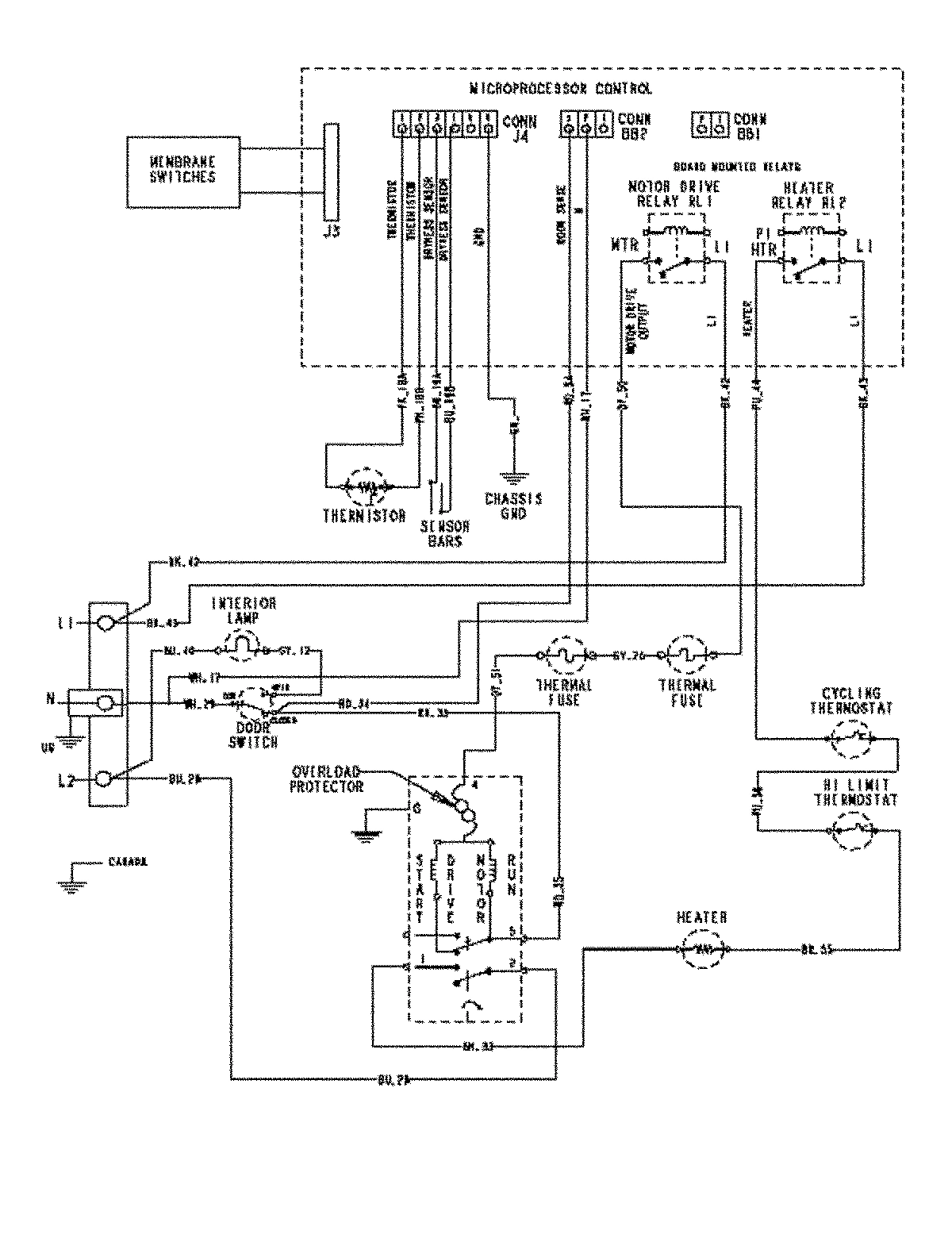

06 - WIRING INFORMATION
Common parts from model Whirlpool MDE6800AYW ELECTRIC DRYER
1
HARNESS, WIRE LED-ELEC WPL 33002931 Contact Us For Availability
1
HARNESS, WIRE LED WPL 33002954 Contact Us For Availability
1
WIRE HARNESS, LED LU WPL 33003011 Contact Us For Availability
1
TUMBLER WPL 33001794 Contact Us For Availability
1
CONSOLE BACK PANEL WPL 33002893 Contact Us For Availability
2
MANUAL, USE & CARE LED DRYER WPL 2206684 Contact Us For Availability
2
MANUAL, USE & CARE WPL 63901340 Contact Us For Availability
2
MANUAL, USE & CARE WPL Y2201987 Contact Us For Availability
2
FRONT PANEL BRACKET/FASTENER WPL 213280 Contact Us For Availability
2
SCREW, No.8-16 TRUSS HD WPL 25001021 Contact Us For Availability
3
MANUAL, SLOPED-FRONT DRYER WPL 16009968 Contact Us For Availability
3
TUMBLER BACK & SEAL AS-PACK WPL 33002779 Contact Us For Availability
3
PIN, LOCATOR WPL 33002891 Contact Us For Availability
3
CONTROL BOARD LED AS PK NTD WPL 33002898 Contact Us For Availability
3
LED CONTROL BOARD WPL 33002918 Contact Us For Availability
4
CABINET ASSY. (WHT AS PK) WPL 22003639 Contact Us For Availability
4
CONSOLE/MEMBRANE WHT AP NTD WPL 33002896 Contact Us For Availability
5
HINGE, PLASTIC WPL 22004095 Contact Us For Availability
6
TOP COVER - AS PACK (WHT) T WPL 33002884 Contact Us For Availability
7
SCREW (No.10-3/8``) WPL 33002190 Contact Us For Availability
8
BEARING, IDLER ASSEMBLY WPL 33001783 Contact Us For Availability
9
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
11
GROMMET, IDLER ARM WPL 33002218 Contact Us For Availability
11
DOOR, INNER W/SEAL (WHT) T WPL 33002889 Contact Us For Availability
12
OUTLET DUCT ASSEMBLY WPL 33001799 Contact Us For Availability
12
DOOR, OUTER W/MED. AS PK WHT T WPL 33002887 Contact Us For Availability
13
INLET DUCT ASSEMBLY (ELECTRIC) WPL 33002767 Contact Us For Availability
13
SEAL, BLOWER WPL 33002560 Contact Us For Availability
13
CLIP, DOOR (DOUBLE) WPL 22002038 Contact Us For Availability
14
SENSOR GROUND WIRE WPL Y303711 Contact Us For Availability
14
SCREW No.8-18AB WAFER HD WPL 22002063 Contact Us For Availability
15
STRIKE, DOOR (MALE) WPL 33001761 Contact Us For Availability
17
DUCT ASSY., EXHAUST WPL 33001800 Contact Us For Availability
17
SCREW----NA WPL 312311 Contact Us For Availability
17
CLIP, DOOR (SINGLE) WPL 22002039 Contact Us For Availability
18
SENSOR BAR ASSY. WPL 33001809 Contact Us For Availability
19
MOTOR SUPPORT, OFFSET WPL 33002817 Contact Us For Availability
21
SCREW WPL 33001871 Contact Us For Availability
21
PLUG, INNER DOOR WPL 33001763 Contact Us For Availability
22
BRACKET, THERMAL FUSE WPL 315346 Contact Us For Availability
22
HOLDER, LAMP (W/HOUSING) WPL 33001870 Contact Us For Availability
22
PANEL, FRONT AS PACK (WHT) T WPL 33002882 Contact Us For Availability
23
HEATER ENCLOSURE WPL 314995 Contact Us For Availability
24
SCREW WPL Y310632 Contact Us For Availability
24
BEARING PAD F/TUMBLER FRONT WPL 312940 Contact Us For Availability
25
LENS, DRUM LIGHT WPL 33001869 Contact Us For Availability
26
SCREW WPL 314554 Contact Us For Availability
27
INSULATOR, TERMINAL WPL 314998 Contact Us For Availability
27
FRONT, TUMBLER FRONT W/SENSOR WPL 33001868 Contact Us For Availability
27
STRAP, GROUND WPL Y312184 Contact Us For Availability
28
SCREW, BAFFLE WPL 33001788 Contact Us For Availability
29
SHIELD, RADIANT WPL 314999 Contact Us For Availability
29
BRACKET, TERMINAL BLOCK----NA WPL 33001826 Contact Us For Availability
30
COVER, TERMINAL BLOCK WPL 33001795 Contact Us For Availability
31
GROMMET WPL 33002157 Contact Us For Availability
32
BASE, (LWR)----NA WPL 33002465 Contact Us For Availability
33
SCREW, No.8 X 9/16 CTSK WPL 210932 Contact Us For Availability
33
SEAL, SHROUD WPL 33001767 Contact Us For Availability
34
CLIP, LOWER FRONT PANEL WPL 22002239 Contact Us For Availability
34
HOOK, SECURITY WPL 22002247 Contact Us For Availability
35
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
36
CLIP, GROUNDING WPL 22002244 Contact Us For Availability
36
SHROUD (WHT) WPL 33001778 Contact Us For Availability
37
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
38
BRACKET, HINGE WPL 33001760 Contact Us For Availability
40
SCREW, SHROUD WPL 33001768 Contact Us For Availability
41
THERMISTOR, TEMP. CONTROL WPL 307208 Contact Us For Availability
42
COVER, THERMOSTAT WPL 33001766 Contact Us For Availability
43
COVER, BLOWER HOUSING WPL 33002711 Contact Us For Availability
45
PLUG FOR SPRING WPL 33002461 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003536 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003448 Contact Us For Availability
× ![]()
