Model Whirlpool MDE21PDAYW ELECTRIC DRYER – Common Parts & Diagrams

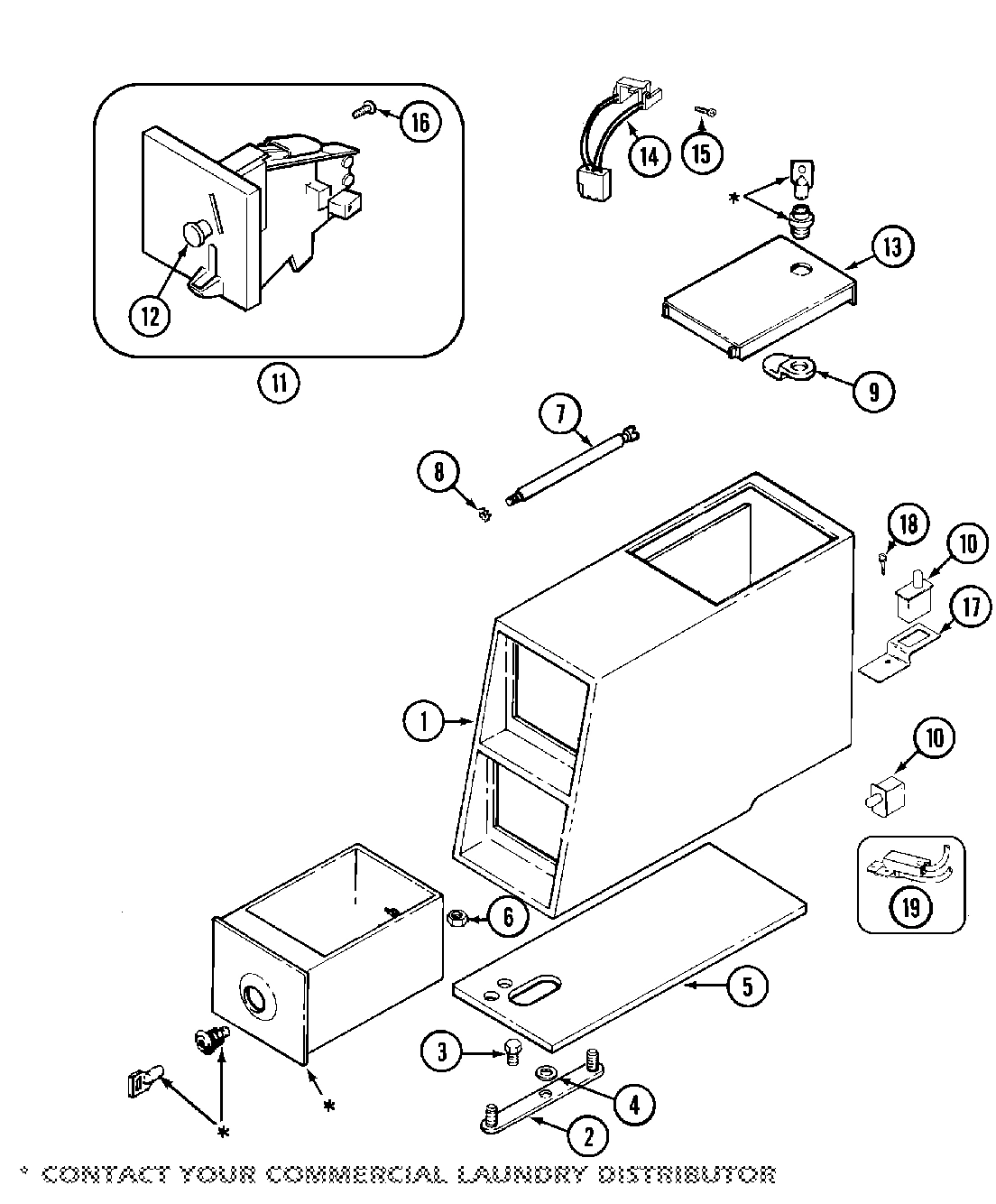

02 - CONTROL CENTER

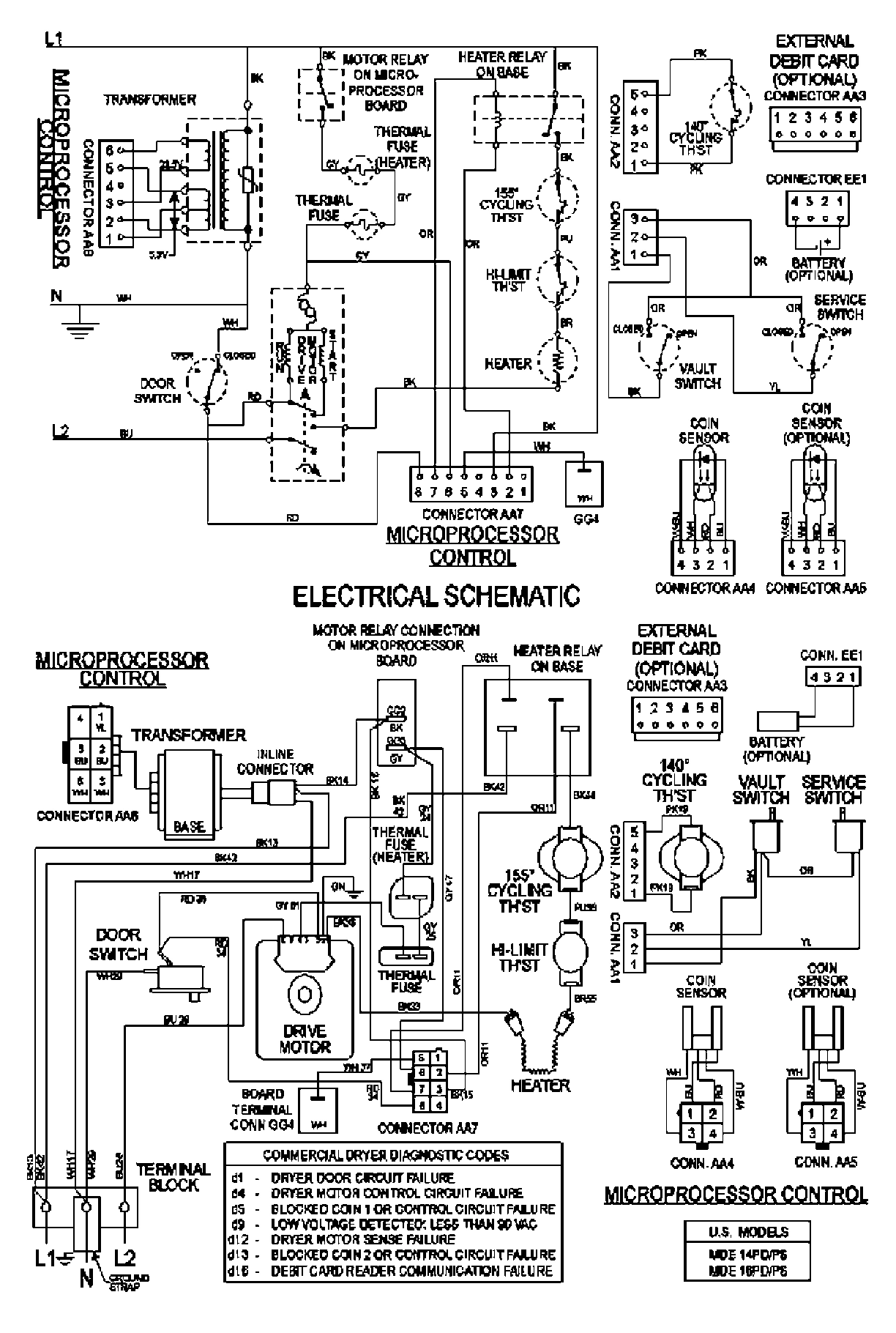

09 - WIRING INFORMATION

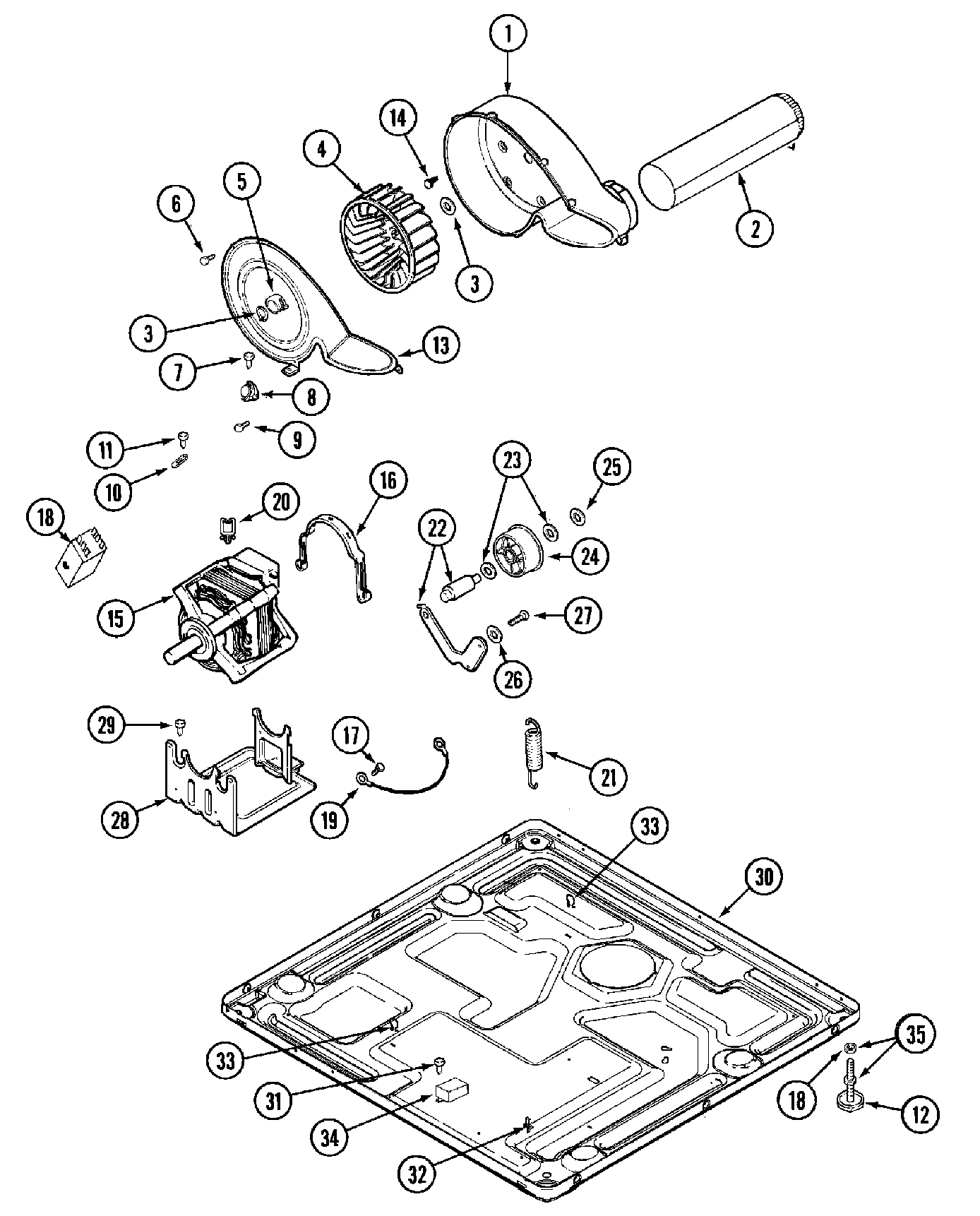

08 - MOTOR DRIVE

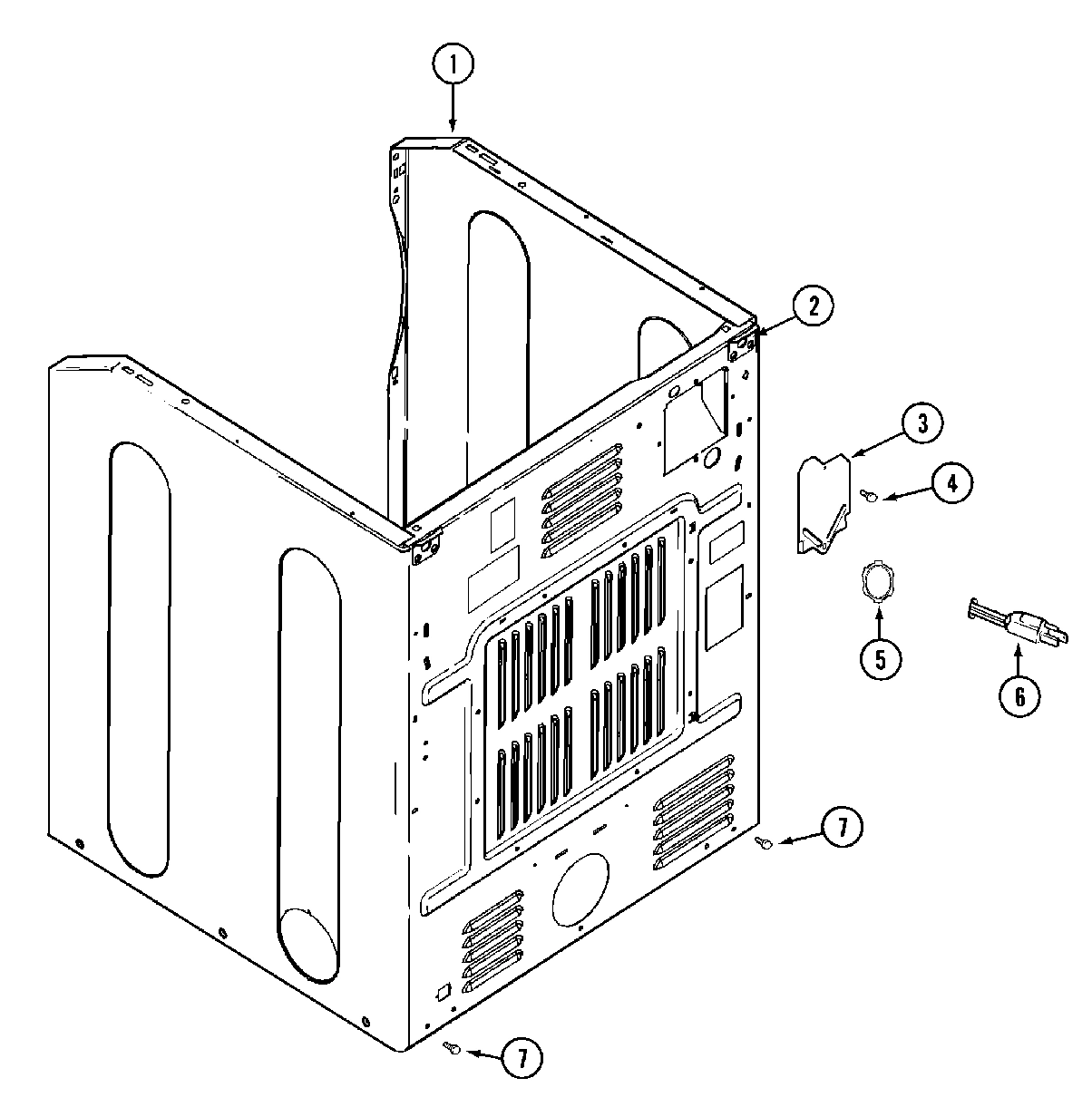

05 - CABINET-REAR
07 - HEATER

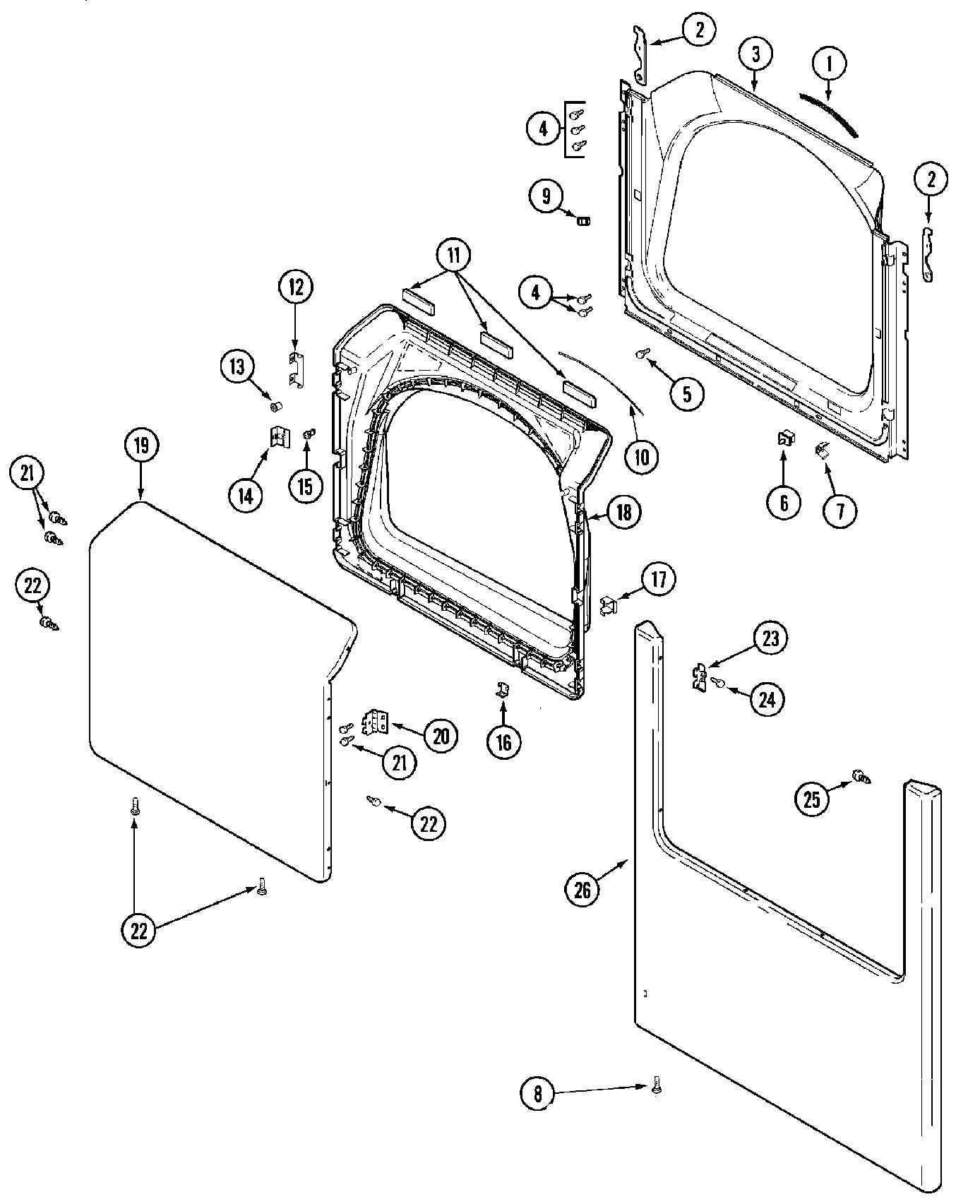

04 - DOOR

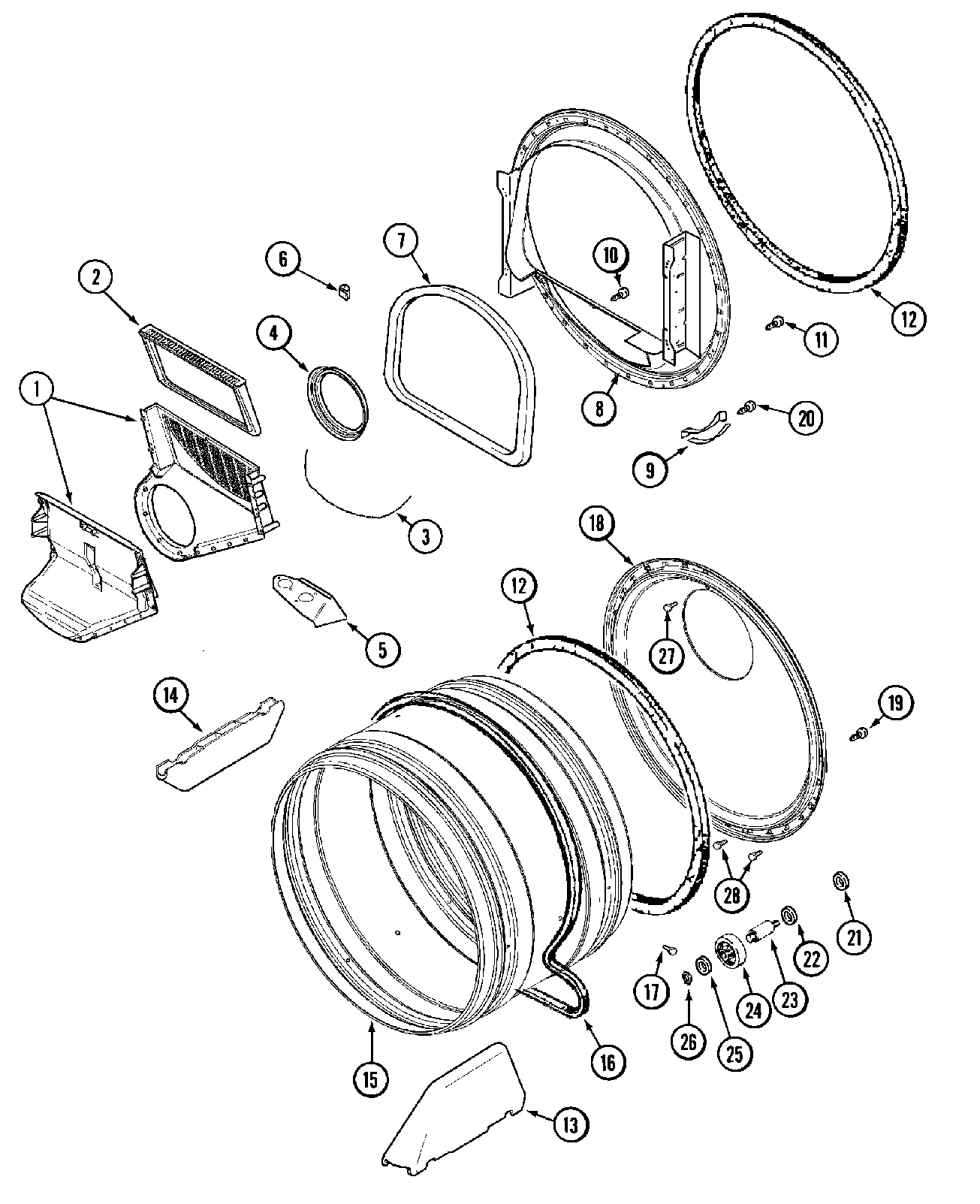

06 - TUMBLER

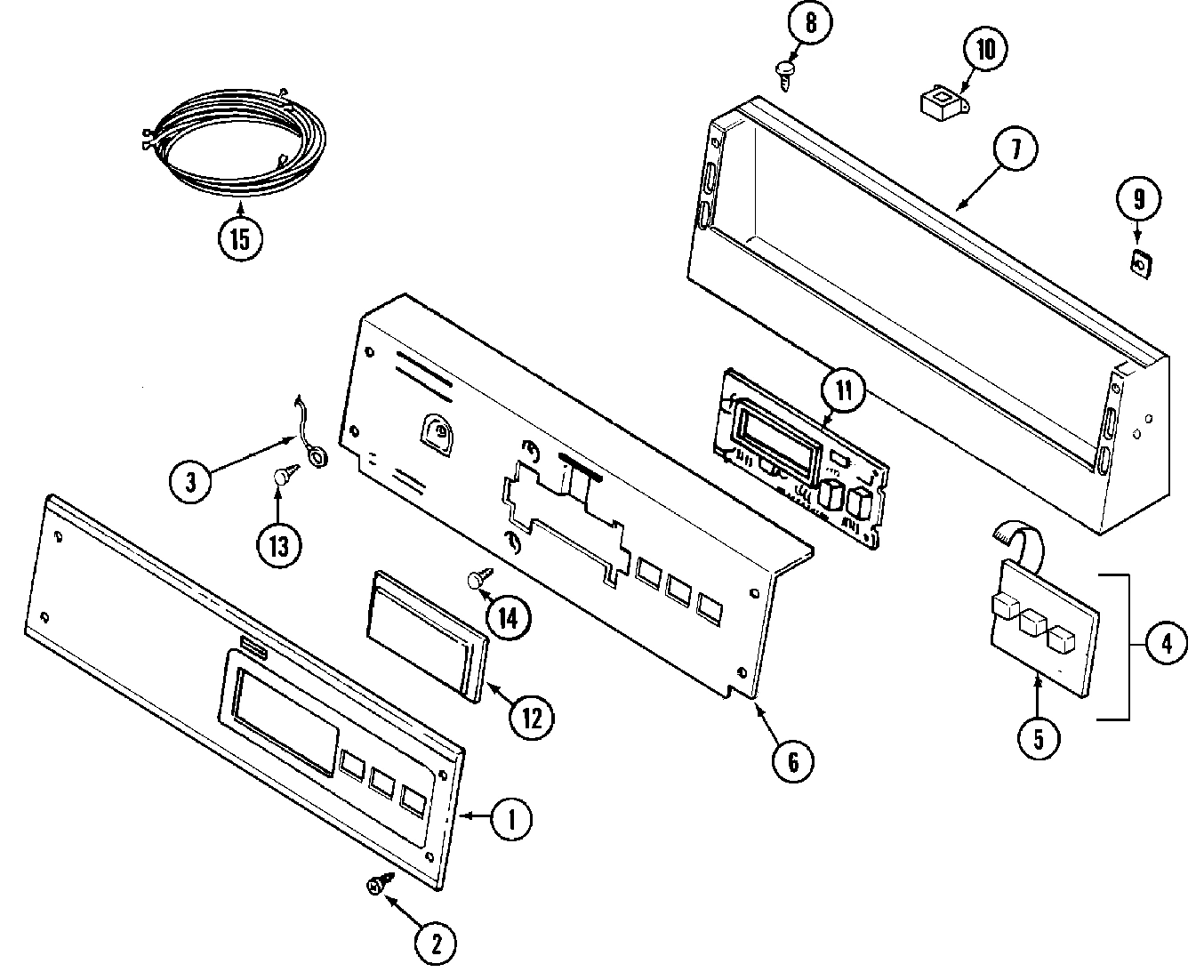

01 - CONTROL PANEL

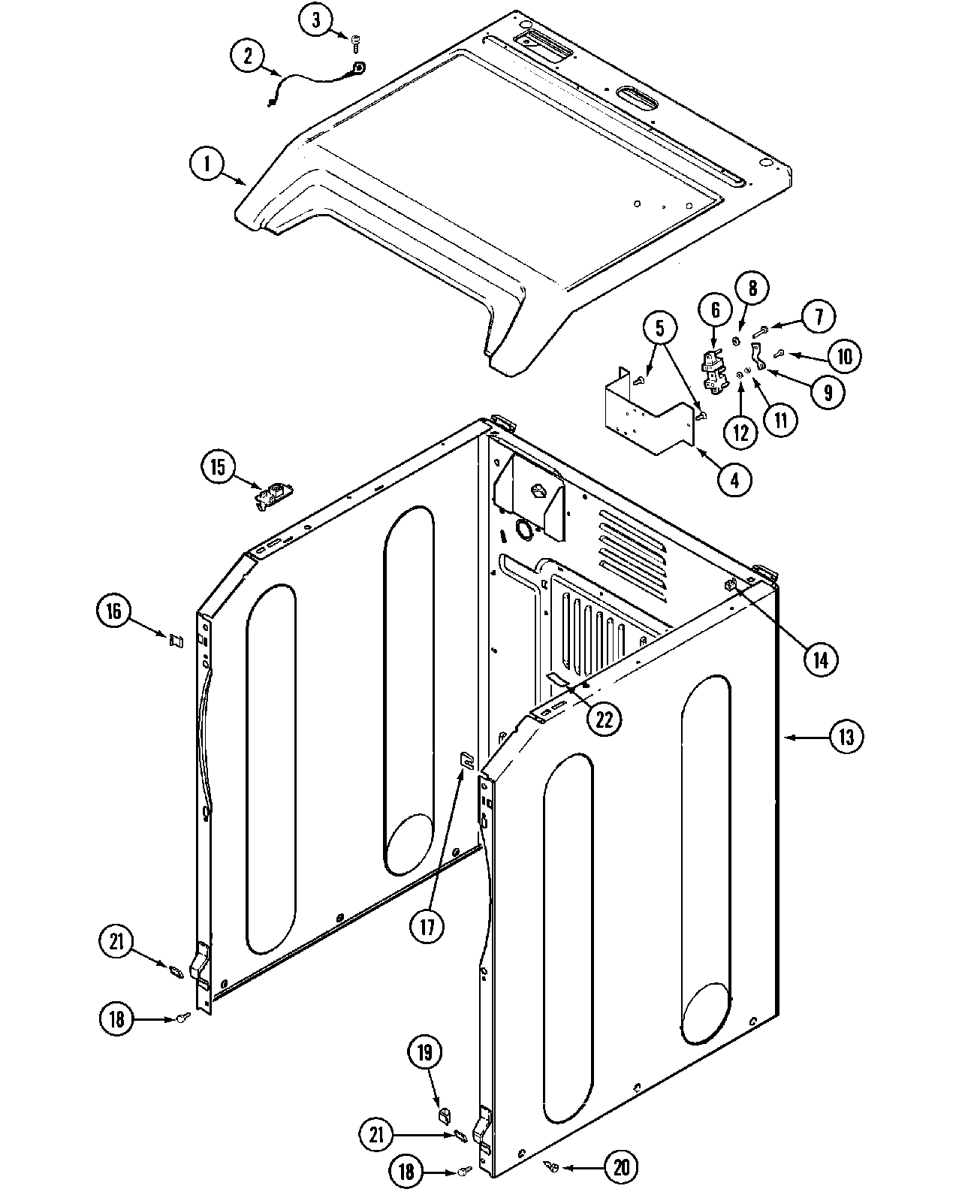

03 - CABINET-FRONT
Common parts from model Whirlpool MDE21PDAYW ELECTRIC DRYER
001
OUTLET DUCT ASSEMBLY WPL 33001799 Contact Us For Availability
001
CONTROL PANEL WPL 33002667 Contact Us For Availability
001
USE & CARE MANUAL WPL 33002671 Contact Us For Availability
001
COVER, TOP (WHT-AS PK) WPL 33002629 Contact Us For Availability
001
COVER, TOP (BSQ-AS PK) WPL 33002630 Contact Us For Availability
002
DUCT ASSY., EXHAUST WPL 33001800 Contact Us For Availability
002
HINGE, PLASTIC WPL 22003367 Contact Us For Availability
002
DUCT ASSY., INLET WPL 33001803 Contact Us For Availability
002
HOOK, SECURITY WPL 22002033 Contact Us For Availability
002
WIRE, GROUND WPL 22001959 Contact Us For Availability
003
COVER, TERMINAL BLOCK WPL 33001795 Contact Us For Availability
003
HEATER ENCLOSURE WPL 314995 Contact Us For Availability
003
SHROUD (WHT) WPL 33001778 Contact Us For Availability
003
SHROUD (BSQ) WPL 33002379 Contact Us For Availability
004
INSULATOR, TERMINAL WPL 314998 Contact Us For Availability
004
SEAL, BLOWER WPL 33001758 Contact Us For Availability
004
CONTROL SWITCH ASSEMBLY WPL 306694 Contact Us For Availability
005
GASKET, CONTROL CENTER (WHT) WPL 22002072 Contact Us For Availability
005
GASKET (BSQ) WPL 22002618 Contact Us For Availability
005
LOCKNUT, EARED FOR CANADIAN WPL 33001425 Contact Us For Availability
005
SCREW, SHROUD & OUTLET DUCT WPL 33001768 Contact Us For Availability
005
COVER, THERMOSTAT (ELEC ONLY) WPL 33001837 Contact Us For Availability
006
CORD, POWER (CANADA) WPL 305168 Contact Us For Availability
006
SHIELD, RADIANT WPL 314999 Contact Us For Availability
006
DEFLECTOR, WATER (W/ADHESIVE) WPL 22001511 Contact Us For Availability
006
BRACKET, BACK (WHT) WPL 33002519 Contact Us For Availability
007
BOLT, LOCKING WPL 213035 Contact Us For Availability
007
SEAL, SHROUD WPL 33001767 Contact Us For Availability
007
BRACKET, HINGE WPL 33001760 Contact Us For Availability
007
CONSOLE (BSQ) WPL 22002889 Contact Us For Availability
007
CONSOLE (WHT) WPL 22003089 Contact Us For Availability
008
FRONT, TUMBLER (W/SEAL) WPL 33001802 Contact Us For Availability
008
LOCKWASHER, LOCKING BOLT WPL 910181 Contact Us For Availability
009
CLIP, SCREW WPL 215003 Contact Us For Availability
009
STRAP, GROUND WPL Y312184 Contact Us For Availability
010
SCREW, TRANSFORMER WPL 211251 Contact Us For Availability
011
SINGLE FACEPLATE WPL 22002144 Contact Us For Availability
011
DUAL FACEPLATE WPL 22003815 Contact Us For Availability
011
SINGLE FACEPLATE ASSEMBLY WPL 33002647 Contact Us For Availability
011
COIN DROP-U.S. (0.25) WPL 33002648 Contact Us For Availability
011
PAD, DOOR WPL 33001268 Contact Us For Availability
011
SPACER CIRCUIT BOARD WPL Y215513 Contact Us For Availability
012
BUTTON, RETURN WPL 216200 Contact Us For Availability
012
CLIP, DOOR (DOUBLE) WPL 22002038 Contact Us For Availability
013
CABINET ASSY (WHT-AS PK) WPL NLA Contact Us For Availability
013
DOOR, ACCESS (WHT) WPL 22001910 Contact Us For Availability
013
DOOR, ACCESS (BSQ) WPL 22002886 Contact Us For Availability
013
COVER, BLOWER HOUSING WPL 33001796 Contact Us For Availability
013
BRACKET, THERMAL FUSE WPL 315346 Contact Us For Availability
013
BUSHING, INNER DOOR WPL 33001771 Contact Us For Availability
014
SCREW, BLOWER HOUSING WPL 314818 Contact Us For Availability
014
SCREW, CONTROL BOARD WPL 215526 Contact Us For Availability
014
FASTENER WPL 310933 Contact Us For Availability
015
CONVERSION KIT (240V TO 208V) WPL Y308590 Contact Us For Availability
015
STRIKE, DOOR (MALE) WPL 33001761 Contact Us For Availability
015
TUMBLER WPL 33001794 Contact Us For Availability
015
READER HARNESS KIT (16``) WPL 33001856 Contact Us For Availability
015
WIRE HARNESS, MAIN WPL 33001878 Contact Us For Availability
015
LOCATOR, PIN WPL 33001757 Contact Us For Availability
016
SCREW, COIN DROP WPL 216068 Contact Us For Availability
017
BRACKET, SWITCH WPL 22001404 Contact Us For Availability
017
PLUG, INNER DOOR WPL 33001763 Contact Us For Availability
017
SCREW, BAFFLE WPL 33001788 Contact Us For Availability
018
CLIP, DOOR (SINGLE) WPL 22002039 Contact Us For Availability
018
BACK, TUMBLER (W/SEAL) WPL 33001801 Contact Us For Availability
019
HARNESS, SENSOR SWITCH WPL 22001966 Contact Us For Availability
019
WIRE, GROUND WPL 901220 Contact Us For Availability
019
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
019
DOOR, OUTER (WHT) WPL 22003785 Contact Us For Availability
019
DOOR, OUTER (BSQ) WPL 22003786 Contact Us For Availability
019
SCREW (No.10-3/8``) WPL 33002190 Contact Us For Availability
021
GROMMET WPL 33002157 Contact Us For Availability
021
PLUG FOR SPRING WPL 33002461 Contact Us For Availability
021
CLIP, LOWER FRONT PANEL WPL 22002239 Contact Us For Availability
021
FASTENER, FRONT PANEL WPL 213280 Contact Us For Availability
022
SCREW No.8-18AB WAFER HD WPL 22002063 Contact Us For Availability
022
SCREW (No.8-18 OUTER DOOR (BSQ) WPL 33002351 Contact Us For Availability
022
STRAP, TOP COVER SUPPORT WPL 33001836 Contact Us For Availability
023
COVER, HINGE HOLE (BSQ) WPL 33002349 Contact Us For Availability
024
BEARING, IDLER ASSEMBLY WPL 33001783 Contact Us For Availability
025
CLIP, GROUNDING WPL 22002244 Contact Us For Availability
026
PANEL, FRONT (WHT) WPL 22002241 Contact Us For Availability
026
PANEL, FRONT (BSQ) WPL 33002396 Contact Us For Availability
027
SCREW, INLET DUCT WPL 210932 Contact Us For Availability
028
SUPPORT, MOTOR WPL 33002466 Contact Us For Availability
029
SCREW, MOTOR & BLOWER WPL Y313561 Contact Us For Availability
032
RETAINER, WIRE WPL 315471 Contact Us For Availability
033
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
034
RELAY, HEATER WPL 306199 Contact Us For Availability
035
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
× ![]()
