Model Whirlpool MDE12PDACL ELECTRIC DRYER – Common Parts & Diagrams
04 - TUMBLER
07 - HEATER

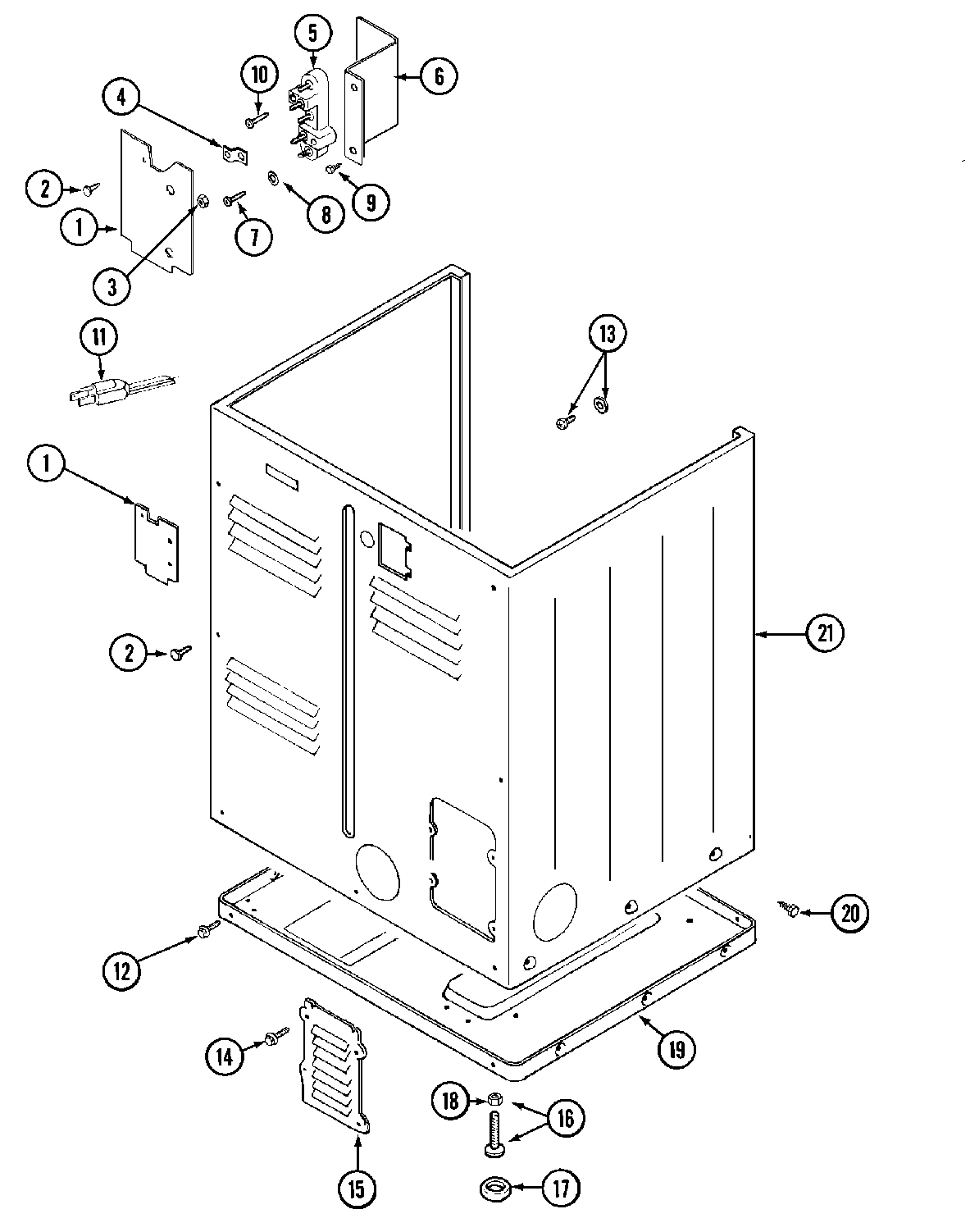

08 - CABINET-REAR

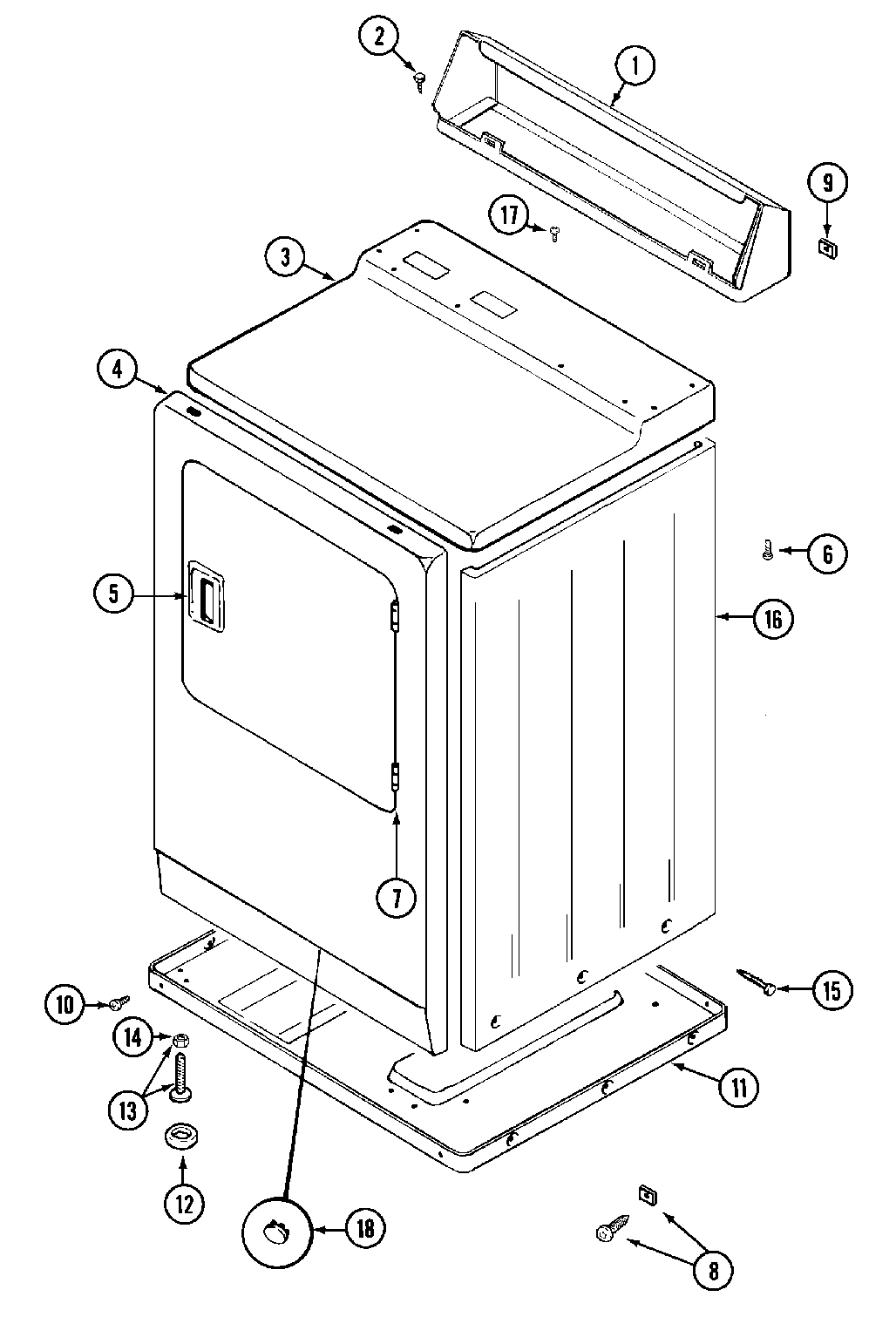

03 - CABINET-FRONT

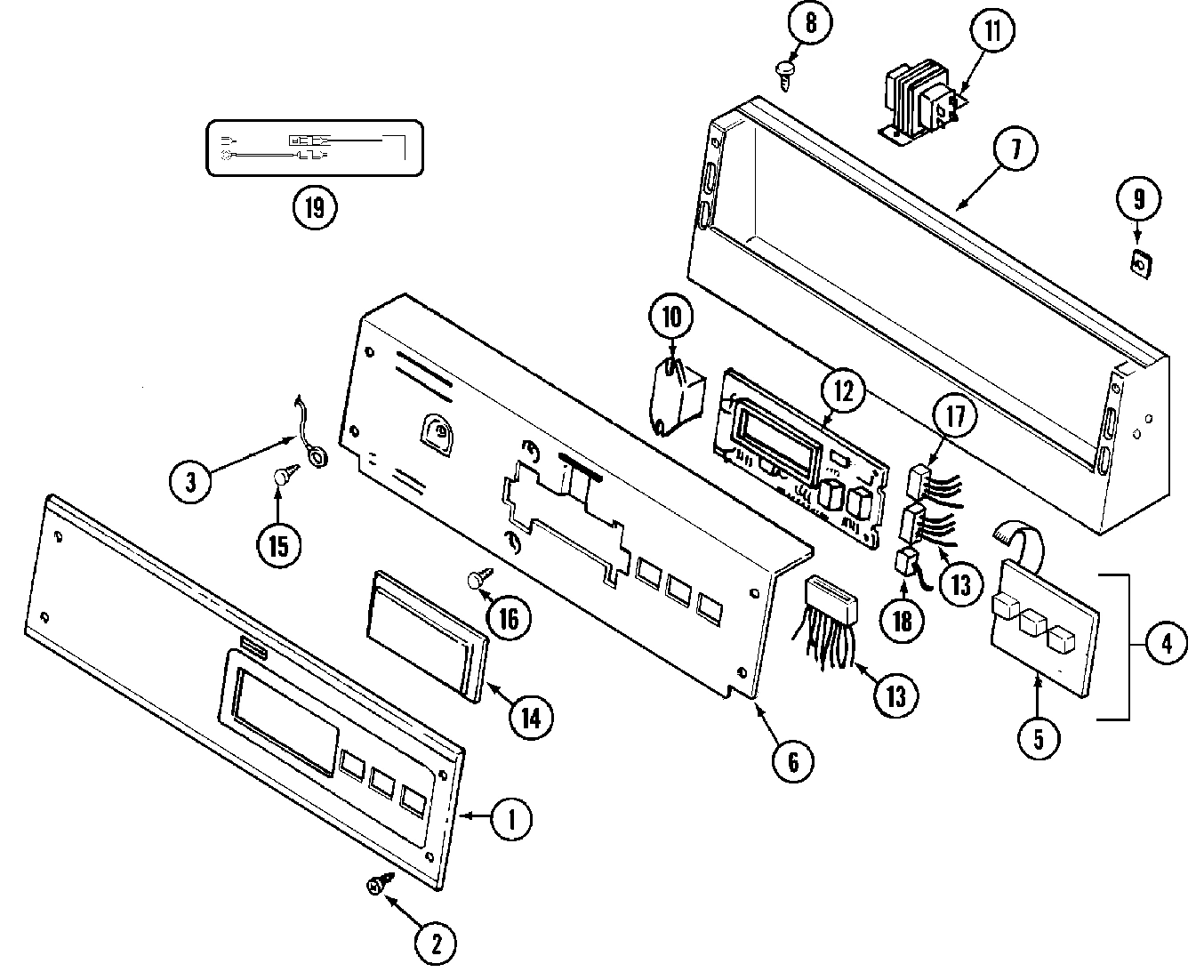

01 - CONTROL PANEL

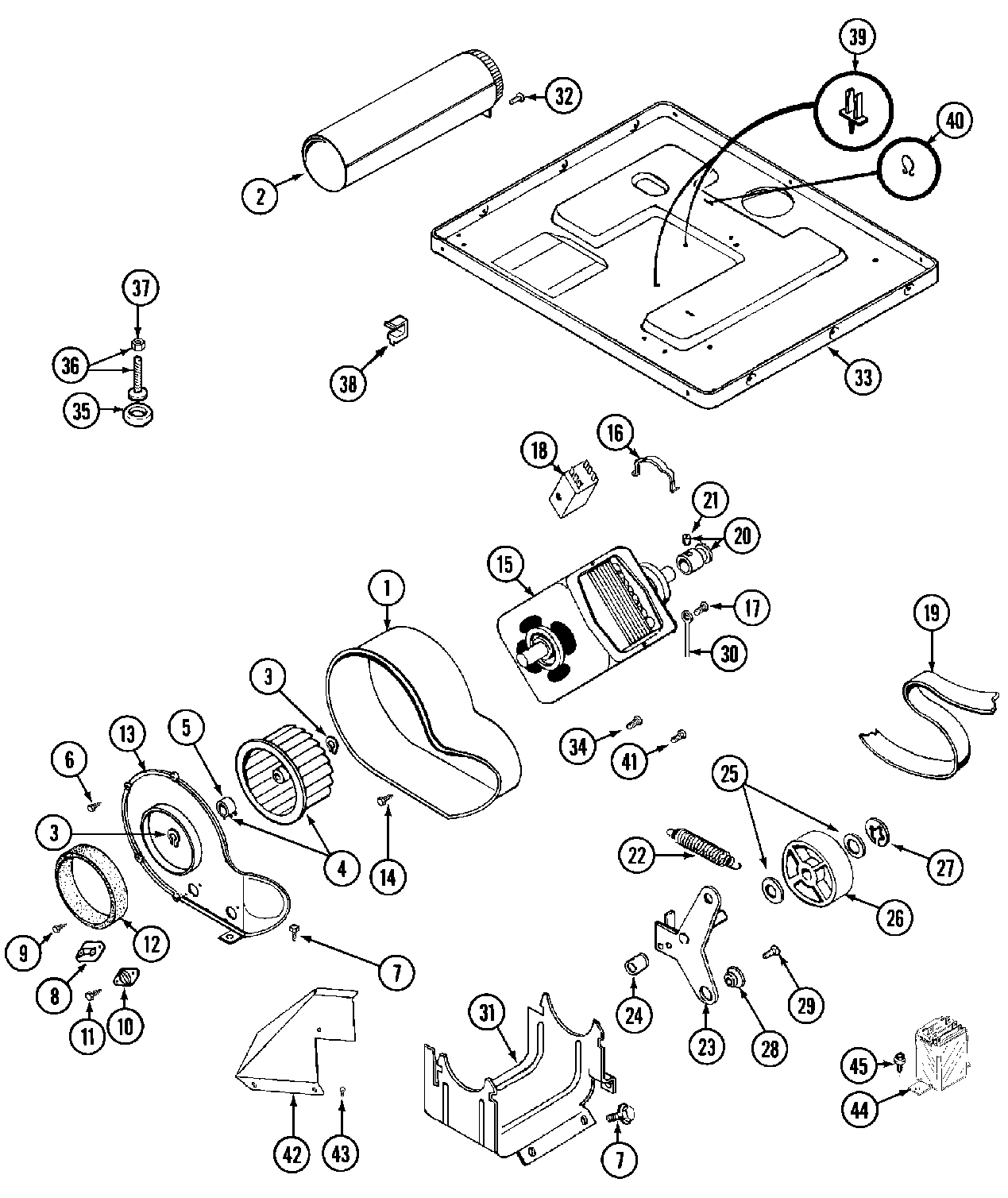

05 - MOTOR DRIVE
06 - DOOR

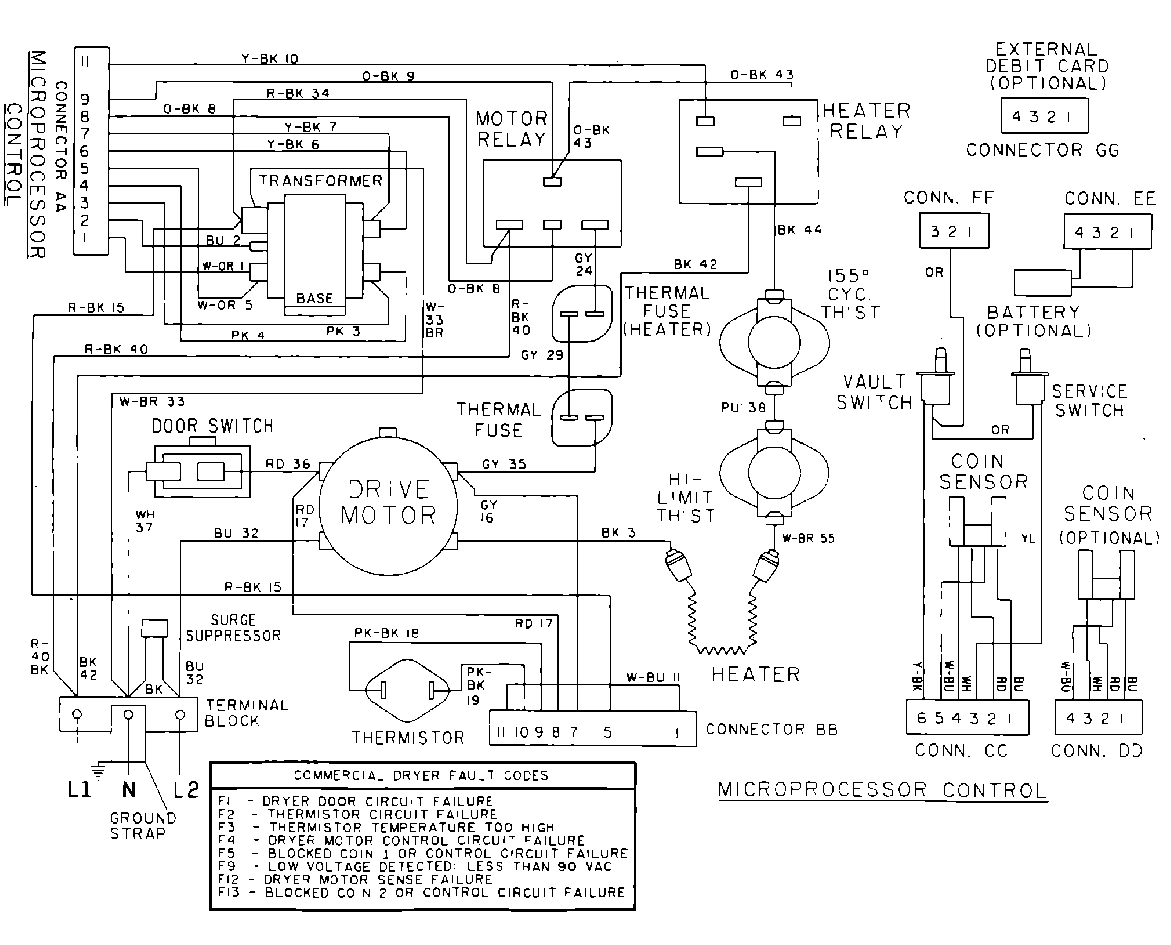

09 - WIRING INFORMATION

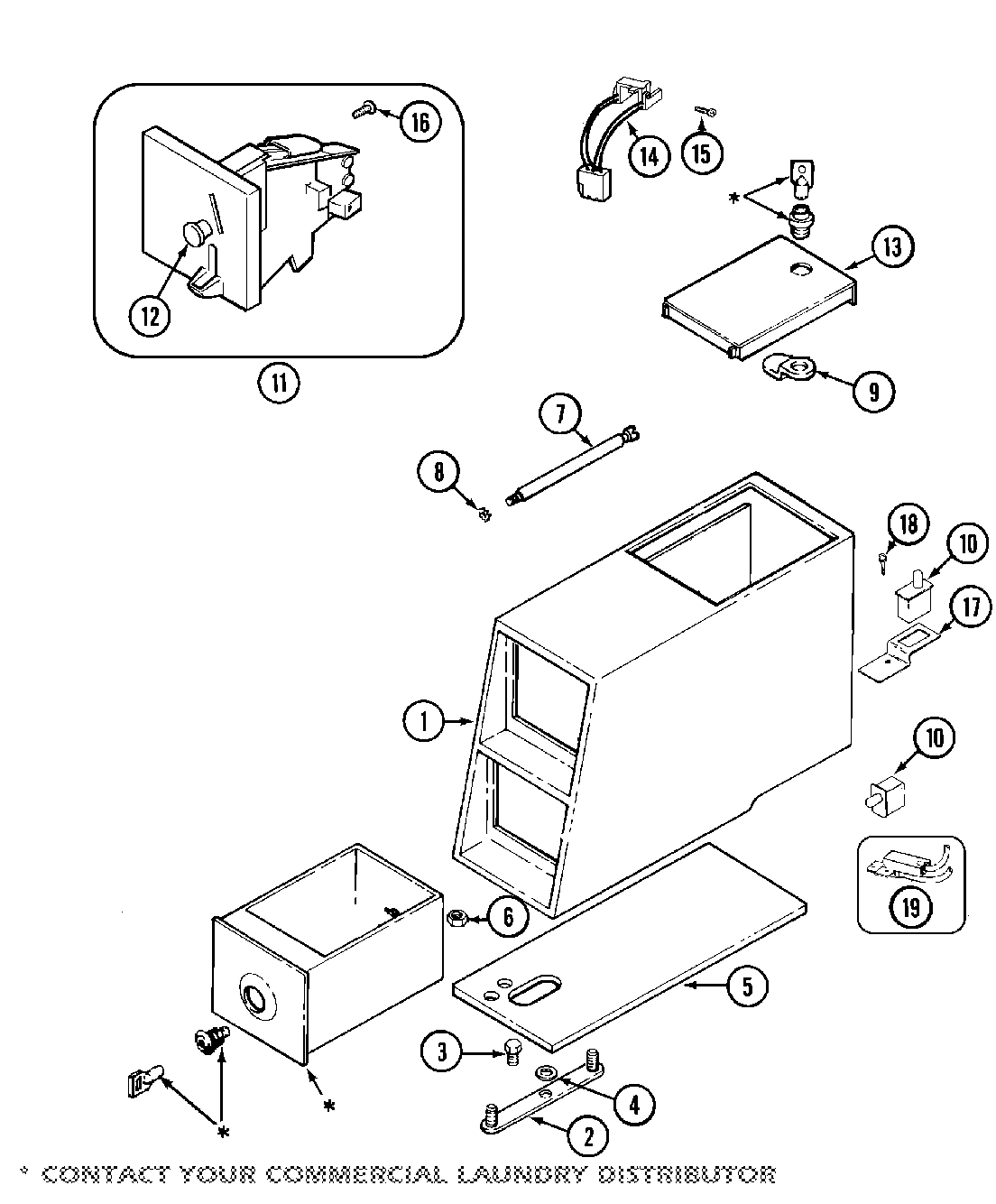

02 - CONTROL CENTER
Common parts from model Whirlpool MDE12PDACL ELECTRIC DRYER
001
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
001
COVER, TERMINAL WPL Y312905 Contact Us For Availability
001
SCREW,HINGE,DOOR,& PANEL WPL Y314062 Contact Us For Availability
002
DUCT, INLET WPL 308503 Contact Us For Availability
002
HINGE, DOOR WPL 33001230 Contact Us For Availability
002
EXHAUST DUCT ASSEMBLY WPL Y303442 Contact Us For Availability
002
STRAP, MOUNTING WPL 22001810 Contact Us For Availability
003
ENCLOSURE, HEATER WPL 314995 Contact Us For Availability
003
COVER, TOP (WHT) WPL 33001703 Contact Us For Availability
003
WIRE, GROUND WPL 205810 Contact Us For Availability
003
DOOR (WHT) WPL 33001240 Contact Us For Availability
003
(ALM) WPL 33001257 Contact Us For Availability
004
INSULATOR, TERMINAL WPL 314998 Contact Us For Availability
004
STRAP, GROUND WPL Y312184 Contact Us For Availability
004
(ALM) WPL 33001254 Contact Us For Availability
004
CONTROL SWITCH ASSEMBLY WPL 306694 Contact Us For Availability
004
WASHER, STRAP SCREW WPL 910309 Contact Us For Availability
005
HANDLE, DOOR (WHT) WPL 33001241 Contact Us For Availability
005
SUB-ASSEMBLY, HEATER (208V) (W/1, 3, 5 & 7) WPL Y308613 Contact Us For Availability
005
SEAL, DOOR WPL 33001131 Contact Us For Availability
005
GASKET, COIN VAULT (WHT) WPL 22001870 Contact Us For Availability
005
(ALM) WPL 22001874 Contact Us For Availability
006
SHIELD, RADIANT WPL 314999 Contact Us For Availability
006
BRACKET, TERMINAL BLOCK WPL Y312904 Contact Us For Availability
006
SCREW, TOP COVER WPL 214354 Contact Us For Availability
006
PLUG, DOOR (WHT) WPL 33001132 Contact Us For Availability
006
(ALM) WPL 33001168 Contact Us For Availability
007
SCREW, HOUSING COVER WPL Y313561 Contact Us For Availability
007
BOLT, LOCKING WPL 213035 Contact Us For Availability
008
THERMISTOR TEMP CONTROL WPL 306056 Contact Us For Availability
008
LOCKWASHER, LOCKING BOLT WPL 910181 Contact Us For Availability
009
CAM, LOCKING WPL NLA Contact Us For Availability
009
HEATER ASSEMBLY (COMPLETE) WPL 307181 Contact Us For Availability
009
FASTENER, CONSOLE WPL 215075 Contact Us For Availability
009
CLIP, SCREW WPL 215003 Contact Us For Availability
009
CLIP, CABLE WPL Y310376 Contact Us For Availability
010
RELAY, MOTOR (SPST) WPL 206824 Contact Us For Availability
010
SCREW, SENSOR SWITCH WPL 912012 Contact Us For Availability
011
CORD, POWER (CANADA) WPL 305168 Contact Us For Availability
011
LOCKNUT, EARED FOR CANADIAN WPL 33001425 Contact Us For Availability
011
BASE ASSEMBLY WPL Y303361 Contact Us For Availability
011
TRANSFORMER WPL 207766 Contact Us For Availability
011
SEAL, FRONT PANEL WPL 314937 Contact Us For Availability
011
COIN DROP ASY (CAN) WPL 22001875 Contact Us For Availability
011
SINGLE FACEPLATE WPL 22002144 Contact Us For Availability
012
SPACER CIRCUIT BOARD WPL Y215513 Contact Us For Availability
012
BUTTON, RETURN WPL 216200 Contact Us For Availability
013
BRACKET, THERMAL FUSE WPL 315346 Contact Us For Availability
013
CONNECTOR, EDGEBOARD WPL 314531 Contact Us For Availability
013
COVER, BLOWER HOUSING WPL 314778 Contact Us For Availability
013
DOOR, ACCESS (WHT) WPL 22001910 Contact Us For Availability
013
(ALM) WPL 22001911 Contact Us For Availability
014
SCREW, TUMBLER BAFFLE WPL Y310759 Contact Us For Availability
014
CONVERSION KIT (240V TO 208V) WPL Y308590 Contact Us For Availability
014
COVER, DISPLAY WPL 33001208 Contact Us For Availability
014
OPTIC SWITCH ASSY. (6 WIRE) WPL 206799 Contact Us For Availability
014
SCREW, BLOWER HOUSING WPL 314818 Contact Us For Availability
015
BACK, TUMBLER (W/SEAL) WPL 33001178 Contact Us For Availability
015
COVER, ACCESS WPL Y312951 Contact Us For Availability
015
COVER, HINGE HOLE (WHT) WPL 33001175 Contact Us For Availability
015
(ALM) WPL 33001176 Contact Us For Availability
016
SCREW, CONTROL BOARD WPL 215526 Contact Us For Availability
016
FASTENER, INNER DOOR WPL Y313910 Contact Us For Availability
016
SCREW, COIN DROP WPL 216068 Contact Us For Availability
017
BRACKET, SWITCH WPL 22001404 Contact Us For Availability
018
PLUG, FRONT PANEL (WHT) WPL 33001614 Contact Us For Availability
018
(ALM) WPL 33001615 Contact Us For Availability
018
CONNECTOR, EDGEBOARD WPL 22001361 Contact Us For Availability
018
(PROD. No. 303358-8 & 303358-9) WPL 306207 Contact Us For Availability
018
SWITCH, MOTOR EXTERNAL START (No.303358-2, 30 WPL Y303877 Contact Us For Availability
018
SWITCH, MOTOR EXTERNAL START (PROD. No. 30335 WPL Y303879 Contact Us For Availability
018
DOOR, INNER (W/SEAL) WPL 33001243 Contact Us For Availability
019
HARNESS, WIRE (SENSOR SW) WPL 208045 Contact Us For Availability
019
SURGE SUPPRESSOR KIT WPL 12001279 Contact Us For Availability
020
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
021
SCREW, SET WPL Y053241 Contact Us For Availability
022
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
030
WIRE, GROUND WPL 901220 Contact Us For Availability
033
BASE ASSEMBLY WPL Y305084 Contact Us For Availability
036
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
039
RETAINER, WIRE WPL 315471 Contact Us For Availability
040
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
042
COVER, THERMOSTAT WPL 315122 Contact Us For Availability
043
SCREW WPL Y310632 Contact Us For Availability
044
RELAY, HEATER WPL 306199 Contact Us For Availability
× ![]()
