Model Whirlpool MDE11PDAEW ELECTRIC DRYER – Common Parts & Diagrams

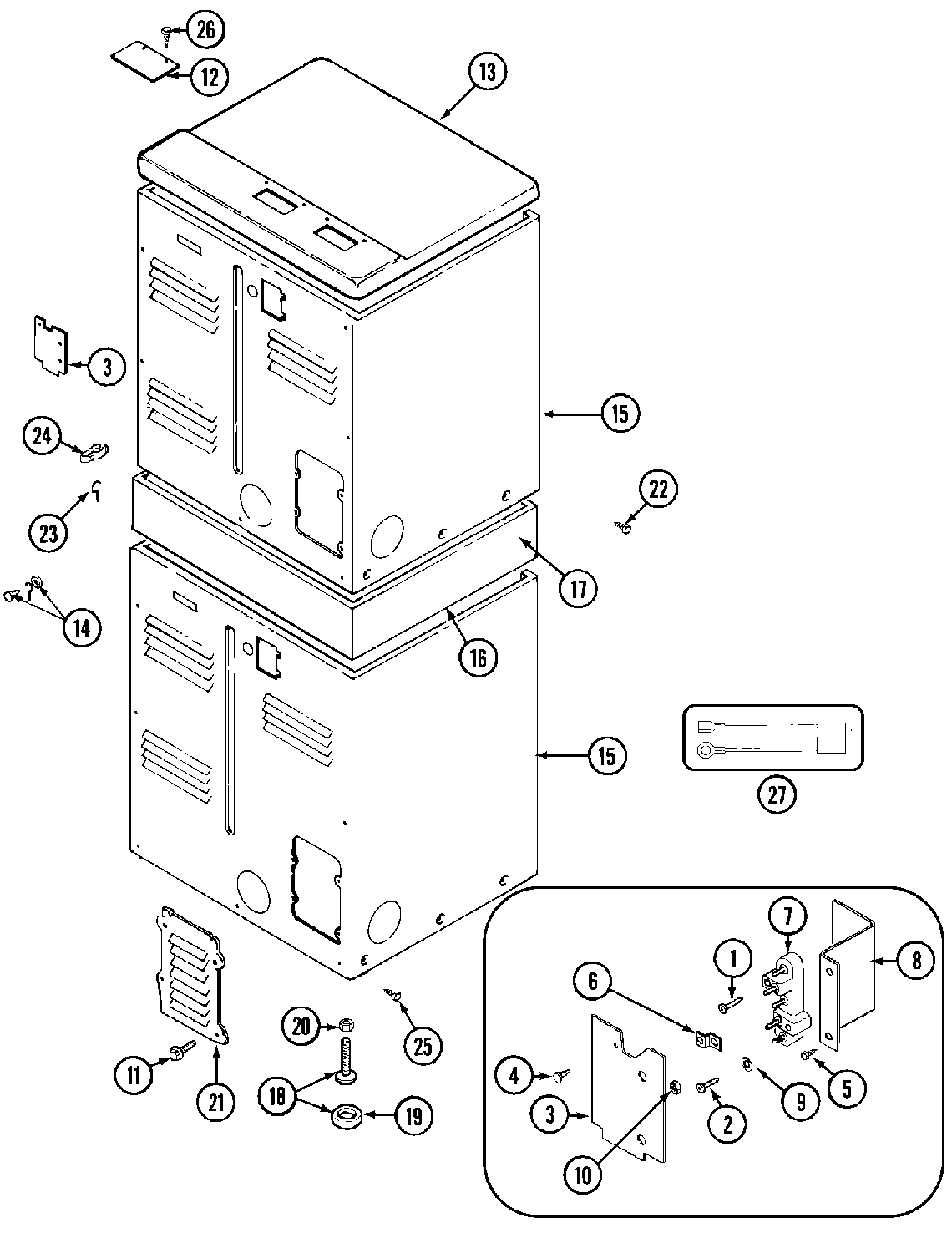

04 - REAR

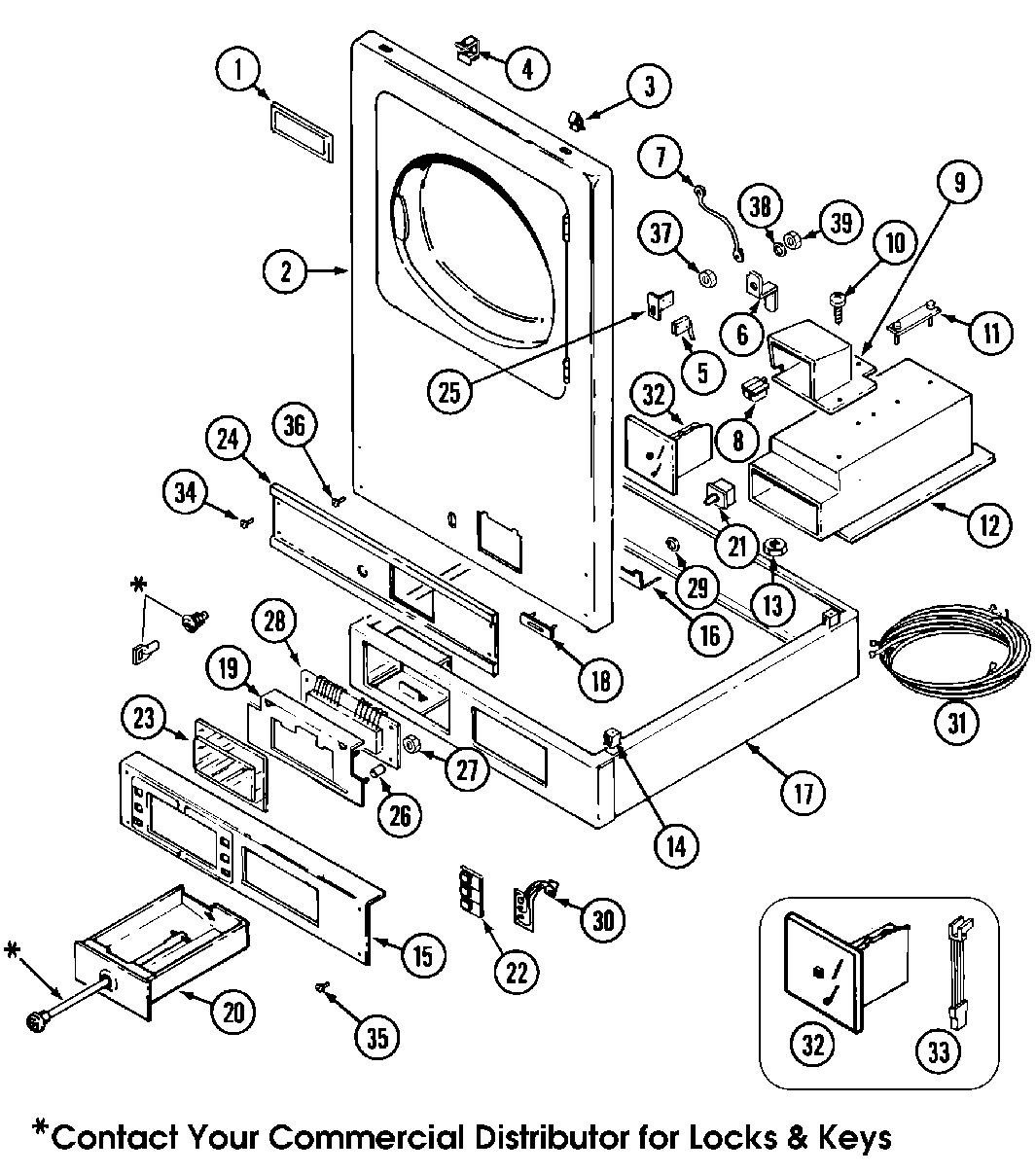

01 - CONTROLS & UPPER PANEL

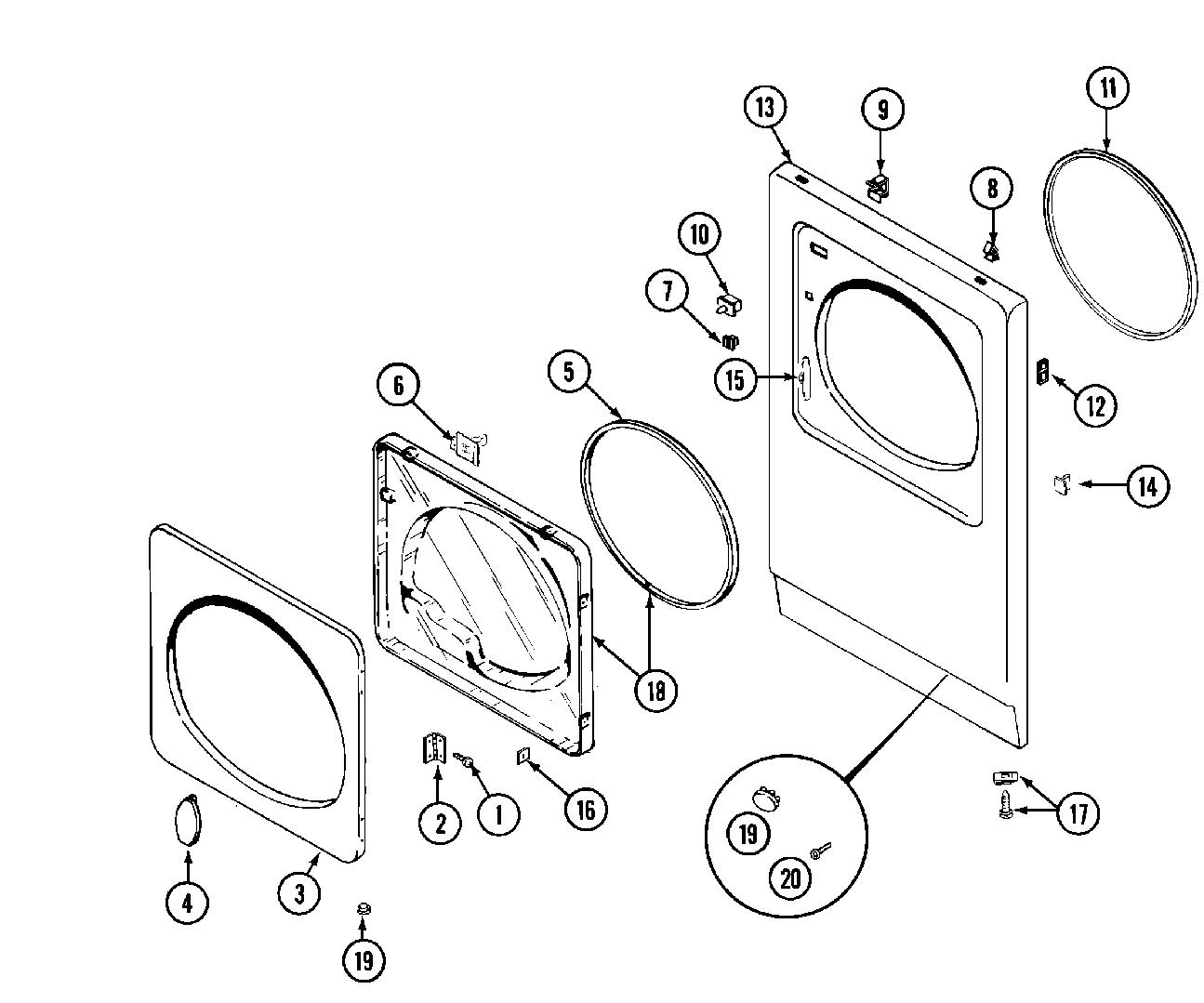

03 - DOOR
05 - TUMBLER

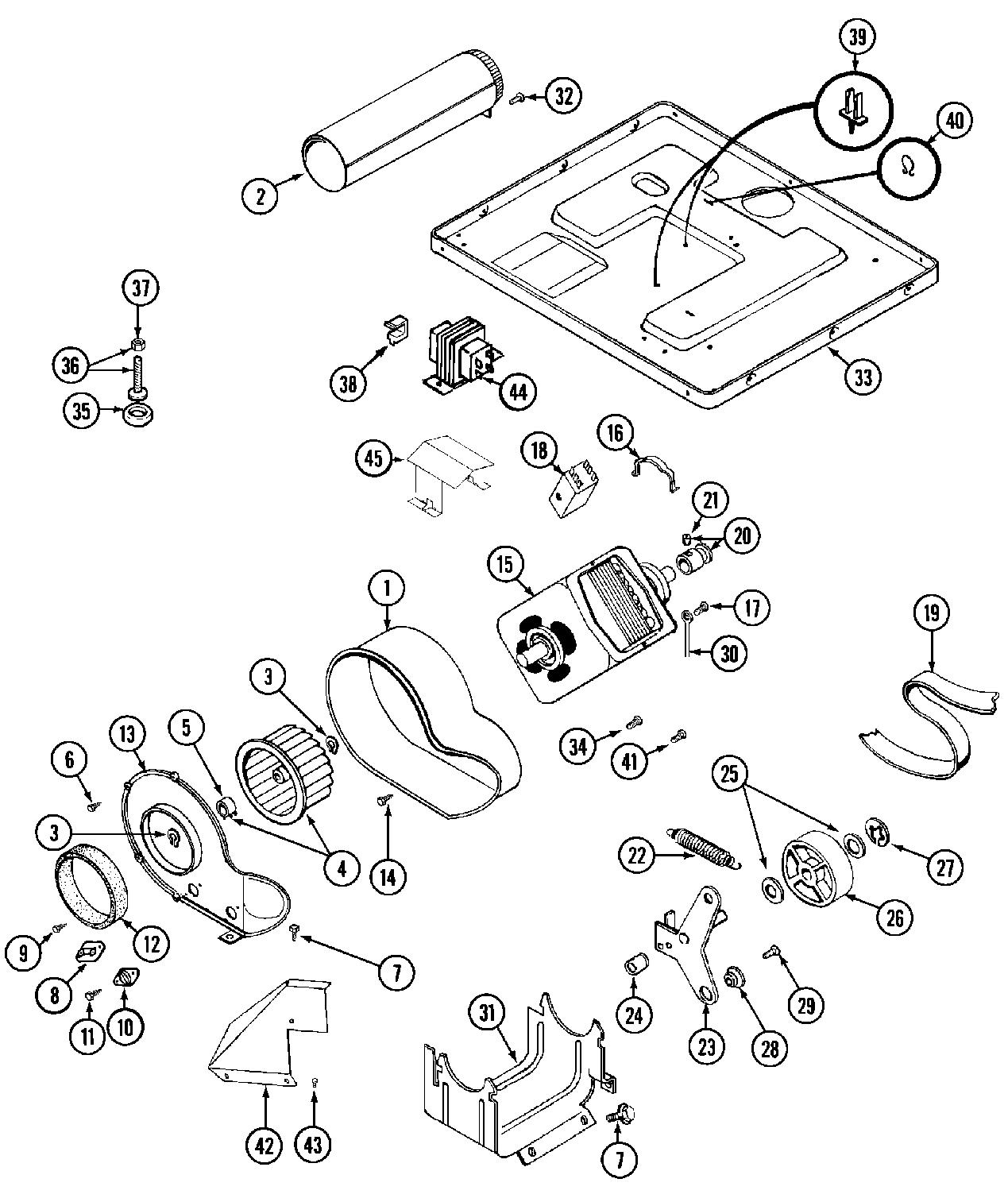

07 - MOTOR DRIVE

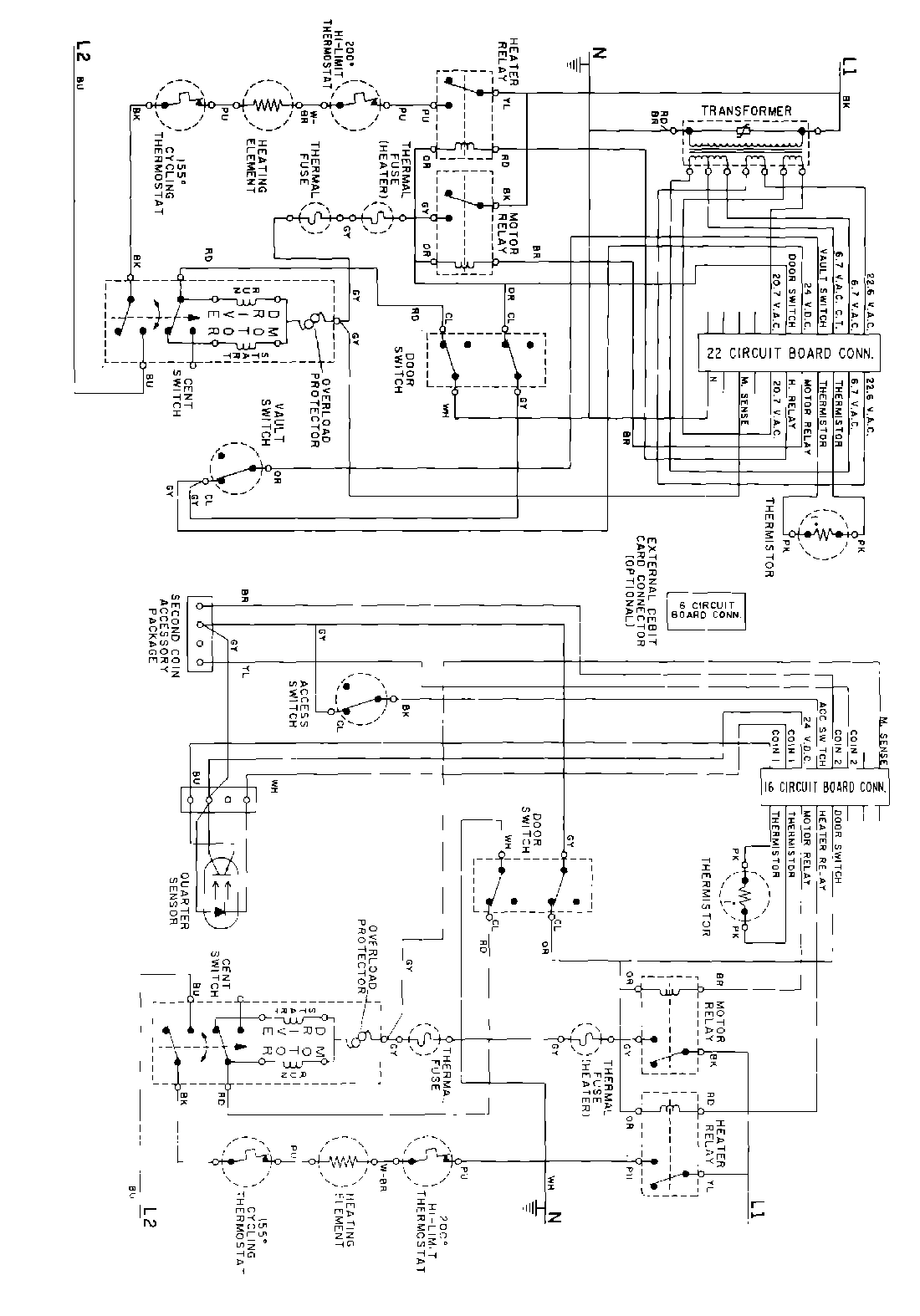

08 - WIRING INFORMATION

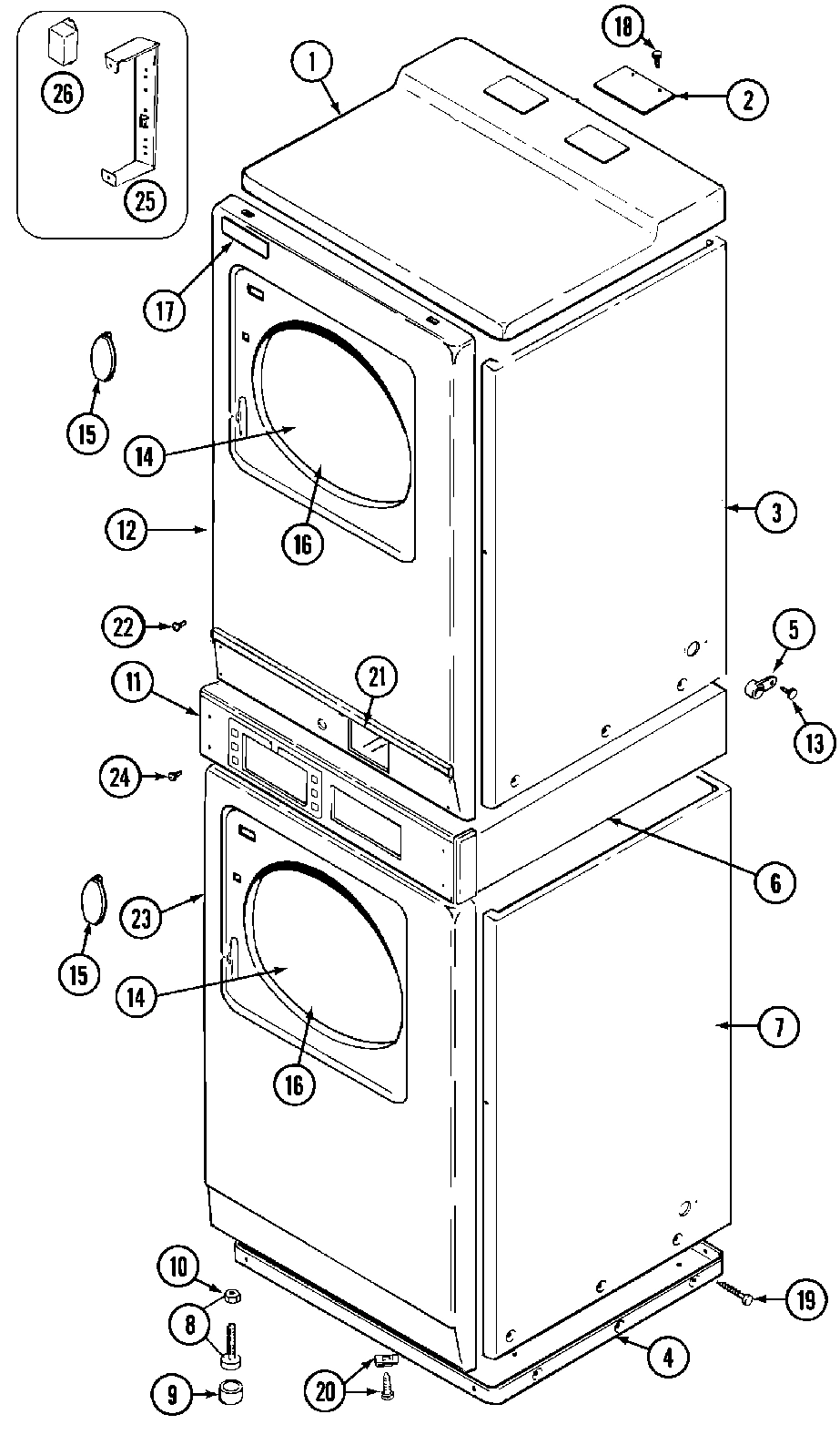

02 - FRONT VIEW
06 - HEATER
Common parts from model Whirlpool MDE11PDAEW ELECTRIC DRYER
001
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
001
TOP COVER ASSEMBLY (WHT) WPL 33001165 Contact Us For Availability
001
SCREW,HINGE,DOOR,& PANEL WPL Y314062 Contact Us For Availability
001
OUTLET DUCT ASSEMBLY WPL 33001016 Contact Us For Availability
002
HINGE, DOOR WPL 33001230 Contact Us For Availability
002
FILTER, LINT WPL 33001170 Contact Us For Availability
002
EXHAUST DUCT ASSEMBLY WPL Y303442 Contact Us For Availability
002
INLET DUCT ASSEMBLY WPL 308503 Contact Us For Availability
003
ENCLOSURE, HEATER WPL 314995 Contact Us For Availability
004
BASE ASSEMBLY (UPR) WPL 306261 Contact Us For Availability
004
(LWR) WPL 306530 Contact Us For Availability
004
INSULATOR, TERMINAL WPL 314998 Contact Us For Availability
005
SCREW, SWITCH WPL 912012 Contact Us For Availability
005
SWITCH, ACCESS WPL Y306232 Contact Us For Availability
005
STOP, CABLE WPL 910768 Contact Us For Availability
005
SEAL, DOOR WPL 33001304 Contact Us For Availability
005
FRONT, TUMBLER (W/SEAL) WPL 33001179 Contact Us For Availability
005
SUB-ASSEMBLY, HEATER (208V) (W/1,3,4 & 7) WPL Y308613 Contact Us For Availability
006
FASTENER WPL 310933 Contact Us For Availability
006
CAM, LOCKING WPL 314625 Contact Us For Availability
006
SCREW WPL 314663 Contact Us For Availability
006
SHIELD, RADIANT WPL 314999 Contact Us For Availability
007
SCREW, TERMINAL INSULATOR WPL NLA Contact Us For Availability
007
GROUND WIRE, LOCK WPL Y306712 Contact Us For Availability
007
SCREW, HOUSING COVER WPL Y313561 Contact Us For Availability
008
CHUTE, COIN WPL 314635 Contact Us For Availability
008
THERMISTOR, TEMP. CONTROL WPL 307208 Contact Us For Availability
009
HEATER ASSEMBLY (208V) WPL 307181 Contact Us For Availability
009
HEATER ASSEMBLY (208V) WPL Y308260 Contact Us For Availability
010
BOLT, COIN DROP COVER WPL 314654 Contact Us For Availability
010
SWITCH, DOOR WPL 33001420 Contact Us For Availability
011
EXTRUSION, CONTROL (LWR) WPL 33001023 Contact Us For Availability
011
SEAL, FRONT PANEL WPL 314937 Contact Us For Availability
011
BAFFLE (SHORT) WPL 33001012 Contact Us For Availability
011
CONVERSION KIT (240V TO 208V) WPL Y308590 Contact Us For Availability
012
(UPR-WHT) WPL 33001447 Contact Us For Availability
012
LOCKWASHER, VAULT ASSEMBLY WPL 910387 Contact Us For Availability
012
SCREW, PANEL (UPR) WPL 314666 Contact Us For Availability
012
WASHER, BAFFLE SCREW WPL 314158 Contact Us For Availability
013
DRYER TUMBLER, W/O BAFFLES WPL 33001108 Contact Us For Availability
013
COVER, BLOWER HOUSING WPL 314778 Contact Us For Availability
014
SCREW, TUMBLER BAFFLE WPL Y310759 Contact Us For Availability
014
PANEL, CLEAR INNER (W/SEAL) WPL 33001203 Contact Us For Availability
014
SCREW, BLOWER HOUSING WPL 314818 Contact Us For Availability
015
BACK, TUMBLER (W/SEAL) WPL 33001178 Contact Us For Availability
015
HANDLE, DOOR (WHT) WPL 314939 Contact Us For Availability
015
(ALM) WPL 314974 Contact Us For Availability
015
COVER, HINGE HOLE (WHT) WPL 33001175 Contact Us For Availability
015
(ALM) WPL 33001176 Contact Us For Availability
016
BRACKET, COIN DROP WPL 314631 Contact Us For Availability
016
PANEL, OUTER DOOR (WHT) WPL 314967 Contact Us For Availability
016
CLIP, INNER DOOR SCREW WPL Y313910 Contact Us For Availability
018
STRAP, COIN ACCEPTOR WPL 306233 Contact Us For Availability
018
(PROD. No. 303358-8 & 303358-9) WPL 306207 Contact Us For Availability
018
SWITCH, MOTOR EXTERNAL START (PROD. No. 30335 WPL Y303877 Contact Us For Availability
018
SWITCH, MOTOR EXTERNAL START (PROD. No. 30335 WPL Y303879 Contact Us For Availability
019
PLATE, CONTROL MOUNTING WPL 33001201 Contact Us For Availability
019
SCREW, PLATE WPL 910186 Contact Us For Availability
020
TRAY, COIN (WHT) WPL 308143 Contact Us For Availability
020
(ALM) WPL 308143L Contact Us For Availability
020
SCREW & FASTNER ASSEMBLY WPL 204439 Contact Us For Availability
020
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
021
COVER, ACCESS WPL Y312951 Contact Us For Availability
021
SCREW, SET WPL Y053241 Contact Us For Availability
022
SCREW, EXTRUSION & FRONT WPL 315489 Contact Us For Availability
022
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
023
COVER, DISPLAY WPL 33001209 Contact Us For Availability
023
PLUG, SIGHT HOLE (WHT) WPL 33001132 Contact Us For Availability
023
(ALM) WPL 33001168 Contact Us For Availability
024
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
024
SCREW, CLAMP WPL 313122 Contact Us For Availability
025
SCREW, BRACKET WPL Y310632 Contact Us For Availability
025
BRACKET, ACCESS SWITCH WPL 314634 Contact Us For Availability
025
BRACKET, RELAY WPL 314627 Contact Us For Availability
026
STAND-OFF, CONTROL BOARD WPL 33001204 Contact Us For Availability
026
RELAY, MOTOR (24V DC) WPL 206824 Contact Us For Availability
026
RELAY, HEATER WPL 306398 Contact Us For Availability
027
SURGE SUPPRESSOR KIT WPL 12001279 Contact Us For Availability
028
BATTERY, CONTROL BOARD WPL 33001249 Contact Us For Availability
028
BOARD, CONTROL WPL 33001290 Contact Us For Availability
030
WIRE, GROUND WPL 901220 Contact Us For Availability
031
GROMMET, STRAIN RELIEF WPL 314522 Contact Us For Availability
031
WIRE HARNESS, MAIN (LWR) WPL 33001030 Contact Us For Availability
031
(UPR) WPL 33001408 Contact Us For Availability
031
(LWR) WPL 33001409 Contact Us For Availability
032
REJECTOR ASSEMBLY (25 ) WPL 308121 Contact Us For Availability
033
SCREW, SWITCH ASSEMBLY WPL 315427 Contact Us For Availability
033
OPTIC SWITCH ASSEMBLY WPL 33001025 Contact Us For Availability
038
CLIP, CABLE WPL Y310376 Contact Us For Availability
039
NUT, LOCK WPL 22001355 Contact Us For Availability
039
RETAINER, WIRE HARNESS WPL 315471 Contact Us For Availability
040
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
042
COVER, THERMOSTAT WPL 315122 Contact Us For Availability
044
WPL 33001205 WPL 33001205 Contact Us For Availability
045
WPL 315218 WPL 315218 Contact Us For Availability
× ![]()
