Model Whirlpool MDE11MNAGW ELECTRIC DRYER – Common Parts & Diagrams
03 - DOOR

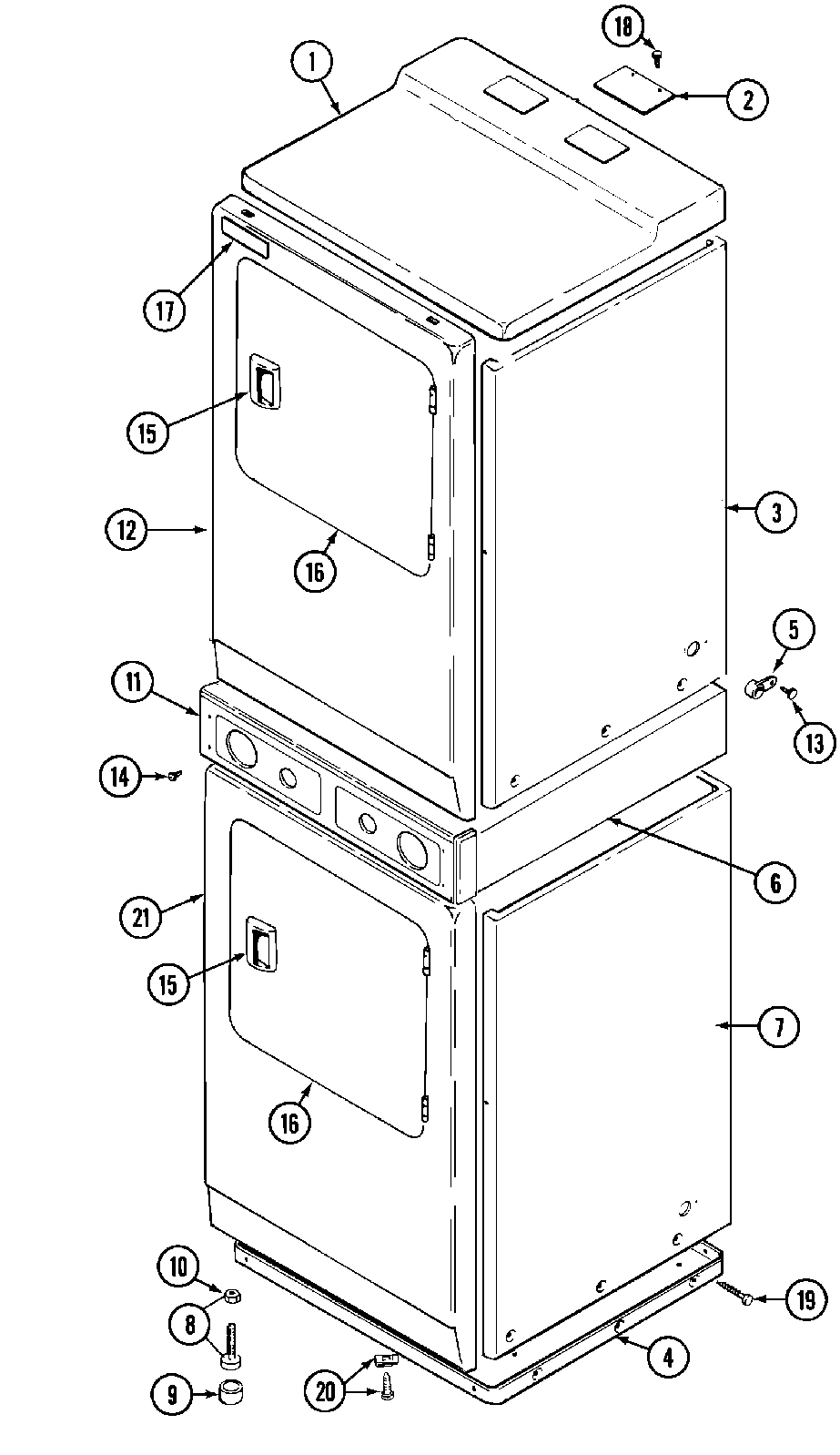

02 - FRONT VIEW

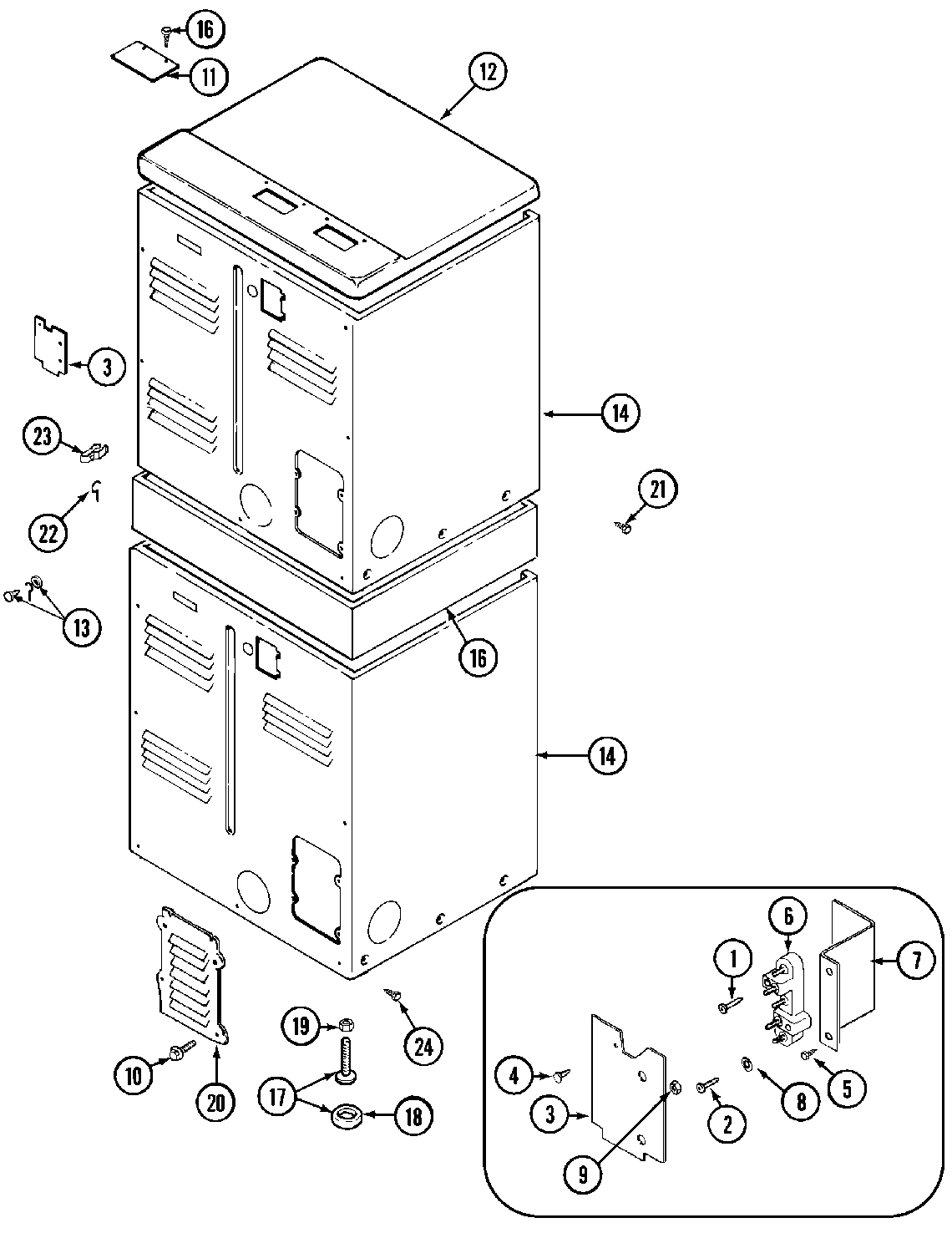

04 - REAR

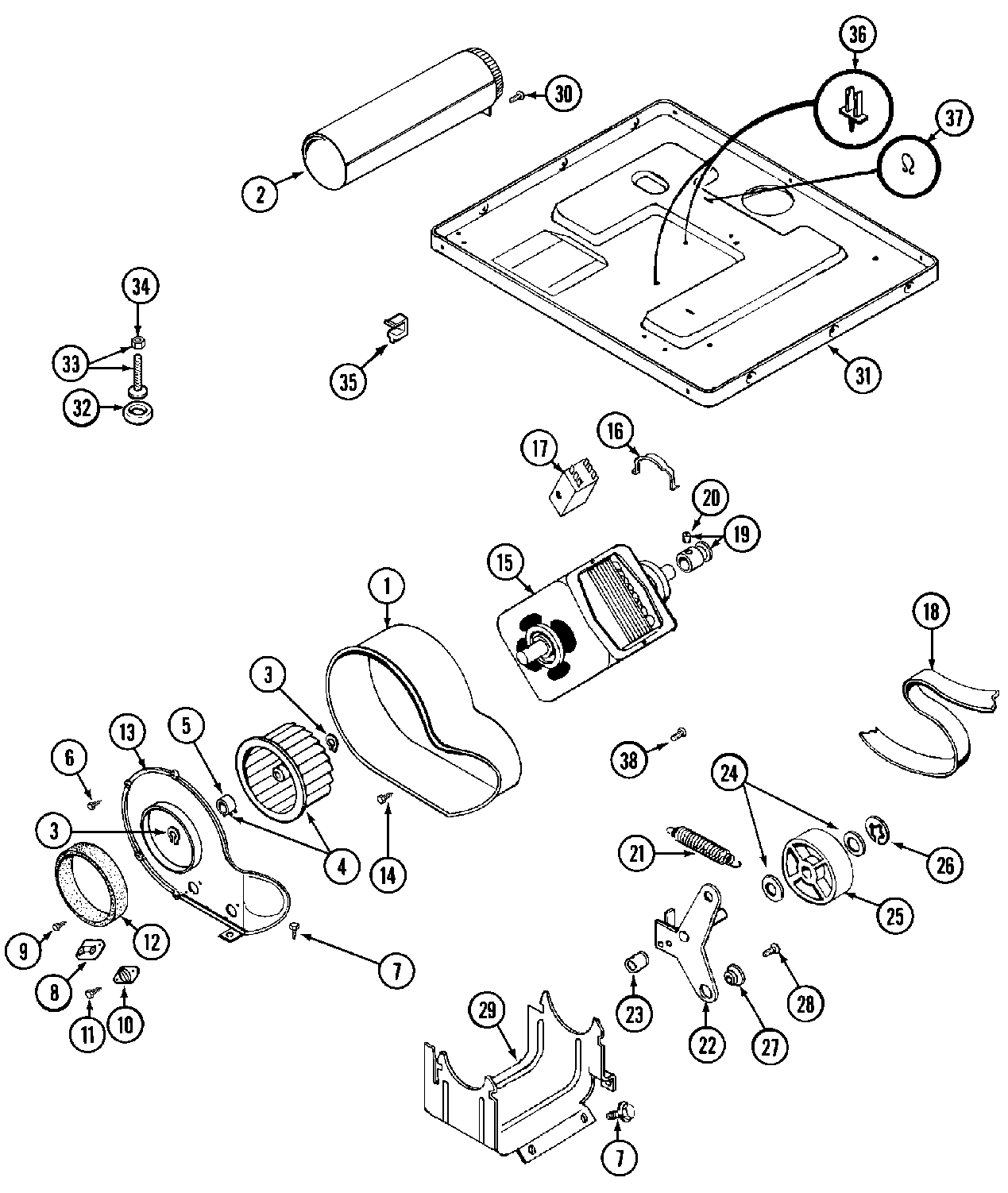

07 - MOTOR DRIVE
06 - HEATER

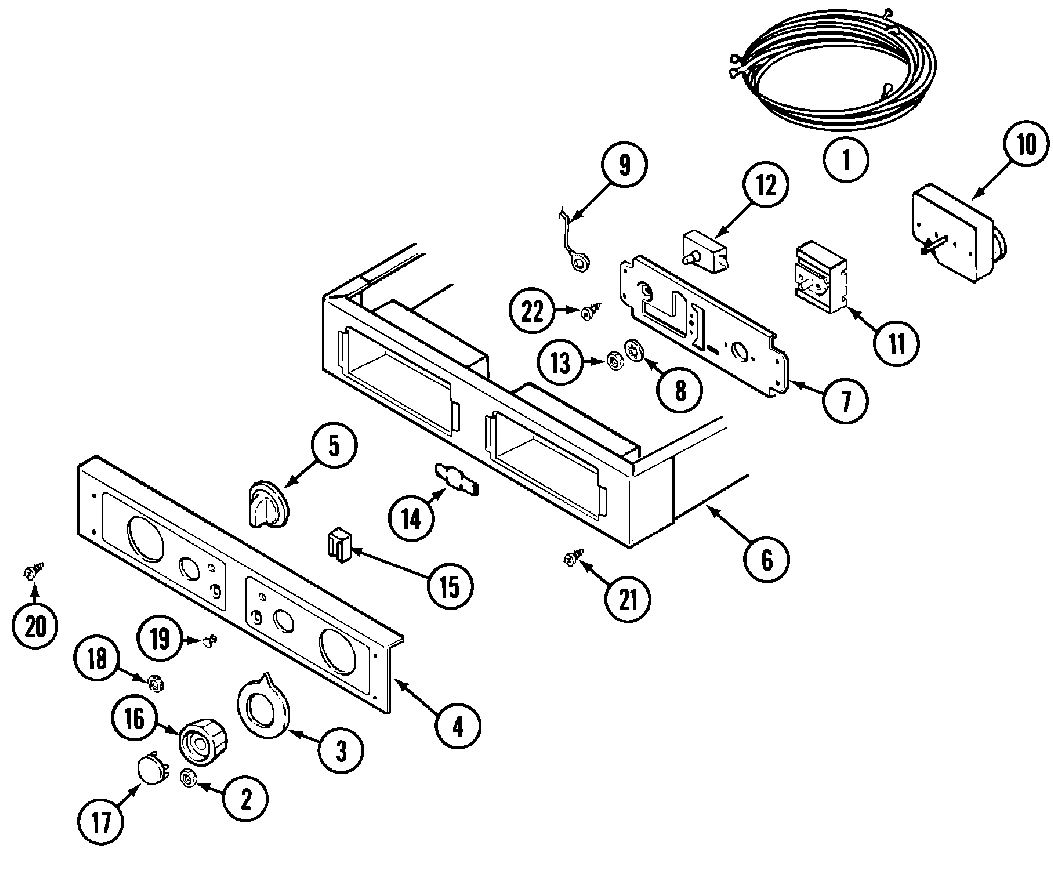

01 - CONTROL PANEL & SUPPORT ASSEMBLY
05 - TUMBLER
Common parts from model Whirlpool MDE11MNAGW ELECTRIC DRYER
001
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
001
WIRE HARNESS, MAIN (UPR) WPL 308301 Contact Us For Availability
001
GROMMET, STRAIN RELIEF WPL 314522 Contact Us For Availability
001
(LWR) WPL 33001561 Contact Us For Availability
001
OUTLET DUCT ASSEMBLY WPL 33001016 Contact Us For Availability
002
EXHAUST DUCT ASSEMBLY WPL Y303442 Contact Us For Availability
002
INLET DUCT ASSEMBLY WPL 308503 Contact Us For Availability
002
FILTER, LINT WPL 33001170 Contact Us For Availability
003
COVER, TERMINAL WPL Y312905 Contact Us For Availability
003
HEATER ENCLOSURE WPL 314995 Contact Us For Availability
003
DIAL, TIMER INDICATOR WPL 314725 Contact Us For Availability
003
DIAL, TIMER INDICATOR WPL 33001500 Contact Us For Availability
004
SCREW, TUMBLER FRONT & BACK WPL Y313561 Contact Us For Availability
004
BRACKET, THERMAL FUSE WPL 315346 Contact Us For Availability
005
STOP, CABLE WPL 910768 Contact Us For Availability
005
KNOB, CYCLE SELECTOR WPL 205663 Contact Us For Availability
005
FRONT, TUMBLER (W/SEAL) WPL 33001179 Contact Us For Availability
006
SCREW, SUPPORT WPL 314663 Contact Us For Availability
006
BLOCK, TERMINAL WPL 400008 Contact Us For Availability
006
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
007
BRACKET, TERMINAL WPL Y312904 Contact Us For Availability
007
INSULATOR, TERMINAL WPL 314998 Contact Us For Availability
008
LOCK WASHER WPL 910181 Contact Us For Availability
008
THERMOSTAT, CYCLING (155 DEG.) WPL 306967 Contact Us For Availability
008
WIRE HARNESS, THERMOSTAT WPL 33001306 Contact Us For Availability
009
SHIELD, RADIANT WPL 314999 Contact Us For Availability
009
GROUND WIRE WPL 205810 Contact Us For Availability
010
TIMER WPL Y307496 Contact Us For Availability
011
SEAL, FRONT PANEL WPL 314937 Contact Us For Availability
011
BAFFLE (SHORT) WPL 33001012 Contact Us For Availability
012
TOP COVER ASSEMBLY (WHT) WPL 33001165 Contact Us For Availability
012
HEATER ASSEMBLY WPL 307180 Contact Us For Availability
012
SWITCH, CYCLE SELECTOR WPL 307253 Contact Us For Availability
012
WASHER, BAFFLE SCREW WPL 314158 Contact Us For Availability
013
COVER, BLOWER HOUSING WPL 314778 Contact Us For Availability
013
NUT, START SWITCH WPL Y312706 Contact Us For Availability
013
TUMBLER WPL 33001108 Contact Us For Availability
014
SCREW, TUMBLER BAFFLE WPL Y310759 Contact Us For Availability
014
SCREW, BLOWER HOUSING WPL 314818 Contact Us For Availability
014
CONNECTOR, WIRE (INDIC. LIGHT) WPL Y201110 Contact Us For Availability
015
BACK, TUMBLER (W/SEAL) WPL 33001178 Contact Us For Availability
015
HANDLE, DOOR (WHT) WPL 33001241 Contact Us For Availability
015
COVER, HINGE HOLE (WHT) WPL 33001175 Contact Us For Availability
015
MOTOR WPL Y304656 Contact Us For Availability
016
CLIP, INNER DOOR SCREW WPL Y313910 Contact Us For Availability
016
COVER, THREAD WPL NLA Contact Us For Availability
016
DOOR (WHT) WPL 33001240 Contact Us For Availability
017
SCREW, TUMBLER BACK WPL Y310632 Contact Us For Availability
017
(PROD. No. 303358-8 & 303358-9) WPL 306207 Contact Us For Availability
017
SWITCH, MOTOR EXTERNAL START (PROD. No. 30335 WPL Y303877 Contact Us For Availability
017
SWITCH, MOTOR EXTERNAL START (PROD. No. 30335 WPL Y303879 Contact Us For Availability
018
PANEL, INNER DOOR (W/SEAL) WPL 33001243 Contact Us For Availability
018
KNURLED NUT, START SWITCH WPL Y312702 Contact Us For Availability
019
PLUG, SIGHT HOLE (WHT) WPL 33001132 Contact Us For Availability
019
PULLEY, MOTOR (W/SET SCREW) WPL 305186 Contact Us For Availability
020
SCREW & CLIP ASSEMBLY WPL 204439 Contact Us For Availability
020
COVER, ACCESS WPL Y312951 Contact Us For Availability
020
SCREW, SET WPL Y053241 Contact Us For Availability
021
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
021
SCREW, MOUNTING BRACKET WPL 910186 Contact Us For Availability
023
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
023
SCREW, CLAMP WPL 313122 Contact Us For Availability
027
GROUND WIRE WPL 901220 Contact Us For Availability
031
BASE ASSEMBLY (LOWER) WPL 306530 Contact Us For Availability
031
(UPPER) WPL Y307482 Contact Us For Availability
036
RETAINER, WIRE HARNESS WPL 315471 Contact Us For Availability
037
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
× ![]()
