Model Whirlpool MDE10MNACW ELECTRIC DRYER – Common Parts & Diagrams
07 - MOTOR DRIVE

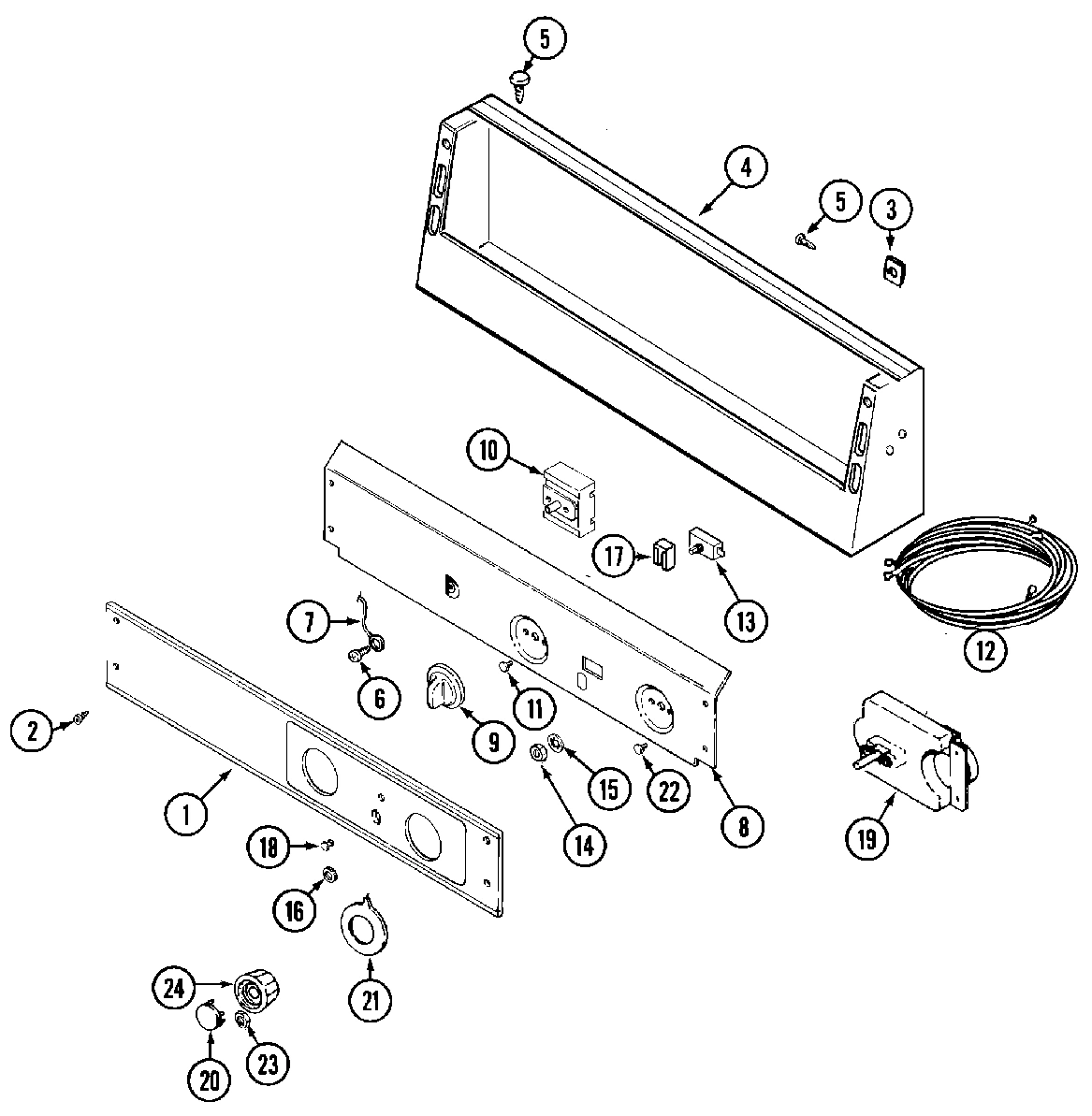

01 - CONTROL PANEL
03 - DOOR

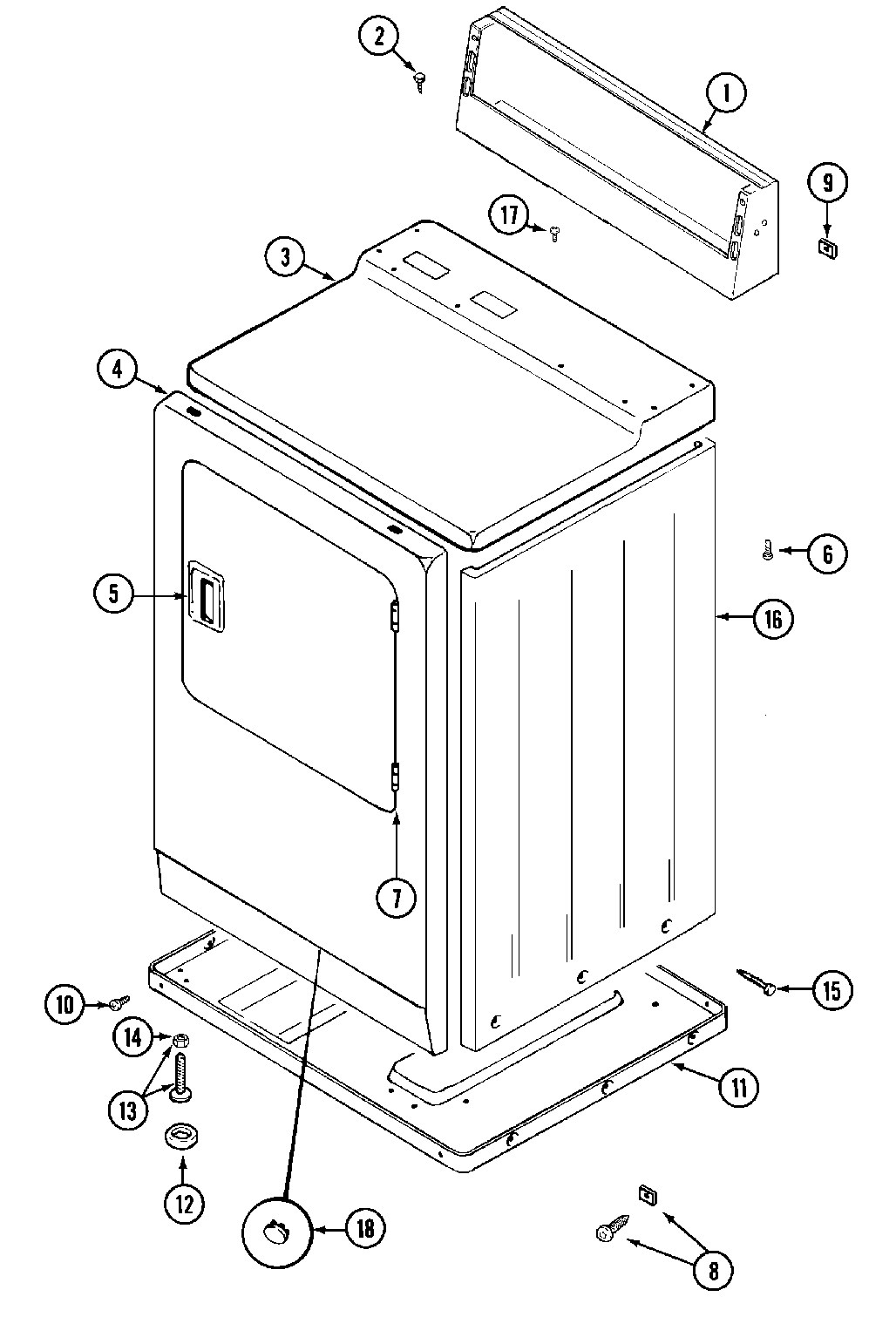

02 - CABINET (FRONT)

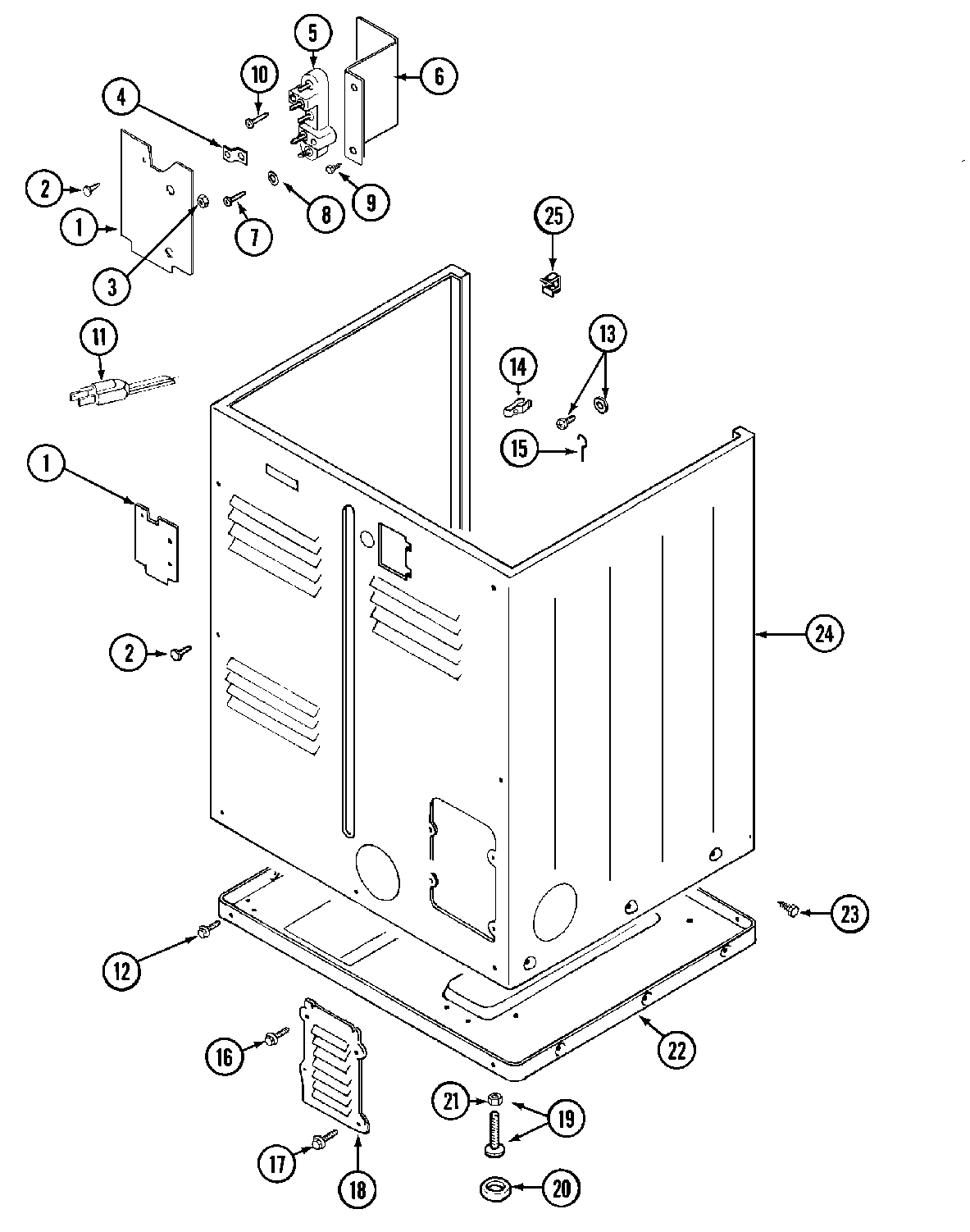

04 - CABINET (REAR)
06 - HEATER
05 - TUMBLER
Common parts from model Whirlpool MDE10MNACW ELECTRIC DRYER
001
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
001
PANEL, CONTROL WPL 33001021 Contact Us For Availability
001
CONSOLE (WHT) WPL 33001280 Contact Us For Availability
001
SCREW, DOOR HINGE & PANEL WPL Y314062 Contact Us For Availability
001
COVER, TERMINAL WPL Y312905 Contact Us For Availability
001
OUTLET DUCT ASSEMBLY WPL 33001016 Contact Us For Availability
002
DUCT, INLET WPL 308503 Contact Us For Availability
002
FILTER, LINT WPL 33001170 Contact Us For Availability
003
FASTENER, CONTROL PANEL WPL 215003 Contact Us For Availability
003
DOOR (WHT) WPL 33001240 Contact Us For Availability
003
COVER, TOP (WHT) WPL 33001165 Contact Us For Availability
003
ENCLOSURE, HEATER WPL 314995 Contact Us For Availability
004
HANDLE, DOOR (WHT) WPL 33001241 Contact Us For Availability
004
SCREW, TUMBLER FRONT WPL Y313561 Contact Us For Availability
004
STRAP, GROUND WPL Y312184 Contact Us For Availability
004
BRACKET, THERMAL FUSE WPL 315346 Contact Us For Availability
005
SEAL, DOOR WPL 33001131 Contact Us For Availability
005
BLOCK, TERMINAL WPL 400008 Contact Us For Availability
005
FRONT, TUMBLER (W/SEAL) WPL 33001179 Contact Us For Availability
006
CLIP, CABLE WPL Y310376 Contact Us For Availability
006
SCREW, TOP COVER WPL 214354 Contact Us For Availability
006
BRACKET, TERMINAL BLOCK WPL Y312904 Contact Us For Availability
007
WIRE, GROUND WPL 205810 Contact Us For Availability
007
HINGE, DOOR WPL 33001230 Contact Us For Availability
007
INSULATOR, TERMINAL WPL 314998 Contact Us For Availability
008
SCREW & FASTNER ASSEMBLY WPL 204439 Contact Us For Availability
008
HEATER SUB-ASSEMBLY (208V) (W/1,3,7 & 10) WPL Y308613 Contact Us For Availability
009
KNOB, SELECTOR WPL 306938 Contact Us For Availability
009
FASTENER, CONSOLE WPL 215075 Contact Us For Availability
009
SHIELD, RADIANT WPL 314999 Contact Us For Availability
011
SEAL, FRONT PANEL WPL 314937 Contact Us For Availability
011
CORD, POWER (CANADA) WPL 305168 Contact Us For Availability
011
LOCKNUT, EARED FOR CANADIAN WPL 33001425 Contact Us For Availability
011
(CAN) WPL 308217 Contact Us For Availability
011
BAFFLE (SHORT) WPL 33001012 Contact Us For Availability
012
WIRE HARNESS, MAIN WPL 33001506 Contact Us For Availability
012
WIRE HARNESS, MAIN WPL 33001514 Contact Us For Availability
012
WIRE HARNESS, MAIN WPL 33001562 Contact Us For Availability
012
HEATER ASSEMBLY (COMPLETE) WPL 307180 Contact Us For Availability
012
HEATER ASSEMBLY (COMPLETE) WPL 307181 Contact Us For Availability
012
WASHER, BAFFLE WPL 314158 Contact Us For Availability
013
DRYER TUMBLER, W/O BAFFLES WPL 33001108 Contact Us For Availability
014
SCREW, TUMBLER BAFFLE WPL Y310759 Contact Us For Availability
014
NUT, SWITCH WPL Y312706 Contact Us For Availability
014
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
014
CONVERSION KIT (240V TO 208V) WPL Y308590 Contact Us For Availability
015
BACK, TUMBLER (W/SEAL) WPL 33001178 Contact Us For Availability
015
(240V-50HZ) WPL Y304656 Contact Us For Availability
015
COVER, HINGE HOLE (WHT) WPL 33001175 Contact Us For Availability
015
WIRE, GROUND WPL 204807 Contact Us For Availability
016
COVER, THREAD WPL NLA Contact Us For Availability
016
NUT, KNURLED WPL Y312702 Contact Us For Availability
016
FASTENER, INNER DOOR WPL Y313910 Contact Us For Availability
017
SCREW, TUMBLER BACK WPL Y310632 Contact Us For Availability
017
LIGHT, INDICATOR WPL 204075 Contact Us For Availability
018
(PROD. No. 303358-8 & 303358-9) WPL 306207 Contact Us For Availability
018
SWITCH, MOTOR EXTERNAL START (PROD. No. 30335 WPL Y303877 Contact Us For Availability
018
SWITCH, MOTOR EXTERNAL START (PROD. No. 30335 WPL Y303879 Contact Us For Availability
018
PLUG, SIGHT HOLE (WHT) WPL 33001132 Contact Us For Availability
018
DOOR, INNER (W/SEAL) WPL 33001243 Contact Us For Availability
018
COVER, ACCESS WPL Y312951 Contact Us For Availability
019
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
019
TIMER WPL 305214 Contact Us For Availability
019
(CANADA) WPL 305215 Contact Us For Availability
019
(240V-50HZ) WPL Y305758 Contact Us For Availability
020
PULLEY, MOTOR (W/SET SCREW) WPL 305186 Contact Us For Availability
020
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
021
SCREW, SET WPL Y053241 Contact Us For Availability
021
SKIRT, TIMER DIAL WPL 314725 Contact Us For Availability
021
SKIRT, TIMER DIAL WPL 33001500 Contact Us For Availability
022
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
022
BASE ASSEMBLY WPL Y303361 Contact Us For Availability
027
WIRE, GROUND WPL 901220 Contact Us For Availability
033
BASE ASSEMBLY WPL Y305084 Contact Us For Availability
039
RETAINER, WIRE WPL 315471 Contact Us For Availability
040
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
042
COVER, THERMOSTAT WPL 315122 Contact Us For Availability
× ![]()
