Model Whirlpool MDE10CSAKL ELECTRIC DRYER – Common Parts & Diagrams

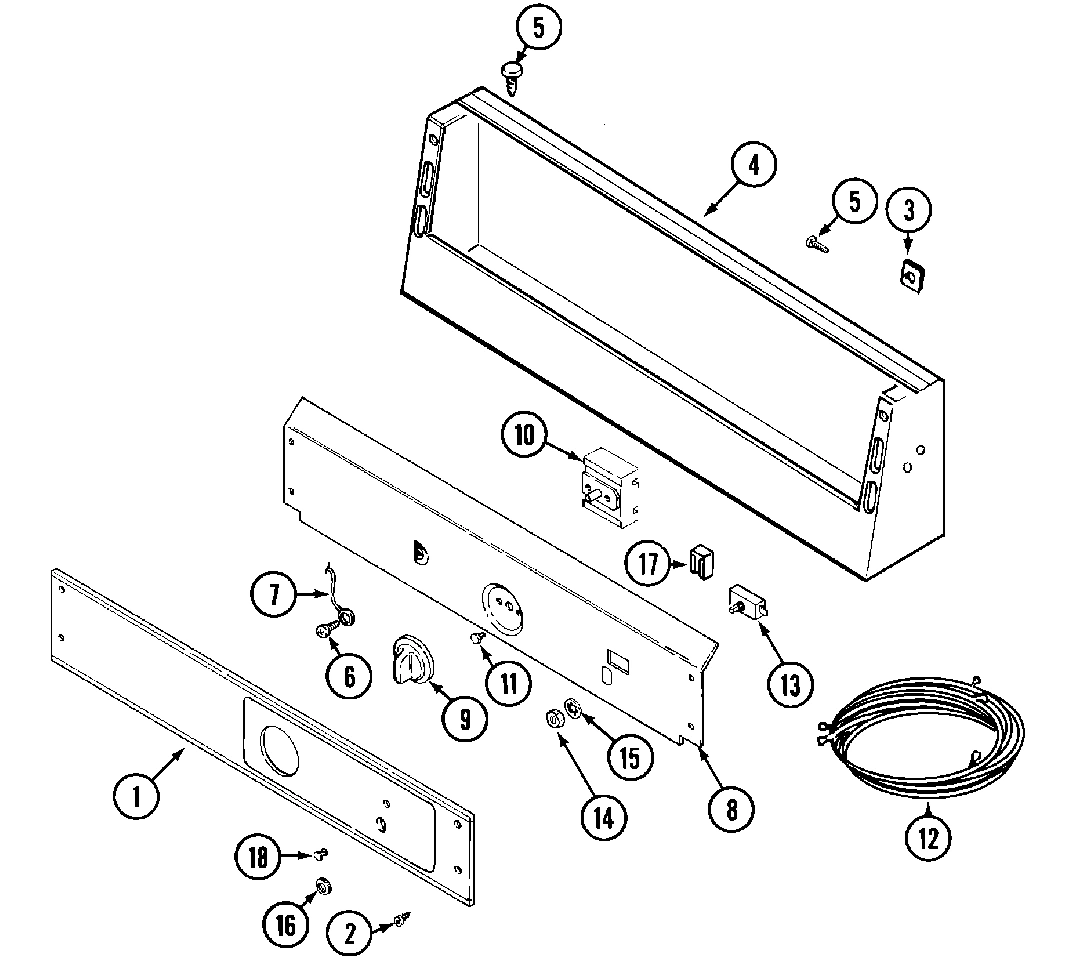

01 - CONTROL PANEL

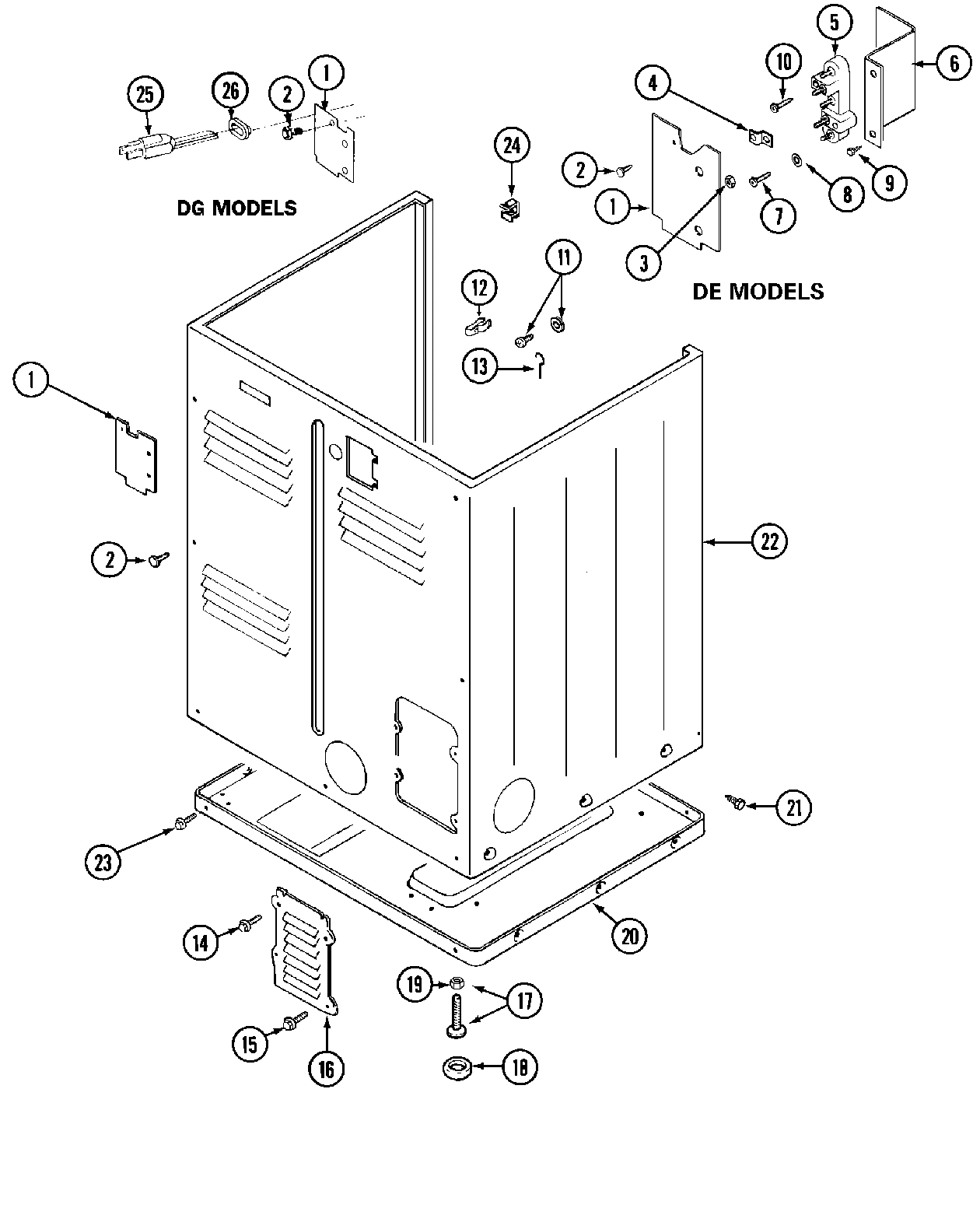

08 - CABINET-REAR
04 - DOOR
05 - TUMBLER

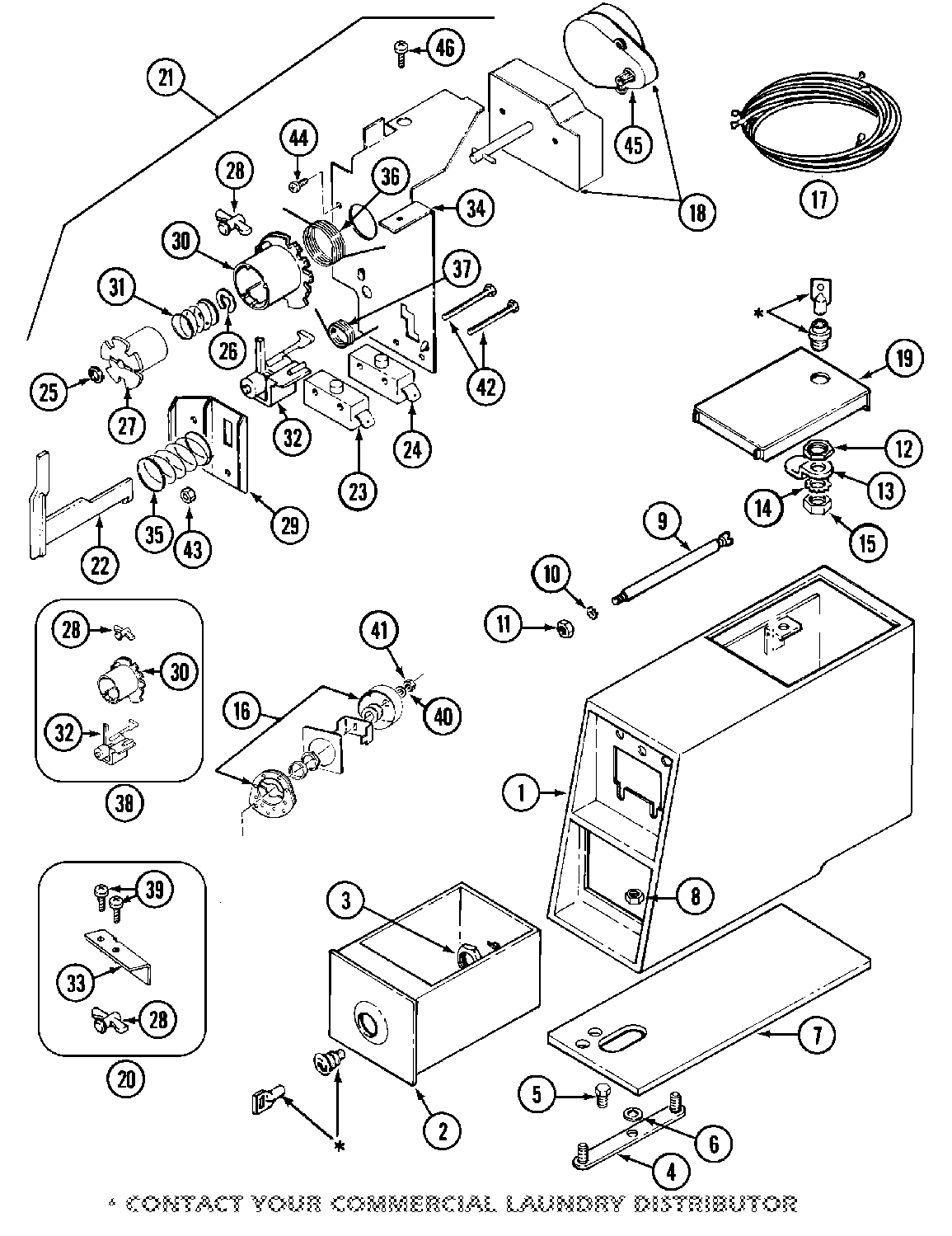

02 - CONTROL CENTER
06 - HEATER

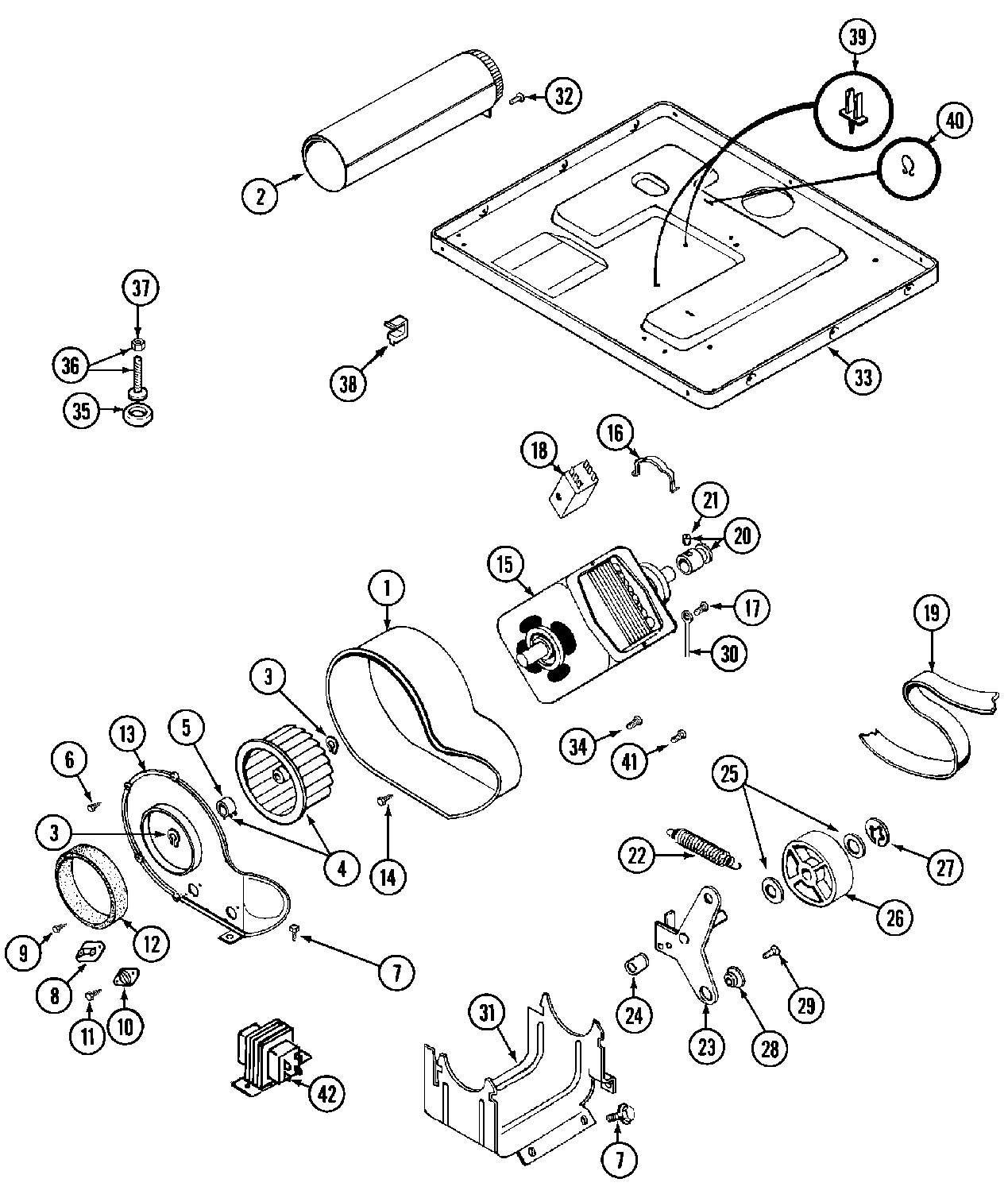

07 - MOTOR DRIVE

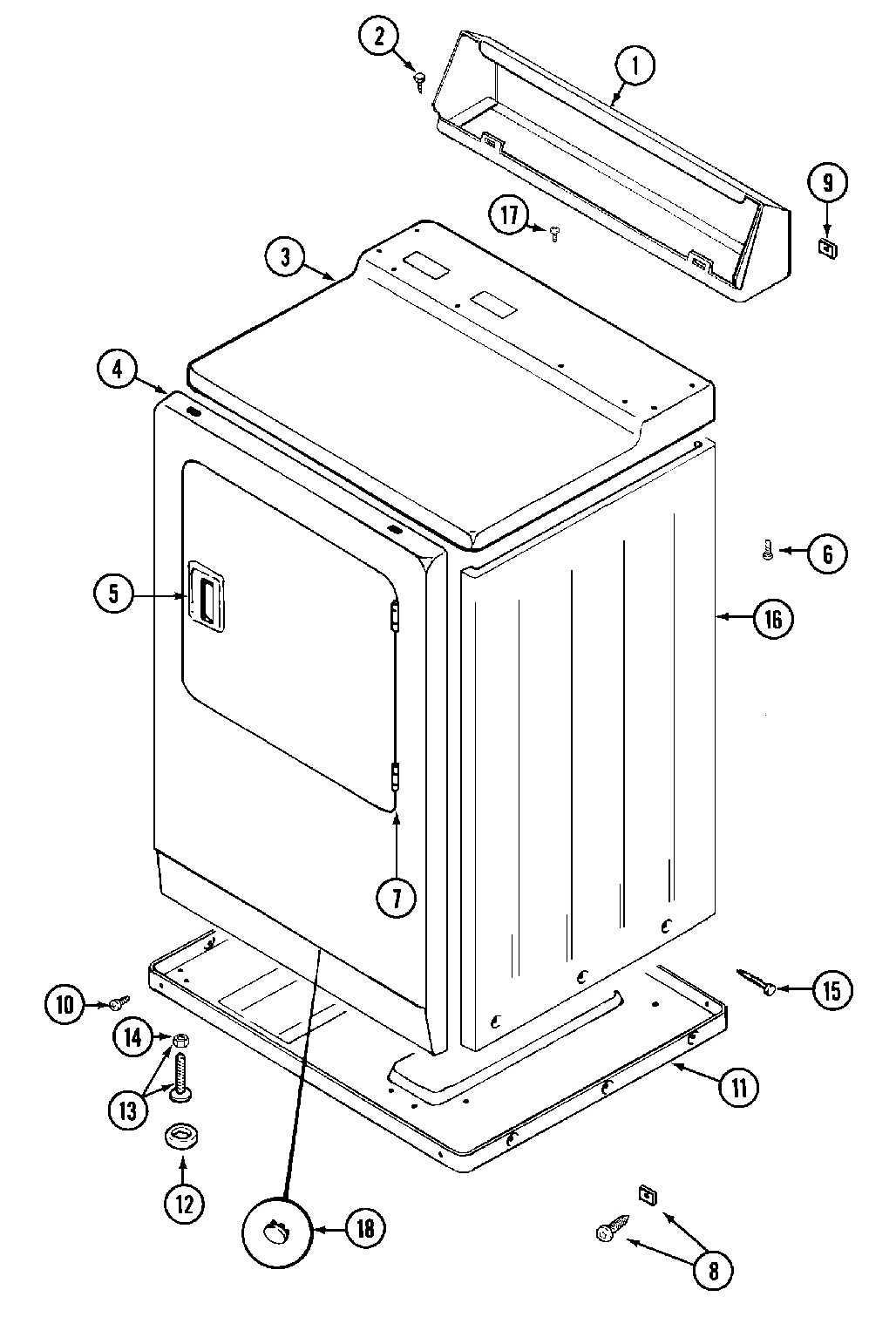

03 - CABINET (FRONT)
Common parts from model Whirlpool MDE10CSAKL ELECTRIC DRYER
001
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
001
COVER, TERMINAL WPL Y312905 Contact Us For Availability
001
SCREW, DOOR HINGE & PANEL WPL Y314062 Contact Us For Availability
001
OUTLET DUCT ASSEMBLY WPL 33001016 Contact Us For Availability
001
COIN METER CASE (ALM) WPL 206952L Contact Us For Availability
002
FILTER, LINT WPL 33001170 Contact Us For Availability
002
DUCT, INLET WPL 308503 Contact Us For Availability
002
EXHAUST DUCT ASSEMBLY WPL Y303442 Contact Us For Availability
003
PANEL, OUTER DOOR (ALM) WPL 33001257 Contact Us For Availability
003
ENCLOSURE, HEATER WPL 314995 Contact Us For Availability
003
COVER, TOP (ALM) WPL 33001164 Contact Us For Availability
004
STRAP, GROUND WPL Y312184 Contact Us For Availability
004
BRACKET, THERMAL FUSE WPL 315346 Contact Us For Availability
005
BLOCK, TERMINAL WPL 400008 Contact Us For Availability
005
HANDLE, DOOR (ALM) WPL 33001254 Contact Us For Availability
005
SEAL, DOOR WPL 33001131 Contact Us For Availability
005
FRONT, TUMBLER (W/SEAL) WPL 33001179 Contact Us For Availability
006
BRACKET, TERMINAL BLOCK WPL Y312904 Contact Us For Availability
006
WASHER WPL 910309 Contact Us For Availability
006
SCREW, TOP COVER WPL 214354 Contact Us For Availability
007
HINGE, DOOR WPL 33001230 Contact Us For Availability
007
GASKET, METER CASE WPL 214660 Contact Us For Availability
007
INSULATOR, TERMINAL WPL 314998 Contact Us For Availability
008
SCREW & FASTENER ASSEMBLY WPL 204439 Contact Us For Availability
008
HEATER SUB-ASSEMBLY (208V) WPL Y308613 Contact Us For Availability
008
THERMOSTAT, CYCLING (155 DEG.) WPL 306966 Contact Us For Availability
008
THERMOSTAT, MULTI-TEMPERATURE WPL 306967 Contact Us For Availability
009
KNOB, SELECTOR WPL 306938 Contact Us For Availability
009
BOLT, LOCKING WPL 215559 Contact Us For Availability
009
SHIELD, RADIANT WPL 314999 Contact Us For Availability
009
FASTENER, CONSOLE WPL 215075 Contact Us For Availability
010
SCREW, CABINET WPL Y313561 Contact Us For Availability
010
SCREW, CABINET WPL Y310632 Contact Us For Availability
010
LOCK WASHER WPL 910387 Contact Us For Availability
011
BASE ASSEMBLY WPL Y303361 Contact Us For Availability
011
SEAL, FRONT PANEL WPL 314937 Contact Us For Availability
011
BAFFLE (SHORT) WPL 33001012 Contact Us For Availability
012
WIRE HARNESS, MAIN WPL 33001026 Contact Us For Availability
012
WIRE HARNESS, MAIN WPL 33001029 Contact Us For Availability
012
WIRE HARNESS, MAIN WPL 33001529 Contact Us For Availability
012
WIRE HARNESS, MAIN WPL 33001531 Contact Us For Availability
012
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
012
WASHER, BAFFLE WPL 314158 Contact Us For Availability
012
HEATER ASSEMBLY (220V-60HZ) WPL 33001434 Contact Us For Availability
013
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
013
WIRE, GROUND WPL 204807 Contact Us For Availability
013
DRYER TUMBLER, W/O BAFFLES WPL 33001108 Contact Us For Availability
013
COVER, BLOWER HOUSING WPL 314778 Contact Us For Availability
014
SCREW, TUMBLER BAFFLE WPL Y310759 Contact Us For Availability
014
NUT, SWITCH WPL Y312706 Contact Us For Availability
014
CONVERSION KIT (240V TO 208V) WPL Y308590 Contact Us For Availability
015
BACK, TUMBLER (W/SEAL) WPL 33001178 Contact Us For Availability
015
COVER, HINGE HOLE (ALM) WPL 33001176 Contact Us For Availability
015
MOTOR (240V 50HZ) WPL Y304656 Contact Us For Availability
016
NUT, KNURLED WPL Y312702 Contact Us For Availability
016
COVER, ACCESS WPL Y312951 Contact Us For Availability
016
CABINET (ALM) WPL NLA Contact Us For Availability
016
FASTENER, INNER DOOR WPL Y313910 Contact Us For Availability
016
LOCKWASHER WPL 216203 Contact Us For Availability
017
WIRE HARNESS, TIMER WPL 33001195 Contact Us For Availability
018
PLUG, SIGHT HOLE (ALM) WPL 33001168 Contact Us For Availability
018
DOOR, INNER (W/SEAL) WPL 33001243 Contact Us For Availability
018
TIMER (240V-50HZ) WPL 33001274 Contact Us For Availability
018
(PROD. No. 303358-8 & 303358-9) WPL 306207 Contact Us For Availability
018
SWITCH, MOTOR EXTERNAL START (PROD. No. 30335 WPL Y303877 Contact Us For Availability
018
SWITCH, MOTOR EXTERNAL START (PROD. No. 30335 WPL Y303879 Contact Us For Availability
019
DOOR, ACCESS (ALM) WPL 204216L Contact Us For Availability
020
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
021
TIMER TORSION ASSEMBLY WPL 33001483 Contact Us For Availability
021
SCREW, SET WPL Y053241 Contact Us For Availability
022
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
023
SWITCH, MOTOR BY-PASS WPL 305798 Contact Us For Availability
024
SWITCH, HEATER BY-PASS WPL Y305799 Contact Us For Availability
025
RETAINER, SPRING WPL 211790 Contact Us For Availability
026
GROMMET, CORD EXPORT WPL 216183 Contact Us For Availability
026
CLIP, SPRING RETAINER WPL Y312270 Contact Us For Availability
027
DRIVER, INDEX WHEEL WPL 314330 Contact Us For Availability
028
PEG, TINE ADJUSTMENT WPL 314335 Contact Us For Availability
029
BRACKET, SWITCH & SLIDER WPL 314339 Contact Us For Availability
030
GROUND WIRE WPL 901220 Contact Us For Availability
030
WHEEL, INDEX WPL 314546 Contact Us For Availability
032
ACTUATOR, SWITCH WPL 314548 Contact Us For Availability
033
BRACKET, COIN SLIDE WPL 314334 Contact Us For Availability
033
BASE ASSEMBLY WPL Y305084 Contact Us For Availability
034
BRACKET, TIMER WPL 33001207 Contact Us For Availability
036
SPRING, TORSION RETURN WPL 314331 Contact Us For Availability
037
SPRING, ACTUATOR WPL 314332 Contact Us For Availability
038
CLIP, CABLE WPL Y310376 Contact Us For Availability
038
ACTUATOR SWITCH KIT WPL 306104 Contact Us For Availability
039
RETAINER, WIRE WPL 315471 Contact Us For Availability
040
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
041
NUT, CAM LOCK WPL 22001355 Contact Us For Availability
042
SCREW, BY-PASS SWITCHES WPL 315277 Contact Us For Availability
042
TRANSFOR WPL 307928 Contact Us For Availability
045
MOTOR, TIMER (240V 50HZ) WPL 306527 Contact Us For Availability
045
MOTOR, TIMER WPL Y308991 Contact Us For Availability
× ![]()
