Model Whirlpool MDE10CSADL ELECTRIC DRYER – Common Parts & Diagrams

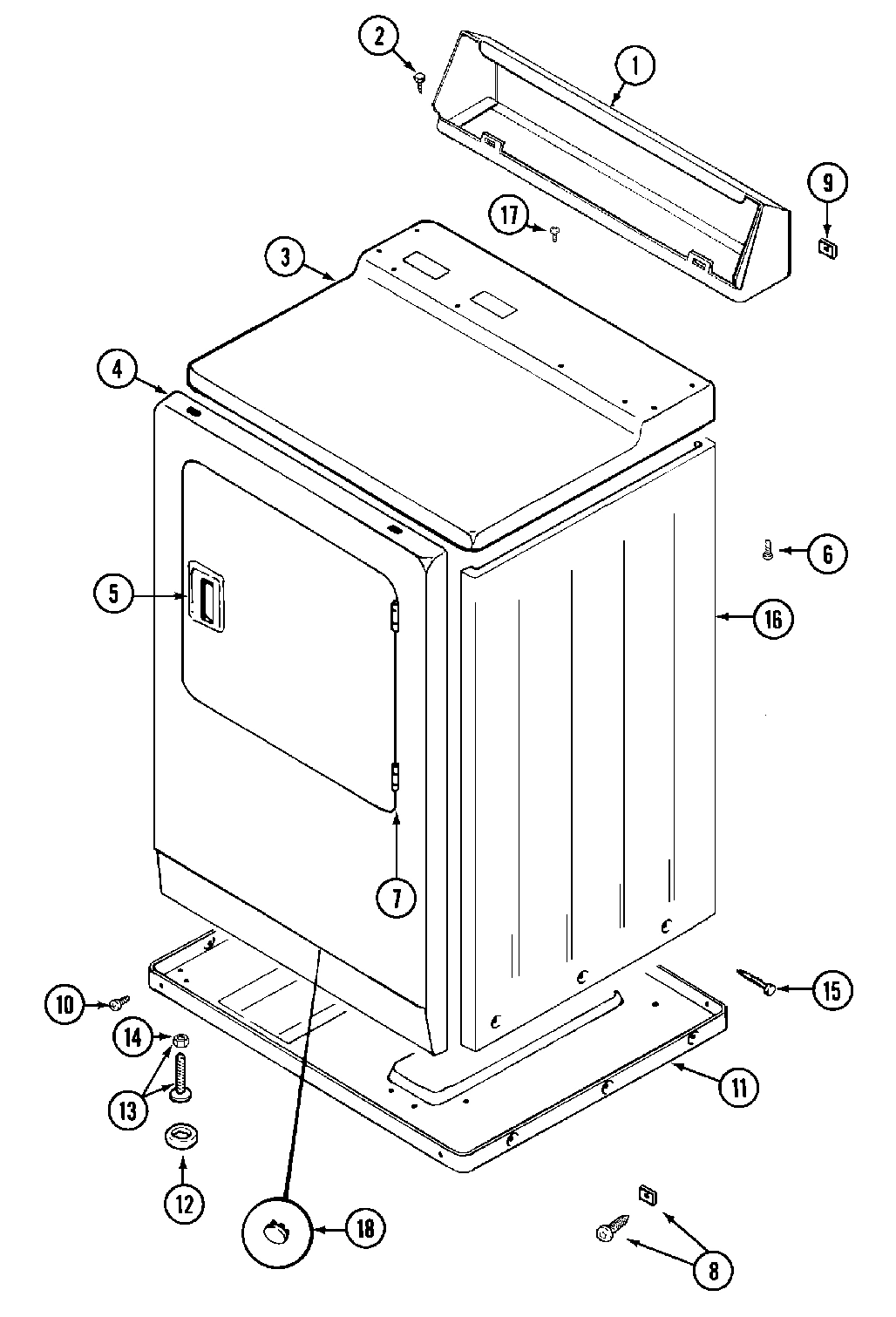

03 - CABINET (FRONT)
06 - TUMBLER
07 - HEATER

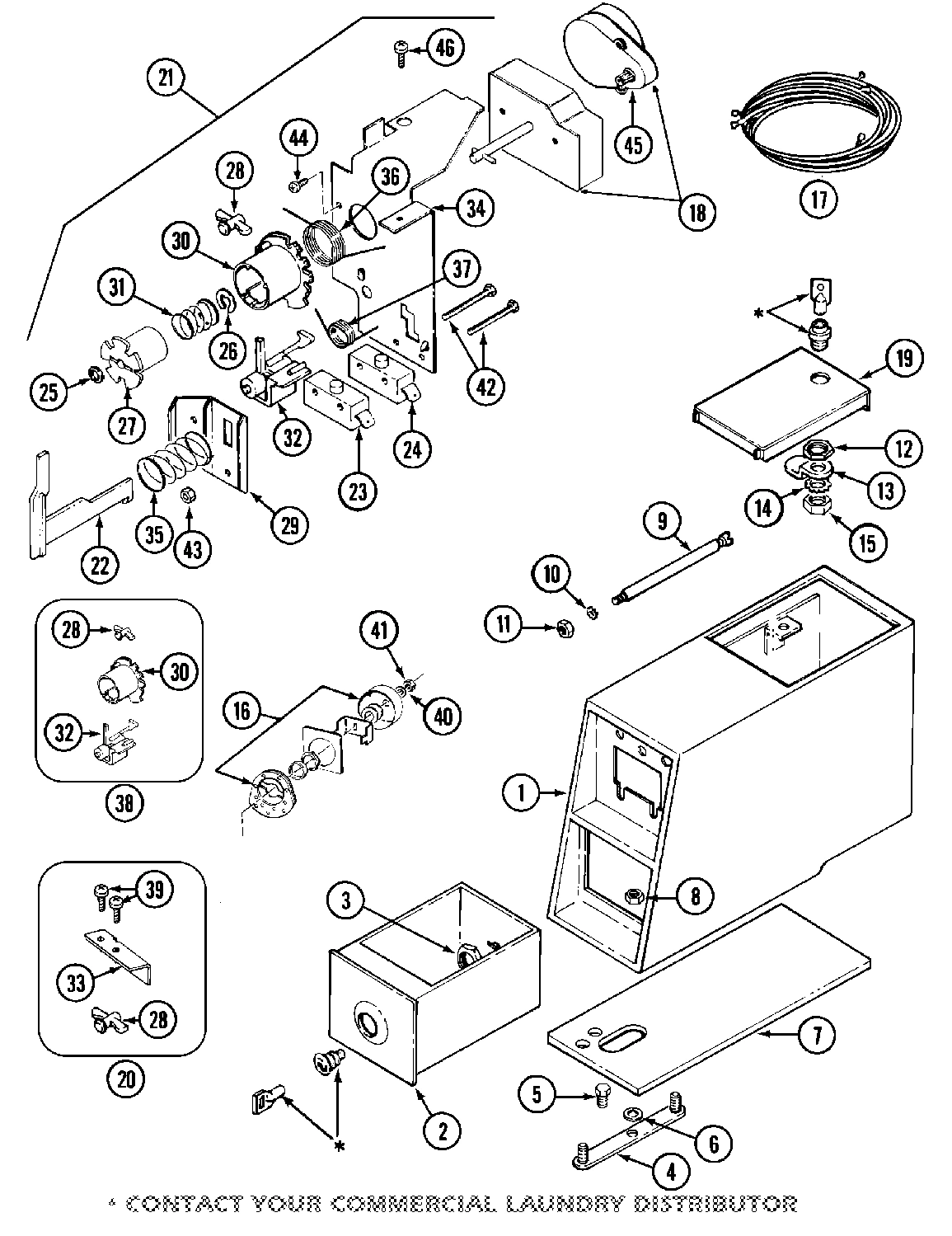

02 - CONTROL CENTER

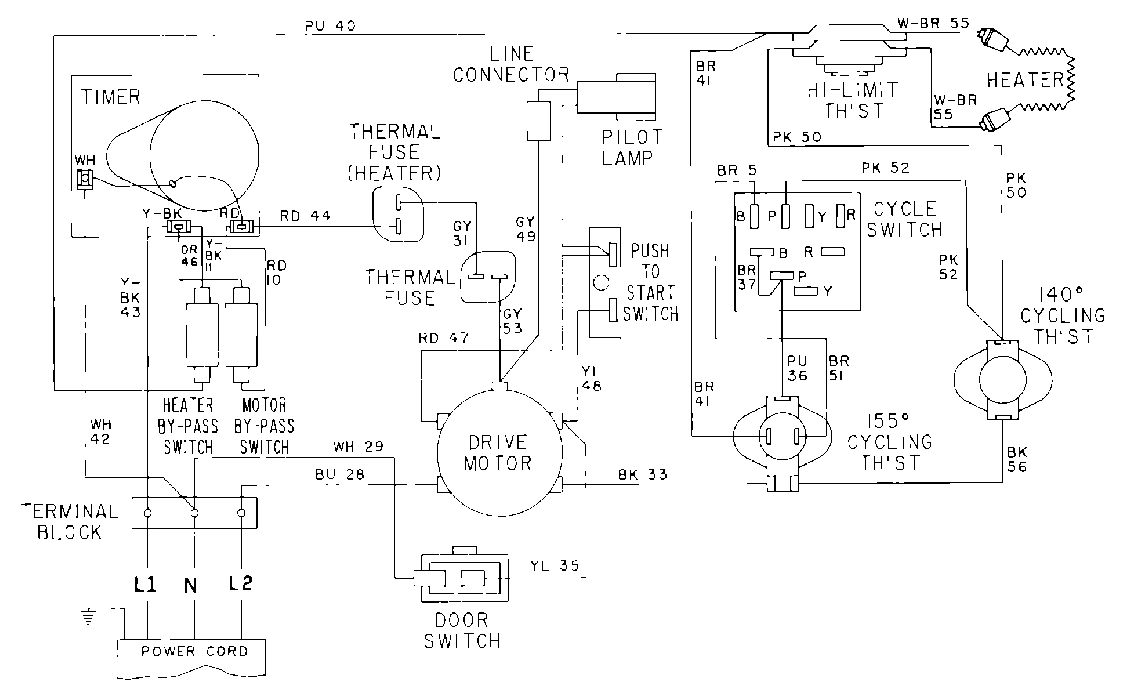

09 - WIRING INFORMATION
04 - DOOR

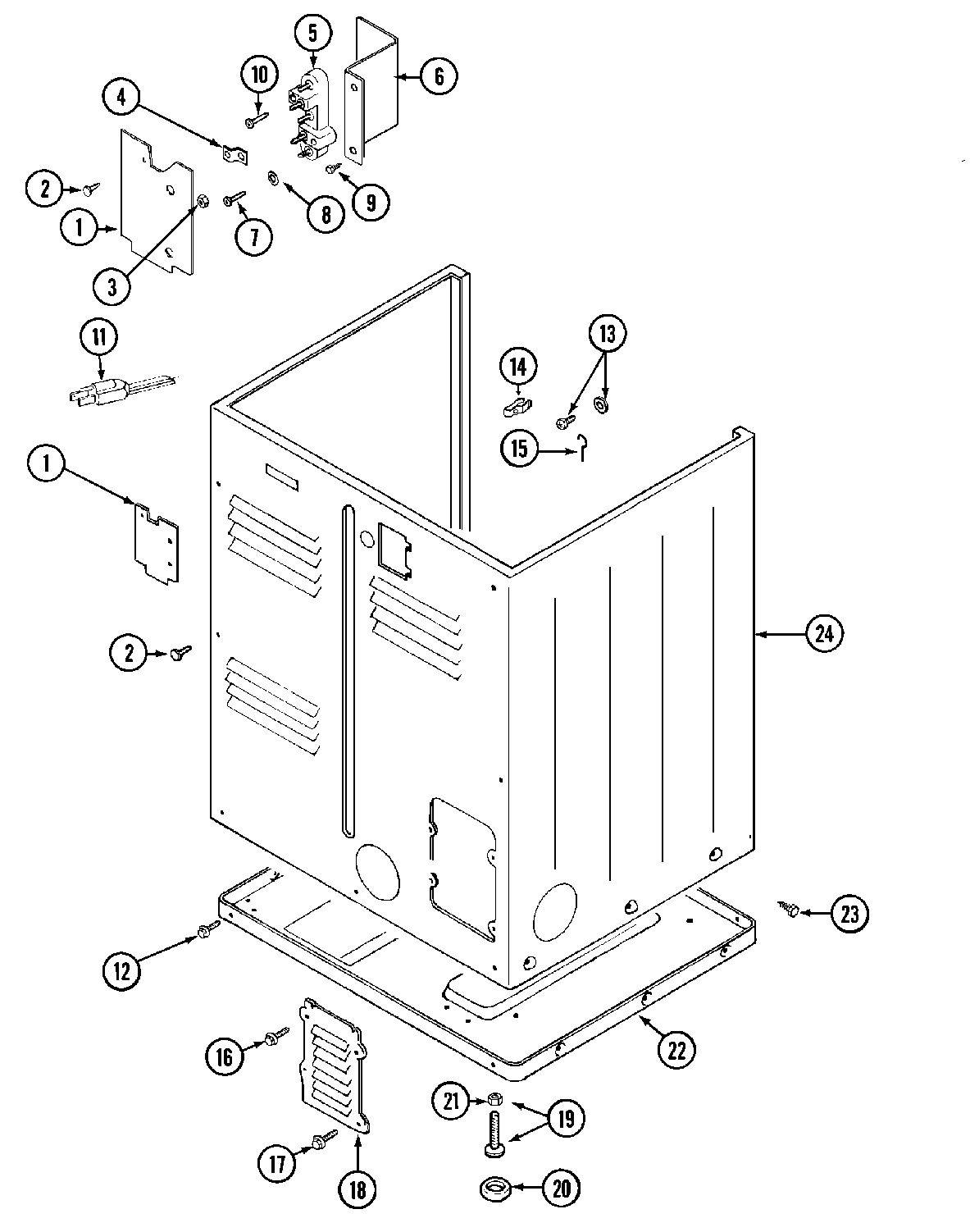

05 - CABINET (REAR)

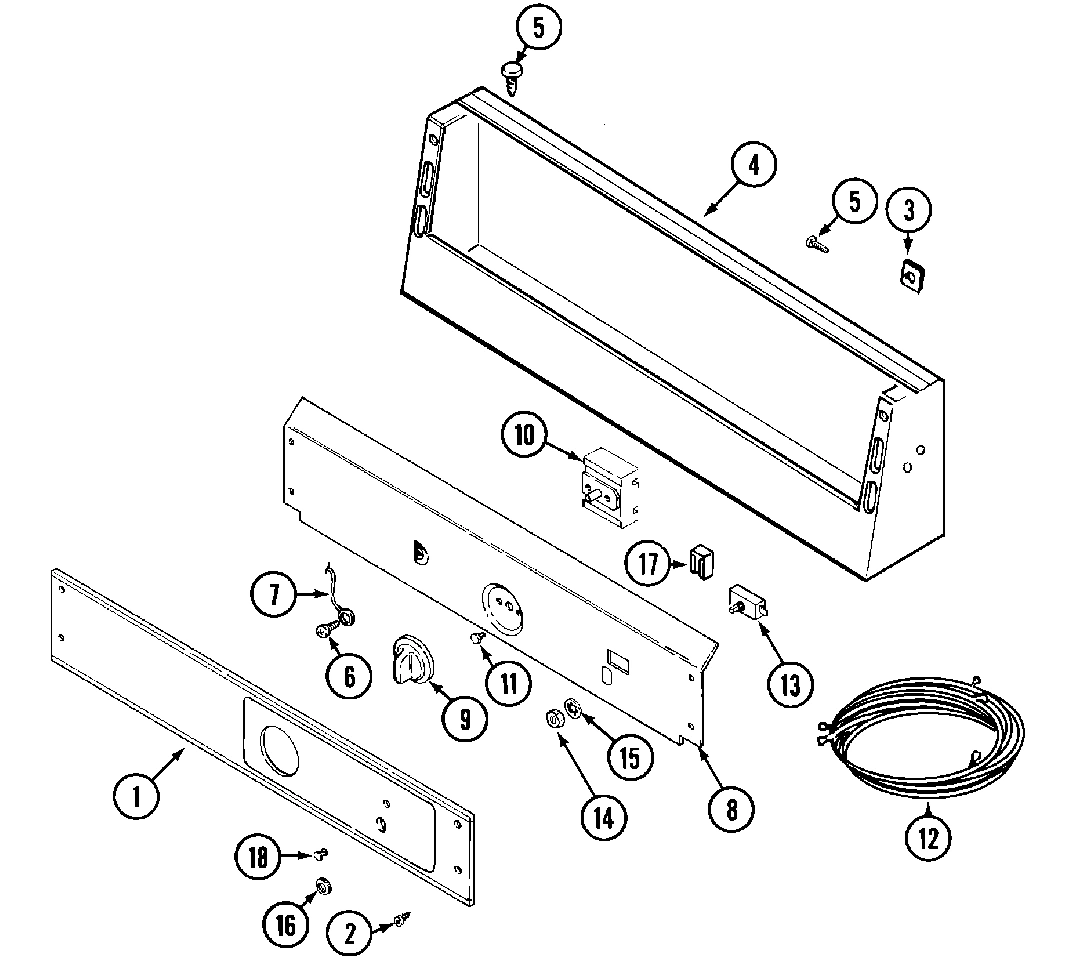

01 - CONTROL PANEL
08 - MOTOR DRIVE
Common parts from model Whirlpool MDE10CSADL ELECTRIC DRYER
001
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
001
OUTLET DUCT ASSEMBLY WPL 33001016 Contact Us For Availability
001
CASE, COIN METER (WHT) WPL 206952 Contact Us For Availability
001
(ALM) WPL 206952L Contact Us For Availability
001
SCREW, DOOR HINGE & PANEL WPL Y314062 Contact Us For Availability
001
COVER, TERMINAL WPL Y312905 Contact Us For Availability
001
PANEL, CONTROL WPL 33001022 Contact Us For Availability
002
FILTER, LINT WPL 33001170 Contact Us For Availability
002
DUCT, INLET WPL 308503 Contact Us For Availability
002
VAULT, COIN (WHT) WPL 207913 Contact Us For Availability
002
HINGE, DOOR WPL 33001230 Contact Us For Availability
002
EXHAUST DUCT ASSEMBLY WPL Y303442 Contact Us For Availability
003
ENCLOSURE, HEATER WPL 314995 Contact Us For Availability
003
DOOR (WHT) WPL 33001240 Contact Us For Availability
003
(ALM) WPL 33001257 Contact Us For Availability
003
FASTENER, CONTROL PANEL WPL 215003 Contact Us For Availability
004
HANDLE, DOOR (WHT) WPL 33001241 Contact Us For Availability
004
BRACKET, THERMAL FUSE WPL 315346 Contact Us For Availability
004
(ALM) WPL 33001254 Contact Us For Availability
004
STRAP, GROUND WPL Y312184 Contact Us For Availability
005
FRONT, TUMBLER (W/SEAL) WPL 33001179 Contact Us For Availability
005
SEAL, DOOR WPL 33001131 Contact Us For Availability
005
BLOCK, TERMINAL WPL 400008 Contact Us For Availability
006
PLUG, SIGHT HOLE (WHT) WPL 33001132 Contact Us For Availability
006
(ALM) WPL 33001168 Contact Us For Availability
006
WASHER, STRAP SCREW WPL 910309 Contact Us For Availability
006
BRACKET, TERMINAL BLOCK WPL Y312904 Contact Us For Availability
007
SCREW----NA WPL Y313561 Contact Us For Availability
007
INSULATOR, TERMINAL WPL 314998 Contact Us For Availability
007
GASKET, METER CASE WPL 214660 Contact Us For Availability
007
GROUND WIRE WPL 205810 Contact Us For Availability
008
HEATER SUB-ASSEMBLY (208V) (W/1,3,7 & 10) WPL Y308613 Contact Us For Availability
008
BRACKET, CONTROL PANEL (WHT) WPL 314912 Contact Us For Availability
008
THERMOSTAT, MULTI-TEMP WPL 306967 Contact Us For Availability
009
SHIELD, RADIANT WPL 314999 Contact Us For Availability
009
BOLT, LOCKING WPL 215559 Contact Us For Availability
009
KNOB, SELECTOR WPL 306938 Contact Us For Availability
010
LOCKWASHER, LOCKING BOLT WPL 910387 Contact Us For Availability
011
BAFFLE (SHORT) WPL 33001012 Contact Us For Availability
011
(CANADA) WPL 308217 Contact Us For Availability
011
SEAL, FRONT PANEL WPL 314937 Contact Us For Availability
011
CORD, POWER (CANADA) WPL 305168 Contact Us For Availability
011
LOCKNUT, EARED FOR CANADIAN WPL 33001425 Contact Us For Availability
012
WASHER, BAFFLE WPL 314158 Contact Us For Availability
012
WIRE HARNESS, MAIN WPL 33001026 Contact Us For Availability
012
WIRE HARNESS, MAIN WPL 33001027 Contact Us For Availability
012
WIRE HARNESS, MAIN WPL 33001529 Contact Us For Availability
013
DRYER TUMBLER, W/O BAFFLES WPL 33001108 Contact Us For Availability
013
COVER, BLOWER WPL 314778 Contact Us For Availability
014
SCREW, TUMBLER BAFFLE WPL Y310759 Contact Us For Availability
014
CONVERSION KIT (240V TO 208V) WPL Y308590 Contact Us For Availability
014
GROUND CLAMP & SCREW WPL 301548 Contact Us For Availability
014
NUT, SWITCH WPL Y312706 Contact Us For Availability
015
BACK, TUMBLER (W/SEAL) WPL 33001178 Contact Us For Availability
015
COVER, HINGE HOLE (WHT) WPL 33001175 Contact Us For Availability
015
(ALM) WPL 33001176 Contact Us For Availability
015
GROUND WIRE WPL 204807 Contact Us For Availability
016
LOCKWASHER, LOCK CAM WPL 216203 Contact Us For Availability
016
FASTENER, INNER DOOR WPL Y313910 Contact Us For Availability
016
NUT, KNURLED WPL Y312702 Contact Us For Availability
017
WIRE HARNESS, TIMER WPL 33001195 Contact Us For Availability
017
SCREW & FASTNER ASSEMBLY WPL 204439 Contact Us For Availability
017
LIGHT, INDICATOR WPL 204075 Contact Us For Availability
018
DOOR, INNER (W/SEAL) WPL 33001243 Contact Us For Availability
018
COVER, ACCESS WPL Y312951 Contact Us For Availability
018
(No.303358-8 & No.303358-9) WPL 306207 Contact Us For Availability
018
SWITCH, MOTOR EXTERNAL START No.303358-2, No. WPL Y303877 Contact Us For Availability
018
SWITCH, MOTOR EXTERNAL START (No.303358 & No. WPL Y303879 Contact Us For Availability
019
DOOR, ACCESS (WHT) WPL 204216 Contact Us For Availability
019
(ALM) WPL 204216L Contact Us For Availability
020
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
021
TORSION TIMER ASSEMBLY WPL 33001275 Contact Us For Availability
021
SCREW, SET WPL Y053241 Contact Us For Availability
022
BASE ASSEMBLY WPL Y303361 Contact Us For Availability
022
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
023
SWITCH, BY-PASS (MOTOR) WPL 305798 Contact Us For Availability
024
SWITCH, BY-PASS (HEATER) WPL Y305799 Contact Us For Availability
025
RETAINER, SPRING WPL 211790 Contact Us For Availability
026
CLIP, SPRING RETAINER WPL Y312270 Contact Us For Availability
027
DRIVER, INDEX WHEEL WPL 314330 Contact Us For Availability
028
PEG, TINE ADJUSTMENT WPL 314335 Contact Us For Availability
029
BRACKET, SWITCH & SLIDER WPL 314339 Contact Us For Availability
030
GROUND WIRE WPL 901220 Contact Us For Availability
030
WHEEL, INDEX WPL 314546 Contact Us For Availability
031
SUPPORT, MOTOR WPL NLA Contact Us For Availability
032
ACTUATOR, SWITCH WPL 314548 Contact Us For Availability
033
BRACKET, COIN SLIDE WPL 314334 Contact Us For Availability
033
BASE ASSEMBLY WPL Y305084 Contact Us For Availability
034
BRACKET, TIMER WPL 33001207 Contact Us For Availability
036
LEG & NUT WPL W10176519 No Longer Available
036
SPRING, TORSION RETURN WPL 314331 Contact Us For Availability
037
SPRING, ACTUATOR WPL 314332 Contact Us For Availability
038
CLIP, CABLE WPL Y310376 Contact Us For Availability
038
ACTUATOR KIT WPL 306104 Contact Us For Availability
039
RETAINER, WIRE WPL 315471 Contact Us For Availability
040
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
041
NUT, CAM LOCK WPL 22001355 Contact Us For Availability
042
SCREW, BY-PASS SWITCHES WPL 315277 Contact Us For Availability
042
COVER, THERMOSTAT WPL 315122 Contact Us For Availability
043
SCREW, THERMOSTAT COVER WPL Y310632 Contact Us For Availability
045
MOTOR, TIMER WPL Y308991 Contact Us For Availability
× ![]()
