Model Whirlpool LIT3187474 Range – Common Parts & Diagrams
COVER

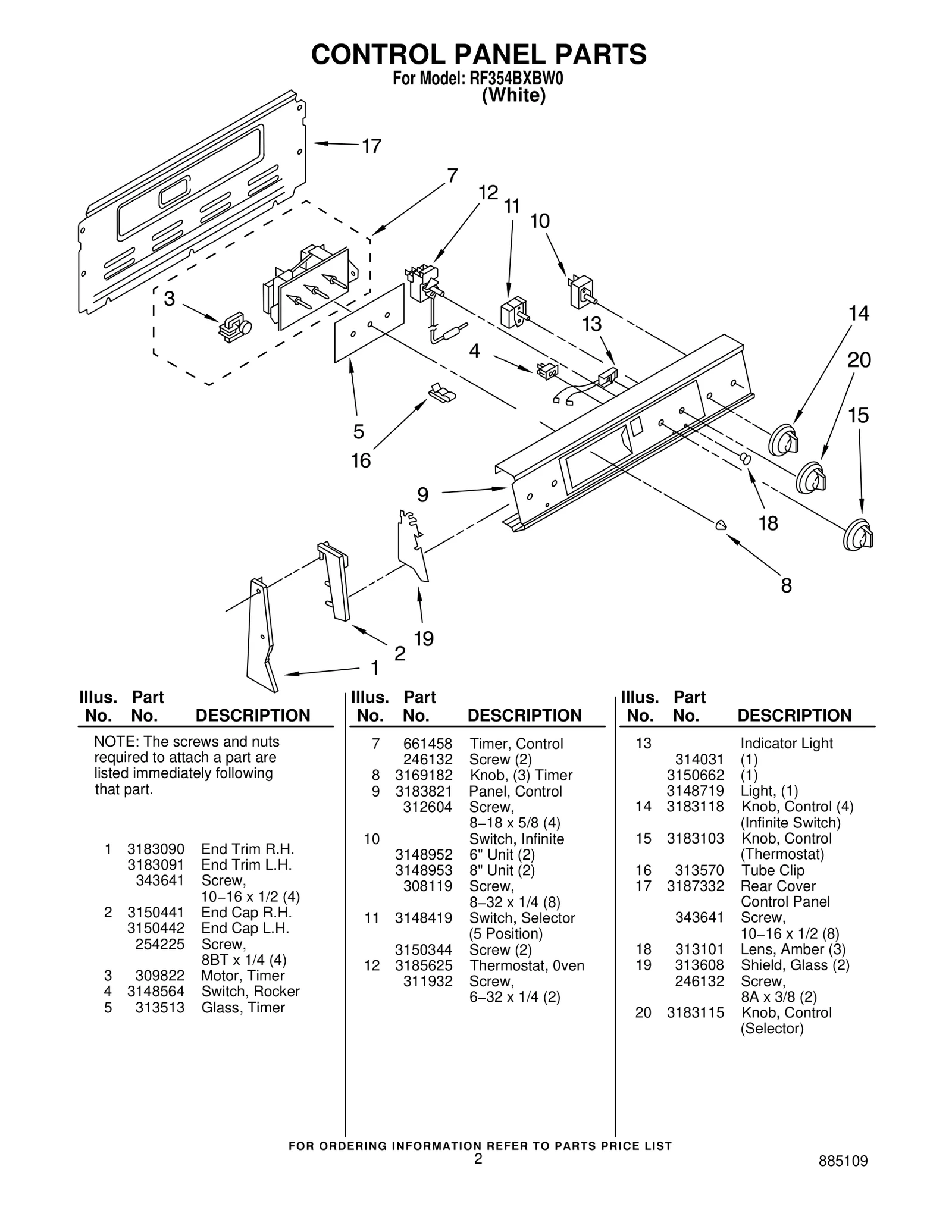

CONTROL PANEL PARTS

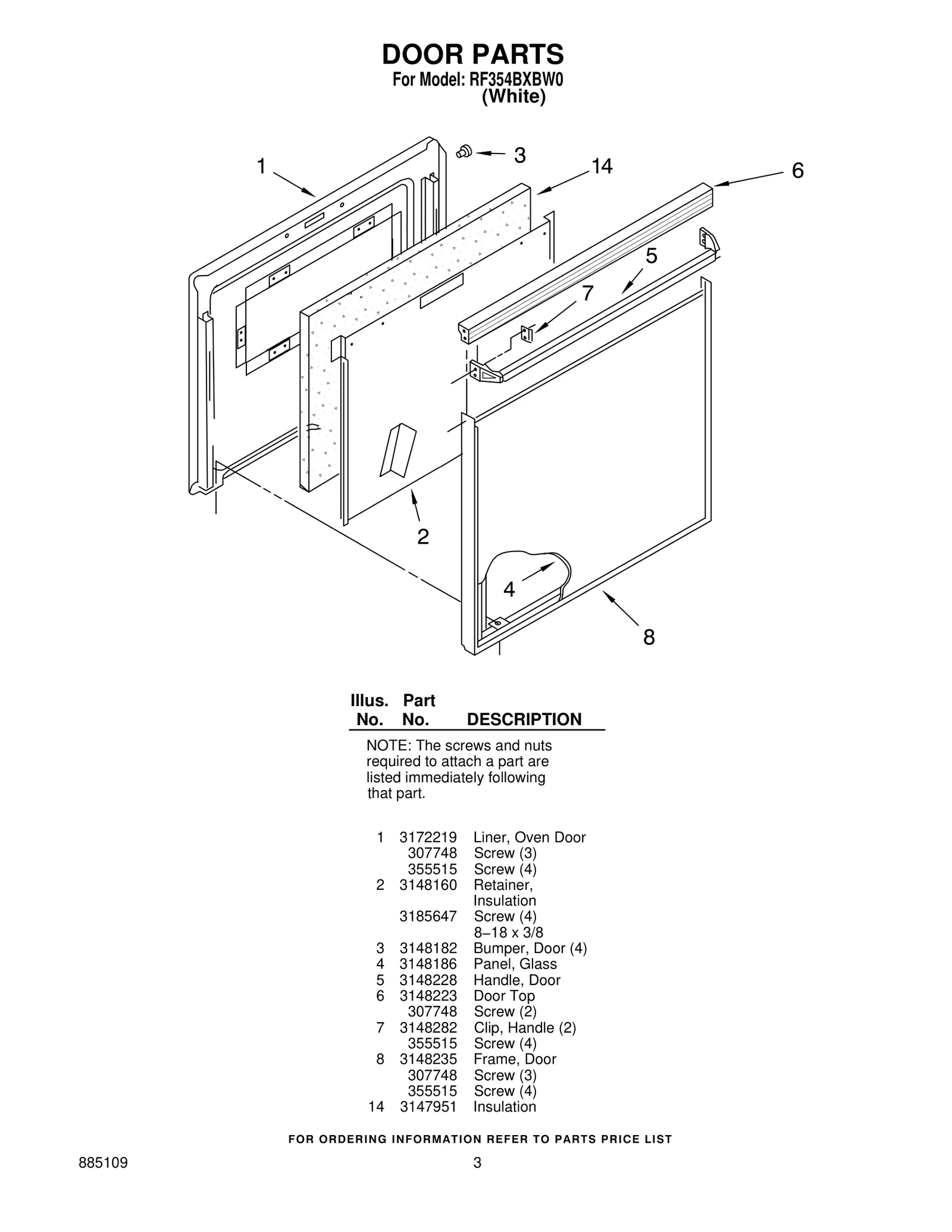

DOOR PARTS

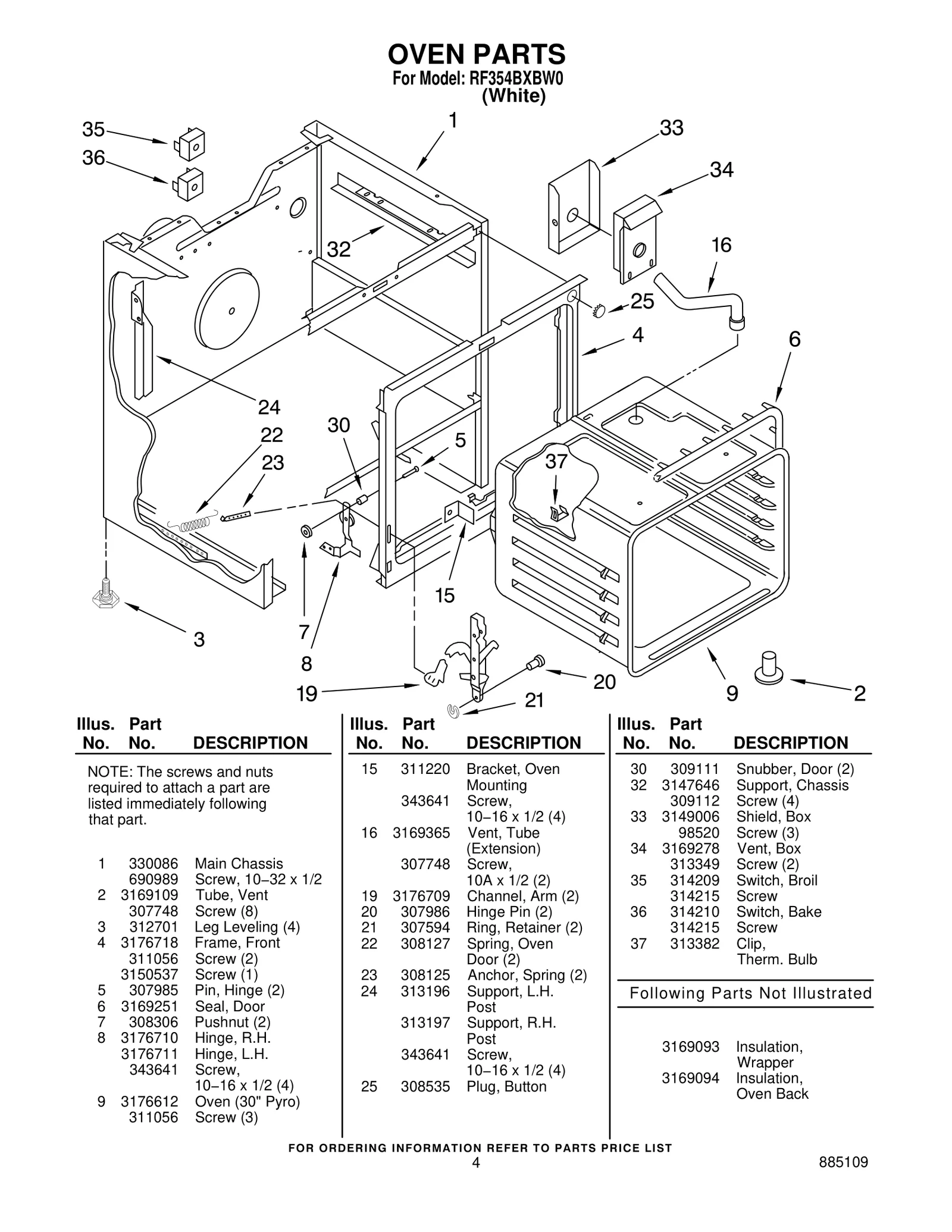

OVEN PARTS

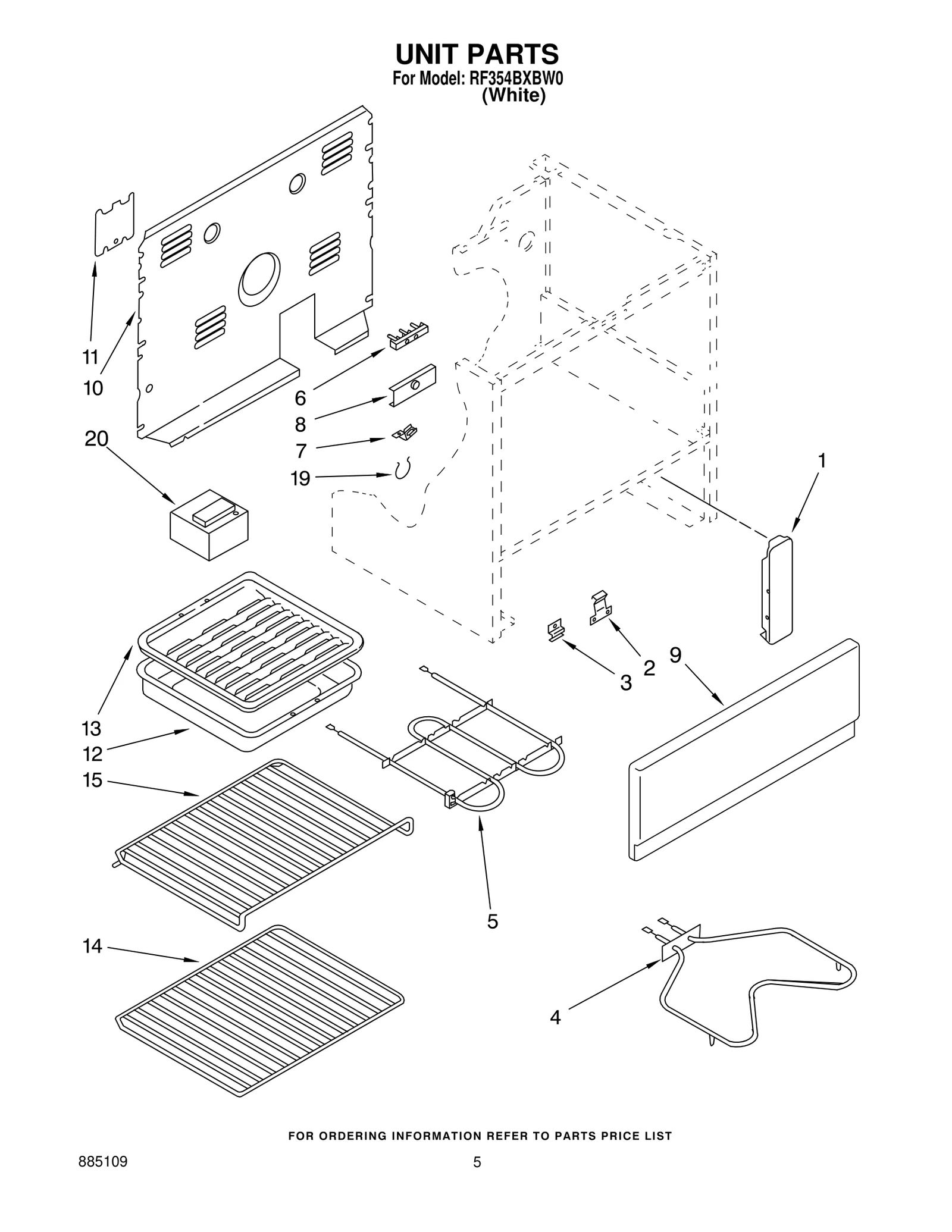

UNIT PARTS

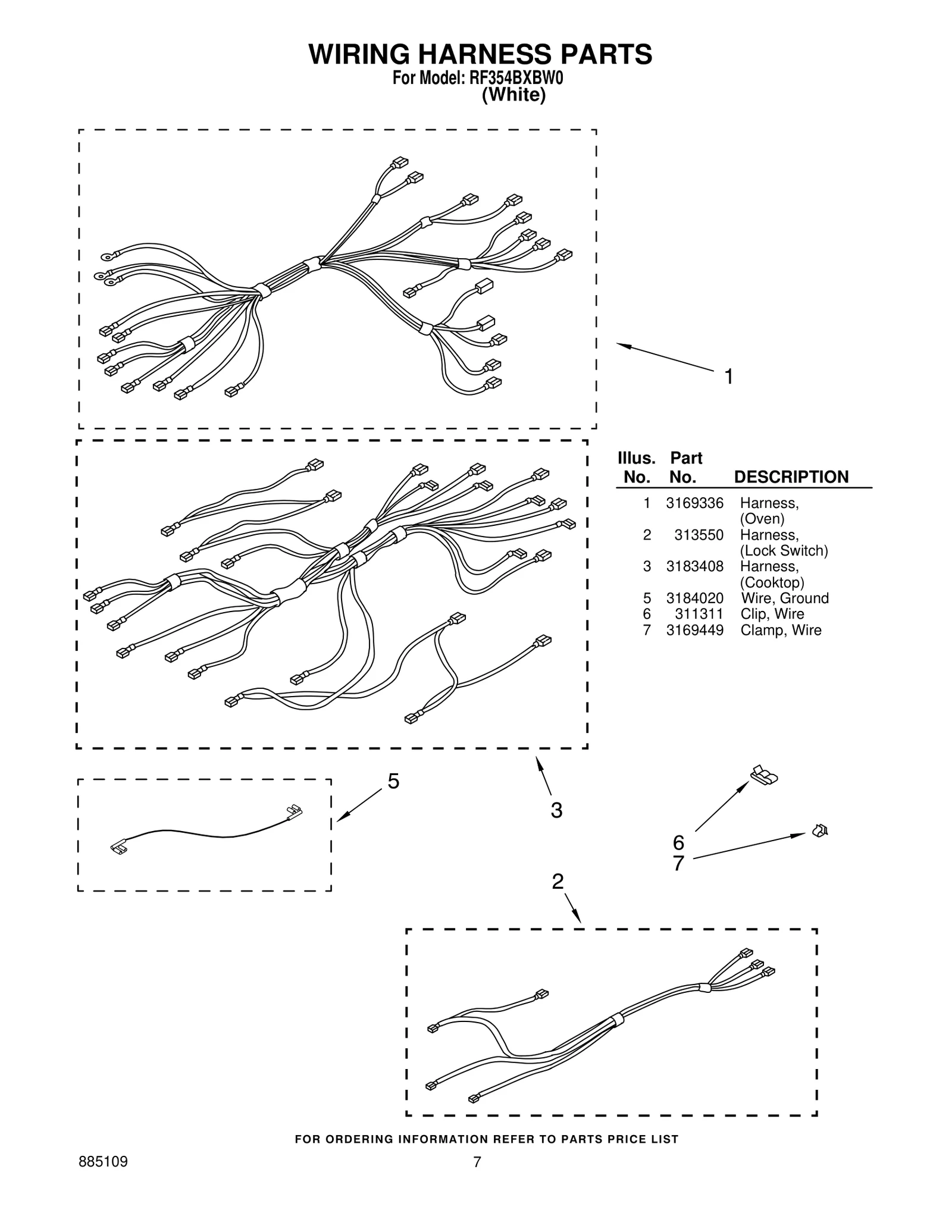

WIRING HARNESS PARTS

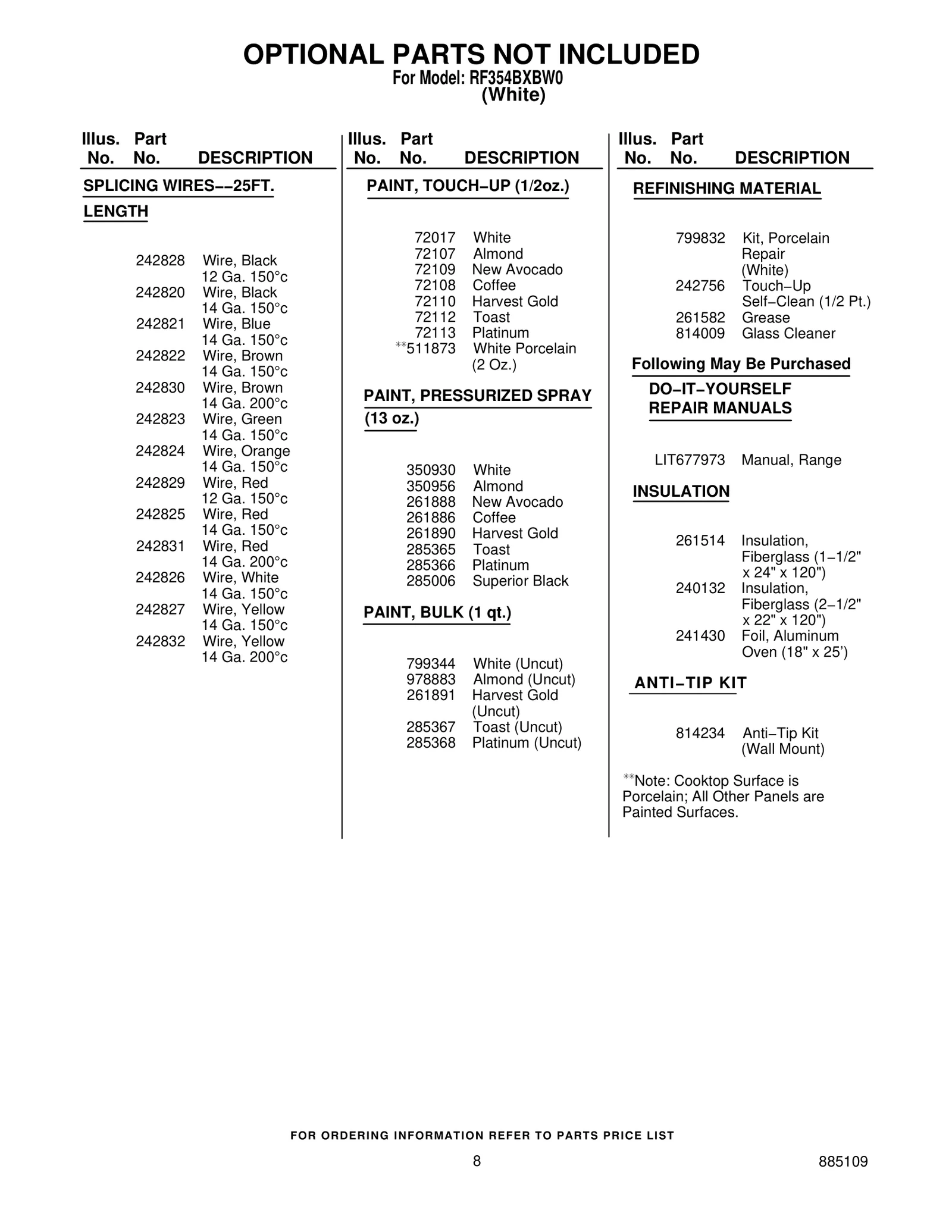

OPTIONAL PARTS NOT INCLUDED
Common parts from model Whirlpool LIT3187474 Range
1
Main Chassis WPL 330086 Contact Us For Availability
1
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
1
Harness, WPL 3169336 Contact Us For Availability
2
Tube, Vent WPL 3169109 Contact Us For Availability
2
Sping, Panel (2) WPL 307958 Contact Us For Availability
2
Harness, WPL 313550 Contact Us For Availability
3
Bumper, Door (4) WPL 3148182 Contact Us For Availability
3
Bracket, Mounting WPL 307957 Contact Us For Availability
3
Harness, WPL 3183408 Contact Us For Availability
4
Panel, Glass WPL 3148186 Contact Us For Availability
4
Frame, Front WPL 3176718 Contact Us For Availability
4
Screw (1) WPL 3150537 Contact Us For Availability
5
Handle, Door WPL 3148228 Contact Us For Availability
5
Pin, Hinge (2) WPL 307985 Contact Us For Availability
5
Screw, 10−32 x 7/16 (2) WPL 3150532 Contact Us For Availability
6
NOTE: The screws and nuts required to attach WPL N/S Contact Us For Availability
6
Door Top WPL 3148223 Contact Us For Availability
6
Seal, Door WPL 3169251 Contact Us For Availability
6
Screw, 10−16 x 1 (2) WPL 98884 Contact Us For Availability
6
Clip, Wire WPL 311311 Contact Us For Availability
7
Clip, Handle (2) WPL 3148282 Contact Us For Availability
7
Pushnut (2) WPL 308306 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
7
Clamp, Wire WPL 3169449 Contact Us For Availability
8
Frame, Door WPL 3148235 Contact Us For Availability
8
Hinge, R.H. WPL 3176710 Contact Us For Availability
8
Hinge, L.H. WPL 3176711 Contact Us For Availability
8
Bracket, Service WPL 3150190 Contact Us For Availability
9
Screw (3) WPL 311056 Contact Us For Availability
9
Oven (30" Pyro) WPL 3176612 Contact Us For Availability
9
Panel, Drawer WPL 307935 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
13
Indicator Light WPL 314031 Contact Us For Availability
14
Knob, Control (4) WPL 3183118 Contact Us For Availability
14
Insulation WPL 3147951 Contact Us For Availability
14
Rack, Oven WPL 308173 Contact Us For Availability
15
Knob, Control WPL 3183103 Contact Us For Availability
15
Bracket, Oven Mounting WPL 311220 Contact Us For Availability
15
Rack, Oven WPL 308172 Contact Us For Availability
16
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
16
Vent, Tube WPL 3169365 Contact Us For Availability
19
Channel, Arm (2) WPL 3176709 Contact Us For Availability
20
Knob, Control WPL 3183115 Contact Us For Availability
20
Block, Balance WPL 3149258 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
24
Support, L.H. Post WPL 313196 Contact Us For Availability
24
Support, R.H. Post WPL 313197 Contact Us For Availability
25
Plug, Button WPL 308535 Contact Us For Availability
30
Snubber, Door (2) WPL 309111 Contact Us For Availability
32
Support, Chassis WPL 3147646 Contact Us For Availability
33
Shield, Box WPL 3149006 Contact Us For Availability
33
Screw (3) WPL 98520 Contact Us For Availability
34
Vent, Box WPL 3169278 Contact Us For Availability
35
Switch, Broil WPL 314209 Contact Us For Availability
36
Screw WPL 314215 Contact Us For Availability
36
Switch, Bake WPL 314210 Contact Us For Availability
37
Insulation, Wrapper WPL 3169093 Contact Us For Availability
37
Insulation, Oven Back WPL 3169094 Contact Us For Availability
OPT-1
LENGTH WPL 242828 Contact Us For Availability
OPT-2
Wire, Black WPL 242820 Contact Us For Availability
OPT-3
Wire, Black WPL 242821 Contact Us For Availability
OPT-4
Wire, Blue WPL 242822 Contact Us For Availability
OPT-5
Wire, Brown WPL 242830 Contact Us For Availability
OPT-6
Wire, Brown WPL 242823 Contact Us For Availability
OPT-7
Wire, Green WPL 242824 Contact Us For Availability
OPT-8
Wire, Orange WPL 242829 Contact Us For Availability
OPT-9
Wire, Red WPL 242825 Contact Us For Availability
OPT-10
Wire, Red WPL 242831 Contact Us For Availability
OPT-11
Wire, Red WPL 242826 Contact Us For Availability
OPT-12
Wire, White WPL 242827 Contact Us For Availability
OPT-13
Wire, Yellow WPL 242832 Contact Us For Availability
OPT-17
New Avocado WPL 72108 Contact Us For Availability
OPT-19
Harvest Gold WPL 72112 Contact Us For Availability
OPT-24
Almond WPL 261888 Contact Us For Availability
OPT-25
New Avocado WPL 261886 Contact Us For Availability
OPT-26
Coffee WPL 261890 Contact Us For Availability
OPT-27
Harvest Gold WPL 285365 Contact Us For Availability
OPT-28
Toast WPL 285366 Contact Us For Availability
OPT-30
PAINT, BULK (1 qt.) WPL 799344 Contact Us For Availability
OPT-31
White (Uncut) WPL 978883 Contact Us For Availability
OPT-32
Almond (Uncut) WPL 261891 Contact Us For Availability
OPT-33
(Uncut) WPL 285367 Contact Us For Availability
OPT-34
Toast (Uncut) WPL 285368 Contact Us For Availability
OPT-35
REFINISHING MATERIAL WPL 799832 Contact Us For Availability
OPT-37
Self−Clean (1/2 Pt.) WPL 261582 Contact Us For Availability
OPT-41
x 22" x 120") WPL 241430 Contact Us For Availability
× ![]()
