Model Whirlpool LIT3150283 Range – Common Parts & Diagrams

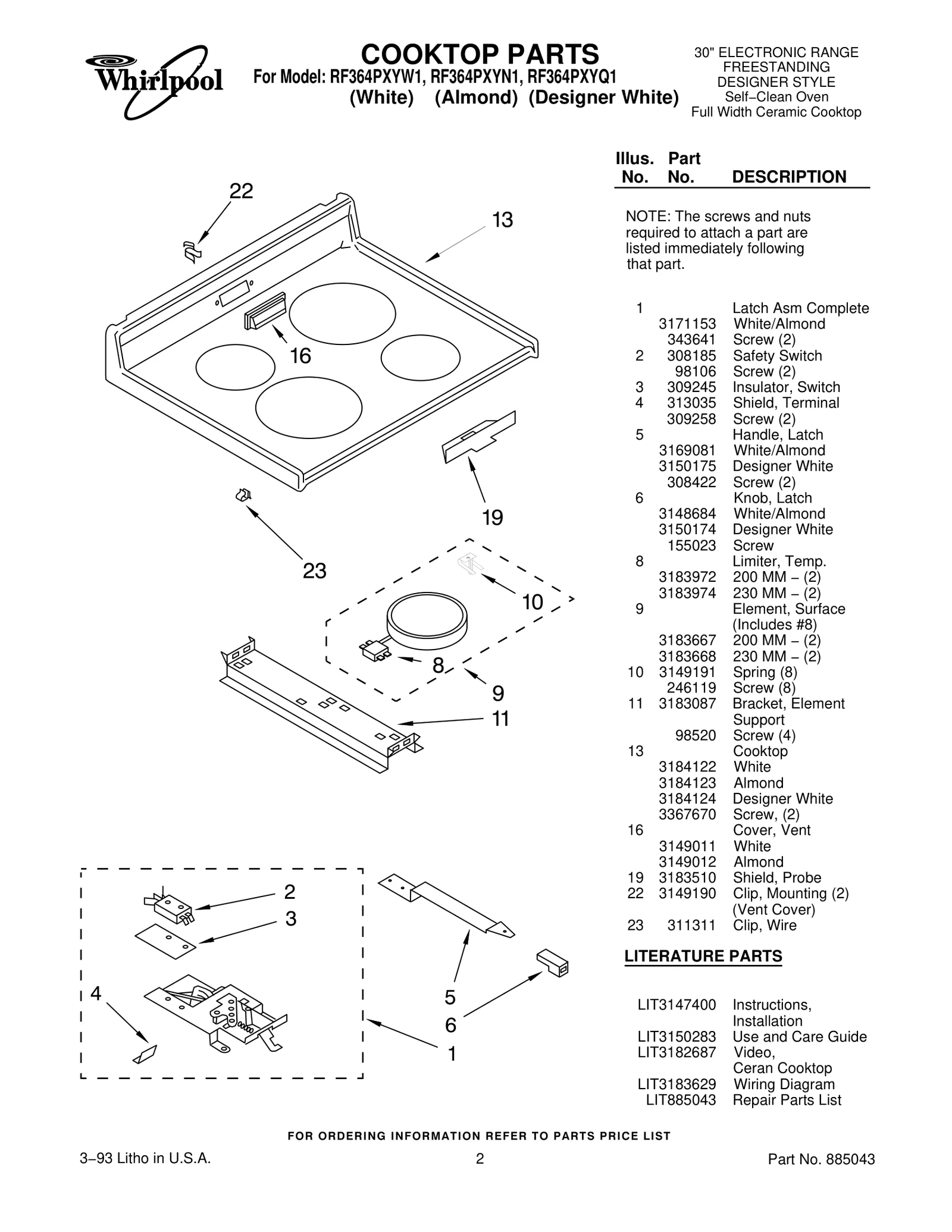

COVER

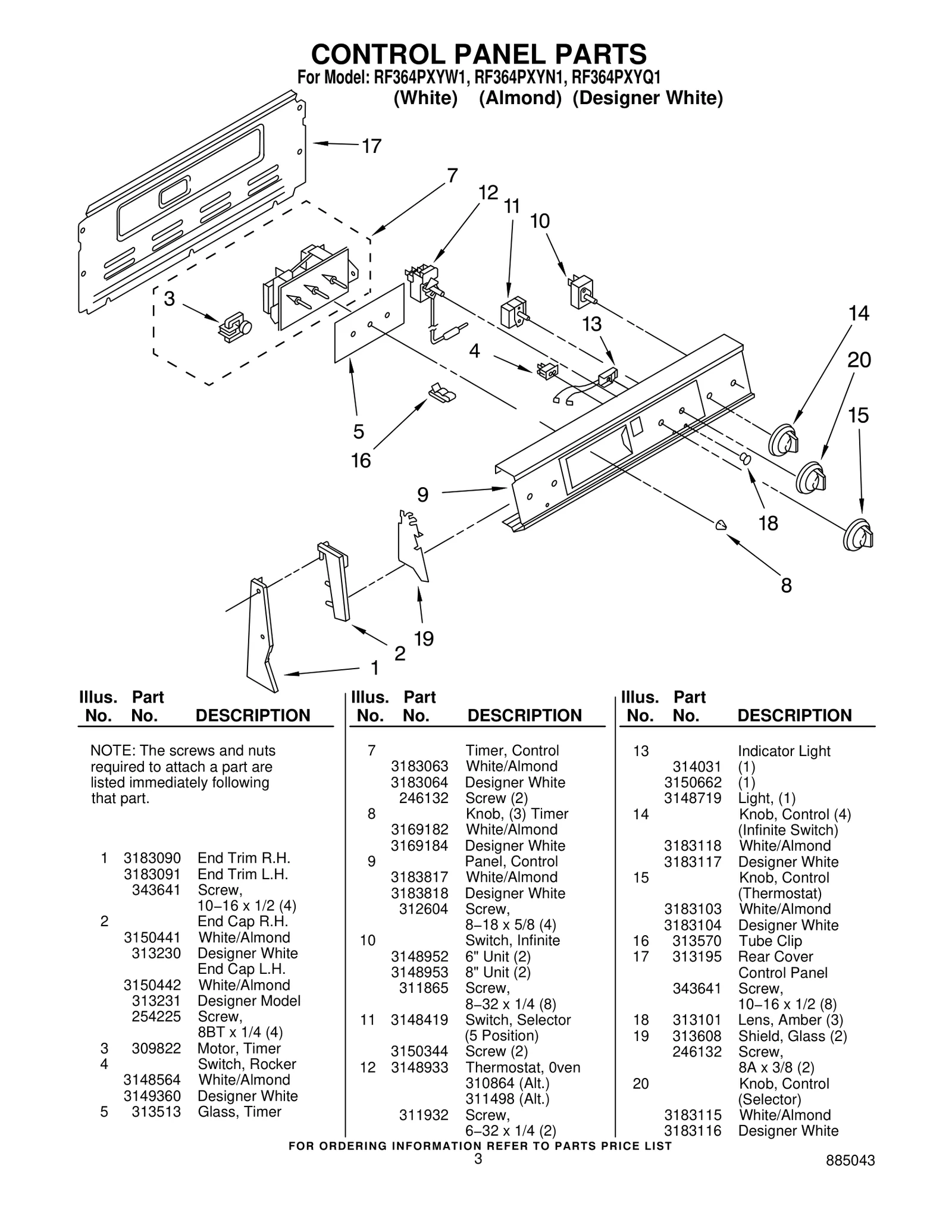

CONTROL PANEL PARTS

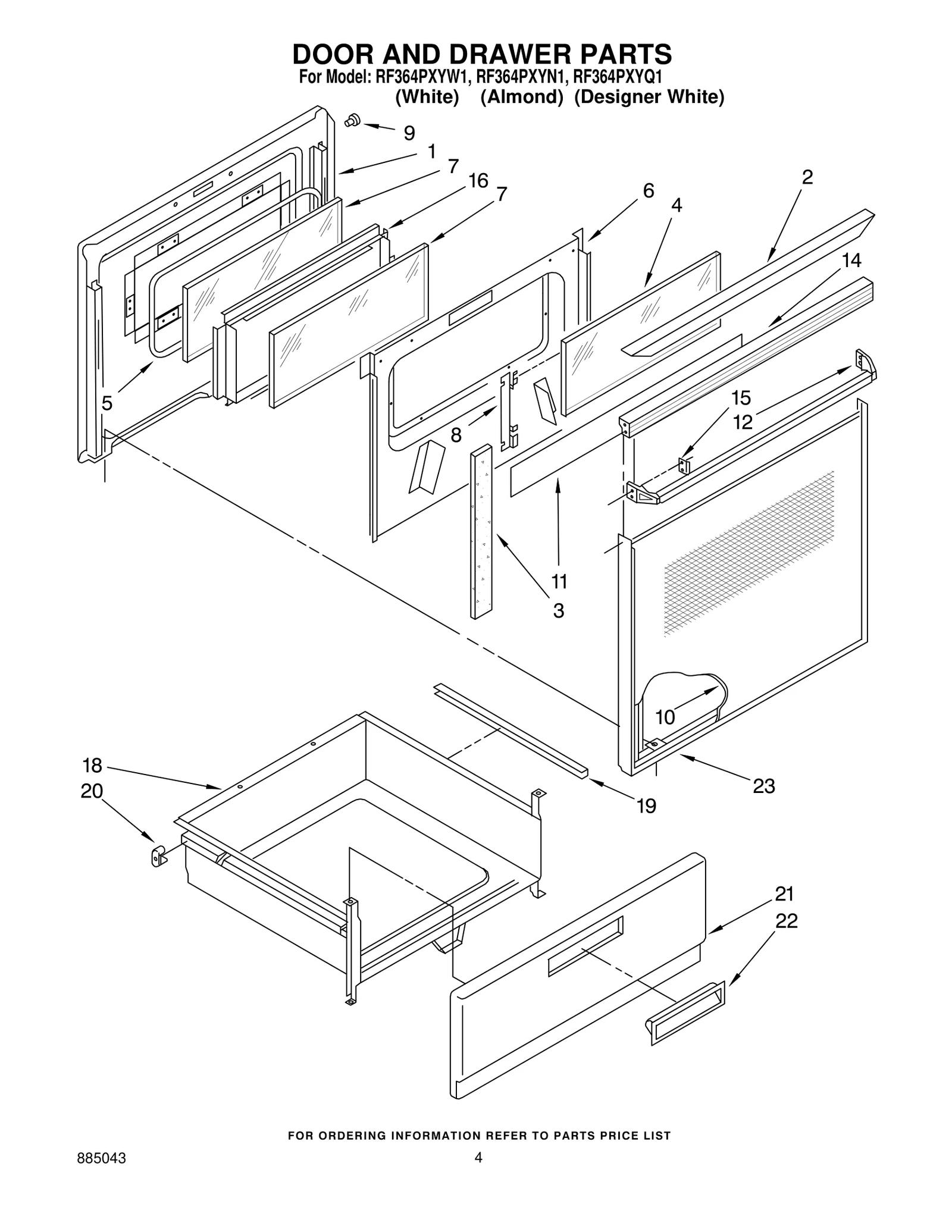

DOOR AND DRAWER PARTS

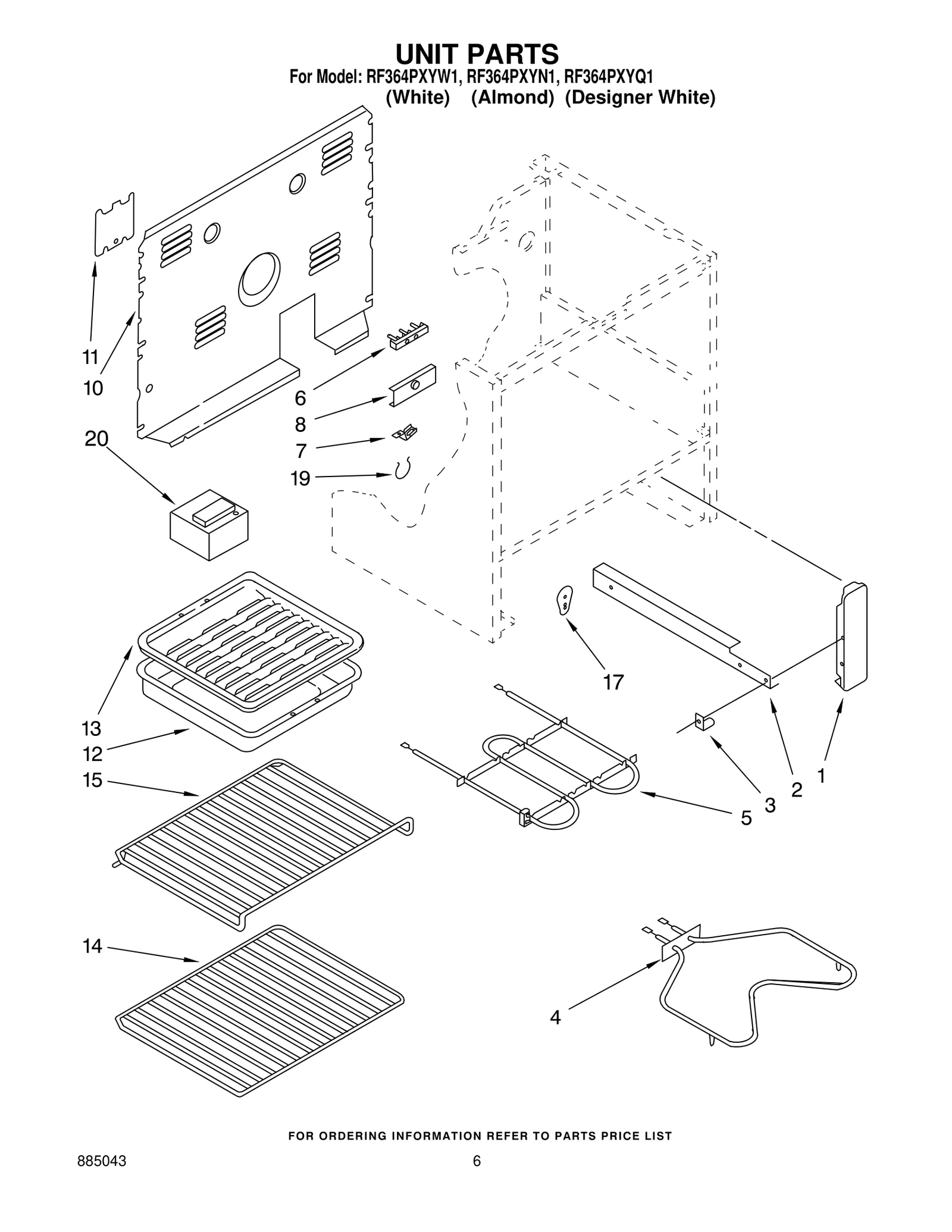

UNIT PARTS

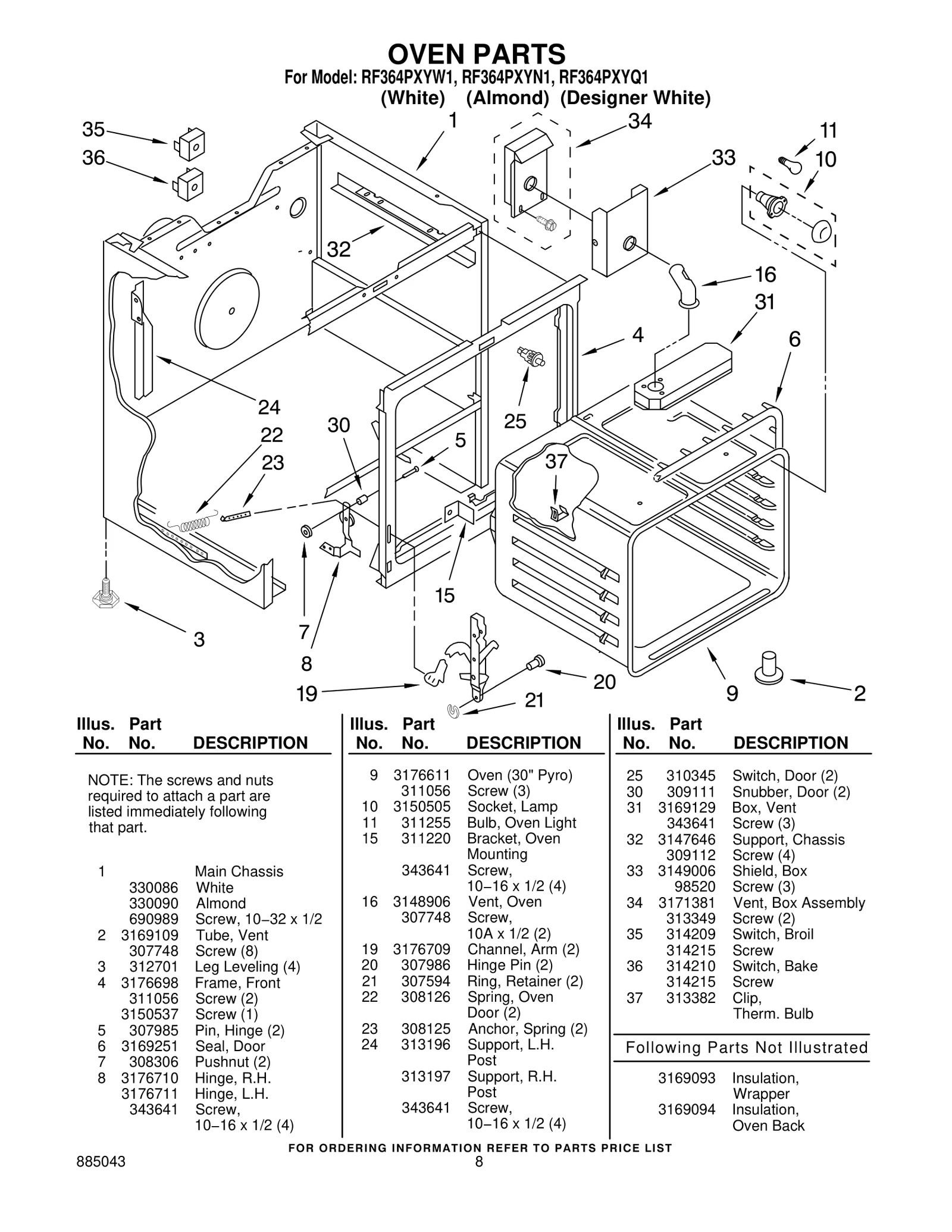

OVEN PARTS

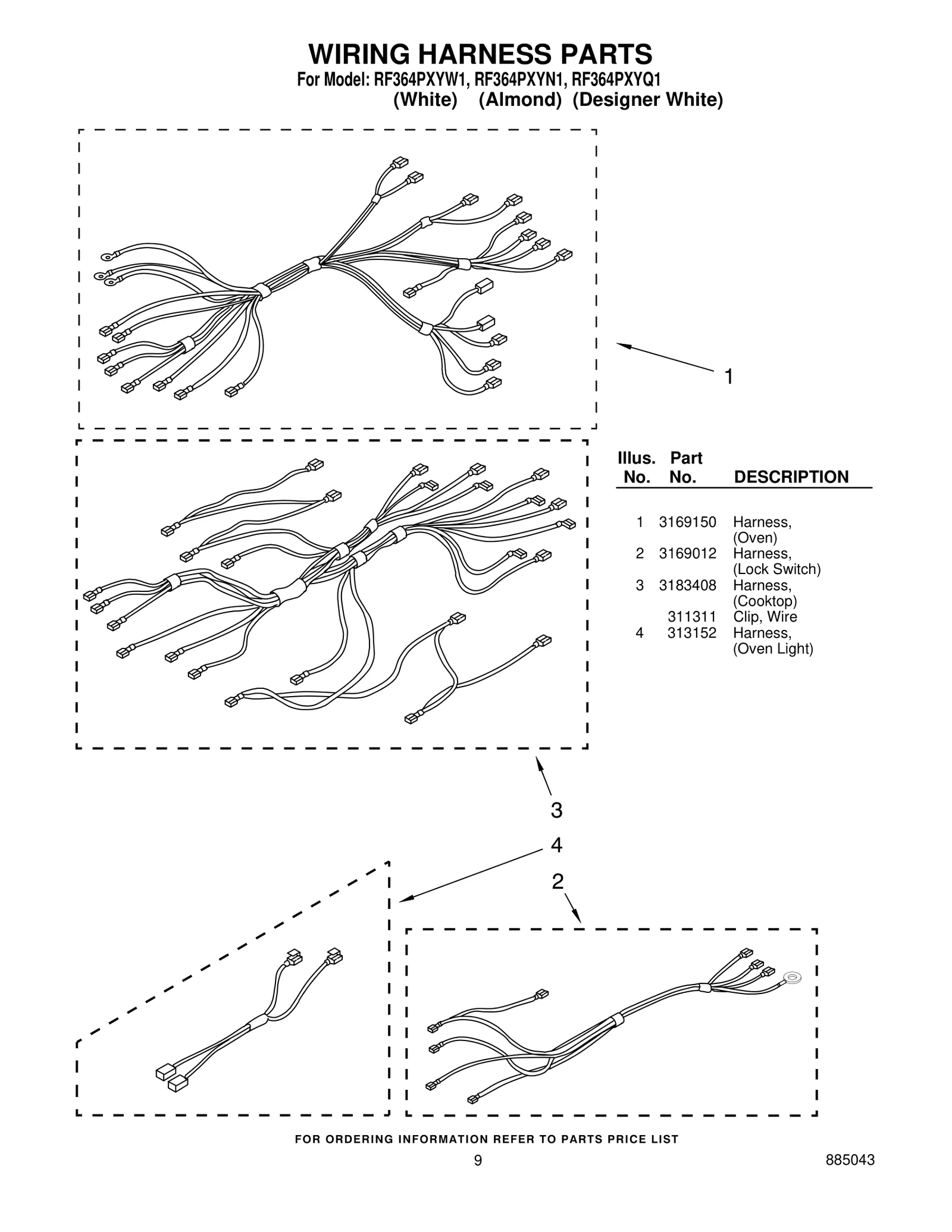

WIRING HARNESS PARTS

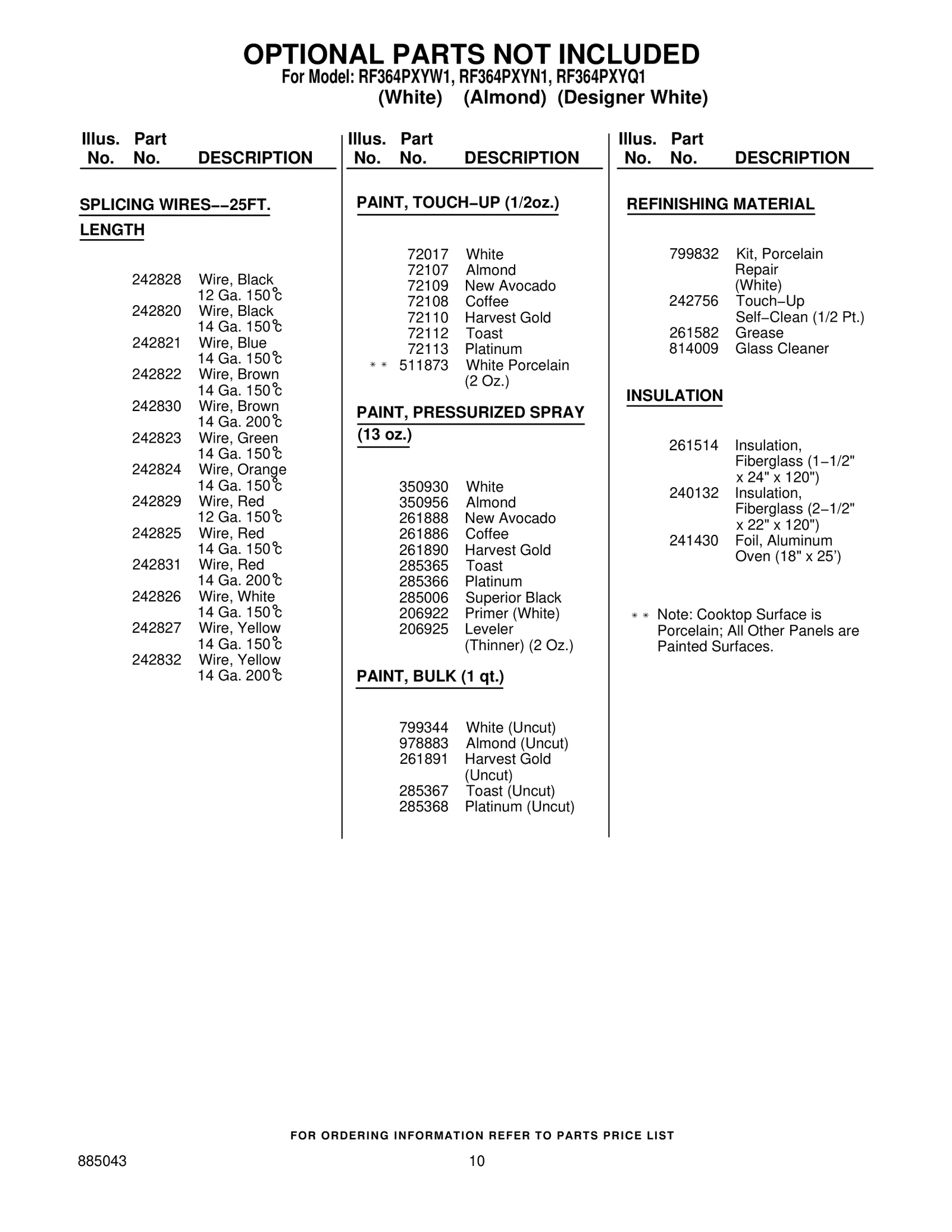

OPTIONAL PARTS NOT INCLUDED
Common parts from model Whirlpool LIT3150283 Range
1
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
1
Main Chassis — White WPL 330086 Contact Us For Availability
1
Main Chassis — Almond WPL 330090 Contact Us For Availability
1
Harness, WPL 3169150 Contact Us For Availability
2
Rail R.H. WPL 3149255 Contact Us For Availability
2
Rail L.H. WPL 3149256 Contact Us For Availability
2
Tube, Vent WPL 3169109 Contact Us For Availability
2
Harness, WPL 3169012 Contact Us For Availability
3
Seal, Fiberglass (2) WPL 3148441 Contact Us For Availability
3
Glide, Front (2) WPL 3149257 Contact Us For Availability
3
Harness, WPL 3183408 Contact Us For Availability
3
Clip, Wire WPL 311311 Contact Us For Availability
4
Switch, Rocker — Designer White WPL 3149360 Contact Us For Availability
4
Glass, Clear WPL 3169202 Contact Us For Availability
4
Frame, Front WPL 3176698 Contact Us For Availability
4
Screw (1) WPL 3150537 Contact Us For Availability
4
Harness, (White) (Almond) (Designer White) WPL 313152 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
Pin, Hinge (2) WPL 307985 Contact Us For Availability
6
Retainer, Insulation WPL 3148159 Contact Us For Availability
6
Screw, 10−16 x 1 (2) WPL 98884 Contact Us For Availability
6
Seal, Door WPL 3169251 Contact Us For Availability
7
NOTE: The screws and nuts required to attach WPL N/S Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
7
Pushnut (2) WPL 308306 Contact Us For Availability
8
Retainer, Glass (2) WPL 3148187 Contact Us For Availability
8
Bracket, Service WPL 3150190 Contact Us For Availability
8
Hinge, R.H. WPL 3176710 Contact Us For Availability
8
Hinge, L.H. WPL 3176711 Contact Us For Availability
9
Bumper (4) WPL 3148182 Contact Us For Availability
9
Screw (3) WPL 311056 Contact Us For Availability
9
Oven (30" Pyro) WPL 3176611 Contact Us For Availability
10
Glass, Panel — Black WPL 3148185 Contact Us For Availability
10
Glass, Panel — White WPL 3149049 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
11
Foil, Door WPL 3169191 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
12
Thermostat, 0ven WPL 3148933 Contact Us For Availability
12
Handle, Door — Black WPL 3148228 Contact Us For Availability
12
Handle, Door — Platinum WPL 3149354 Contact Us For Availability
13
Indicator Light WPL 314031 Contact Us For Availability
14
Knob, Control (4) — White/Almond WPL 3183118 Contact Us For Availability
14
Knob, Control (4) — Designer White WPL 3183117 Contact Us For Availability
14
Top, Door — White/Almond WPL 3148223 Contact Us For Availability
14
Top, Door — Screw WPL 3182345 Contact Us For Availability
14
Top, Door — Designer White WPL 3149355 Contact Us For Availability
14
Rack, Oven WPL 308173 Contact Us For Availability
15
Clip, Mtg. (2) WPL 3148282 Contact Us For Availability
15
Knob, Control — Designer White WPL 3183104 Contact Us For Availability
15
Knob, Control — White/Almond WPL 3183103 Contact Us For Availability
15
Rack, Oven WPL 308172 Contact Us For Availability
15
Bracket, Oven Mounting WPL 311220 Contact Us For Availability
16
Screw (6) WPL 3148443 Contact Us For Availability
16
Frame, Inner Glass WPL 3148234 Contact Us For Availability
16
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
16
Vent, Oven WPL 3148906 Contact Us For Availability
17
Screw, 10−32 x .437 (2) WPL 3150532 Contact Us For Availability
17
Coverplate (2) WPL 311982 Contact Us For Availability
18
Drawer, Utility WPL 327887 Contact Us For Availability
19
Protector, Drawer Side (2) WPL 309329 Contact Us For Availability
19
Channel, Arm (2) WPL 3176709 Contact Us For Availability
20
Knob, Control — White/Almond WPL 3183115 Contact Us For Availability
20
Glide, Rear (2) WPL 307980 Contact Us For Availability
20
Block, Balance WPL 312804 Contact Us For Availability
21
Panel, Drawer — White WPL 3150676 Contact Us For Availability
21
Panel, Drawer — Almond WPL 3150677 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Handle, Snap−In — White WPL 3150612 Contact Us For Availability
22
Handle, Snap−In — Almond WPL 3150613 Contact Us For Availability
23
Frame, Door WPL 3148235 Contact Us For Availability
24
Support, L.H. Post WPL 313196 Contact Us For Availability
24
Support, R.H. Post WPL 313197 Contact Us For Availability
25
Switch, Door (2) WPL 310345 Contact Us For Availability
30
Snubber, Door (2) WPL 309111 Contact Us For Availability
31
Box, Vent WPL 3169129 Contact Us For Availability
32
Support, Chassis WPL 3147646 Contact Us For Availability
33
Shield, Box WPL 3149006 Contact Us For Availability
33
Screw (3) WPL 98520 Contact Us For Availability
34
Vent, Box Assembly WPL 3171381 Contact Us For Availability
35
Switch, Broil WPL 314209 Contact Us For Availability
36
Screw WPL 314215 Contact Us For Availability
36
Switch, Bake WPL 314210 Contact Us For Availability
37
Insulation, Wrapper WPL 3169093 Contact Us For Availability
37
Insulation, Oven Back (White) (Almond) (Desig WPL 3169094 Contact Us For Availability
OPT-1
LENGTH WPL 242828 Contact Us For Availability
OPT-2
Wire, Black WPL 242820 Contact Us For Availability
OPT-3
Wire, Black WPL 242821 Contact Us For Availability
OPT-4
Wire, Blue WPL 242822 Contact Us For Availability
OPT-5
Wire, Brown WPL 242830 Contact Us For Availability
OPT-6
Wire, Brown WPL 242823 Contact Us For Availability
OPT-7
Wire, Green WPL 242824 Contact Us For Availability
OPT-8
Wire, Orange WPL 242829 Contact Us For Availability
OPT-9
Wire, Red WPL 242825 Contact Us For Availability
OPT-10
Wire, Red WPL 242831 Contact Us For Availability
OPT-11
Wire, Red WPL 242826 Contact Us For Availability
OPT-12
Wire, White WPL 242827 Contact Us For Availability
OPT-13
Wire, Yellow WPL 242832 Contact Us For Availability
OPT-17
New Avocado WPL 72108 Contact Us For Availability
OPT-19
Harvest Gold WPL 72112 Contact Us For Availability
OPT-24
Almond WPL 261888 Contact Us For Availability
OPT-25
New Avocado WPL 261886 Contact Us For Availability
OPT-26
Coffee WPL 261890 Contact Us For Availability
OPT-27
Harvest Gold WPL 285365 Contact Us For Availability
OPT-28
Toast WPL 285366 Contact Us For Availability
OPT-31
Primer (White) WPL 206925 Contact Us For Availability
OPT-32
PAINT, BULK (1 qt.) WPL 799344 Contact Us For Availability
OPT-33
White (Uncut) WPL 978883 Contact Us For Availability
OPT-34
Almond (Uncut) WPL 261891 Contact Us For Availability
OPT-35
(Uncut) WPL 285367 Contact Us For Availability
OPT-36
Toast (Uncut) WPL 285368 Contact Us For Availability
OPT-37
REFINISHING MATERIAL WPL 799832 Contact Us For Availability
OPT-39
Self−Clean (1/2 Pt.) WPL 261582 Contact Us For Availability
OPT-43
x 22" x 120") WPL 241430 Contact Us For Availability
× ![]()
