Model Whirlpool LIT3147400 Range – Common Parts & Diagrams

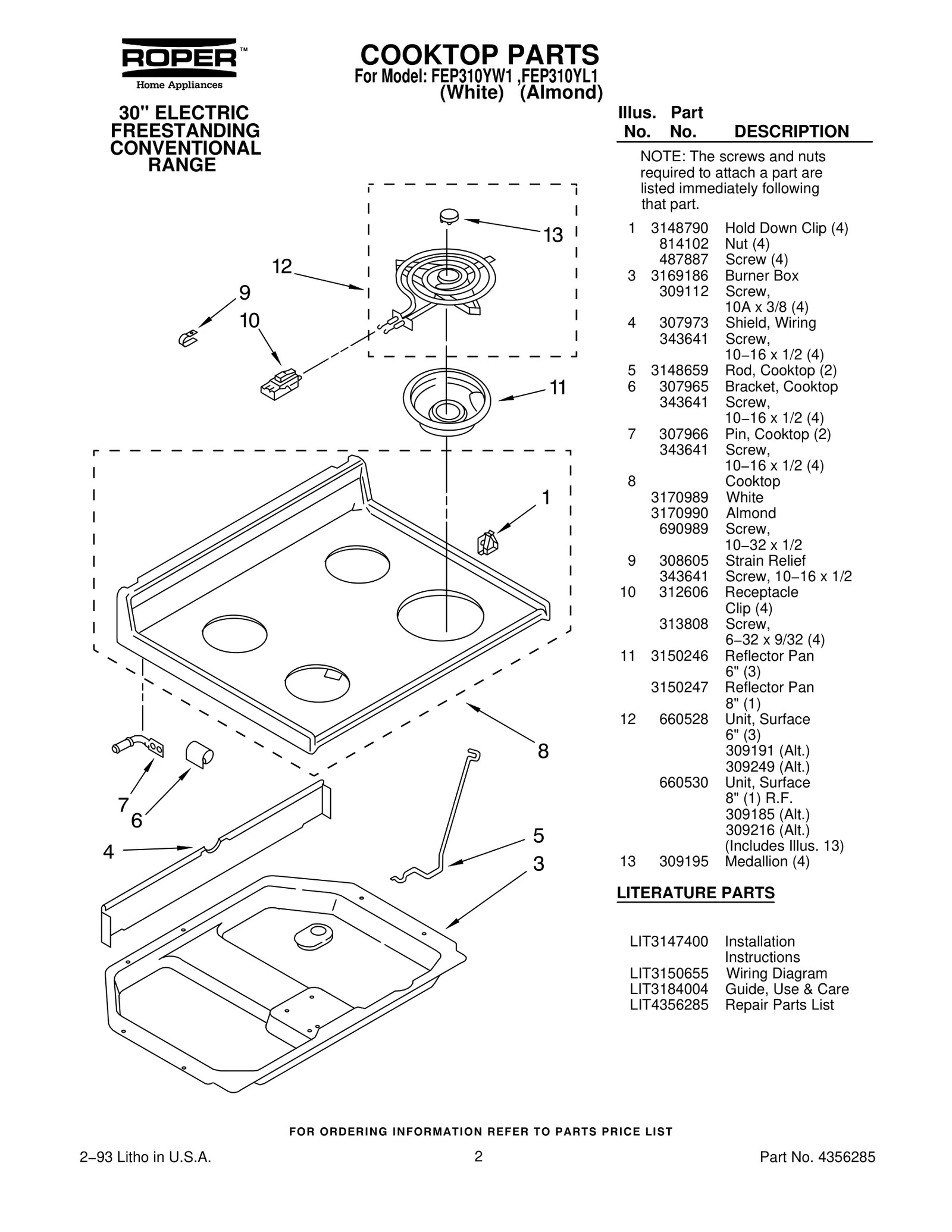

COVER

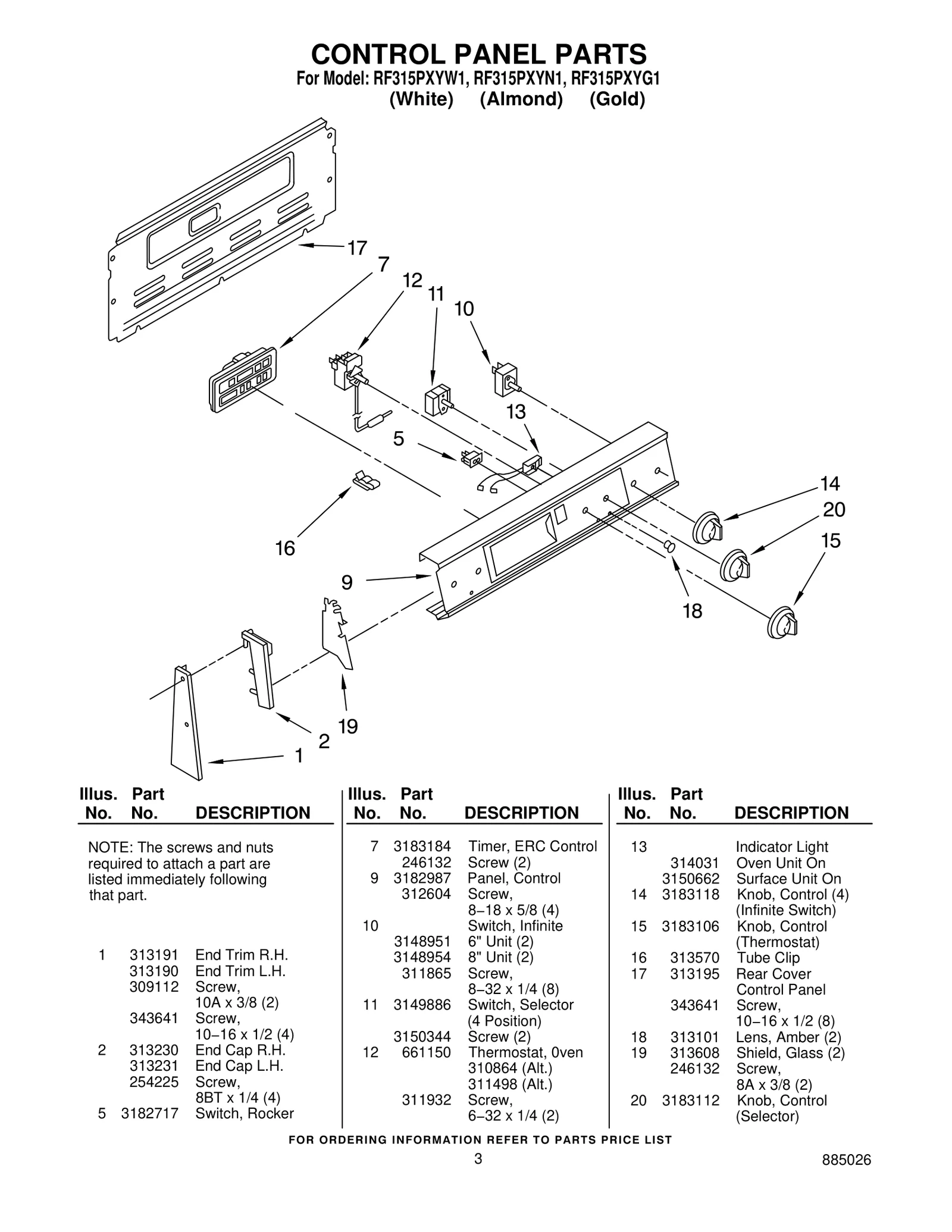

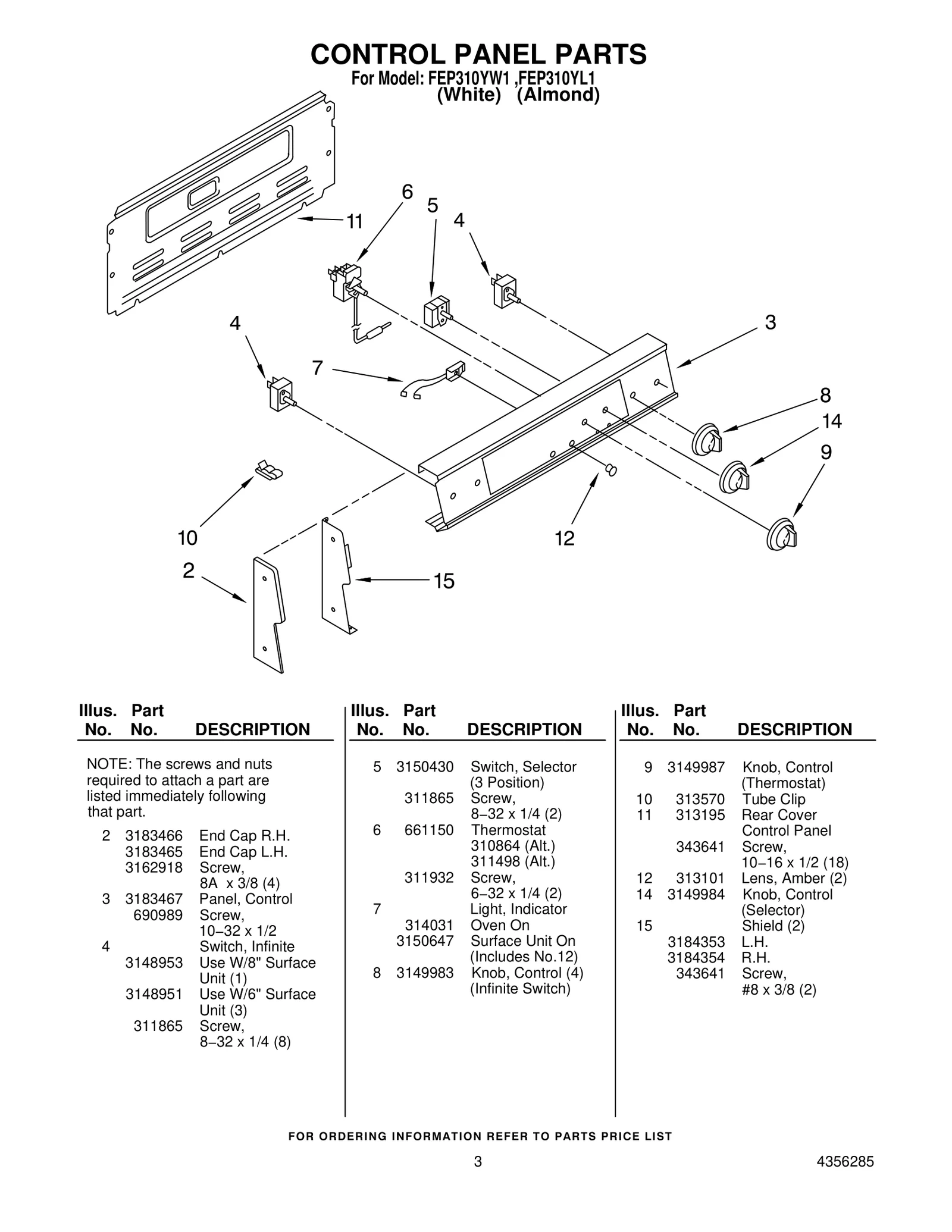

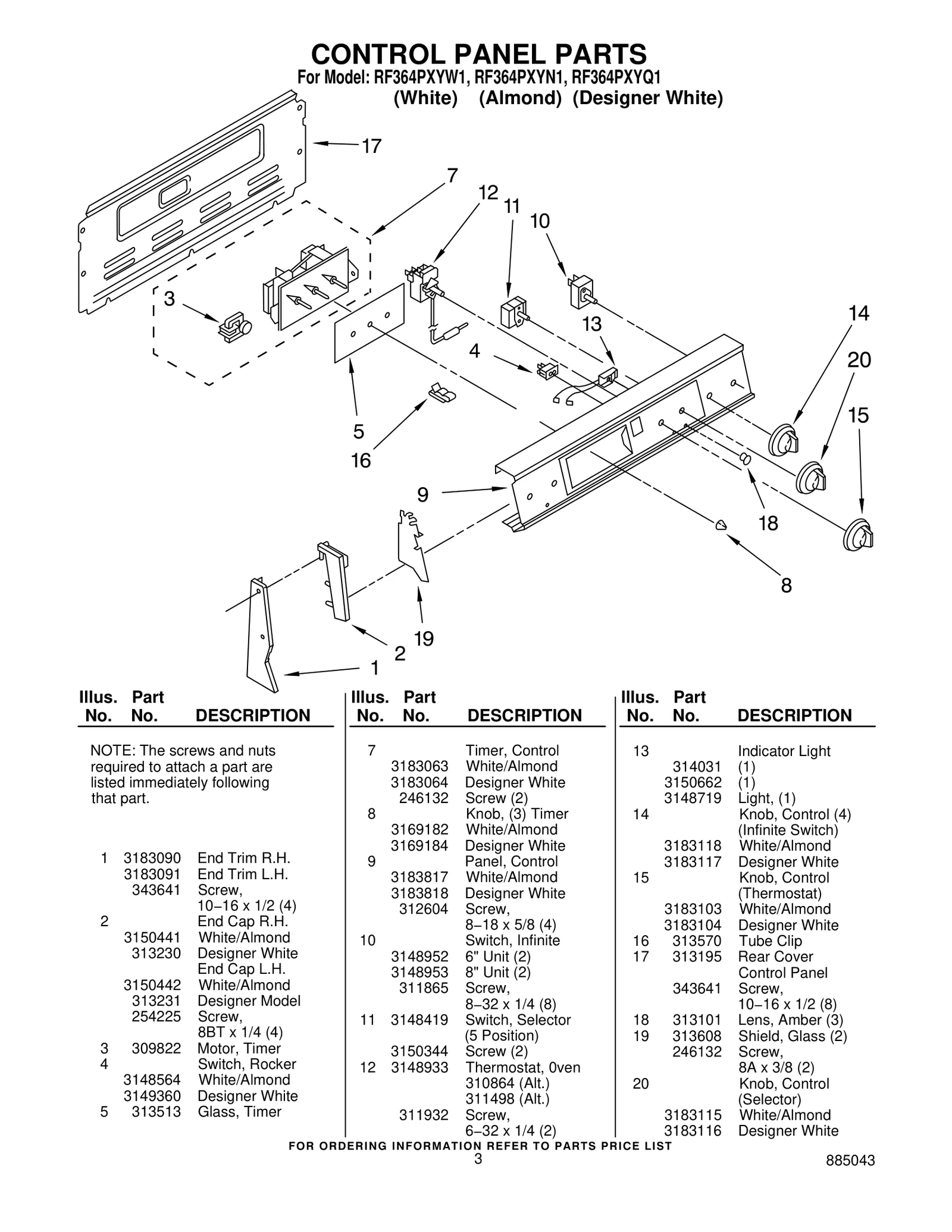

CONTROL PANEL PARTS
CONTROL PANEL PARTS
CONTROL PANEL PARTS

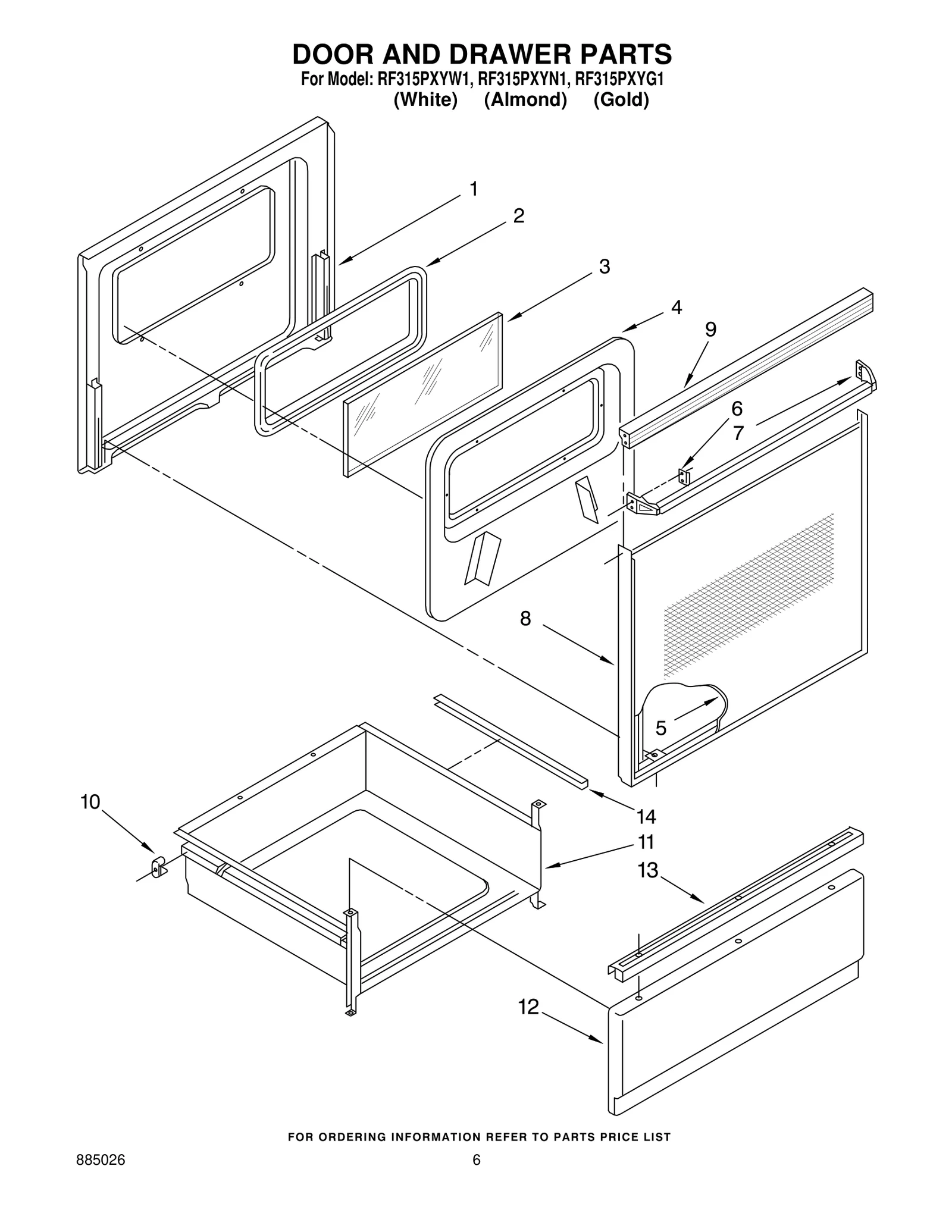

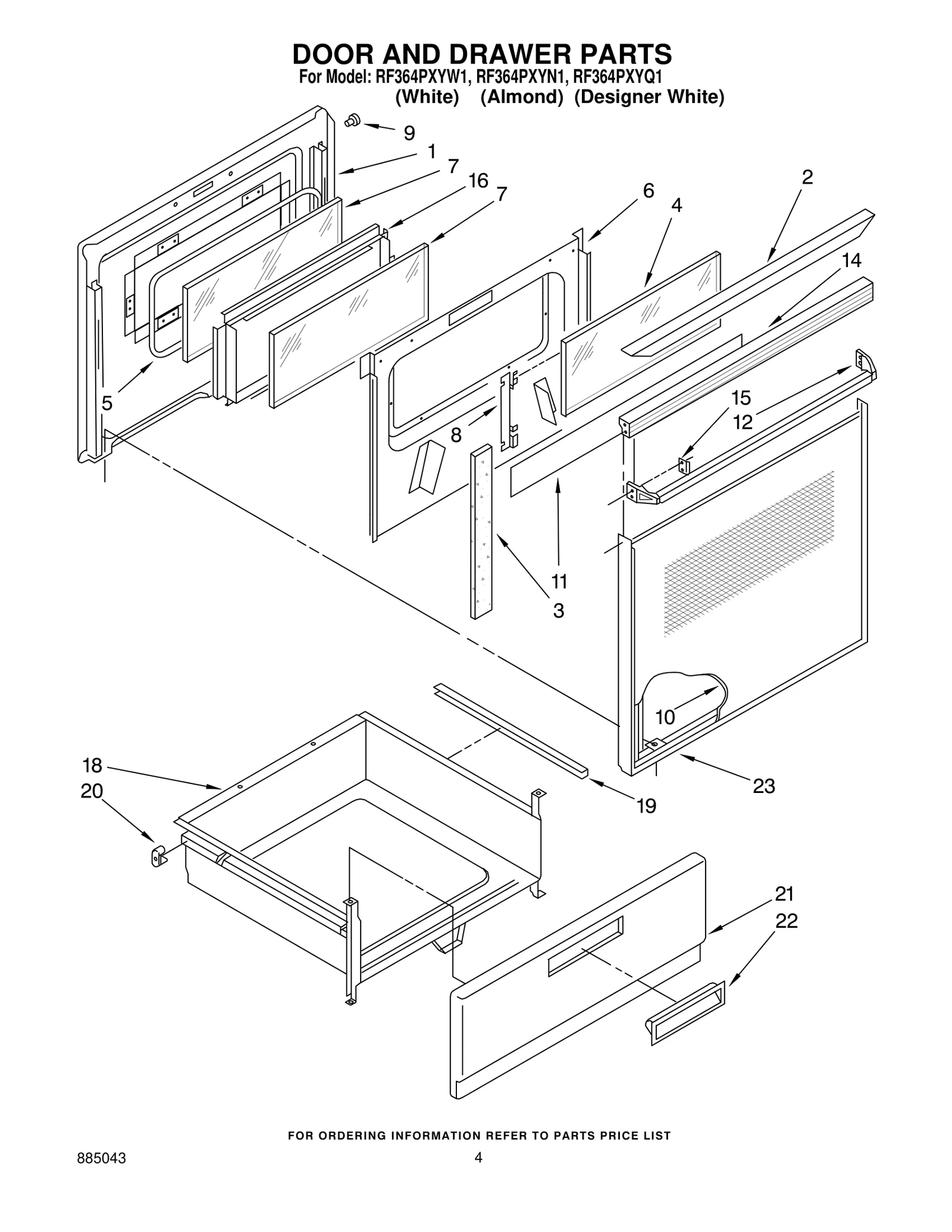

DOOR AND DRAWER PARTS

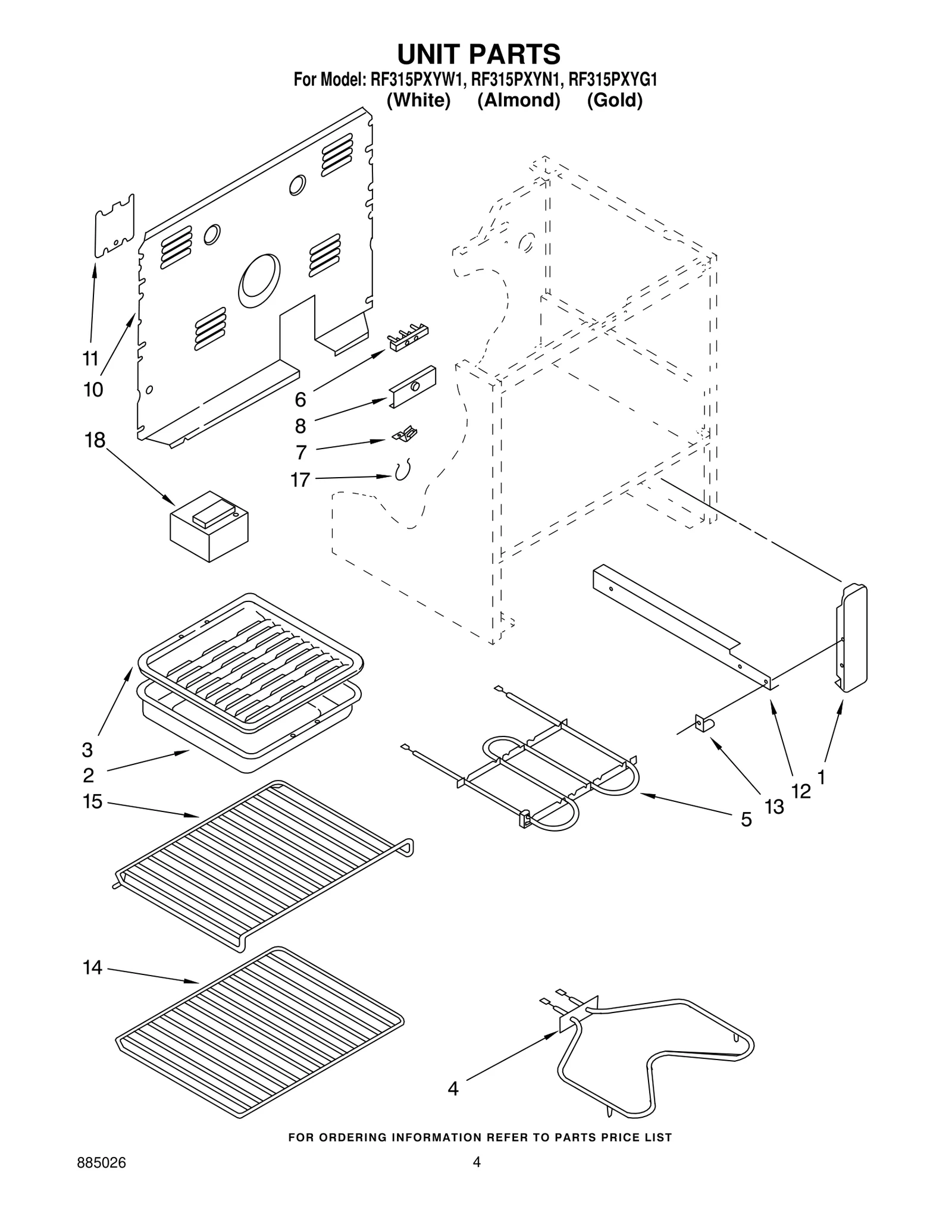

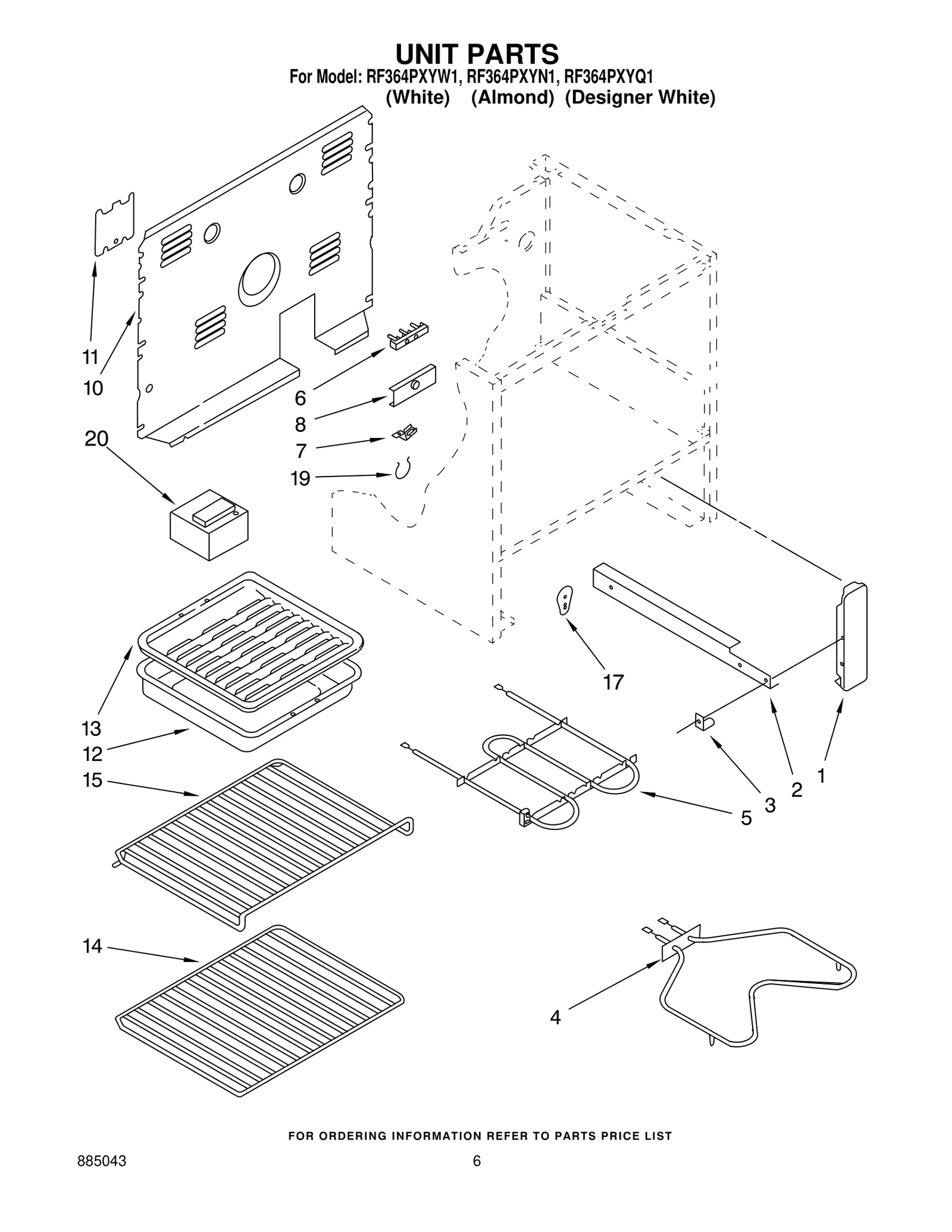

UNIT PARTS

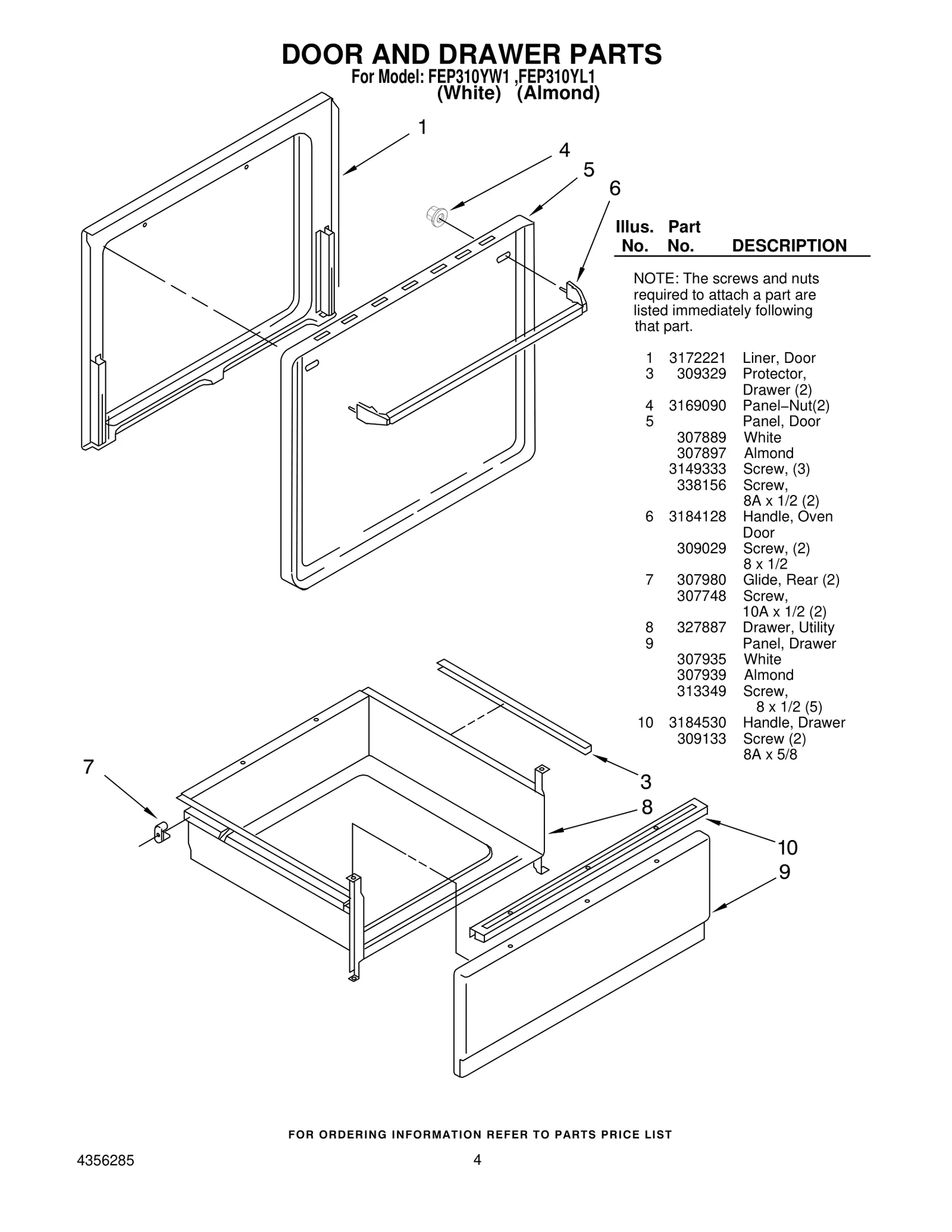

DOOR AND DRAWER PARTS

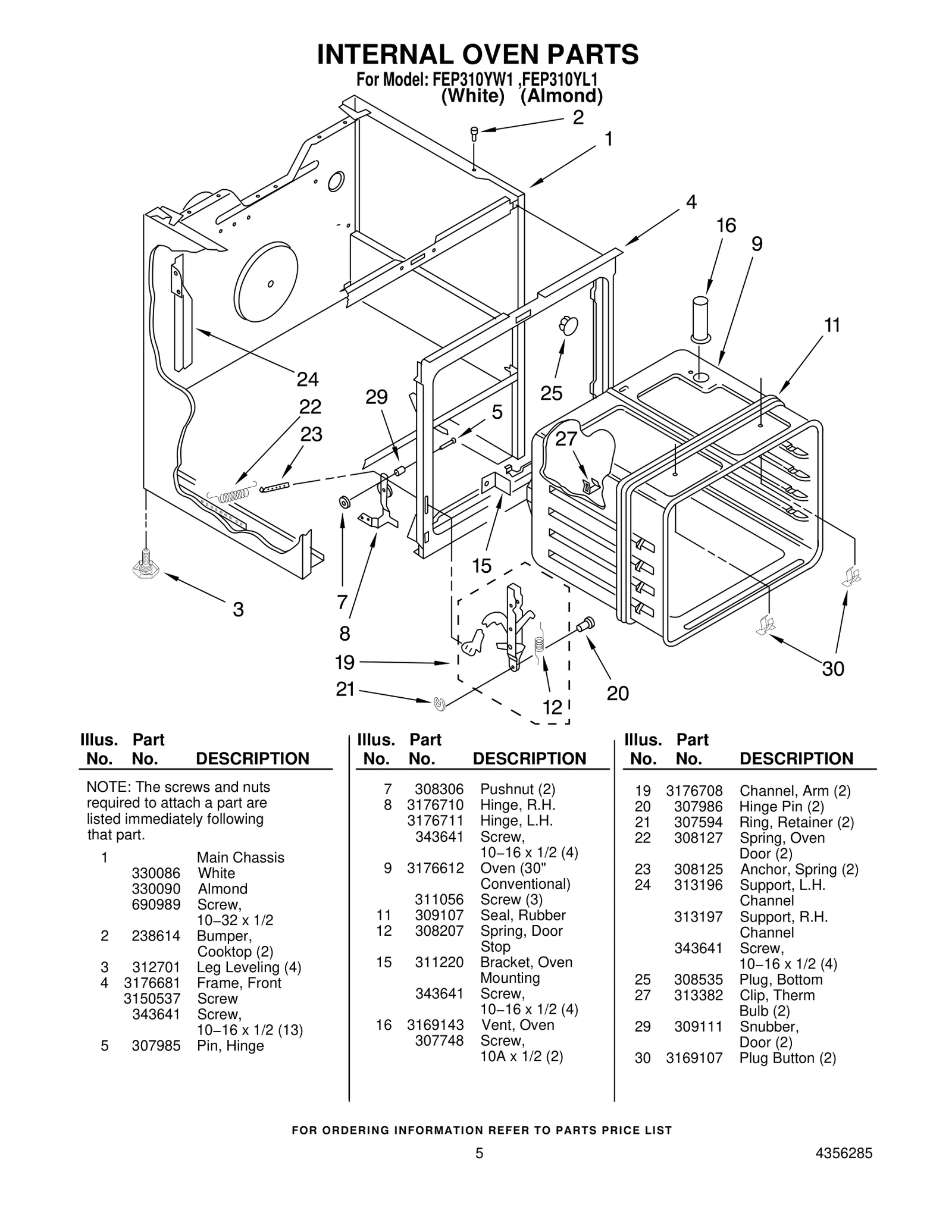

INTERNAL OVEN PARTS
DOOR AND DRAWER PARTS
UNIT PARTS

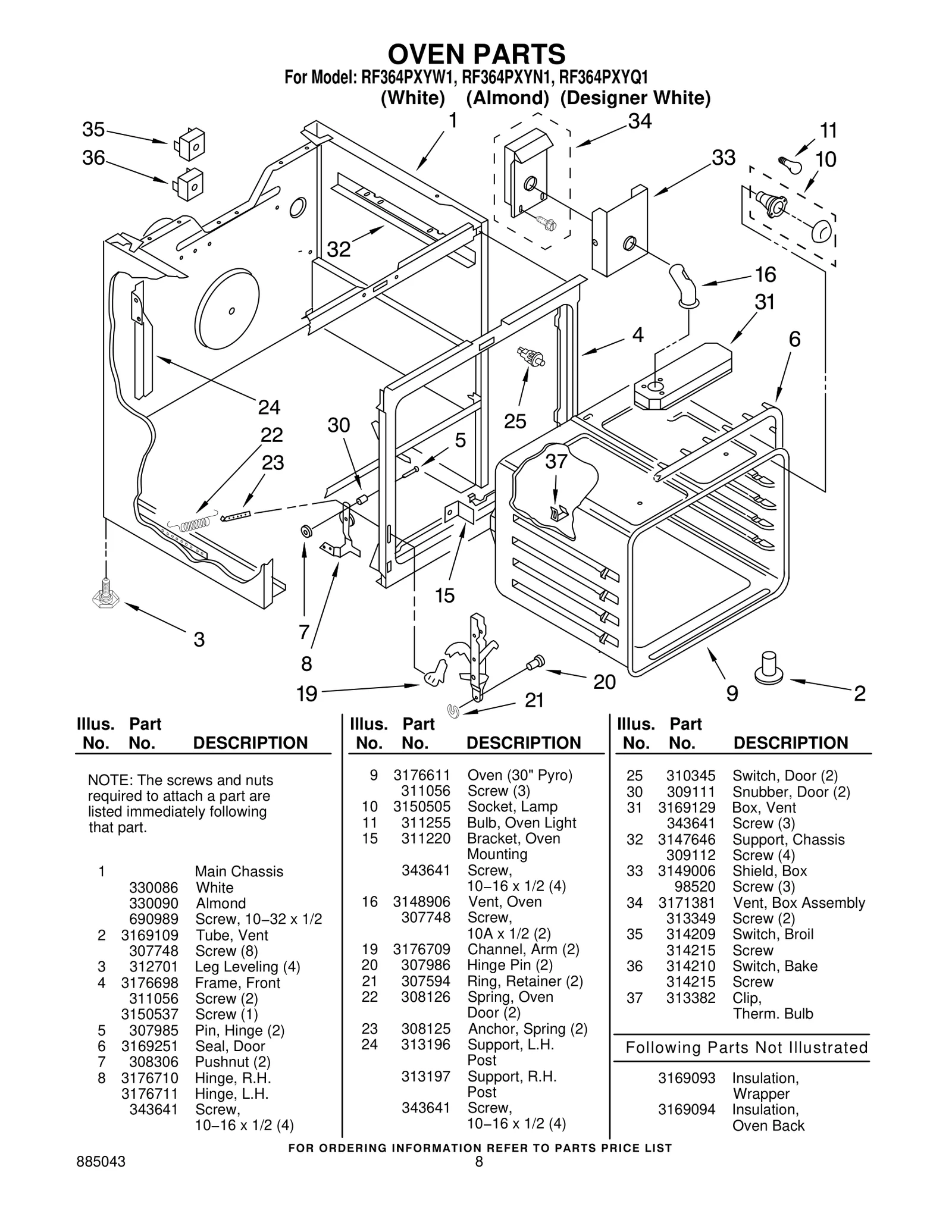

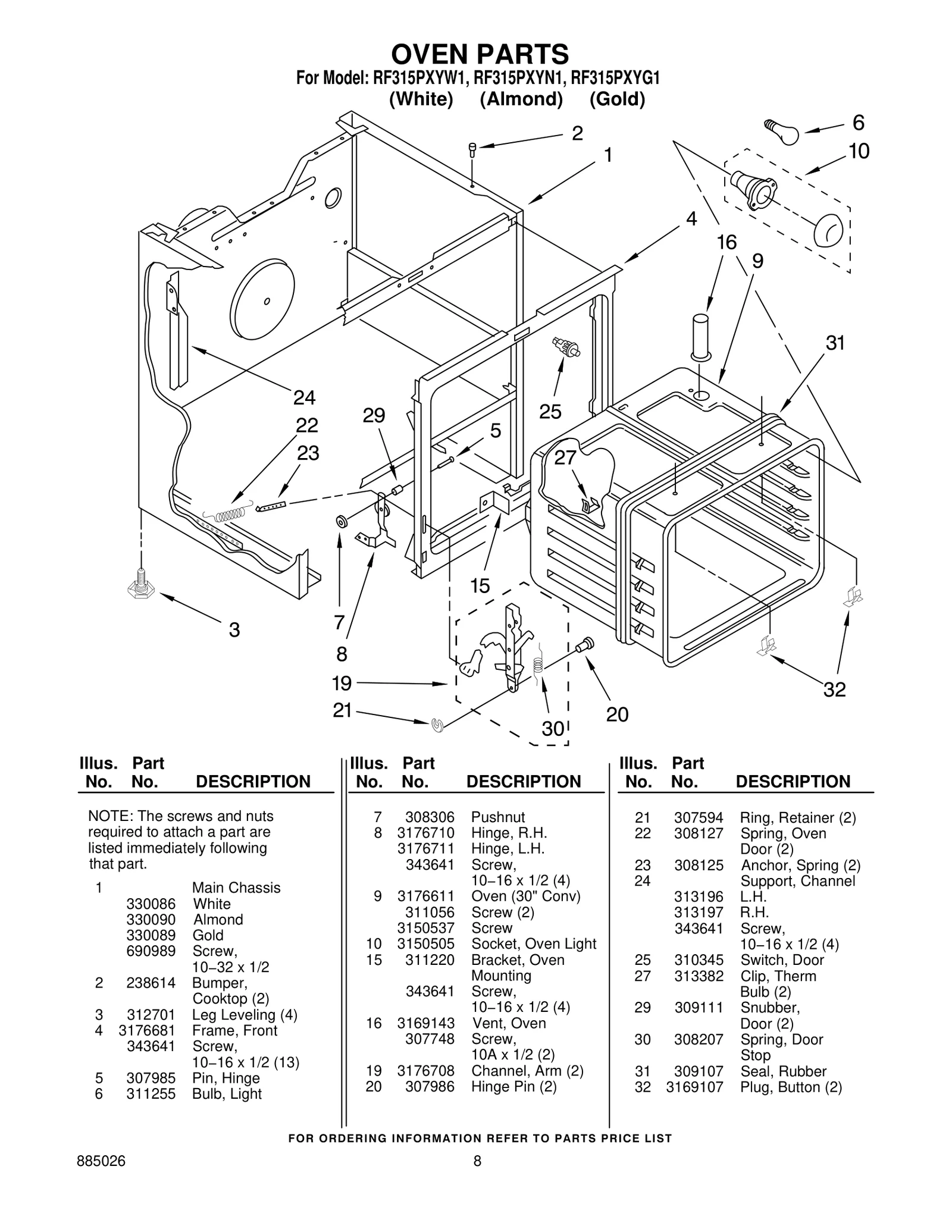

OVEN PARTS
OVEN PARTS

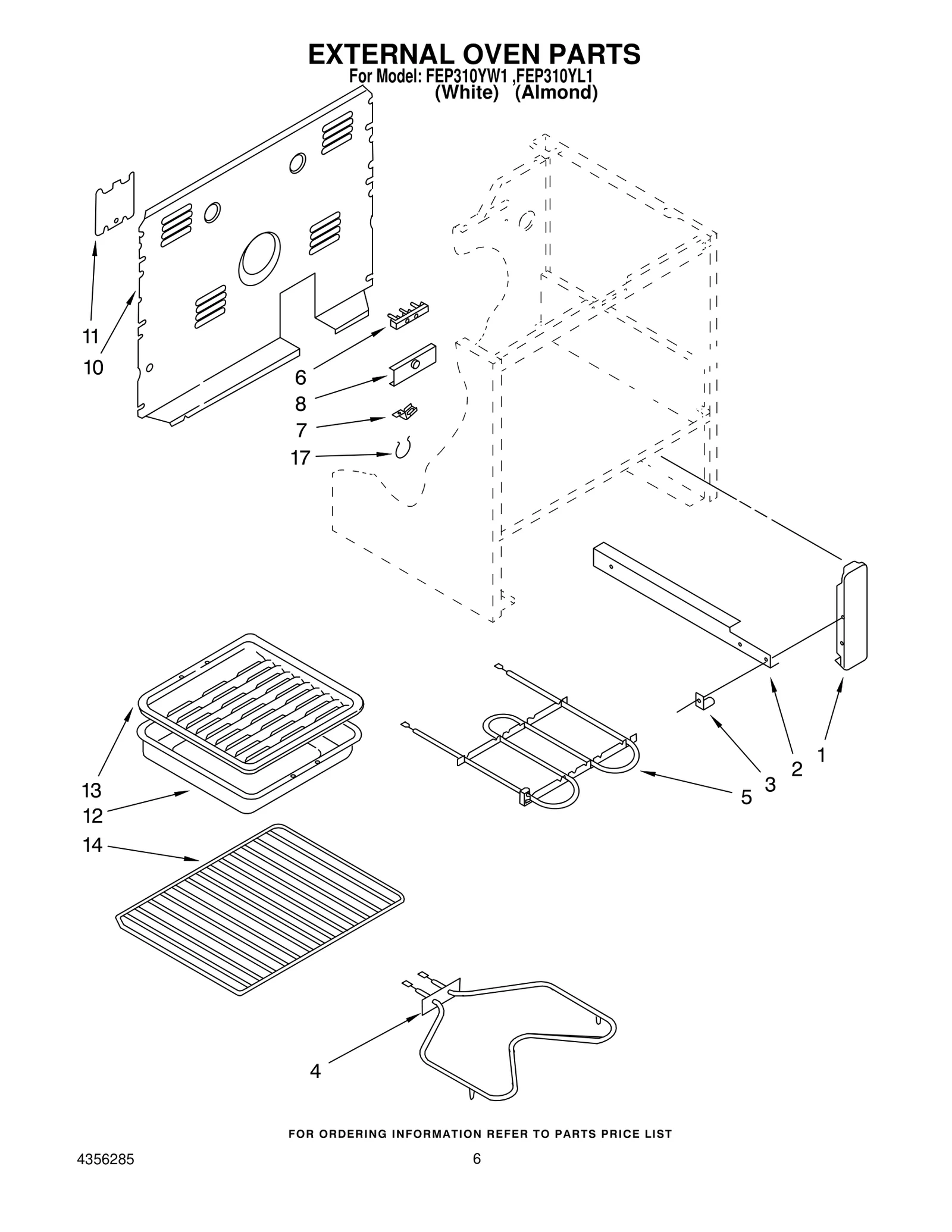

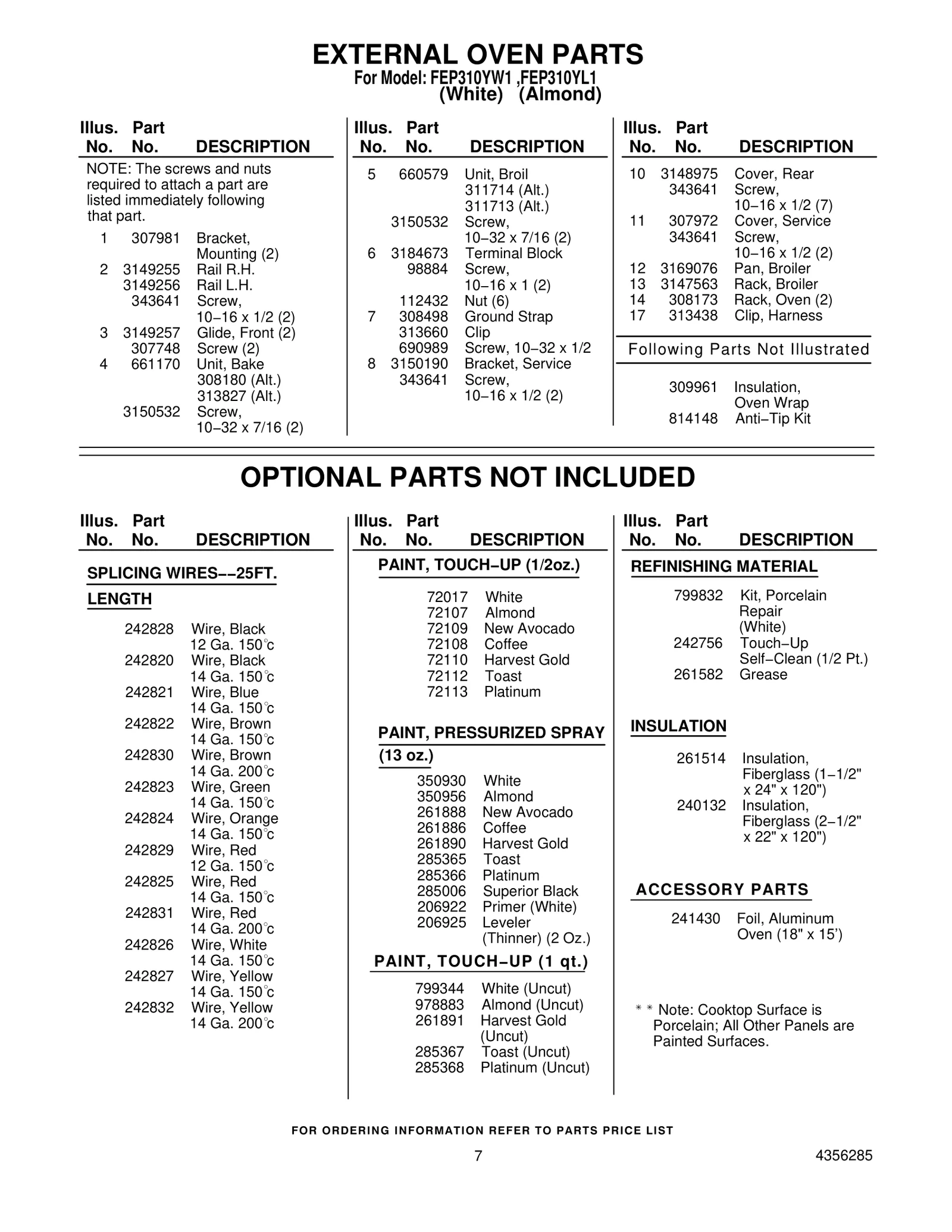

EXTERNAL OVEN PARTS

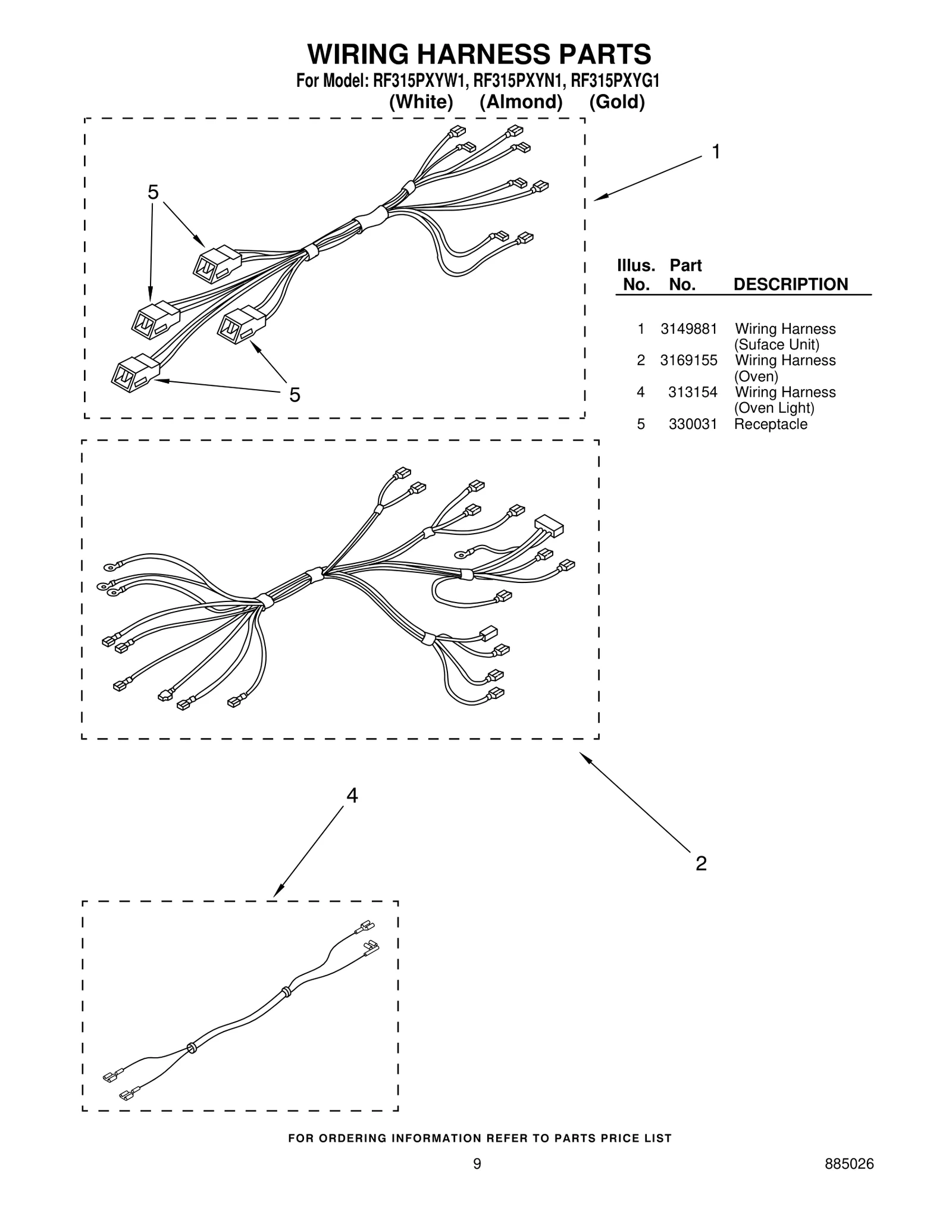

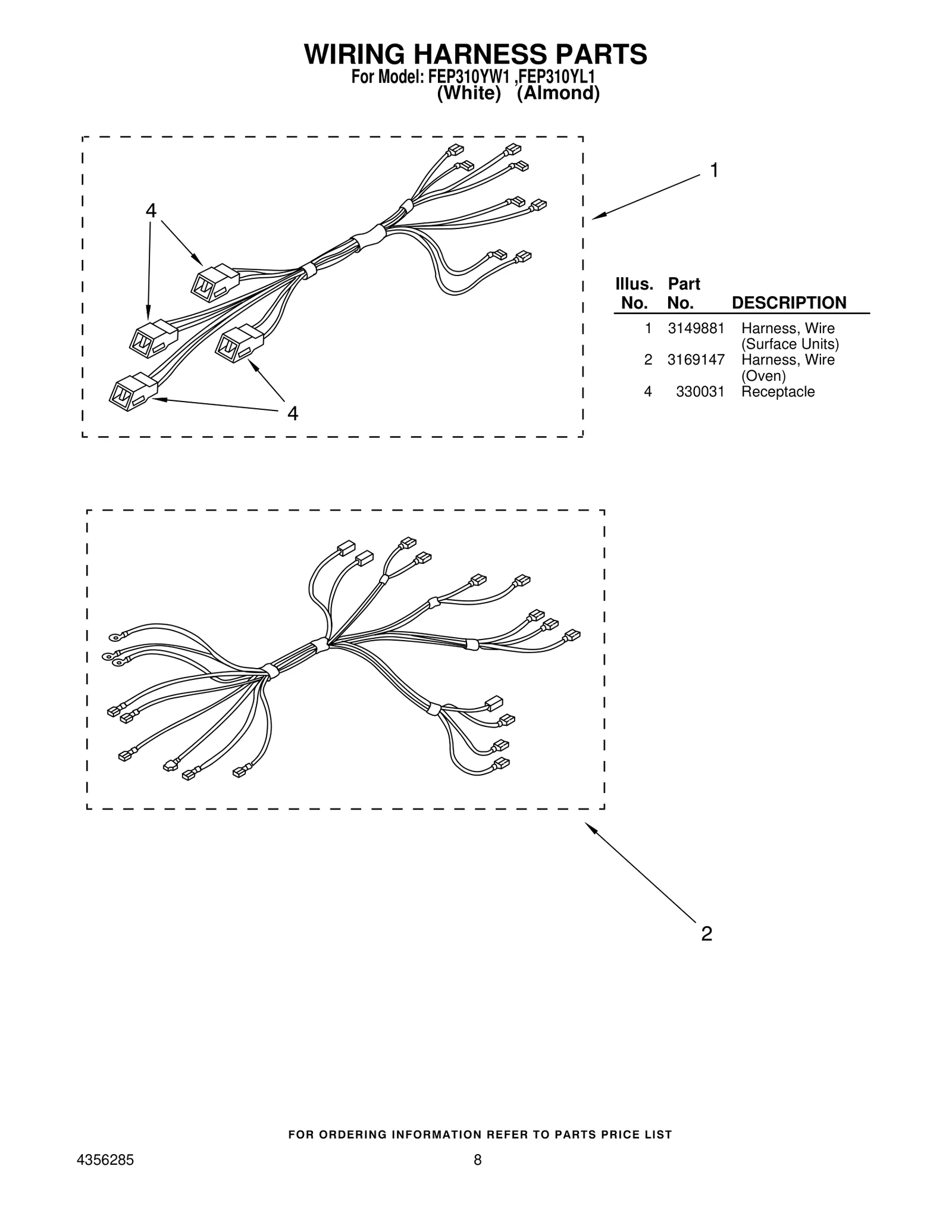

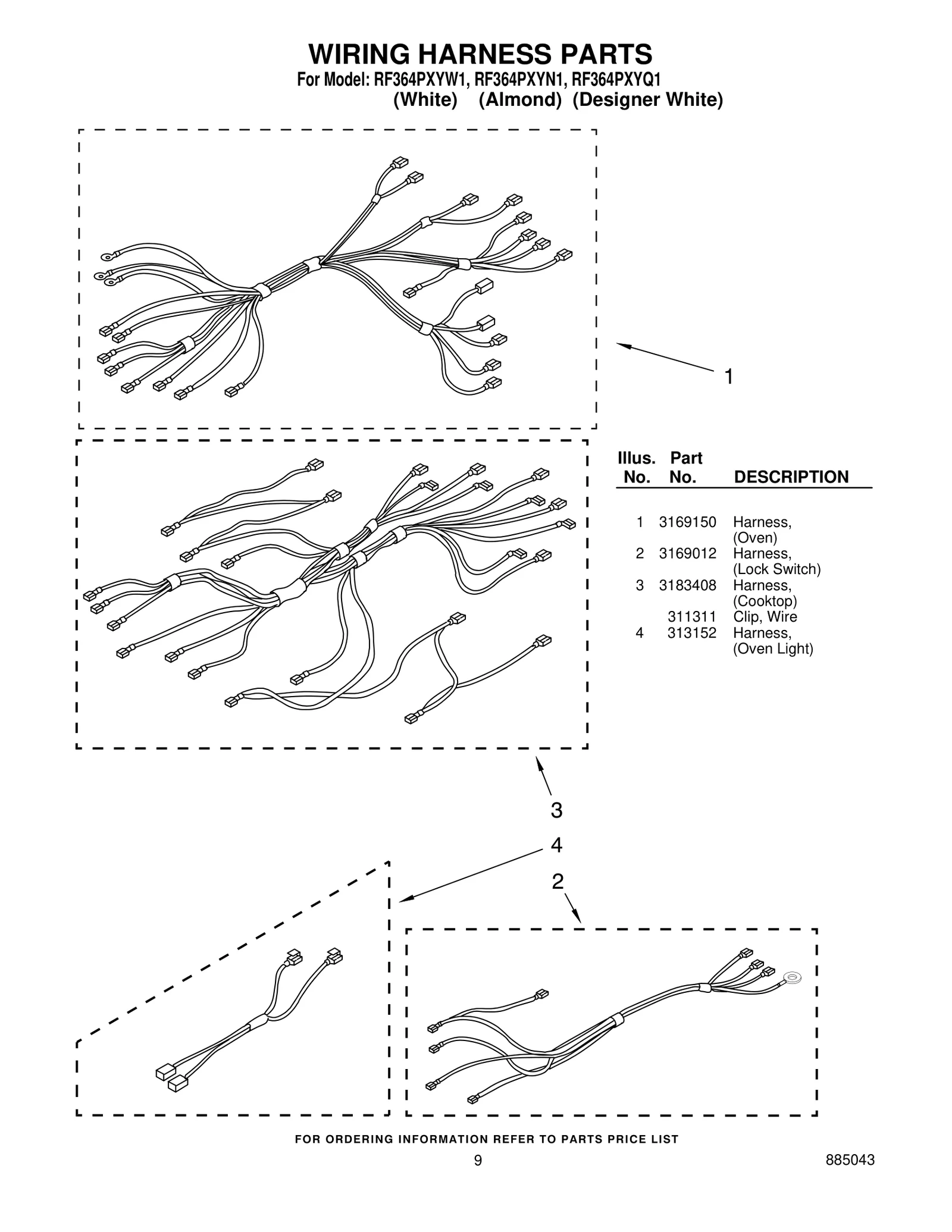

WIRING HARNESS PARTS
WIRING HARNESS PARTS

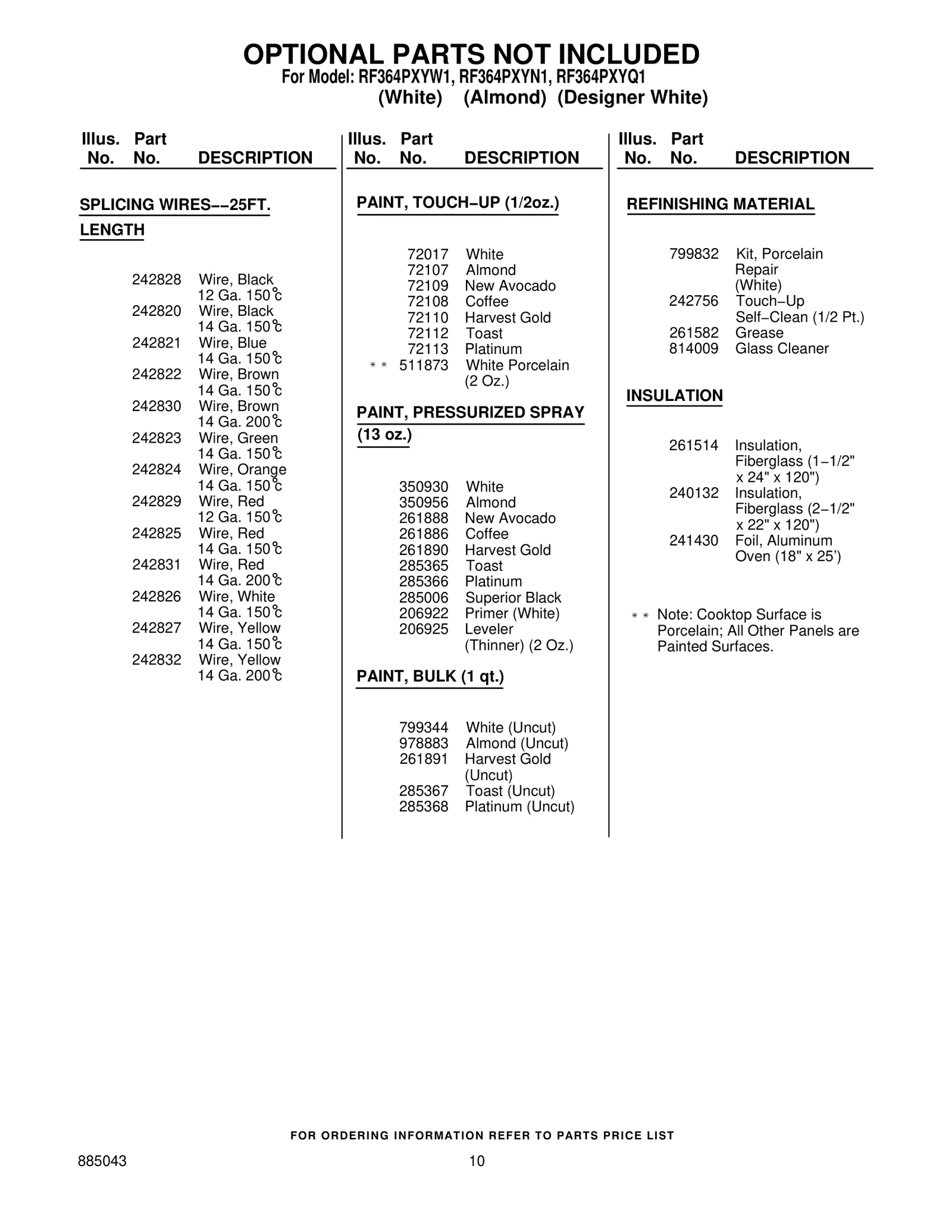

OPTIONAL PARTS NOT INCLUDED
OPTIONAL PARTS NOT INCLUDED
WIRING HARNESS PARTS

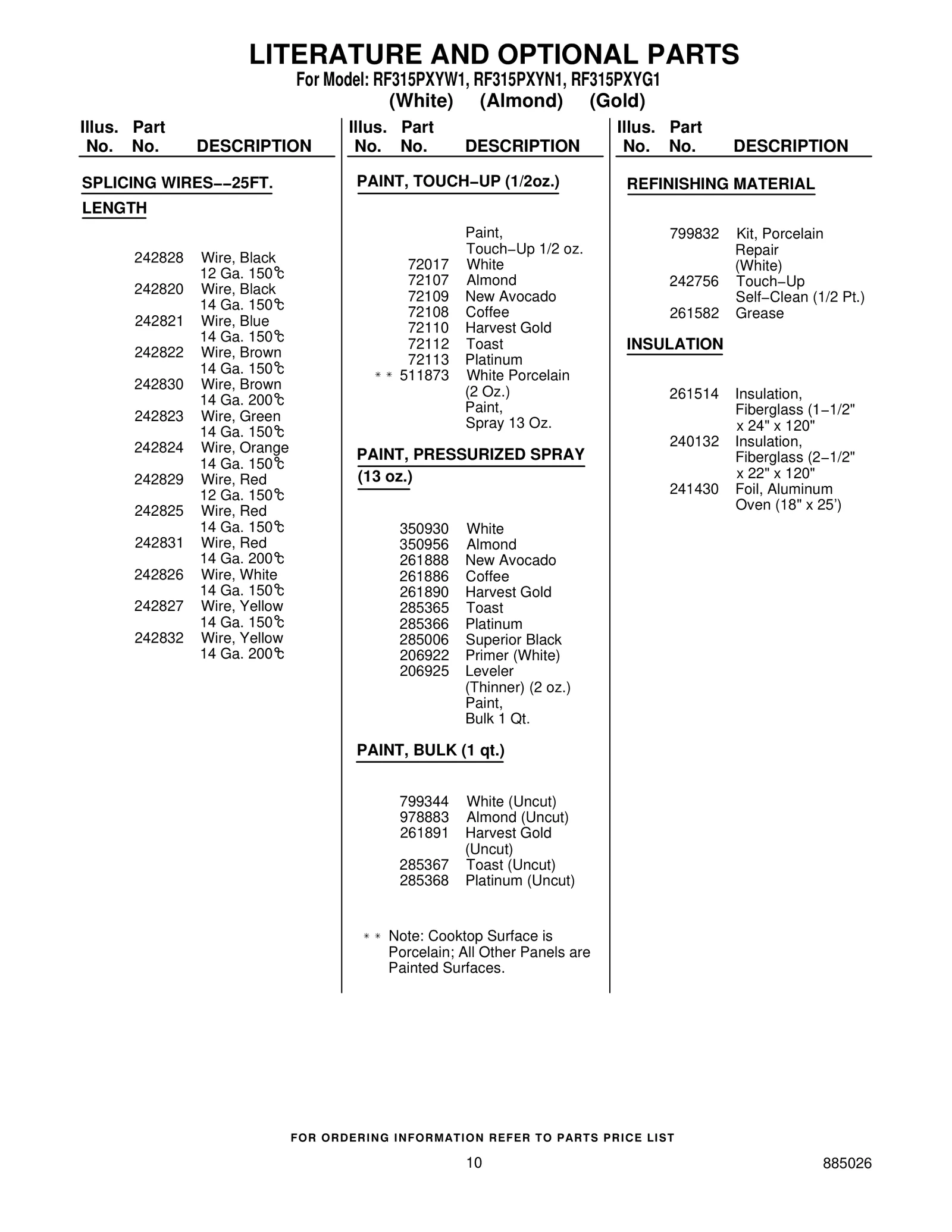

LITERATURE AND OPTIONAL PARTS
Common parts from model Whirlpool LIT3147400 Range
1
Liner, Door WPL 3172218 Contact Us For Availability
1
Screw, 10−24 x 1/2 (2) WPL 247326 Contact Us For Availability
1
Main Chassis — White WPL 330086 Contact Us For Availability
1
Main Chassis — Almond WPL 330090 Contact Us For Availability
1
Liner, Door WPL 3172220 Contact Us For Availability
1
Main Chassis — Gold WPL 330089 Contact Us For Availability
1
Harness, Wire WPL 3149881 Contact Us For Availability
1
Harness, WPL 3169150 Contact Us For Availability
2
Seal, Glass WPL 3148183 Contact Us For Availability
2
Cap, Top Designer Mdl. Only WPL 3181363 Contact Us For Availability
2
Tube, Vent WPL 3169109 Contact Us For Availability
2
Wiring Harness WPL 3169155 Contact Us For Availability
2
Harness, WPL 3169012 Contact Us For Availability
2
Harness, Wire WPL 3169147 Contact Us For Availability
3
Seal, Fiberglass (2) WPL 3148441 Contact Us For Availability
3
Glass, Inner WPL 3169202 Contact Us For Availability
3
Harness, WPL 3183408 Contact Us For Availability
3
Clip, Wire WPL 311311 Contact Us For Availability
4
Switch, Rocker — Designer White WPL 3149360 Contact Us For Availability
4
Screw (6) WPL 3148443 Contact Us For Availability
4
Frame, Front WPL 3176681 Contact Us For Availability
4
Screw (1) WPL 3150537 Contact Us For Availability
4
Retainer WPL 3148287 Contact Us For Availability
4
Frame, Front WPL 3176698 Contact Us For Availability
4
Wiring Harness WPL 313154 Contact Us For Availability
4
Harness, (White) (Almond) (Designer White) WPL 313152 Contact Us For Availability
5
Switch, Selector WPL 3150430 Contact Us For Availability
5
Glass Panel, Outer WPL 3148185 Contact Us For Availability
5
Pin, Hinge (2) WPL 307985 Contact Us For Availability
6
Clip (2) WPL 3148282 Contact Us For Availability
6
Retainer, Insulation WPL 3148159 Contact Us For Availability
6
Seal, Door WPL 3169251 Contact Us For Availability
7
Handle, Door WPL 3148228 Contact Us For Availability
7
Pushnut (2) WPL 308306 Contact Us For Availability
8
(White) (Almond) WPL N/S Contact Us For Availability
8
Retainer, Glass (2) WPL 3148187 Contact Us For Availability
8
Frame, Door WPL 3148235 Contact Us For Availability
8
Hinge, R.H. WPL 3176710 Contact Us For Availability
8
Hinge, L.H. WPL 3176711 Contact Us For Availability
9
Knob, Control WPL 3149987 Contact Us For Availability
9
Screw (2) WPL 3149333 Contact Us For Availability
9
Bumper (4) WPL 3148182 Contact Us For Availability
9
Top, Door Frame WPL 3148223 Contact Us For Availability
9
Oven (30" Conventional) WPL 3176612 Contact Us For Availability
9
Screw (3) WPL 311056 Contact Us For Availability
9
Oven (30" Pyro) WPL 3176611 Contact Us For Availability
10
Handle, Drawer WPL 3184530 Contact Us For Availability
10
Screw (2) 8A x 5/8 WPL 309133 Contact Us For Availability
10
Glass, Panel — White WPL 3149049 Contact Us For Availability
10
Glide, Rear WPL 307980 Contact Us For Availability
11
Foil, Door WPL 3169191 Contact Us For Availability
11
Drawer, Utility WPL 327887 Contact Us For Availability
12
Thermostat, 0ven WPL 3148933 Contact Us For Availability
12
Handle, Door — Platinum WPL 3149354 Contact Us For Availability
12
Panel, Drawer — White WPL 307935 Contact Us For Availability
12
Panel, Drawer — Almond WPL 307939 Contact Us For Availability
12
Panel, Drawer — Gold WPL 307938 Contact Us For Availability
13
Indicator Light WPL 314031 Contact Us For Availability
13
Handle, Drawer WPL 3169105 Contact Us For Availability
14
Knob, Control (4) — White/Almond WPL 3183118 Contact Us For Availability
14
Knob, Control (4) — Designer White WPL 3183117 Contact Us For Availability
14
Knob, Control WPL 3149984 Contact Us For Availability
14
Top, Door — Screw WPL 3182345 Contact Us For Availability
14
Top, Door — Designer White WPL 3149355 Contact Us For Availability
14
Protector, Drawer (2) WPL 309329 Contact Us For Availability
15
Knob, Control — Designer White WPL 3183104 Contact Us For Availability
15
Knob, Control — White/Almond WPL 3183103 Contact Us For Availability
15
Rack, Oven WPL 308172 Contact Us For Availability
15
Bracket, Oven Mounting WPL 311220 Contact Us For Availability
16
Frame, Inner Glass WPL 3148234 Contact Us For Availability
16
Vent, Oven WPL 3148906 Contact Us For Availability
17
Coverplate (2) WPL 311982 Contact Us For Availability
19
Channel, Arm (2) WPL 3176708 Contact Us For Availability
19
Channel, Arm (2) WPL 3176709 Contact Us For Availability
20
Knob, Control WPL 3183112 Contact Us For Availability
20
Knob, Control — White/Almond WPL 3183115 Contact Us For Availability
20
Block, Balance WPL 312804 Contact Us For Availability
21
Panel, Drawer — White WPL 3150676 Contact Us For Availability
21
Panel, Drawer — Almond WPL 3150677 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
22
Handle, Snap−In — White WPL 3150612 Contact Us For Availability
22
Handle, Snap−In — Almond WPL 3150613 Contact Us For Availability
24
Support, L.H. Post WPL 313196 Contact Us For Availability
24
Support, R.H. Post WPL 313197 Contact Us For Availability
25
Switch, Door (2) WPL 310345 Contact Us For Availability
25
Plug, Bottom WPL 308535 Contact Us For Availability
30
Spring, Door Stop WPL 308207 Contact Us For Availability
30
Snubber, Door (2) WPL 309111 Contact Us For Availability
31
Seal, Rubber WPL 309107 Contact Us For Availability
31
Box, Vent WPL 3169129 Contact Us For Availability
32
Plug, Button (2) WPL 3169107 Contact Us For Availability
32
Support, Chassis WPL 3147646 Contact Us For Availability
33
Shield, Box WPL 3149006 Contact Us For Availability
33
Screw (3) WPL 98520 Contact Us For Availability
34
Vent, Box Assembly WPL 3171381 Contact Us For Availability
35
Switch, Broil WPL 314209 Contact Us For Availability
36
Screw WPL 314215 Contact Us For Availability
36
Switch, Bake WPL 314210 Contact Us For Availability
37
Insulation, Wrapper WPL 3169093 Contact Us For Availability
37
Insulation, Oven Back (White) (Almond) (Desig WPL 3169094 Contact Us For Availability
OPT-1
REFINISHING MATERIAL WPL 799832 Contact Us For Availability
OPT-3
Self−Clean (1/2 Pt.) WPL 261582 Contact Us For Availability
OPT-6
x 22" x 120" WPL 241430 Contact Us For Availability
OPT-10
New Avocado WPL 72108 Contact Us For Availability
OPT-12
Harvest Gold WPL 72112 Contact Us For Availability
OPT-17
Almond WPL 261888 Contact Us For Availability
OPT-18
New Avocado WPL 261886 Contact Us For Availability
OPT-19
Coffee WPL 261890 Contact Us For Availability
OPT-20
Harvest Gold WPL 285365 Contact Us For Availability
OPT-21
Toast WPL 285366 Contact Us For Availability
OPT-24
Primer (White) WPL 206925 Contact Us For Availability
OPT-25
PAINT, BULK (1 qt.) WPL 799344 Contact Us For Availability
OPT-26
White (Uncut) WPL 978883 Contact Us For Availability
OPT-27
Almond (Uncut) WPL 261891 Contact Us For Availability
OPT-28
(Uncut) WPL 285367 Contact Us For Availability
OPT-29
Toast (Uncut) WPL 285368 Contact Us For Availability
OPT-30
LENGTH WPL 242828 Contact Us For Availability
OPT-31
Wire, Black WPL 242820 Contact Us For Availability
OPT-32
Wire, Black WPL 242821 Contact Us For Availability
OPT-33
Wire, Blue WPL 242822 Contact Us For Availability
OPT-34
Wire, Brown WPL 242830 Contact Us For Availability
OPT-35
Wire, Brown WPL 242823 Contact Us For Availability
OPT-36
Wire, Green WPL 242824 Contact Us For Availability
OPT-37
Wire, Orange WPL 242829 Contact Us For Availability
OPT-38
Wire, Red WPL 242825 Contact Us For Availability
OPT-39
Wire, Red WPL 242831 Contact Us For Availability
OPT-40
Wire, Red WPL 242826 Contact Us For Availability
OPT-41
Wire, White WPL 242827 Contact Us For Availability
OPT-42
Wire, Yellow WPL 3148975 Contact Us For Availability
OPT-42
Wire, Yellow WPL 242832 Contact Us For Availability
OPT-44
Screw, WPL 307972 Contact Us For Availability
OPT-48
Rack, Broiler WPL 308173 Contact Us For Availability
OPT-50
Following Parts Not Illustrated WPL 309961 Contact Us For Availability
OPT-57
Terminal Block WPL 98884 Contact Us For Availability
OPT-59
Nut (6) WPL 308498 Contact Us For Availability
OPT-60
Ground Strap WPL 313660 Contact Us For Availability
OPT-62
Screw, 10−32 x 1/2 WPL 3150190 Contact Us For Availability
OPT-64
Screw, WPL 307981 Contact Us For Availability
OPT-65
Mounting (2) WPL 3149255 Contact Us For Availability
OPT-66
Rail R.H. WPL 3149256 Contact Us For Availability
OPT-68
Screw, WPL 3149257 Contact Us For Availability
OPT-69
Glide, Front (2) WPL 307748 Contact Us For Availability
OPT-73
Unit, Bake WPL 3150532 Contact Us For Availability
× ![]()
