Model Whirlpool LHE5800W1 ELECTRIC DRYER – Common Parts & Diagrams
01 - SECTION
02 - SECTION

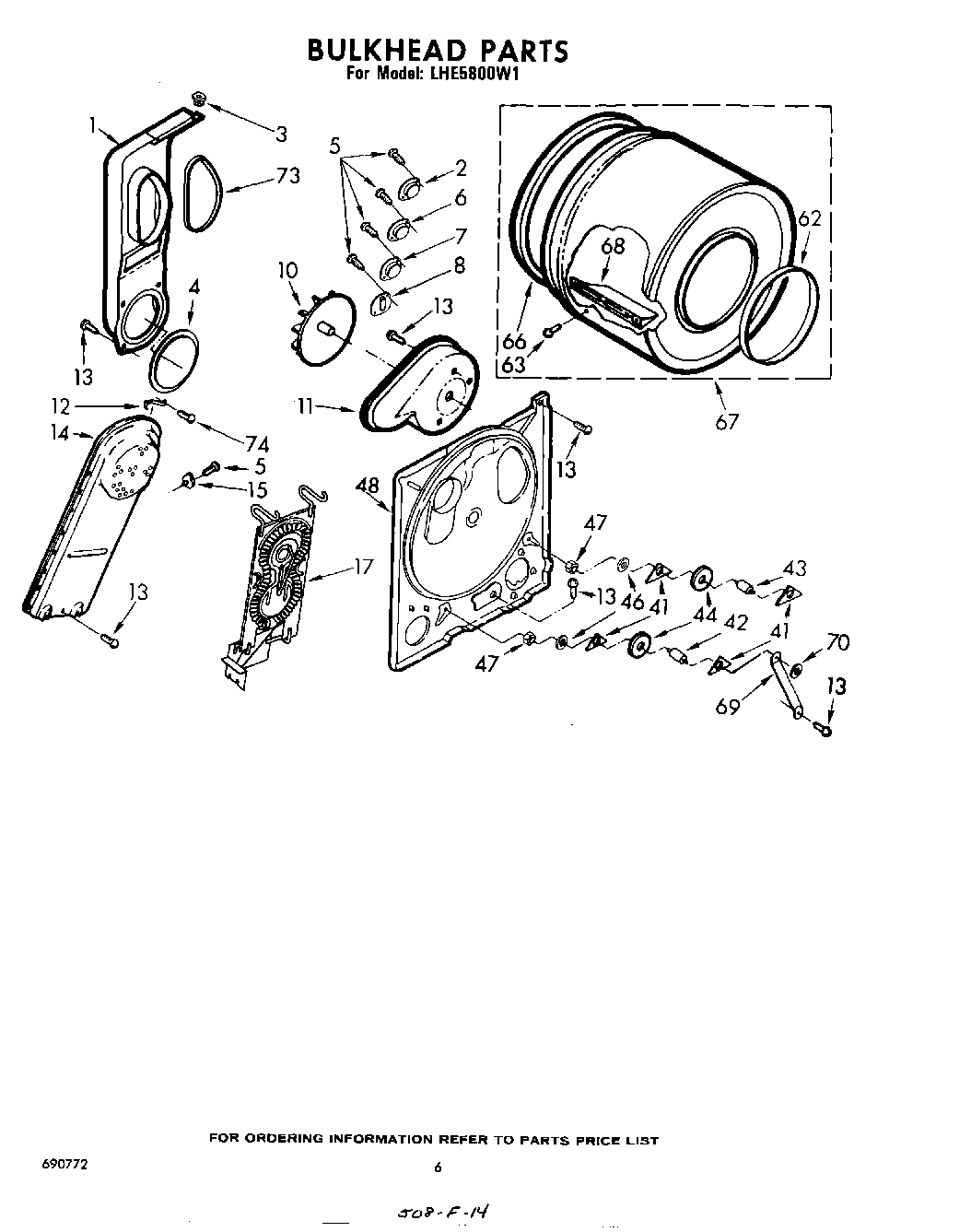

04 - SECTION

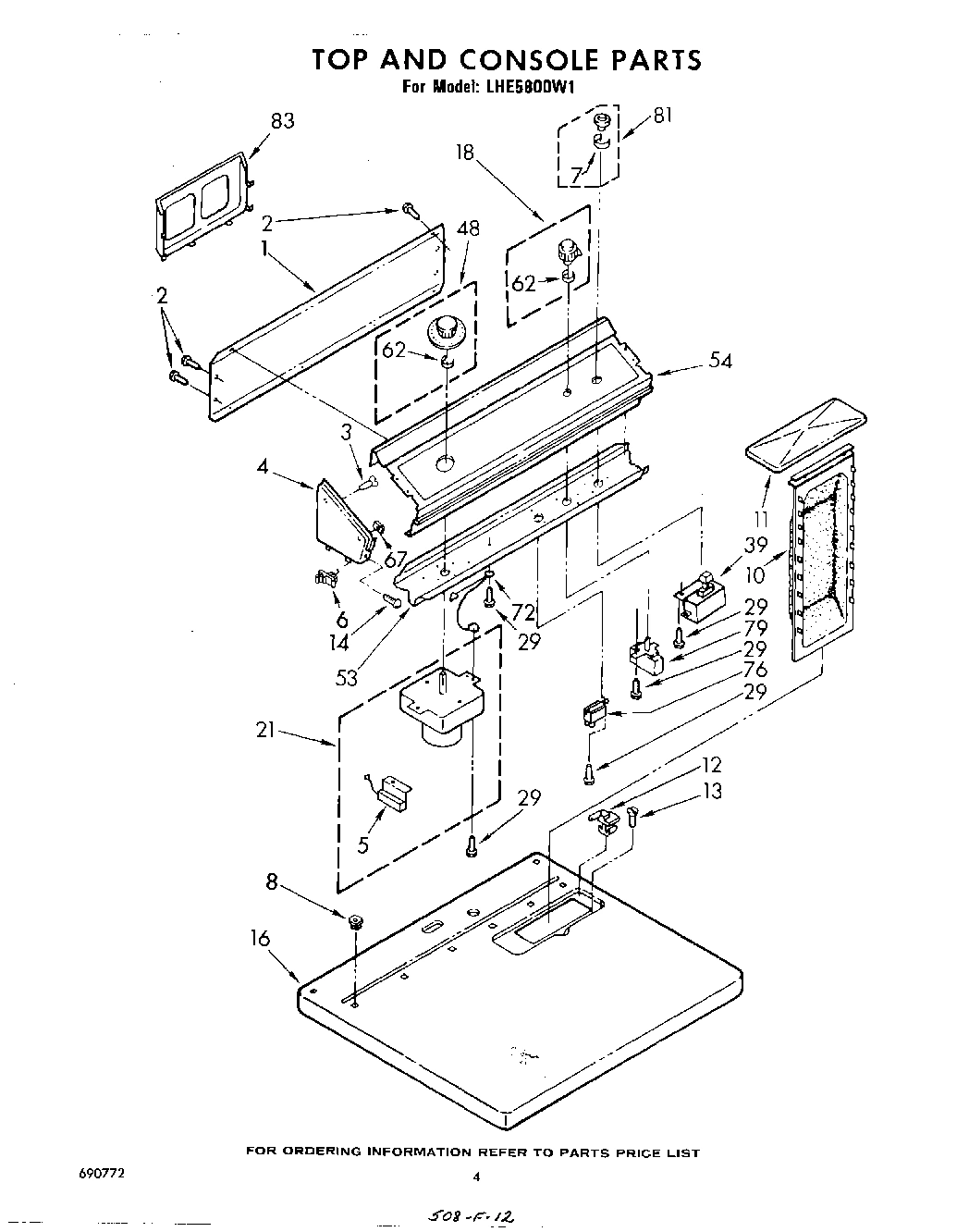

03 - SECTION
Common parts from model Whirlpool LHE5800W1 ELECTRIC DRYER
WPL 799344 WPL 799344 Contact Us For Availability
WPL 261887 WPL 261887 Contact Us For Availability
WPL 261889 WPL 261889 Contact Us For Availability
WPL 261891 WPL 261891 Contact Us For Availability
WPL 978883 WPL 978883 Contact Us For Availability
1
Panel, Rear Console WPL 358434 Contact Us For Availability
3
Screw, 13-16 x 5/8 WPL 355326 Contact Us For Availability
4
Cap, End (L.H.) (White) WPL 375305 Contact Us For Availability
4
Cap, End L.H. (White) WPL 375309 Contact Us For Availability
4
Cap, End (L.H.) (Almond) WPL 375313 Contact Us For Availability
4
Cap, End (L.H.) (Coffee) WPL 375314 Contact Us For Availability
4
Cap, End (L.H.) (Almond) WPL 375315 Contact Us For Availability
4
Cap, End (L.H.) (Coffee) WPL 375316 Contact Us For Availability
4
Cap, End (L.H.) (New Avocado) WPL 375317 Contact Us For Availability
4
Cap, End (L.H.) (Golden Harvest Cap, End (R.H WPL 375318 Contact Us For Availability
4
Cap, End (L.H.) (New Avocado) WPL 377282 Contact Us For Availability
4
Cap, End L.H. (Golden Harvest) WPL 377283 Contact Us For Availability
6
Stop, Push-In WPL 358472 Contact Us For Availability
7
Clip WPL 90015 Contact Us For Availability
8
Nut, Push-In (2) WPL 358473 Contact Us For Availability
10
SCREEN WPL 339392 Contact Us For Availability
11
Housing, Blower WPL 348494 Contact Us For Availability
11
Cover, Lint Screen (White) WPL 688150 Contact Us For Availability
11
Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability
11
Cover, Lint Screen (Coffee) WPL 689311 Contact Us For Availability
11
Cover, Lint Screen (New Avocado) WPL 689312 Contact Us For Availability
11
Cover, Lint Screen (Golden Harvest) WPL 689313 Contact Us For Availability
14
Box, Heater WPL 685457 Contact Us For Availability
14
Screw, 8-18 x 1 WPL 358225 Contact Us For Availability
16
top (white) WPL 688479 Contact Us For Availability
16
Top (Almond) WPL 689449 Contact Us For Availability
16
Top (Coffee) WPL 689450 Contact Us For Availability
16
Top (New Avocado) WPL 689451 Contact Us For Availability
16
Top (Golden Harvest) WPL 689452 Contact Us For Availability
18
Control Knob Assembly WPL 690292 Contact Us For Availability
21
Timer & Resistor Assembly, 60 Hz. WPL 690344 Contact Us For Availability
27
Screw WPL 689791 Contact Us For Availability
28
Hinge, R.H. WPL 687905 Contact Us For Availability
28
Hinge, L.H. WPL 687906 Contact Us For Availability
35
Door, Rear (White) WPL 346370 Contact Us For Availability
35
Door, Rear (Almond) WPL 689258 Contact Us For Availability
35
Door, Rear (Coffee) WPL 689259 Contact Us For Availability
35
Door, Rear (New Avocado) WPL 689260 Contact Us For Availability
35
Door, Rear (Golden Harvest) WPL 689261 Contact Us For Availability
36
Door, Front (White) WPL 348728 Contact Us For Availability
36
Door, Front (Almond) WPL 689330 Contact Us For Availability
36
Door, Front (Coffee) WPL 689331 Contact Us For Availability
36
Door, Front (New Avocado) WPL 689332 Contact Us For Availability
36
Door, Front (Golden Harvest) WPL 689333 Contact Us For Availability
37
Handle, Door (Almond) WPL 690266 Contact Us For Availability
37
Handle, Door (Coffee) WPL 690267 Contact Us For Availability
37
Handle, Door (Golden Ha WPL 690269 Contact Us For Availability
39
Switch, Push-To-Start (Alternate) WPL 348771 Contact Us For Availability
39
Switch, Push-To-Start (Alternate) WPL 685067 Contact Us For Availability
46
WPL 341776 WPL 341776 Contact Us For Availability
48
Bulkhead WPL 685769 Contact Us For Availability
48
Timer Knob Assembly WPL 690200 Contact Us For Availability
49
WPL 337833 WPL 337833 Contact Us For Availability
49
WPL 689246 WPL 689246 Contact Us For Availability
49
WPL 689247 WPL 689247 Contact Us For Availability
49
WPL 689248 WPL 689248 Contact Us For Availability
49
WPL 689249 WPL 689249 Contact Us For Availability
52
WPL 340025 WPL 340025 Contact Us For Availability
53
Bracket, Control WPL 358467 Contact Us For Availability
54
Panel, Control WPL 690410 Contact Us For Availability
60
WPL 690046 WPL 690046 Contact Us For Availability
61
WPL 298699 WPL 298699 Contact Us For Availability
63
Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability
64
WPL 690236 WPL 690236 Contact Us For Availability
67
NUT, PUSH IN WPL 689559 Contact Us For Availability
69
Bracket, Support WPL 348945 Contact Us For Availability
72
Wire, Ground WPL 690853 Contact Us For Availability
76
Buzzer WPL 686864 Contact Us For Availability
79
Switch, Rotary (Temperature Selector) WPL 688712 Contact Us For Availability
81
Pushbutton Assembly WPL 346387 Contact Us For Availability
83
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
83
Leveler (Thinner) Paint, To WPL 206925 Contact Us For Availability
83
WPL 230083 WPL 230083 Contact Us For Availability
83
WPL 261886 WPL 261886 Contact Us For Availability
83
WPL 261888 WPL 261888 Contact Us For Availability
83
WPL 261890 WPL 261890 Contact Us For Availability
83
WPL 299885 WPL 299885 Contact Us For Availability
83
WPL 339896 WPL 339896 Contact Us For Availability
83
WPL 340704 WPL 340704 Contact Us For Availability
83
WPL 357645 WPL 357645 Contact Us For Availability
83
WPL 687857 WPL 687857 Contact Us For Availability
83
WPL 688643 WPL 688643 Contact Us For Availability
83
WPL 688898 WPL 688898 Contact Us For Availability
83
WPL 690772 WPL 690772 Contact Us For Availability
83
WPL 691082 WPL 691082 Contact Us For Availability
83
WPL 72108 WPL 72108 Contact Us For Availability
83
WPL 799351 WPL 799351 Contact Us For Availability
× ![]()
