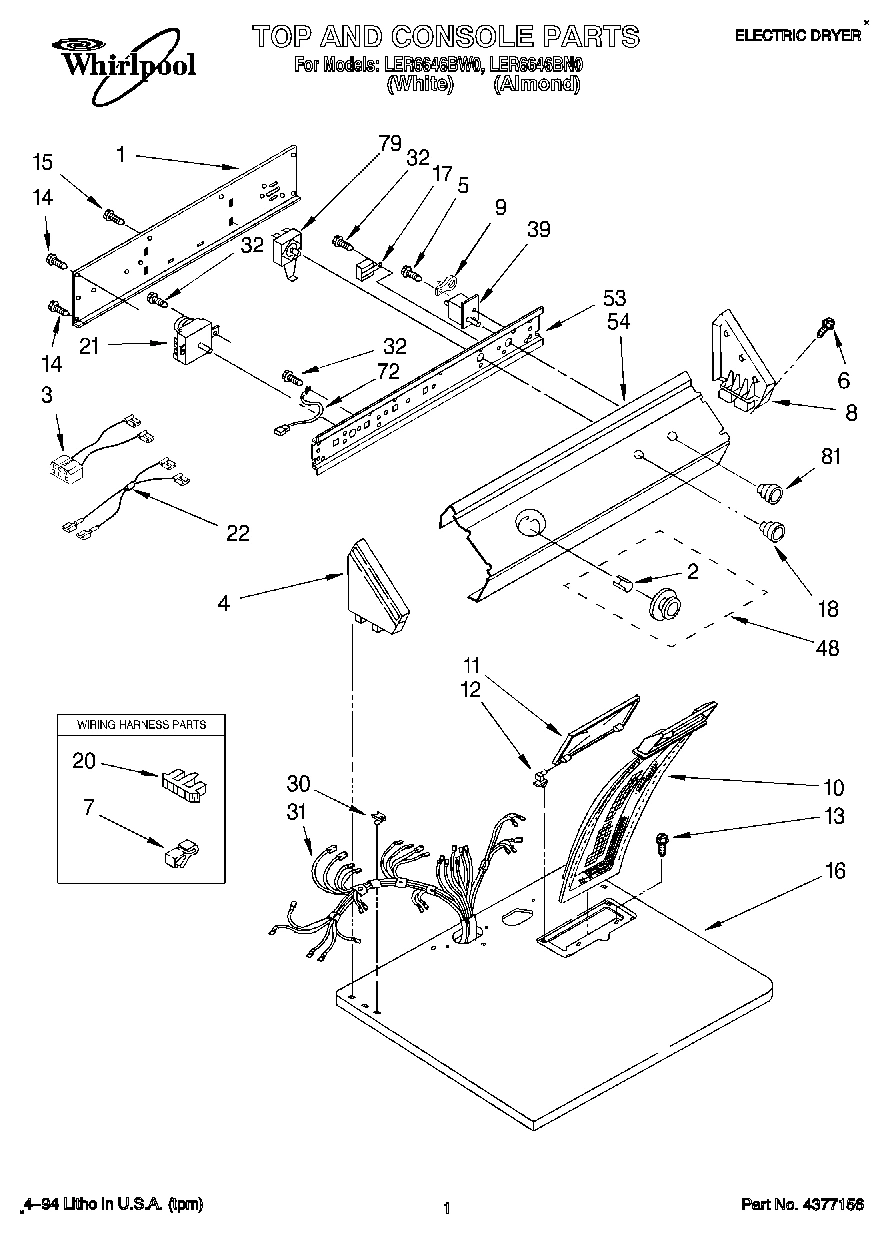

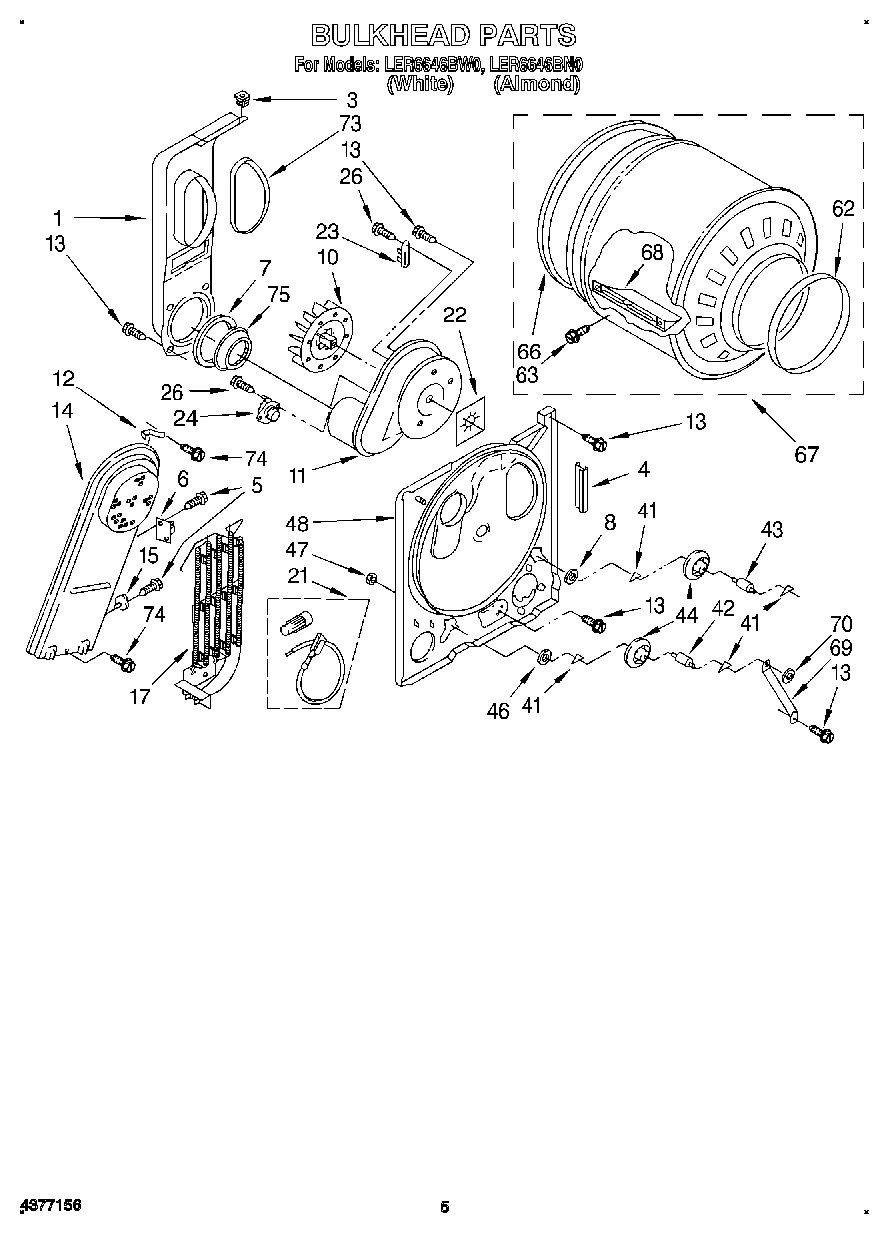

Model Whirlpool LER6646BN0 ELECTRIC DRYER – Common Parts & Diagrams

PAINT, BULK (1 QT.) (WHITE (UNCUT))
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
View on Model
Instructions, Installation
Instructions, Installation WPL LIT3397597 Contact Us For Availability
View on Model
Label, Wiring Diagram
Label, Wiring Diagram WPL LIT3398043 Contact Us For Availability
View on Model
Dryer
Dryer WPL LIT677818 Contact Us For Availability
View on Model
1
Panel, Rear Console
Panel, Rear Console WPL 3397545 Contact Us For Availability
View on Model
4
Cap, End (L.H.) (White)
Cap, End (L.H.) (White) WPL 3358531 Contact Us For Availability
View on Model
4
Cap, End (L.H.) (Almond)
Cap, End (L.H.) (Almond) WPL 3358532 Contact Us For Availability
View on Model
7
Clip, Retainer
Clip, Retainer WPL 689180 Contact Us For Availability
View on Model
8
Cap, End (R.H.) (White)
Cap, End (R.H.) (White) WPL 3358516 Contact Us For Availability
View on Model
8
Cap, End (R.H.) (Almond)
Cap, End (R.H.) (Almond) WPL 3358517 Contact Us For Availability
View on Model
11
Cover, Lint Screen (White)
Cover, Lint Screen (White) WPL 688150 Contact Us For Availability
View on Model
11
Cover, Lint Screen (Almond)
Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability
View on Model
11
Housing, Blower
Housing, Blower WPL 695081 Contact Us For Availability
View on Model
14
Hinge, R.H.
Hinge, R.H. WPL 687905 Contact Us For Availability
View on Model
14
Box, Heater
Box, Heater WPL 695547 Contact Us For Availability
View on Model
16
Top (White)
Top (White) WPL 3396022 Contact Us For Availability
View on Model
16
Top (Almond)
Top (Almond) WPL 3396023 Contact Us For Availability
View on Model
20
Connector, Timer
Connector, Timer WPL 3397269 Contact Us For Availability
View on Model
22
Wire, Jumper (Signal Bypass)
Wire, Jumper (Signal Bypass) WPL 3396033 Contact Us For Availability
View on Model
22
Seal, Blower
Seal, Blower WPL 3392123 Contact Us For Availability
View on Model
31
Harness, Wiring (Includes 690261 Terminal Blo
Harness, Wiring (Includes 690261 Terminal Blo WPL 3396229 Contact Us For Availability
View on Model
39
Switch, Push-To-Start
Switch, Push-To-Start WPL 3395395 Contact Us For Availability
View on Model
48
Bulkhead
Bulkhead WPL 3396446 Contact Us For Availability
View on Model
53
Bracket, Control
Bracket, Control WPL 3396293 Contact Us For Availability
View on Model
54
Panel, Control (White)
Panel, Control (White) WPL 3397210 Contact Us For Availability
View on Model
54
Panel, Control (Almond)
Panel, Control (Almond) WPL 3397211 Contact Us For Availability
View on Model
66
Seal, Rear Drum
Seal, Rear Drum WPL 3397509 Contact Us For Availability
View on Model
67
Drum Assembly
Drum Assembly WPL 3396778 Contact Us For Availability
View on Model
69
Bracket, Support
Bracket, Support WPL 348945 Contact Us For Availability
View on Model
72
Wire, Ground
Wire, Ground WPL 690853 Contact Us For Availability
View on Model
73
Seal
Seal WPL 3398160 Contact Us For Availability
View on Model
81
Knob, Push To Start
Knob, Push To Start WPL 3396160 Contact Us For Availability
View on Model
