Model Whirlpool LE5920XKW0 ELECTRIC DRYER – Common Parts & Diagrams

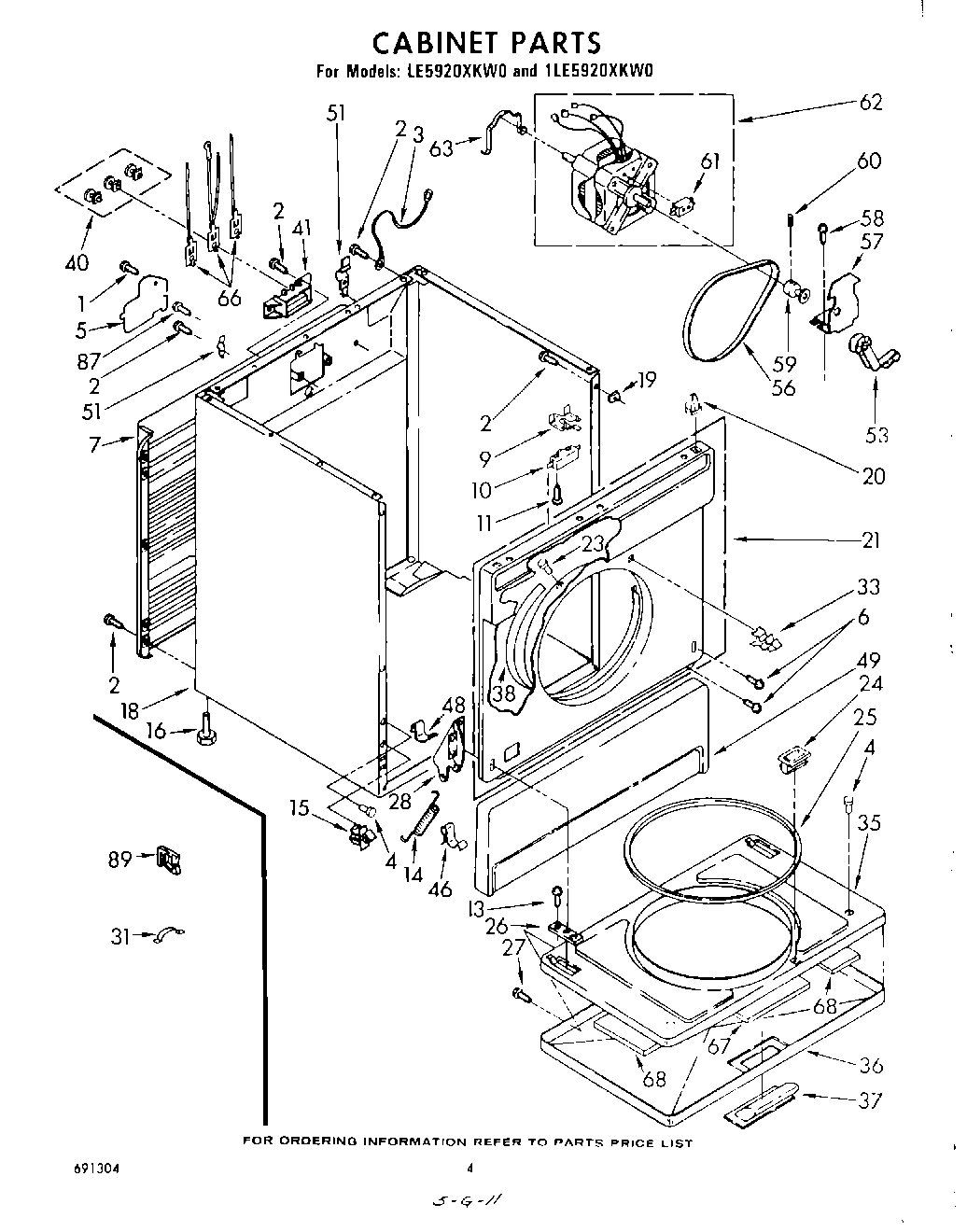

03 - SECTION

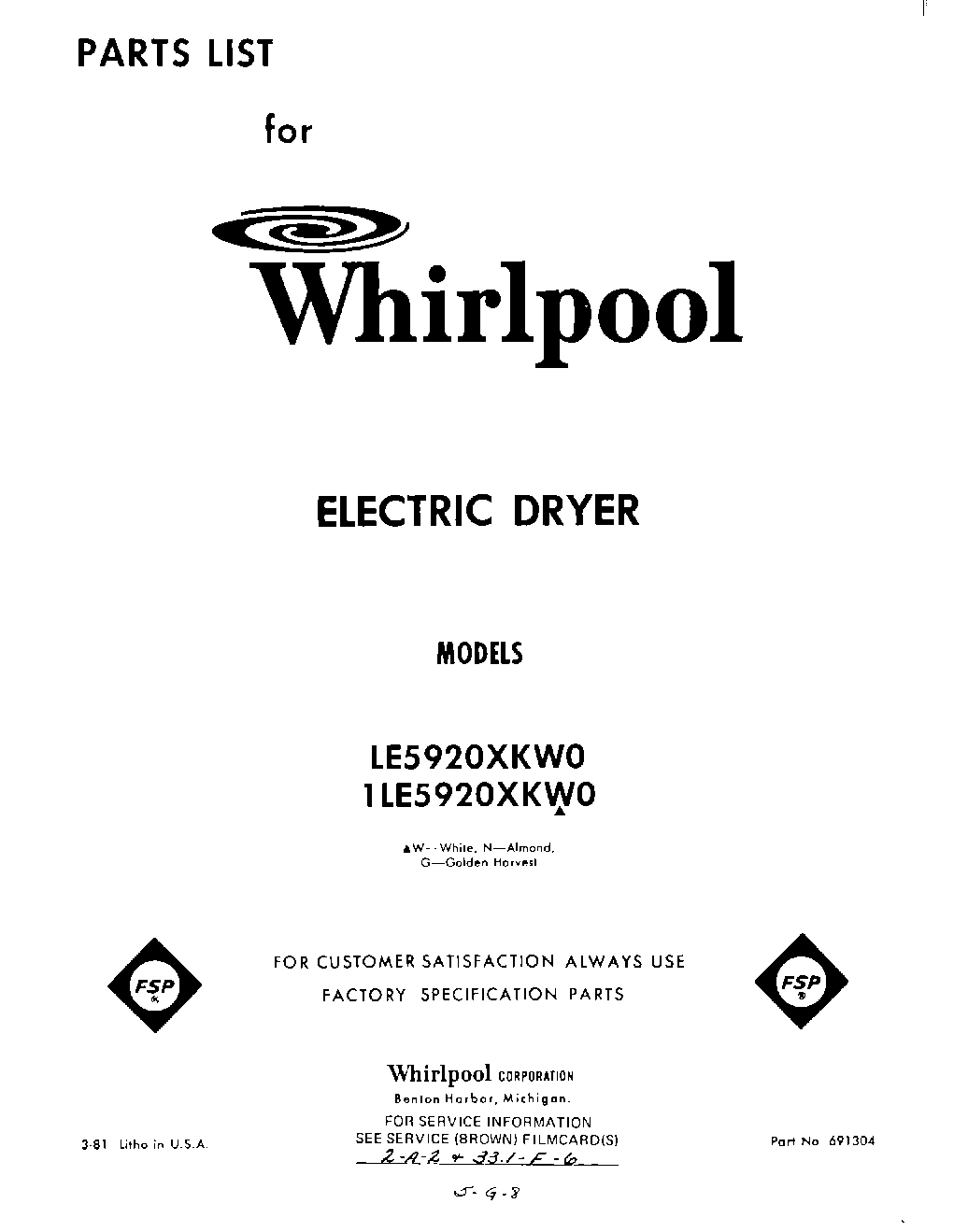

01 - SECTION

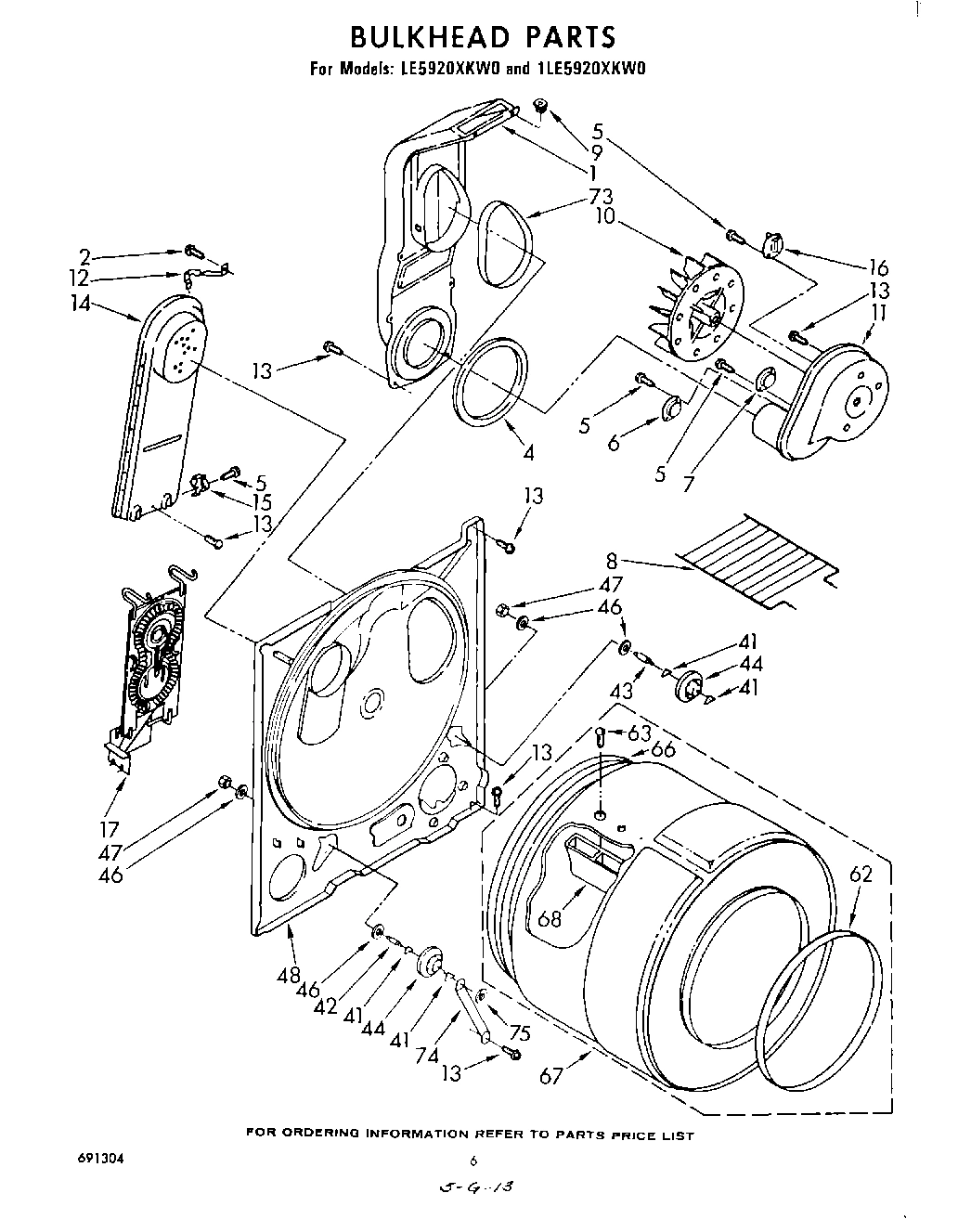

04 - SECTION

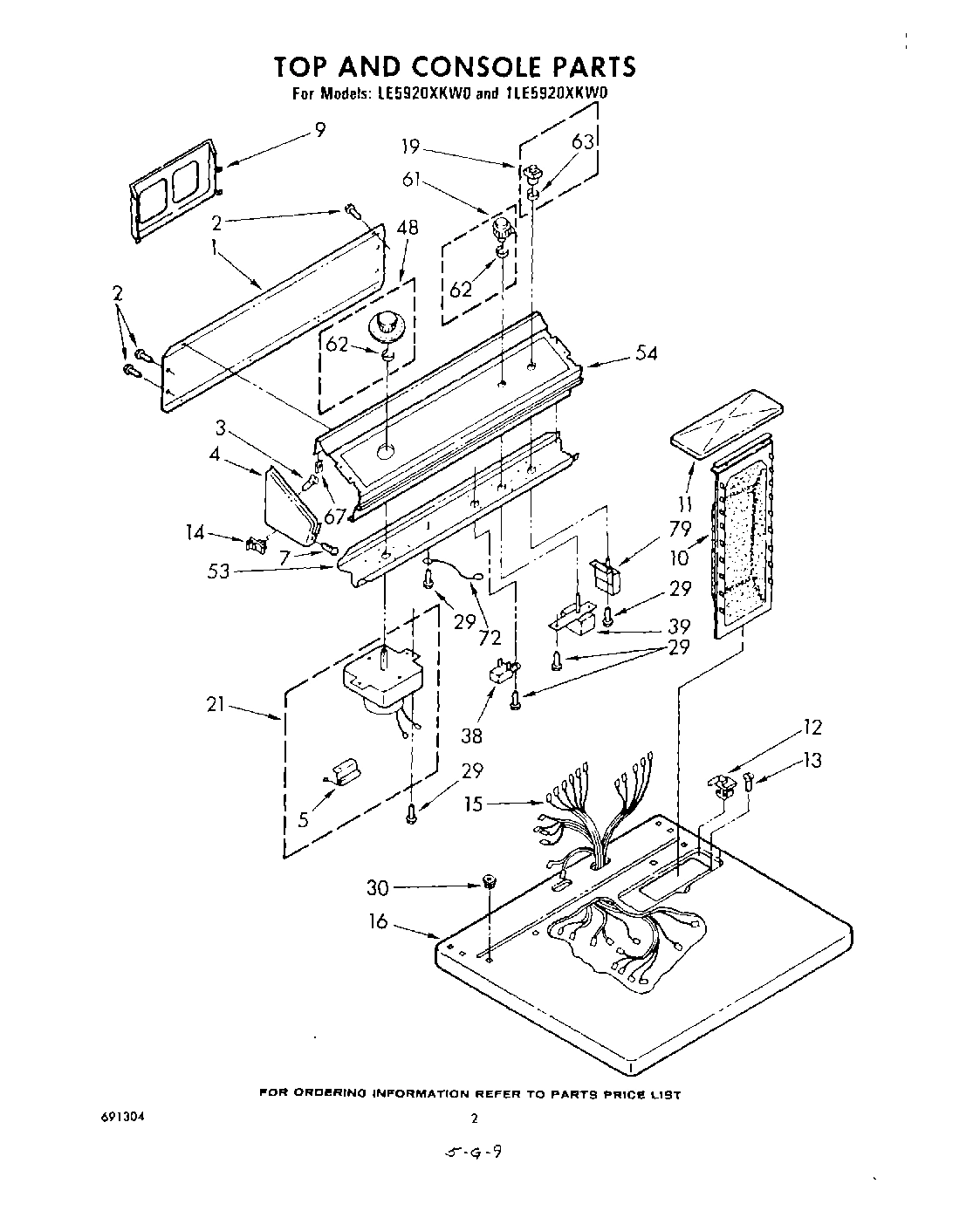

02 - SECTION
Common parts from model Whirlpool LE5920XKW0 ELECTRIC DRYER
WPL 799344 WPL 799344 Contact Us For Availability
WPL 261891 WPL 261891 Contact Us For Availability
WPL 299885 WPL 299885 Contact Us For Availability
WPL 978883 WPL 978883 Contact Us For Availability
WPL ARI117432A WPL ARI117432A Contact Us For Availability
1
Panel, Rear Console WPL 359372 Contact Us For Availability
3
Screw, 13-16 x 5/8 WPL 355326 Contact Us For Availability
4
Cap, End (L.H.) (White) WPL 375305 Contact Us For Availability
4
Cap, End L.H. (White) WPL 375309 Contact Us For Availability
4
Cap, End (L.H.) (Almond) WPL 375313 Contact Us For Availability
4
Cap, End (L.H.) (Almond) WPL 375315 Contact Us For Availability
4
Cap, End (L.H.) (Golden Harvest Cap, End (R.H WPL 375318 Contact Us For Availability
4
Cap, End L.H. (Golden Harvest) WPL 377283 Contact Us For Availability
7
Screw, 8-18 x 1 WPL 358225 Contact Us For Availability
9
Rack, Literature WPL 357645 Contact Us For Availability
10
SCREEN WPL 339392 Contact Us For Availability
11
Housing, Blower WPL 348494 Contact Us For Availability
11
Cover, Lint Screen (White) WPL 688150 Contact Us For Availability
11
Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability
11
Cover, Lint Screen (Golden Harvest) WPL 689313 Contact Us For Availability
14
Box, Heater WPL 685457 Contact Us For Availability
14
Stop, Push-In (2) WPL 358472 Contact Us For Availability
15
Harness, Wiring WPL 691580 Contact Us For Availability
16
top (white) WPL 688479 Contact Us For Availability
16
Top (Almond) WPL 689449 Contact Us For Availability
16
Top (Golden Harvest) WPL 689452 Contact Us For Availability
19
Button Assembly WPL 689857 Contact Us For Availability
21
Timer & Resistor Assembly, 60 Hz. WPL 690344 Contact Us For Availability
28
Hinge, R.H. WPL 687905 Contact Us For Availability
30
Nut, Push-In (2) WPL 358473 Contact Us For Availability
35
Door, Panel (Almond) WPL 689258 Contact Us For Availability
35
Door, Panel (Golden Harvest) WPL 689261 Contact Us For Availability
36
Door, Front (White) WPL 348728 Contact Us For Availability
36
Door, Front (Almond) WPL 689330 Contact Us For Availability
36
Door, Front (Golden Harvest) WPL 689333 Contact Us For Availability
37
Handle (Almond) WPL 690266 Contact Us For Availability
37
Handle (Golden Harvest) WPL 690269 Contact Us For Availability
38
Buzzer, Mini WPL 686864 Contact Us For Availability
39
Switch, Rotary (Temperature) WPL 348686 Contact Us For Availability
46
Clip, Toe Panel Lock WPL 341776 Contact Us For Availability
48
Bulkhead WPL 685769 Contact Us For Availability
48
Timer Knob Assembly WPL 690200 Contact Us For Availability
49
Panel, Toe (White) WPL 337833 Contact Us For Availability
49
Panel, Toe (Almond) WPL 689246 Contact Us For Availability
49
Panel, Toe (Golden Harvest) WPL 689249 Contact Us For Availability
53
Bracket, Control WPL 359708 Contact Us For Availability
54
Panel, Control WPL 692003 Contact Us For Availability
60
WPL 690046 WPL 690046 Contact Us For Availability
61
Control Knob Assembly WPL 690292 Contact Us For Availability
63
Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability
63
Clip WPL 90015 Contact Us For Availability
67
Nut, Push-In (4) WPL 689559 Contact Us For Availability
67
WPL 691207 WPL 691207 Contact Us For Availability
68
WPL 691206 WPL 691206 Contact Us For Availability
68
WPL 691525 WPL 691525 Contact Us For Availability
72
Wire, Ground WPL 690853 Contact Us For Availability
74
Bracket, Support WPL 348945 Contact Us For Availability
79
Instructions, Wiring WPL 230083 Contact Us For Availability
79
(13 Oz.) (Golden Harvest) WPL 261890 Contact Us For Availability
79
Instructions, Harness Rework WPL 339896 Contact Us For Availability
79
Instructions, Installation (240 Volt) WPL 340704 Contact Us For Availability
79
Switch, Push-To-Start (Alternate) WPL 348771 Contact Us For Availability
79
(13 Oz.) (Leveler (Thinner) P WPL 350941 Contact Us For Availability
79
WPL 685067 WPL 685067 Contact Us For Availability
79
WPL 688643 WPL 688643 Contact Us For Availability
79
WPL 688898 WPL 688898 Contact Us For Availability
79
WPL 690723 WPL 690723 Contact Us For Availability
79
WPL 691304 WPL 691304 Contact Us For Availability
79
WPL 799351 WPL 799351 Contact Us For Availability
89
WPL 688412 WPL 688412 Contact Us For Availability
× ![]()
