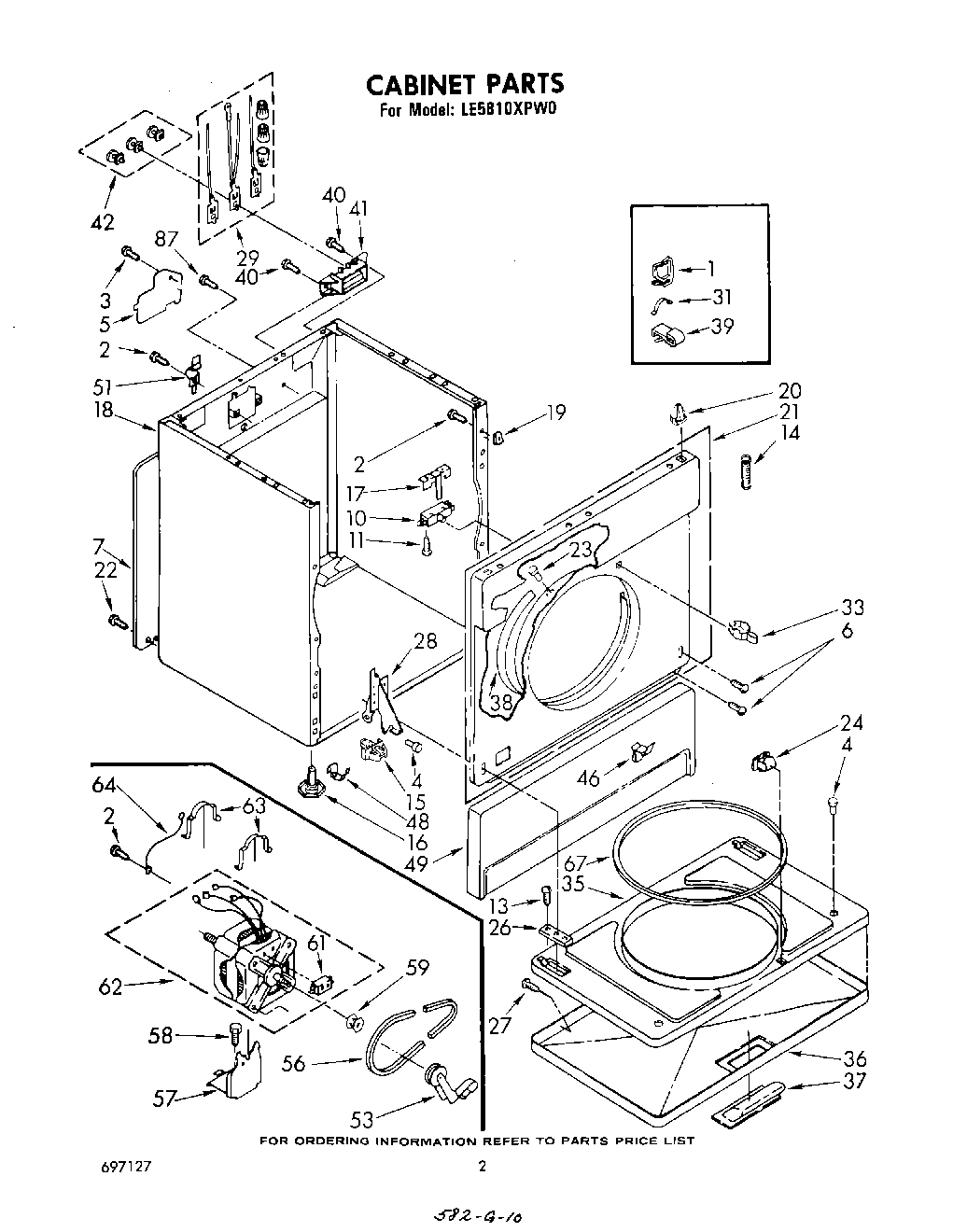

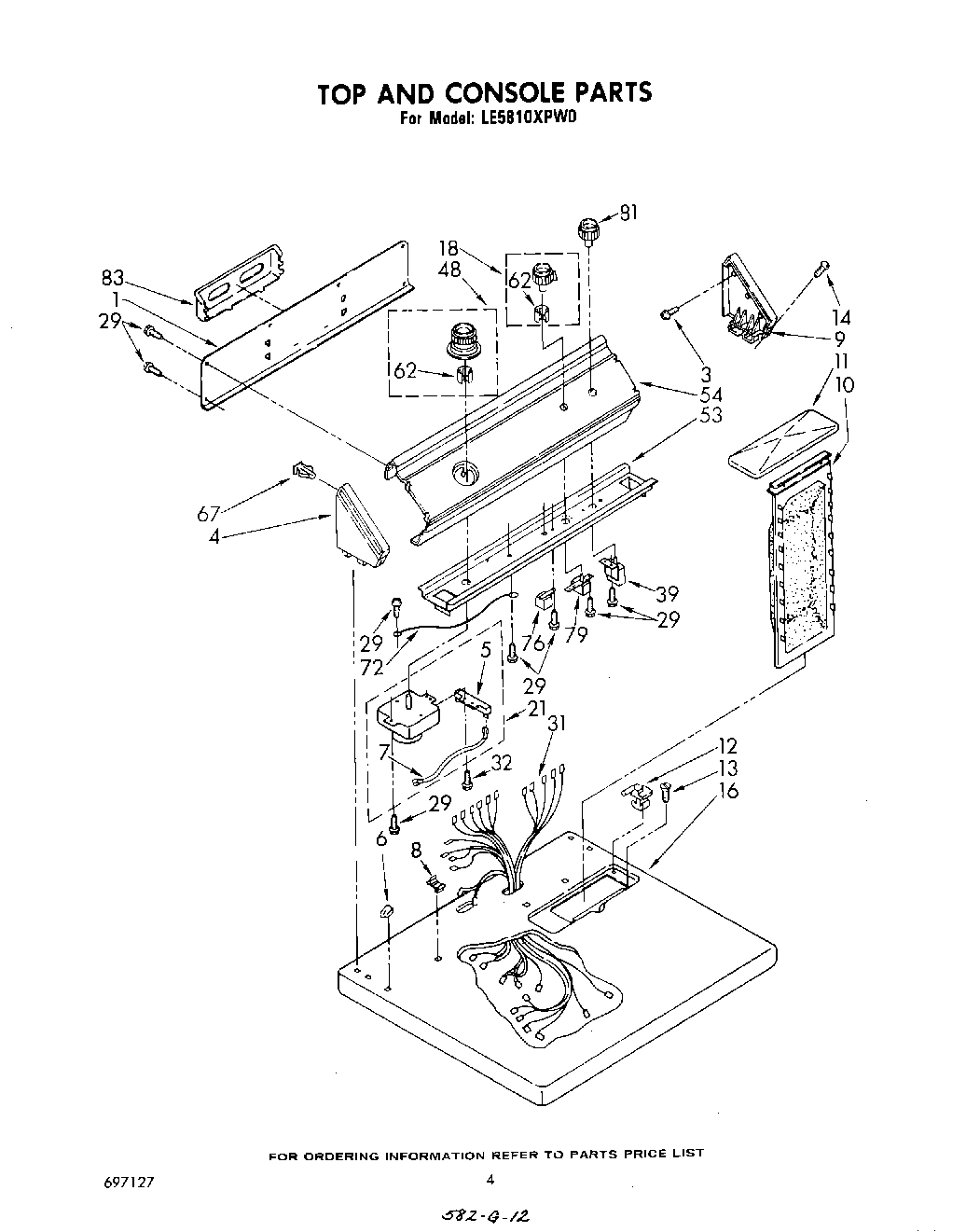

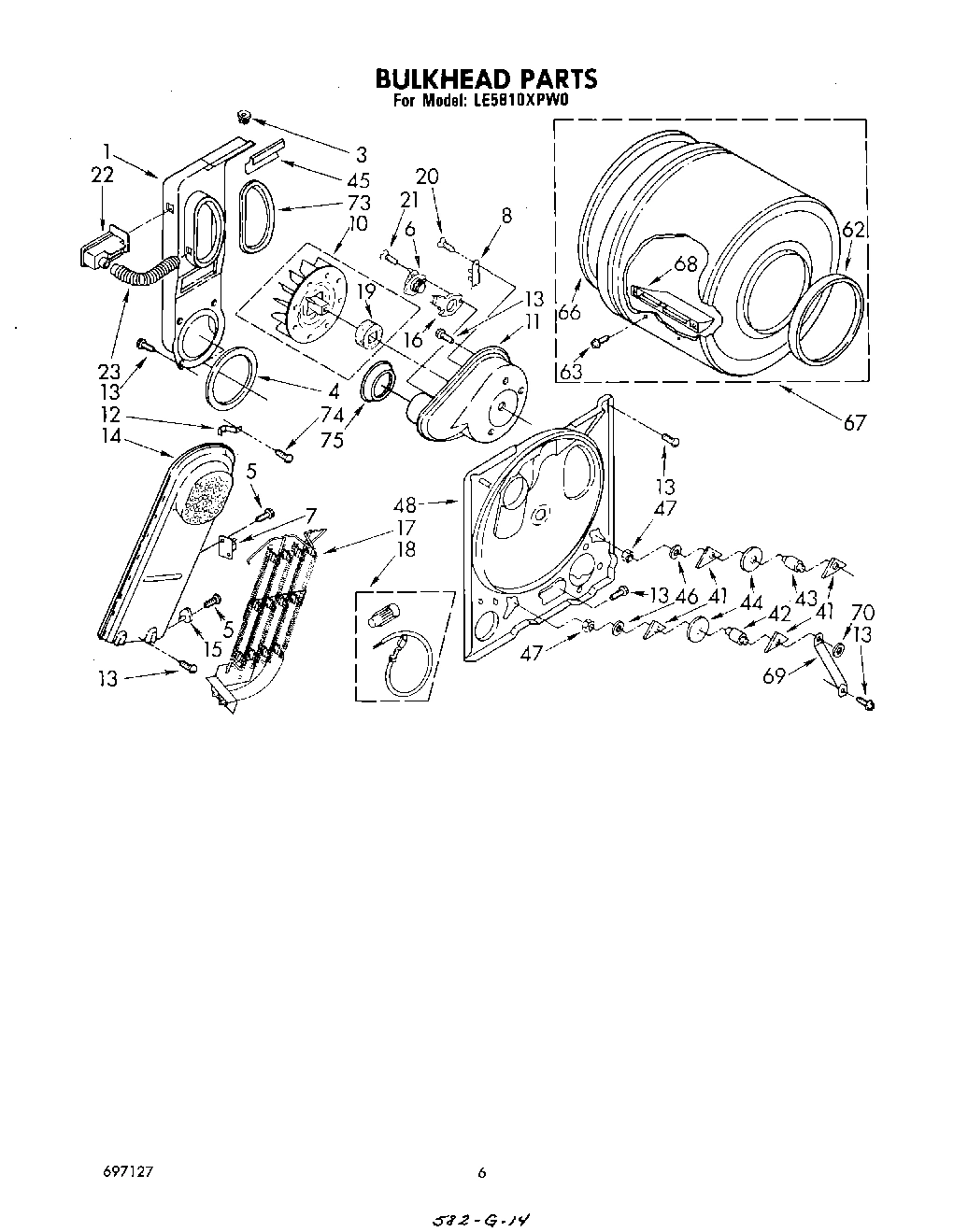

Model Whirlpool LE5810XPW0 ELECTRIC DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun In Stock WPL 350938 $28.93

350956 Whirlpool Spray Assembly In Stock WPL 350956 $17.07

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.38

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $11.02

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.60

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

Platinum (Uncut) WPL 285368 Contact Us For Availability

Leveler (Thi WPL 350941 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT677813 WPL LIT677813 Contact Us For Availability

WPL LIT677818 WPL LIT677818 Contact Us For Availability

WPL LIT677821 WPL LIT677821 Contact Us For Availability

WPL LIT677967 WPL LIT677967 Contact Us For Availability

WPL LIT677971 WPL LIT677971 Contact Us For Availability

WPL LIT693849 WPL LIT693849 Contact Us For Availability

WPL LIT696234 WPL LIT696234 Contact Us For Availability

WPL LIT696767 WPL LIT696767 Contact Us For Availability

WPL LIT697127 WPL LIT697127 Contact Us For Availability

1

Panel, Rear Console WPL 386367 Contact Us For Availability

3

WP693995 Whirlpool Screw In Stock WPL WP693995 $2.85

3

Screw, 13-16 x 5/8 WPL 355326 Contact Us For Availability

4

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $107.33

4

W11415783 Whirlpool Seal In Stock WPL W11415783 $8.33

4

Cap, End (L.H.) WPL 63789 Contact Us For Availability

5

279872 Whirlpool Resistor In Stock WPL 279872 $31.62

5

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.46

6

Stop, Push-In WPL 358473 Contact Us For Availability

6

Screw, 10-32 x 1/2 WPL 342043 Contact Us For Availability

7

Panel, Rear WPL 346368 Contact Us For Availability

7

Wire, Jumper WPL 696098 Contact Us For Availability

8

Nut, Push-In (2) WPL 358472 Contact Us For Availability

9

Cap, End. (R.H.) WPL 63795 Contact Us For Availability

10

339392V Whirlpool Dryer Lint Filter Screen In Stock WPL 339392V $22.03

10

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $32.75

WP98129 Whirlpool Screw Backorder WPL WP98129 $4.77

Cover, Lint Screen (White) WPL 688150 Contact Us For Availability

Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability

Cover, Lint Screen (Golden Harvest) WPL 689313 Contact Us For Availability

Cover, Lint Screen (Toast) WPL 695022 Contact Us For Availability

Cover, Lint Screen (Platinum) WPL 695023 Contact Us For Availability

12

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $4.19

12

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $4.19

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $9.14

14

Spring, Door (2) WPL 237979 Contact Us For Availability

14

Screw, End Cap WPL 64211 Contact Us For Availability

15

Clip, Toe Panel (2) WPL 696232 Contact Us For Availability

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.80

Heater, Thermostat WPL 61894 Contact Us For Availability

Top (White) WPL 695507 Contact Us For Availability

Top (Almond) WPL 695508 Contact Us For Availability

Top (Golden Harvest) WPL 695509 Contact Us For Availability

Top (Toast) WPL 695510 Contact Us For Availability

Top (Platinum) WPL 695511 Contact Us For Availability

17

WP691581 Whirlpool Actuator In Stock WPL WP691581 $4.20

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $4.82

Cabinet (White) WPL 690847 Contact Us For Availability

Cabinet (Almond) WPL 690848 Contact Us For Availability

Cabinet (Golden Harvest) WPL 690851 Contact Us For Availability

Cabinet (Toast) WPL 694874 Contact Us For Availability

Cabinet (Platinum) WPL 694875 Contact Us For Availability

Knob, Temperature Selector WPL 386629 Contact Us For Availability

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $5.86

20

WP18776 Whirlpool Lock In Stock WPL WP18776 $5.44

Panel Assembly, Upper Front (White) WPL 338012 Contact Us For Availability

Panel Assembly, Upper Front (Almond) WPL 689533 Contact Us For Availability

Panel Assembly, Upper Front (Golden Harvest) WPL 689535 Contact Us For Availability

Panel Assembly, Upper Front (Toast) WPL 695026 Contact Us For Availability

Panel Assembly, Upper Front (Platinum) WPL 695027 Contact Us For Availability

Timer & Resistor Assembly, 60 Hz. WPL 696434 Contact Us For Availability

22

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $3.22

23

279220 Whirlpool Clip Backorder WPL 279220 $12.30

24

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $4.90

26

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $13.77

27

WP694091 Whirlpool Screw Backorder WPL WP694091 $3.22

28

Hinge, R.H. WPL 687905 Contact Us For Availability

28

Hinge, L.H. WPL 687906 Contact Us For Availability

29

279318 Whirlpool Terminal In Stock WPL 279318 $46.60

29

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

31

8528351 Whirlpool Clip Backorder WPL 8528351 $50.35

31

Harness, Wiring WPL 697652 Contact Us For Availability

32

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.74

35

Door, Rear WPL 695954 Contact Us For Availability

Door, Front (White) WPL 348728 Contact Us For Availability

Door, Front (Almond) WPL 689330 Contact Us For Availability

Door, Front (Golden Harvest) WPL 689333 Contact Us For Availability

Door, Front (Toast) WPL 695034 Contact Us For Availability

Door, Front (Platinum) WPL 695035 Contact Us For Availability

WP348721 Whirlpool Handle In Stock WPL WP348721 $49.48

Handle, Door (Almond) WPL 690266 Contact Us For Availability

Handle, Door (Golden Harvest) WPL 690269 Contact Us For Availability

Handle, Door (Toast) WPL 695016 Contact Us For Availability

Handle, Door (Platinum) WPL 695017 Contact Us For Availability

38

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $50.95

Clip, Harness (Door Swi WPL 689180 Contact Us For Availability

Switch, Push-To-Start (Alt.) WPL 348771 Contact Us For Availability

Switch, Push-To-Start WPL 660648 Contact Us For Availability

Switch, Push-To-Start (Alt.) WPL 685067 Contact Us For Availability

40

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.07

41

279320 Whirlpool Dryer Rear Terminal Block Ki In Stock WPL 279320 $33.16

42

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $18.08

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $3.22

46

WPL 341776 WPL 341776 Contact Us For Availability

48

WP297092 Whirlpool Clip In Stock WPL WP297092 $4.19

48

Timer Knob & Dial Assembly WPL 695554 Contact Us For Availability

WPL 237035 WPL 237035 Contact Us For Availability

WPL 689537 WPL 689537 Contact Us For Availability

WPL 689539 WPL 689539 Contact Us For Availability

WPL 694999 WPL 694999 Contact Us For Availability

WPL 695000 WPL 695000 Contact Us For Availability

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $4.19

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $8.75

53

Bracket, Control WPL 386627 Contact Us For Availability

54

Panel, Control WPL 695969 Contact Us For Availability

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $6.72

57

WP348780 Whirlpool Base In Stock WPL WP348780 $37.41

58

3400500 Whirlpool Screw Backorder WPL 3400500 $14.93

59

WP8066184 Whirlpool Dryer Motor Pulley In Stock WPL WP8066184 $27.98

61

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $139.91

62

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $4.53

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $4.20

64

WPL 690236 WPL 690236 Contact Us For Availability

67

WP3390733 Whirlpool Door Seal Assembly Backorder WPL WP3390733 $45.60

67

WP689559 Whirlpool Nut Backorder WPL WP689559 $5.76

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $59.84

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $3.22

72

Wire, Ground WPL 690853 Contact Us For Availability

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $4.53

75

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $16.76

76

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $60.62

79

Switch, Rotary (Temperature Selector) WPL 696321 Contact Us For Availability

81

Knob, Push To Start WPL 695946 Contact Us For Availability

83

Rack, Literature WPL 63020 Contact Us For Availability
