Model Whirlpool LDG7500AAE GAS DRYER – Common Parts & Diagrams

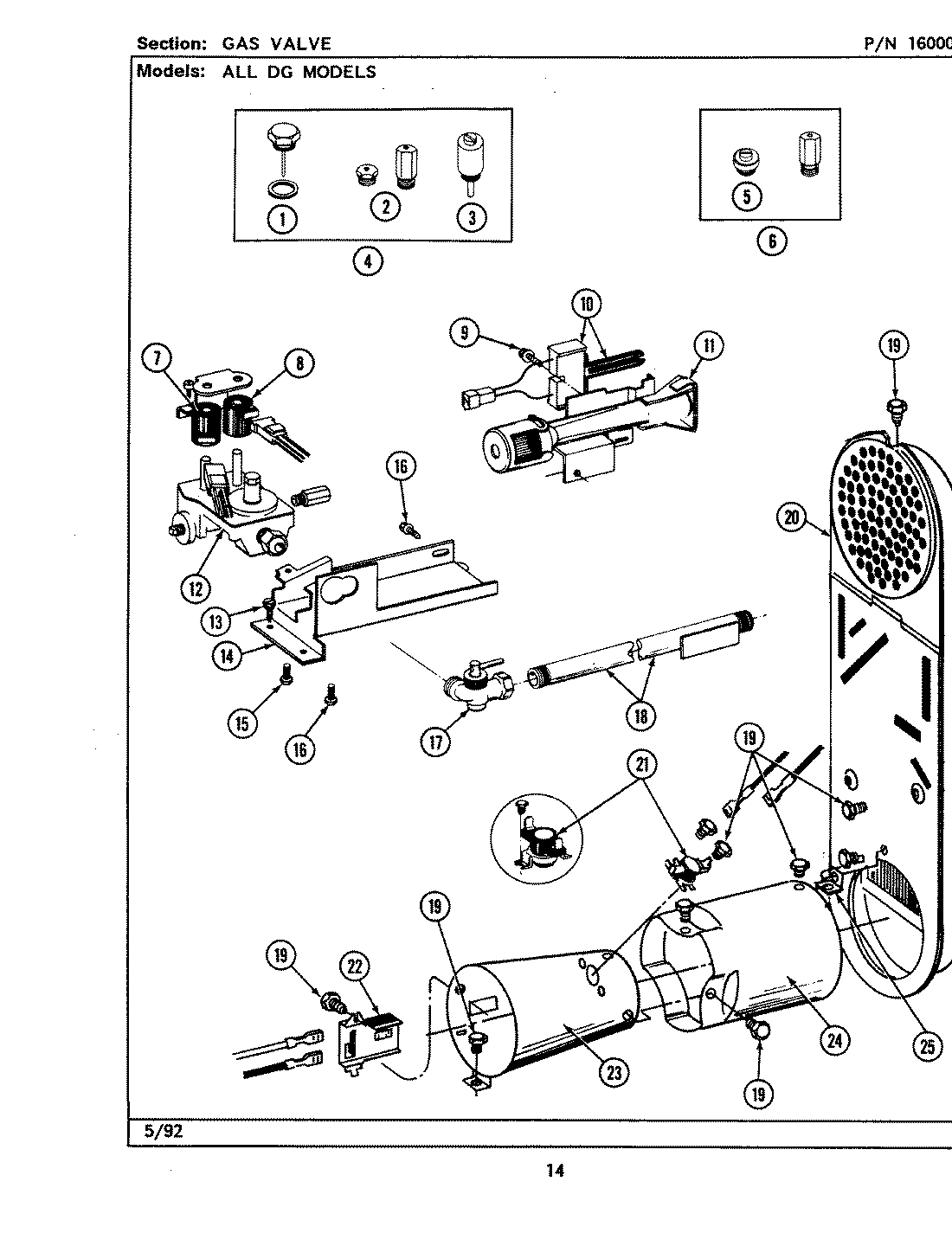

08 - GAS VALVE (LDG7500AAE, ABE)

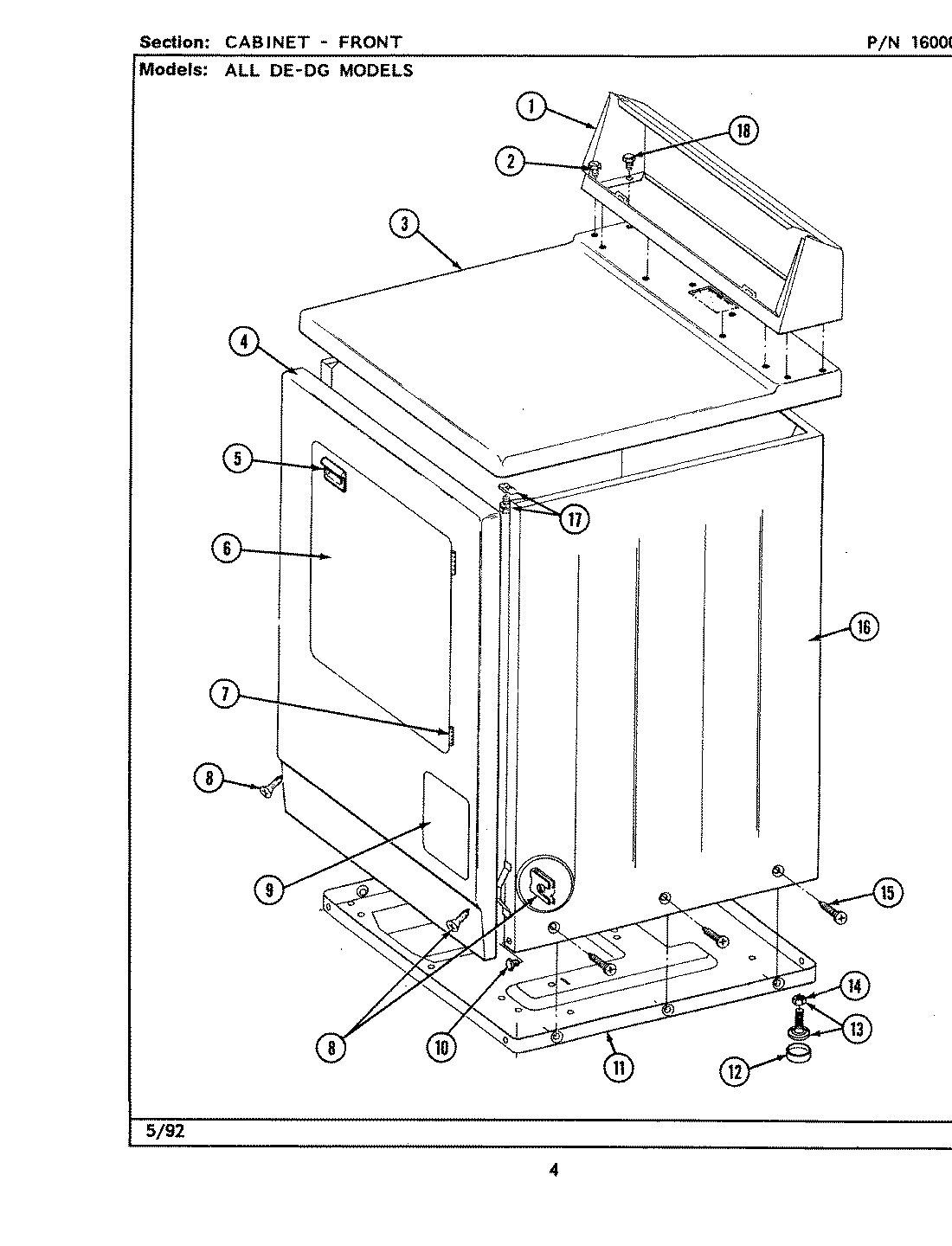

01 - CABINET-FRONT (LDE7500ACE,ADE) & (LDG)
10 - MOTOR DRIVE (LDE7500ACL,ACW,ADL,ADW)

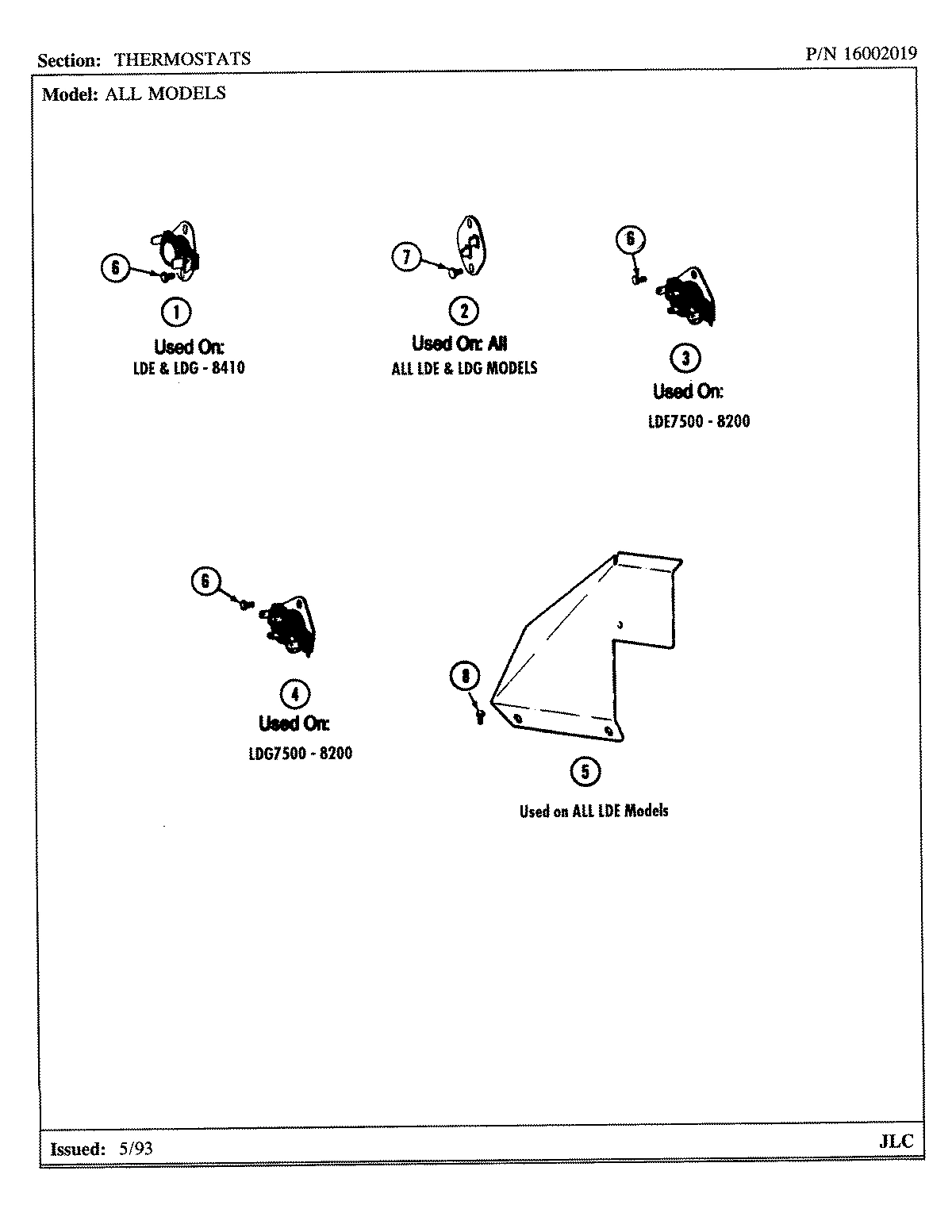

14 - THERMOSTATS (LDE7500ACM,ADM) & (LDG)

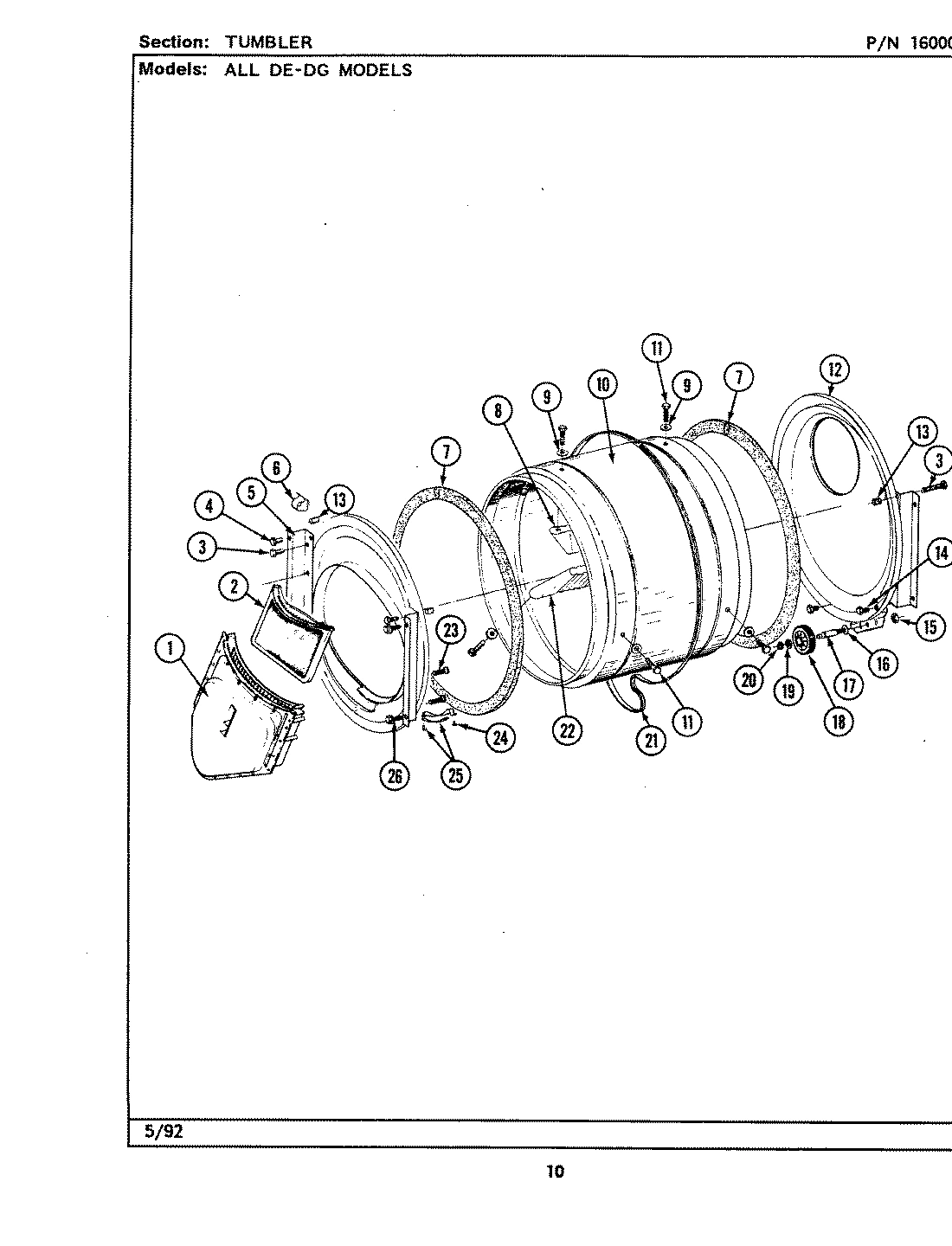

15 - TUMBLER (LDE7500ACE,ADE) & (LDG)

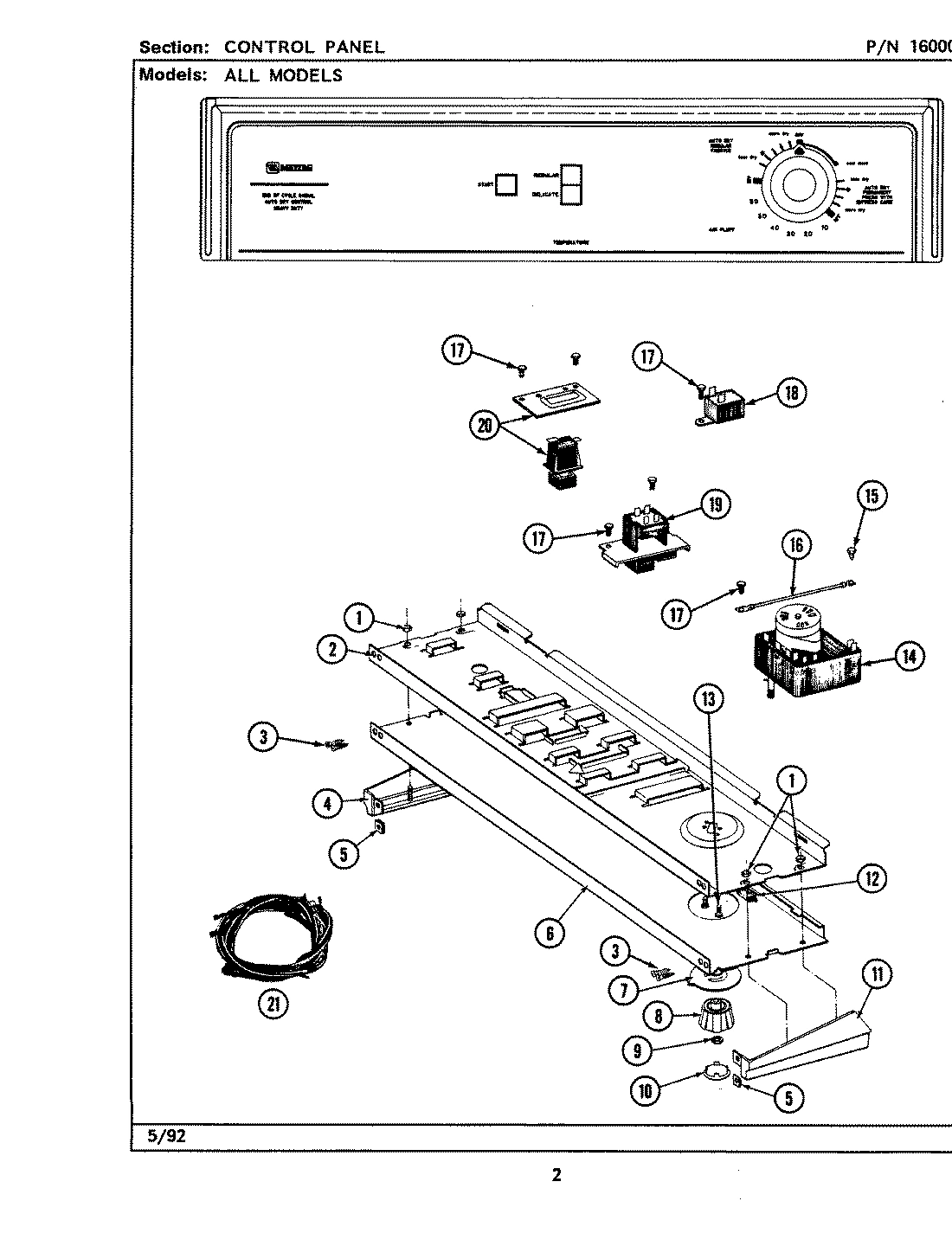

04 - CONTROL PANEL (LDE7500ACE,ADE) & (LDG)

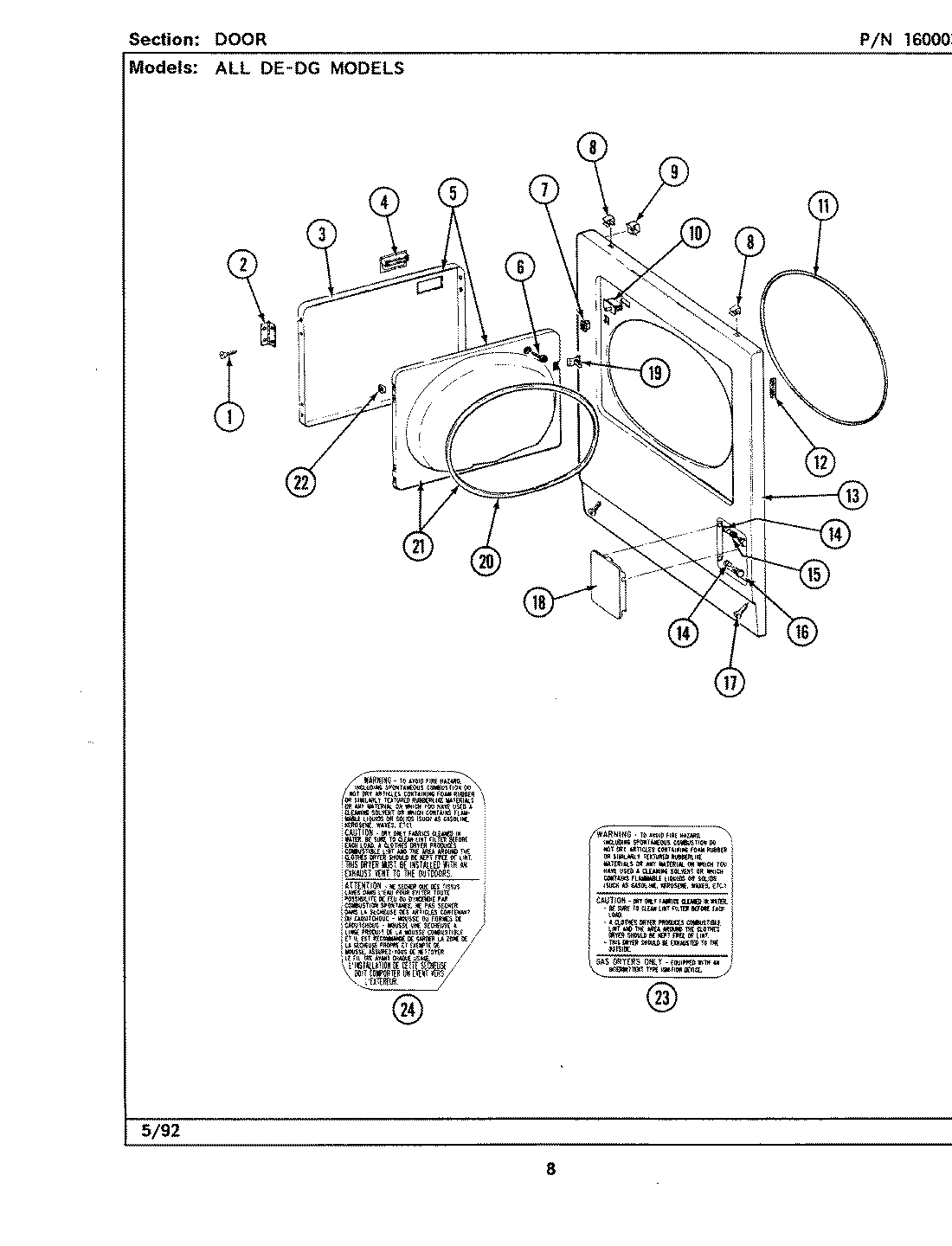

06 - DOOR (LDE7500ACE,ADE) & (LDG)

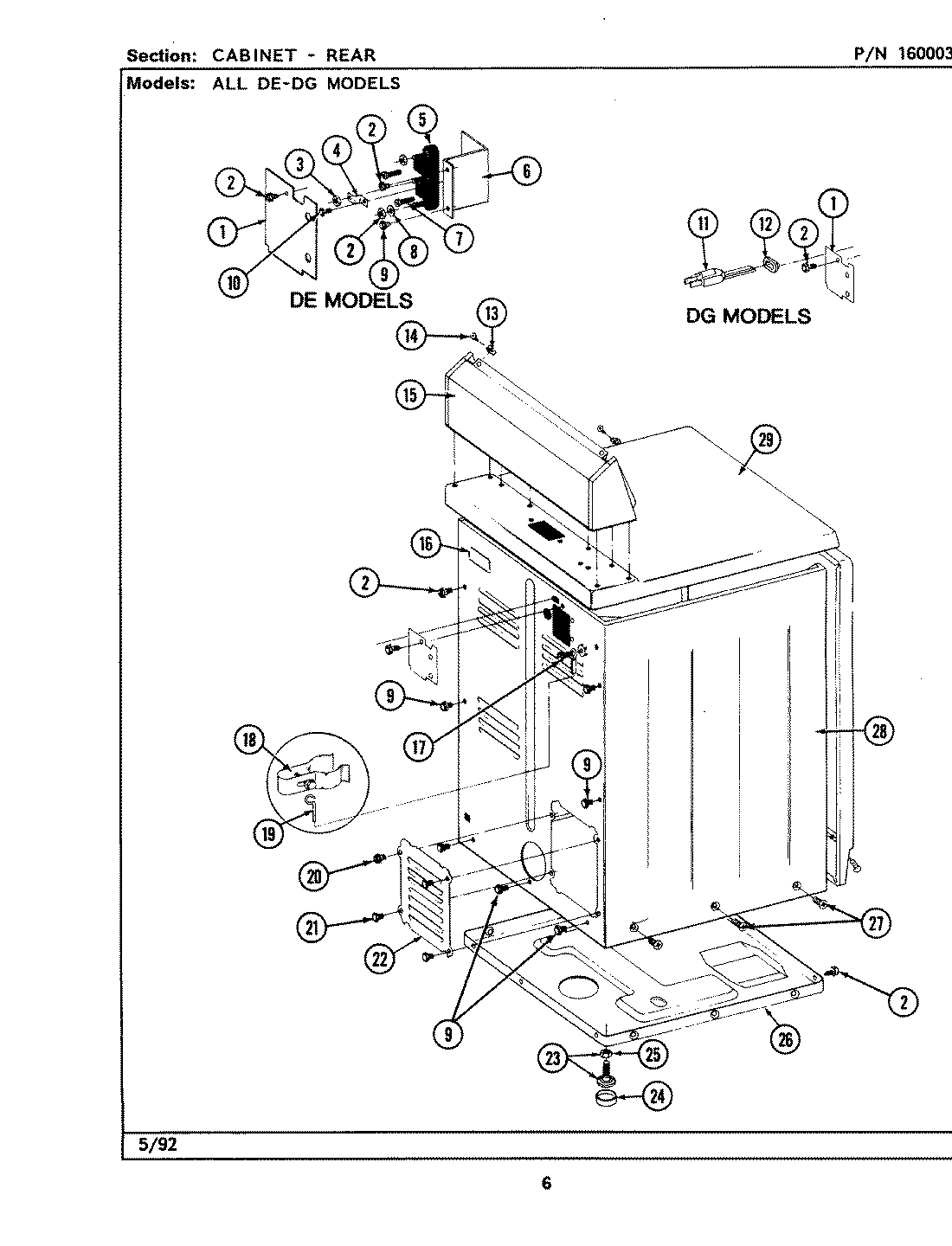

03 - CABINET-REAR (LDE7500ACE,ADE) & (LDG)

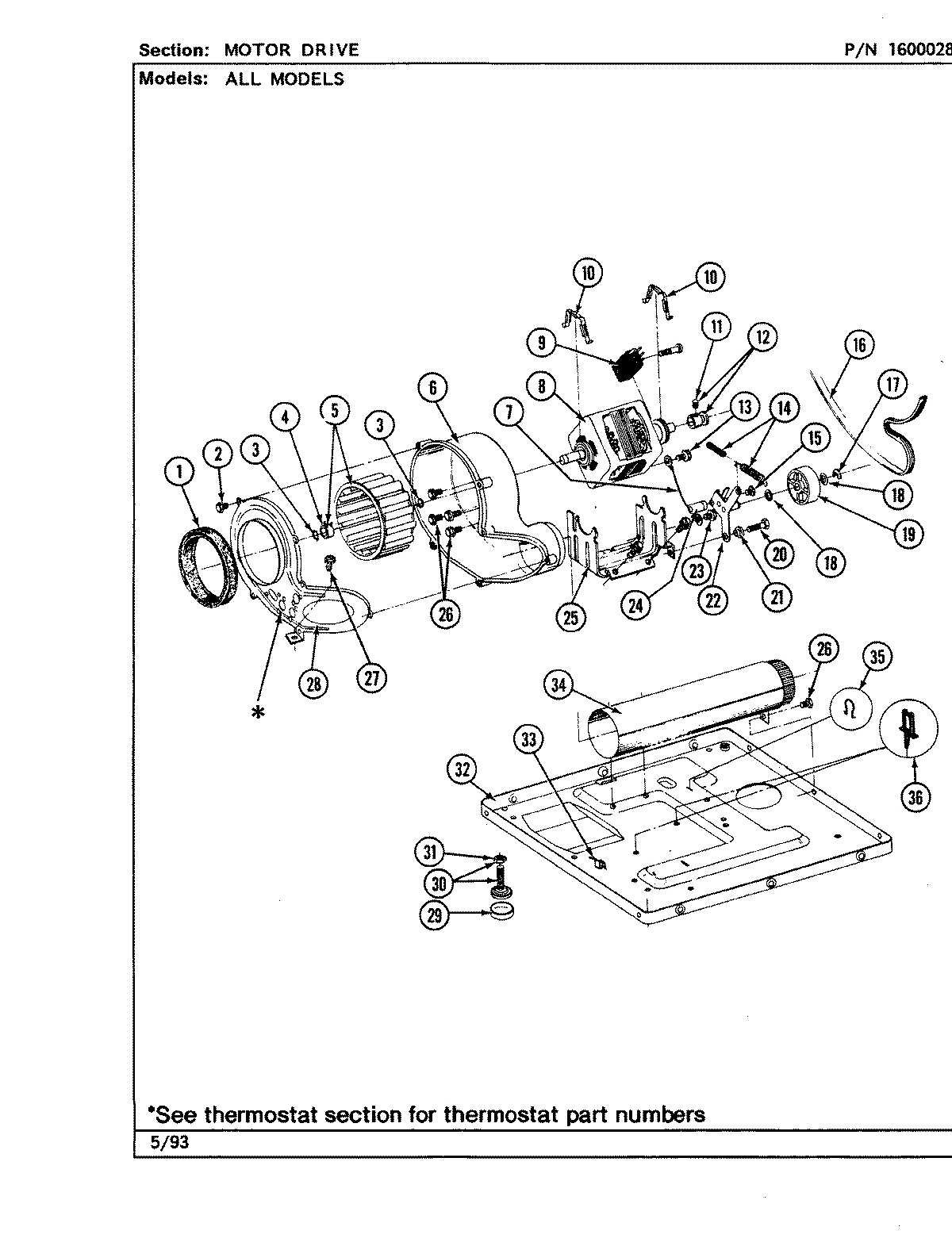

12 - MOTOR DRIVE (LDG7500AAL,AAW,ABL,ABW)

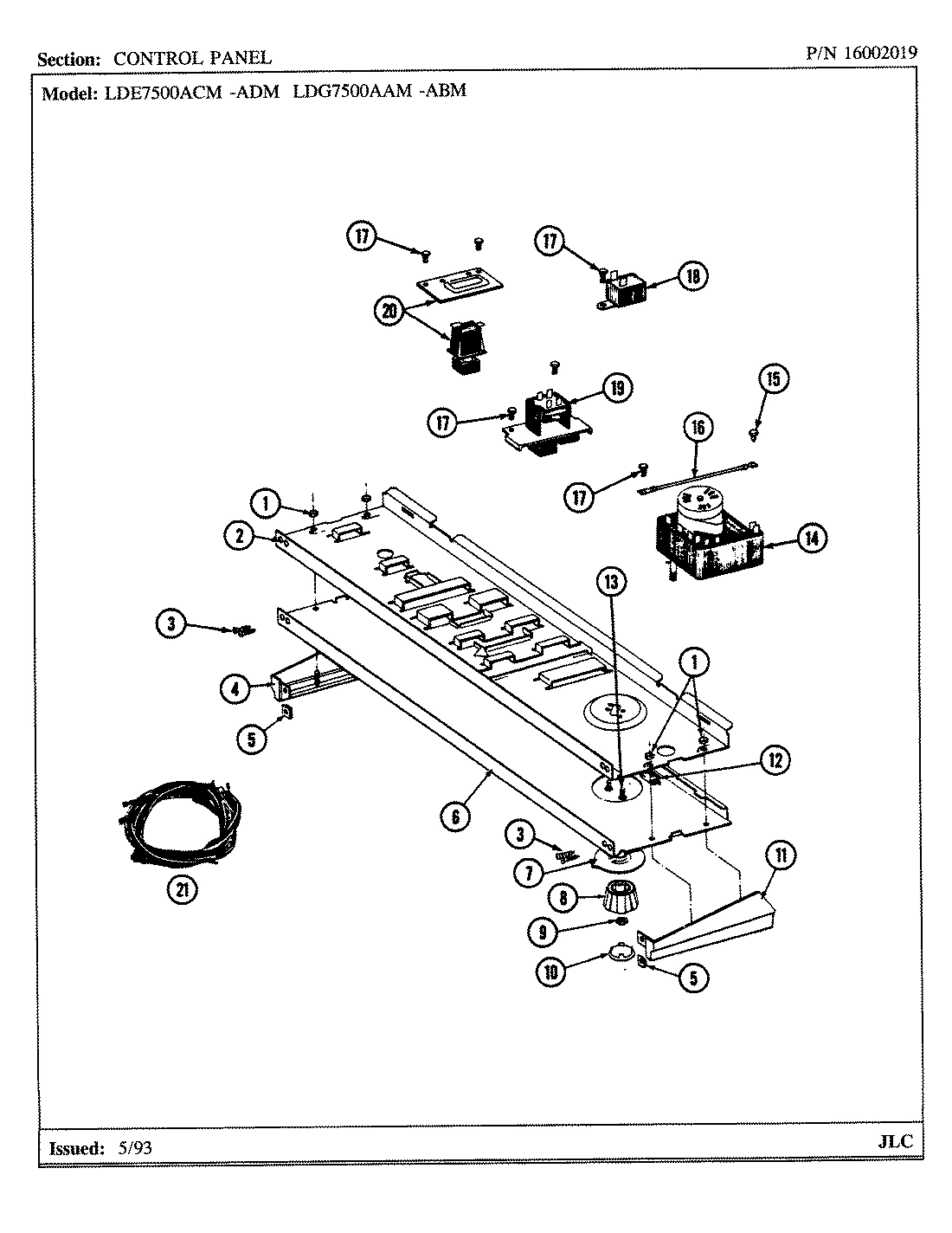

05 - CONTROL PANEL (LDE7500ACM,ADM) & (LDG)

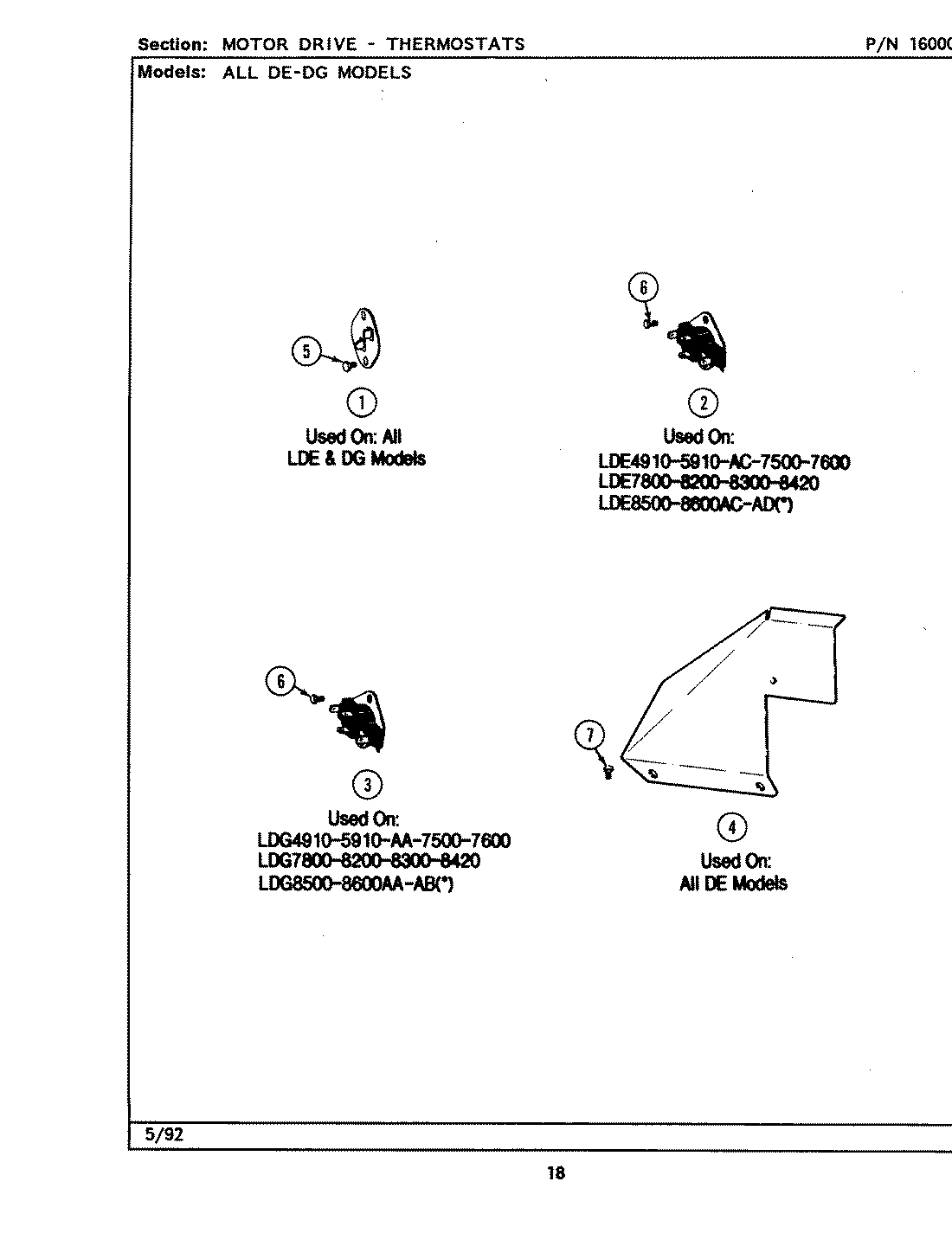

13 - THERMOSTATS (LDE7500ACE,ADE) & (LDG)

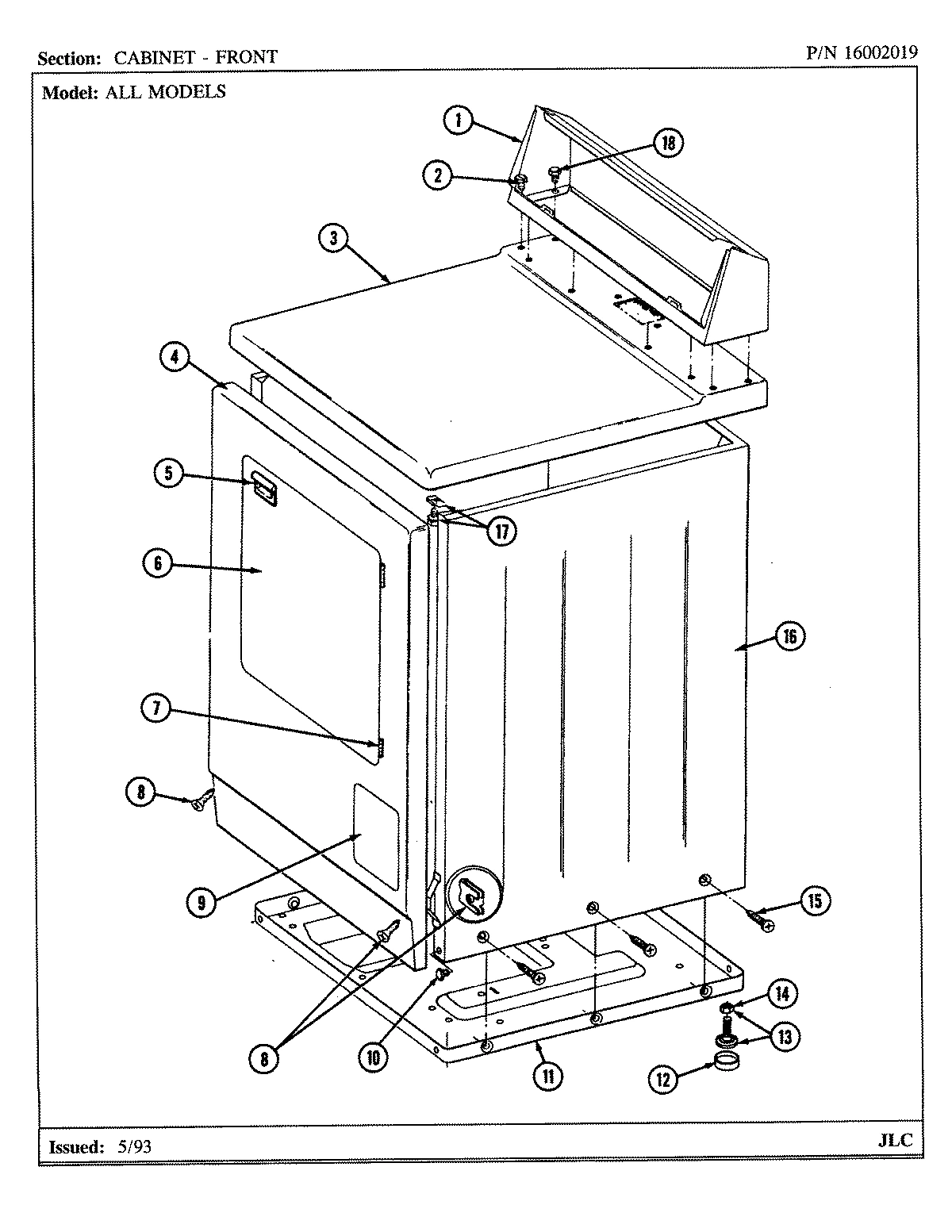

02 - CABINET-FRONT (LDE7500ACM,ADM) & (LDG)
09 - MOTOR DRIVE (LDE7500ACE,ADE) & (LDG)

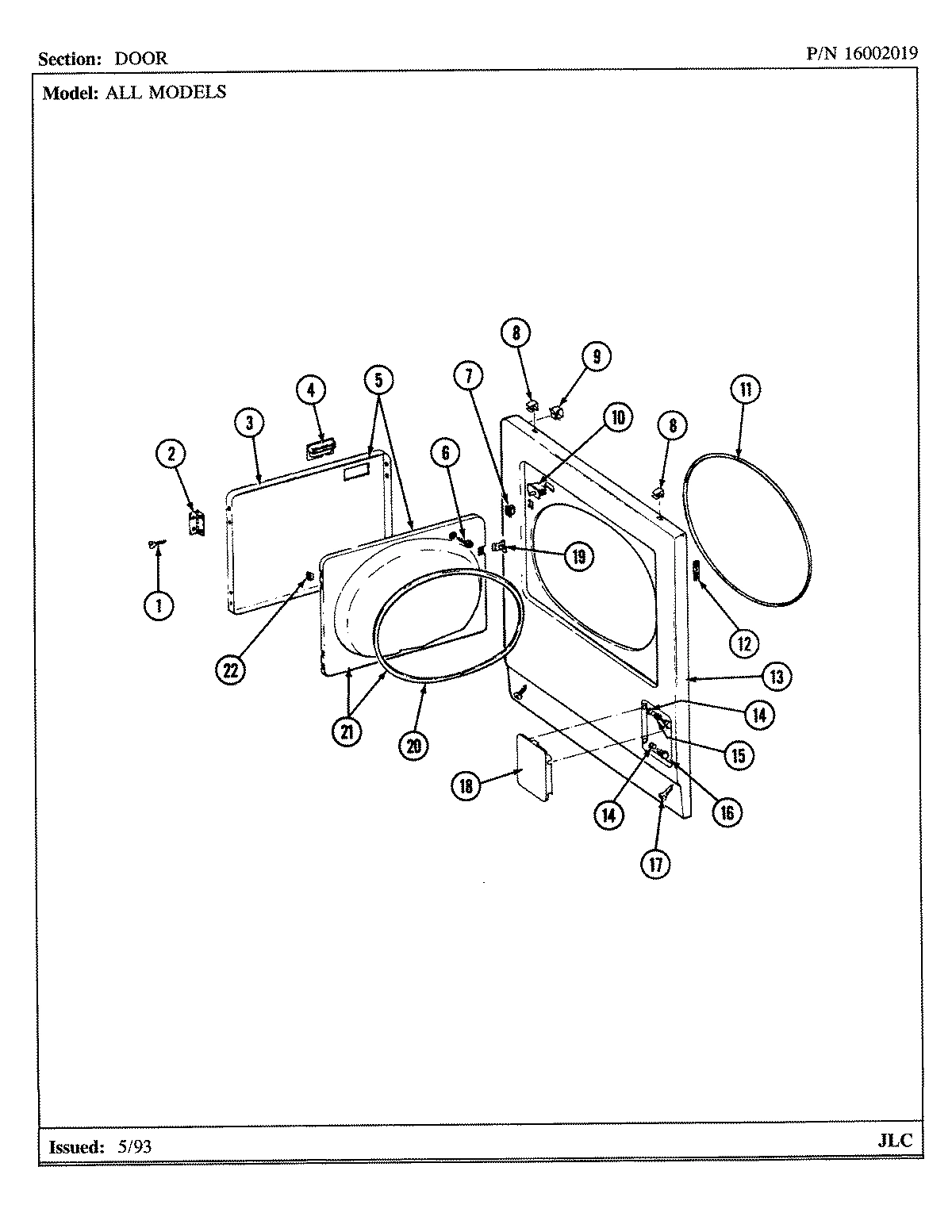

07 - DOOR (LDE7500ACM,ADM) & (LDG)

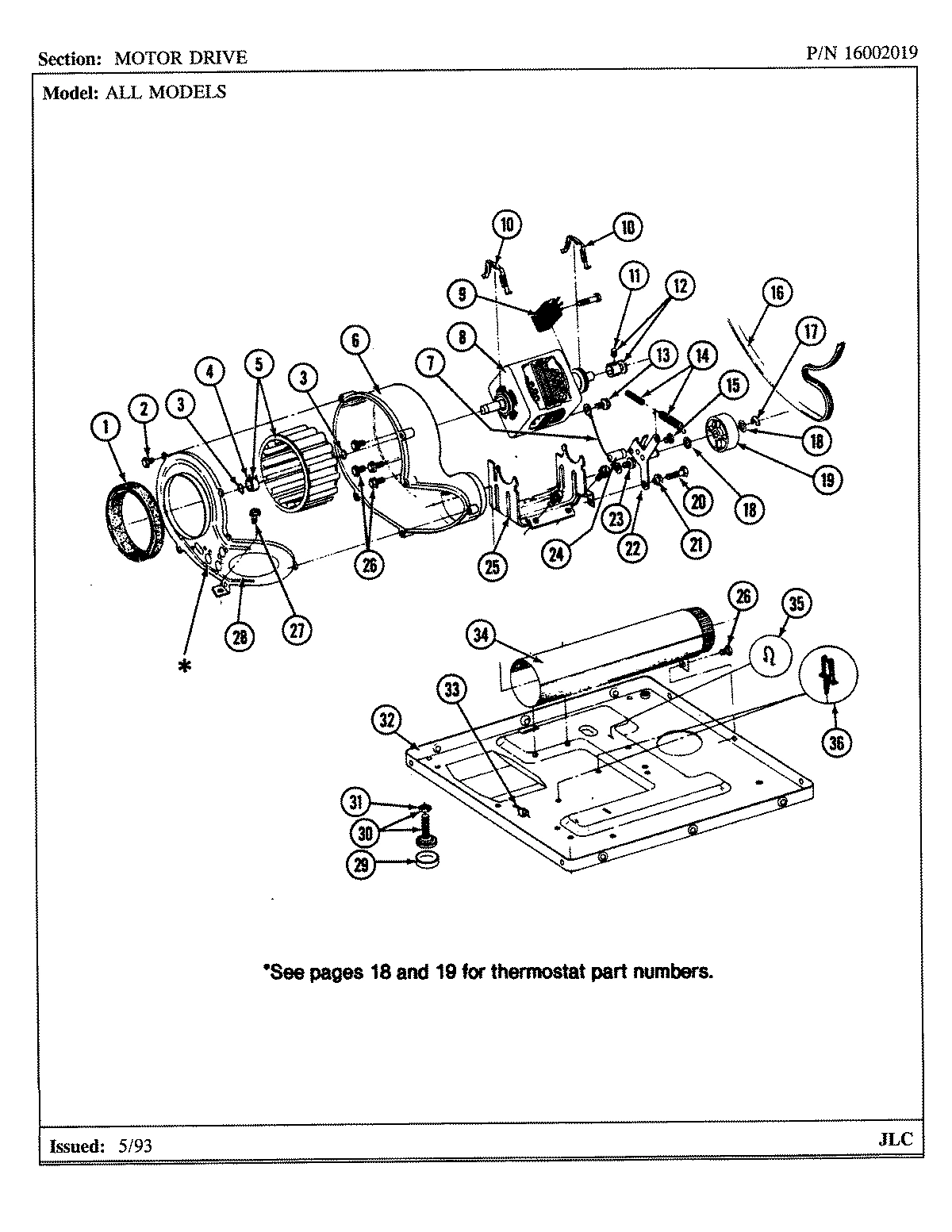

11 - MOTOR DRIVE (LDE7500ACM,ADM) & (LDG)
Common parts from model Whirlpool LDG7500AAE GAS DRYER
1
DUCT, OUTLET ASSY. WPL Y307112 Contact Us For Availability
1
PALNUT, END CAP WPL 214872 Contact Us For Availability
1
SCREW WPL Y314062 Contact Us For Availability
1
COVER, TERMINAL WPL Y312905 Contact Us For Availability
1
CONSOLE (ALM) WPL 305193L Contact Us For Availability
2
HINGE WPL 307099 Contact Us For Availability
2
SCREEN, LINT WPL 307108 Contact Us For Availability
2
BACK UP PLATE WPL 314184 Contact Us For Availability
3
PANEL, OUTER (WHT) WPL 314966 Contact Us For Availability
3
SCREW WPL 313764 Contact Us For Availability
3
SCREW, No.8 X 9/16 CTSK WPL 210932 Contact Us For Availability
3
TOP COVER ASSY WPL 307104L Contact Us For Availability
3
DOOR PANEL ALMOND WPL 314966L Contact Us For Availability
4
HANDLE WHITE WPL 314946 Contact Us For Availability
4
END CAP L.H. WPL 308469 Contact Us For Availability
4
END CAP (L-H) WPL 308651 Contact Us For Availability
4
HANDLE DOOR ALM WPL 314972 Contact Us For Availability
5
DOOR ASSY. COMPLETE (WHT) WPL Y307111 Contact Us For Availability
5
FRONT, TUMBLER (W/SEAL) WPL 307109 Contact Us For Availability
5
FASTENER, END CAP WPL 214894 Contact Us For Availability
5
DOOR ASSY ALMOND WPL 307111L Contact Us For Availability
6
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
6
CONTROL PANEL WPL 308471 Contact Us For Availability
6
CONTROL PANEL, FACIA WPL 308648 Contact Us For Availability
7
WIRE, GROUND WPL 901220 Contact Us For Availability
7
SKIRT, TIMER DIAL WPL 315438 Contact Us For Availability
7
SKIRT, DIAL WPL 315521 Contact Us For Availability
8
SCREW & FSTNER ASSY(FRT.PANEL) WPL 204439 Contact Us For Availability
8
BAFFLE (SHORT) WPL 314803 Contact Us For Availability
8
KNOB WPL 315422 Contact Us For Availability
8
KNOB, CONTROL WPL 315522 Contact Us For Availability
9
SWITCH, MOTOR START-PROD. WPL 306207 Contact Us For Availability
9
SWITCH, MOTOR WPL Y303877 Contact Us For Availability
9
SWITCH, MOTOR START-PROD. WPL Y303879 Contact Us For Availability
9
WASHER WPL 314158 Contact Us For Availability
10
TUMBLER W/OUT BAFFLES WPL 314802 Contact Us For Availability
10
CAP, KNOB WPL 216057 Contact Us For Availability
10
CAP, KNOB WPL 315523 Contact Us For Availability
11
SCREW WPL Y310759 Contact Us For Availability
11
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
11
END CAP R.H. WPL Y308470 Contact Us For Availability
11
SEAL, FRONT PANEL WPL 314937 Contact Us For Availability
11
POWER CORD WPL 302521 Contact Us For Availability
11
END CAP (R-H) WPL Y308652 Contact Us For Availability
12
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
12
BACK, TUMBLER (W/SEAL) WPL Y307114 Contact Us For Availability
12
BACK, TUMBLER (W/SEAL) WPL Y308544 Contact Us For Availability
12
PAD, CONTROL PANEL WPL 214897 Contact Us For Availability
12
TWIN FASTENER WPL Y313907 Contact Us For Availability
12
GROMMET, CORD WPL 211881 Contact Us For Availability
13
FRONT PANEL WPL Y307998 Contact Us For Availability
13
COVER, THREAD WPL 313915 Contact Us For Availability
13
FASTENER,CNTRL PNL TO CONSOLE WPL 215075 Contact Us For Availability
14
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
14
BUSHING FOR ACCESS STUD WPL 312301 Contact Us For Availability
15
CONSOLE (WHT) WPL Y305193 Contact Us For Availability
15
SLEEVE-ACCESS PANEL STUD WPL 312369 Contact Us For Availability
16
GRND.WIRE,SUPP.PLTE TO TOP CVR WPL 204807 Contact Us For Availability
16
SCREW WPL 212949 Contact Us For Availability
16
LABEL, ELECTRICAL INSTRUCTION WPL 214519 Contact Us For Availability
16
CABINET ASSY ALMOND WPL 307124L Contact Us For Availability
17
SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability
18
ACCESS DOOR-WHITE WPL 302542 Contact Us For Availability
18
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
19
SWITCH, TEMPERATURE WPL 308467 Contact Us For Availability
19
SWITCH WPL 308650 Contact Us For Availability
20
INLET DUCT ASSY. WPL 307119 Contact Us For Availability
20
INLET DUCT ASSY. WPL Y308504 Contact Us For Availability
20
SWITCH, PUSH TO START WPL 308468 Contact Us For Availability
20
DOOR SEAL WPL 314935 Contact Us For Availability
20
SWITCH WPL 308649 Contact Us For Availability
21
WIRE HARNESS WPL 307293 Contact Us For Availability
21
HARNESS, WIRE WPL 308496 Contact Us For Availability
21
DOOR, INNER (W/SEAL) WPL 307098 Contact Us For Availability
22
GUIDE, QUICK REF. - MAYTAG WPL 16000327 Contact Us For Availability
22
MANUAL, USE & CARE WPL 315083 Contact Us For Availability
22
CLIP, DOOR LINER TO OUTER PNL WPL Y313910 Contact Us For Availability
22
COVER, ACCESS WPL Y312951 Contact Us For Availability
23
CONE, COMBUSTION WPL Y303368 Contact Us For Availability
23
CONE, COMBUSTION WPL Y308548 Contact Us For Availability
23
LABEL, INSTRUCTION WPL 314941 Contact Us For Availability
24
CONE, EXTENSION (COMBUSTION) WPL Y303841 Contact Us For Availability
24
INSTRUCTION LABEL WPL 314942 Contact Us For Availability
25
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
25
SUPPORT, MOTOR WPL 312897 Contact Us For Availability
26
SCREW WPL Y310632 Contact Us For Availability
27
SCREW----NA WPL Y313561 Contact Us For Availability
27
CAP FOR TIMER KNOB WPL 213077 Contact Us For Availability
28
CABINET (WHT) WPL 307124 Contact Us For Availability
28
COVER, BLOWER HOUSING WPL 314846 Contact Us For Availability
29
TOP COVER ASSY WPL 307104 Contact Us For Availability
30
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
32
BASE ASSY. WPL Y303361 Contact Us For Availability
33
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
34
EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability
35
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
36
RETAINER, WIRE HARNESS WPL Y313262 Contact Us For Availability
× ![]()
