Model Whirlpool LDG7304EGM GAS DRYER – Common Parts & Diagrams

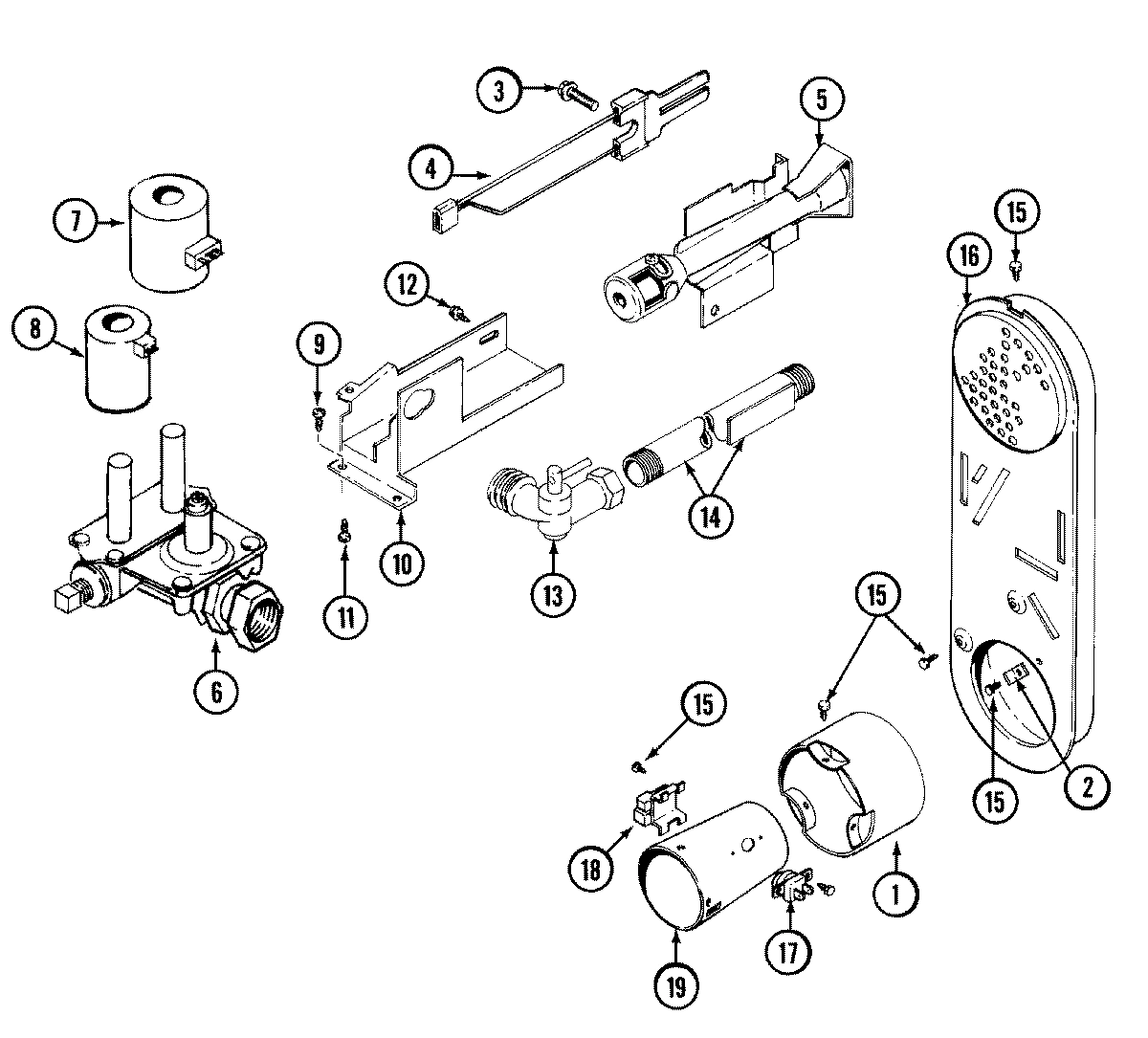

05 - GAS VALVE
07 - TUMBLER

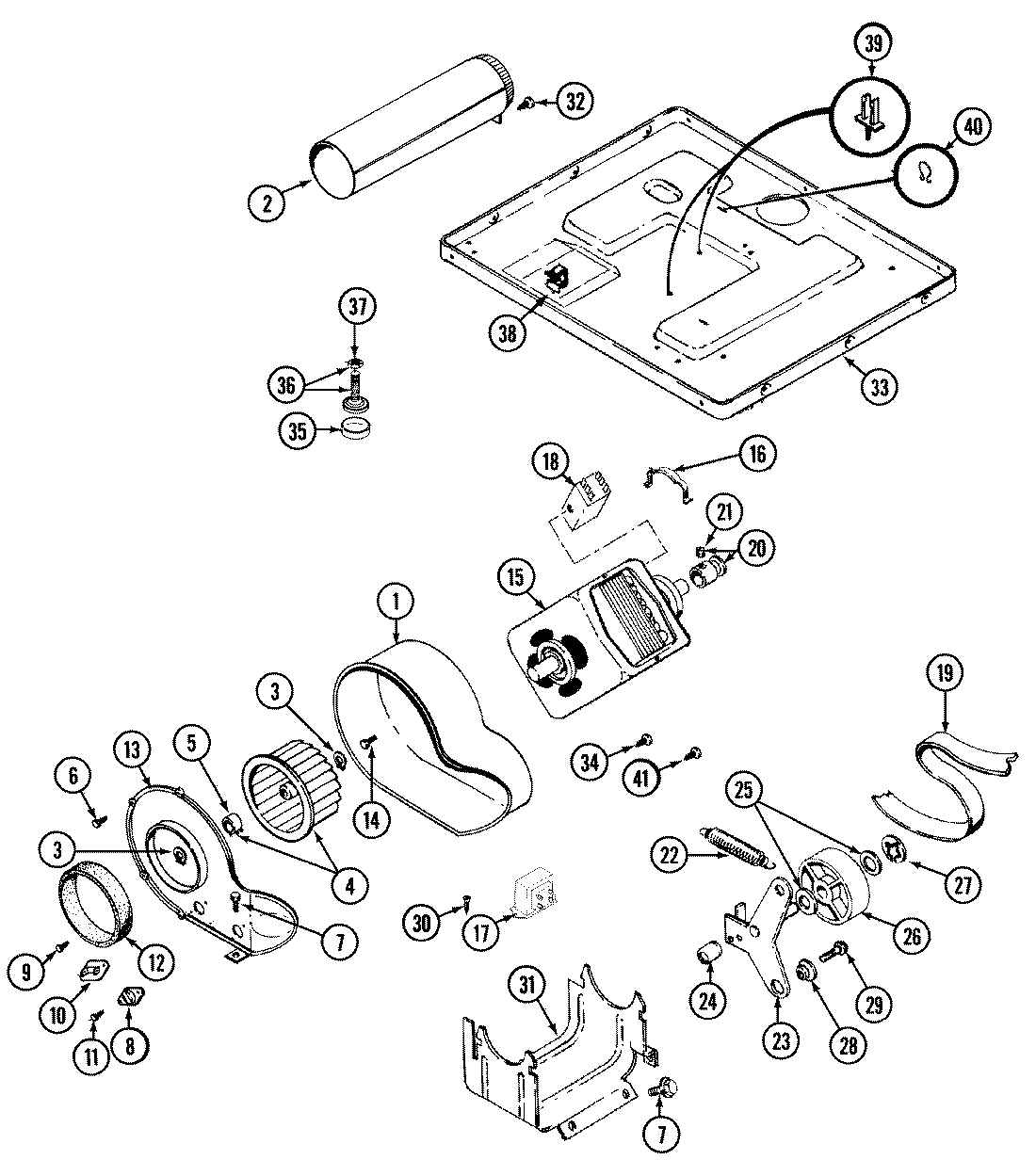

06 - MOTOR DRIVE

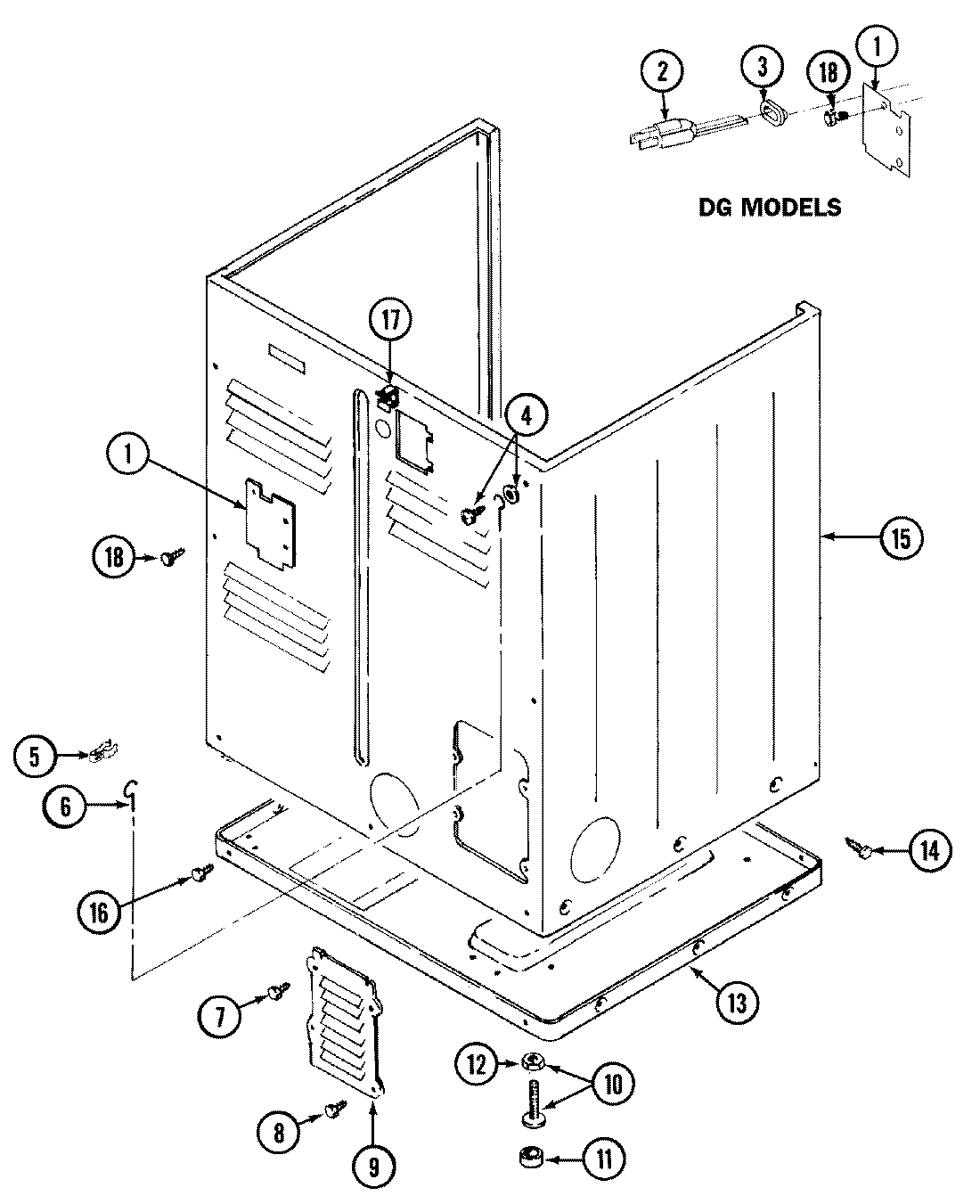

01 - CABINET-REAR
04 - DUCTING

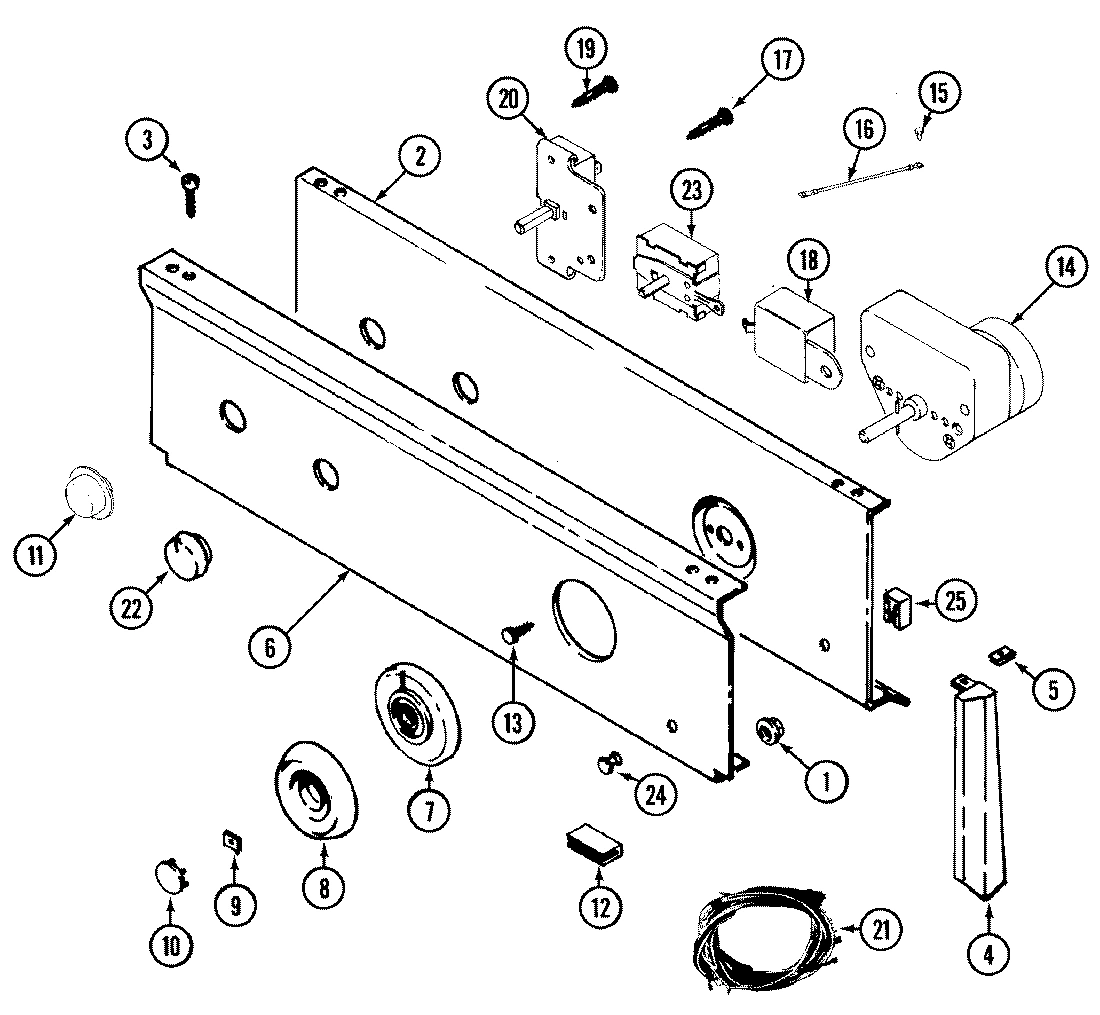

02 - CONTROL PANEL
03 - DOOR

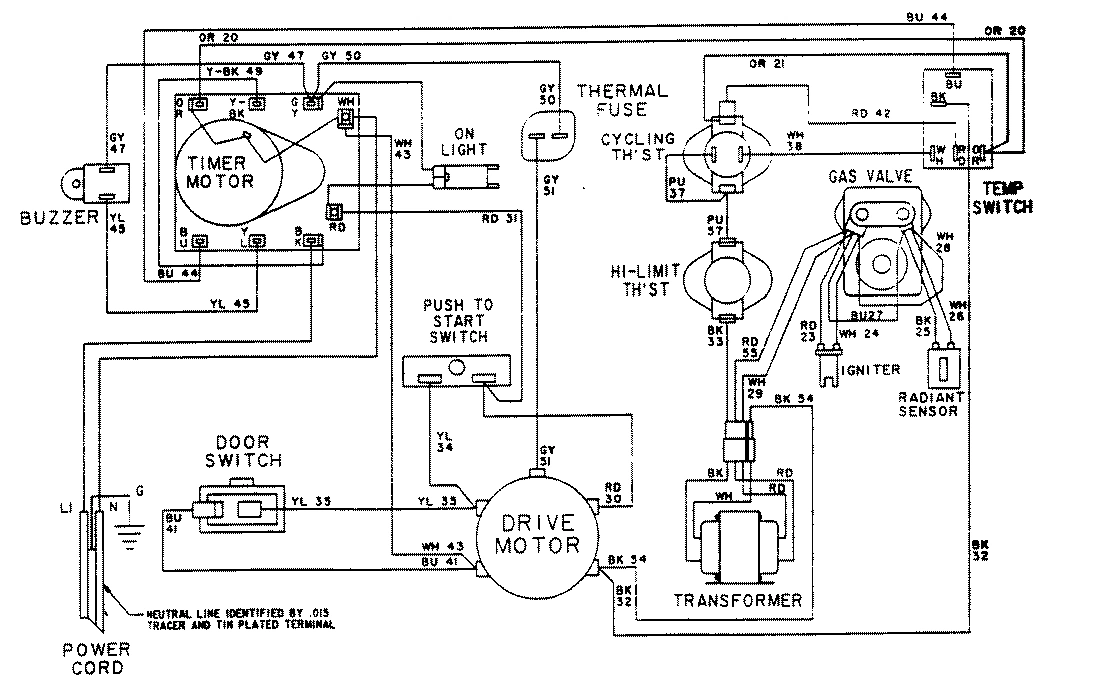

08 - WIRING INFORMATION
Common parts from model Whirlpool LDG7304EGM GAS DRYER
1
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
1
DUCT ASSY., OUTLET WPL 33001016 Contact Us For Availability
1
COVER, TERMINAL WPL Y312905 Contact Us For Availability
1
BLADE, SAW WPL 038179 Contact Us For Availability
1
PALNUT, END CAP WPL 214872 Contact Us For Availability
1
SCREW WPL Y314062 Contact Us For Availability
2
FILTER, LINT WPL 33001171 Contact Us For Availability
2
EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability
2
CORD, POWER (EXPORT) WPL 308966 Contact Us For Availability
2
REPLACEMENT DRILL WPL 038180 Contact Us For Availability
2
PLATE, SUPPORT WPL 33001237 Contact Us For Availability
2
HINGE, DOOR WPL 33001230 Contact Us For Availability
3
SCREW WPL 313764 Contact Us For Availability
3
STRAIN RELIEF WPL 210174 Contact Us For Availability
3
HOLE SAW W/DRILL BIT WPL 038766 Contact Us For Availability
3
SCREW, No.8 X 9/16 CTSK WPL 210932 Contact Us For Availability
3
DOOR (ALM) SUB WPL 33001257 Contact Us For Availability
4
EXTENSION CHUCK, DRILL WPL 038767 Contact Us For Availability
4
END CAP, CTRL. PNL. (LT-ALM) WPL 22001292 Contact Us For Availability
4
END CAP, CTRL. PNL. (RT-ALM) WPL 22001293 Contact Us For Availability
4
CAP, END (RT-ALM) WPL 22001566 Contact Us For Availability
4
CAP, END (LT-ALM) WPL 22001567 Contact Us For Availability
4
HANDLE, DOOR (ALM) WPL 33001254 Contact Us For Availability
5
FRONT, TUMBLER (W/SEAL) WPL 33001179 Contact Us For Availability
5
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
5
ELBOW, VENTING (4``) WPL Y059131 Contact Us For Availability
5
FASTENER, END CAP WPL 214894 Contact Us For Availability
5
SEAL, DOOR WPL 33001131 Contact Us For Availability
6
INSULATION, EXHAUST DUCT KIT WPL 312302 Contact Us For Availability
6
PANEL, CONTROL (ALM) WPL 33001472 Contact Us For Availability
6
PLUG, SIGHT HOLE (ALM) WPL 33001168 Contact Us For Availability
7
FASTENER, EXHAUST DUCT KIT WPL 213323 Contact Us For Availability
7
SKIRT, TIMER DIAL (ALM) WPL 33001372 Contact Us For Availability
8
EXHAUST DUCT KIT WPL Y304652 Contact Us For Availability
8
KNOB ASSY. (ALM) WPL 33001282 Contact Us For Availability
9
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
9
COVER, ACCESS WPL Y312951 Contact Us For Availability
9
DAMPER, BACK DRAFT WPL 059146 Contact Us For Availability
10
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
10
BRACKET, GAS VALVE WPL 314566 Contact Us For Availability
10
CAP, KNOB (ALM) WPL 216424 Contact Us For Availability
11
BAFFLE (SHORT) WPL 33001012 Contact Us For Availability
11
BAG, LINT (DACRON) WPL 311353 Contact Us For Availability
11
BUTTON, PUSH-TO-START (ALM) WPL 33001371 Contact Us For Availability
11
SEAL, FRONT PANEL WPL 314937 Contact Us For Availability
12
WASHER WPL 314158 Contact Us For Availability
12
PIPE, VENTING WPL Y059130 Contact Us For Availability
12
PAD, CONTROL PANEL WPL 214897 Contact Us For Availability
12
SCREW, PLASTIC WPL 33001172 Contact Us For Availability
12
NUT, SPEED WPL 33001173 Contact Us For Availability
13
SHUT-OFF, GAS VALVE WPL Y303349 Contact Us For Availability
13
DRYER TUMBLER, W/O BAFFLES WPL 33001108 Contact Us For Availability
13
COVER, BLOWER HOUSING WPL 314846 Contact Us For Availability
13
BASE ASSY. WPL Y303361 Contact Us For Availability
13
FLEXIBLE VENT KIT WPL Y059143 Contact Us For Availability
13
PANEL, FRONT (ALM) WPL 33001258 Contact Us For Availability
14
SCREW WPL Y310759 Contact Us For Availability
14
PIPE & BRACKET ASSY. WPL Y303383 Contact Us For Availability
14
VENT DUCT ASSY. WPL Y059135 Contact Us For Availability
14
TIMER (230V-50HZ) RPR WPL 33001037 Contact Us For Availability
15
BACK, TUMBLER (W/SEAL) WPL 33001178 Contact Us For Availability
15
MOTOR 240-50 WPL Y304656 Contact Us For Availability
15
CABINET (ALM) WPL 33001160 Contact Us For Availability
15
RECTANGULAR VENT KIT WPL 059144 Contact Us For Availability
15
COVER, HINGE HOLE (ALM) WPL 33001176 Contact Us For Availability
16
INLET DUCT ASSY. WPL Y308504 Contact Us For Availability
16
COVER, THREAD WPL 313915 Contact Us For Availability
16
SCREW WPL Y310632 Contact Us For Availability
16
GRND.WIRE,SUPP.PLTE TO TOP CVR WPL 204807 Contact Us For Availability
16
PLATE, ALUM. WINDOW (15``X20``) WPL Y059134 Contact Us For Availability
16
CLIP, DOOR LINER TO OUTER PNL WPL Y313910 Contact Us For Availability
17
TRANSFORMER (240V 50HZ) WPL 307928 Contact Us For Availability
17
SCREW & FSTNER ASSY(FRT.PANEL) WPL 204439 Contact Us For Availability
18
SCREW----NA WPL Y313561 Contact Us For Availability
18
SWITCH, MOTOR START-PROD. WPL 306207 Contact Us For Availability
18
SWITCH, MOTOR WPL Y303877 Contact Us For Availability
18
SWITCH, MOTOR START-PROD. WPL Y303879 Contact Us For Availability
18
CLAMP, FLEXIBLE DUCT WPL Y304630 Contact Us For Availability
18
DOOR, INNER (W/SEAL) WPL 33001243 Contact Us For Availability
19
CONE, COMBUSTION WPL Y308549 Contact Us For Availability
19
BRACKET, EXHAUST DEFLECTOR WPL 313272 Contact Us For Availability
20
EXTENSION F/COMBUSTION CONE WPL 304953 Contact Us For Availability
20
MOTOR PULLEY - 50 CYCLE WPL 305186 Contact Us For Availability
20
EXHAUST DEFLECTOR KIT WPL 303736 Contact Us For Availability
20
SWITCH, PUSH TO START WPL 33001232 Contact Us For Availability
21
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
21
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
21
EXHAUST DEFLECTOR KIT WPL 306399 Contact Us For Availability
21
HARNESS, WIRE----NA WPL 33001124 Contact Us For Availability
21
HARNESS, WIRE (240-50) WPL 33001552 Contact Us For Availability
22
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
22
KNOB ASSY. (ALM) WPL 22001269 Contact Us For Availability
23
SWITCH, TEMP. (3 POSITIONS) WPL 33001228 Contact Us For Availability
25
LIGHT, INDICATOR WPL 33001223 Contact Us For Availability
26
MANUAL, USE & CARE WPL 33001256 Contact Us For Availability
27
WIRE, GROUND WPL 901220 Contact Us For Availability
31
SUPPORT, MOTOR WPL 312897 Contact Us For Availability
33
BASE WPL Y305084 Contact Us For Availability
39
RETAINER, WIRE WPL 315471 Contact Us For Availability
40
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001023 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001602 Contact Us For Availability
× ![]()
