Model Whirlpool LDG7304AGM GAS DRYER – Common Parts & Diagrams

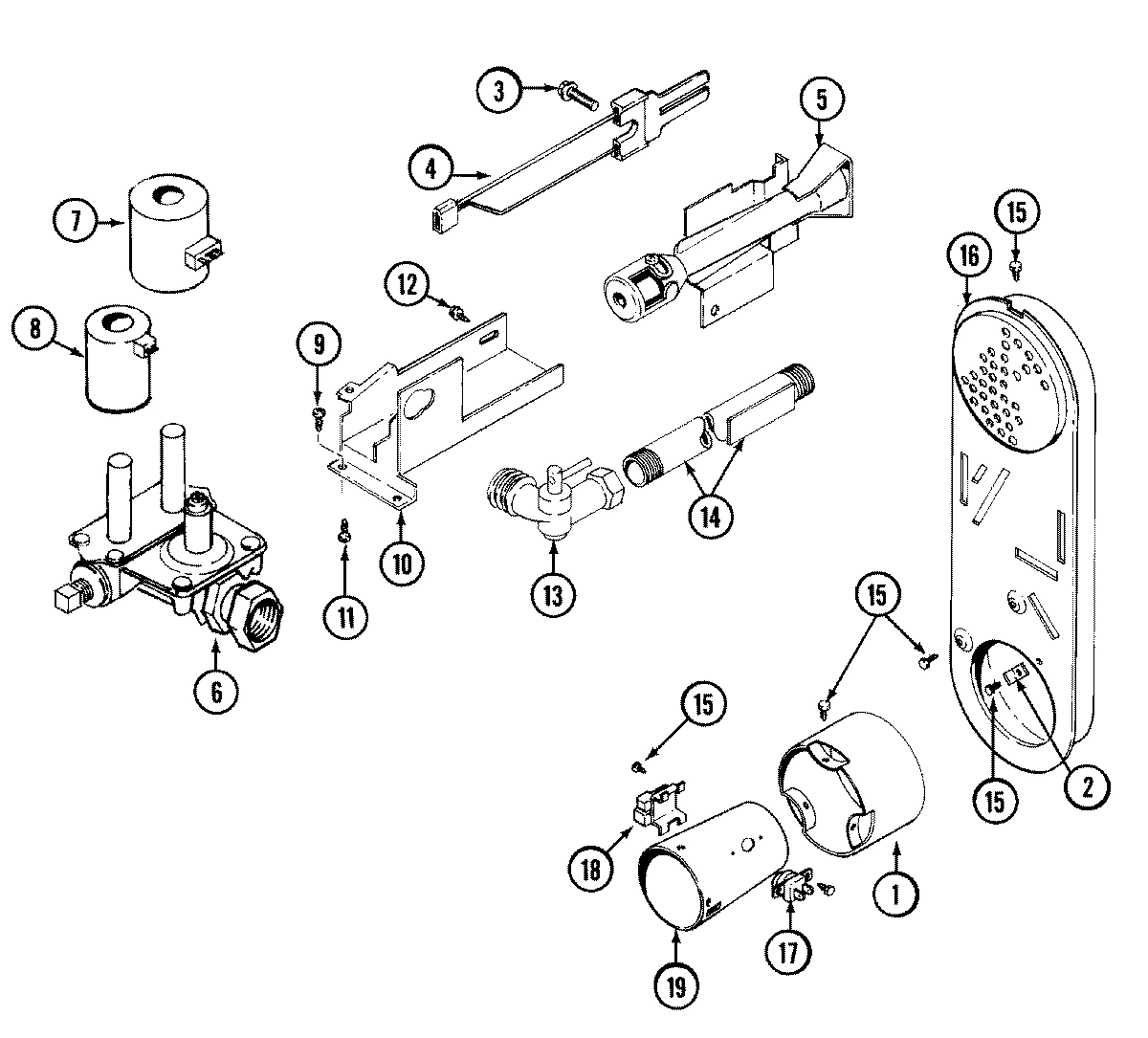

05 - GAS VALVE
07 - TUMBLER (LDE7804AGM & LDG7804AGM)

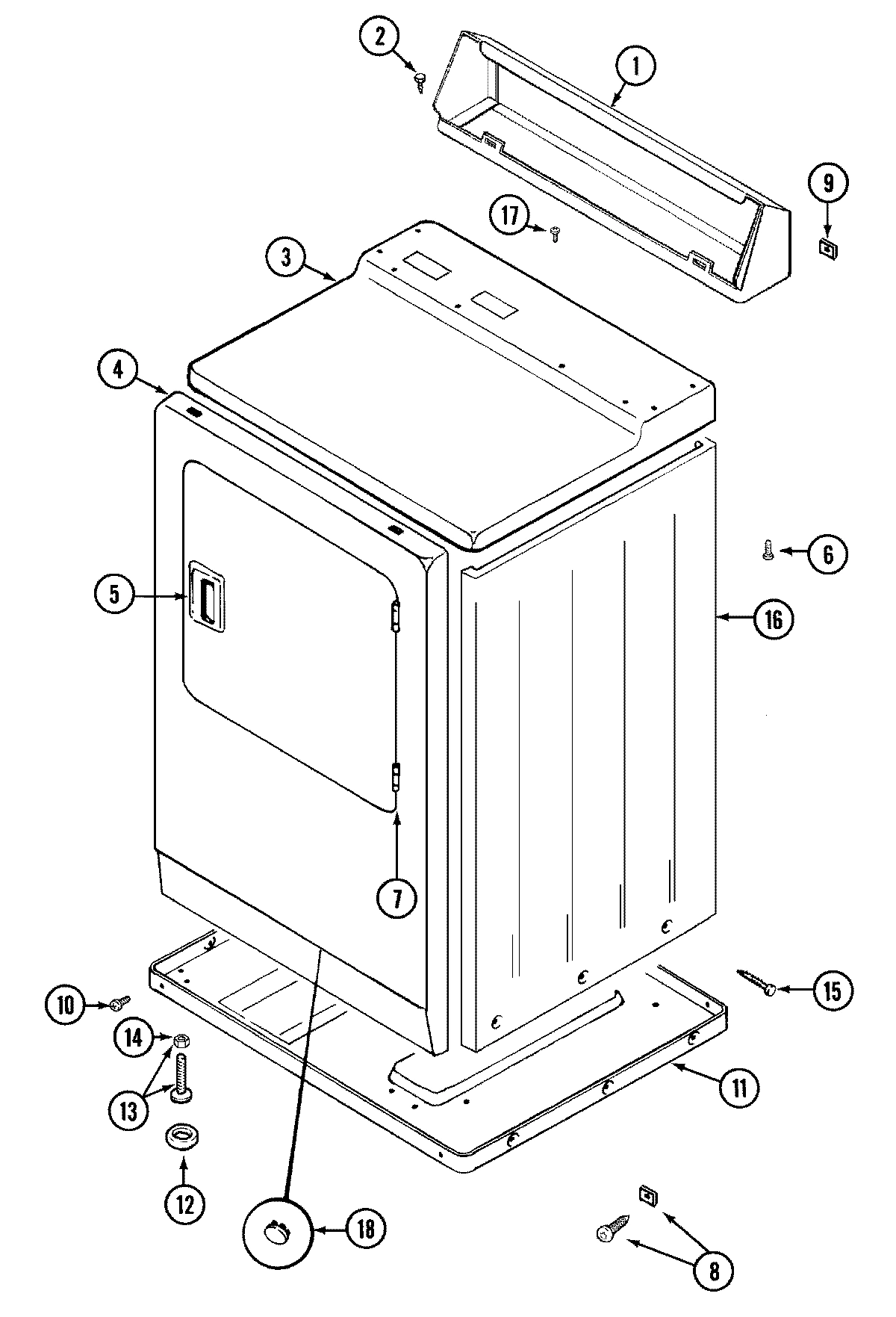

01 - CABINET-FRONT (LDE7304AGM & LDG7304AGM)

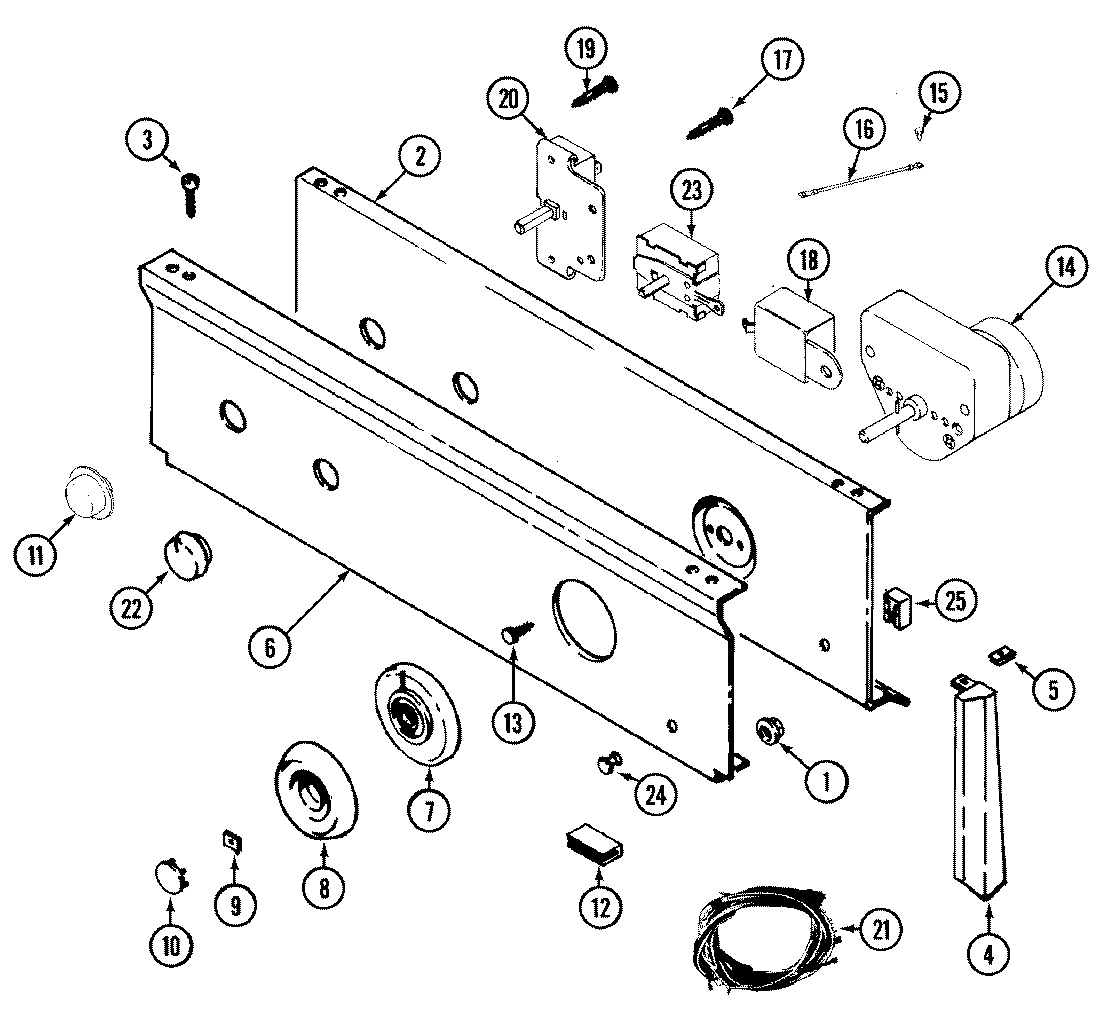

03 - CONTROL PANEL (LDE7304AGM & LDG7304AGM)

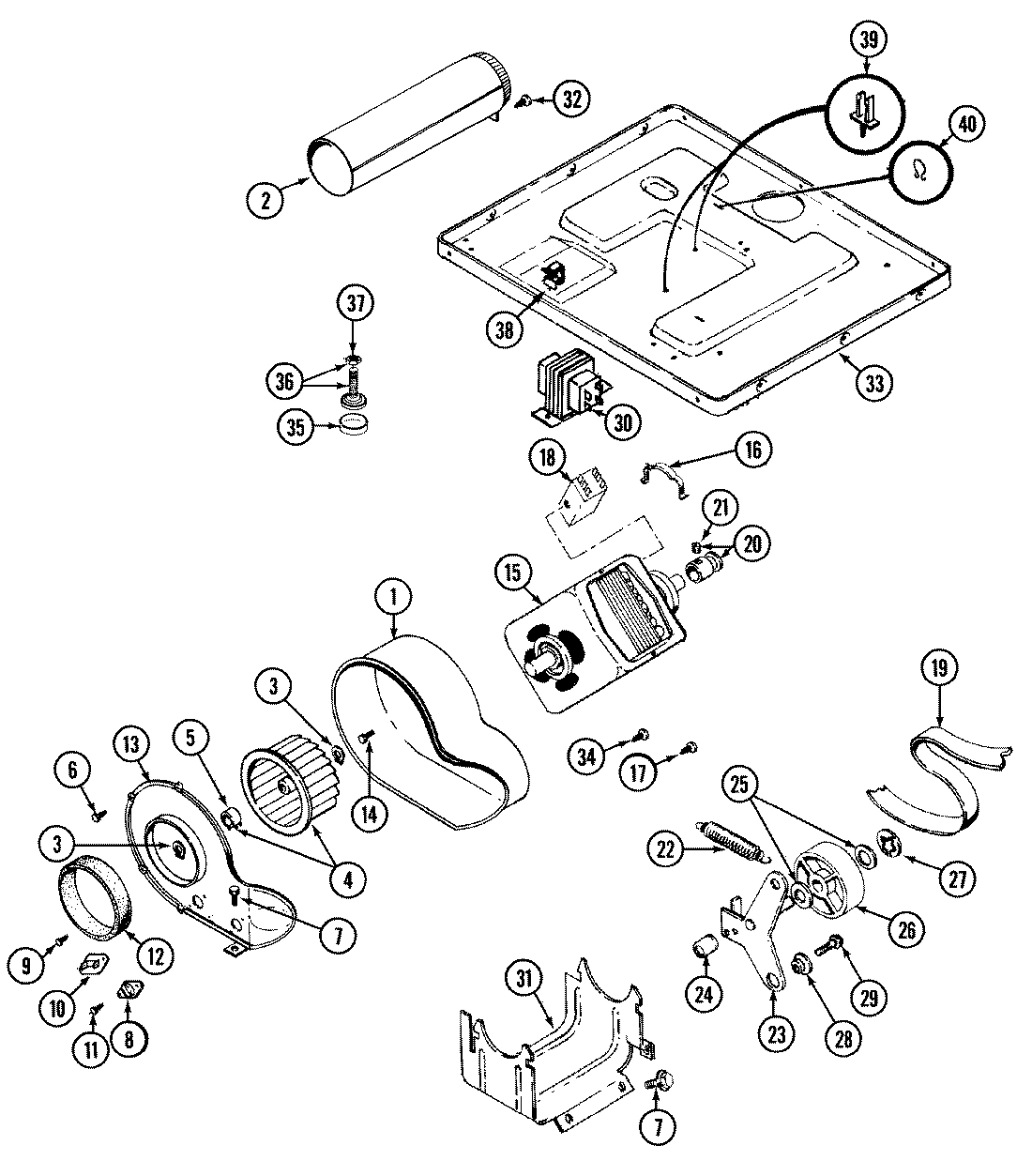

06 - MOTOR DRIVE (LDE7304AGM & LDG7304AGM)

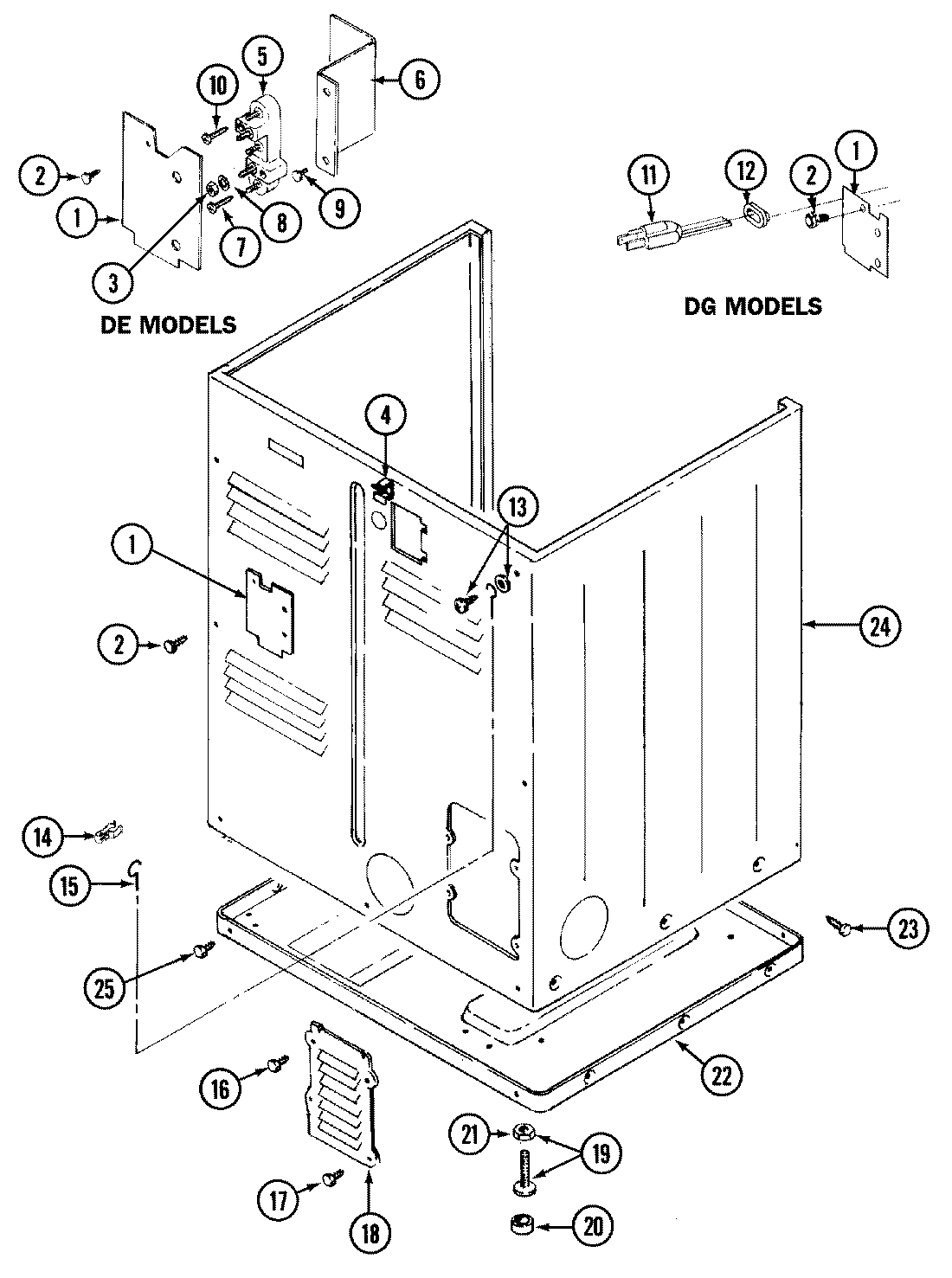

02 - CABINET-REAR (LDE7304AGM & LDG7304AGM)
04 - DOOR (LDE7304AGM & LDG7304AGM)
Common parts from model Whirlpool LDG7304AGM GAS DRYER
1
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
1
DUCT ASSY., OUTLET WPL 33001016 Contact Us For Availability
1
CONSOLE (ALM) WPL 305193L Contact Us For Availability
1
PALNUT, END CAP WPL 214872 Contact Us For Availability
1
COVER, TERMINAL WPL Y312905 Contact Us For Availability
1
SCREW WPL Y314062 Contact Us For Availability
2
FILTER, LINT WPL 33001171 Contact Us For Availability
2
HINGE, DOOR WPL 33001230 Contact Us For Availability
2
PLATE, SUPPORT WPL 33001237 Contact Us For Availability
2
EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability
3
SCREW WPL 313764 Contact Us For Availability
3
COVER, TOP (ALM)----NA WPL 33001166 Contact Us For Availability
3
SCREW, No.8 X 9/16 CTSK WPL 210932 Contact Us For Availability
3
DOOR (ALM) SUB WPL 33001257 Contact Us For Availability
4
HANDLE, DOOR (ALM) WPL 33001254 Contact Us For Availability
4
END CAP, CTRL. PNL. (LT-ALM) WPL 22001292 Contact Us For Availability
4
END CAP, CTRL. PNL. (RT-ALM) WPL 22001293 Contact Us For Availability
4
CAP, END (RT-ALM) WPL 22001566 Contact Us For Availability
4
CAP, END (LT-ALM) WPL 22001567 Contact Us For Availability
5
FRONT, TUMBLER (W/SEAL) WPL 33001179 Contact Us For Availability
5
FASTENER, END CAP WPL 214894 Contact Us For Availability
5
SEAL, DOOR WPL 33001131 Contact Us For Availability
6
GAS VALVE - 120V-50HZ WPL 307927 Contact Us For Availability
6
SCREW WPL 214354 Contact Us For Availability
6
PLUG, SIGHT HOLE (ALM) WPL 33001168 Contact Us For Availability
6
PANEL, CONTROL (ALM) WPL 33001472 Contact Us For Availability
7
SKIRT, TIMER DIAL (ALM) WPL 33001372 Contact Us For Availability
8
KNOB ASSY. (ALM) WPL 33001282 Contact Us For Availability
9
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
9
FASTENER,CNTRL PNL TO CONSOLE WPL 215075 Contact Us For Availability
10
BRACKET, GAS VALVE WPL 314566 Contact Us For Availability
10
CAP, KNOB (ALM) WPL 216424 Contact Us For Availability
11
BAFFLE (SHORT) WPL 33001012 Contact Us For Availability
11
BUTTON, PUSH-TO-START (ALM) WPL 33001371 Contact Us For Availability
11
CORD, POWER WPL 33001285 Contact Us For Availability
11
SEAL, FRONT PANEL WPL 314937 Contact Us For Availability
12
WASHER WPL 314158 Contact Us For Availability
12
PAD, CONTROL PANEL WPL 214897 Contact Us For Availability
12
GROMMET, CORD EXPORT WPL 216183 Contact Us For Availability
12
SCREW, PLASTIC WPL 33001172 Contact Us For Availability
12
NUT, SPEED WPL 33001173 Contact Us For Availability
13
SHUT-OFF, GAS VALVE WPL Y303349 Contact Us For Availability
13
DRYER TUMBLER, W/O BAFFLES WPL 33001108 Contact Us For Availability
13
PANEL, FRONT (ALM) WPL 33001258 Contact Us For Availability
13
COVER, BLOWER HOUSING WPL 314846 Contact Us For Availability
14
SCREW WPL Y310759 Contact Us For Availability
14
PIPE & BRACKET ASSY. WPL Y303383 Contact Us For Availability
14
TIMER (230V-50HZ) RPR WPL 33001037 Contact Us For Availability
14
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
15
BACK, TUMBLER (W/SEAL) WPL 33001178 Contact Us For Availability
15
GRND.WIRE,SUPP.PLTE TO TOP CVR WPL 204807 Contact Us For Availability
15
MOTOR 240-50 WPL Y304656 Contact Us For Availability
15
COVER, HINGE HOLE (ALM) WPL 33001176 Contact Us For Availability
16
INLET DUCT ASSY. WPL Y308504 Contact Us For Availability
16
COVER, THREAD WPL 313915 Contact Us For Availability
16
CLIP, DOOR LINER TO OUTER PNL WPL Y313910 Contact Us For Availability
17
SCREW & FSTNER ASSY(FRT.PANEL) WPL 204439 Contact Us For Availability
18
SWITCH, MOTOR START-PROD. WPL 306207 Contact Us For Availability
18
COVER, ACCESS WPL Y312951 Contact Us For Availability
18
DOOR, INNER (W/SEAL) WPL 33001243 Contact Us For Availability
19
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
19
CONE, COMBUSTION WPL Y308549 Contact Us For Availability
20
SWITCH, PUSH TO START WPL 33001232 Contact Us For Availability
20
MOTOR PULLEY - 50 CYCLE WPL 305186 Contact Us For Availability
21
WIRE HARNESS, MAIN (240V-50HZ) WPL 33001366 Contact Us For Availability
21
HARNESS, WIRE (240-50) WPL 33001552 Contact Us For Availability
21
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
22
BASE ASSY. WPL Y303361 Contact Us For Availability
22
KNOB ASSY. (ALM) WPL 22001269 Contact Us For Availability
22
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
23
SWITCH, TEMP. (3 POSITIONS) WPL 33001228 Contact Us For Availability
24
CABINET (ALM) WPL 33001160 Contact Us For Availability
25
SCREW----NA WPL Y313561 Contact Us For Availability
25
SCREW WPL Y310632 Contact Us For Availability
25
LIGHT, INDICATOR WPL 33001223 Contact Us For Availability
26
GUIDE, QUICK REF. - MAYTAG WPL 16000327 Contact Us For Availability
26
MANUAL, USE & CARE WPL 33001256 Contact Us For Availability
27
WIRE, GROUND WPL 901220 Contact Us For Availability
30
TRANSFORMER (240V 50HZ) WPL 307928 Contact Us For Availability
31
SUPPORT, MOTOR WPL 312897 Contact Us For Availability
33
BASE WPL Y305084 Contact Us For Availability
39
RETAINER, WIRE WPL 315471 Contact Us For Availability
40
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
× ![]()
