Model Whirlpool LDG303 GAS DRYER – Common Parts & Diagrams
02 - DOOR

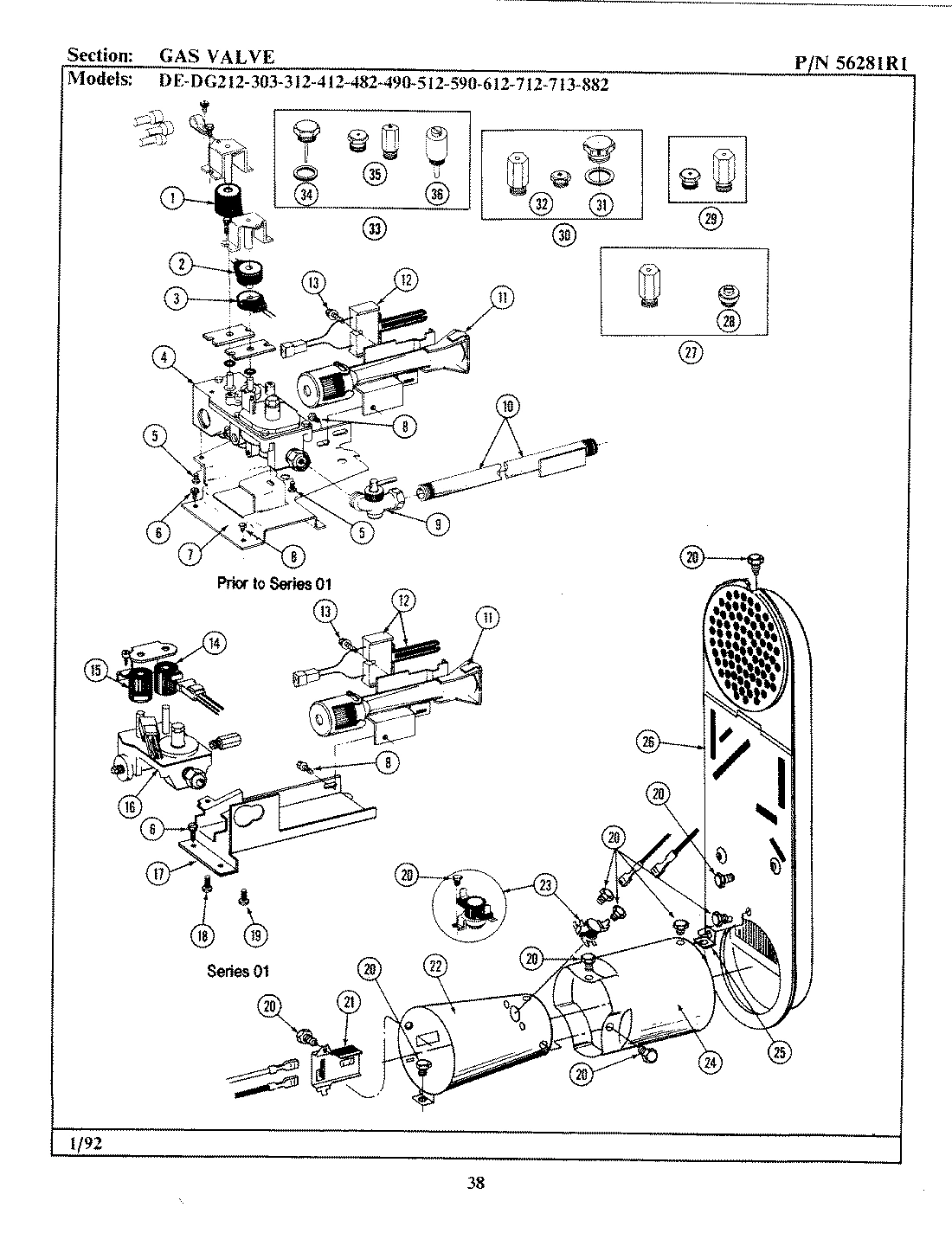

04 - GAS VALVE

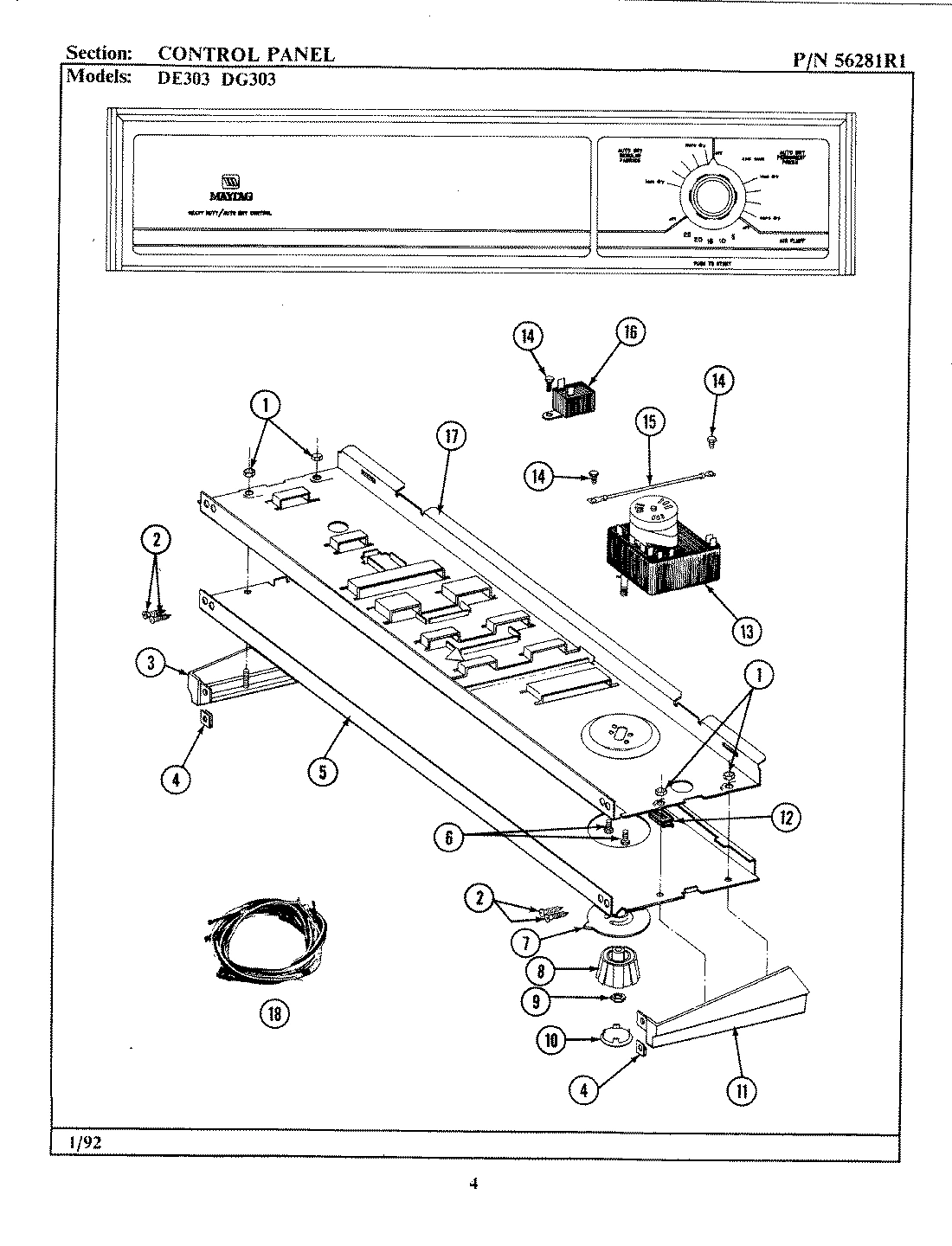

01 - CONTROL PANEL

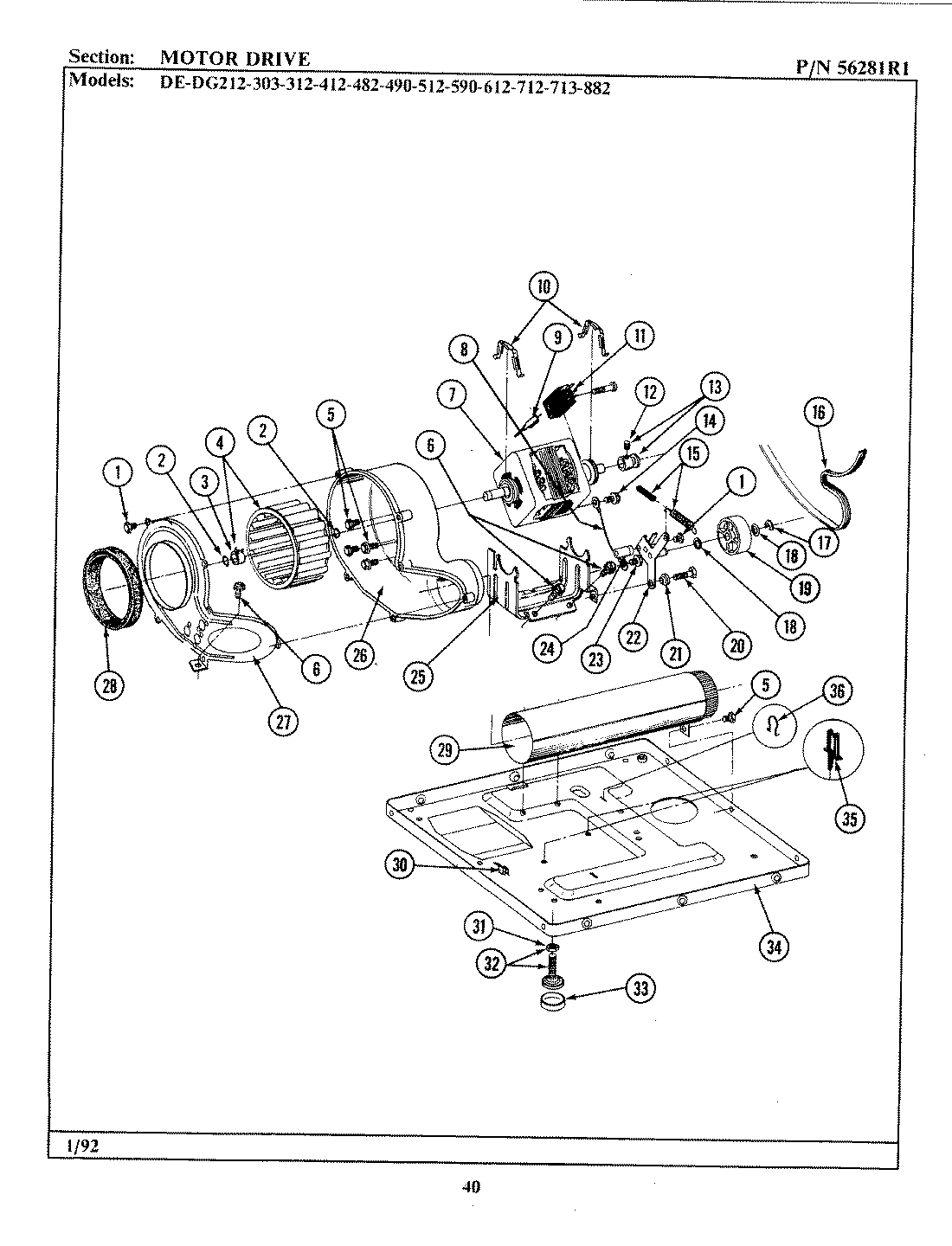

05 - MOTOR DRIVE

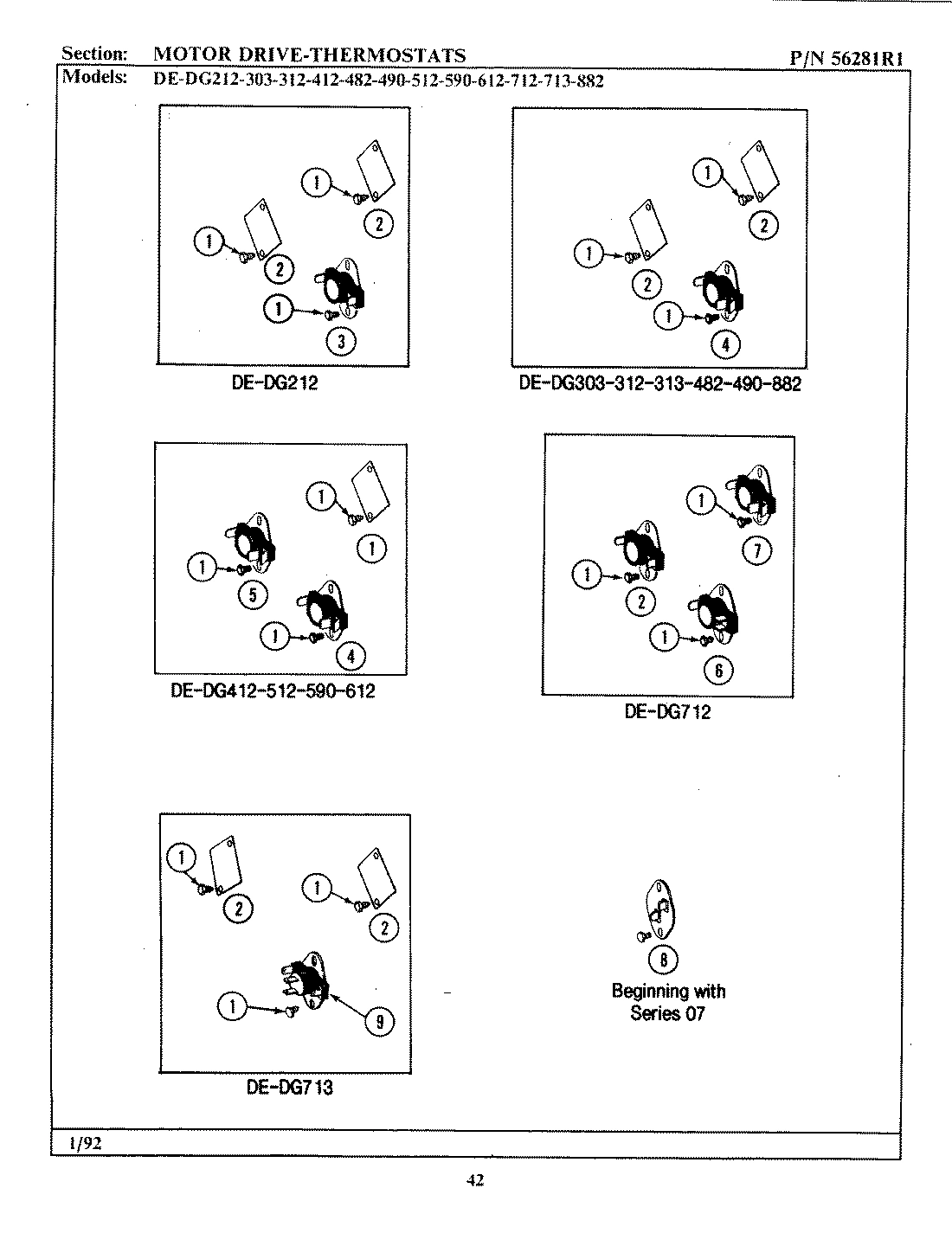

06 - MOTOR DRIVE-THERMOSTATS

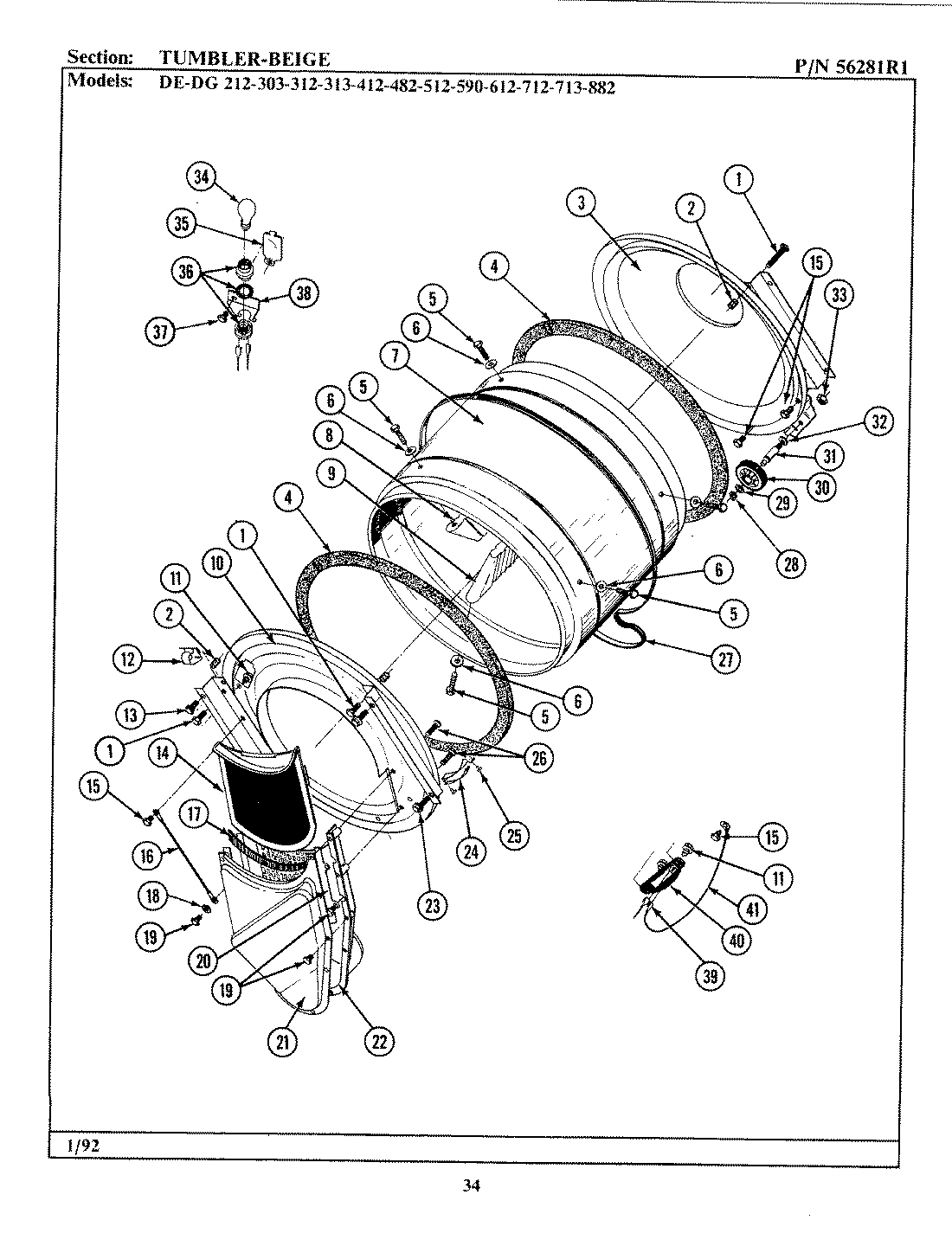

08 - TUMBLER-BEIGE

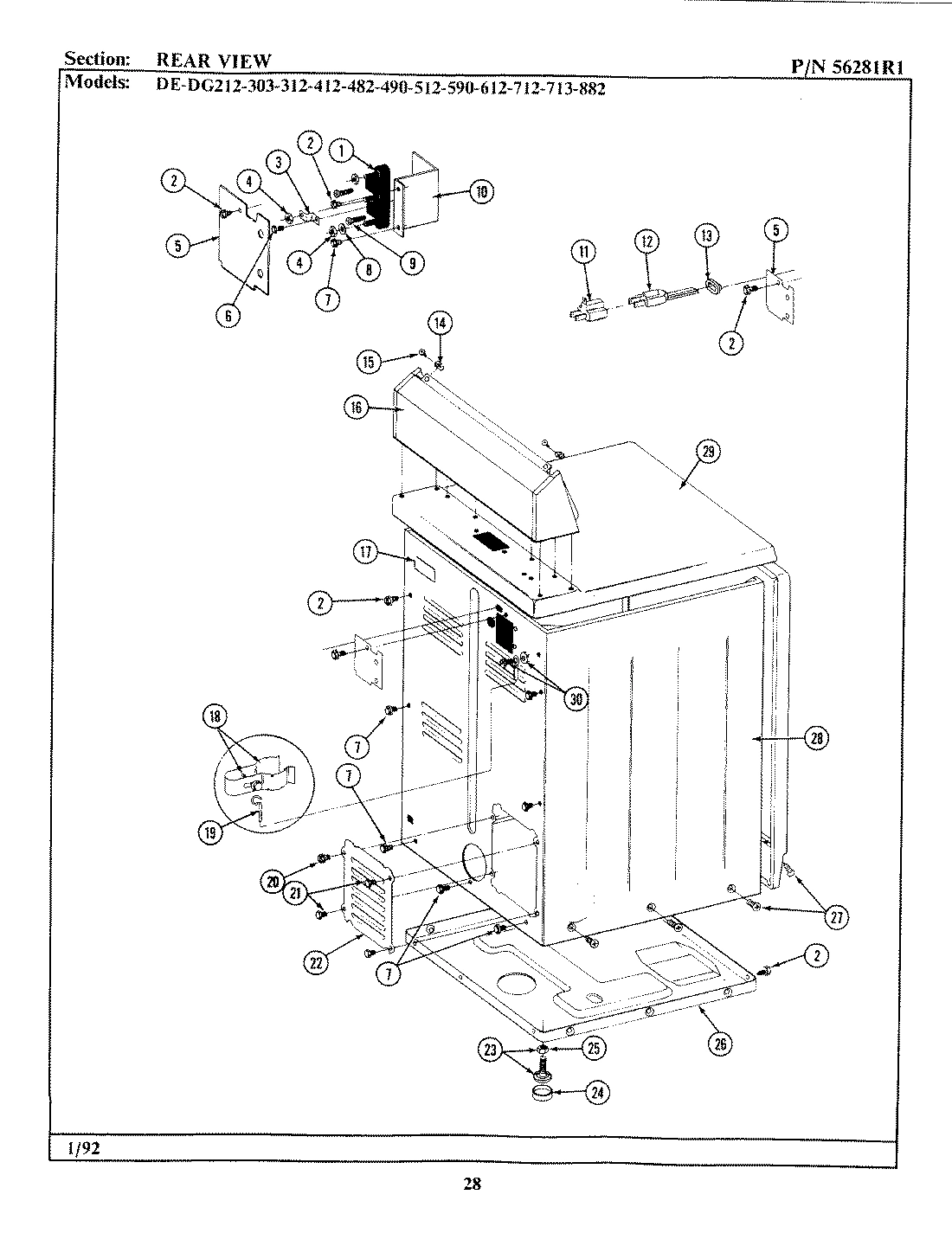

07 - REAR VIEW

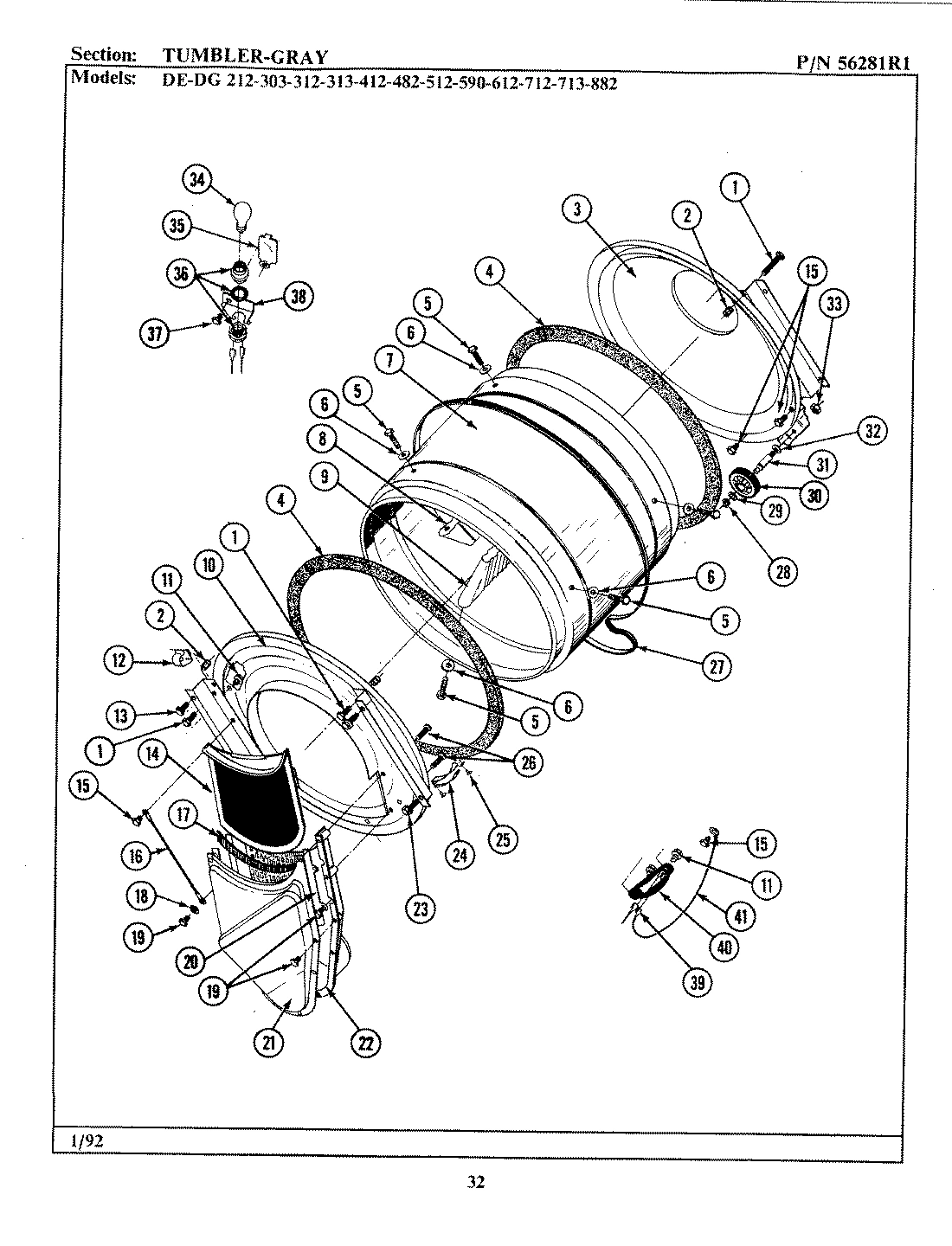

09 - TUMBLER-GRAY

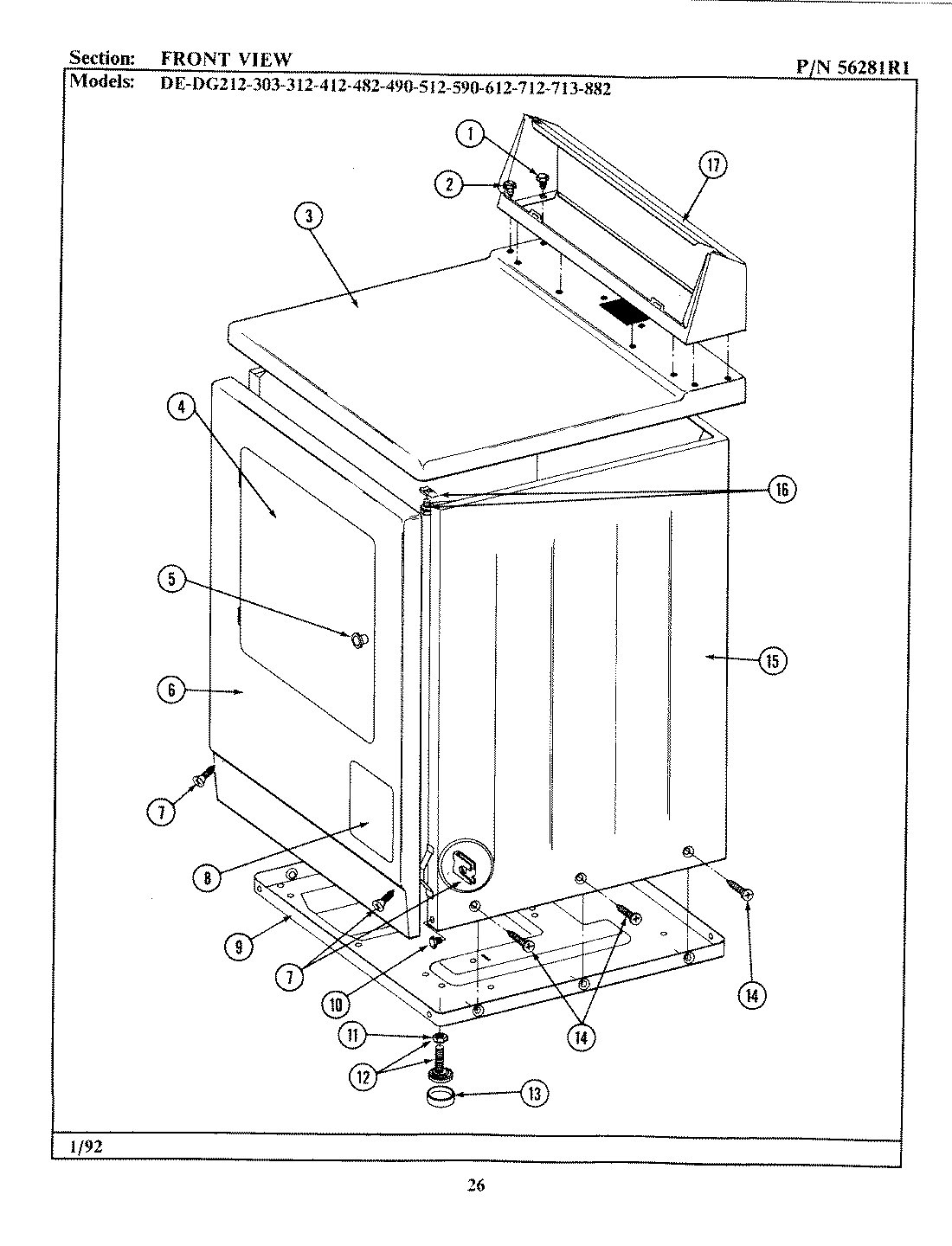

03 - FRONT VIEW
Common parts from model Whirlpool LDG303 GAS DRYER
1
SECONDARY COIL WPL 305603 Contact Us For Availability
1
PALNUT, END CAP WPL 214872 Contact Us For Availability
1
SCREW WPL 313764 Contact Us For Availability
1
LOCK WASHER WPL 211194 Contact Us For Availability
2
HOLDING COIL WPL 305604 Contact Us For Availability
2
COVER FOR THERMOSTAT OPENIN WPL Y312853 Contact Us For Availability
2
COVER, THREAD WPL 313915 Contact Us For Availability
3
END CAP - LEFT HAND WPL 314726 Contact Us For Availability
3
TUMBLER BACK WPL Y306660 Contact Us For Availability
3
TOP COVER ASSY WPL 307104L Contact Us For Availability
4
GAS VALVE WPL W10116794 Contact Us For Availability
4
SEAL FOR FRONT PANEL WPL 314286 Contact Us For Availability
4
DOOR, ALMOND WPL 306668L Contact Us For Availability
4
FASTENER, END CAP WPL 214894 Contact Us For Availability
5
SCREW WPL Y310759 Contact Us For Availability
5
KNOB AND SCREW WPL 303942 Contact Us For Availability
5
SCREW, HEX HD No.8 X 3/8 INCH WPL 211410 Contact Us For Availability
5
CONTROL PANEL WPL 306484 Contact Us For Availability
5
COVER, TERMINAL WPL Y312905 Contact Us For Availability
6
FRONT PANEL-ALMOND WPL 304594L Contact Us For Availability
6
WASHER WPL 314158 Contact Us For Availability
7
SCREW & FSTNER ASSY(FRT.PANEL) WPL 204439 Contact Us For Availability
7
GAS VALVE BRACKET WPL 312929 Contact Us For Availability
7
TIMER DIAL INDICATOR WPL 314725 Contact Us For Availability
7
TUMBLER W/BAFFLES WPL 306663 Contact Us For Availability
7
TUMBLER W/OUT BAFFLES WPL 314802 Contact Us For Availability
7
TUMBLER WPL 305187 Contact Us For Availability
7
TUMBLER WPL Y314153 Contact Us For Availability
8
ACCESS DOOR-ALMOND WPL 302542L Contact Us For Availability
8
WIRE, GROUND WPL 901220 Contact Us For Availability
8
BAFFLE (SHORT) WPL 314803 Contact Us For Availability
8
TUMBLER BAFFLE - SHORT WPL 314154 Contact Us For Availability
9
SHUT-OFF, GAS VALVE WPL Y303349 Contact Us For Availability
9
WIRE WPL 306448 Contact Us For Availability
9
BASE ASSY. WPL Y303361 Contact Us For Availability
10
SCREW WPL Y310632 Contact Us For Availability
10
PIPE & BRACKET ASSY. WPL Y303383 Contact Us For Availability
10
TUMBLER FRONT----NA WPL 306670 Contact Us For Availability
10
TUMBLER FRONT----SUB WPL Y303815 Contact Us For Availability
11
END CAP - RIGHT HAND WPL 314727 Contact Us For Availability
11
SWITCH, MOTOR START-PROD. WPL 306207 Contact Us For Availability
11
SWITCH, MOTOR WPL Y303877 Contact Us For Availability
11
SWITCH, MOTOR START-PROD. WPL Y303879 Contact Us For Availability
11
CONVERTER WPL Y201808 Contact Us For Availability
12
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
12
PAD, CONTROL PANEL WPL 214897 Contact Us For Availability
12
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
12
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
12
POWER CORD WPL 302521 Contact Us For Availability
13
SCREW----NA WPL Y313561 Contact Us For Availability
13
SCREW WPL 304971 Contact Us For Availability
13
TIMER WPL 306483 Contact Us For Availability
13
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
13
GROMMET, CORD WPL 211881 Contact Us For Availability
14
DOOR PANEL-ALMOND WPL 313908L Contact Us For Availability
14
FASTENER,CNTRL PNL TO CONSOLE WPL 215075 Contact Us For Availability
15
DOOR-ALMOND WPL 304579L Contact Us For Availability
15
SCREW, No.8 X 9/16 CTSK WPL 210932 Contact Us For Availability
15
GRND.WIRE,SUPP.PLTE TO TOP CVR WPL 204807 Contact Us For Availability
15
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
15
CABINET-ALMOND WPL 305302L Contact Us For Availability
16
INNER DOOR WITH KNOB & SCRE WPL 305835 Contact Us For Availability
16
INNER DOOR WITH KNOB WPL 306676 Contact Us For Availability
16
WIRE, GROUND WPL 205810 Contact Us For Availability
16
SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability
17
BRACKET, GAS VALVE WPL 314566 Contact Us For Availability
17
BACK UP PLATE WPL 314184 Contact Us For Availability
17
LINT SEAL WPL Y313796 Contact Us For Availability
17
CONSOLE (ALM) WPL 305193L Contact Us For Availability
17
LABEL, ELECTRICAL INSTRUCTION WPL 214519 Contact Us For Availability
18
DOOR HINGE WPL Y304577 Contact Us For Availability
18
MAIN WIRE HARNESS WPL 306587 Contact Us For Availability
18
WIRE HARNESS WPL 306808 Contact Us For Availability
18
WASHER WPL 310557 Contact Us For Availability
18
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
19
TWIN FASTENER WPL Y313907 Contact Us For Availability
20
GUIDE FOR LINT SCREEN WPL Y313795 Contact Us For Availability
21
OUTLET DUCT - OUTER HALF WPL Y312964 Contact Us For Availability
22
SCREW WPL 212949 Contact Us For Availability
22
CONE, COMBUSTION WPL Y303368 Contact Us For Availability
22
OUTLET DUCT & GRID ASSEMBLY WPL 306656 Contact Us For Availability
22
OUTLET DUCT & GRID WPL 306657 Contact Us For Availability
22
COVER, ACCESS WPL Y312951 Contact Us For Availability
22
OUTLET DUCT ASSEMBLY WPL Y304810 Contact Us For Availability
23
BUSHING FOR ACCESS STUD WPL 312301 Contact Us For Availability
24
SLEEVE-ACCESS PANEL STUD WPL 312369 Contact Us For Availability
24
CONE, EXTENSION (COMBUSTION) WPL Y303841 Contact Us For Availability
25
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
25
SUPPORT, MOTOR WPL 312897 Contact Us For Availability
26
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
26
INLET DUCT ASSEMBLY (DG) WPL Y303369 Contact Us For Availability
27
COVER, BLOWER HOUSING WPL 314846 Contact Us For Availability
27
COVER FOR BLOWER----NA WPL Y312895 Contact Us For Availability
29
MAIN BURNER ORIFICE KIT-MIX WPL 305862 Contact Us For Availability
29
EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability
30
CONVERSION KIT-LPG TO NAT. WPL Y304672 Contact Us For Availability
31
SCREW ASSEMBLY - LEAK LIMIT WPL 302809 Contact Us For Availability
32
MAIN BURNER ORIFICE KIT-NAT WPL 305860 Contact Us For Availability
34
SCREW ASSM - BLUE BLOCK OPE WPL 302810 Contact Us For Availability
35
MAIN BURNER ORIFICE KIT-LPG WPL 305861 Contact Us For Availability
35
RETAINER, WIRE HARNESS WPL Y313262 Contact Us For Availability
36
PLUG, BLOCKING (LPG REGULATOR) WPL 306184 Contact Us For Availability
36
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
× ![]()
