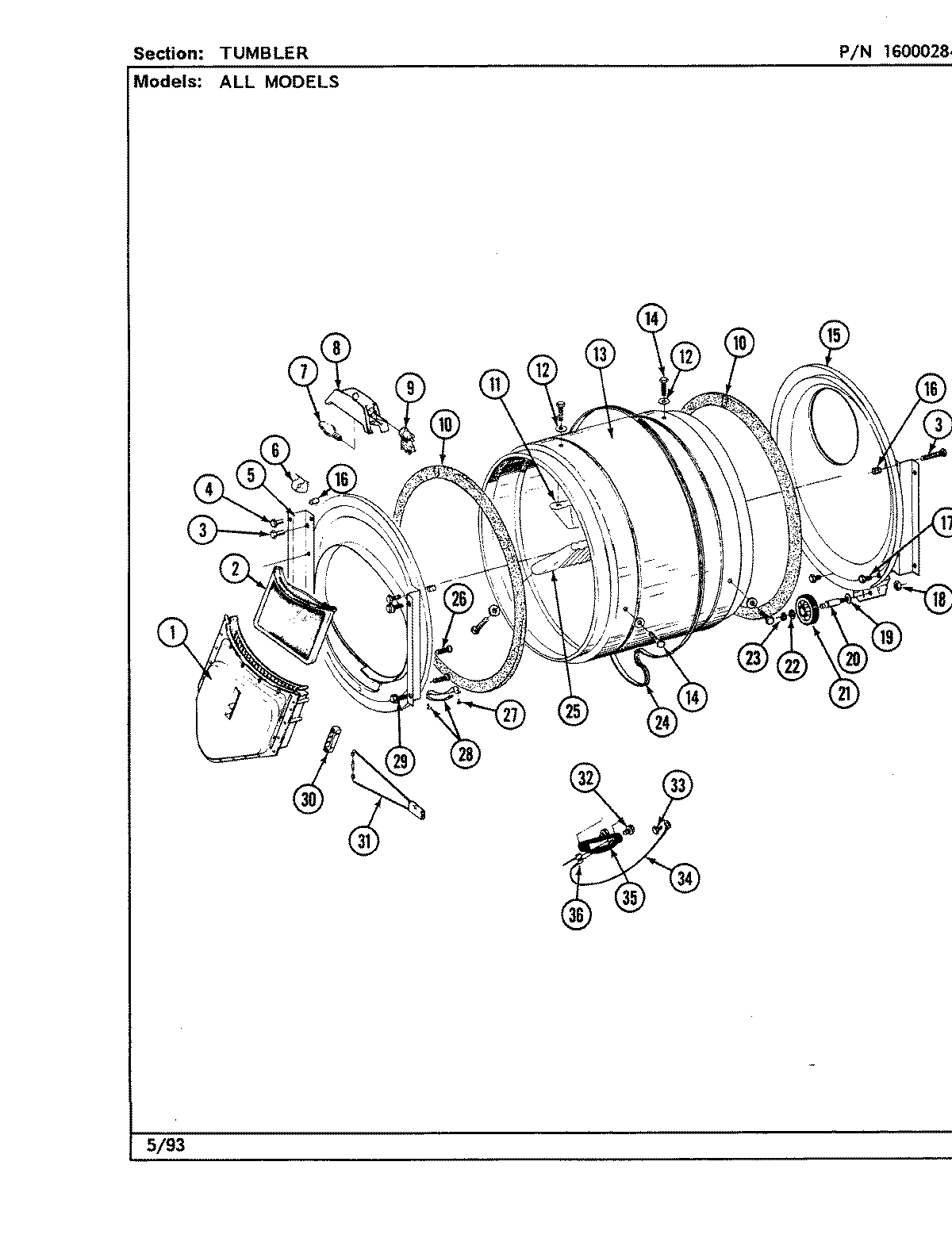

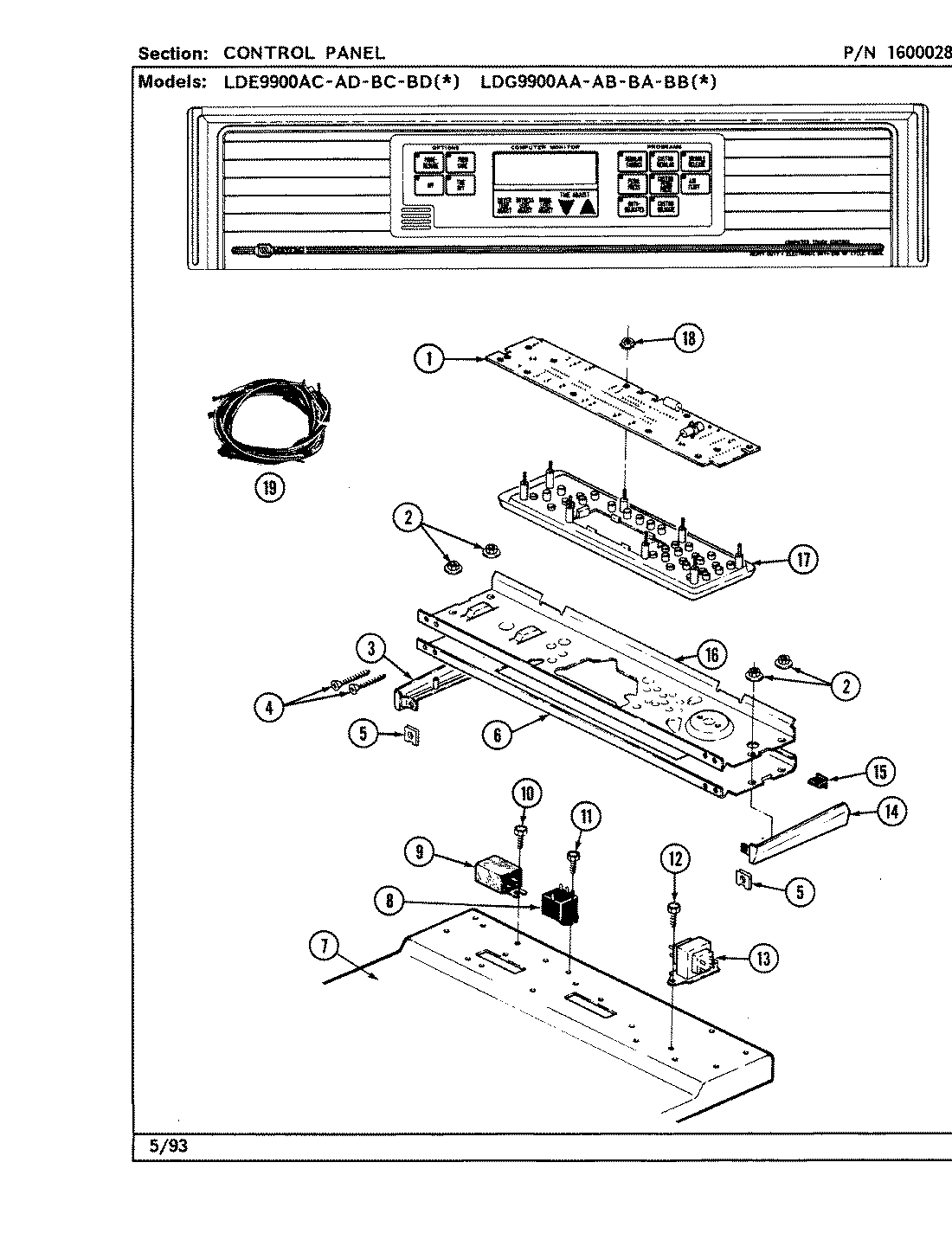

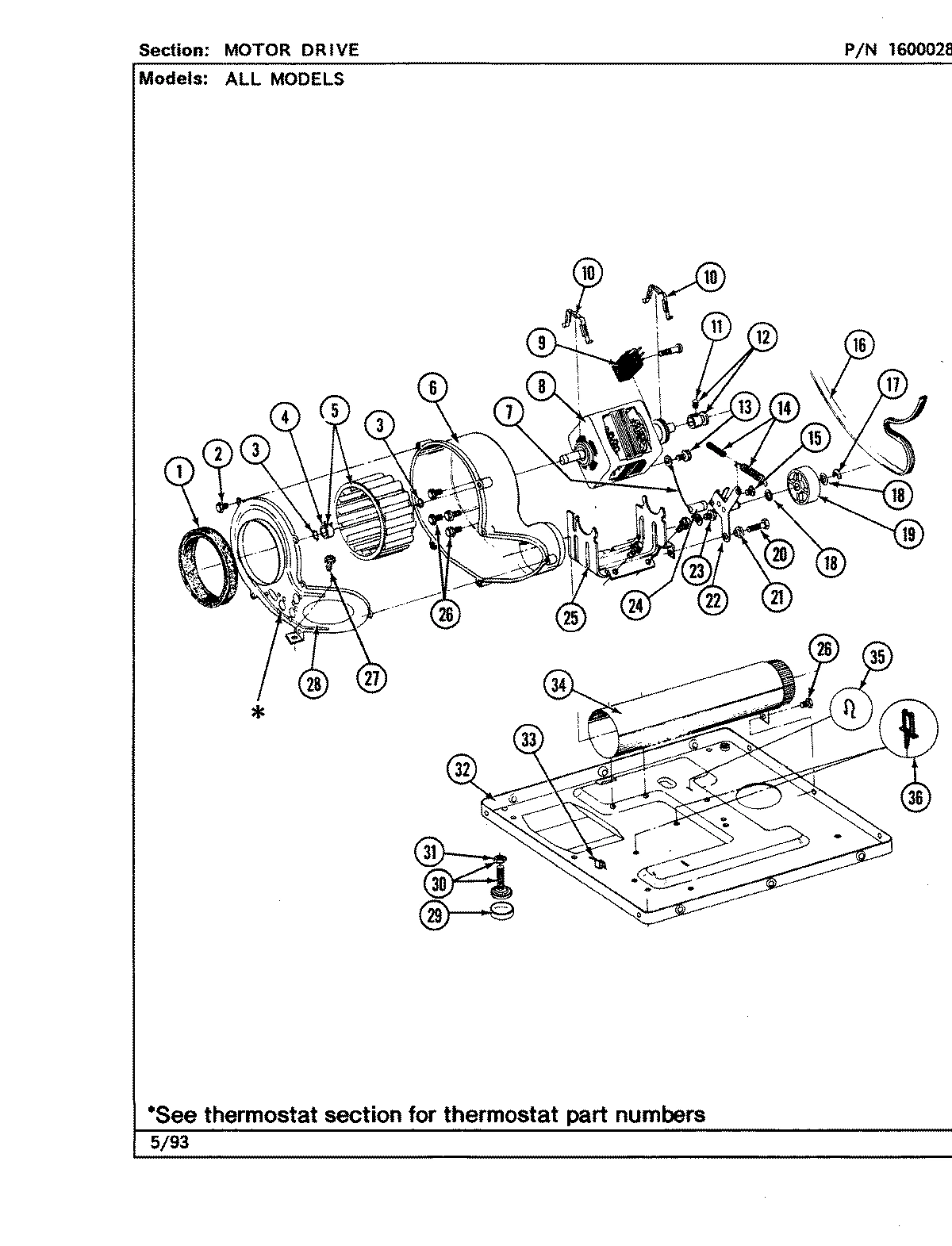

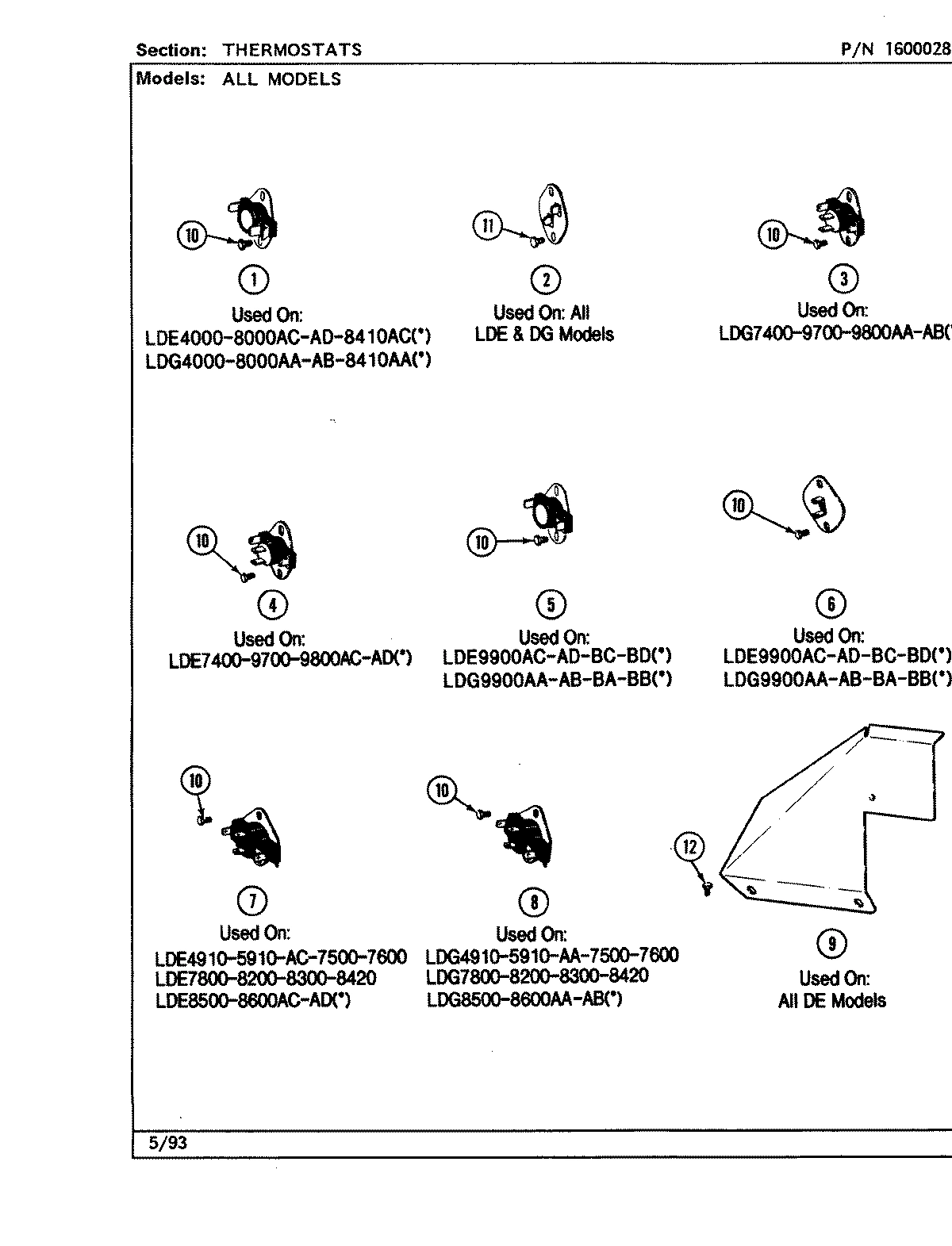

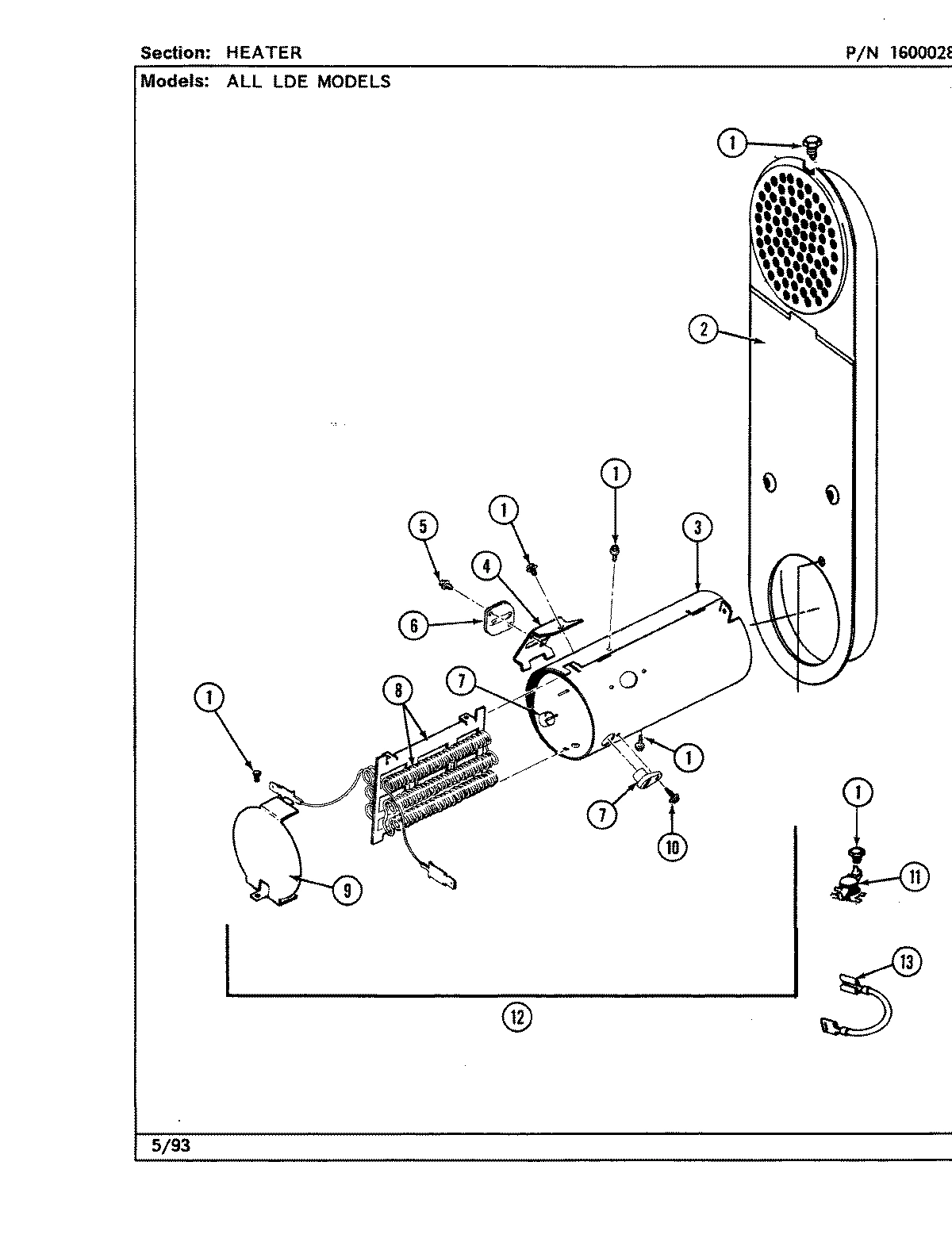

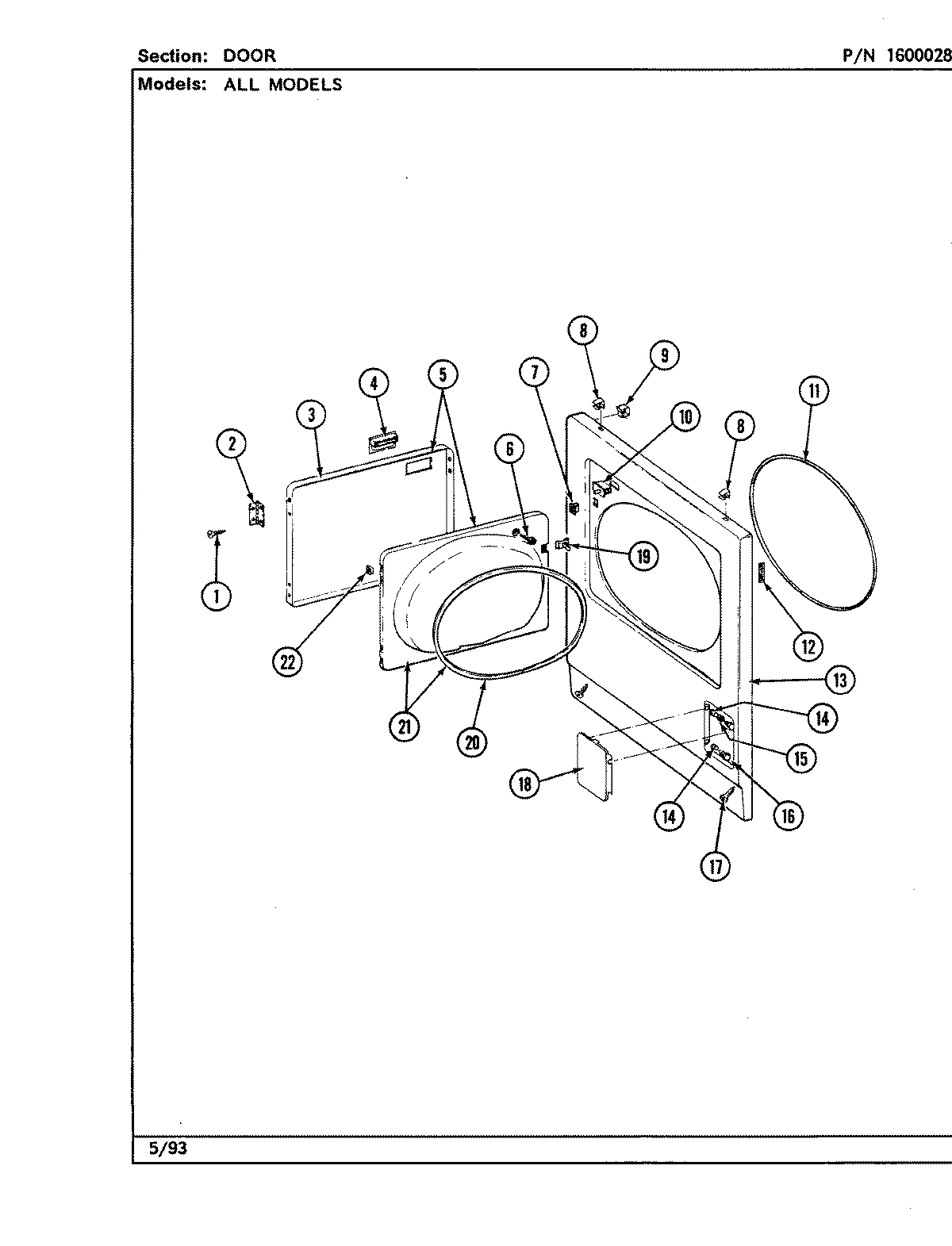

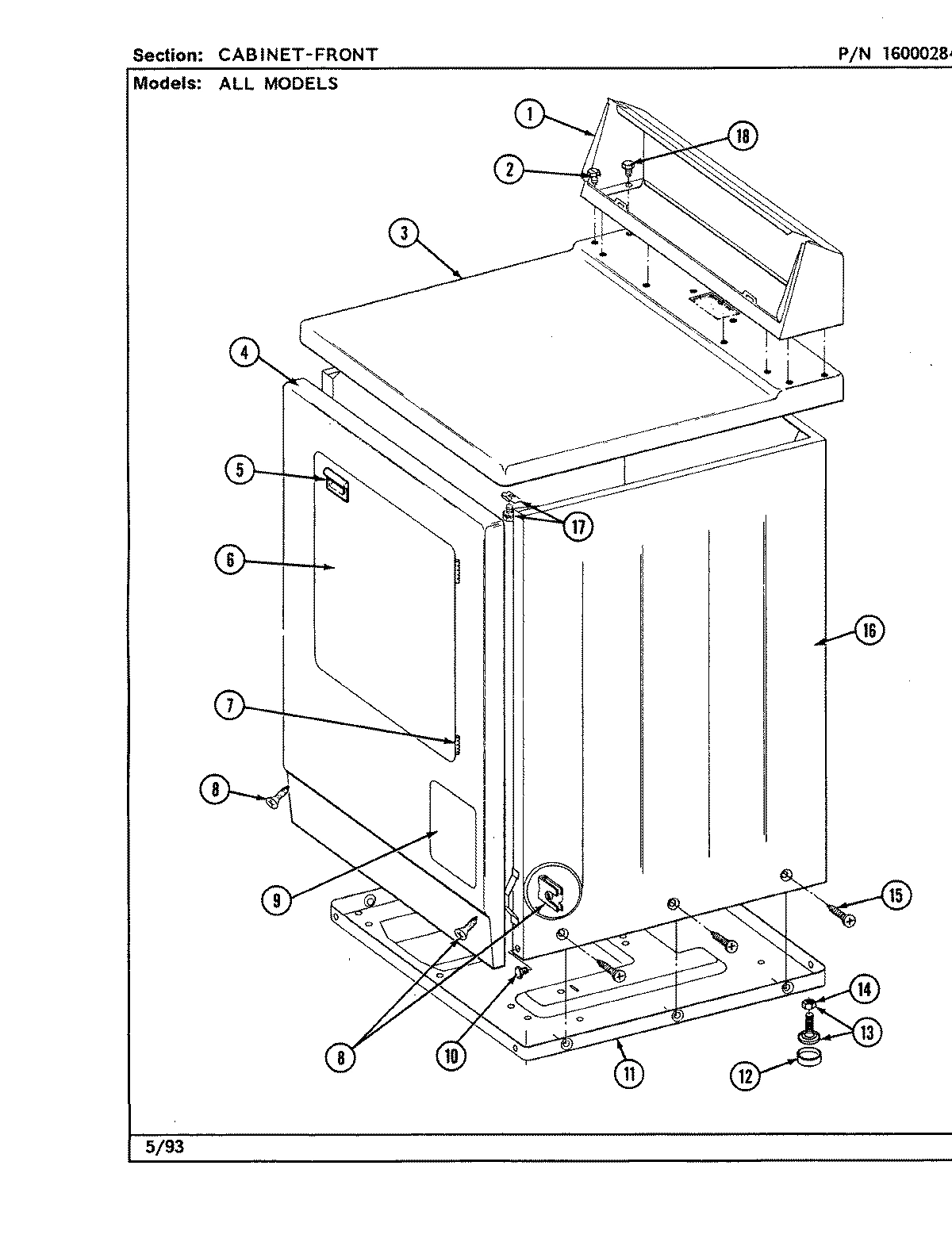

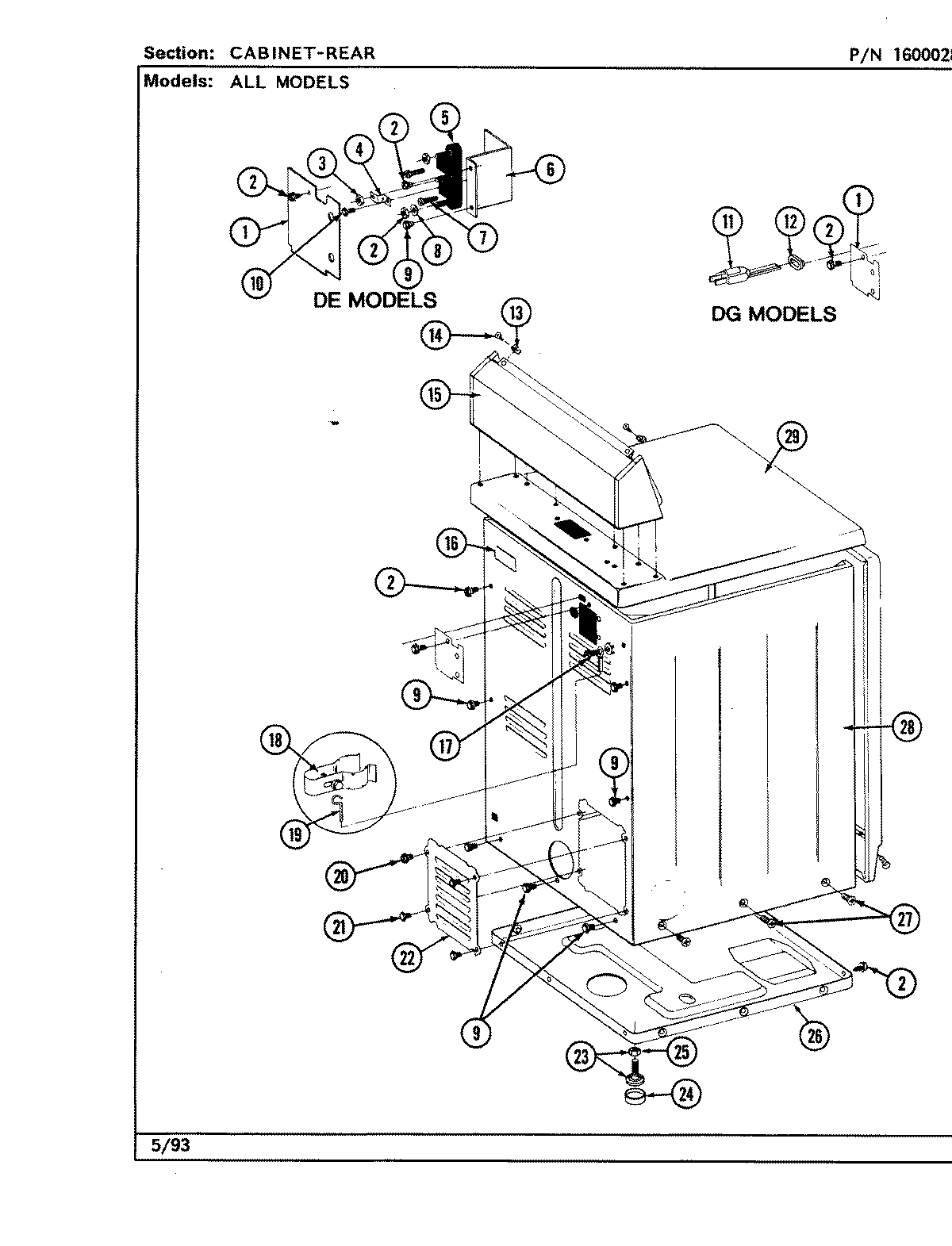

Model Whirlpool LDE9900ADL ELECTRIC DRYER – Common Parts &amp; Diagrams

1

WPY304475 Whirlpool Dryer Cycling Thermostat In Stock WPL WPY304475 $58.57

1

WPY312901 Whirlpool Blow Seal In Stock WPL WPY312901 $46.55

1

CIRCUIT BOARD ASSY WPL 307218 Contact Us For Availability

1

DUCT, OUTLET ASSY. WPL Y307112 Contact Us For Availability

1

COVER, TERMINAL WPL Y312905 Contact Us For Availability

2

WP306604 Whirlpool Cut-off In Stock WPL WP306604 $20.71

2

SCREW----NA WPL Y313561 Contact Us For Availability

2

PALNUT, END CAP WPL 214872 Contact Us For Availability

2

LINT SCREEN WPL 307213 Contact Us For Availability

2

INLET DUCT ASSY. WPL 307120 Contact Us For Availability

2

INLET DUCT ASSY. WPL 308503 Contact Us For Availability

3

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $4.82

3

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $24.56

3

END CAP LH WPL 207215 Contact Us For Availability

3

SCREW WPL 313764 Contact Us For Availability

3

HEATER ENCLOSURE WPL 314995 Contact Us For Availability

4

WP312967 Whirlpool Clamp In Stock WPL WP312967 $7.29

4

WP3387137 Whirlpool Thermostat In Stock WPL WP3387137 $60.92

4

FRONT PANEL ASSY WPL 308000L Contact Us For Availability

4

STRAP, GROUND WPL Y312184 Contact Us For Availability

4

BRACKET, THERMAL FUSE WPL 315346 Contact Us For Availability

5

Y303836 Whirlpool Dryer Blower Wheel In Stock WPL Y303836 $27.73

5

FASTENER, END CAP WPL 214894 Contact Us For Availability

5

TUMBLER FRONT W/SEAL WPL 307117 Contact Us For Availability

5

THERMOSTAT, LIMIT WPL 307200 Contact Us For Availability

5

HANDLE DOOR ALM WPL 314972 Contact Us For Availability

5

BLOCK, TERMINAL WPL 400008 Contact Us For Availability

6

WP307473 Whirlpool Thermal Fuse In Stock WPL WP307473 $47.97

6

HOUSING, BLOWER WPL Y312893 Contact Us For Availability

6

CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability

6

CONTROL PANEL WPL 307215 Contact Us For Availability

6

THERMISTOR, TEMP. CONTROL WPL 307208 Contact Us For Availability

6

DOOR ASSY ALMOND WPL 307111L Contact Us For Availability

6

DOOR PANEL ALMOND WPL 314966L Contact Us For Availability

6

BRACKET, TERMINAL BLOCK WPL Y312904 Contact Us For Availability

7

306436 Whirlpool Washer Dryer Door Catch and In Stock WPL 306436 $3.54

7

W10857122 Whirlpool Refrigerator Light Bulb, In Stock WPL W10857122 $10.02

7

W11164114 Whirlpool Screw Backorder WPL W11164114 $2.67

7

WP307249 Whirlpool Thermostat In Stock WPL WP307249 $100.00

7

WIRE, GROUND WPL 901220 Contact Us For Availability

7

TOP COVER ASSY WPL 307104 Contact Us For Availability

7

TOP COVER ASSY WPL 307104M Contact Us For Availability

7

HINGE WPL 307099 Contact Us For Availability

7

INSULATOR, TERMINAL WPL 314998 Contact Us For Availability

8

W10410999 Whirlpool Dryer Drive Motor In Stock WPL W10410999 $130.21

8

WP22001650 Whirlpool Spring Clip In Stock WPL WP22001650 $5.30

8

WP307250 Whirlpool Thermostat In Stock WPL WP307250 $55.16

8

WPY308612 Whirlpool Heating Element In Stock WPL WPY308612 $233.86

8

RELAY, SPST 24VDC WPL 206824 Contact Us For Availability

8

ENCLOSURE, LIGHT WPL 314955 Contact Us For Availability

8

SCREW & FSTNER ASSY(FRT.PANEL) WPL 204439 Contact Us For Availability

9

SWITCH, MOTOR START-PROD. WPL 306207 Contact Us For Availability

9

SWITCH, MOTOR WPL Y303877 Contact Us For Availability

9

SWITCH, MOTOR START-PROD. WPL Y303879 Contact Us For Availability

9

SCREW WPL Y310632 Contact Us For Availability

9

RELAY, HEATER WPL 306199 Contact Us For Availability

9

HOLDER, LIGHT WPL 307097 Contact Us For Availability

9

COVER, THERMOSTAT WPL 315122 Contact Us For Availability

9

SHIELD, RADIANT WPL 314999 Contact Us For Availability

W10169313 Whirlpool Door Switch Kit In Stock WPL W10169313 $21.70

WP314820 Whirlpool Felt Seal In Stock WPL WP314820 $24.34

WP489483 Whirlpool Screw Backorder WPL WP489483 $7.61

WPY015825 Whirlpool Motor Clip Backorder WPL WPY015825 $13.87

SCREW WPL 314554 Contact Us For Availability

WP303396 Whirlpool Thermostat In Stock WPL WP303396 $32.51

SEAL, FRONT PANEL WPL 314937 Contact Us For Availability

SET SCREW, PULLEY WPL Y053241 Contact Us For Availability

BAFFLE (SHORT) WPL 314803 Contact Us For Availability

CORD, POWER (CANADA) WPL 305168 Contact Us For Availability

THERMOSTAT,HI-LIMIT(CANADA) WPL 308217 Contact Us For Availability

WP307178 Whirlpool Element In Stock WPL WP307178 $261.68

TWIN FASTENER WPL Y313907 Contact Us For Availability

PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability

WASHER WPL 314158 Contact Us For Availability

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $4.67

WPY307173 Whirlpool Wire Jumper Backorder WPL WPY307173 $4.82

TRANSFORMER WPL 207766 Contact Us For Availability

TUMBLER W/BAFFLES WPL 306663 Contact Us For Availability

TUMBLER W/OUT BAFFLES WPL 314802 Contact Us For Availability

FASTENER,CNTRL PNL TO CONSOLE WPL 215075 Contact Us For Availability

SCREW WPL Y310759 Contact Us For Availability

IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability

SCREW, No.8 X 9/16 CTSK WPL 210932 Contact Us For Availability

END CAP RH WPL 207216 Contact Us For Availability

213007 Whirlpool Screw #12 Backorder WPL 213007 $7.90

WPW10116751 Whirlpool Screw Backorder WPL WPW10116751 $4.82

PAD, CONTROL PANEL WPL 214897 Contact Us For Availability

BACK, TUMBLER (W/SEAL) WPL Y307114 Contact Us For Availability

BACK, TUMBLER (W/SEAL) WPL Y308544 Contact Us For Availability

CONSOLE (ALM) WPL 305193L Contact Us For Availability

16

BACKUP PLATE WPL 315028 Contact Us For Availability

16

COVER, THREAD WPL 313915 Contact Us For Availability

16

LABEL, ELECTRICAL INSTRUCTION WPL 214519 Contact Us For Availability

W10850756 Whirlpool Screw Backorder WPL W10850756 $4.82

WP354987 Whirlpool C-Clip In Stock WPL WP354987 $6.38

MOUNTING PANEL ASSY WPL 307214 Contact Us For Availability

SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability

18

M0282005 Whirlpool Nut Backorder WPL M0282005 $5.10

18

WP33001443 Whirlpool Hex Nut Backorder WPL WP33001443 $4.82

18

WPY312527 Whirlpool Dryer Idler Shaft Washer In Stock WPL WPY312527 $6.84

19

WP33001305 Whirlpool Door Strike Assembly Backorder WPL WP33001305 $1.77

19

WP6-3037050 Whirlpool Idler Pulley In Stock WPL WP6-3037050 $18.21

19

HARNESS, WIRE(CANADA) WPL 308324 Contact Us For Availability

20

WPY014874 Whirlpool Screw Backorder WPL WPY014874 $4.82

20

DOOR SEAL WPL 314935 Contact Us For Availability

20

MANUAL, USE & CARE WPL 315036 Contact Us For Availability

21

12001541 Whirlpool Dryer Drum Roller Kit In Stock WPL 12001541 $11.73

21

WP315772 Whirlpool Sleeve In Stock WPL WP315772 $7.92

21

DOOR, INNER (W/SEAL) WPL 307098 Contact Us For Availability

WP312535 Whirlpool Washer Backorder WPL WP312535 $7.09

WP6-3033630 Whirlpool Dryer Idler Arm Assembl In Stock WPL WP6-3033630 $56.49

LABEL, INSTRUCTION WPL 314941 Contact Us For Availability

LABEL, INSTRUCTION CANADA WPL 315441 Contact Us For Availability

CLIP, DOOR LINER TO OUTER PNL WPL Y313910 Contact Us For Availability

COVER, ACCESS WPL Y312951 Contact Us For Availability

23

ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available

23

WP9703438 Whirlpool Snap Retaining Ring In Stock WPL WP9703438 $2.43

24

WPW10116756 Whirlpool Spacer Backorder WPL WPW10116756 $33.58

24

WPY312959 Whirlpool Dryer Drum Belt In Stock WPL WPY312959 $23.84

25

33001004 Whirlpool Baffle In Stock WPL 33001004 $71.41

25

WP62739 Whirlpool Nut Backorder WPL WP62739 $4.82

25

SUPPORT, MOTOR WPL 312897 Contact Us For Availability

26

WP33002917 Whirlpool Screw Backorder WPL WP33002917 $4.82

26

BASE ASSY. WPL Y303361 Contact Us For Availability

27

WP210720 Whirlpool Rivet Backorder WPL WP210720 $8.89

27

CAP FOR TIMER KNOB WPL 213077 Contact Us For Availability

306508 Whirlpool Dryer Front Glide Kit In Stock WPL 306508 $6.28

COVER FOR BLOWER WPL 314778 Contact Us For Availability

CABINET ASSY ALMOND WPL 307124L Contact Us For Availability

CABINET (WHT) WPL 307124 Contact Us For Availability

29

TOP COVER ASSY WPL 307104L Contact Us For Availability

30

SWITCH HOUSING WPL 315020 Contact Us For Availability

31

REED SWITCH ASSY WPL 307206 Contact Us For Availability

32

WP3177991 Whirlpool Screw Backorder WPL WP3177991 $4.82

34

EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability

34

SENSOR GROUND WIRE WPL Y303711 Contact Us For Availability

35

SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability

35

SENSOR ASSEMBLY WITH SCREWS WPL 304997 Contact Us For Availability

36

RETAINER, WIRE HARNESS WPL Y313262 Contact Us For Availability

36

RECEPTACLE, SENSOR GROUND WIRE WPL Y312658 Contact Us For Availability
