Model Whirlpool LDE9334ACE ELECTRIC DRYER – Common Parts & Diagrams
02 - CABINET-REAR
04 - DOOR

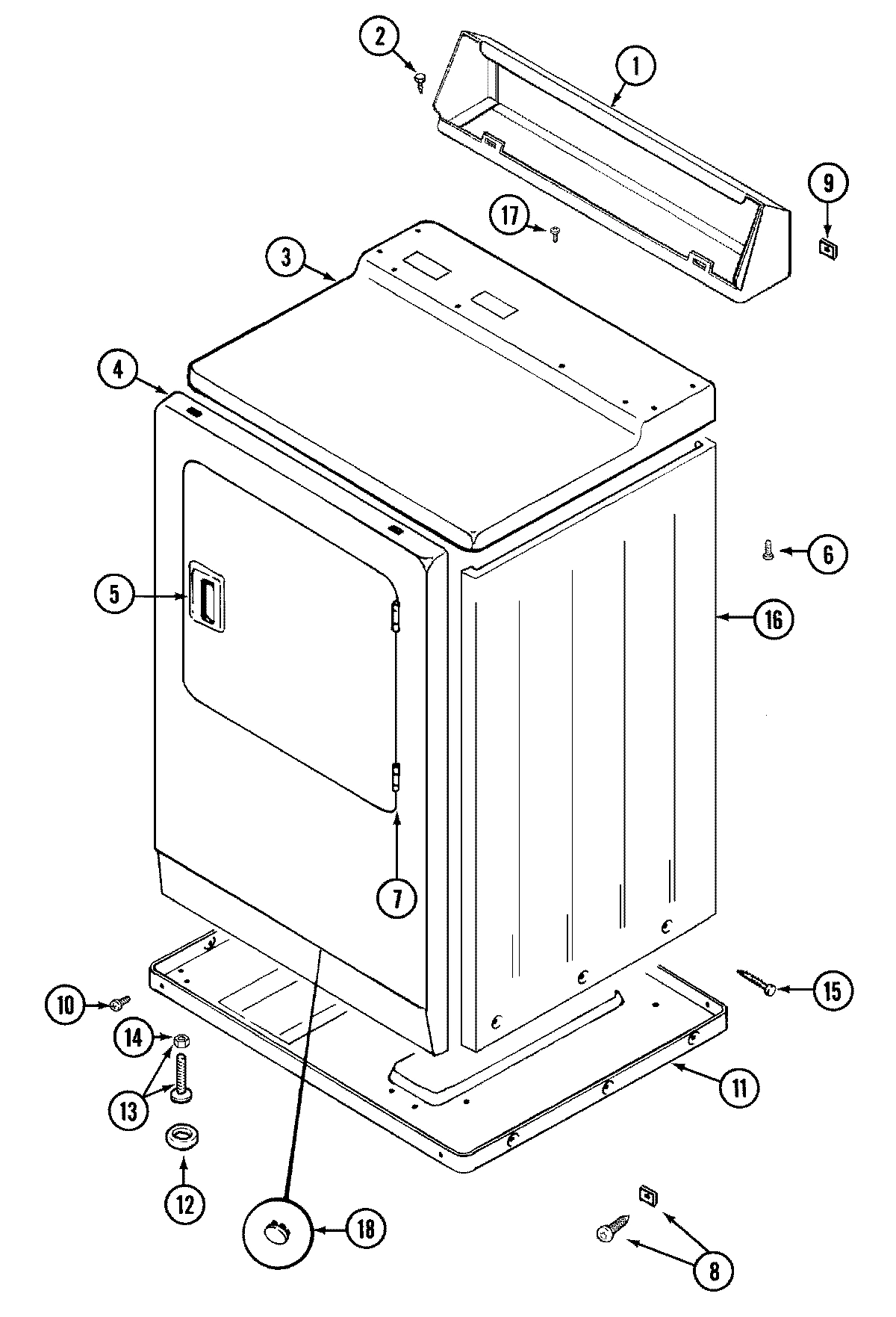

01 - CABINET-FRONT

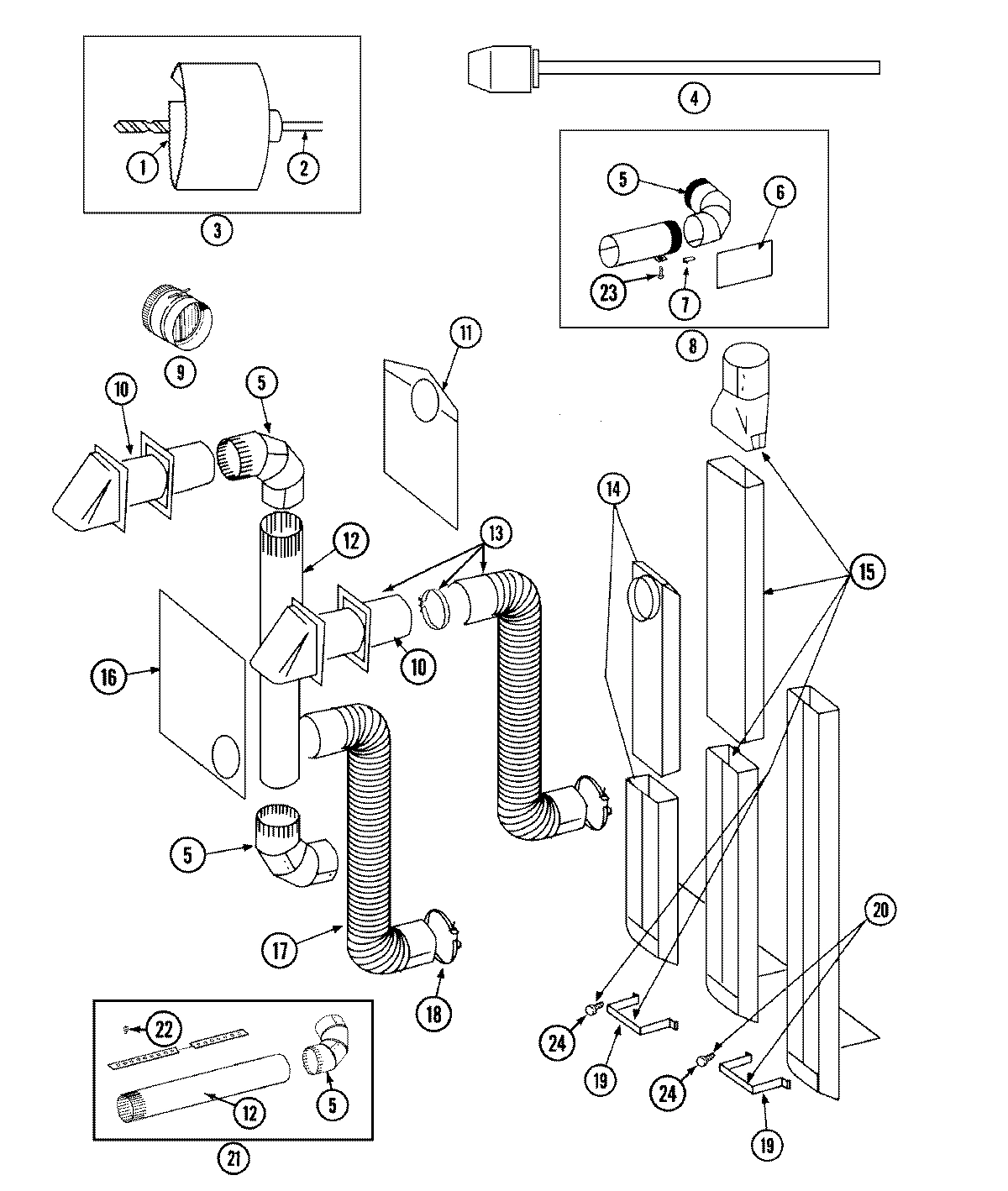

05 - DUCTING

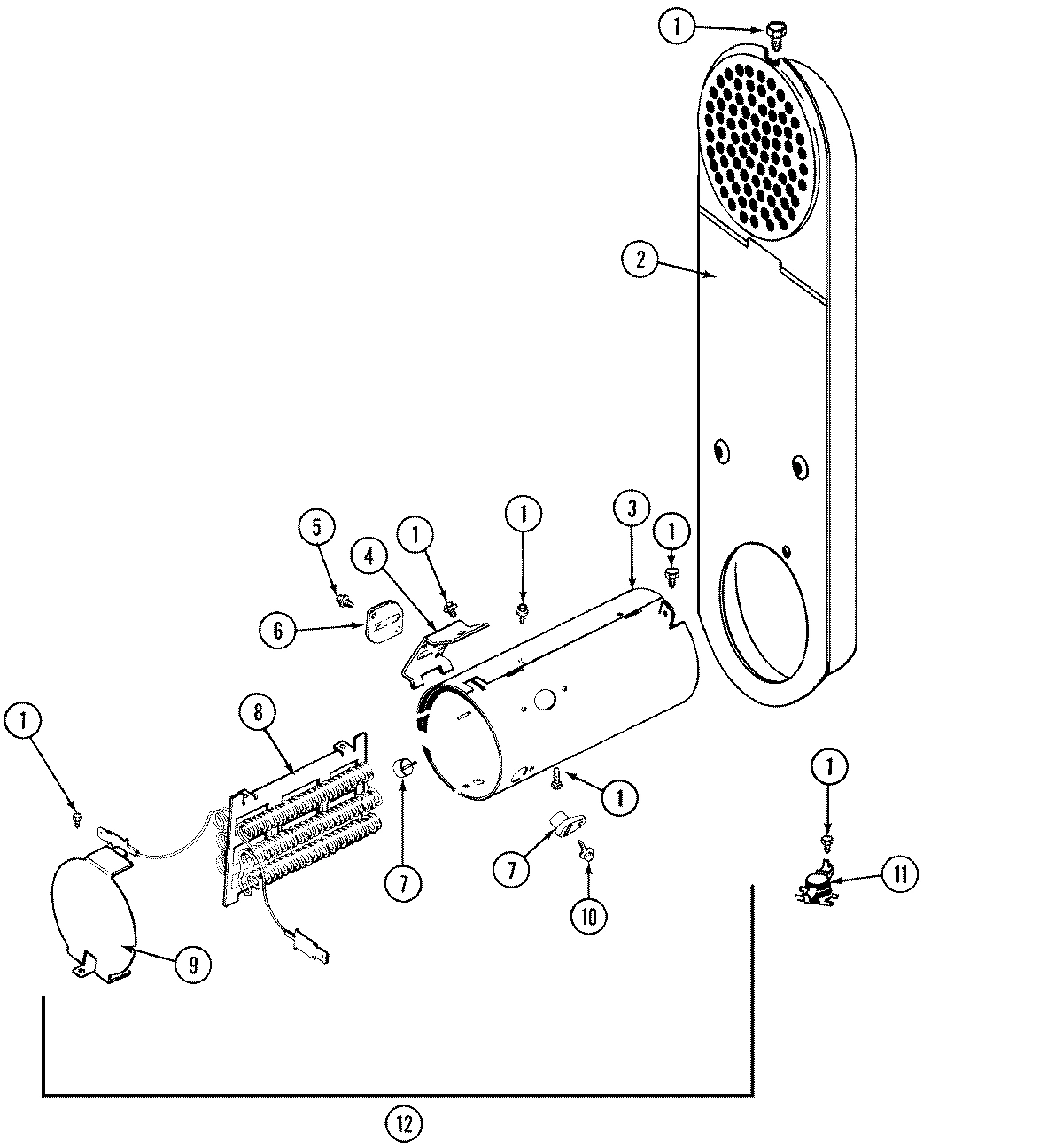

06 - HEATER
07 - MOTOR DRIVE

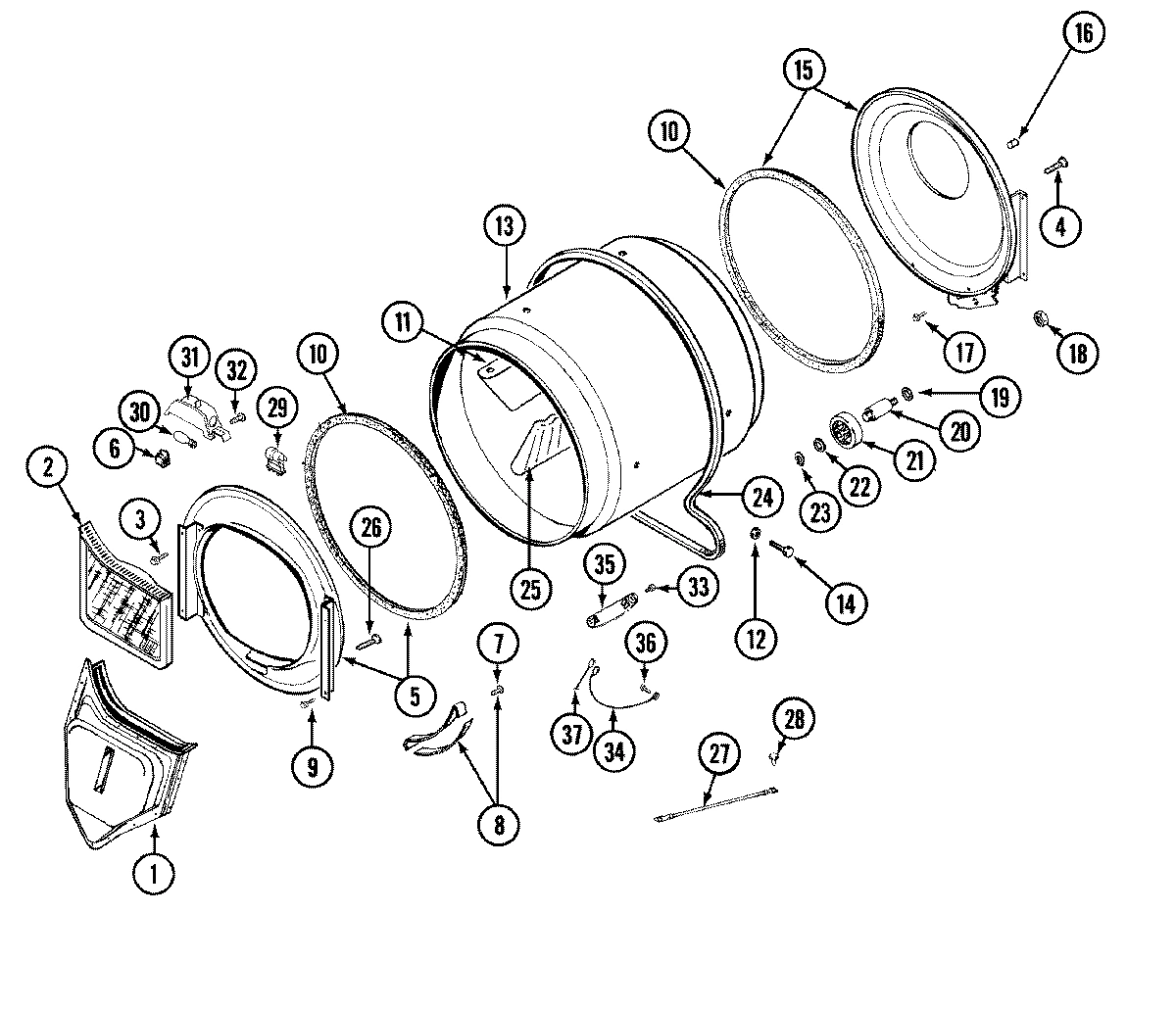

08 - TUMBLER

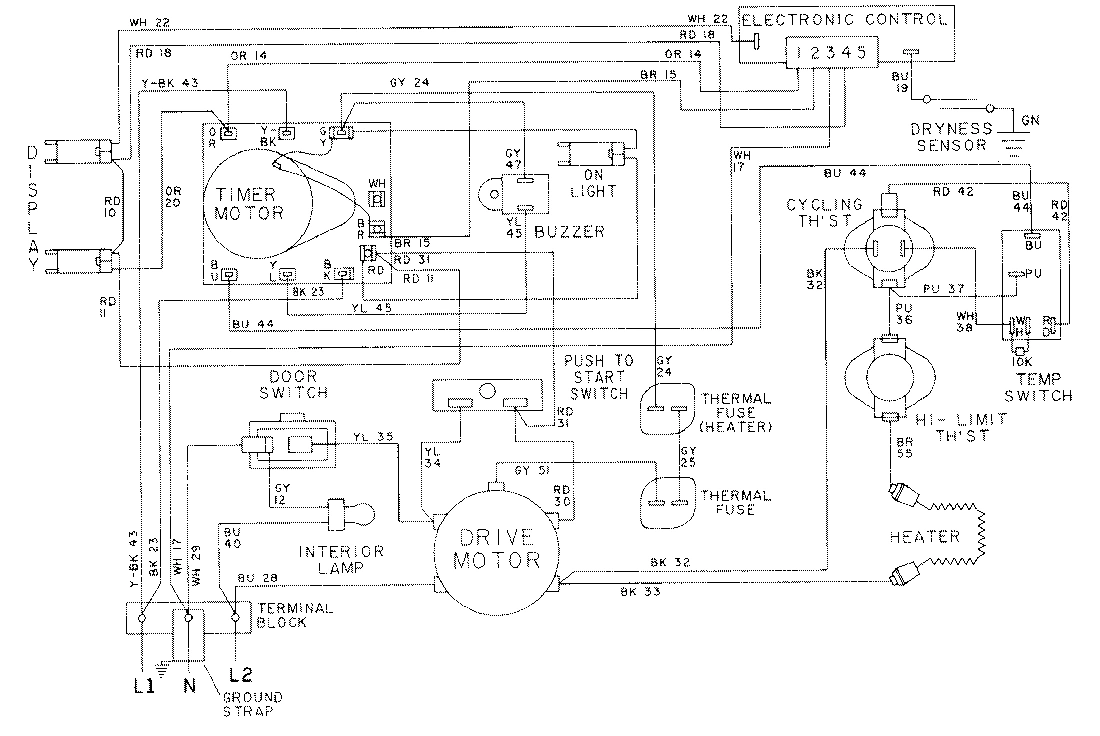

09 - WIRING INSTRUCTIONS-LDE9334ACx

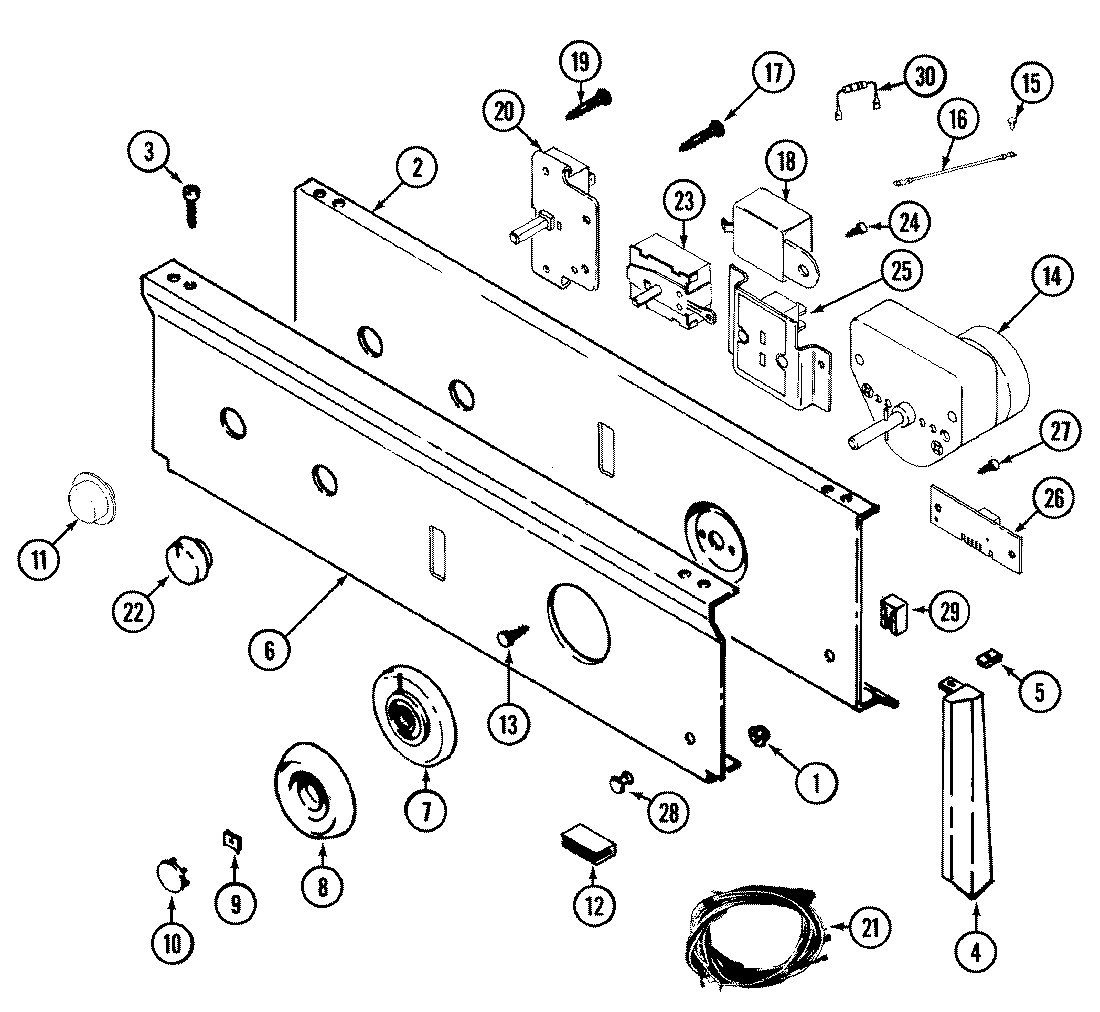

03 - CONTROL PANEL
Common parts from model Whirlpool LDE9334ACE ELECTRIC DRYER
1
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
1
SCREW WPL Y314062 Contact Us For Availability
1
CONSOLE (WHT) WPL Y305193 Contact Us For Availability
1
BLADE, SAW WPL 038179 Contact Us For Availability
1
DUCT ASSY., OUTLET WPL 33001016 Contact Us For Availability
1
PALNUT, END CAP WPL 214872 Contact Us For Availability
2
REPLACEMENT DRILL WPL 038180 Contact Us For Availability
2
INLET DUCT ASSY. WPL 308503 Contact Us For Availability
2
EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability
2
FILTER, LINT WPL 33001171 Contact Us For Availability
2
PLATE, SUPPORT WPL 33001237 Contact Us For Availability
3
DOOR (WHT) WPL 33001240 Contact Us For Availability
3
COVER, TOP (WHT) WPL 33001165 Contact Us For Availability
3
HOLE SAW W/DRILL BIT WPL 038766 Contact Us For Availability
3
HEATER ENCLOSURE WPL 314995 Contact Us For Availability
3
SCREW WPL 313764 Contact Us For Availability
3
SCREW, No.8 X 9/16 CTSK WPL 210932 Contact Us For Availability
4
HANDLE, DOOR (WHT) WPL 33001241 Contact Us For Availability
4
SCREW----NA WPL Y313561 Contact Us For Availability
4
PANEL, FRONT (WHT) WPL 33001242 Contact Us For Availability
4
EXTENSION CHUCK, DRILL WPL 038767 Contact Us For Availability
4
BRACKET, THERMAL FUSE WPL 315346 Contact Us For Availability
4
END CAP, CTRL. PNL. (LT-WHT) WPL 22001289 Contact Us For Availability
4
END CAP, CTRL. PNL. (RT-WHT) WPL 22001291 Contact Us For Availability
4
CAP, END (RT-WHT) WPL 22001564 Contact Us For Availability
4
CAP, END (LT-WHT) WPL 22001565 Contact Us For Availability
5
SEAL, DOOR WPL 33001131 Contact Us For Availability
5
ELBOW, VENTING (4``) WPL Y059131 Contact Us For Availability
5
FRONT ASSY., TUMBLER WPL 33001423 Contact Us For Availability
5
FASTENER, END CAP WPL 214894 Contact Us For Availability
6
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
6
SCREW WPL 214354 Contact Us For Availability
6
INSULATION, EXHAUST DUCT KIT WPL 312302 Contact Us For Availability
6
PANEL, CONTROL (WHT) WPL 33001072 Contact Us For Availability
7
HINGE, DOOR WPL 33001230 Contact Us For Availability
7
FASTENER, EXHAUST DUCT KIT WPL 213323 Contact Us For Availability
7
INSULATOR, TERMINAL WPL 314998 Contact Us For Availability
7
SKIRT, TIMER DIAL (WHT) WPL 33001183 Contact Us For Availability
8
SCREW & FSTNER ASSY(FRT.PANEL) WPL 204439 Contact Us For Availability
8
EXHAUST DUCT KIT WPL Y304652 Contact Us For Availability
8
KNOB, TIMER (WHT) WPL 33001255 Contact Us For Availability
9
FASTENER,CNTRL PNL TO CONSOLE WPL 215075 Contact Us For Availability
9
DAMPER, BACK DRAFT WPL 059146 Contact Us For Availability
9
SHIELD, RADIANT WPL 314999 Contact Us For Availability
10
SCREW WPL 314554 Contact Us For Availability
10
CAP, TIMER KNOB (WHT) WPL 216250 Contact Us For Availability
11
BASE ASSY. WPL Y303361 Contact Us For Availability
11
SEAL, FRONT PANEL WPL 314937 Contact Us For Availability
11
BAG, LINT (DACRON) WPL 311353 Contact Us For Availability
11
BAFFLE (SHORT) WPL 33001012 Contact Us For Availability
11
BUTTON (WHT) WPL 33001185 Contact Us For Availability
12
SCREW, PLASTIC WPL 33001172 Contact Us For Availability
12
NUT, SPEED WPL 33001173 Contact Us For Availability
12
PIPE, VENTING WPL Y059130 Contact Us For Availability
12
CONVERSION KIT (240V TO 208V) WPL Y308590 Contact Us For Availability
12
HEATER SUB-ASSEMBLY (208V) WPL Y308613 Contact Us For Availability
12
WASHER WPL 314158 Contact Us For Availability
12
PAD, CONTROL PANEL WPL 214897 Contact Us For Availability
13
FLEXIBLE VENT KIT WPL Y059143 Contact Us For Availability
13
COVER, BLOWER HOUSING WPL 314846 Contact Us For Availability
13
DRYER TUMBLER, W/O BAFFLES WPL 33001108 Contact Us For Availability
14
SCREW WPL Y310759 Contact Us For Availability
14
VENT DUCT ASSY. WPL Y059135 Contact Us For Availability
14
TIMER WPL 33001036 Contact Us For Availability
15
BACK, TUMBLER (W/SEAL) WPL 33001178 Contact Us For Availability
15
COVER, HINGE HOLE (WHT) WPL 33001175 Contact Us For Availability
15
RECTANGULAR VENT KIT WPL 059144 Contact Us For Availability
16
CABINET (WHT) WPL 33001159 Contact Us For Availability
16
CLIP, DOOR LINER TO OUTER PNL WPL Y313910 Contact Us For Availability
16
PLATE, ALUM. WINDOW (15``X20``) WPL Y059134 Contact Us For Availability
16
COVER, THREAD WPL 313915 Contact Us For Availability
16
GRND.WIRE,SUPP.PLTE TO TOP CVR WPL 204807 Contact Us For Availability
17
SCREW WPL Y310632 Contact Us For Availability
18
COVER, ACCESS WPL Y312951 Contact Us For Availability
18
PLUG, SIGHT HOLE (WHT) WPL 33001132 Contact Us For Availability
18
DOOR, INNER (W/SEAL) WPL 33001243 Contact Us For Availability
18
CLAMP, FLEXIBLE DUCT WPL Y304630 Contact Us For Availability
18
SWITCH, MOTOR START-PROD. WPL 306207 Contact Us For Availability
18
SWITCH, MOTOR WPL Y303877 Contact Us For Availability
18
SWITCH, MOTOR START-PROD. WPL Y303879 Contact Us For Availability
18
BUZZER WPL Y308205 Contact Us For Availability
19
BRACKET, EXHAUST DEFLECTOR WPL 313272 Contact Us For Availability
20
EXHAUST DEFLECTOR KIT WPL 303736 Contact Us For Availability
20
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
20
SWITCH, PUSH TO START WPL 33001232 Contact Us For Availability
21
EXHAUST DEFLECTOR KIT WPL 306399 Contact Us For Availability
21
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
21
WIRE HARNESS, MAIN WPL 33001141 Contact Us For Availability
21
WIRE HARNESS, MAIN WPL 33001339 Contact Us For Availability
21
HARNESS, WIRE WPL 33001535 Contact Us For Availability
22
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
22
KNOB ASSY. (WHT) WPL 22001268 Contact Us For Availability
23
SWITCH, TEMP. (4 POSITION) WPL 33001225 Contact Us For Availability
25
DISPLAY, DRYNESS ASY(WHT) WPL 33001047 Contact Us For Availability
27
WIRE, GROUND WPL 901220 Contact Us For Availability
29
HOLDER, LIGHT WPL 307097 Contact Us For Availability
29
LIGHT, INDICATOR WPL 33001224 Contact Us For Availability
30
RESISTOR (MED. TEMP) WPL 33001104 Contact Us For Availability
31
SUPPORT, MOTOR WPL 312897 Contact Us For Availability
31
ENCLOSURE, LIGHT WPL 314955 Contact Us For Availability
31
GUIDE, QUICK REF. - MAYTAG WPL 16000327 Contact Us For Availability
31
MANUAL, USE & CARE WPL 33001259 Contact Us For Availability
33
BASE WPL Y305084 Contact Us For Availability
34
SENSOR GROUND WIRE WPL Y303711 Contact Us For Availability
35
SENSOR ASSEMBLY (W/SCREWS) WPL Y303389 Contact Us For Availability
36
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
37
RECEPTACLE, SENSOR GROUND WIRE WPL Y312658 Contact Us For Availability
39
RETAINER, WIRE WPL 315471 Contact Us For Availability
40
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
42
COVER, THERMOSTAT WPL 315122 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001071 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001588 Contact Us For Availability
× ![]()
