Model Whirlpool LDE8904ACM ELECTRIC DRYER – Common Parts & Diagrams

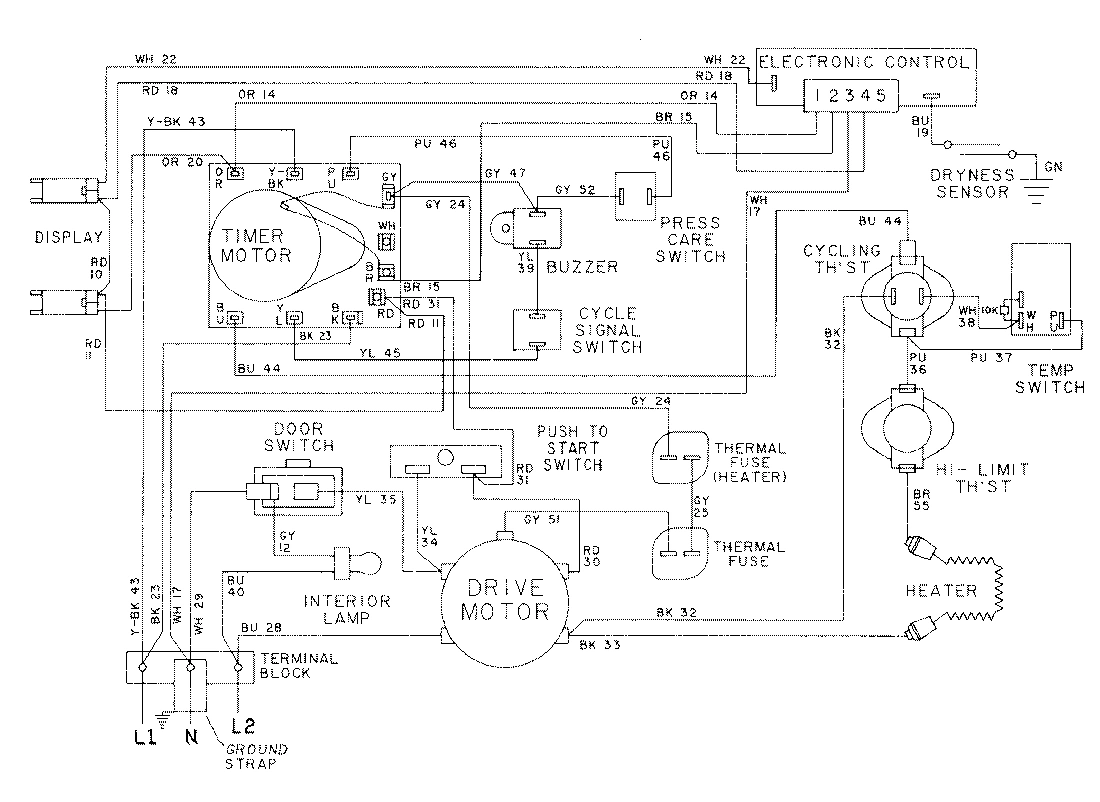

08 - WIRING INFORMATION-LDE8904ACx

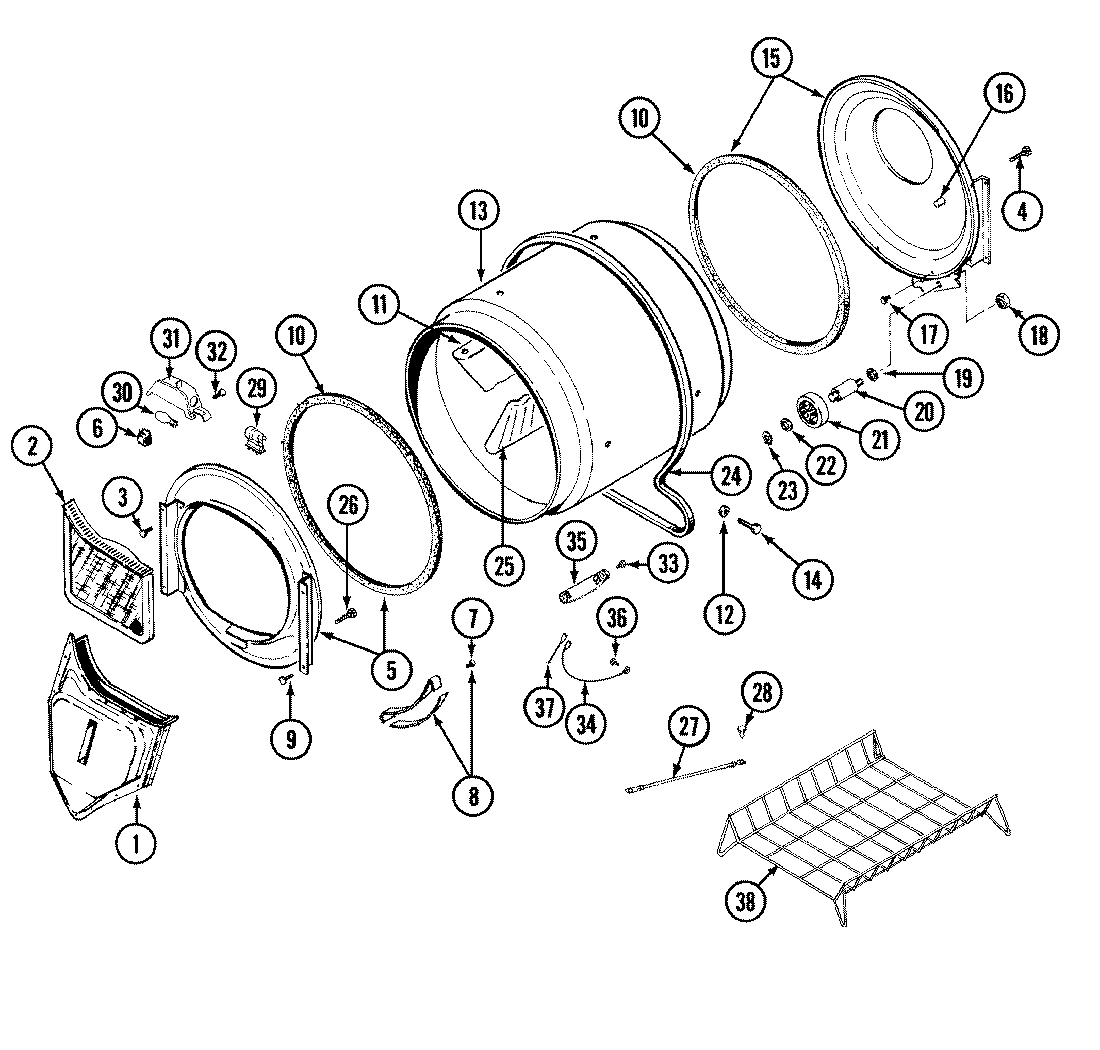

07 - TUMBLER (LDE8904ACM & LDG8904AAM)

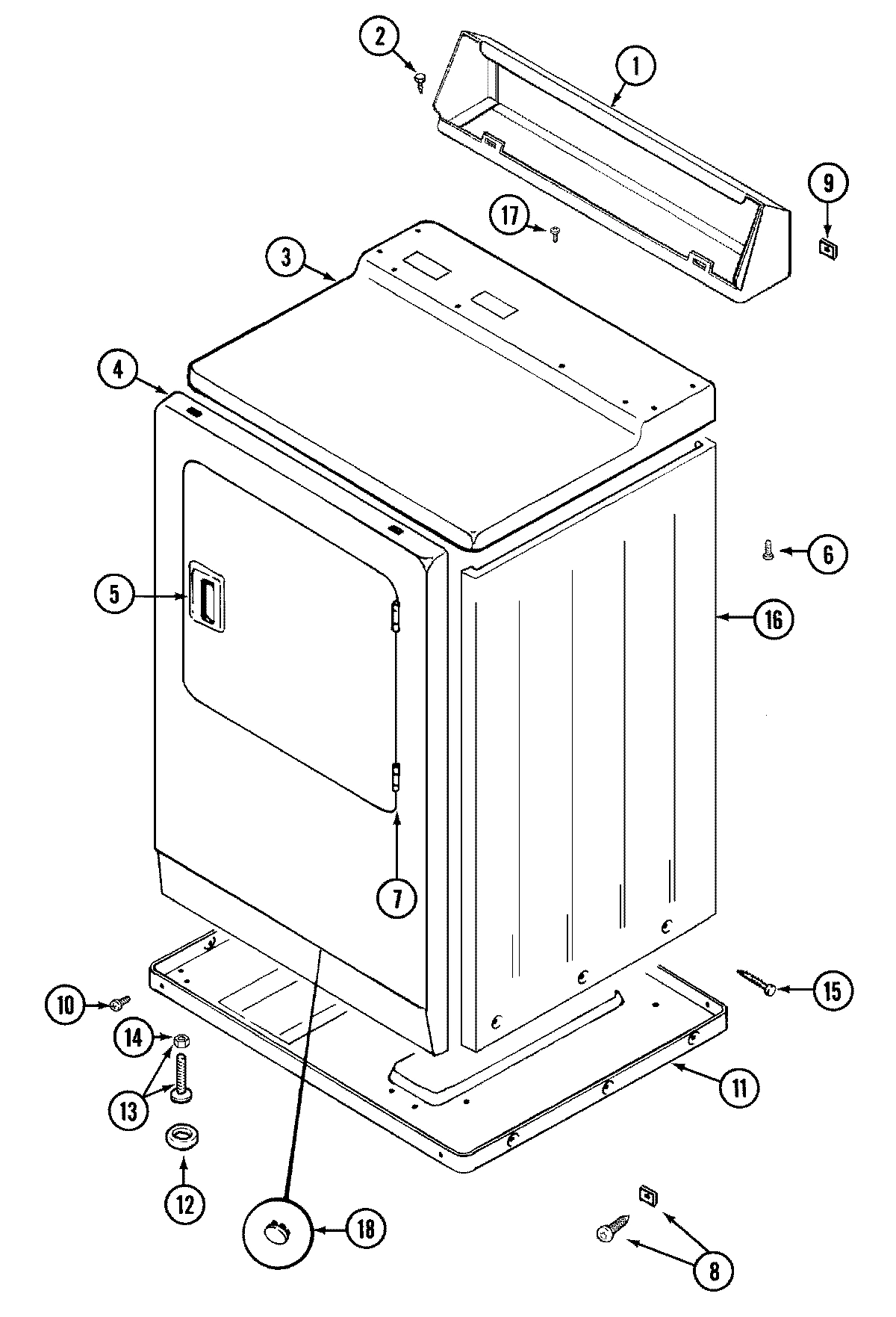

01 - CABINET-FRONT (LDE8904ACM & LDG8904AAM)

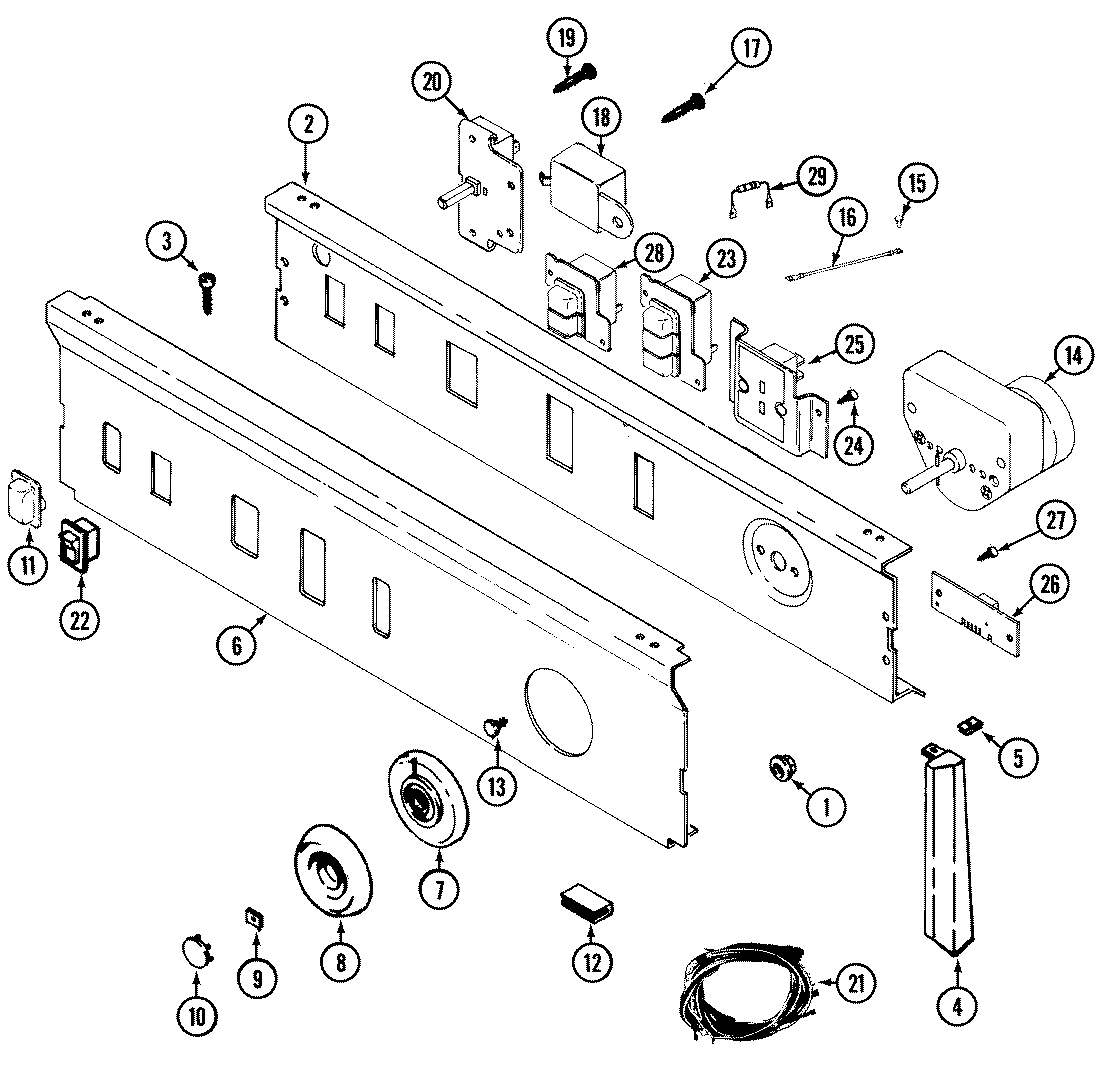

03 - CONTROL PANEL (LDE8904ACM & LDG8904AAM)

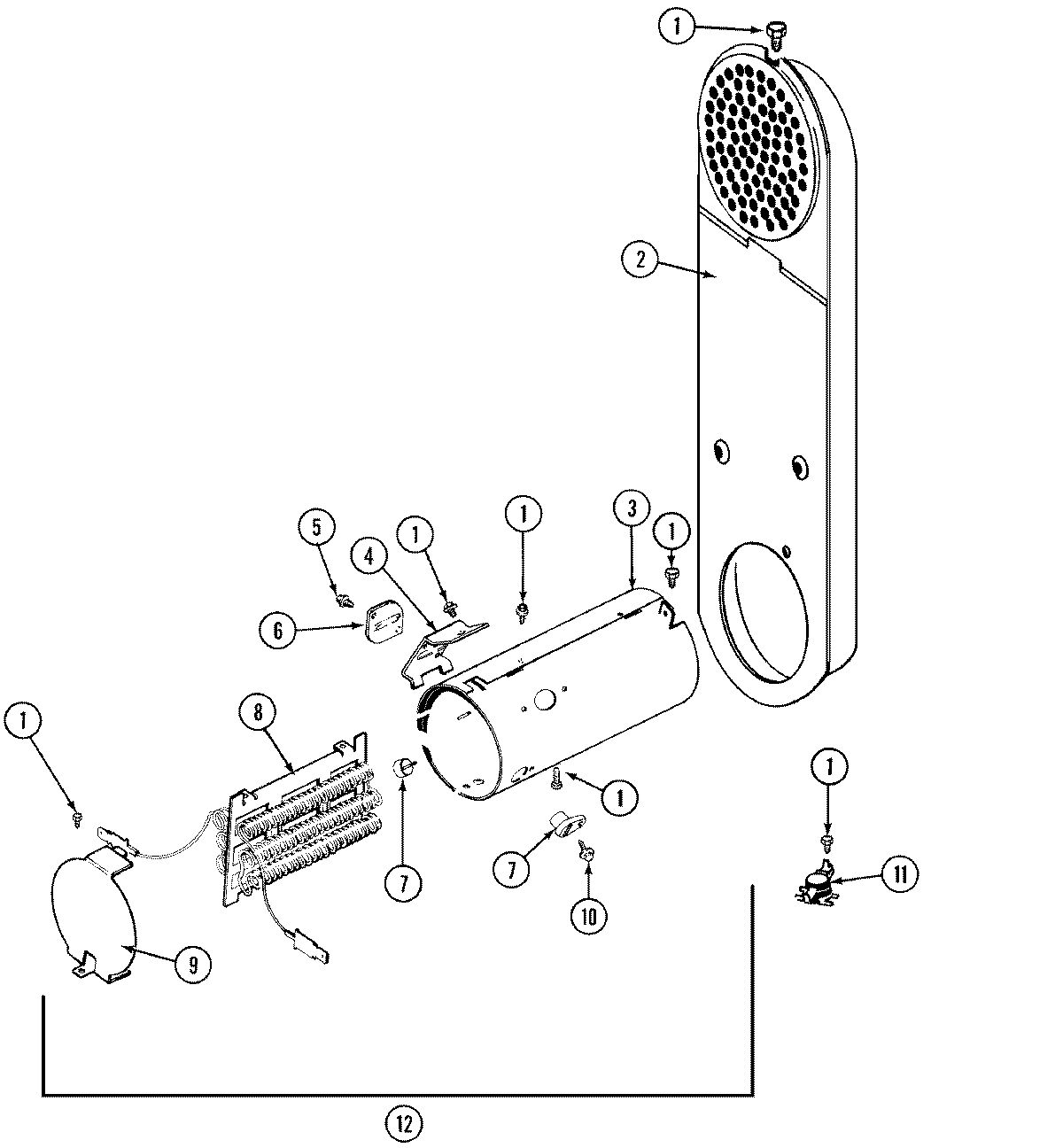

05 - HEATER
04 - DOOR (LDE8904ACM & LDG8904AAM)
06 - MOTOR DRIVE (LDE8904ACM & LDG8904AAM)

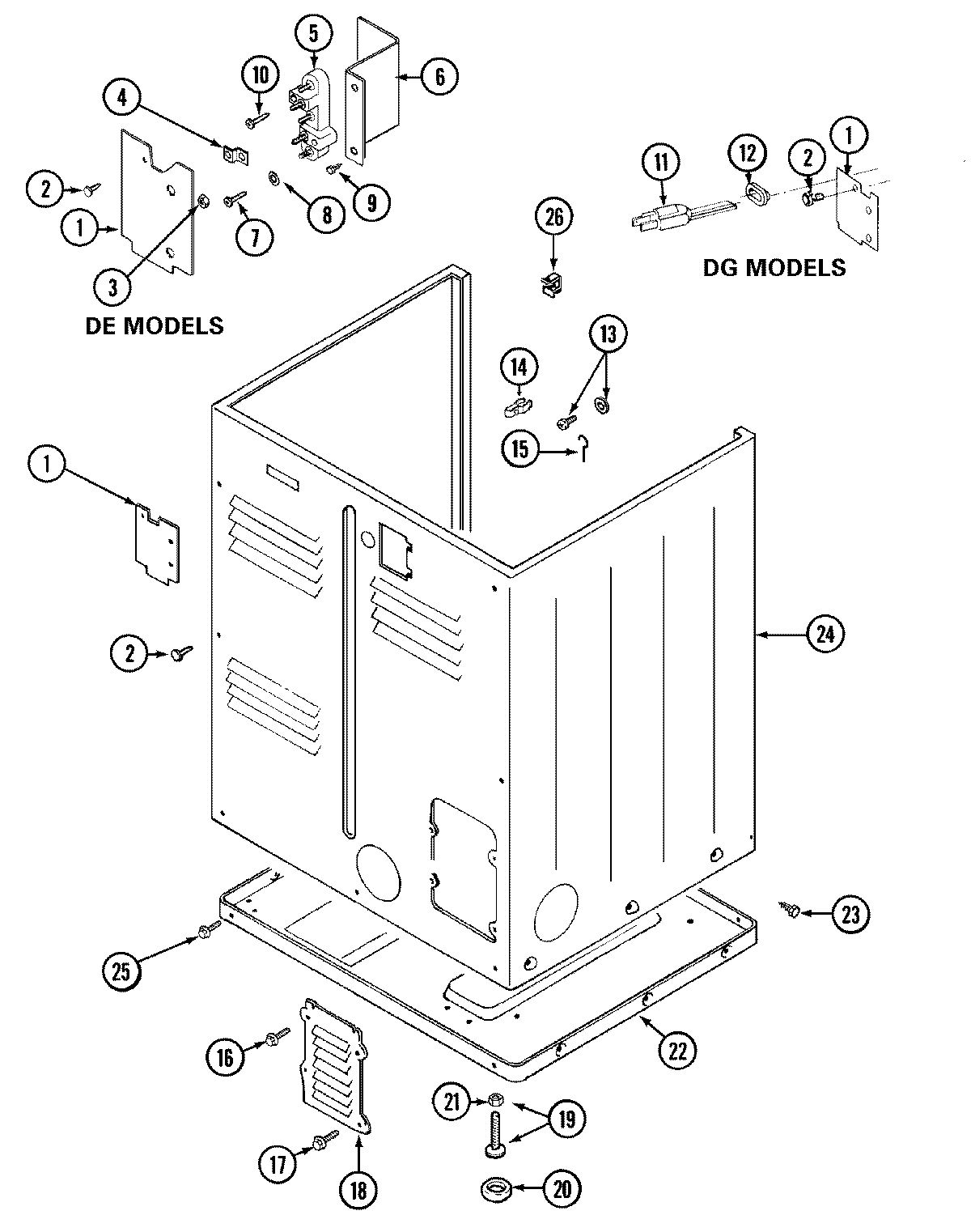

02 - CABINET-REAR (LDE8904ACM & LDG8904AAM)
Common parts from model Whirlpool LDE8904ACM ELECTRIC DRYER
1
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
1
PALNUT, END CAP WPL 214872 Contact Us For Availability
1
CONSOLE (ALM) WPL 305193L Contact Us For Availability
1
SCREW WPL Y314062 Contact Us For Availability
1
COVER, TERMINAL WPL Y312905 Contact Us For Availability
2
HINGE, DOOR WPL 33001230 Contact Us For Availability
2
PLATE, SUPPORT WPL 33001265 Contact Us For Availability
2
INLET DUCT ASSY. WPL 308503 Contact Us For Availability
2
EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability
3
COVER, TOP (ALM)----NA WPL 33001166 Contact Us For Availability
3
SCREW, No.8 X 9/16 CTSK WPL 210932 Contact Us For Availability
3
HEATER ENCLOSURE WPL 314995 Contact Us For Availability
3
DOOR (ALM) SUB WPL 33001257 Contact Us For Availability
4
HANDLE, DOOR (ALM) WPL 33001254 Contact Us For Availability
4
END CAP, CTRL. PNL. (LT-ALM) WPL 22001292 Contact Us For Availability
4
END CAP, CTRL. PNL. (RT-ALM) WPL 22001293 Contact Us For Availability
4
CAP, END (RT-ALM) WPL 22001566 Contact Us For Availability
4
CAP, END (LT-ALM) WPL 22001567 Contact Us For Availability
4
BRACKET, THERMAL FUSE WPL 315346 Contact Us For Availability
4
STRAP, GROUND WPL Y312184 Contact Us For Availability
5
FASTENER, END CAP WPL 214894 Contact Us For Availability
5
SEAL, DOOR WPL 33001131 Contact Us For Availability
5
BLOCK, TERMINAL WPL 400008 Contact Us For Availability
6
SCREW WPL 214354 Contact Us For Availability
6
PLUG, SIGHT HOLE (ALM) WPL 33001168 Contact Us For Availability
6
PANEL, CONTROL (ALM) WPL 33001460 Contact Us For Availability
6
BRACKET, TERMINAL BLOCK WPL Y312904 Contact Us For Availability
7
SKIRT, TIMER DIAL (ALM) WPL 33001372 Contact Us For Availability
7
INSULATOR, TERMINAL WPL 314998 Contact Us For Availability
8
KNOB ASSY. (ALM) WPL 33001282 Contact Us For Availability
9
FASTENER,CNTRL PNL TO CONSOLE WPL 215075 Contact Us For Availability
9
SHIELD, RADIANT WPL 314999 Contact Us For Availability
10
CAP, KNOB (ALM) WPL 216424 Contact Us For Availability
10
SCREW WPL 314554 Contact Us For Availability
11
BAFFLE (SHORT) WPL 33001012 Contact Us For Availability
11
BUTTON, PUSH-TO-START (ALM) WPL 33001450 Contact Us For Availability
11
SEAL, FRONT PANEL WPL 314937 Contact Us For Availability
12
WASHER WPL 314158 Contact Us For Availability
12
PAD, CONTROL PANEL WPL 214897 Contact Us For Availability
12
CONVERSION KIT (240V TO 208V) WPL Y308590 Contact Us For Availability
12
HEATER SUB-ASSEMBLY (208V) WPL Y308613 Contact Us For Availability
12
SCREW, PLASTIC WPL 33001172 Contact Us For Availability
12
NUT, SPEED WPL 33001173 Contact Us For Availability
13
DRYER TUMBLER, W/O BAFFLES WPL 33001108 Contact Us For Availability
13
PANEL, FRONT (ALM) WPL 33001258 Contact Us For Availability
13
COVER, BLOWER HOUSING WPL 314846 Contact Us For Availability
14
SCREW WPL Y310759 Contact Us For Availability
14
TIMER WPL 33001035 Contact Us For Availability
14
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
15
BACK, TUMBLER (W/SEAL) WPL 33001178 Contact Us For Availability
15
GRND.WIRE,SUPP.PLTE TO TOP CVR WPL 204807 Contact Us For Availability
15
COVER, HINGE HOLE (ALM) WPL 33001176 Contact Us For Availability
16
COVER, THREAD WPL 313915 Contact Us For Availability
16
CLIP, DOOR LINER TO OUTER PNL WPL Y313910 Contact Us For Availability
17
SCREW & FSTNER ASSY(FRT.PANEL) WPL 204439 Contact Us For Availability
18
BUZZER WPL Y308205 Contact Us For Availability
18
DOOR, INNER (W/SEAL) WPL 33001243 Contact Us For Availability
18
SWITCH, MOTOR START-PROD. WPL 306207 Contact Us For Availability
18
SWITCH, MOTOR WPL Y303877 Contact Us For Availability
18
SWITCH, MOTOR START-PROD. WPL Y303879 Contact Us For Availability
18
COVER, ACCESS WPL Y312951 Contact Us For Availability
19
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
20
SWITCH, PUSH TO START WPL 33001232 Contact Us For Availability
20
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
21
WIRE HARNESS, MAIN WPL 33001337 Contact Us For Availability
21
HARNESS, WIRE WPL 33001533 Contact Us For Availability
21
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
22
BASE ASSY. WPL Y303361 Contact Us For Availability
22
SWITCH, ROCKER (ALM) WPL 22001282 Contact Us For Availability
22
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
23
SWITCH, TEMP. (3 POS.-ALM) WPL 33001454 Contact Us For Availability
24
CABINET (ALM) WPL 33001160 Contact Us For Availability
25
SCREW WPL Y310632 Contact Us For Availability
25
SCREW----NA WPL Y313561 Contact Us For Availability
25
DISPLAY, DRYNESS ASY. (ALM) WPL 33001045 Contact Us For Availability
28
SWITCH, PRESS CARE (ALM) WPL 33001455 Contact Us For Availability
29
HOLDER, LIGHT WPL 307097 Contact Us For Availability
29
RESISTOR (MED. TEMP) WPL 33001104 Contact Us For Availability
30
WIRE, GROUND WPL 901220 Contact Us For Availability
30
GUIDE, QUICK REF. - MAYTAG WPL 16000327 Contact Us For Availability
30
MANUAL, USE & CARE WPL 33001263 Contact Us For Availability
31
ENCLOSURE, LIGHT WPL 314955 Contact Us For Availability
31
SUPPORT, MOTOR WPL 312897 Contact Us For Availability
33
BASE WPL Y305084 Contact Us For Availability
34
SENSOR GROUND WIRE WPL Y303711 Contact Us For Availability
35
SENSOR ASSEMBLY (W/SCREWS) WPL Y303389 Contact Us For Availability
37
RECEPTACLE, SENSOR GROUND WIRE WPL Y312658 Contact Us For Availability
38
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
38
RACK, DRYING WPL Y308116 Contact Us For Availability
39
RETAINER, WIRE WPL 315471 Contact Us For Availability
40
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
42
COVER, THERMOSTAT WPL 315122 Contact Us For Availability
× ![]()
