Model Whirlpool LDE7334ACE ELECTRIC DRYER – Common Parts & Diagrams
07 - TUMBLER

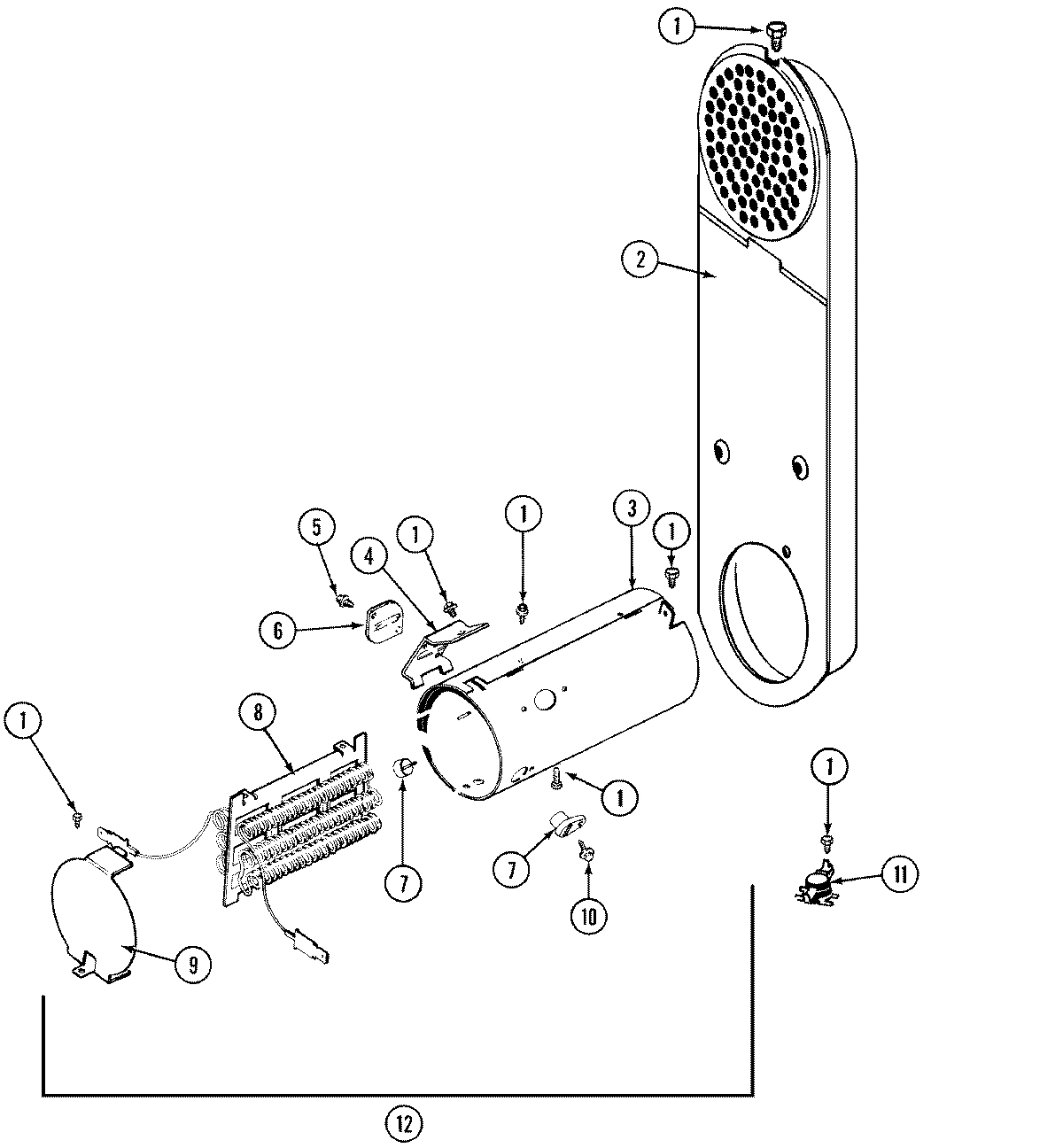

05 - HEATER

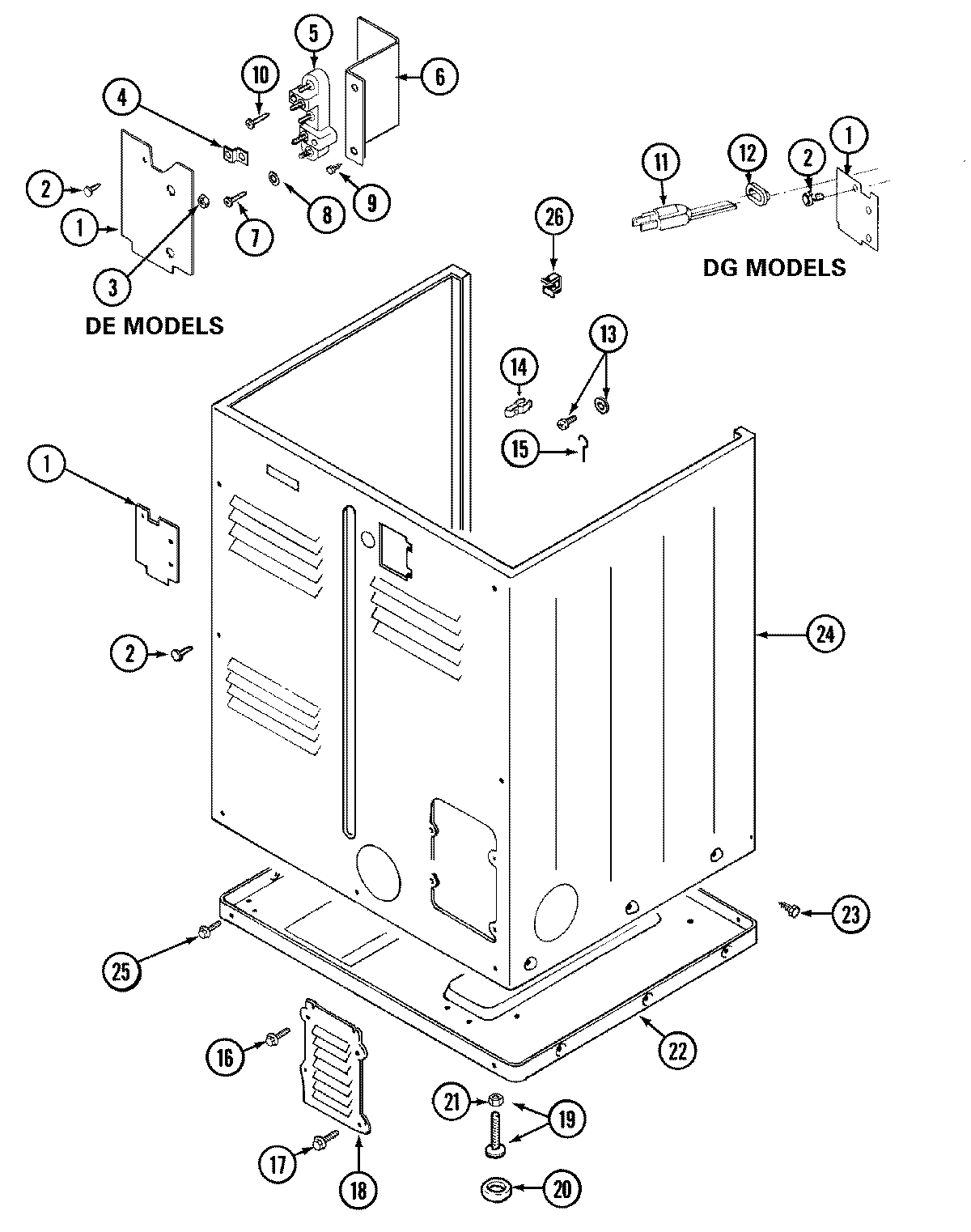

02 - CABINET-REAR
04 - DOOR

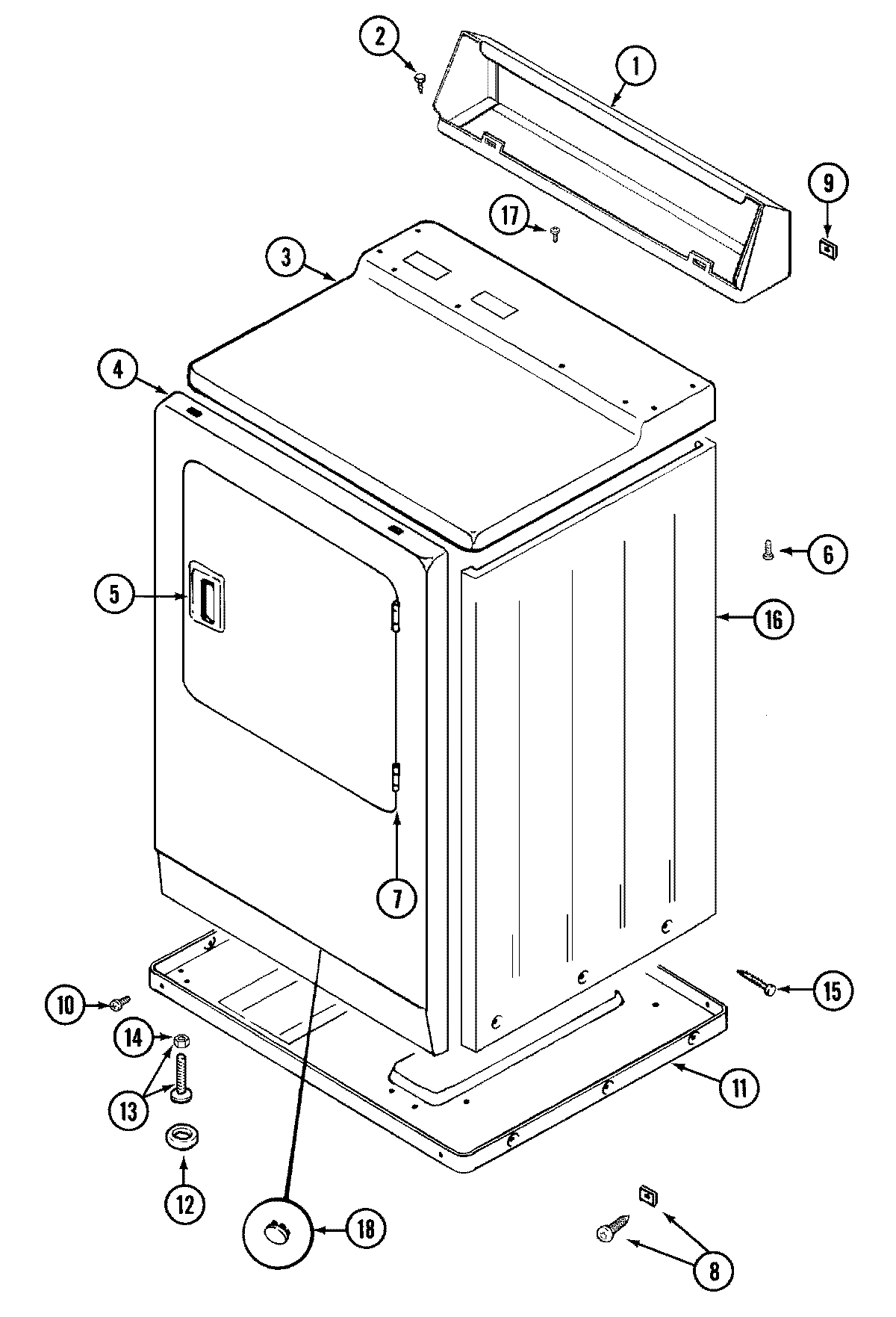

01 - CABINET-FRONT
06 - MOTOR DRIVE

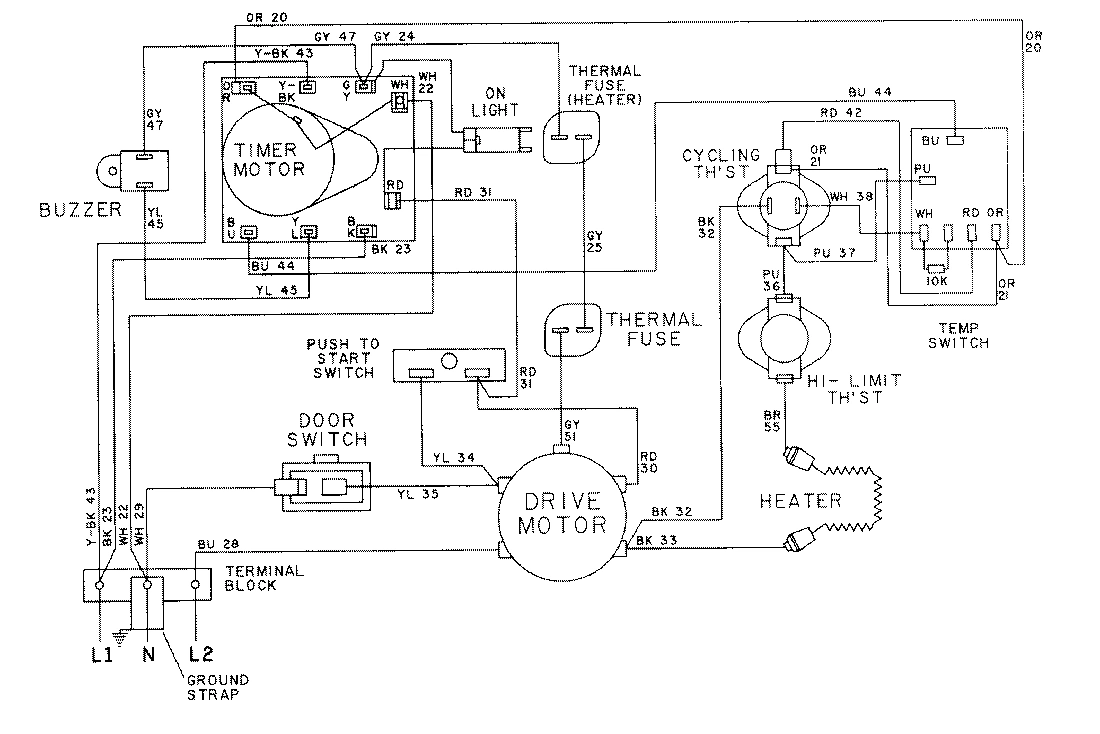

08 - WIRING INFORMATION-LDE7334ACx

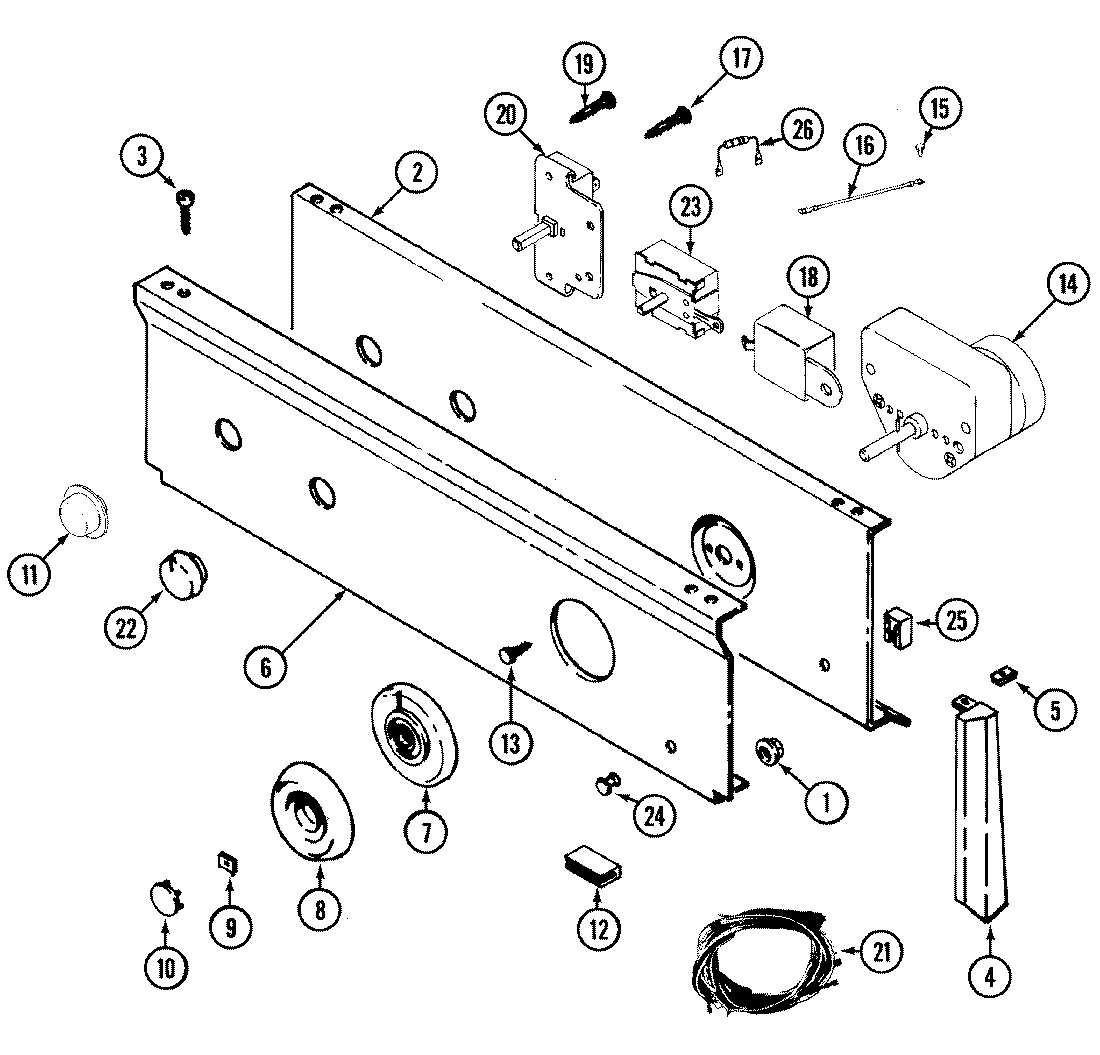

03 - CONTROL PANEL
Common parts from model Whirlpool LDE7334ACE ELECTRIC DRYER
1
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
1
COVER, TERMINAL WPL Y312905 Contact Us For Availability
1
SCREW WPL Y314062 Contact Us For Availability
1
CONSOLE (WHT) WPL Y305193 Contact Us For Availability
1
PALNUT, END CAP WPL 214872 Contact Us For Availability
2
INLET DUCT ASSY. WPL 308503 Contact Us For Availability
2
EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability
2
PLATE, SUPPORT WPL 33001237 Contact Us For Availability
3
HEATER ENCLOSURE WPL 314995 Contact Us For Availability
3
DOOR (WHT) WPL 33001240 Contact Us For Availability
3
COVER, TOP (WHT) WPL 33001165 Contact Us For Availability
3
SCREW, No.8 X 9/16 CTSK WPL 210932 Contact Us For Availability
4
HANDLE, DOOR (WHT) WPL 33001241 Contact Us For Availability
4
BRACKET, THERMAL FUSE WPL 315346 Contact Us For Availability
4
STRAP, GROUND WPL Y312184 Contact Us For Availability
4
PANEL, FRONT (WHT) WPL 33001242 Contact Us For Availability
4
END CAP, CTRL. PNL. (LT-WHT) WPL 22001289 Contact Us For Availability
4
END CAP, CTRL. PNL. (RT-WHT) WPL 22001291 Contact Us For Availability
4
CAP, END (RT-WHT) WPL 22001564 Contact Us For Availability
4
CAP, END (LT-WHT) WPL 22001565 Contact Us For Availability
5
BLOCK, TERMINAL WPL 400008 Contact Us For Availability
5
SEAL, DOOR WPL 33001131 Contact Us For Availability
5
FASTENER, END CAP WPL 214894 Contact Us For Availability
6
BRACKET, TERMINAL BLOCK WPL Y312904 Contact Us For Availability
6
SCREW WPL 214354 Contact Us For Availability
6
PANEL, CONTROL (WHT) WPL 33001076 Contact Us For Availability
7
INSULATOR, TERMINAL WPL 314998 Contact Us For Availability
7
SCREW----NA WPL Y313561 Contact Us For Availability
7
HINGE, DOOR WPL 33001230 Contact Us For Availability
7
SKIRT, TIMER DIAL (WHT) WPL 33001183 Contact Us For Availability
8
SCREW & FSTNER ASSY(FRT.PANEL) WPL 204439 Contact Us For Availability
8
KNOB, TIMER (WHT) WPL 33001255 Contact Us For Availability
9
SHIELD, RADIANT WPL 314999 Contact Us For Availability
9
FASTENER,CNTRL PNL TO CONSOLE WPL 215075 Contact Us For Availability
10
SCREW WPL 314554 Contact Us For Availability
10
CAP, TIMER KNOB (WHT) WPL 216250 Contact Us For Availability
11
BASE ASSY. WPL Y303361 Contact Us For Availability
11
SEAL, FRONT PANEL WPL 314937 Contact Us For Availability
11
BUTTON (WHT) WPL 33001185 Contact Us For Availability
12
WASHER WPL 314158 Contact Us For Availability
12
CONVERSION KIT (240V TO 208V) WPL Y308590 Contact Us For Availability
12
HEATER SUB-ASSEMBLY (208V) WPL Y308613 Contact Us For Availability
12
NUT, SPEED WPL 33001173 Contact Us For Availability
12
PAD, CONTROL PANEL WPL 214897 Contact Us For Availability
13
DRYER TUMBLER, W/O BAFFLES WPL 33001108 Contact Us For Availability
13
COVER, BLOWER HOUSING WPL 314846 Contact Us For Availability
14
SCREW WPL Y310759 Contact Us For Availability
14
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
15
BACK, TUMBLER (W/SEAL) WPL 33001178 Contact Us For Availability
15
COVER, HINGE HOLE (WHT) WPL 33001175 Contact Us For Availability
16
COVER, THREAD WPL 313915 Contact Us For Availability
16
GRND.WIRE,SUPP.PLTE TO TOP CVR WPL 204807 Contact Us For Availability
16
CABINET (WHT) WPL 33001159 Contact Us For Availability
16
CLIP, DOOR LINER TO OUTER PNL WPL Y313910 Contact Us For Availability
18
COVER, ACCESS WPL Y312951 Contact Us For Availability
18
PLUG, SIGHT HOLE (WHT) WPL 33001132 Contact Us For Availability
18
DOOR, INNER (W/SEAL) WPL 33001243 Contact Us For Availability
18
SWITCH, MOTOR START-PROD. WPL 306207 Contact Us For Availability
18
SWITCH, MOTOR WPL Y303877 Contact Us For Availability
18
SWITCH, MOTOR START-PROD. WPL Y303879 Contact Us For Availability
18
BUZZER WPL Y308205 Contact Us For Availability
20
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
20
SWITCH, PUSH TO START WPL 33001232 Contact Us For Availability
21
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
21
HARNESS, WIRE WPL 33001127 Contact Us For Availability
21
WIRE HARNESS, MAIN WPL 33001341 Contact Us For Availability
21
HARNESS, WIRE WPL 33001537 Contact Us For Availability
22
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
22
KNOB ASSY. (WHT) WPL 22001268 Contact Us For Availability
23
SWITCH, TEMP. (4 POSITIONS) WPL 33001226 Contact Us For Availability
25
LIGHT, INDICATOR WPL 33001224 Contact Us For Availability
26
RESISTOR (MED. TEMP) WPL 33001104 Contact Us For Availability
27
GUIDE, QUICK REF. - MAYTAG WPL 16000327 Contact Us For Availability
27
MANUAL, USE & CARE WPL 33001256 Contact Us For Availability
30
WIRE, GROUND WPL 901220 Contact Us For Availability
31
SUPPORT, MOTOR WPL 312897 Contact Us For Availability
33
BASE WPL Y305084 Contact Us For Availability
36
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
38
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
39
RETAINER, WIRE WPL 315471 Contact Us For Availability
40
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
42
COVER, THERMOSTAT WPL 315122 Contact Us For Availability
43
SCREW WPL Y310632 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001035 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001596 Contact Us For Availability
× ![]()
