Model Whirlpool LDE5916ACE ELECTRIC DRYER – Common Parts & Diagrams
02 - CABINET-REAR

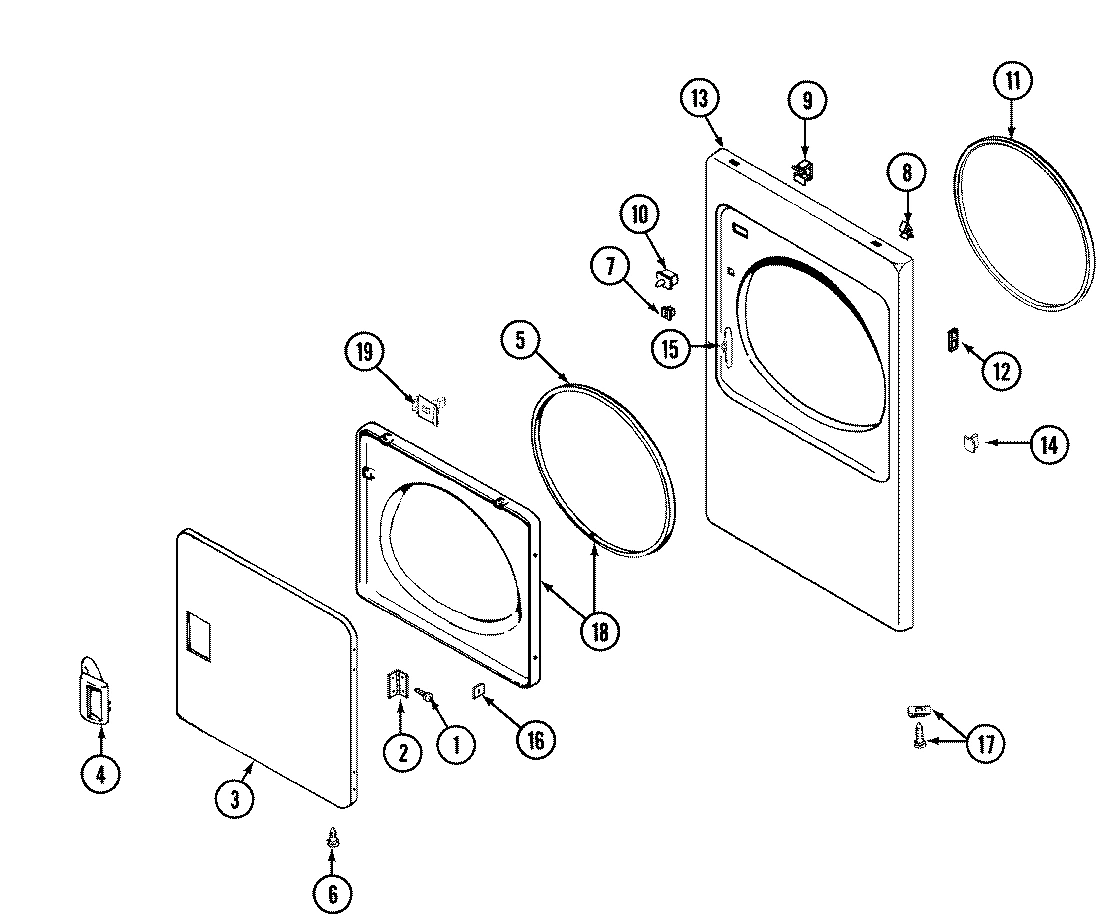

04 - DOOR
06 - HEATER

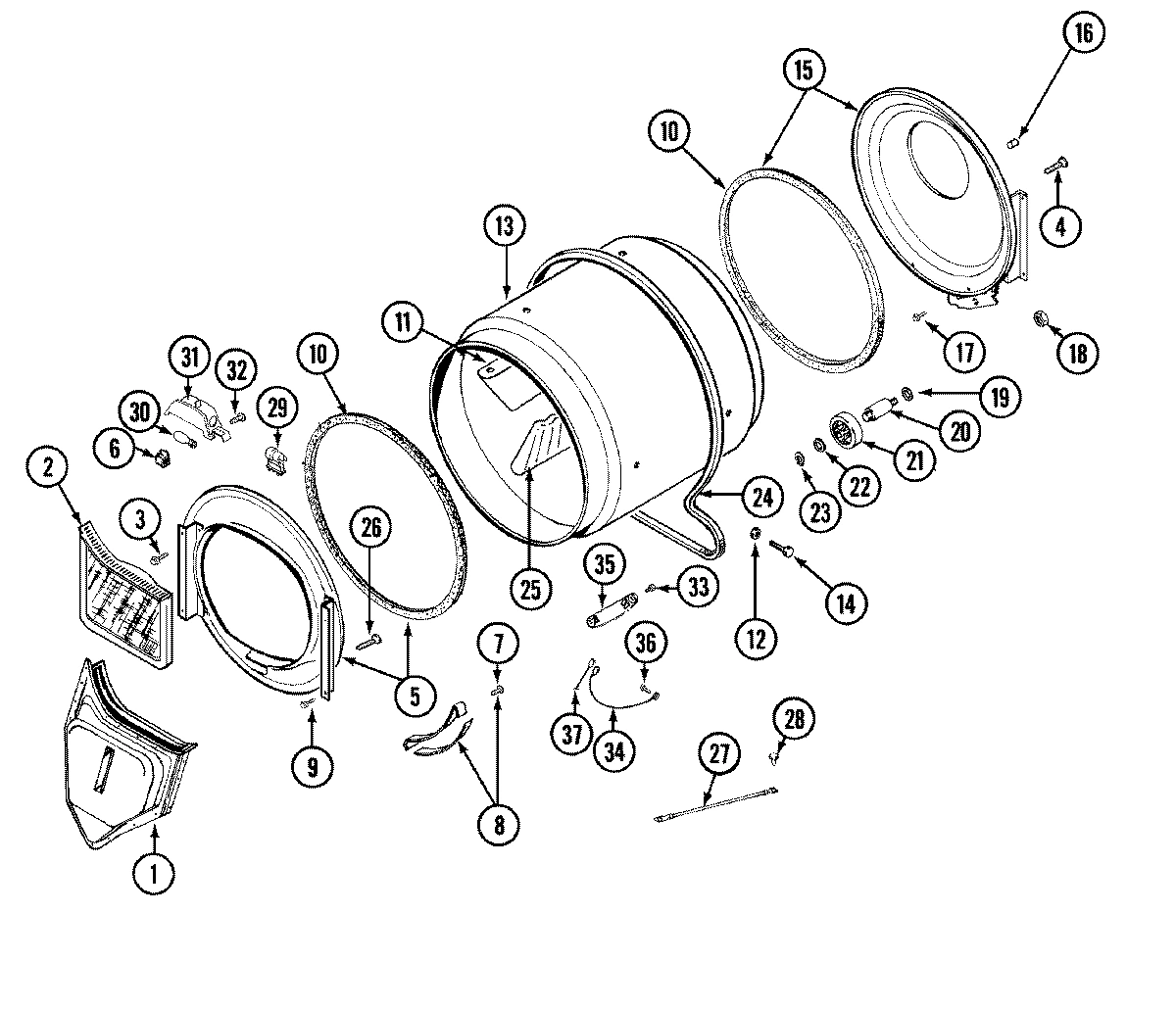

08 - TUMBLER

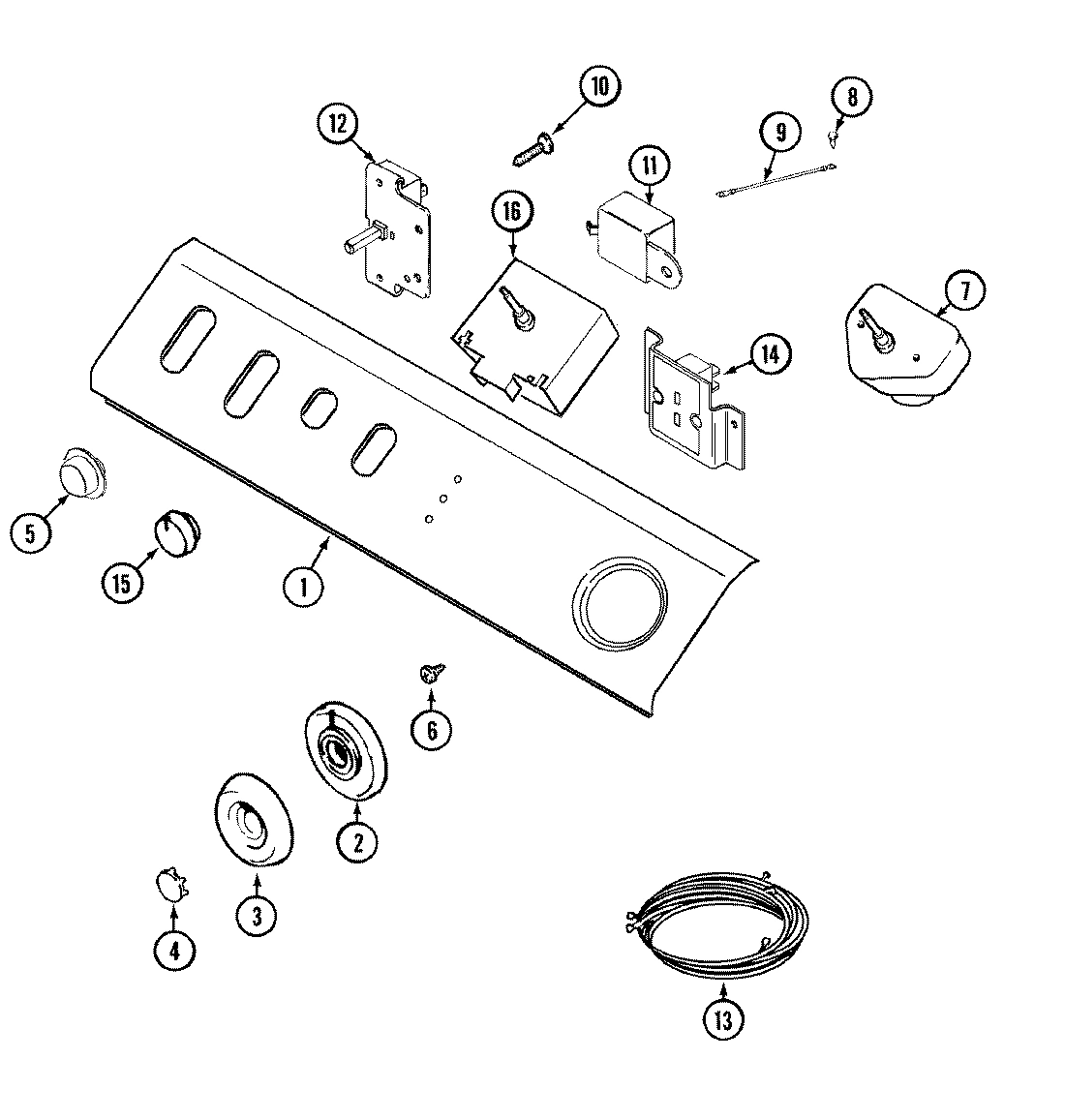

03 - CONTROL PANEL

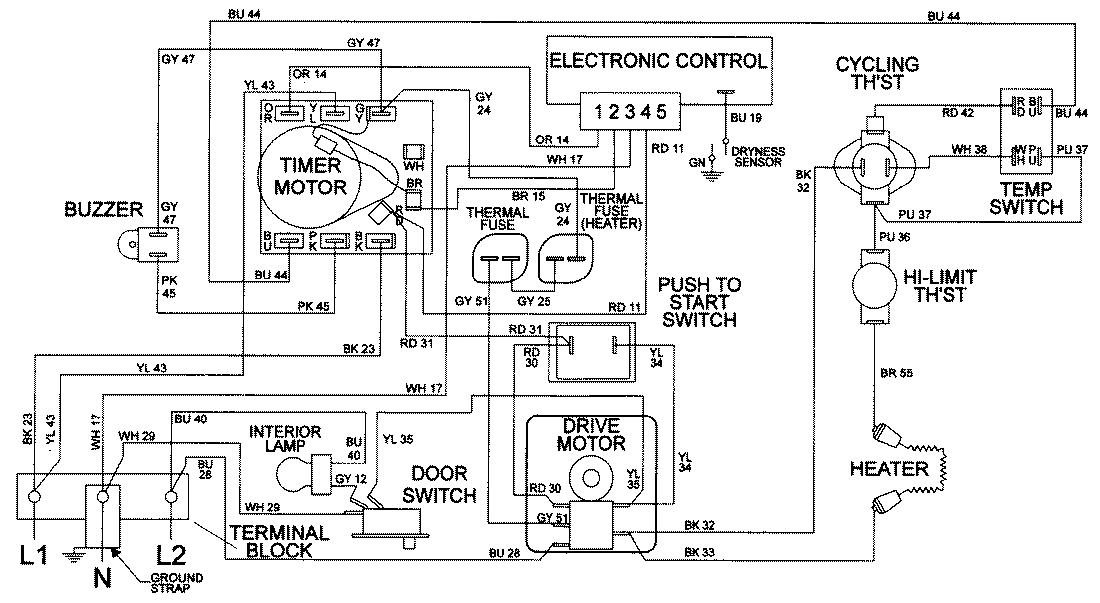

09 - WIRING INFORMATION

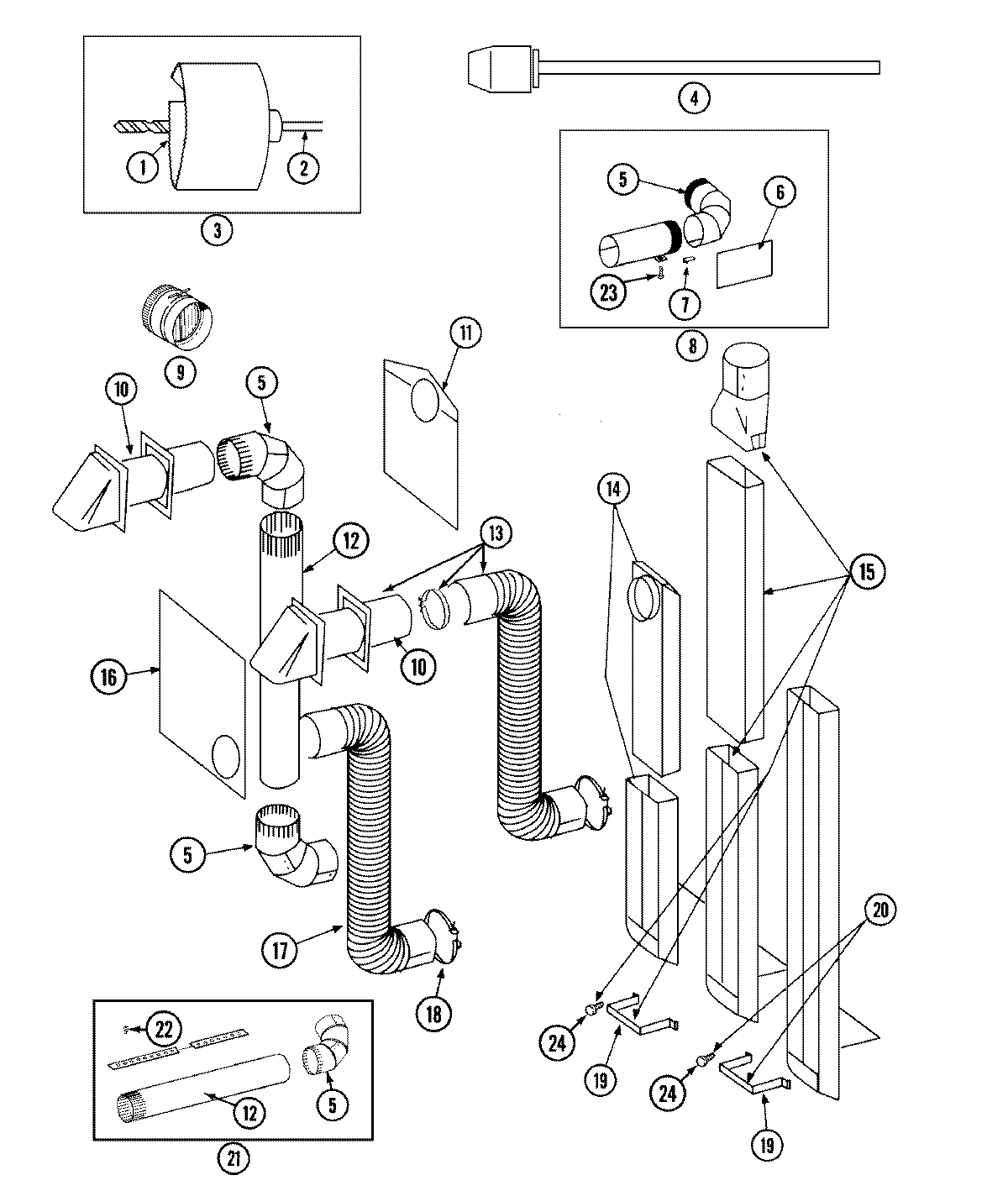

05 - DUCTING
07 - MOTOR DRIVE

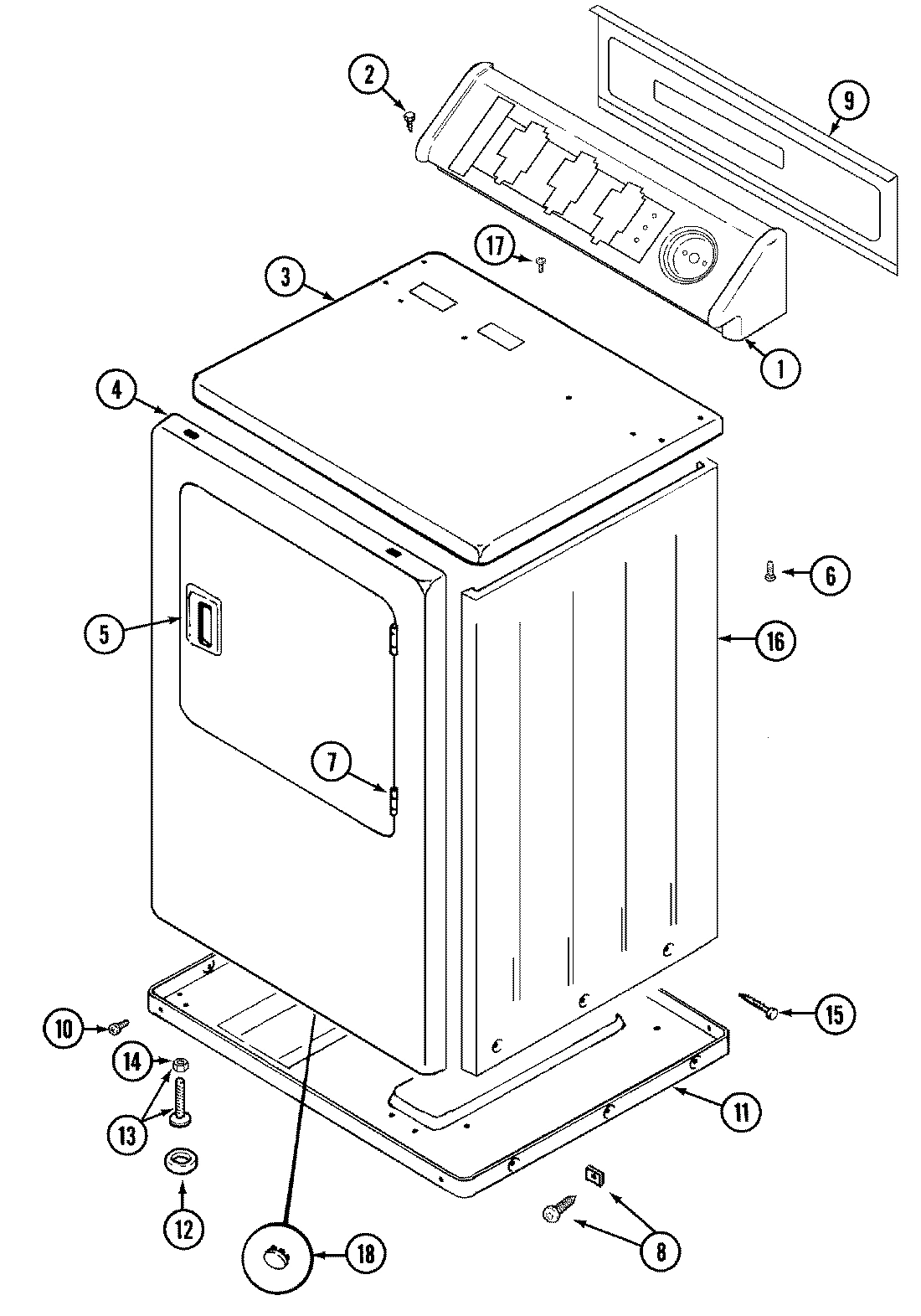

01 - CABINET-FRONT
Common parts from model Whirlpool LDE5916ACE ELECTRIC DRYER
1
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
1
SCREW WPL Y314062 Contact Us For Availability
1
DUCT ASSY., OUTLET WPL 33001016 Contact Us For Availability
1
PANEL, CONTROL (WHT) WPL 33001598 Contact Us For Availability
1
BLADE, SAW WPL 038179 Contact Us For Availability
1
CONSOLE (WHT) WPL 33001612 Contact Us For Availability
2
INLET DUCT ASSY. WPL 308503 Contact Us For Availability
2
FILTER, LINT WPL 33001171 Contact Us For Availability
2
REPLACEMENT DRILL WPL 038180 Contact Us For Availability
2
EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability
3
DOOR (WHT) WPL 33001240 Contact Us For Availability
3
HEATER ENCLOSURE WPL 314995 Contact Us For Availability
3
SCREW WPL 313764 Contact Us For Availability
3
HOLE SAW W/DRILL BIT WPL 038766 Contact Us For Availability
3
COVER, TOP (WHT) WPL 33001608 Contact Us For Availability
4
HANDLE, DOOR (WHT) WPL 33001241 Contact Us For Availability
4
PANEL, FRONT (WHT) WPL 33001610 Contact Us For Availability
4
BRACKET, THERMAL FUSE WPL 315346 Contact Us For Availability
4
EXTENSION CHUCK, DRILL WPL 038767 Contact Us For Availability
5
SEAL, DOOR WPL 33001131 Contact Us For Availability
5
FRONT ASSY., TUMBLER WPL 33001423 Contact Us For Availability
5
BUTTON, PUSH TO START (WHT) WPL 33001619 Contact Us For Availability
5
ELBOW, VENTING (4``) WPL Y059131 Contact Us For Availability
6
PLUG, SIGHT HOLE (WHT) WPL 33001132 Contact Us For Availability
6
INSULATION, EXHAUST DUCT KIT WPL 312302 Contact Us For Availability
6
SCREW WPL 214354 Contact Us For Availability
7
HINGE, DOOR WPL 33001230 Contact Us For Availability
7
INSULATOR, TERMINAL WPL 314998 Contact Us For Availability
7
TIMER WPL 33001634 Contact Us For Availability
7
FASTENER, EXHAUST DUCT KIT WPL 213323 Contact Us For Availability
8
SCREW & FASTENER KIT (WHT) WPL 12001341 Contact Us For Availability
8
HEATER SUB-ASSEMBLY (208V) WPL 307187 Contact Us For Availability
8
EXHAUST DUCT KIT WPL Y304652 Contact Us For Availability
9
SHIELD, RADIANT WPL 314999 Contact Us For Availability
9
WIRE, GROUND WPL 22001654 Contact Us For Availability
9
DAMPER, BACK DRAFT WPL 059146 Contact Us For Availability
9
PANEL, BACK----NA WPL 33001625 Contact Us For Availability
10
SCREW----NA WPL Y313561 Contact Us For Availability
10
SCREW WPL Y310632 Contact Us For Availability
10
SCREW WPL 314554 Contact Us For Availability
11
BASE ASSY. WPL Y303361 Contact Us For Availability
11
SEAL, FRONT PANEL WPL 314937 Contact Us For Availability
11
BAFFLE (SHORT) WPL 33001012 Contact Us For Availability
11
BUZZER, NON-ADJUSTABLE WPL 33001623 Contact Us For Availability
11
BAG, LINT (DACRON) WPL 311353 Contact Us For Availability
12
NUT, SPEED WPL 33001487 Contact Us For Availability
12
WASHER WPL 314158 Contact Us For Availability
12
SWITCH, PUSH TO START (WHT) WPL 33001726 Contact Us For Availability
12
PIPE, VENTING WPL Y059130 Contact Us For Availability
13
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
13
DRYER TUMBLER, W/O BAFFLES WPL 33001108 Contact Us For Availability
13
WIRE HARNESS, MAIN WPL 33001673 Contact Us For Availability
13
FLEXIBLE VENT KIT WPL Y059143 Contact Us For Availability
13
COVER, BLOWER HOUSING WPL 314846 Contact Us For Availability
14
SCREW WPL Y310759 Contact Us For Availability
14
CONVERSION KIT (240V TO 208V) WPL Y308590 Contact Us For Availability
14
DISPLAY, DRYNESS (WHT) WPL 33001661 Contact Us For Availability
14
VENT DUCT ASSY. WPL Y059135 Contact Us For Availability
14
SCREW WPL 314818 Contact Us For Availability
15
BACK, TUMBLER (W/SEAL) WPL 33001178 Contact Us For Availability
15
COVER, HINGE HOLE (WHT) WPL 33001175 Contact Us For Availability
15
RECTANGULAR VENT KIT WPL 059144 Contact Us For Availability
16
CABINET (WHT) WPL 33001159 Contact Us For Availability
16
CLIP, DOOR LINER TO OUTER PNL WPL Y313910 Contact Us For Availability
16
COVER, THREAD WPL 313915 Contact Us For Availability
16
PLATE, ALUM. WINDOW (15``X20``) WPL Y059134 Contact Us For Availability
18
DOOR, INNER (W/SEAL) WPL 33001243 Contact Us For Availability
18
CLAMP, FLEXIBLE DUCT WPL Y304630 Contact Us For Availability
18
SWITCH, MOTOR START-PROD. WPL 306207 Contact Us For Availability
18
SWITCH, MOTOR WPL Y303877 Contact Us For Availability
18
SWITCH, MOTOR START-PROD. WPL Y303879 Contact Us For Availability
18
PLUG, FRONT PANEL (WHT) WPL 33001614 Contact Us For Availability
19
BRACKET, EXHAUST DEFLECTOR WPL 313272 Contact Us For Availability
20
EXHAUST DEFLECTOR KIT WPL 303736 Contact Us For Availability
20
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
21
EXHAUST DEFLECTOR KIT WPL 306399 Contact Us For Availability
21
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
22
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
29
HOLDER, LIGHT WPL 307097 Contact Us For Availability
30
WIRE, GROUND WPL 901220 Contact Us For Availability
31
ENCLOSURE, LIGHT WPL 314955 Contact Us For Availability
31
SUPPORT, MOTOR WPL 312897 Contact Us For Availability
32
PALNUT, END CAP WPL 214872 Contact Us For Availability
33
BASE WPL Y305084 Contact Us For Availability
34
SENSOR GROUND WIRE WPL Y303711 Contact Us For Availability
35
SENSOR ASSEMBLY (W/SCREWS) WPL Y303389 Contact Us For Availability
37
RECEPTACLE, SENSOR GROUND WIRE WPL Y312658 Contact Us For Availability
38
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
39
RETAINER, WIRE WPL 315471 Contact Us For Availability
40
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
42
COVER, THERMOSTAT WPL 315122 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001944 Contact Us For Availability
× ![]()
