Model Whirlpool LDE27CD ELECTRIC DRYER – Common Parts & Diagrams

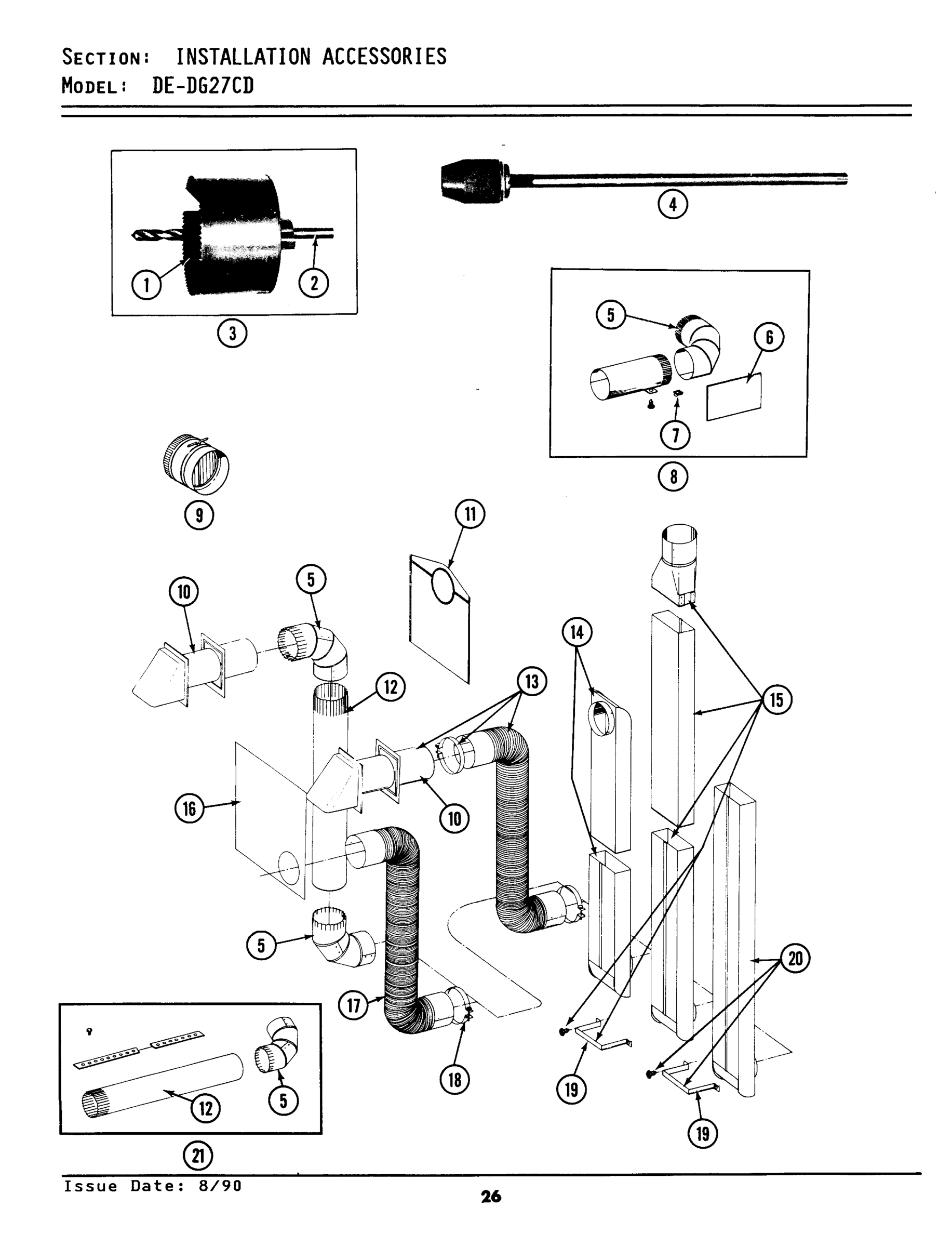

09 - INSTALLATION ACCESSORIES

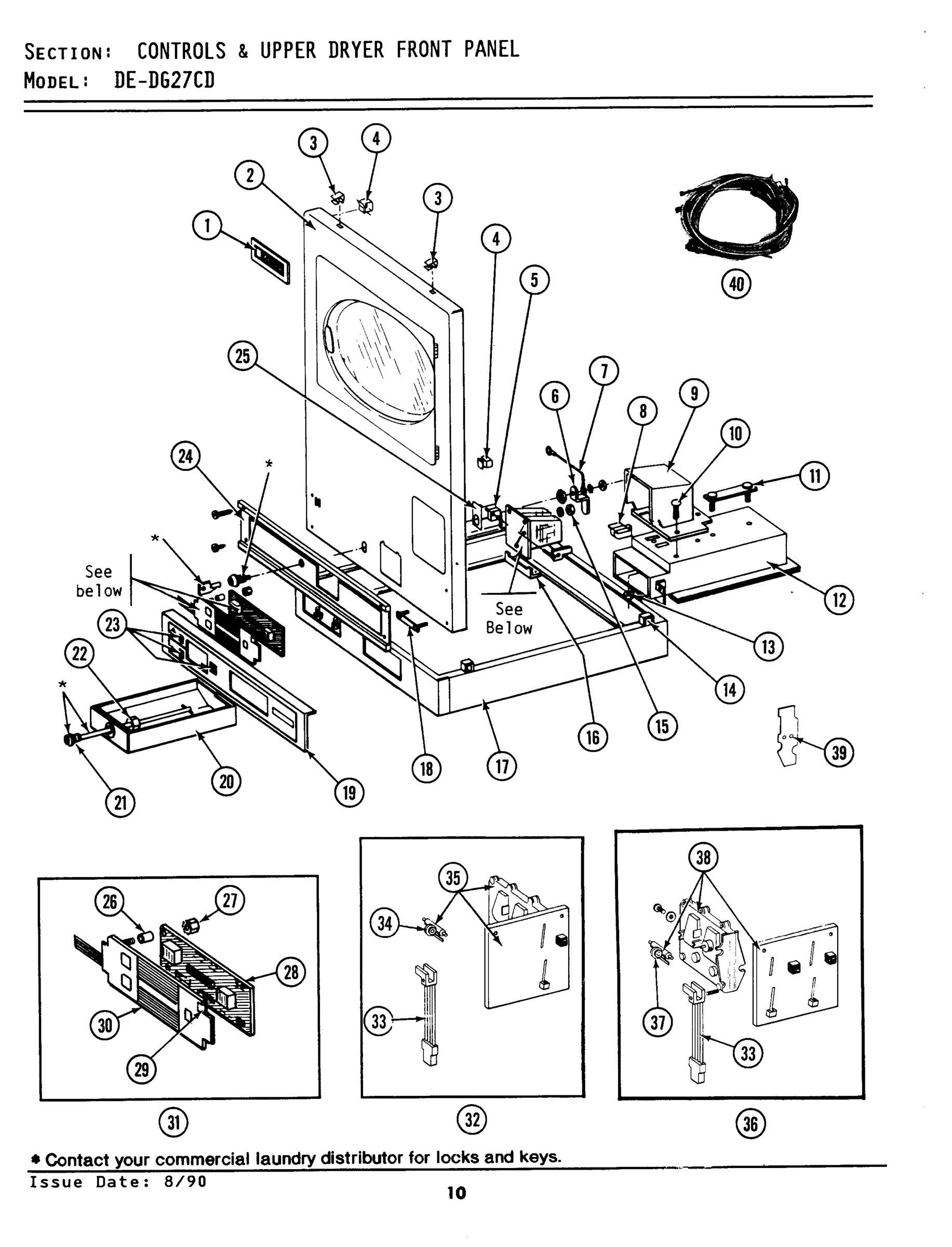

04 - CONTROLS & UPPER DRYER FRONT PANEL

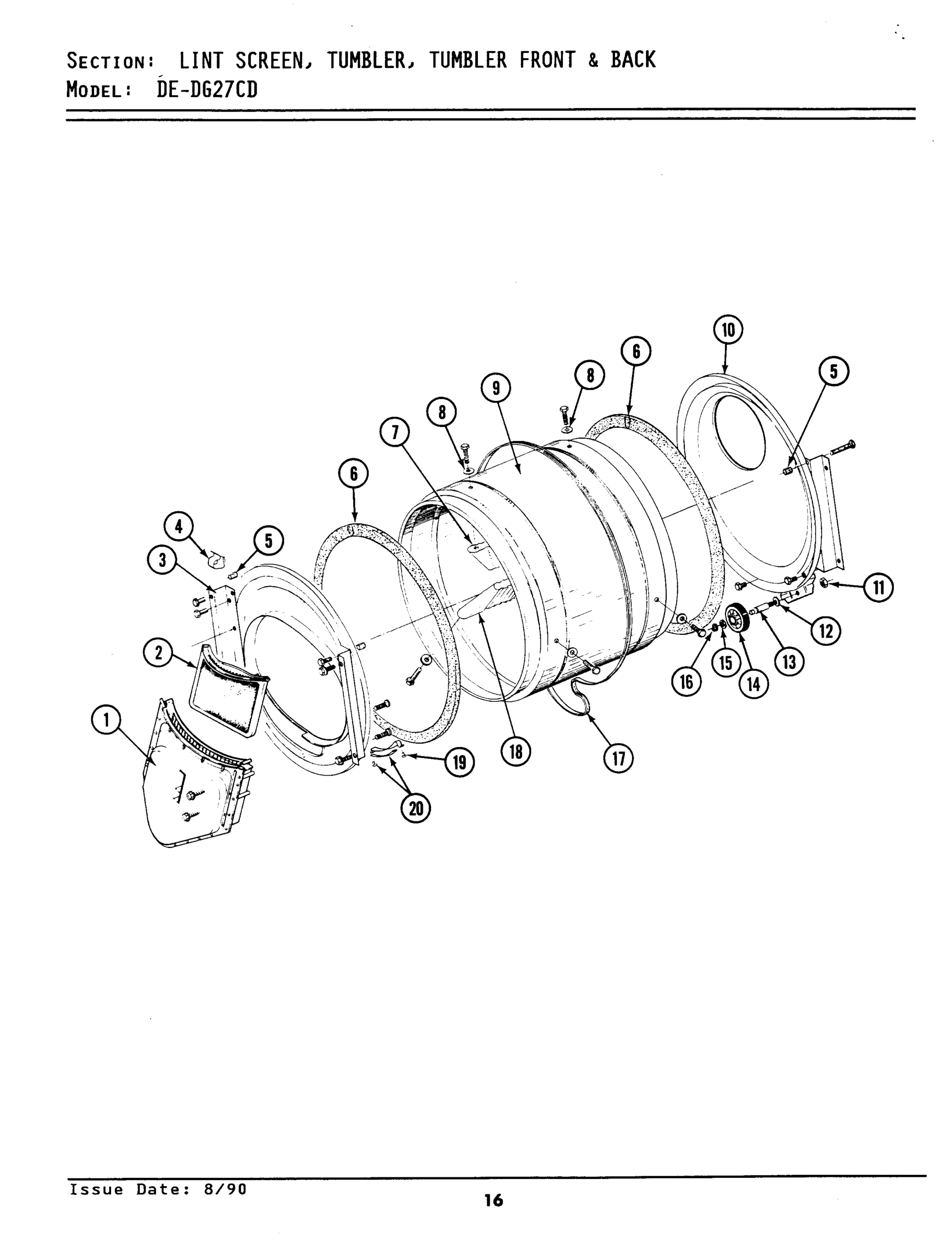

06 - LINT SCREEN, TUMBLER (FRONT & BACK)

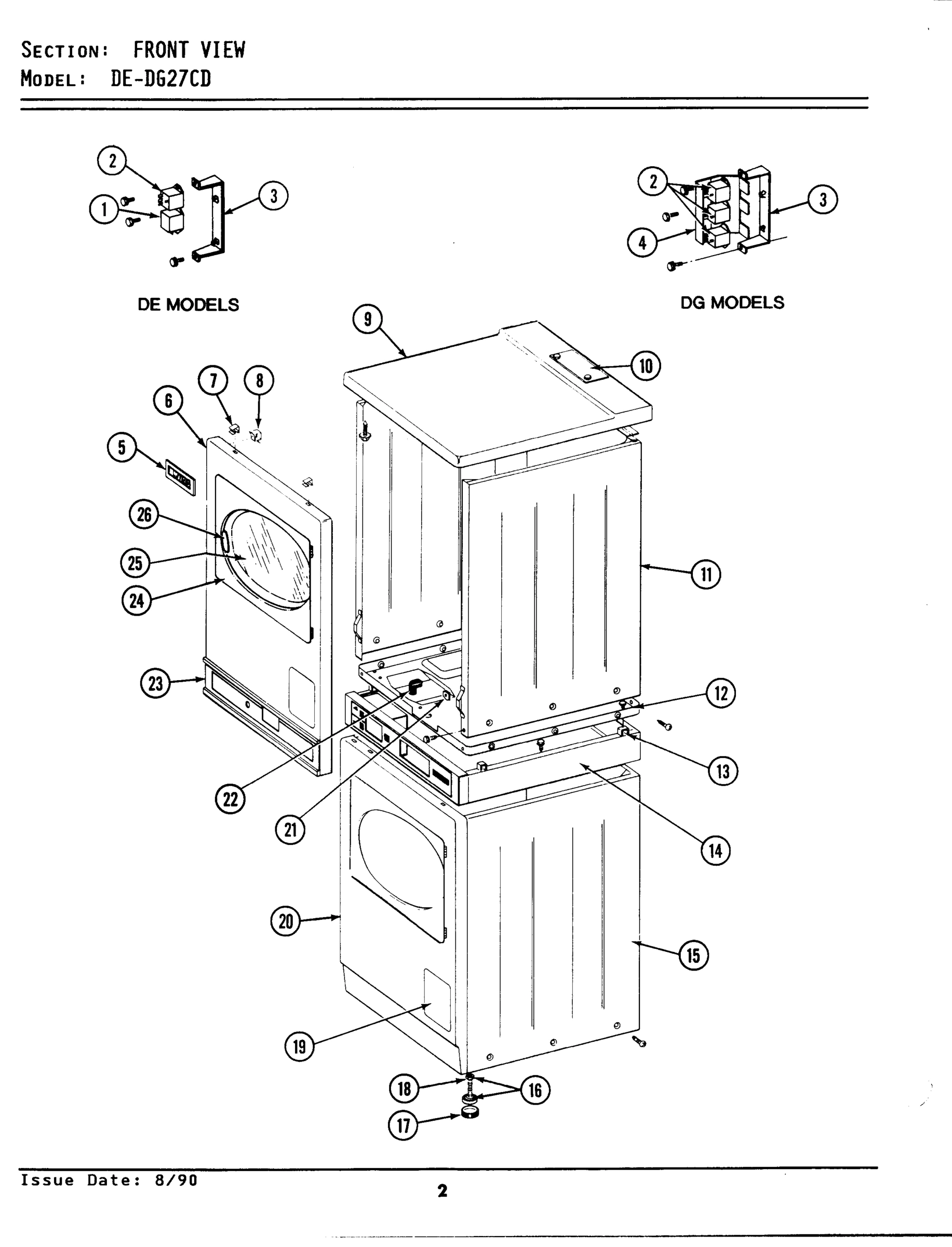

01 - FRONT VIEW

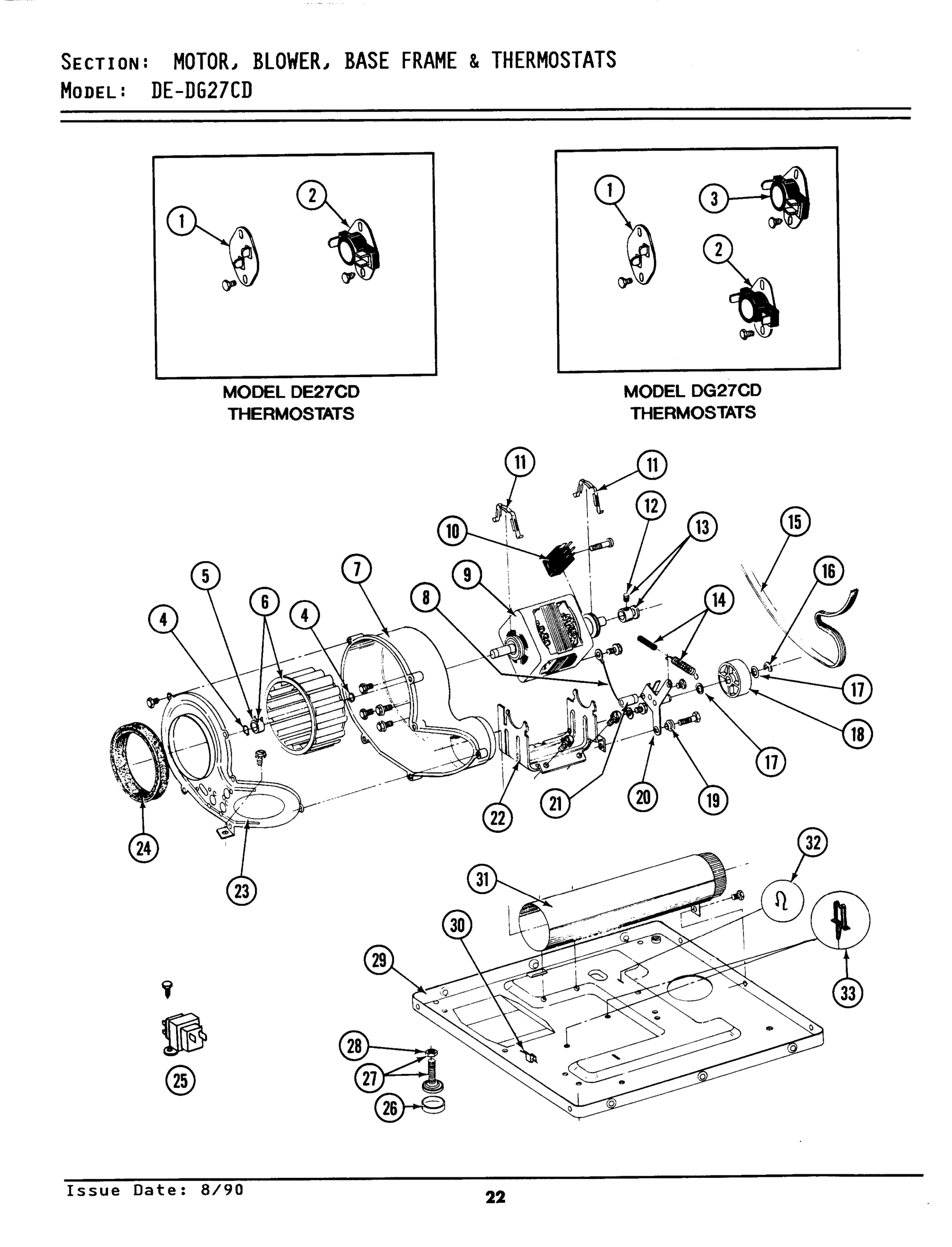

08 - MOTOR, BLOWER, BASE FRAME & THERMOSTATS

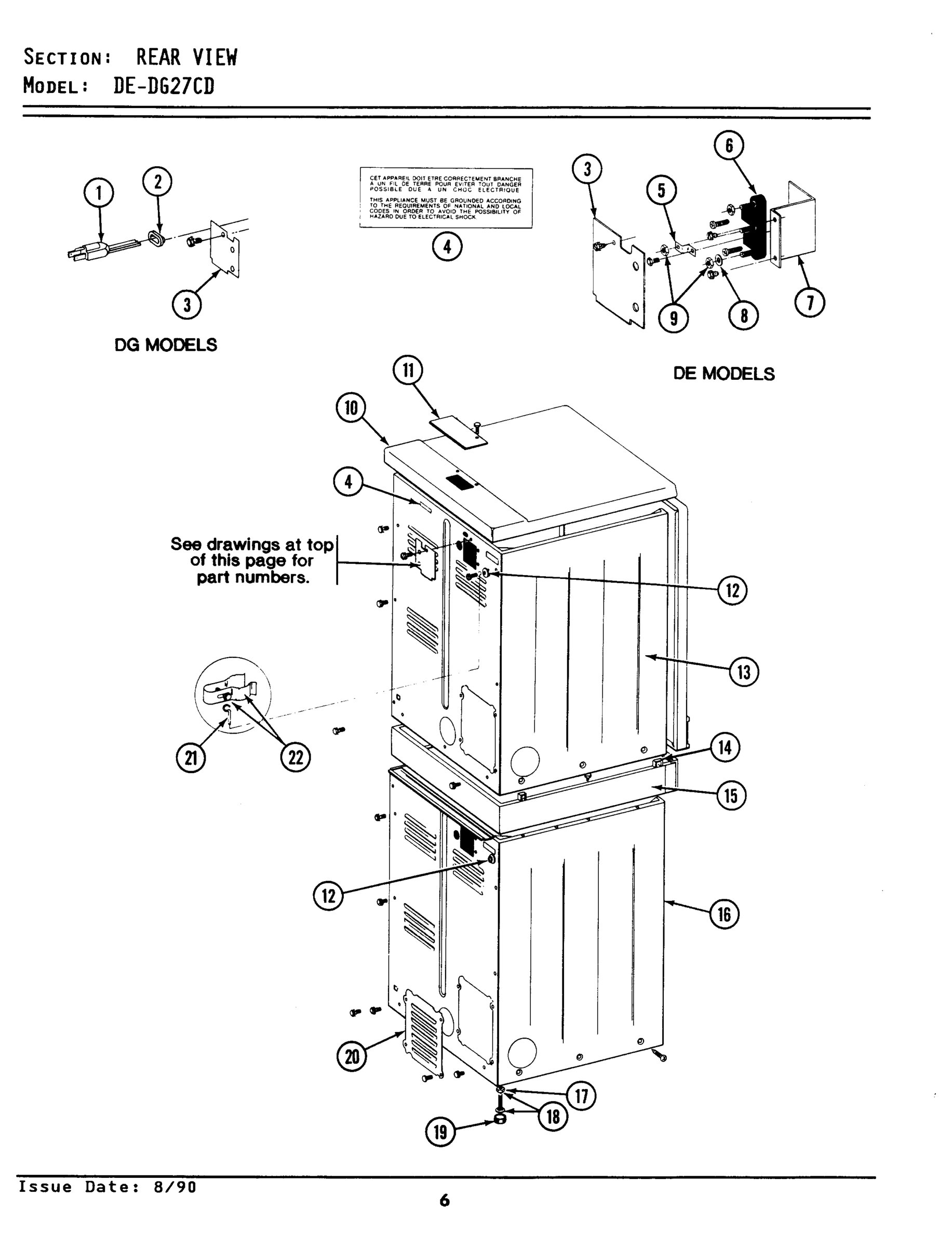

02 - REAR VIEW

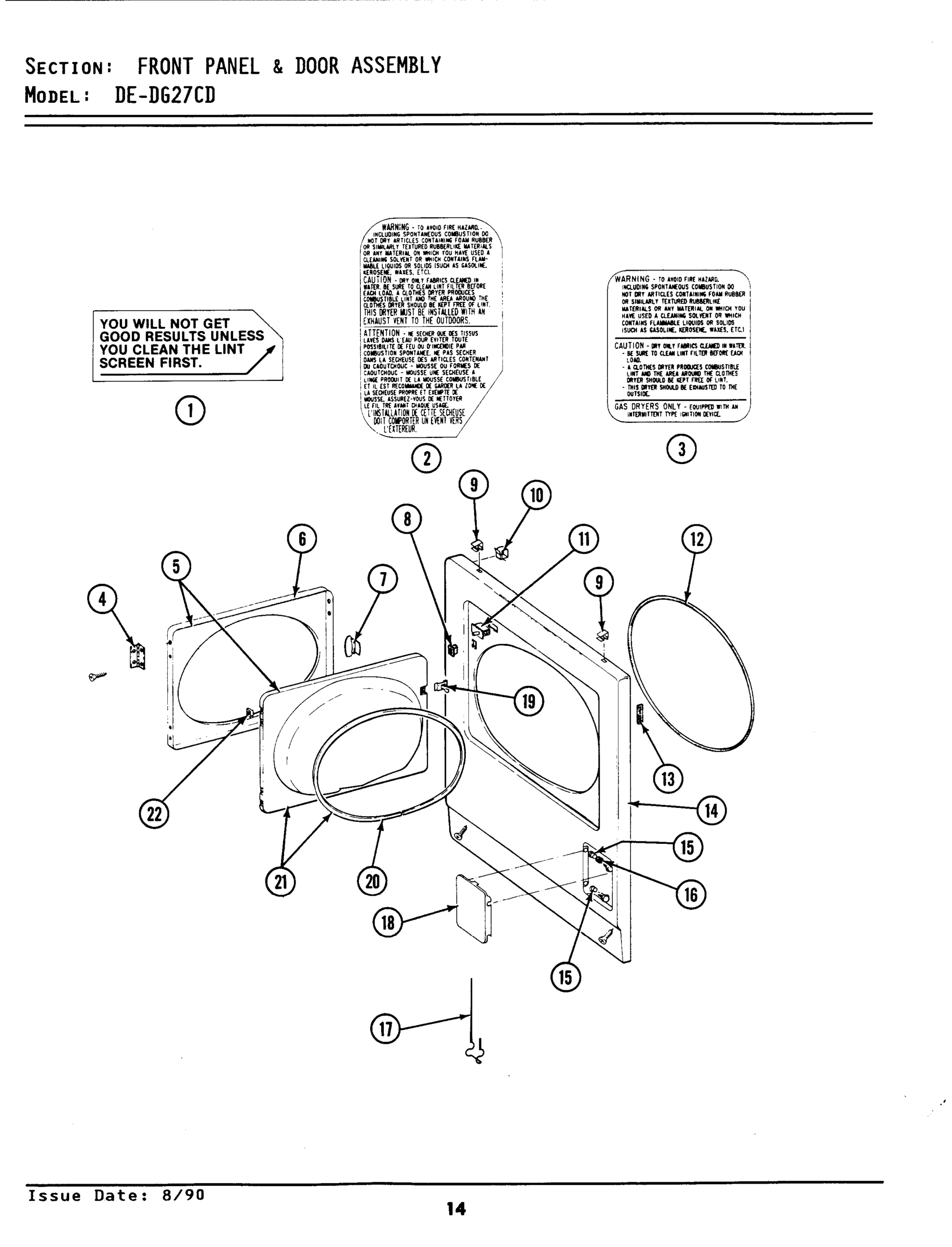

05 - FRONT PANEL & DOOR ASSEMBLY

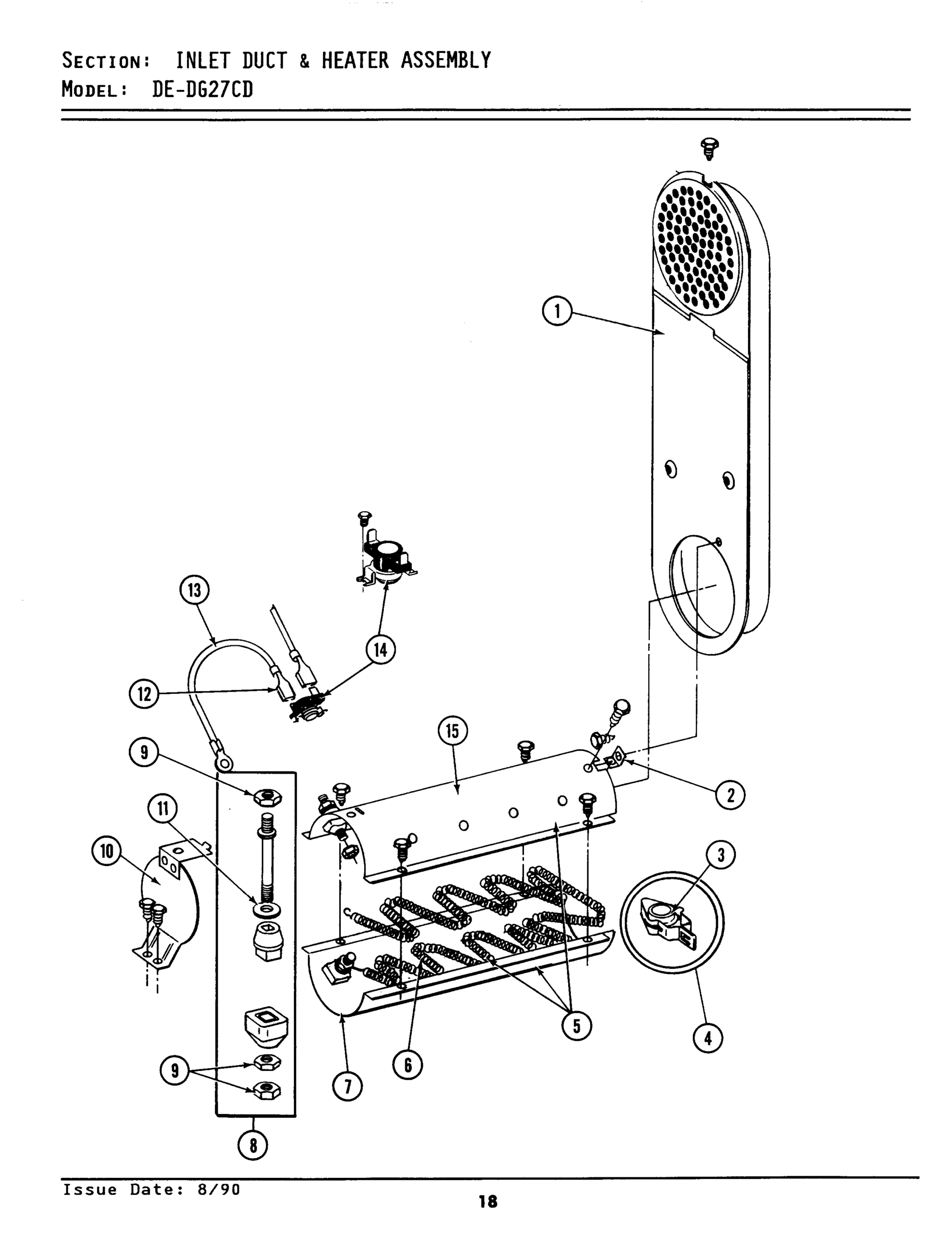

07 - INLET DUCT & HEATER ASSEMBLY

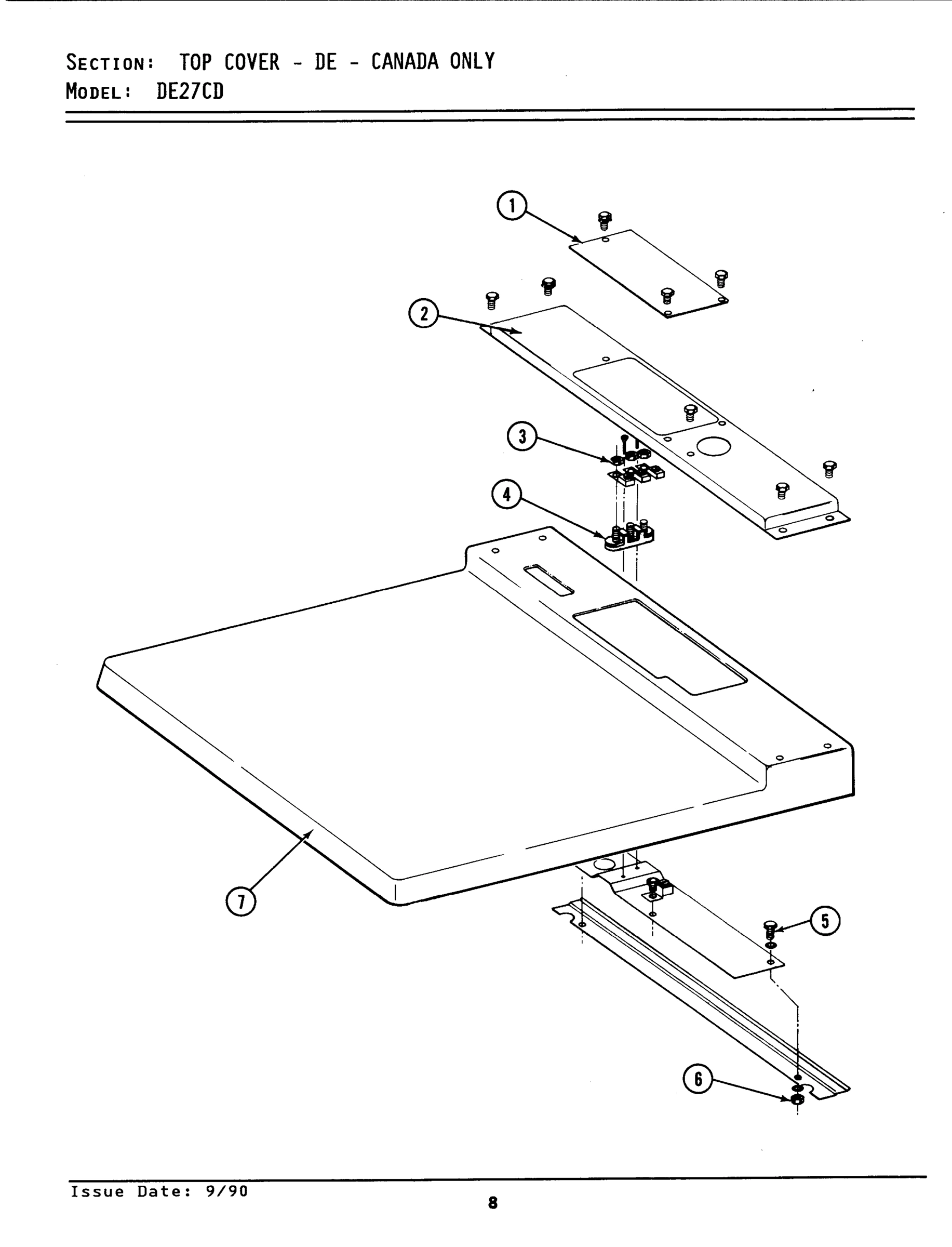

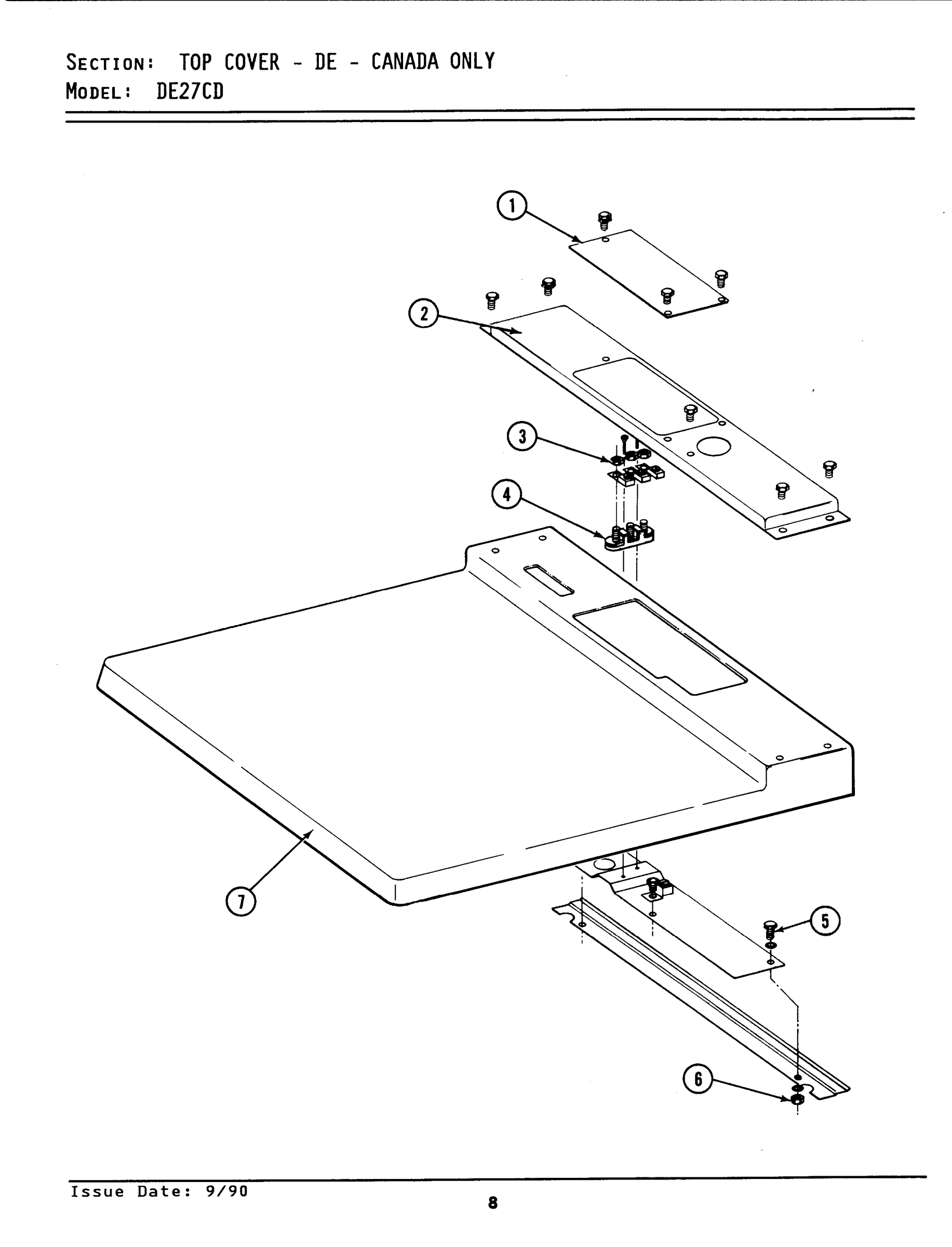

03 - TOP COVER-CANADA (DE)
Common parts from model Whirlpool LDE27CD ELECTRIC DRYER
001
DUCT, OUTLET ASSY. ----S WPL Y307112 Contact Us For Availability
001
RELAY - SPST HEATER WPL 306398 Contact Us For Availability
001
THERMISTOR TEMP CONTROL WPL 306056 Contact Us For Availability
001
PART NOT USED WPL 302521 Contact Us For Availability
001
LABEL, LINT SCREEN INSTR. WPL Y313340 Contact Us For Availability
001
TERMINAL COVER - CANADA WPL Y314174 Contact Us For Availability
002
SCREEN, LINT WPL 307108 Contact Us For Availability
002
RELAY (4 CONTACT) WPL 901961 Contact Us For Availability
002
PART NOT USED WPL 211881 Contact Us For Availability
002
LABEL, INSTRUCTION WPL 314941 Contact Us For Availability
002
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
003
FRONT, TUMBLER (W/SEAL) WPL 307109 Contact Us For Availability
003
RELAY BRACKET WPL 314627 Contact Us For Availability
003
COVER, TERMINAL WPL Y312905 Contact Us For Availability
003
INSULATOR, HEATER ELEMENT WPL Y313270 Contact Us For Availability
004
LABEL, ELECTRICAL INSTR. WPL 214519 Contact Us For Availability
004
BLOCK, TERMINAL WPL 400008 Contact Us For Availability
004
HINGE WPL 307099 Contact Us For Availability
004
SCREW WPL Y314062 Contact Us For Availability
005
ACCESS SWITCH SHIELD WPL 314979 Contact Us For Availability
005
SCREW WPL 912012 Contact Us For Availability
005
ACCESS SWITCH WPL Y306232 Contact Us For Availability
005
STRAP, GROUND WPL Y312184 Contact Us For Availability
005
HEATER ASSEMBLY COMPLETE WPL Y303778 Contact Us For Availability
005
HEATER ASSEMBLY COMPLETE WPL Y303856 Contact Us For Availability
006
LOCKING CAM WPL 314625 Contact Us For Availability
006
DOOR W/WINDOW OUTER HALF (WHT) WPL 314967 Contact Us For Availability
006
HEATER ELEMENT 240 VOLT WPL Y313537 Contact Us For Availability
007
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
007
TOP COVER (WHT) WPL NLA Contact Us For Availability
007
GROUND WIRE WPL Y306712 Contact Us For Availability
007
BAFFLE (SHORT) WPL 314803 Contact Us For Availability
007
HANDLE WPL 314939 Contact Us For Availability
007
HANDLE, DOOR (ALMOND) WPL 314974 Contact Us For Availability
007
HANDLE WPL 314975 Contact Us For Availability
007
BRACKET, TERMINAL BLOCK WPL Y312904 Contact Us For Availability
007
HEATER CHAMBER, BOTTOM WPL Y313576 Contact Us For Availability
008
COIN CHUTE WPL 314635 Contact Us For Availability
008
WASHER WPL 314158 Contact Us For Availability
008
WIRE, GROUND WPL 901220 Contact Us For Availability
009
TUMBLER W/OUT BAFFLES WPL 314802 Contact Us For Availability
010
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
010
CARRIAGE BOLT WPL 314654 Contact Us For Availability
010
BACK, TUMBLER (W/SEAL) ---S WPL Y307114 Contact Us For Availability
010
TOP COVER ASSY. (WHT) WPL 307104 Contact Us For Availability
010
SWITCH, MOTOR WPL Y303877 Contact Us For Availability
010
SWITCH, MOTOR START-PROD. WPL Y303879 Contact Us For Availability
010
HEATER SHIELD WPL 304124 Contact Us For Availability
011
SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability
012
LOCK WASHER WPL 910387 Contact Us For Availability
012
SCREW WPL 314663 Contact Us For Availability
012
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
012
SEAL, FRONT PANEL WPL 314937 Contact Us For Availability
013
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
013
TWIN FASTENER WPL Y313907 Contact Us For Availability
014
FASTENER WPL 310933 Contact Us For Availability
014
SCREW & FSTNER ASSY(FRT.PANEL) WPL 204439 Contact Us For Availability
014
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
014
PANEL, FRONT (WHITE) WPL Y308463 Contact Us For Availability
015
SCREW WPL Y310632 Contact Us For Availability
015
HEATER CHAMBER, TOP WPL Y313575 Contact Us For Availability
016
PLATE, ALUM. WINDOW (15``X20``) WPL Y059134 Contact Us For Availability
016
BRACKET WPL 314631 Contact Us For Availability
016
PART NOT USED WPL 312369 Contact Us For Availability
017
PART NOT USED WPL Y314025 Contact Us For Availability
018
SCREW WPL Y310759 Contact Us For Availability
018
CLAMP, FLEXIBLE DUCT WPL Y304630 Contact Us For Availability
018
COIN ACCEPTOR STRAP WPL 306233 Contact Us For Availability
020
SCREW----NA WPL Y313561 Contact Us For Availability
020
COIN TRAY (WHT) WPL 306219 Contact Us For Availability
020
COVER, ACCESS WPL Y312951 Contact Us For Availability
020
DOOR SEAL WPL 314935 Contact Us For Availability
021
ELBOW, VENTING (4``) WPL Y059131 Contact Us For Availability
021
PIPE, VENTING WPL Y059130 Contact Us For Availability
021
INNER DOOR WPL 308069 Contact Us For Availability
022
REINFORCING NUT, COIN BOX WPL 214104 Contact Us For Availability
022
STRAIN RELIEF WPL 314522 Contact Us For Availability
022
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
022
CLIP, DOOR LINER WPL Y313910 Contact Us For Availability
023
LENS WPL 314618 Contact Us For Availability
023
COVER, BLOWER HOUSING WPL Y313770 Contact Us For Availability
024
SCREW WPL 314666 Contact Us For Availability
025
ACCESS SWITCH BRACKET WPL 314634 Contact Us For Availability
025
TRANSFORMER WPL 306062 Contact Us For Availability
025
SHIELD, XFMER WPL 315218 Contact Us For Availability
026
CIRCUIT BOARD SPACER WPL 912075 Contact Us For Availability
029
CLIP,SPEED WPL 912086 Contact Us For Availability
029
BASE ASSEMBLY WPL 306261 Contact Us For Availability
029
BASE ASSY. WPL Y303361 Contact Us For Availability
030
TOUCH PAD ASSEMBLY WPL 306443 Contact Us For Availability
030
SCREW WPL 910186 Contact Us For Availability
031
EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability
032
COIN REJECTOR ASSY ----S WPL Y307749 Contact Us For Availability
032
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
033
COIN SENSOR SWITCH WPL Y306224 Contact Us For Availability
033
RETAINER, WIRE HARNESS WPL Y313262 Contact Us For Availability
035
COIN REJECTOR WPL Y307390 Contact Us For Availability
037
BALANCE ARM W/WEIGHT-$.10 WPL 314713 Contact Us For Availability
038
REJECTOR ASSY (10 CTS-CANADA) WPL Y307401 Contact Us For Availability
039
COIN SLOT COVER WPL 314710 Contact Us For Availability
040
WIRE HARNESS (UPR-DE) WPL 307423 Contact Us For Availability
042
TAPERED BEAM CONTACT USAGE VARIES BETWEEN HAR WPL 314652 Contact Us For Availability
× ![]()
