Model Whirlpool KTRS22MAAL10 – Common Parts & Diagrams

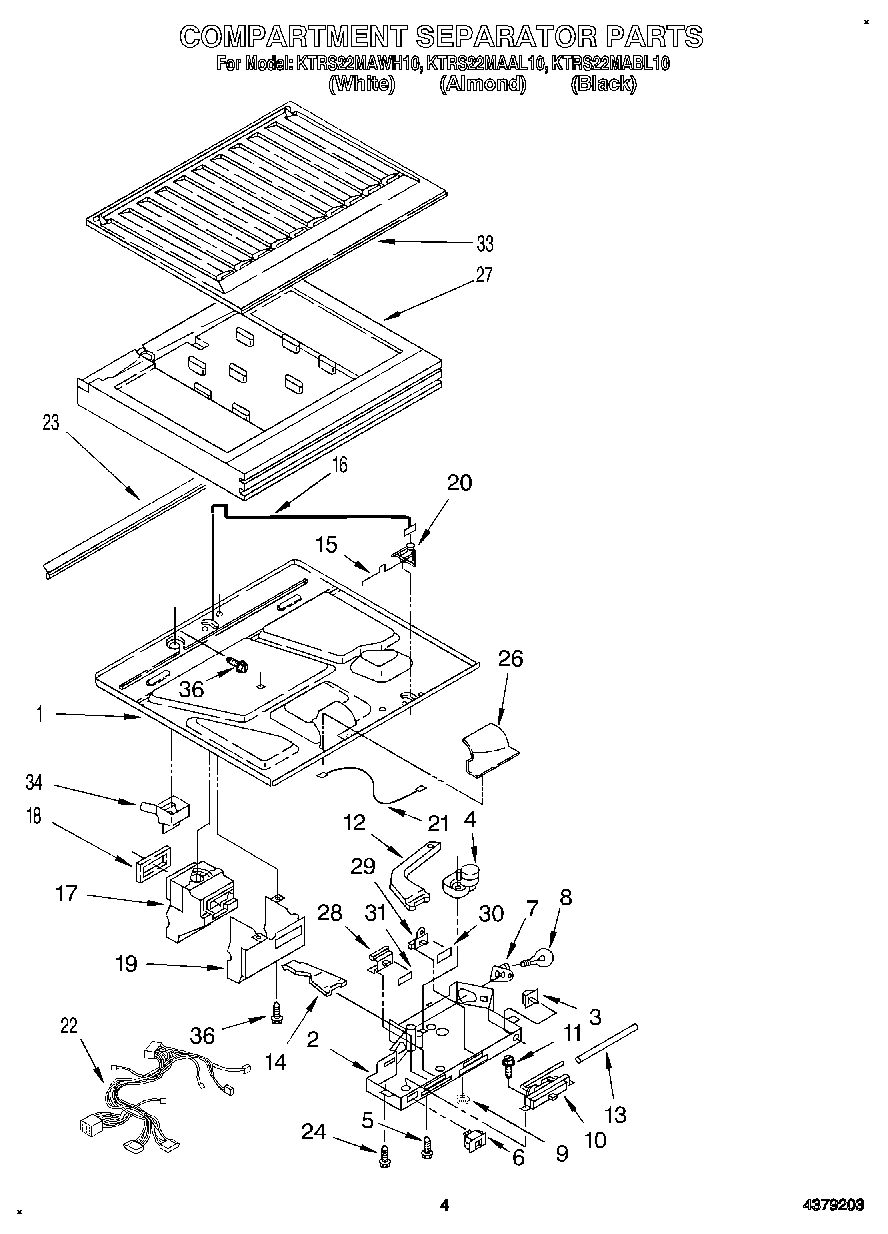

03 - COMPARTMENT SEPARATOR

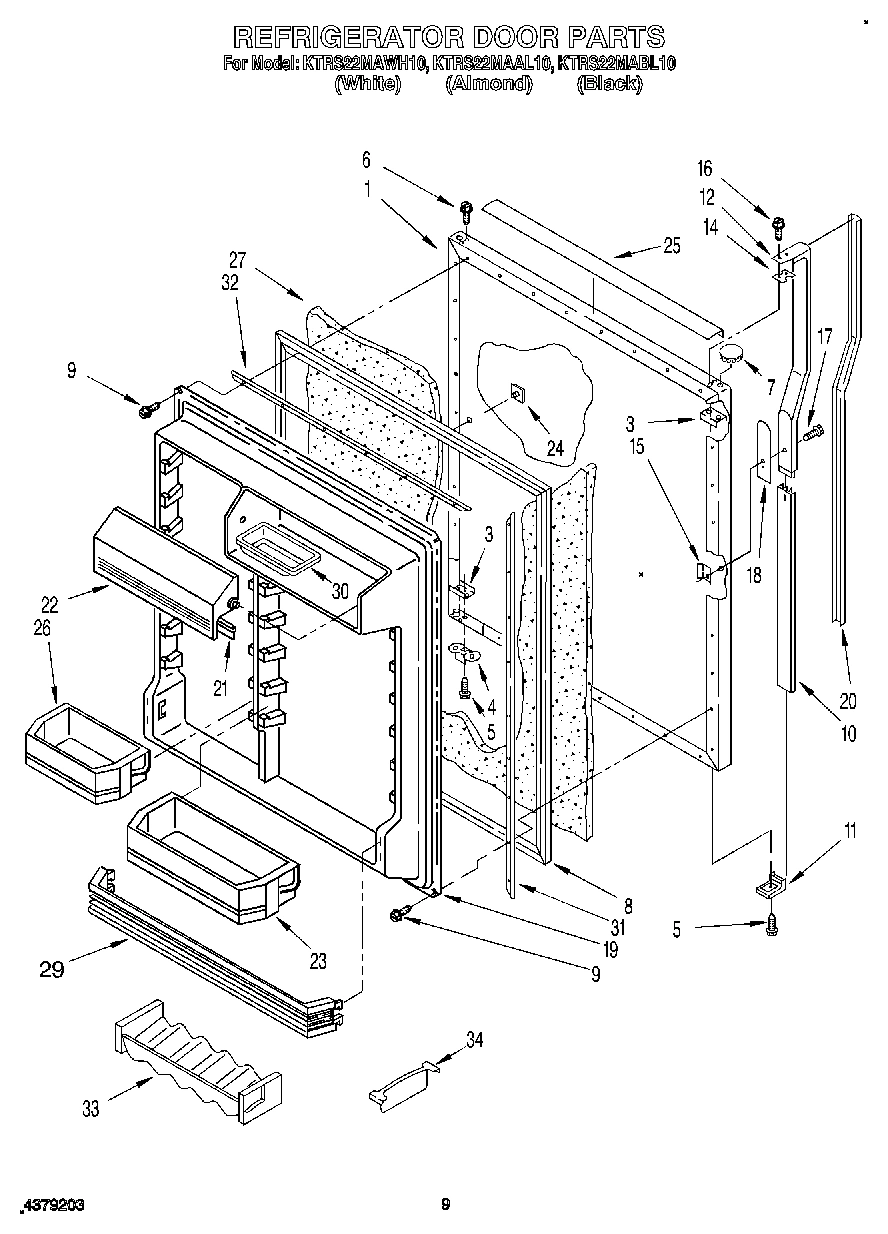

06 - REFRIGERATOR DOOR

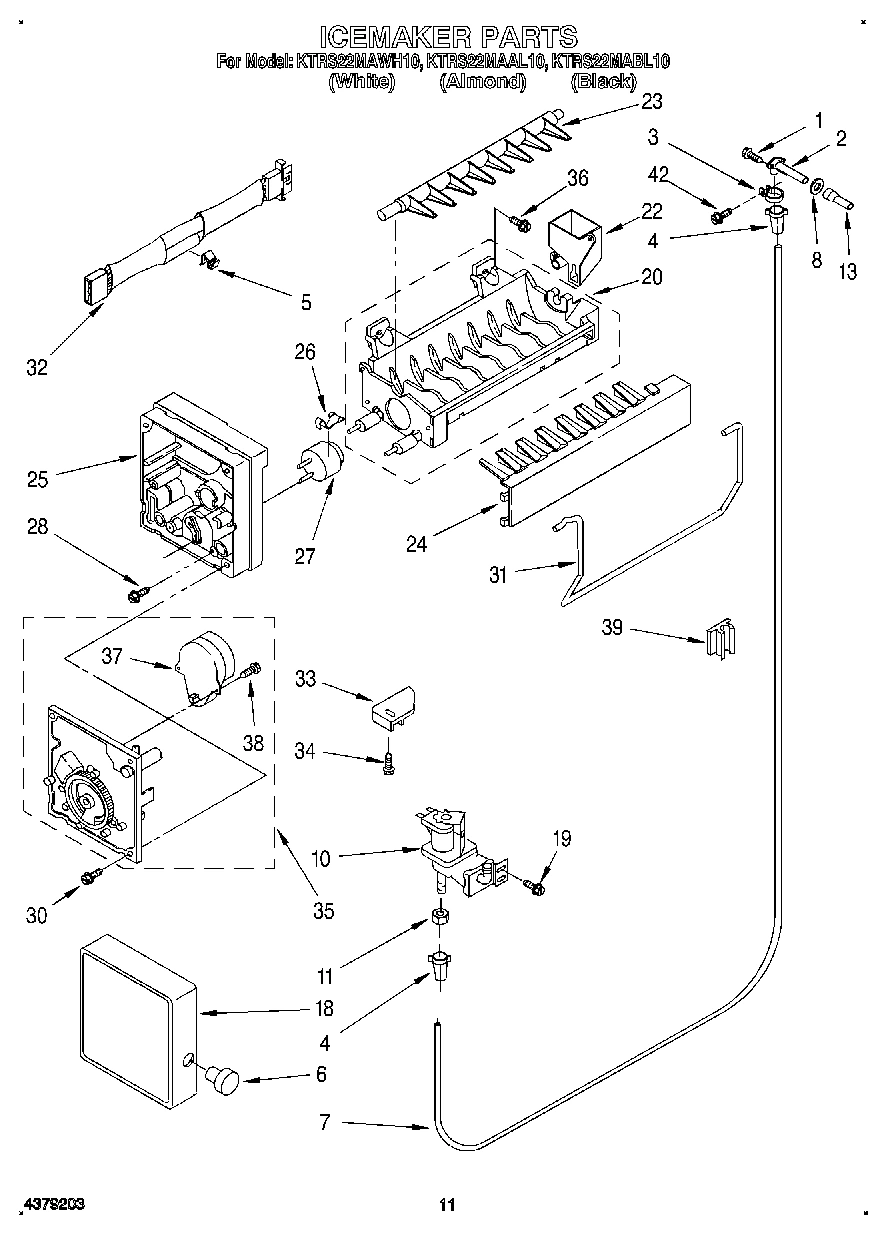

07 - ICEMAKER

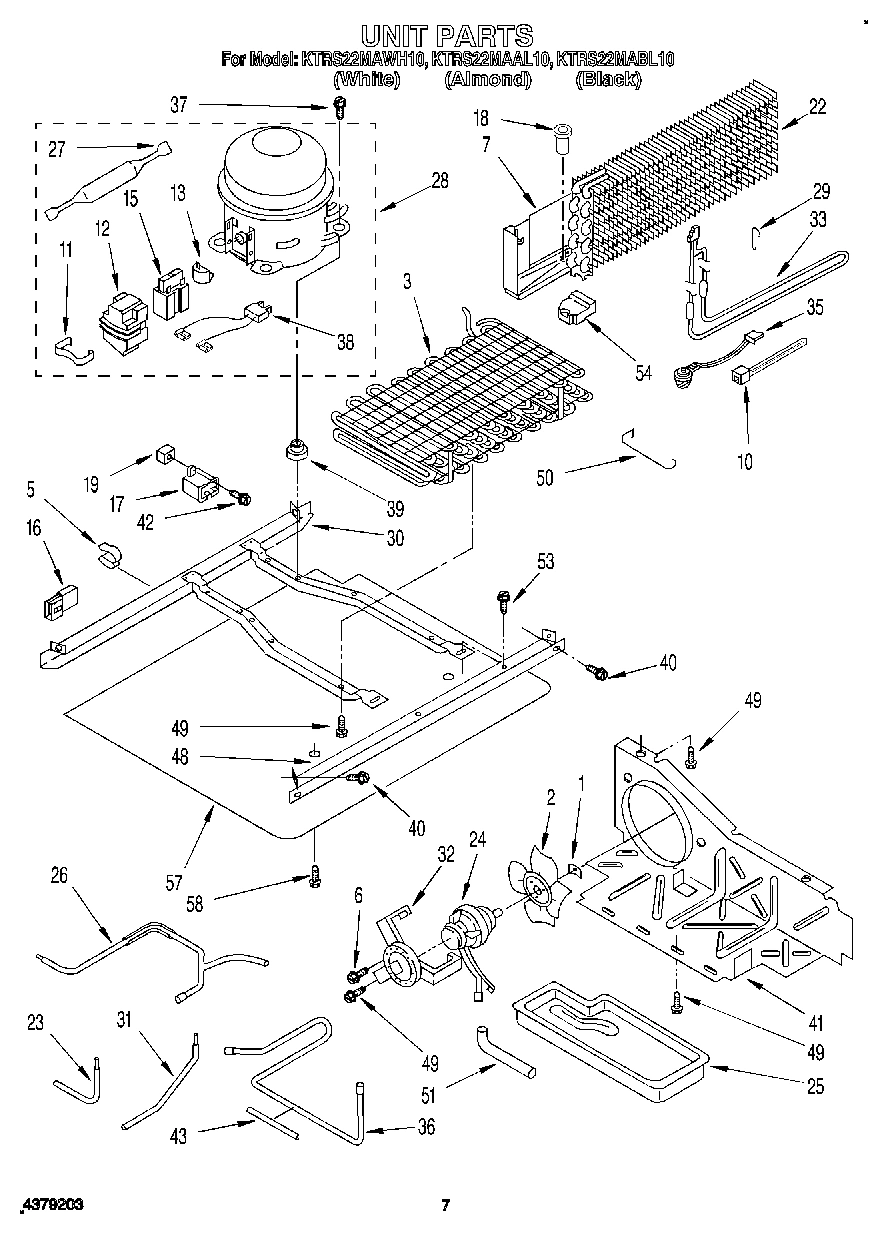

05 - UNIT

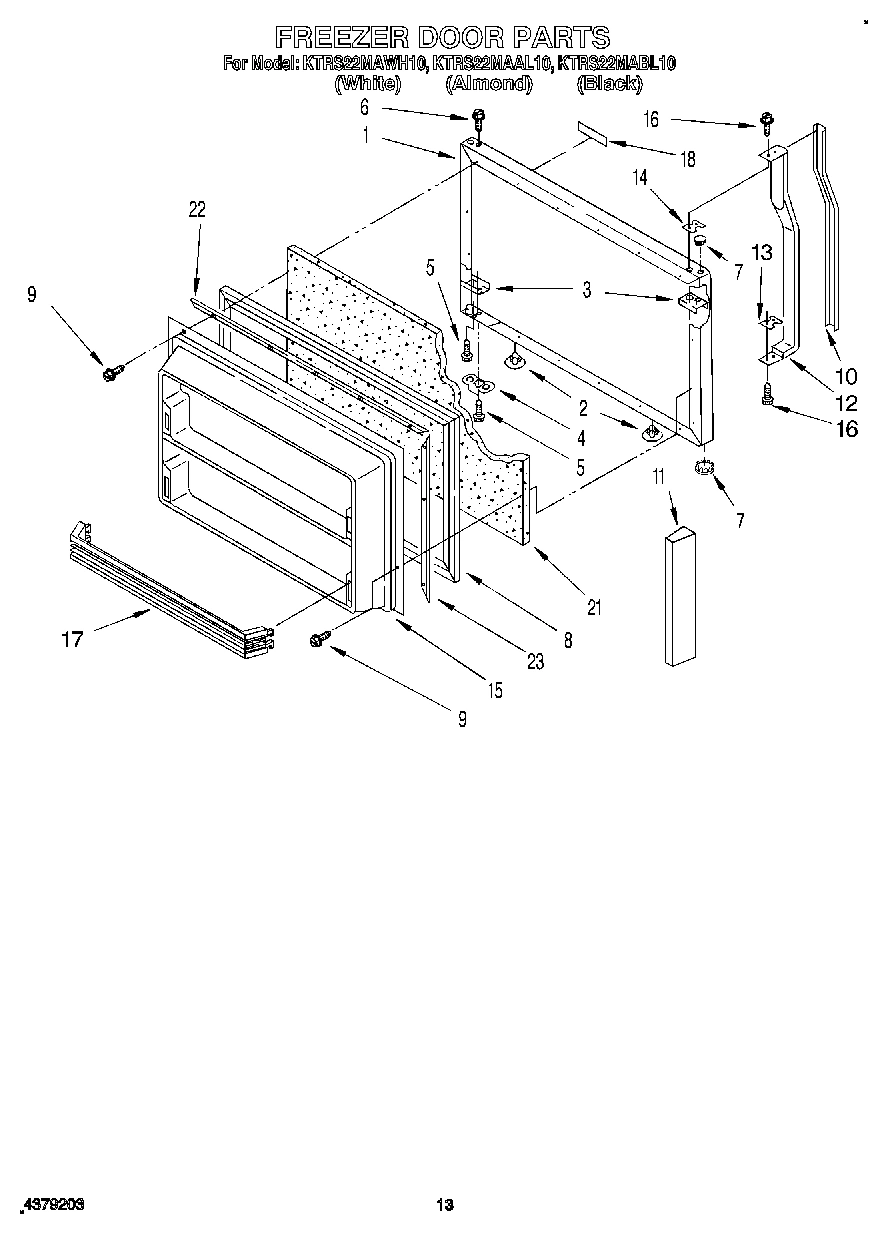

08 - FREEZER DOOR

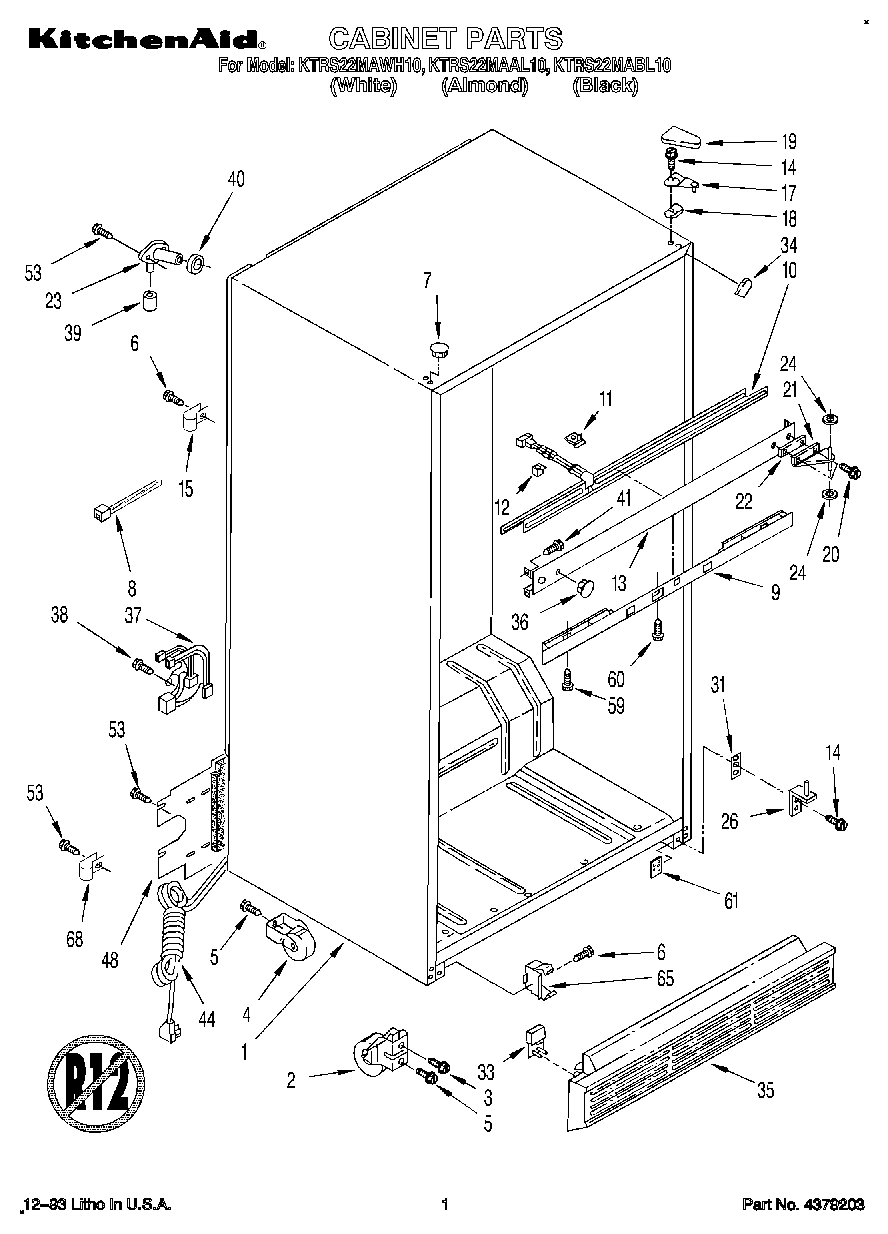

01 - CABINET

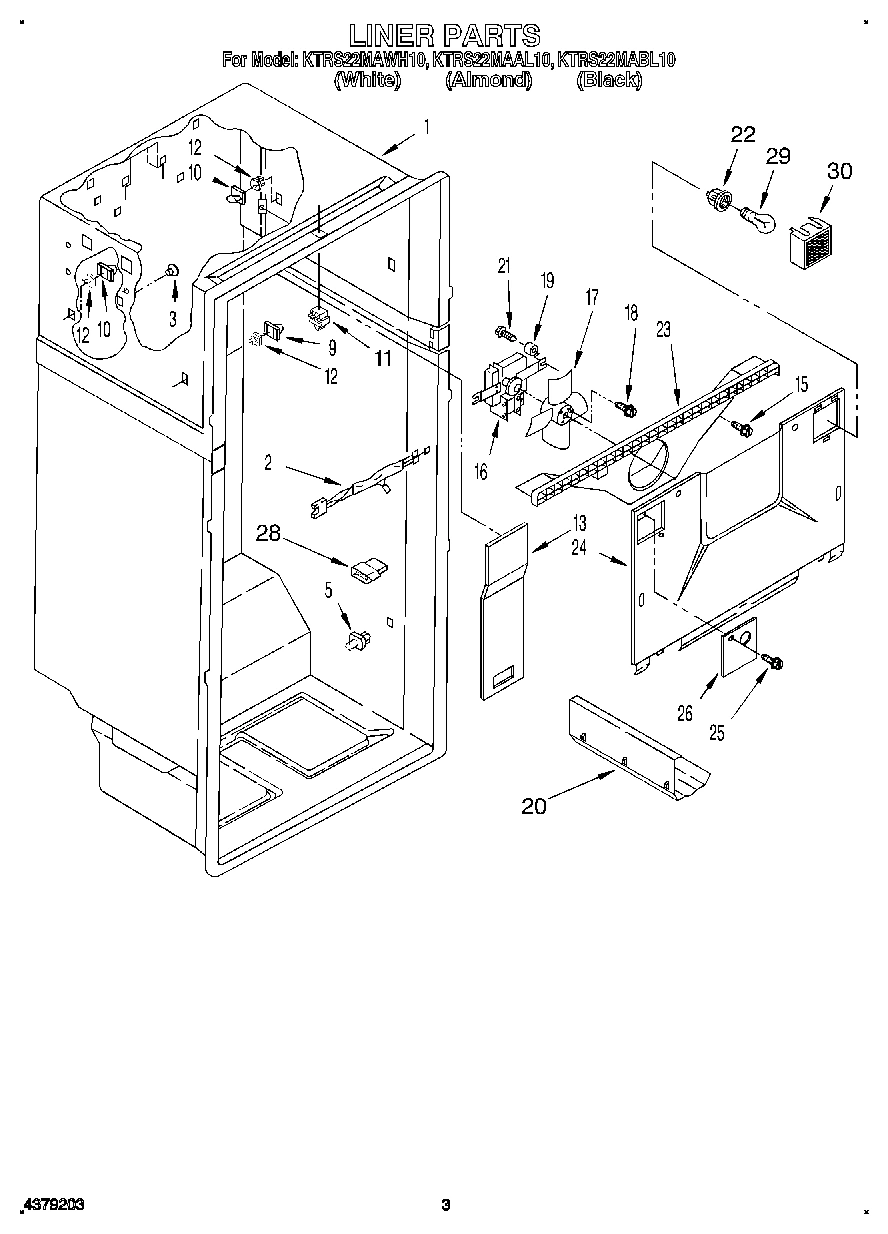

02 - LINER

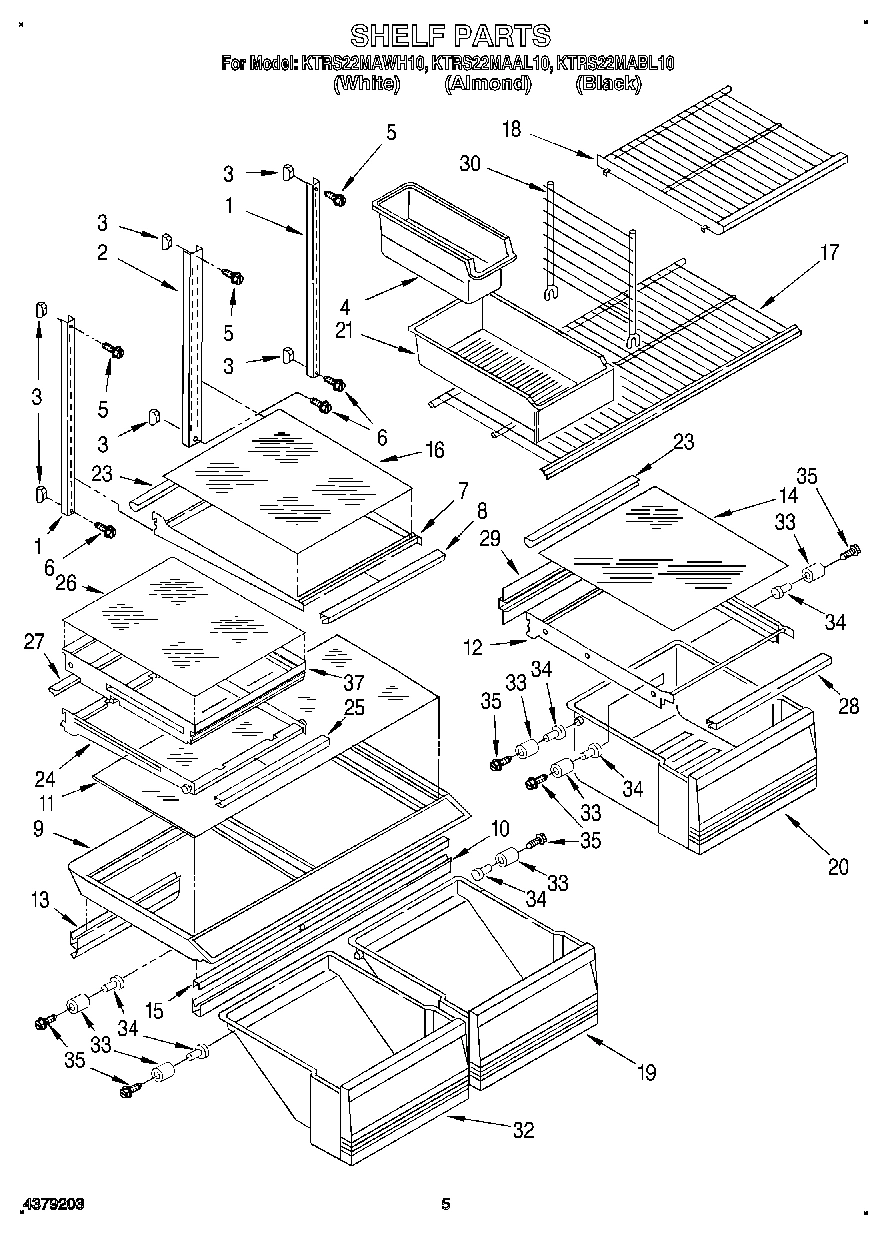

04 - SHELF, LIT/OPTIONAL
Common parts from model Whirlpool KTRS22MAAL10
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2161695 WPL LIT2161695 Contact Us For Availability
WPL LIT2168826 WPL LIT2168826 Contact Us For Availability
WPL LIT2169124 WPL LIT2169124 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2159160 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2159163 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Bla WPL 2161870 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI112675A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI112676A Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Fan, Blade WPL 851732 Contact Us For Availability
2
Hole Plug (2) (Black) WPL 1110485 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Roller, Front WPL 2152011 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
3
Condenser Assembly WPL 2154010 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489393 Contact Us For Availability
3
Grommet (4) WPL 1110779 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
5
Clip, Wire (2) WPL 548745 Contact Us For Availability
5
Screw, 1/4-28 x 1/2 WPL 488454 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 WPL 489345 Contact Us For Availability
6
Knob, Water Adjust WPL 1125891 Contact Us For Availability
7
Drain Pan/ Heat Shield WPL 2153974 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Hole Plug (Almond) WPL 2151653 Contact Us For Availability
7
Shelf, Cantilever (2) WPL 1125520 Contact Us For Availability
8
Gasket (Front) WPL 1125782 Contact Us For Availability
9
Control, Front Cover WPL 1126139 Contact Us For Availability
9
Stud (3) WPL 946356 Contact Us For Availability
9
Pan Cover & Roller Assembly WPL 2161766 Contact Us For Availability
10
Insert, Handle (White) WPL 2161540 Contact Us For Availability
10
Insert, Handle (Almond) WPL 2161541 Contact Us For Availability
10
Insert, Handle (Black) WPL 2161867 Contact Us For Availability
10
Heater, Mullion WPL 2157307 Contact Us For Availability
11
Strap (Service) WPL 938384 Contact Us For Availability
11
Dike, Door (2) WPL 1125577 Contact Us For Availability
11
Clip, Center Rail (4) WPL 1129018 Contact Us For Availability
11
Glass, Pan Cover WPL 1125531 Contact Us For Availability
12
Cover (Service) WPL 1108115 Contact Us For Availability
12
Handle WPL 2161517 Contact Us For Availability
12
Spacer (2) WPL 2149077 Contact Us For Availability
12
Support, Stud (6) WPL 946355 Contact Us For Availability
12
Pan Shelf & Roller Assembly WPL 2161758 Contact Us For Availability
13
Tube, Water Inlet WPL 939027 Contact Us For Availability
13
Spacer, Handle WPL 2151813 Contact Us For Availability
13
Center Rail WPL 2172705 Contact Us For Availability
13
Cover, Air Duct WPL 2157411 Contact Us For Availability
13
Gasket, Pan Cover (Rear) (2) WPL 1125529 Contact Us For Availability
14
Spacer, Handle WPL 1107628 Contact Us For Availability
14
Glass, Shelf WPL 1125539 Contact Us For Availability
15
Relay (See Overload) WPL ARI112677A Contact Us For Availability
15
Interior Door Panel WPL 1117940 Contact Us For Availability
16
Housing Plug WPL 1118850 Contact Us For Availability
16
Glass, Shelf WPL 1125521 Contact Us For Availability
17
Shelf Bin (2) WPL 1125557 Contact Us For Availability
17
Capacitor WPL 2154565 Contact Us For Availability
17
Shelf, Freezer WPL 1125540 Contact Us For Availability
18
Drain Fitting WPL 981629 Contact Us For Availability
18
Nameplate (White Model) WPL 2168800 Contact Us For Availability
18
Nameplate (Almond Model) WPL 2168801 Contact Us For Availability
18
Nameplate (Black Model) WPL 2168804 Contact Us For Availability
18
Shim, Hinge Top WPL 2157269 Contact Us For Availability
18
Shelf, Freezer WPL 1125541 Contact Us For Availability
19
Grommet, Screw WPL 509812 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Pan, Crisper & Roller Assembly WPL 2161888 Contact Us For Availability
20
Insert, Handle (White) WPL 2161513 Contact Us For Availability
20
Insert, Handle (Almond) WPL 2161514 Contact Us For Availability
20
Insert, Handle (Black) WPL 2161851 Contact Us For Availability
20
Wine & Egg Rack WPL 1125913 Contact Us For Availability
20
Pan, Meat & Roller Assembly WPL 2161890 Contact Us For Availability
21
Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability
21
Gasket, Utility Door WPL 1125695 Contact Us For Availability
21
Hinge, Center WPL 2147335 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
22
Utility Door (Includes Item 21) WPL 1125733 Contact Us For Availability
22
Retainer, Gasket WPL 1122552 Contact Us For Availability
22
Evaporator WPL 2153978 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
23
Retainer, Gasket WPL 1122553 Contact Us For Availability
23
Shelf Bin (Wide) WPL 1125555 Contact Us For Availability
23
Scroll, Fan WPL 2160644 Contact Us For Availability
23
Retainer, Shelf WPL 1110744 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Evaporator Cover WPL 2157427 Contact Us For Availability
24
Frame & Roller Assembly WPL 2161804 Contact Us For Availability
25
Trim, Door WPL 1107199 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
25
Gasket (Front) WPL 2161684 Contact Us For Availability
26
Shelf Bin (3) WPL 1125556 Contact Us For Availability
26
Tube, Discharge WPL 2162475 Contact Us For Availability
26
Glass, Full Shelf WPL 2161681 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Retainer, Shelf WPL 2161807 Contact Us For Availability
28
Gasket, Front WPL 1125576 Contact Us For Availability
29
Support, Heater WPL 2149120 Contact Us For Availability
29
Gasket, Rear WPL 1125815 Contact Us For Availability
30
Butter, Tray WPL 1125936 Contact Us For Availability
30
Light Lens WPL 981365 Contact Us For Availability
30
Divider WPL 1125542 Contact Us For Availability
31
Retainer, Gasket WPL 1122551 Contact Us For Availability
31
Tube, Condenser To Heat Loop WPL 2154032 Contact Us For Availability
31
Spacer WPL 2172744 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
32
Utility Pan & Roller Assembly WPL 2161889 Contact Us For Availability
33
Holder, Beverage WPL 1125981 Contact Us For Availability
33
Heater, Defrost WPL 2162019 Contact Us For Availability
33
Corner Filler, Grille (Black) WPL 1118078 Contact Us For Availability
33
Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability
33
Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability
33
Roller WPL 2161749 Contact Us For Availability
34
Load Lock WPL 1117999 Contact Us For Availability
34
Screw, 8-32 x 27/64 WPL 489365 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability
34
Filler, Wrap Corner (Black) WPL 2162679 Contact Us For Availability
34
Eyelet, Roller WPL 1112308 Contact Us For Availability
35
Grille (White) WPL 1125663 Contact Us For Availability
35
Grille (Almond) WPL 1125667 Contact Us For Availability
35
Grille (Black) WPL 1129001 Contact Us For Availability
36
Tube, Suction WPL 2162472 Contact Us For Availability
36
Hole Plug WPL 1129062 Contact Us For Availability
37
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
37
Wiring Assy. Intermediate WPL 2153994 Contact Us For Availability
37
Frame & Roller Assembly WPL 2161704 Contact Us For Availability
37
Door Reversal Instructions WPL 2172757 Contact Us For Availability
37
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
37
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
37
WPL 799833 WPL 799833 Contact Us For Availability
37
WPL 978883 WPL 978883 Contact Us For Availability
38
Screw, 3-24 x 23/64 WPL 486214 Contact Us For Availability
41
Air Baffle WPL 2162457 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
48
Cover, Unit WPL 2172768 Contact Us For Availability
51
Drain Extension WPL 2154119 Contact Us For Availability
54
Support, Evaporator (R.S.) WPL 1118805 Contact Us For Availability
54
Support-Evaporator (L.S.) WPL 2159708 Contact Us For Availability
57
Cover-Unit Btm. WPL 2160505 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
× ![]()
