Model Whirlpool KTRS22KGWH00 – Common Parts & Diagrams

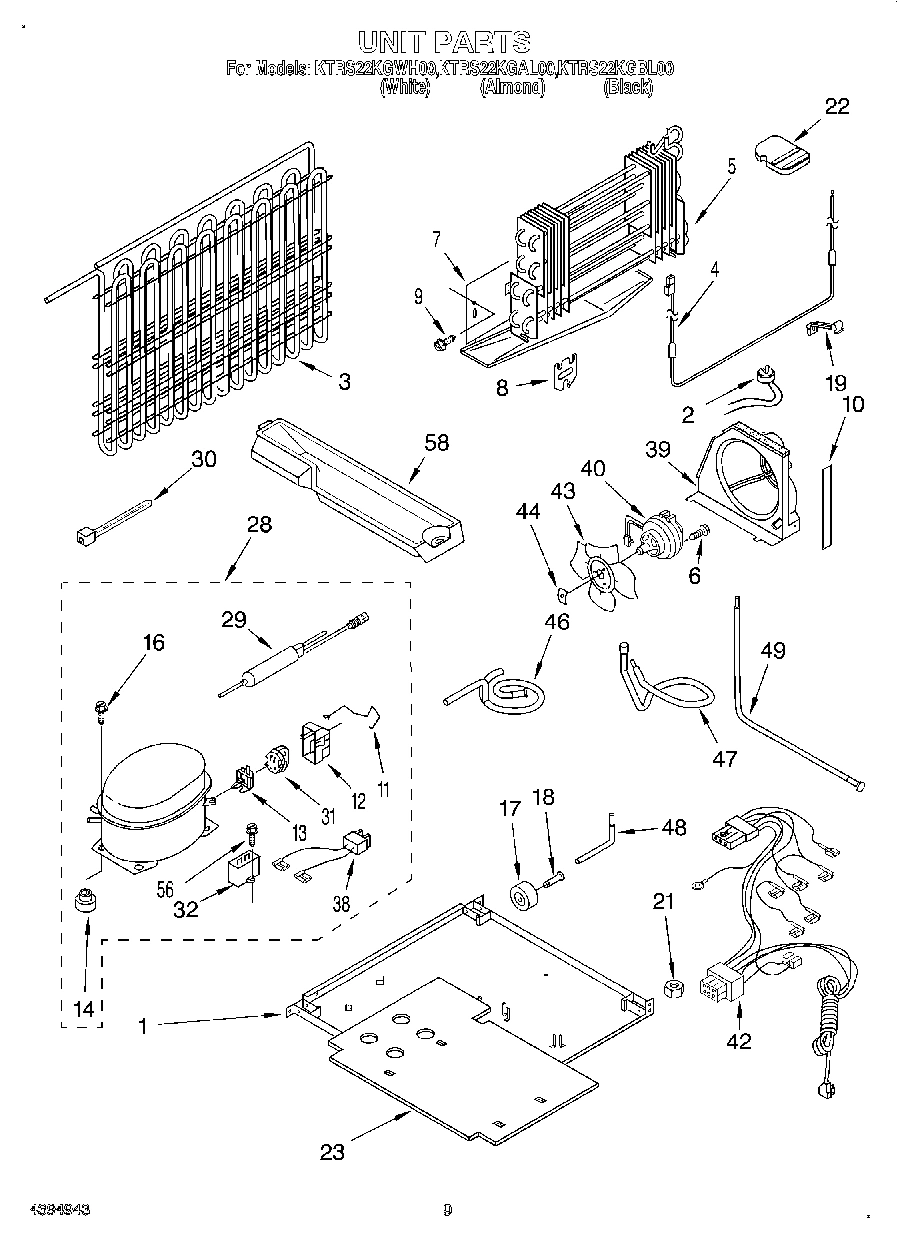

05 - UNIT

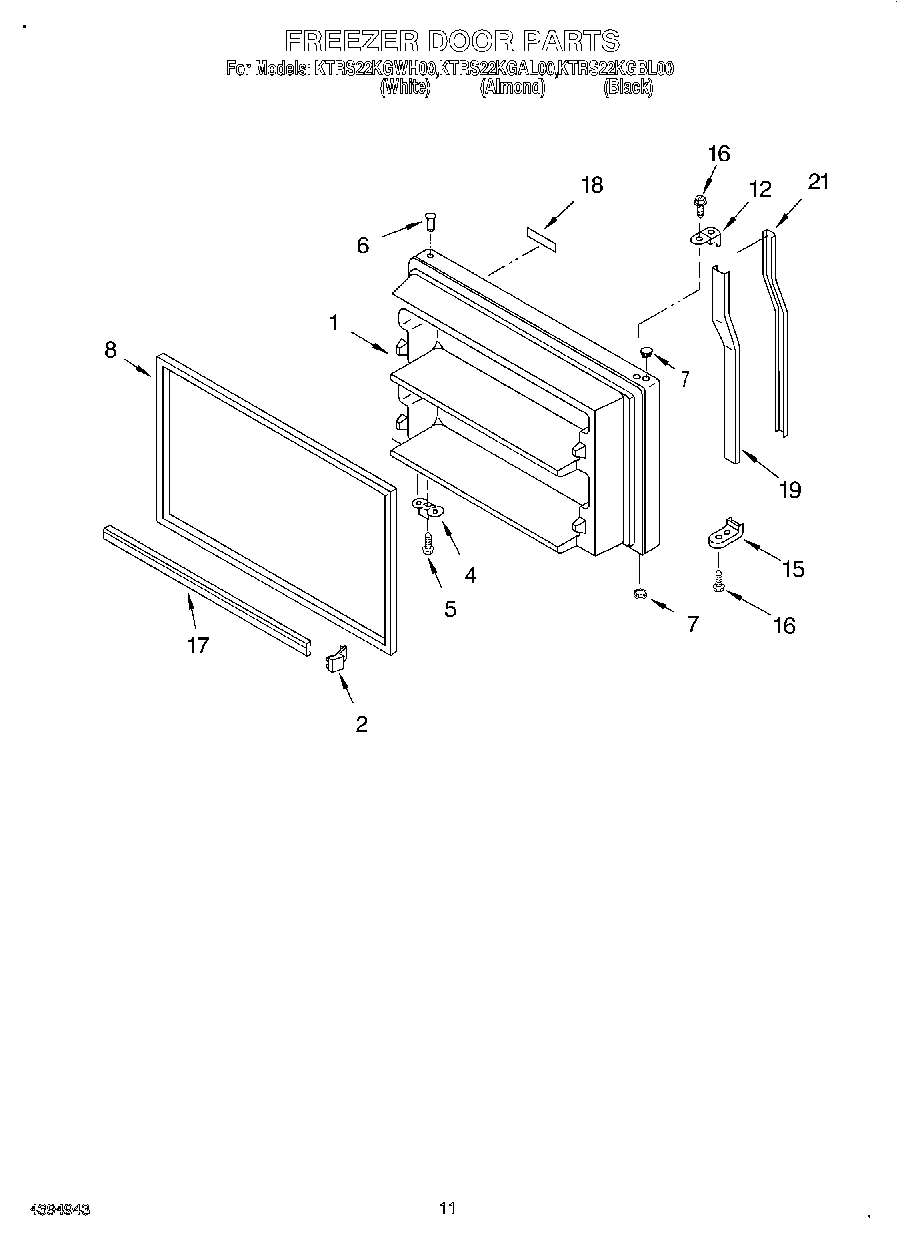

06 - FREEZER DOOR, LIT/OPTIONAL

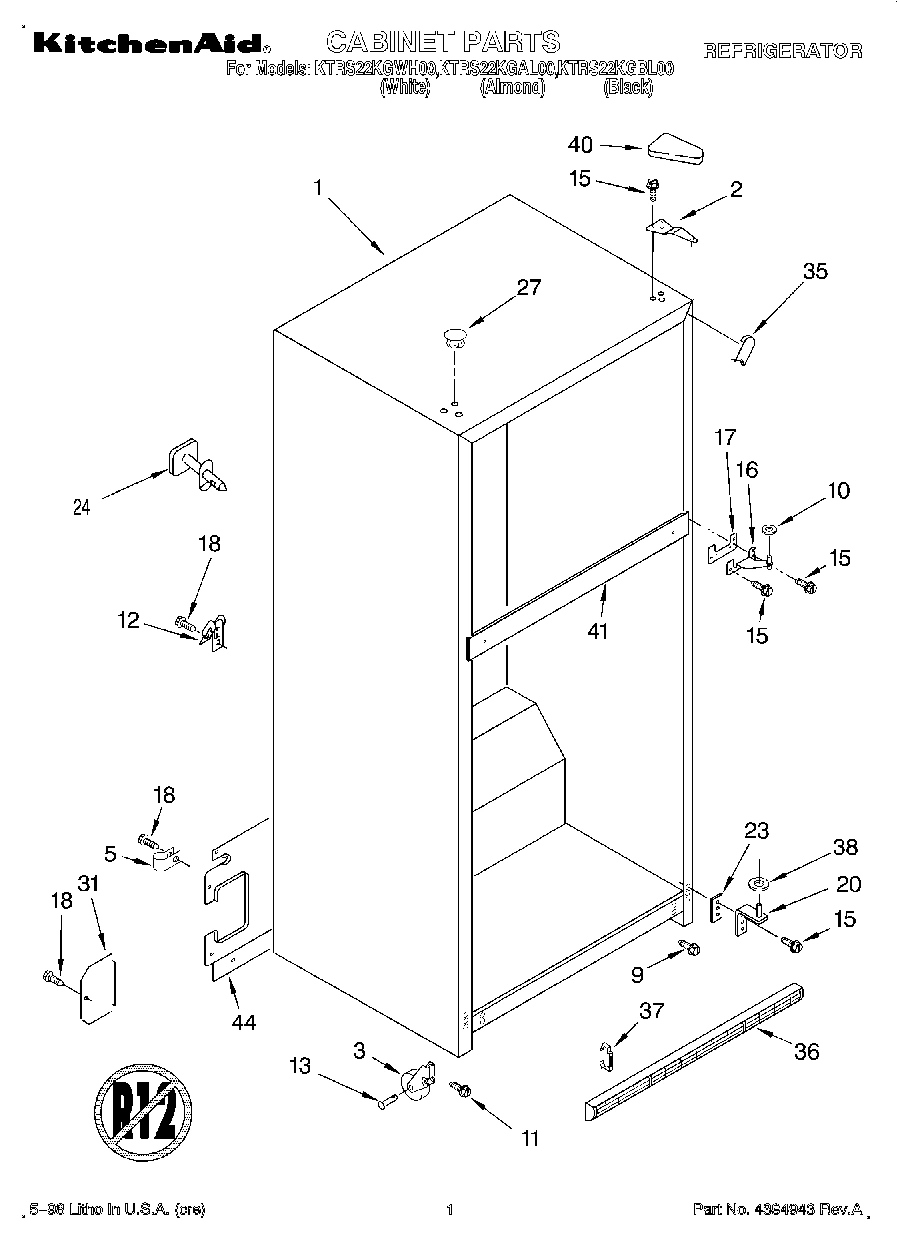

01 - CABINET

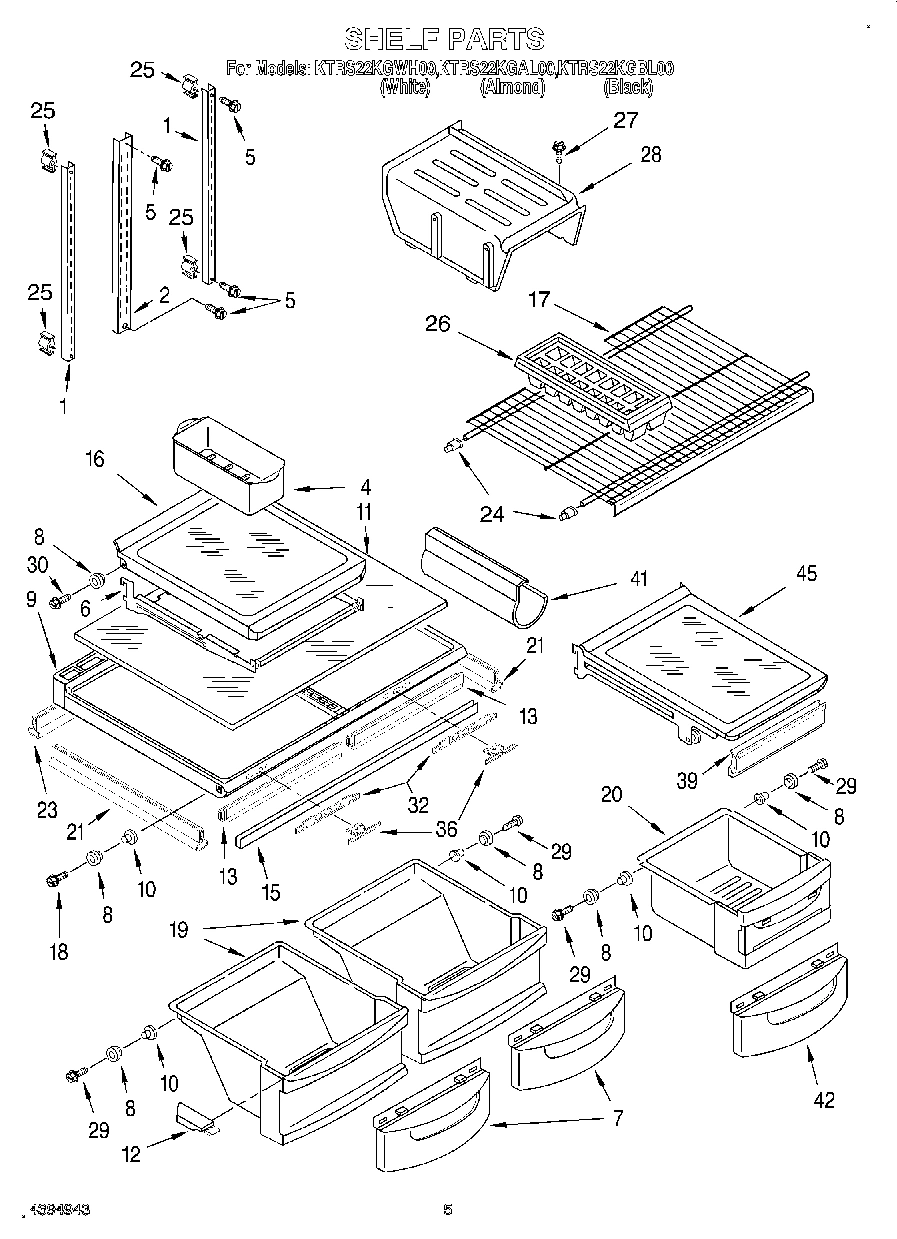

03 - SHELF

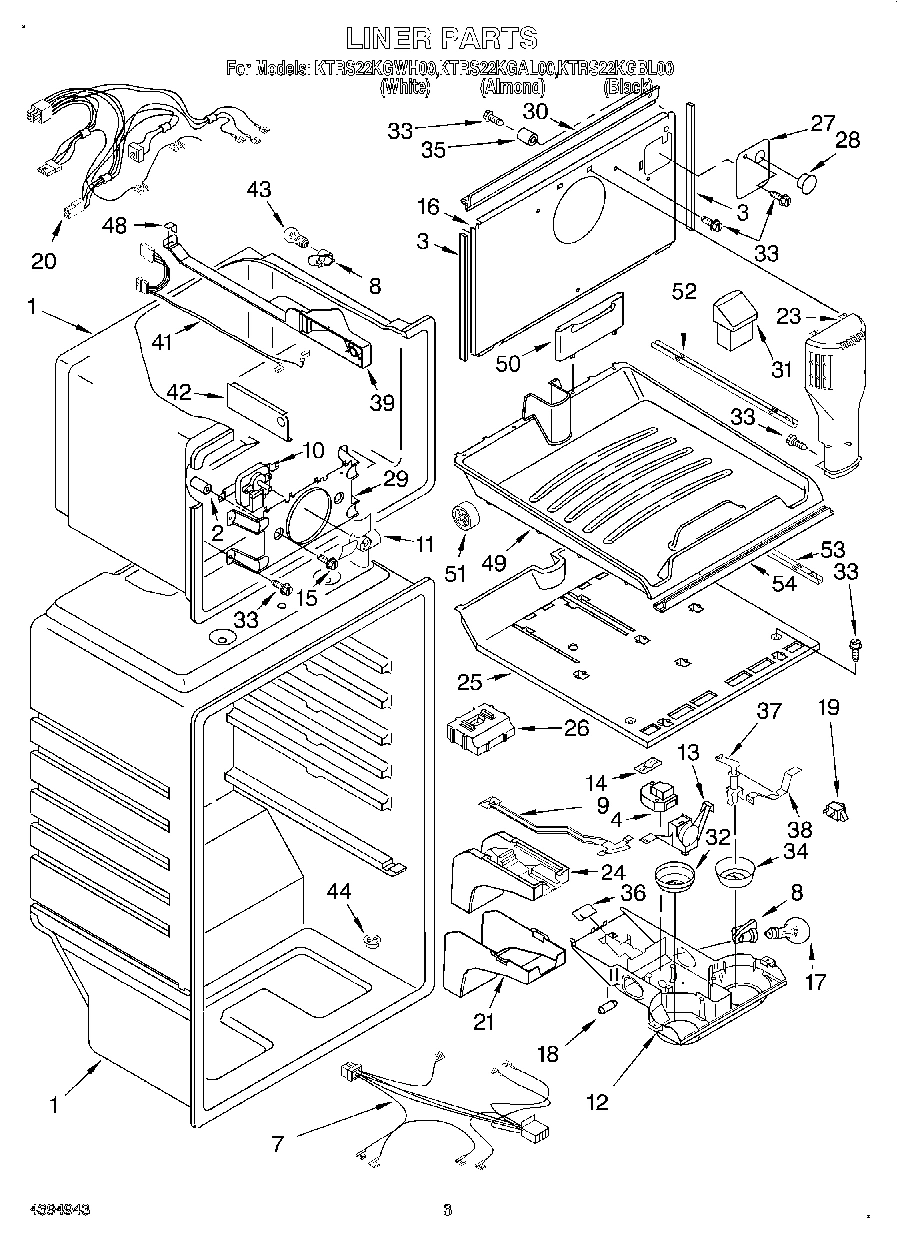

02 - LINER

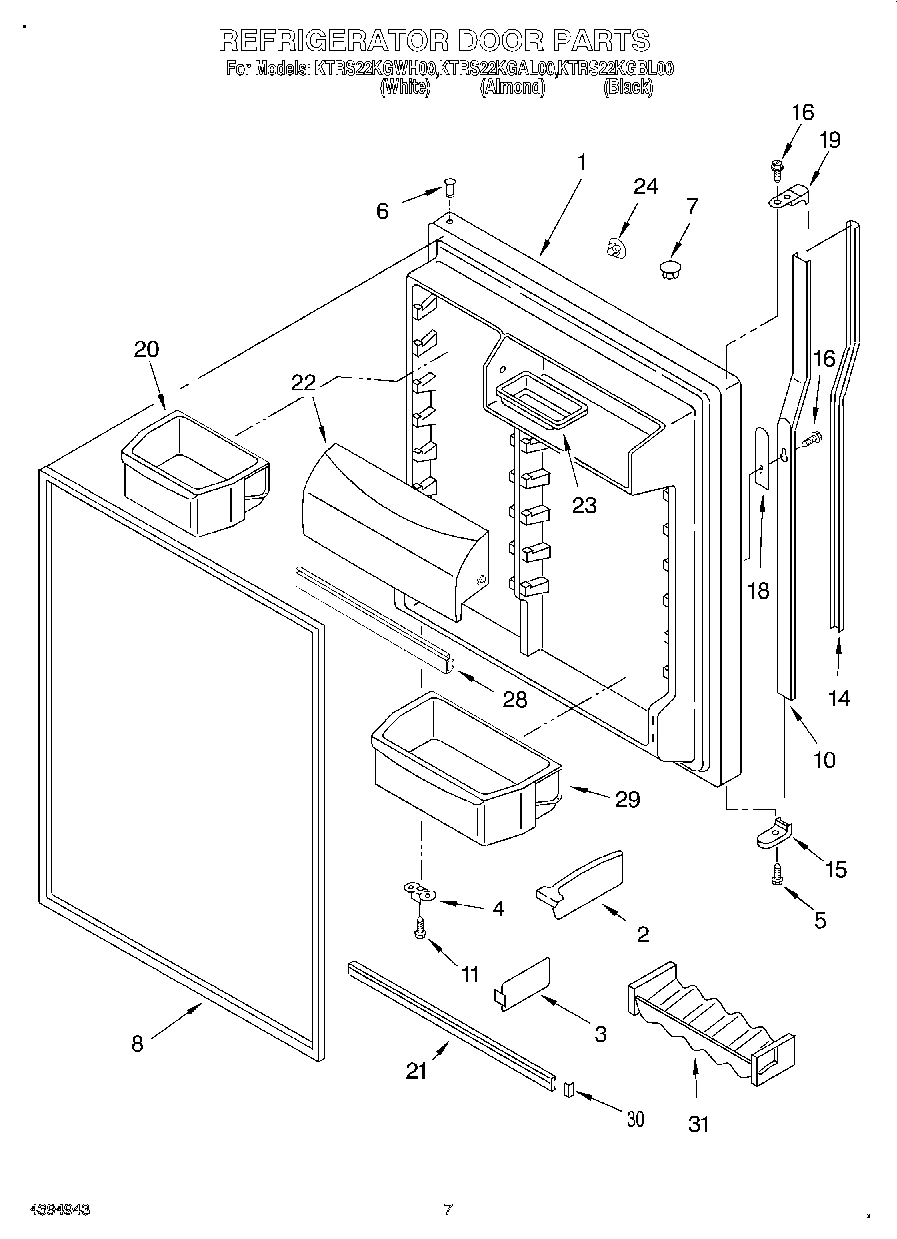

04 - REFRIGERATOR DOOR
Common parts from model Whirlpool KTRS22KGWH00
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Shelf, Ladder (2) WPL 2163756 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI112634A Contact Us For Availability
1
Refrigerator Door (Includes No.8) (White) WPL 2198970 Contact Us For Availability
1
Refrigerator Door (Includes No.8) (Almond) WPL 2198971 Contact Us For Availability
1
Refrigerator Door (Includes No.8) (Black) WPL 2200613 Contact Us For Availability
2
Shelf, Ladder Center WPL 2163826 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
3
Divider, Door Shelf WPL 1123293 Contact Us For Availability
4
Timer, Defrost WPL 2193084 Contact Us For Availability
6
Frame Assembly, Cantilever WPL 2174014 Contact Us For Availability
7
Window WPL 2175373 Contact Us For Availability
7
Wire Assy. Control Box WPL 2193493 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
8
Roller & Tread Assembly WPL 2174388 Contact Us For Availability
9
Crisper Cover (Includes Rollers) WPL 2198761 Contact Us For Availability
9
Damper, Air (Slide) WPL 2179858 Contact Us For Availability
10
Eyelet, Roller WPL 2174478 Contact Us For Availability
10
Fan Motor WPL 2183833 Contact Us For Availability
10
Retainer, Insert (Black) WPL 2195993B Contact Us For Availability
10
Retainer, Insert (Almond) WPL 2195993N Contact Us For Availability
10
Retainer, Insert (White) WPL 2195993W Contact Us For Availability
11
Glass, Crisper Cover WPL 2174141 Contact Us For Availability
11
Screw WPL 2174650 Contact Us For Availability
12
Endcap, Handle (White) WPL 2195994W Contact Us For Availability
12
Cap, Crisper (Left Side) WPL 2174258 Contact Us For Availability
12
Cap, Crisper (Right Side) WPL 2174259 Contact Us For Availability
12
Control Box WPL 2179790 Contact Us For Availability
14
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
14
Insert, Handle (Black) WPL 2188155 Contact Us For Availability
14
Insert, Handle (White) WPL 2195986 Contact Us For Availability
14
Insert, Handle (Almond) WPL 2195987 Contact Us For Availability
15
Endcap (White) WPL 2195995W Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
15
Endcap, Handle (Black) WPL 2188132 Contact Us For Availability
15
Endcap, Handle (White) WPL 2195990 Contact Us For Availability
15
Endcap, Handle (Almond) WPL 2195991 Contact Us For Availability
16
Shelf Assembly, Spillguard (3) (Includes Roll WPL 2174012 Contact Us For Availability
16
Cover-Evaporator WPL 2189833 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2195947 Contact Us For Availability
17
Shelf, Freezer WPL 2184667 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
18
Spacer, Handle WPL 2188146 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Pan, Crisper (Includes Rollers) WPL 2175433 Contact Us For Availability
19
End Cap (Black) WPL 2195995B Contact Us For Availability
19
Endcap (Almond) WPL 2195995N Contact Us For Availability
20
Pan, Meat (Includes Rollers) WPL 2175448 Contact Us For Availability
20
Wire Assembly, Freezer Compartment WPL 2195656 Contact Us For Availability
20
Bin, Door Shelf (2) WPL 2171064 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Gasket, Crisper Cover (Side) (4) WPL 2179214 Contact Us For Availability
22
WPL 876029 WPL 876029 Contact Us For Availability
22
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
22
WPL 799344 WPL 799344 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Gasket, Crisper Cover (Rear) (2) WPL 2179216 Contact Us For Availability
23
Tray, Butter WPL 2165792 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI112632A Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 2189008 Contact Us For Availability
25
Support WPL 2189314 Contact Us For Availability
25
Freezer Floor WPL 2190589 Contact Us For Availability
26
Air Diffuser, Top WPL 2189984 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2201013 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Shelf, Ice Tray WPL 2183995 Contact Us For Availability
28
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
29
Bin, Door Shelf WPL 2171062 Contact Us For Availability
29
Bracket, Fan Motor WPL 2198901 Contact Us For Availability
30
Screw WPL 489439 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
31
Beverage Holder WPL 2193409 Contact Us For Availability
32
Slide, Humidity WPL 2174257 Contact Us For Availability
32
Featurepak (Includes 3, 20, 21, 22, 23, 28, 2 WPL 2199051 Contact Us For Availability
32
Knob, Thermostat WPL 2193455 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2201015 Contact Us For Availability
36
Grille (White) WPL 2201006 Contact Us For Availability
36
Grille (Almond) WPL 2201007 Contact Us For Availability
36
Grille (Black) WPL 2201008 Contact Us For Availability
36
Button, Humidity Control WPL 2174253 Contact Us For Availability
37
CLIP, GRILLE WPL 2189356 Contact Us For Availability
37
Post, Damper WPL 2179859 Contact Us For Availability
38
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
39
Gasket, Front WPL 2174396 Contact Us For Availability
39
Housing Base WPL 2184633 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI112633A Contact Us For Availability
41
Wiring Harness, Freezer Light WPL 2198892 Contact Us For Availability
42
Window, Meat Pan WPL 2175445 Contact Us For Availability
42
Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
44
Cover, Unit WPL 2189060 Contact Us For Availability
45
Shelf Assembly, Spillguard WPL 2190504 Contact Us For Availability
48
Gasket, Rear WPL 2166284 Contact Us For Availability
49
Pullout, Freezer Floor WPL 2189846 Contact Us For Availability
50
REAR FENCE PULL-OUT FREEZER FLOOR WPL 2198768 Contact Us For Availability
51
Roller, Slide WPL 2176246 Contact Us For Availability
52
Side Support, Floor Assembly WPL 2179713 Contact Us For Availability
53
Center Support, Floor Assembly WPL 2179714 Contact Us For Availability
54
Trim, Pullout Freezer Floor WPL 2189992 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
