Model Whirlpool KTRS20MAAL10 – Common Parts & Diagrams
02 - LINER

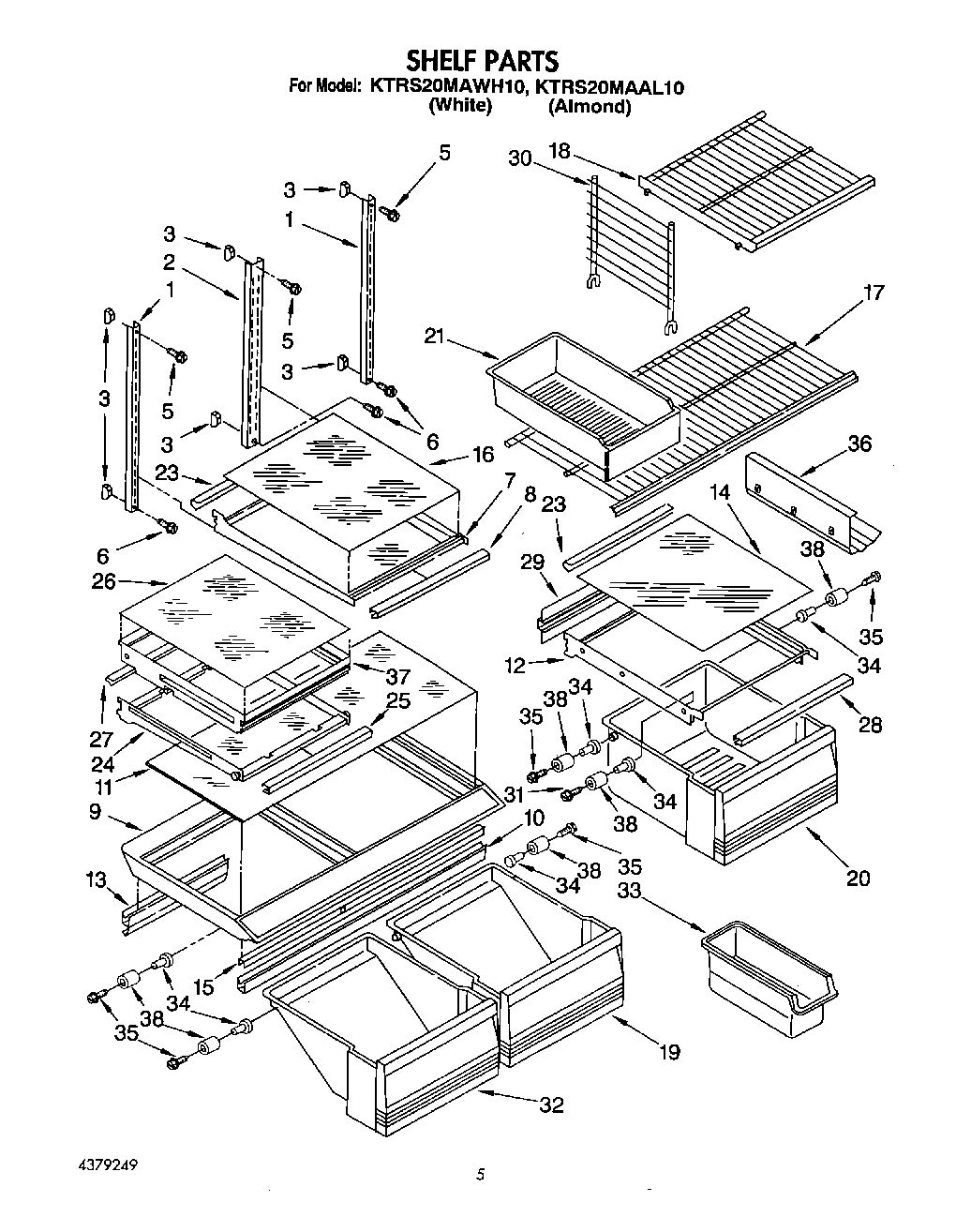

04 - SHELF, LIT/OPTIONAL

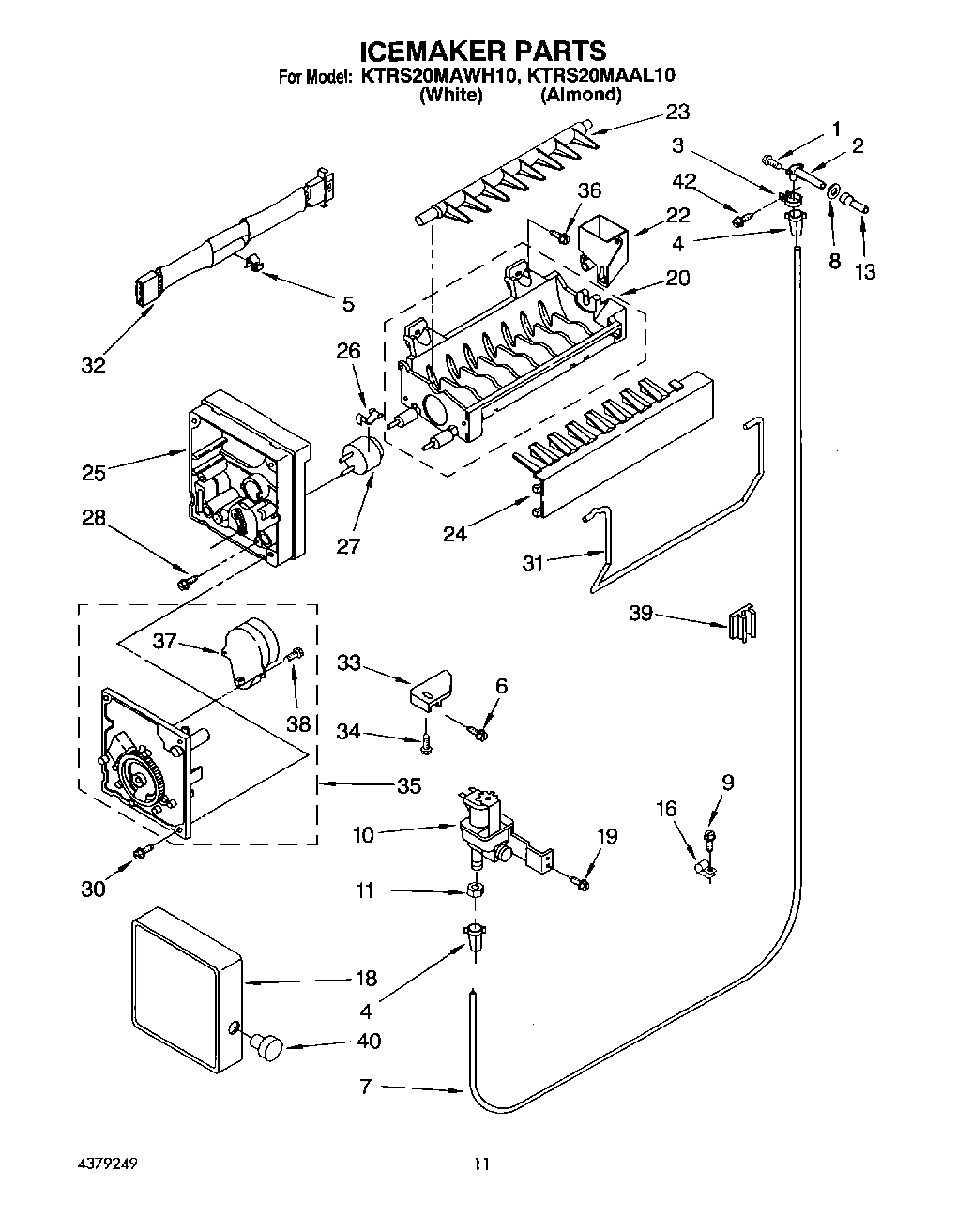

07 - ICEMAKER

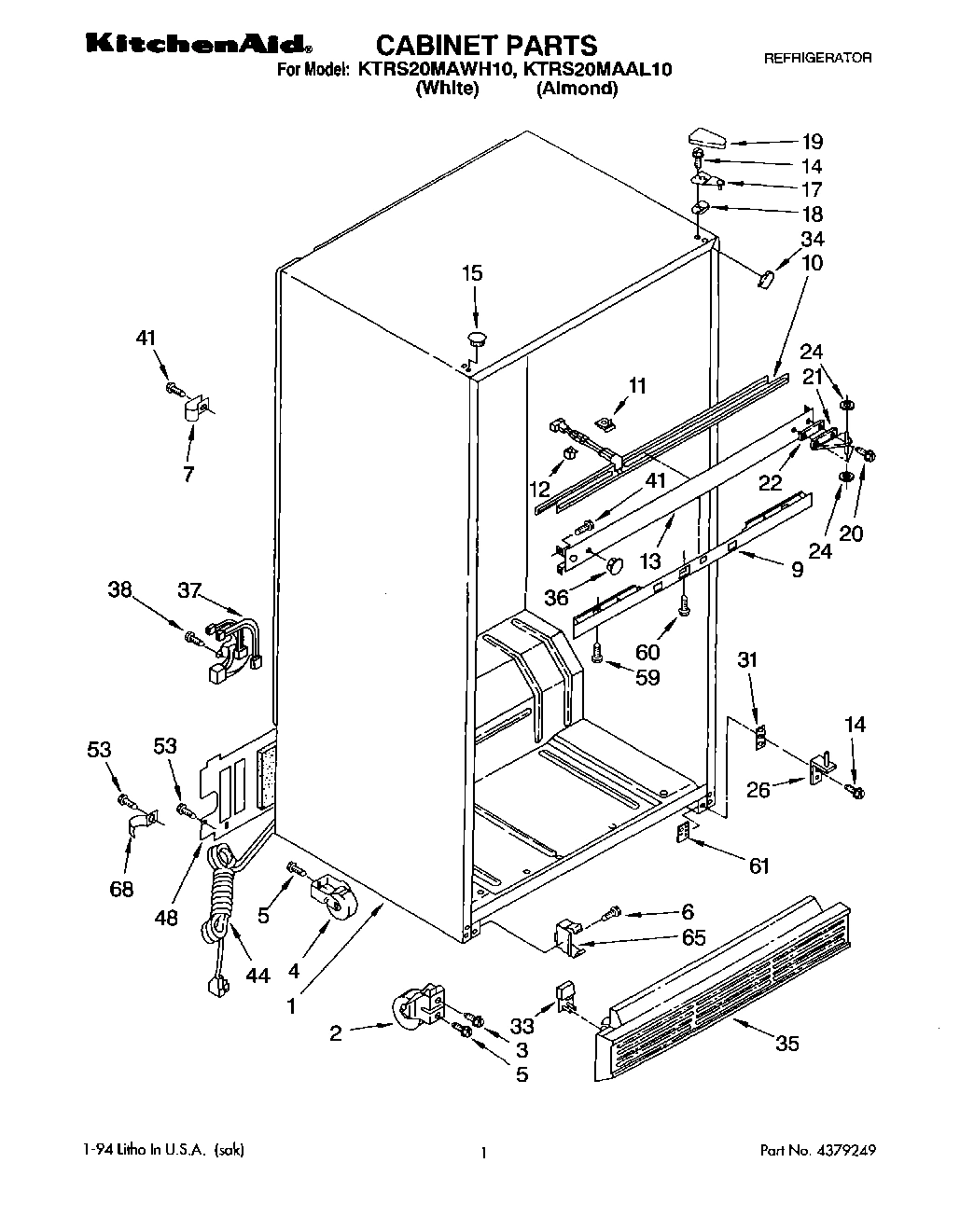

01 - CABINET

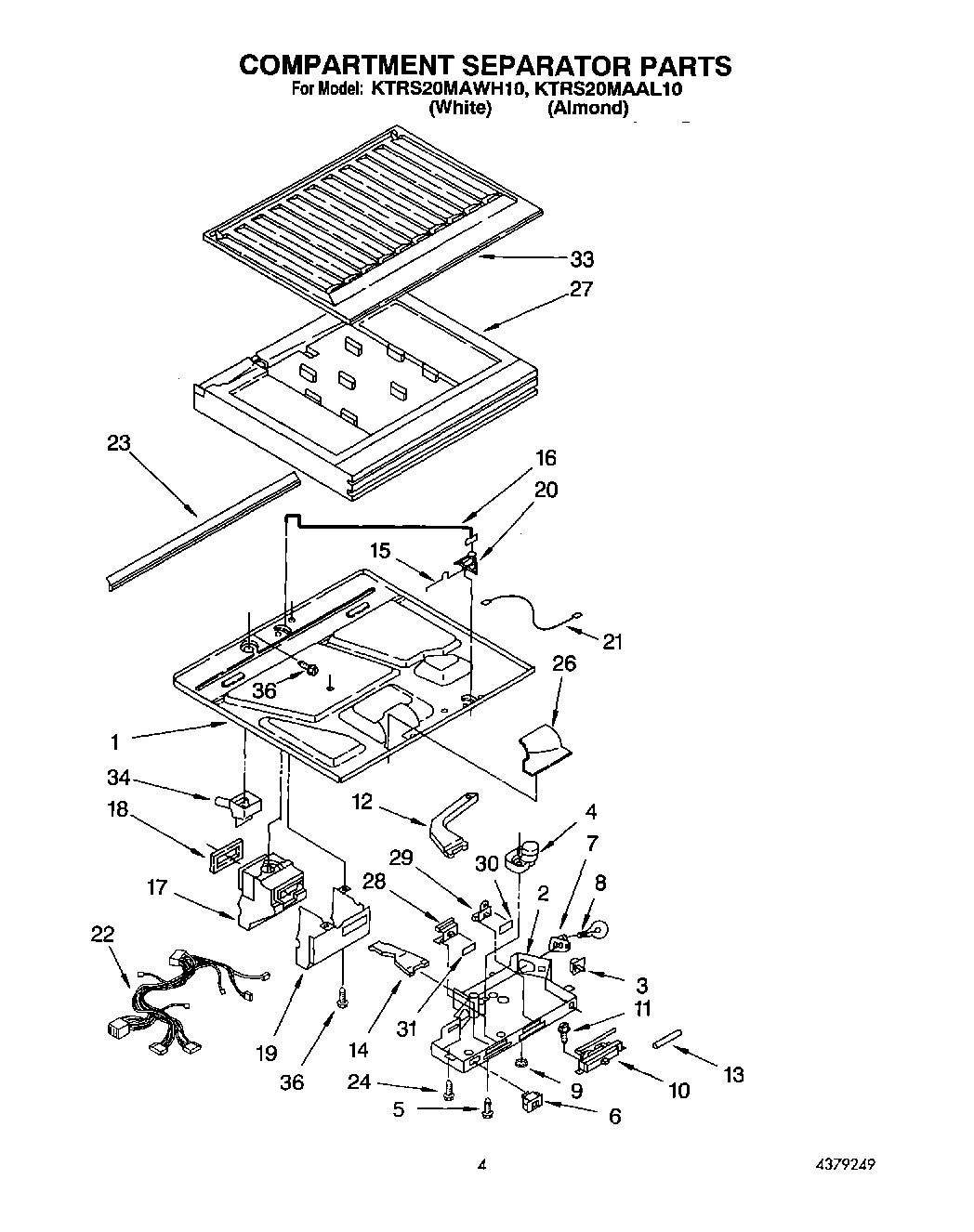

03 - COMPARTMENT SEPARATOR

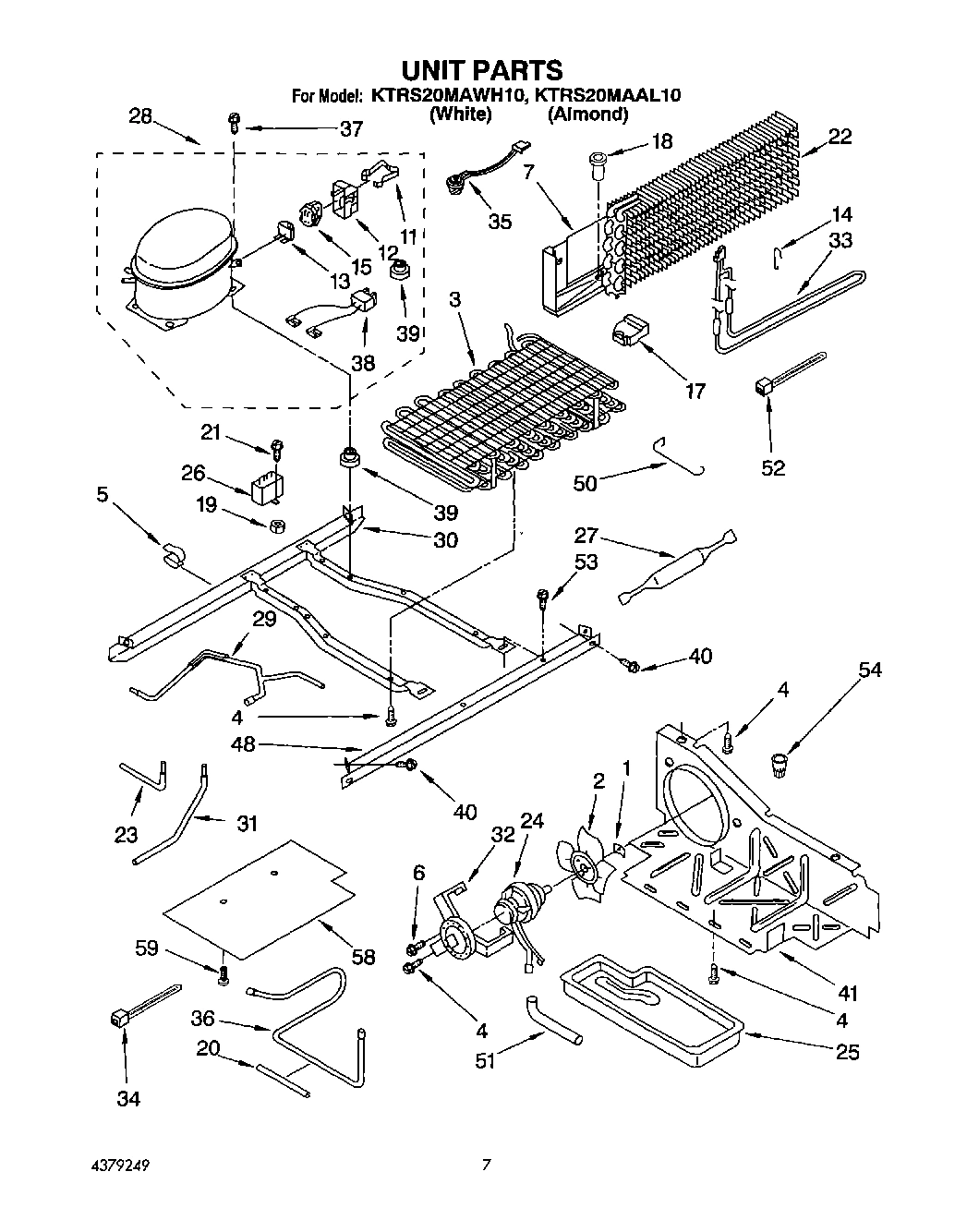

05 - UNIT

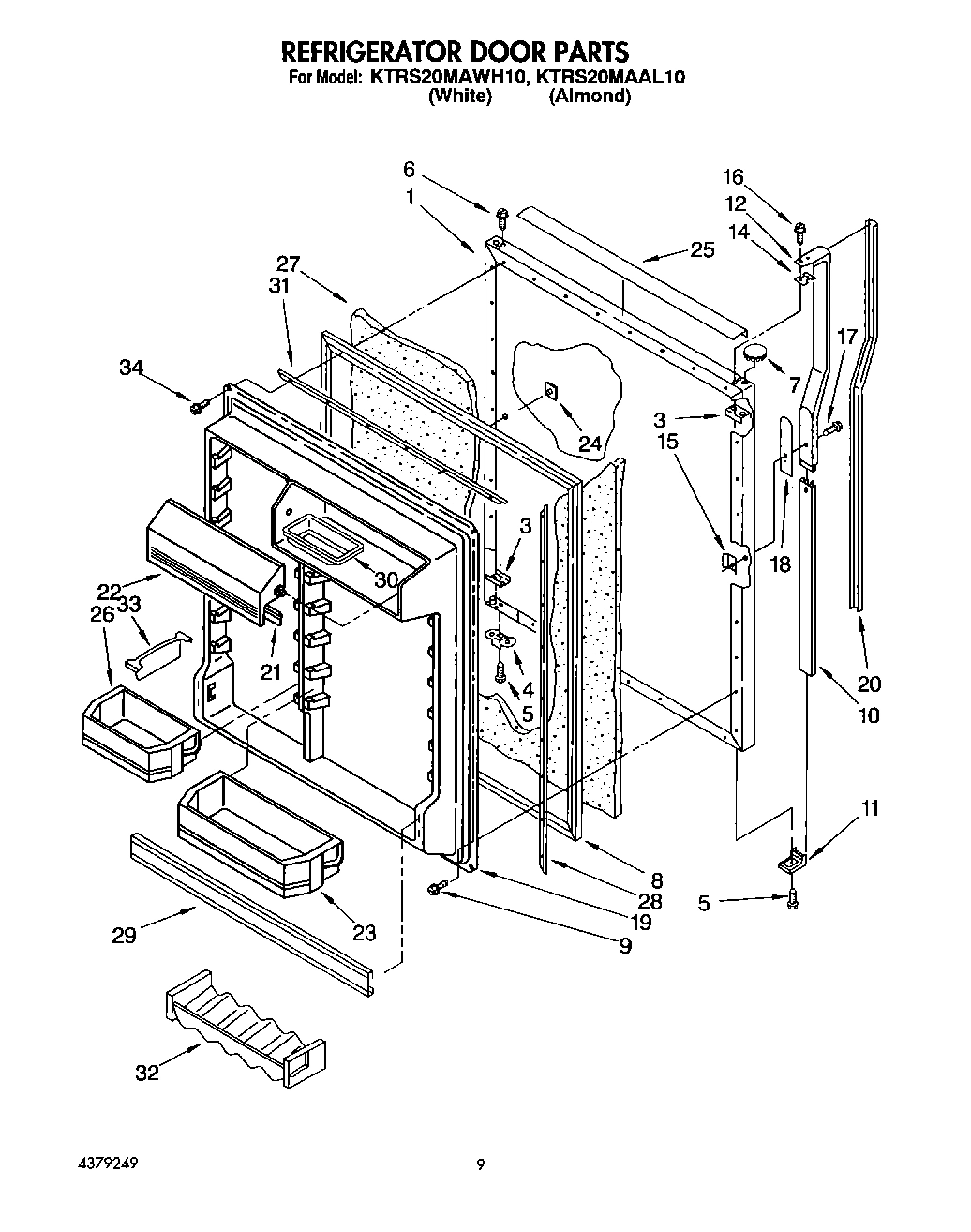

06 - REFRIGERATOR DOOR

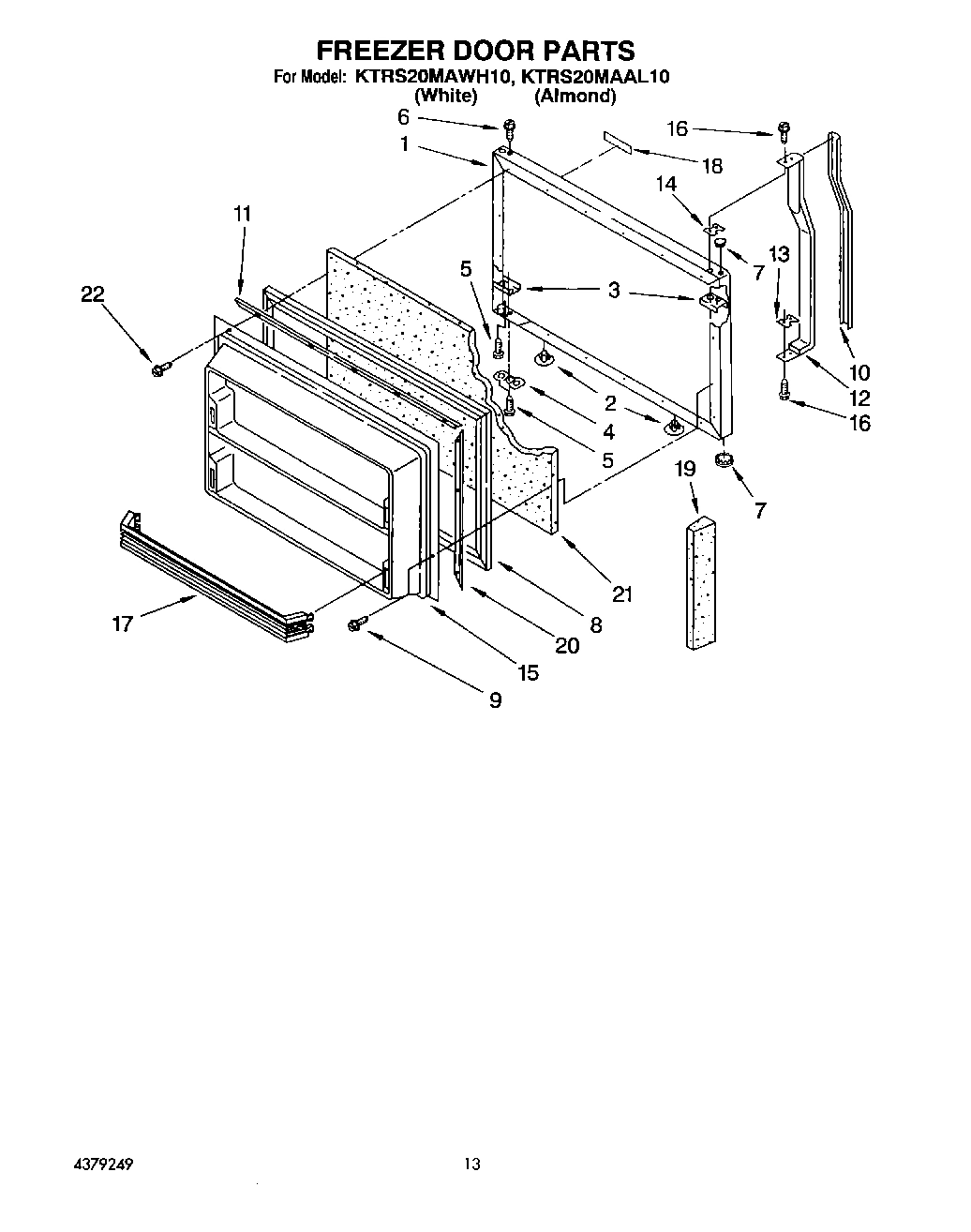

08 - FREEZER DOOR
Common parts from model Whirlpool KTRS20MAAL10
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI111946A Contact Us For Availability
1
Bottom, Compartment Separator WPL 1125619 Contact Us For Availability
1
Panel, Refrigerator Door (White) WPL 1122549 Contact Us For Availability
1
Panel, Refrigerator Door (Almond (Also Order WPL 1122658 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2159160 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2159163 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Roller, Front WPL 2152011 Contact Us For Availability
2
Box, Control WPL 1125510 Contact Us For Availability
2
Fan, Blade WPL 851732 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489393 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
4
Timer, Defrost (10 Hour) WPL 2154982 Contact Us For Availability
4
Bracket, Door Stop WPL 944036 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
5
Shelf Stud (2) WPL 1106612 Contact Us For Availability
5
Screw, WPL 488454 Contact Us For Availability
5
Clip, Wire WPL 548745 Contact Us For Availability
6
Screw WPL 486214 Contact Us For Availability
6
Switch, Toggle WPL 1125964 Contact Us For Availability
7
Drain Pan/ Heat Shield WPL 2153974 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
9
Control, Front Cover WPL 1126139 Contact Us For Availability
10
Heater, Mullion WPL 2157307 Contact Us For Availability
10
Thermostat Assembly WPL 2159753 Contact Us For Availability
10
Retainer, Insert WPL 1107209 Contact Us For Availability
10
Insert, Handle (White) WPL 2161540 Contact Us For Availability
10
Insert, Handle (Almond) WPL 2161541 Contact Us For Availability
11
Clip, Center Rail (4) WPL 1129018 Contact Us For Availability
11
Spring, Relay Case WPL 938384 Contact Us For Availability
11
End Cap, Handle WPL 1107236 Contact Us For Availability
11
Retainer, Gasket WPL 1122552 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
12
Light Pipe (R.S.) WPL 1125511 Contact Us For Availability
12
Case, Relay WPL 1108115 Contact Us For Availability
12
Handle WPL 2161508 Contact Us For Availability
12
Handle WPL 2161517 Contact Us For Availability
13
Tube, Water Inlet WPL 939027 Contact Us For Availability
13
Center Rail WPL 2172705 Contact Us For Availability
13
Shim WPL 2151813 Contact Us For Availability
14
Light Pipe (L.S.) WPL 1125512 Contact Us For Availability
14
Support, Heater WPL 2149120 Contact Us For Availability
14
Spacer, Handle WPL 1107628 Contact Us For Availability
15
Hole Plug (Almond) WPL 2151653 Contact Us For Availability
15
Connecting Rod, Short WPL 1125515 Contact Us For Availability
15
Relay (See Overload) WPL ARI111948A Contact Us For Availability
15
Interior Door Panel WPL 1117940 Contact Us For Availability
16
Rod, Connecting WPL 1126148 Contact Us For Availability
17
Air Diffuser Assembly WPL 2157252 Contact Us For Availability
17
Support, Evap. (R.S.) WPL 1118805 Contact Us For Availability
17
Support, Evap. (L.S.) WPL 2159708 Contact Us For Availability
17
Shelf Bin (2) WPL 1125557 Contact Us For Availability
18
Shim, Hinge Top WPL 2157269 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
18
Drain Fitting WPL 2172811 Contact Us For Availability
18
Spacer, Handle WPL 1107650 Contact Us For Availability
18
Nameplate (White Model) WPL 2168800 Contact Us For Availability
18
Nameplate (Almond Model) WPL 2168801 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Interior Door Panel WPL 1117941 Contact Us For Availability
19
Dike-Door WPL 1125577 Contact Us For Availability
20
Retainer, Gasket WPL 1122553 Contact Us For Availability
20
Pivot Arm WPL 1125581 Contact Us For Availability
20
Insert, Handle (White) WPL 2161513 Contact Us For Availability
20
Insert, Handle (Almond) WPL 2161514 Contact Us For Availability
21
Hinge, Center WPL 2151453 Contact Us For Availability
21
Wire Assembly WPL 2154921 Contact Us For Availability
21
Gasket, Utility Door WPL 1125695 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2153995 Contact Us For Availability
22
Evaporator WPL 2153978 Contact Us For Availability
22
Utility Door (Includes Item 21) WPL 1125733 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159684 Contact Us For Availability
23
Shelf Bin (Wide) WPL 1125555 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
25
Trim, Door WPL 1107199 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
26
Capacitor, Run WPL 2154565 Contact Us For Availability
26
Shelf Bin (3) WPL 1125556 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1105463 Contact Us For Availability
28
Slide, Thermostat WPL 1125513 Contact Us For Availability
28
Retainer, Gasket WPL 1122551 Contact Us For Availability
29
Slide, Air Control WPL 1125578 Contact Us For Availability
29
Tube, Discharge WPL 2162475 Contact Us For Availability
29
Trim, Door Shelf WPL 1125562 Contact Us For Availability
30
Window, Air Control WPL 1125579 Contact Us For Availability
30
Unit Mounting Frame WPL 2160498 Contact Us For Availability
30
Butter, Tray WPL 1125936 Contact Us For Availability
31
Spacer WPL 2172744 Contact Us For Availability
31
Window, Thermostat WPL 1125580 Contact Us For Availability
31
Tube, Condenser To Heat Loop WPL 2154032 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
32
Holder, Beverage WPL 1125981 Contact Us For Availability
33
Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability
33
Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1129022 Contact Us For Availability
33
Heater, Defrost WPL 2162019 Contact Us For Availability
33
Load Lock WPL 1117999 Contact Us For Availability
34
Screw, 8-32 x 27/64 WPL 489365 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability
34
Cup, Drain WPL 937065 Contact Us For Availability
35
Grille (White) WPL 1125663 Contact Us For Availability
35
Grille (Almond) WPL 1125667 Contact Us For Availability
36
Wine & Egg Rack WPL 1125913 Contact Us For Availability
36
Hole Plug WPL 1129062 Contact Us For Availability
36
Tube, Suction WPL 2162472 Contact Us For Availability
37
Frame & Roller Assembly Movable WPL 2161703 Contact Us For Availability
37
Wiring Assy. Intermediate WPL 2153994 Contact Us For Availability
38
WPL 876029 WPL 876029 Contact Us For Availability
38
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
38
WPL 799344 WPL 799344 Contact Us For Availability
38
Roller WPL 2161749 Contact Us For Availability
38
Door Reversal Instructions WPL 2172757 Contact Us For Availability
38
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
38
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
38
WPL 799833 WPL 799833 Contact Us For Availability
38
WPL 978883 WPL 978883 Contact Us For Availability
40
Knob, Water Adjust WPL 1125891 Contact Us For Availability
41
Air, Baffle WPL 1127938 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
48
Cover, Unit WPL 2172768 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
51
Drain Extension WPL 2154119 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
58
Cover, Unit Bottom WPL 2160505 Contact Us For Availability
59
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
59
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
× ![]()
