Model Whirlpool KTRS20KAWH00 – Common Parts & Diagrams

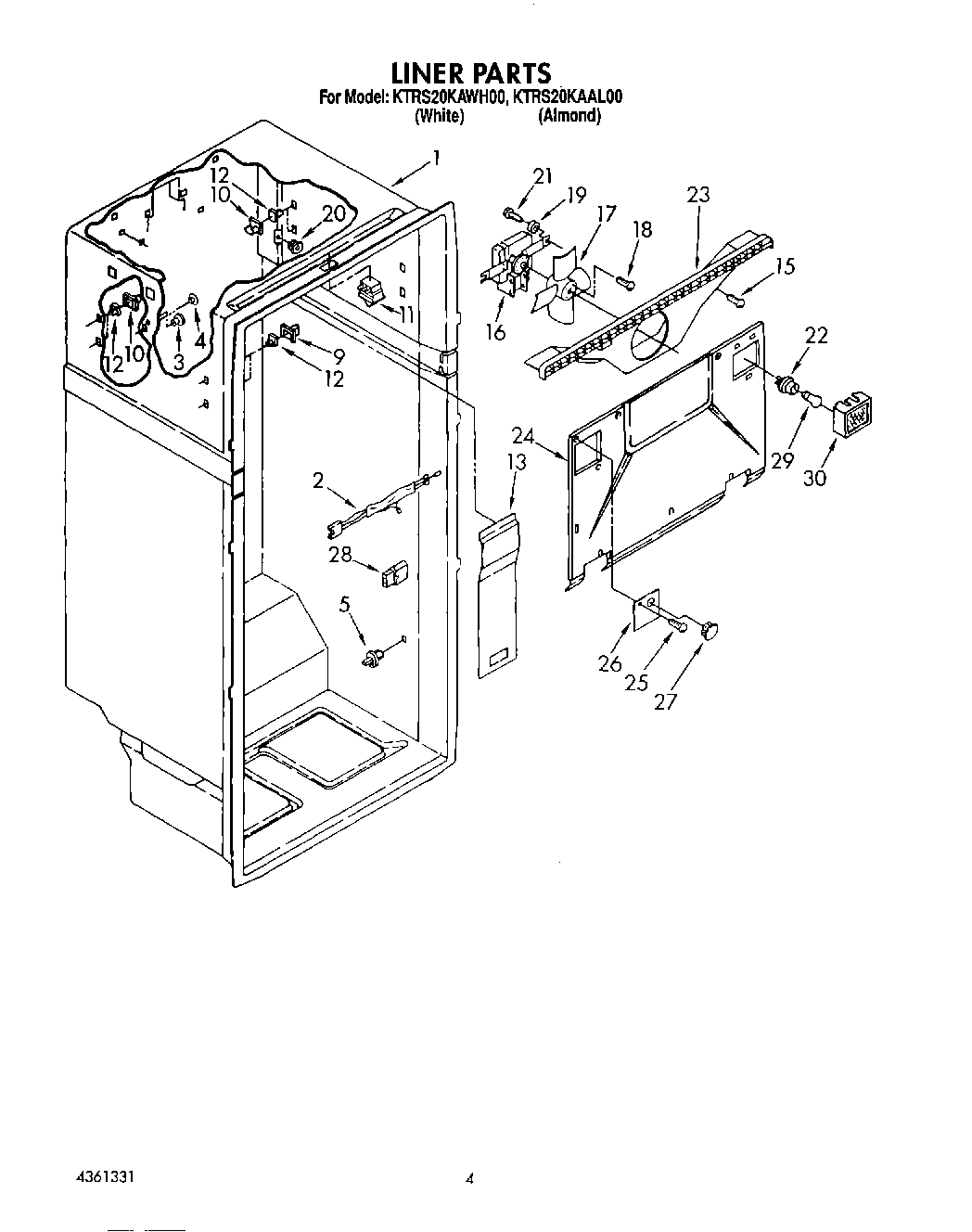

03 - LINER

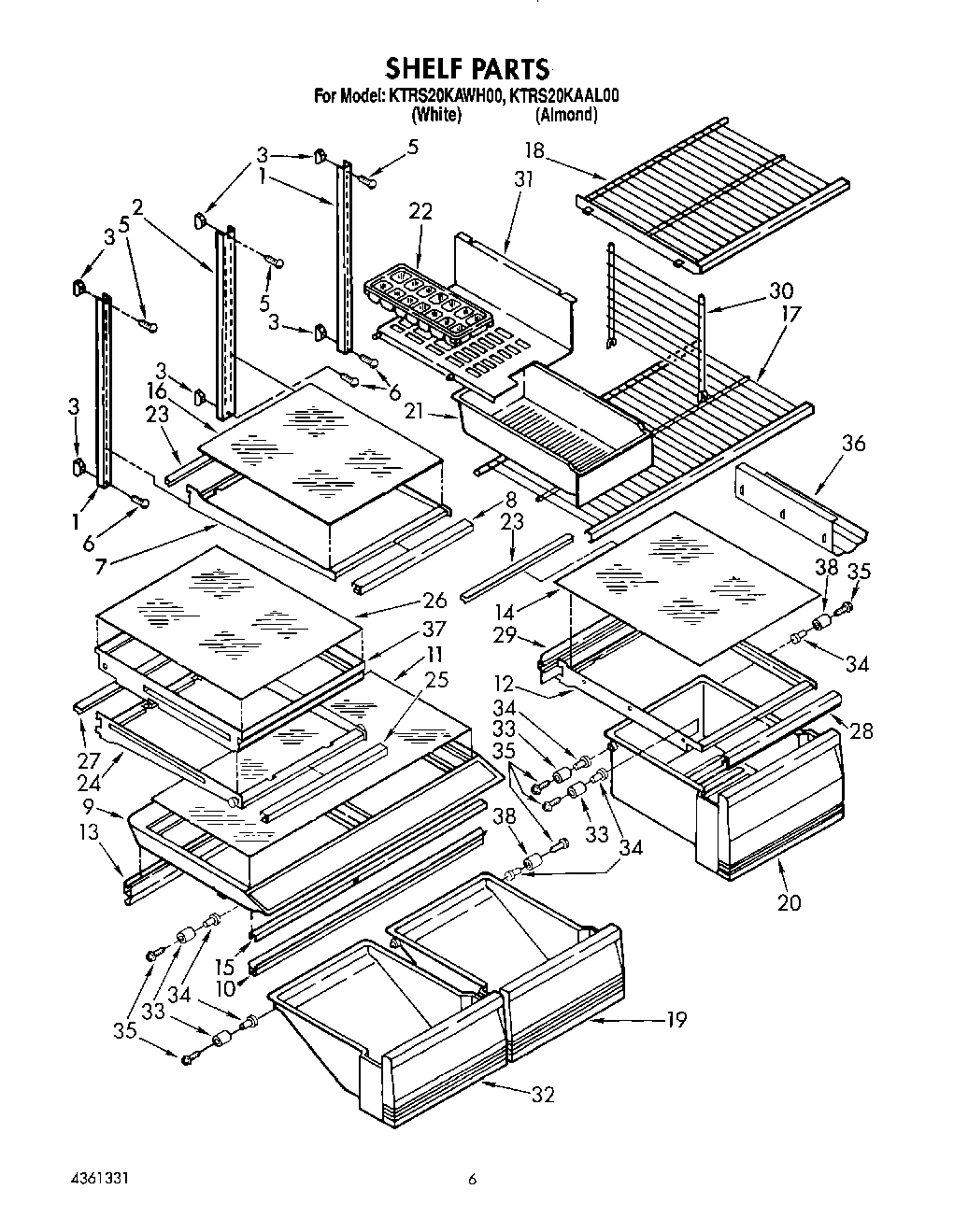

05 - SHELF, LIT/OPTIONAL

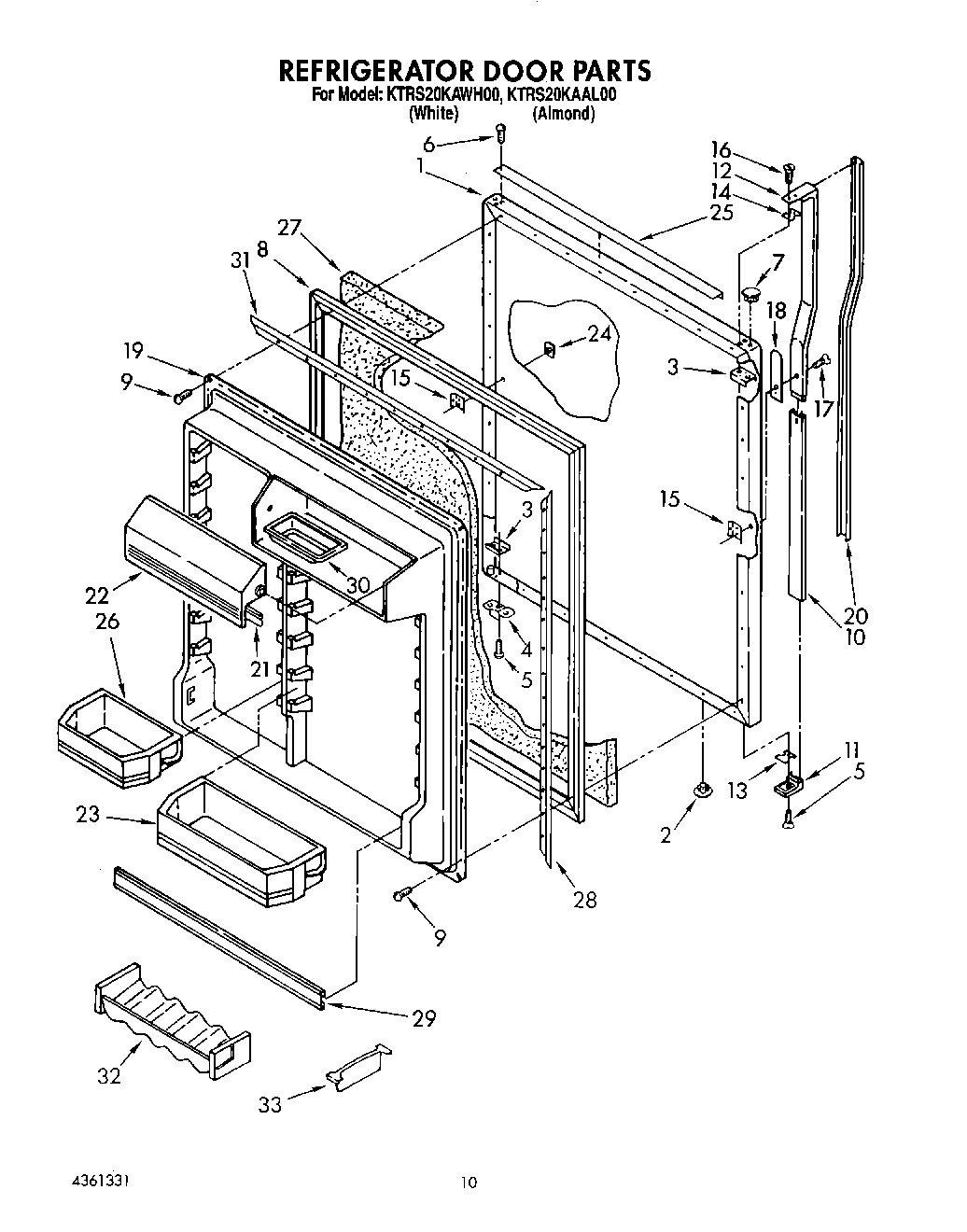

07 - REFRIGERATOR DOOR

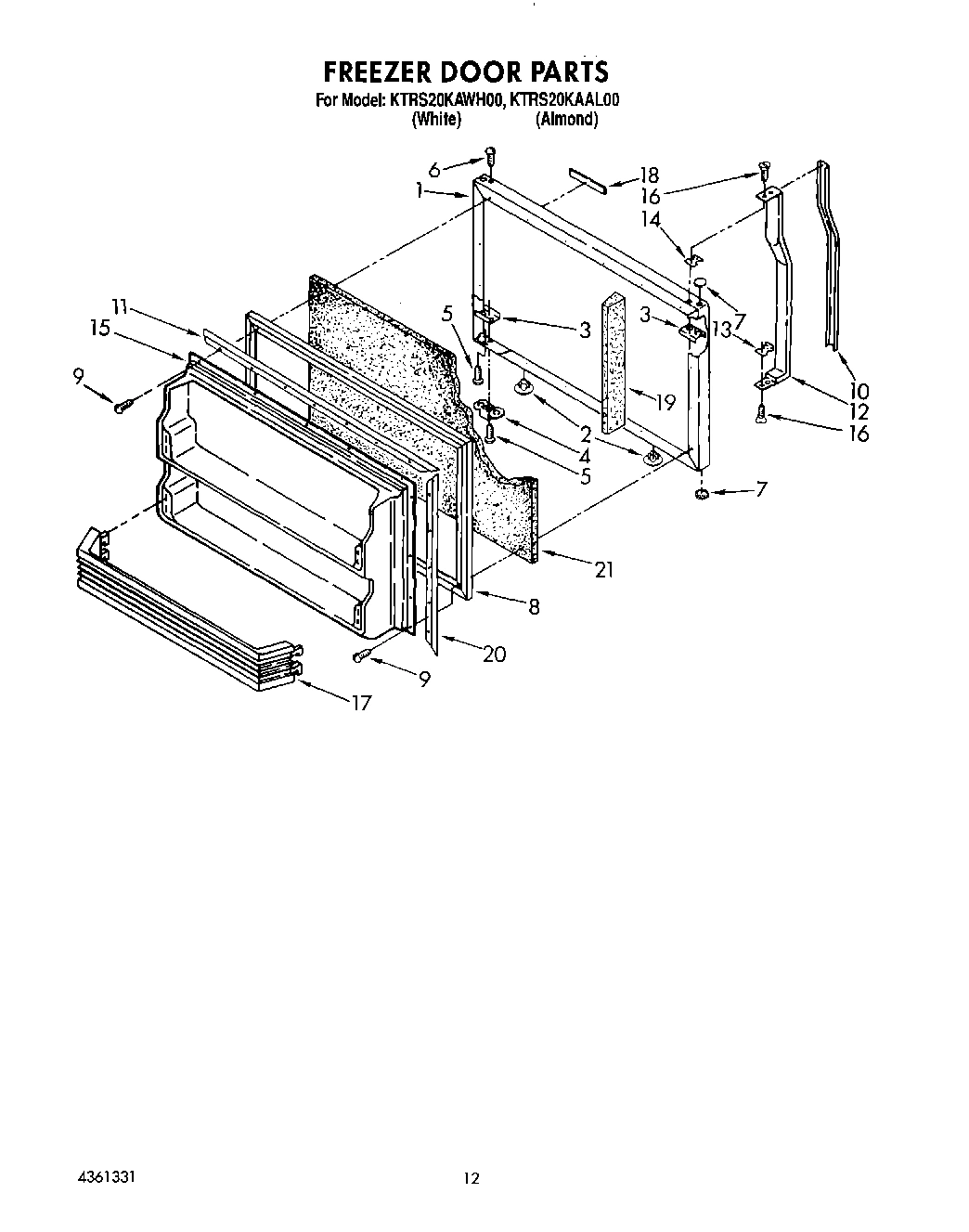

08 - FREEZER DOOR

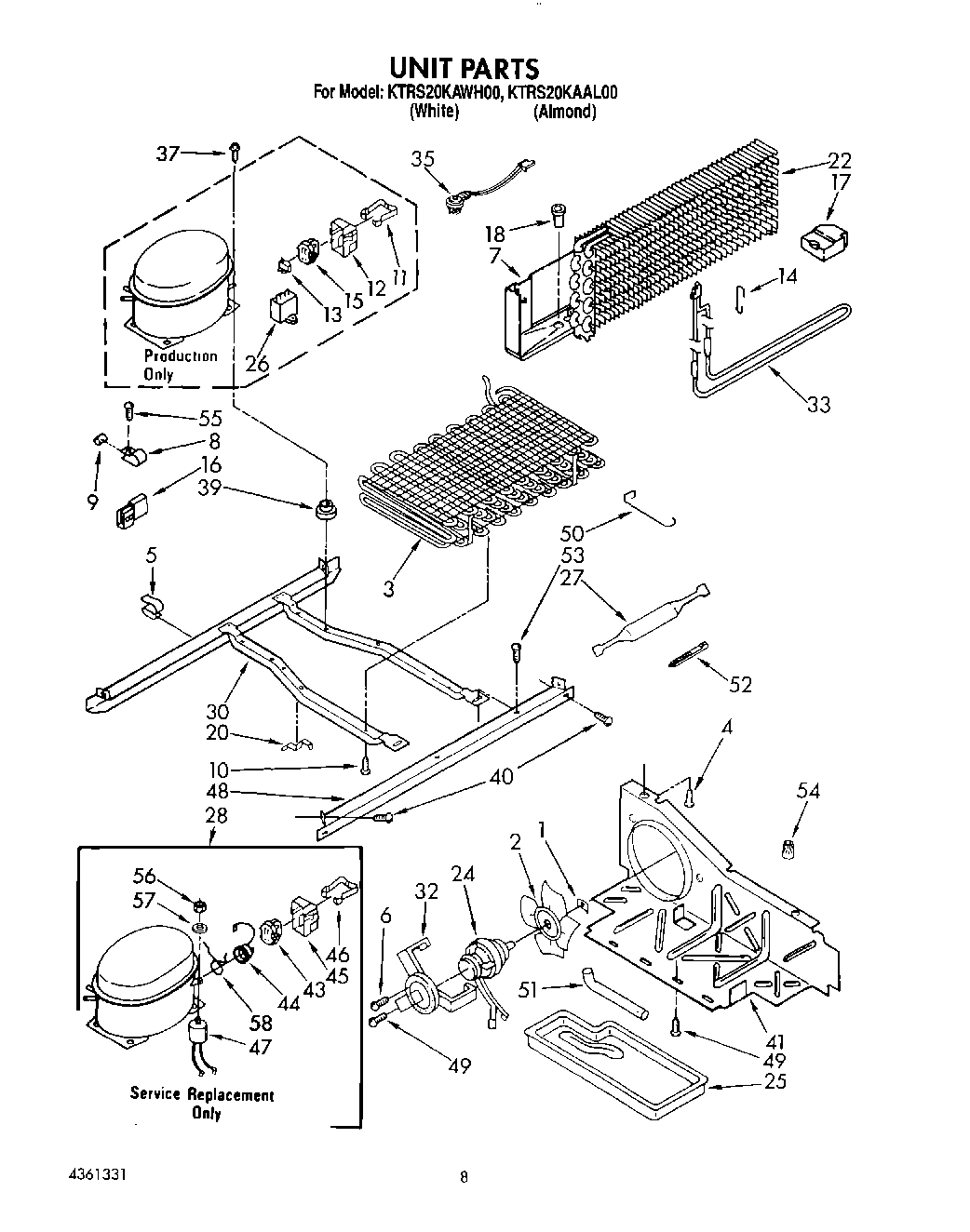

06 - UNIT

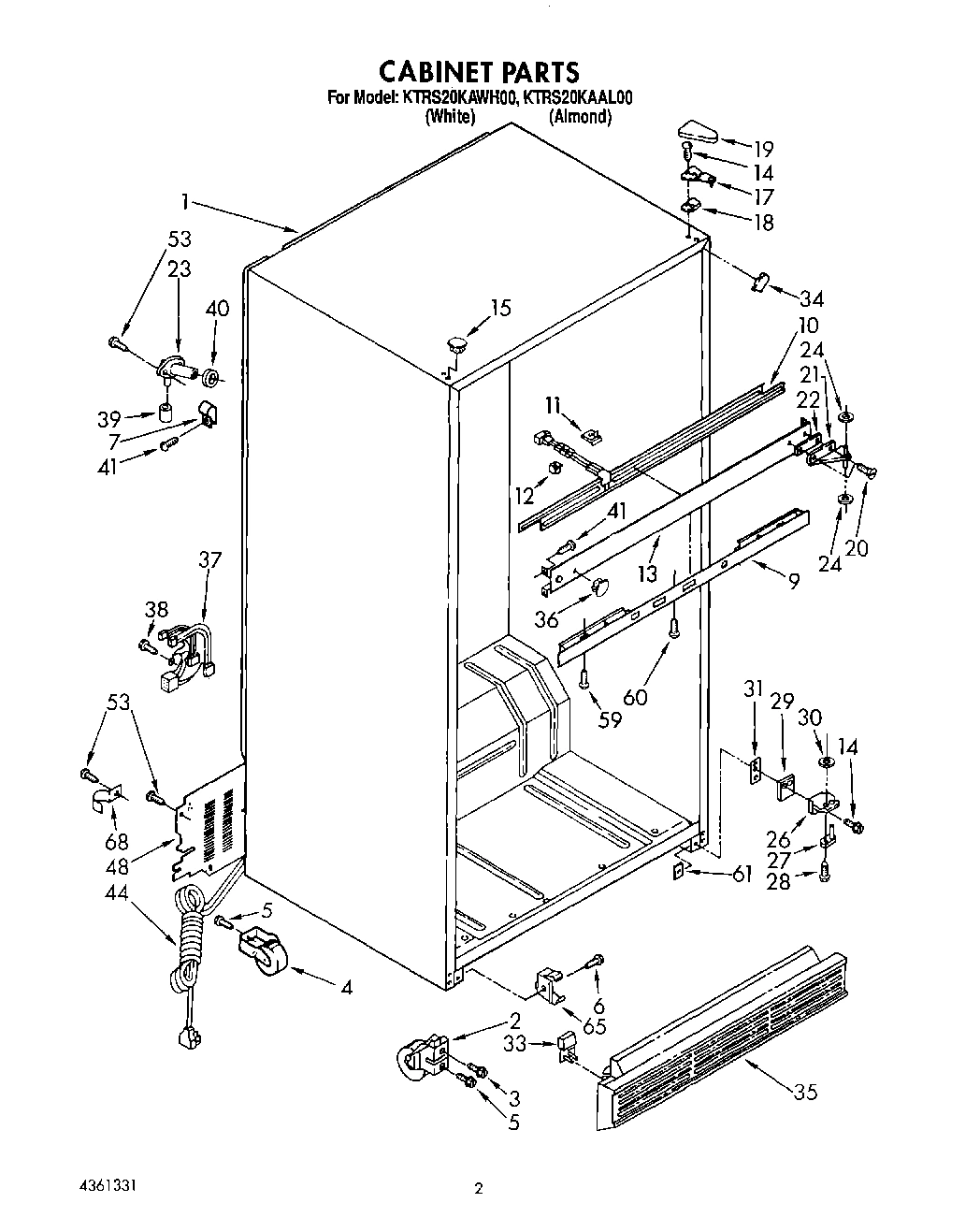

02 - CABINET

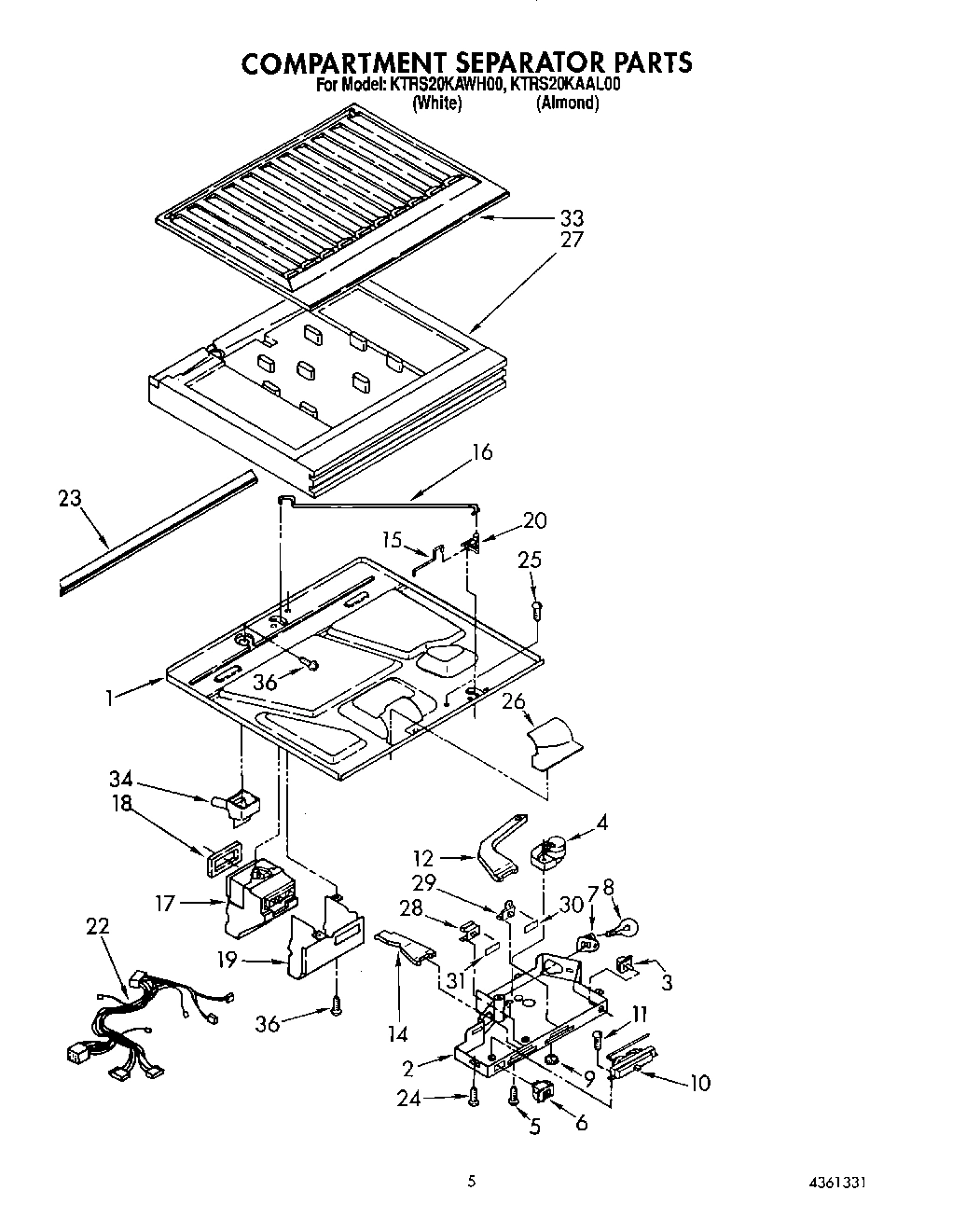

04 - COMPARTMENT SEPARATOR
Common parts from model Whirlpool KTRS20KAWH00
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Panel, Refrigerator Door (White) WPL 2157700 Contact Us For Availability
1
Panel, Refrigerator Door (Almond (Also Order WPL 2157703 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2156096 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2156099 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI111889A Contact Us For Availability
1
Bottom, Compartment Separator WPL 1125619 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Fan, Blade WPL 851732 Contact Us For Availability
2
Roller, Front WPL 2152011 Contact Us For Availability
2
Box, Control WPL 1125510 Contact Us For Availability
3
Plate, Tap (4) WPL 1123568 Contact Us For Availability
3
Condenser Assembly WPL 2154010 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489393 Contact Us For Availability
4
Bracket, Door Stop WPL 2157748 Contact Us For Availability
4
Bracket, Door Stop WPL 2157749 Contact Us For Availability
4
Timer, Defrost (10 Hour) WPL 2154982 Contact Us For Availability
5
Clip, Wire (2) WPL 548745 Contact Us For Availability
5
Screw (6) WPL 488454 Contact Us For Availability
6
Switch, Toggle WPL 1125964 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Drain Pan/ Heat Shield WPL 2153974 Contact Us For Availability
8
Tube Clamp WPL 2159720 Contact Us For Availability
9
Dampener WPL 2149670 Contact Us For Availability
9
Control, Front Cover WPL 1126139 Contact Us For Availability
10
Retainer, Insert WPL 1107209 Contact Us For Availability
10
Insert, Handle (White) WPL 2161540 Contact Us For Availability
10
Insert, Handle (Almond) WPL 2161541 Contact Us For Availability
10
Heater, Mullion WPL 2154065 Contact Us For Availability
10
Thermostat Assembly WPL 2161674 Contact Us For Availability
11
End Cap, Handle WPL 1107236 Contact Us For Availability
11
Retainer, Gasket WPL 1122552 Contact Us For Availability
11
Clip, Center Rail (4) WPL 1129018 Contact Us For Availability
12
Handle WPL 2161508 Contact Us For Availability
12
Handle WPL 2161517 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
12
Light Pipe (R.S.) WPL 1125511 Contact Us For Availability
13
Shim, End Cap WPL 1107229 Contact Us For Availability
13
Spacer, Handle WPL 2161510 Contact Us For Availability
13
Center Rail (White) WPL 1122566 Contact Us For Availability
13
Center Rail (Almond) WPL 1122569 Contact Us For Availability
14
Spacer, Handle WPL 1107628 Contact Us For Availability
14
Support, Heater WPL 2149120 Contact Us For Availability
14
Screw WPL 489327 Contact Us For Availability
14
Light Pipe (L.S.) WPL 1125512 Contact Us For Availability
15
Interior Door Panel WPL 1117940 Contact Us For Availability
15
Hole Plug (Almond) WPL 2151653 Contact Us For Availability
15
Connecting Rod, Short WPL 1125515 Contact Us For Availability
16
Glass, Shelf WPL 1125625 Contact Us For Availability
16
Housing Plug WPL 1118850 Contact Us For Availability
16
Rod, Connecting WPL 1126148 Contact Us For Availability
17
Shelf, Freezer WPL 1125540 Contact Us For Availability
17
Shelf Bin (2) WPL 1125557 Contact Us For Availability
17
Support, Evap. (R.S.) WPL 1118805 Contact Us For Availability
17
Support, Evap. (L.S.) WPL 2159708 Contact Us For Availability
17
Air Diffuser Assembly WPL 2159698 Contact Us For Availability
18
Shelf, Freezer WPL 1125541 Contact Us For Availability
18
Spacer, Handle WPL 1107650 Contact Us For Availability
18
Nameplate (White) WPL 1125818 Contact Us For Availability
18
Nameplate (Almond) WPL 1125819 Contact Us For Availability
18
Drain Fitting WPL 981629 Contact Us For Availability
18
Shim, Hinge Top WPL 1123517 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
19
Crisper Pan & Roller Assembly WPL 2161722 Contact Us For Availability
19
Interior Door Panel WPL 1117941 Contact Us For Availability
19
Dike-Door WPL 1125577 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
19
Cover, Air Diffuser WPL 1125941 Contact Us For Availability
20
Retainer, Gasket WPL 1122553 Contact Us For Availability
20
Meat Pan & Roller Assembly WPL 2161752 Contact Us For Availability
20
Insert, Handle (White) WPL 2161513 Contact Us For Availability
20
Insert, Handle (Almond) WPL 2161514 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
20
Pivot Arm WPL 1125581 Contact Us For Availability
21
Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability
21
Gasket, Utility Door WPL 1125695 Contact Us For Availability
21
Hinge, Center WPL 2147335 Contact Us For Availability
22
Utility Door (Includes Item 21) WPL 1125733 Contact Us For Availability
22
Evaporator WPL 2153978 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2153995 Contact Us For Availability
23
Retainer, Shelf WPL 1110744 Contact Us For Availability
23
Shelf Bin (Wide) WPL 1125555 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159684 Contact Us For Availability
24
Frame & Roller Assembly WPL 2161803 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
25
Gasket (Front) WPL 2161684 Contact Us For Availability
25
Trim, Door WPL 1107199 Contact Us For Availability
26
Glass Shelf WPL 2161680 Contact Us For Availability
26
Shelf Bin (3) WPL 1125556 Contact Us For Availability
26
Capacitor, Run WPL 2154565 Contact Us For Availability
26
Hinge Butt, Bottom WPL 2148563 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Reflector WPL 2161807 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1105463 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Gasket, Front WPL 1125576 Contact Us For Availability
28
Retainer, Gasket WPL 1122551 Contact Us For Availability
28
Slide, Thermostat WPL 1125513 Contact Us For Availability
29
Gasket, Rear WPL 1125815 Contact Us For Availability
29
Trim, Door Shelf WPL 1125562 Contact Us For Availability
29
Shim, Bottom WPL 1123379 Contact Us For Availability
29
Slide, Air Control WPL 1125578 Contact Us For Availability
30
Divider WPL 1125542 Contact Us For Availability
30
Butter, Tray WPL 1125936 Contact Us For Availability
30
Unit Mounting Frame WPL 1127942 Contact Us For Availability
30
Window, Air Control WPL 1125579 Contact Us For Availability
31
Shelf, Ice Tray WPL 1125543 Contact Us For Availability
31
Spacer WPL 1121117 Contact Us For Availability
31
Window, Thermostat WPL 1125580 Contact Us For Availability
32
Utility Pan Roller Assembly WPL 2161753 Contact Us For Availability
32
Holder, Beverage WPL 1125981 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
33
Roller WPL 2161749 Contact Us For Availability
33
Load Lock WPL 1117999 Contact Us For Availability
33
Heater, Defrost WPL 2162019 Contact Us For Availability
33
Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability
33
Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1129022 Contact Us For Availability
34
Eyelet, Roller WPL 1112308 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability
34
Cup, Drain WPL 937065 Contact Us For Availability
35
Grille (White) WPL 1125663 Contact Us For Availability
35
Grille (Almond) WPL 1125667 Contact Us For Availability
36
Wine & Egg Rack WPL 1126137 Contact Us For Availability
36
Hole Plug (5) (White) WPL 1129062 Contact Us For Availability
36
Hole Plug (5) (Almond) WPL 1129063 Contact Us For Availability
37
Frame & Roller Assembly Movable WPL 2161703 Contact Us For Availability
37
Wiring Assy. Intermediate WPL 2153994 Contact Us For Availability
38
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
38
Roller WPL 2161750 Contact Us For Availability
38
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
38
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
38
WPL 799833 WPL 799833 Contact Us For Availability
38
WPL 978883 WPL 978883 Contact Us For Availability
41
Air, Baffle WPL 1127938 Contact Us For Availability
44
Overload WPL 1108114 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
45
Cover WPL 1108115 Contact Us For Availability
46
Strap WPL 938384 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
48
Cover, Unit WPL 1105531 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
51
Drain Extension WPL 2154119 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
56
Nut WPL 489142 Contact Us For Availability
57
Washer WPL 489143 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Overload Spring WPL 1114190 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2147310 Contact Us For Availability
× ![]()
