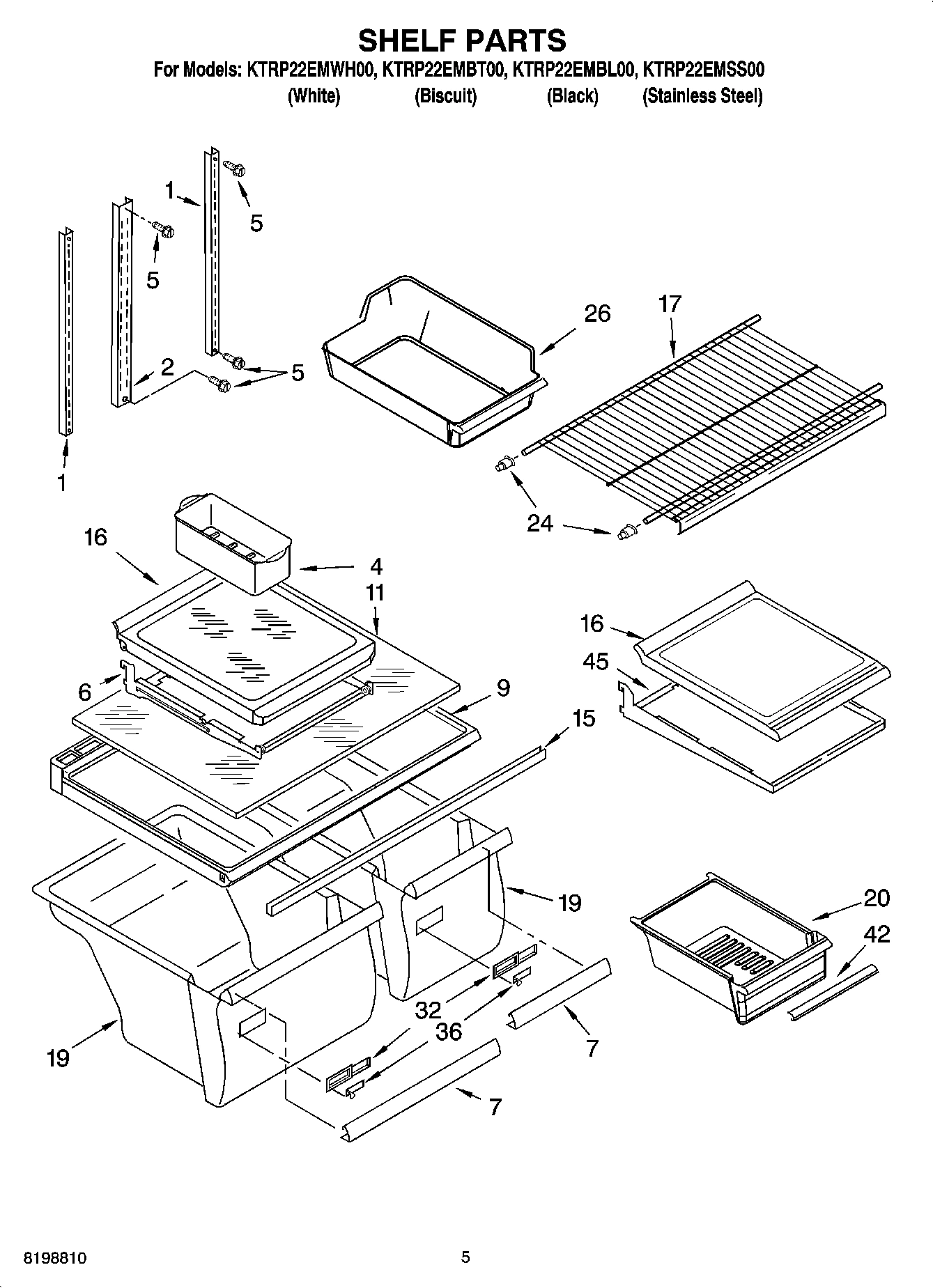

Model Whirlpool KTRP22EMBL00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $7.20

1

Housing, Dispenser WPL 2210500 Contact Us For Availability

1

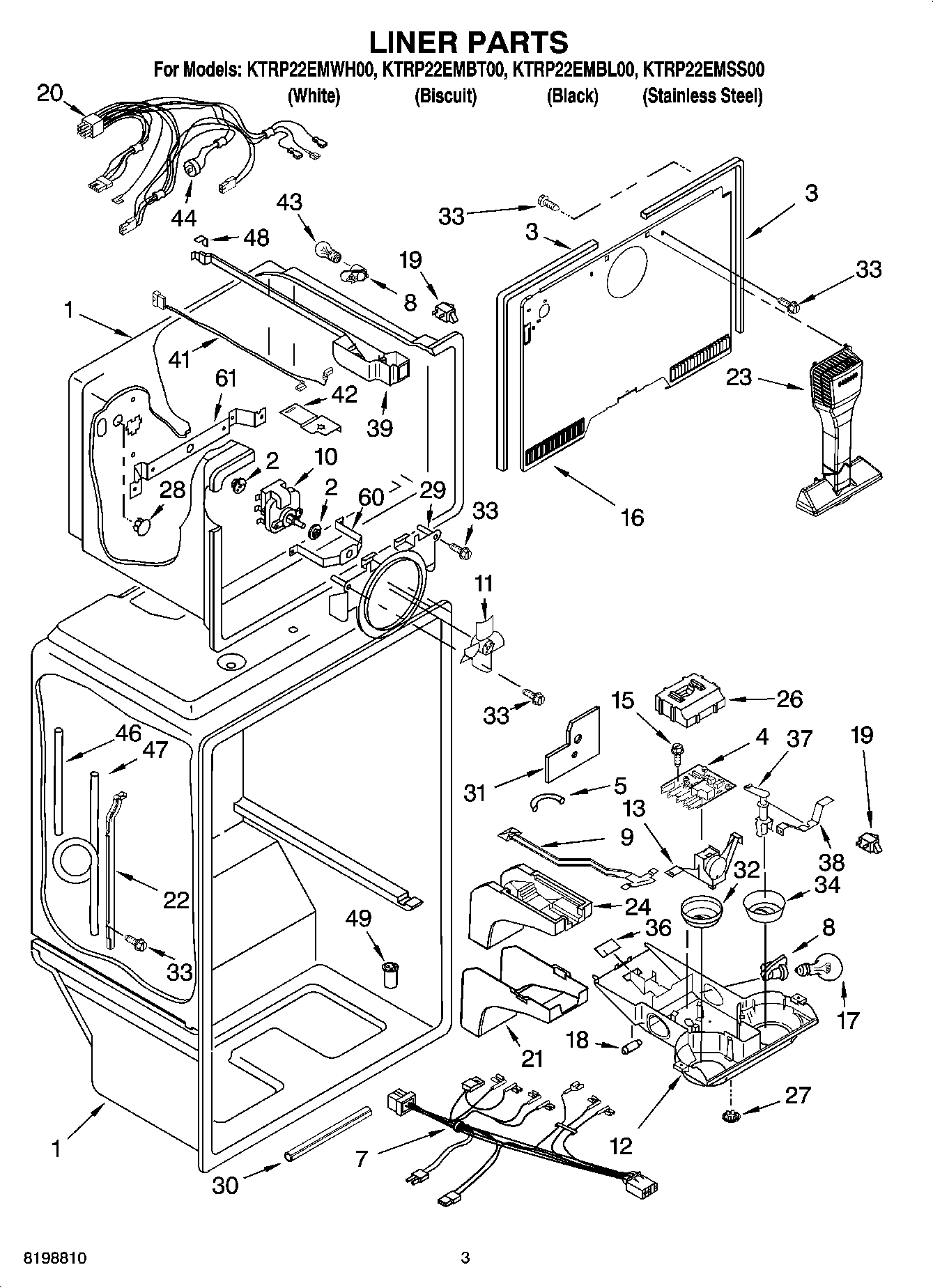

Liner (Not A Serviceable Part) WPL ARI111197A Contact Us For Availability

1

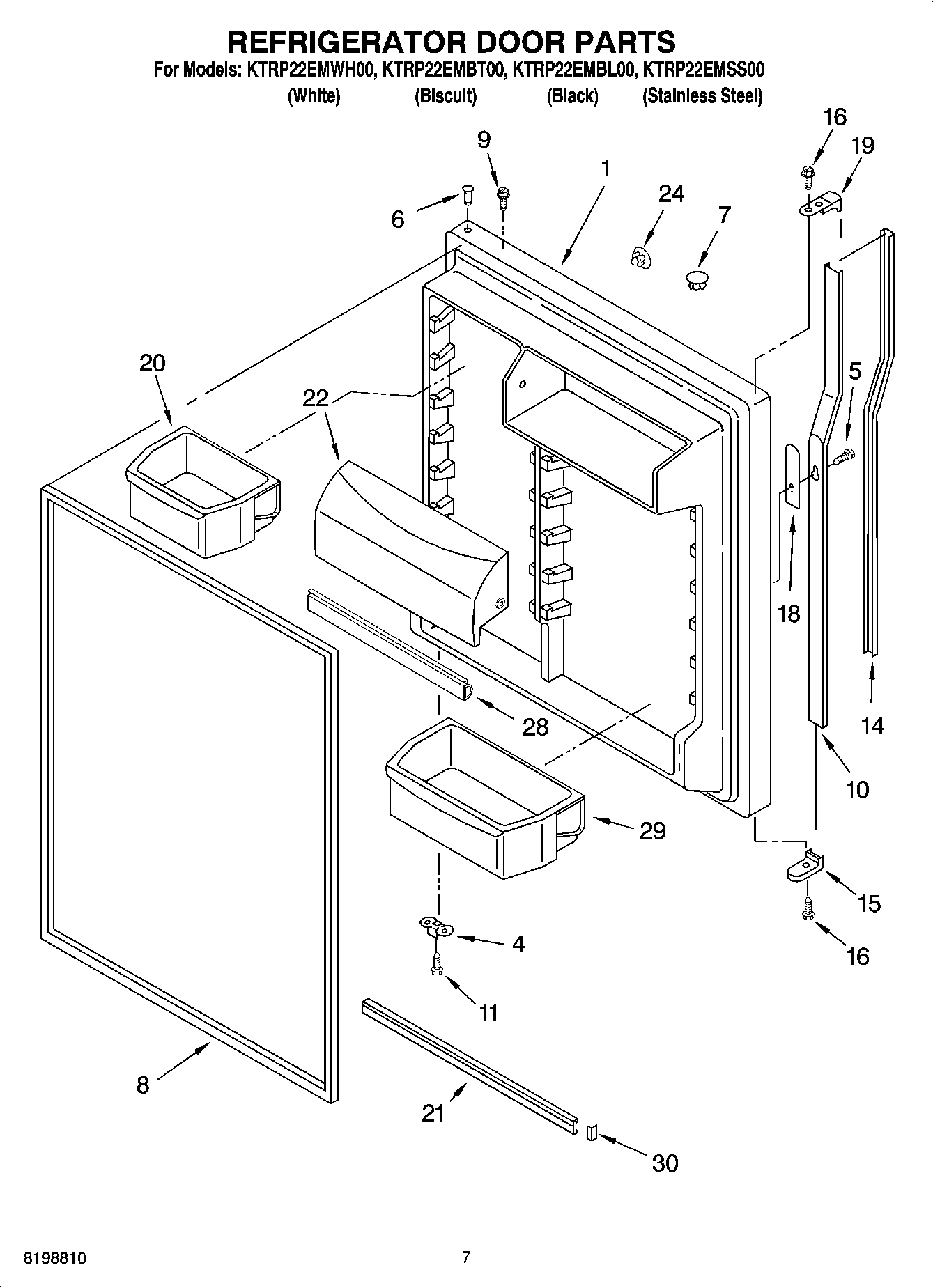

Refrigerator Door (Includes 8) (White) WPL 2198970 Contact Us For Availability

1

Refrigerator Door (Includes 8) (Black) WPL 2200613 Contact Us For Availability

1

Refrigerator Door (Includes 8) (Biscuit) WPL 2200927 Contact Us For Availability

1

Refrigerator Door (Includes 8) (Stainless Ste WPL 2225504 Contact Us For Availability

1

Literature Parts (Consumer Quick Tips) WPL LIT2225415 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL LIT2225623 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT2225951 Contact Us For Availability

1

Literature Parts (Instruction Sheet, Water Fi WPL LIT2301632 Contact Us For Availability

1

Literature Parts (Energy Label) WPL LIT2301736 Contact Us For Availability

1

Literature Parts (Service & Wiring Sheet) WPL LIT2301817 Contact Us For Availability

2

WP2261963 Whirlpool Refrigerator Door Hinge In Stock WPL WP2261963 $84.99

2

WP2264462 Whirlpool Refrigerator Grommet In Stock WPL WP2264462 $30.99

3

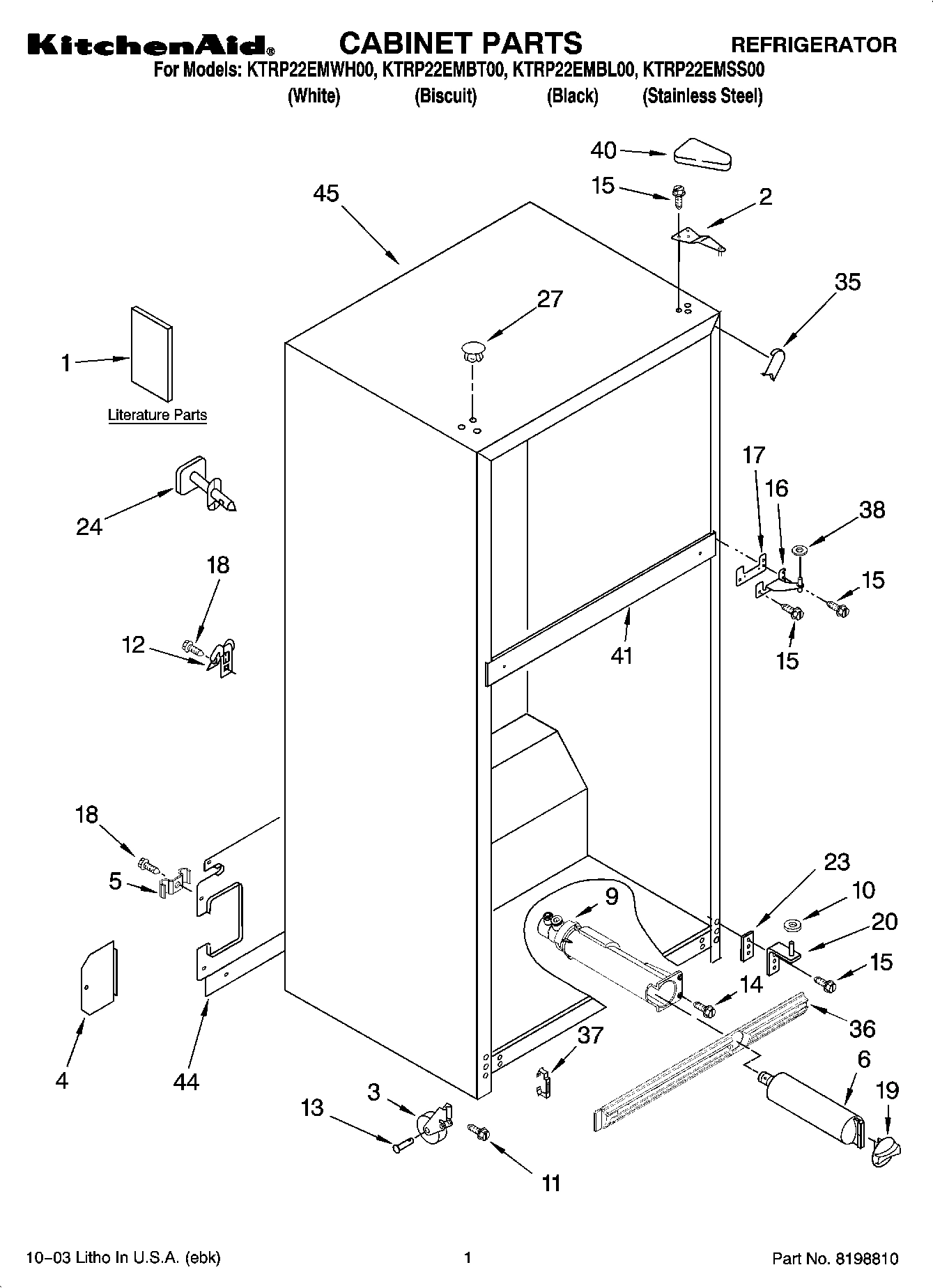

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $18.99

3

WP2254360 Whirlpool Refrigerator Gasket Backorder WPL WP2254360 $16.47

3

Condenser WPL 2214960 Contact Us For Availability

4

W11745278 Whirlpool Bracket In Stock WPL W11745278 $8.47

4

WP2304099-includeCORE Whirlpool WP2304099 Ref Backorder WPL WP2304099-includeCORE $260.62

4

Flange, Tube WPL 2210523 Contact Us For Availability

4

Cover, Water Valve WPL 2166251 Contact Us For Availability

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

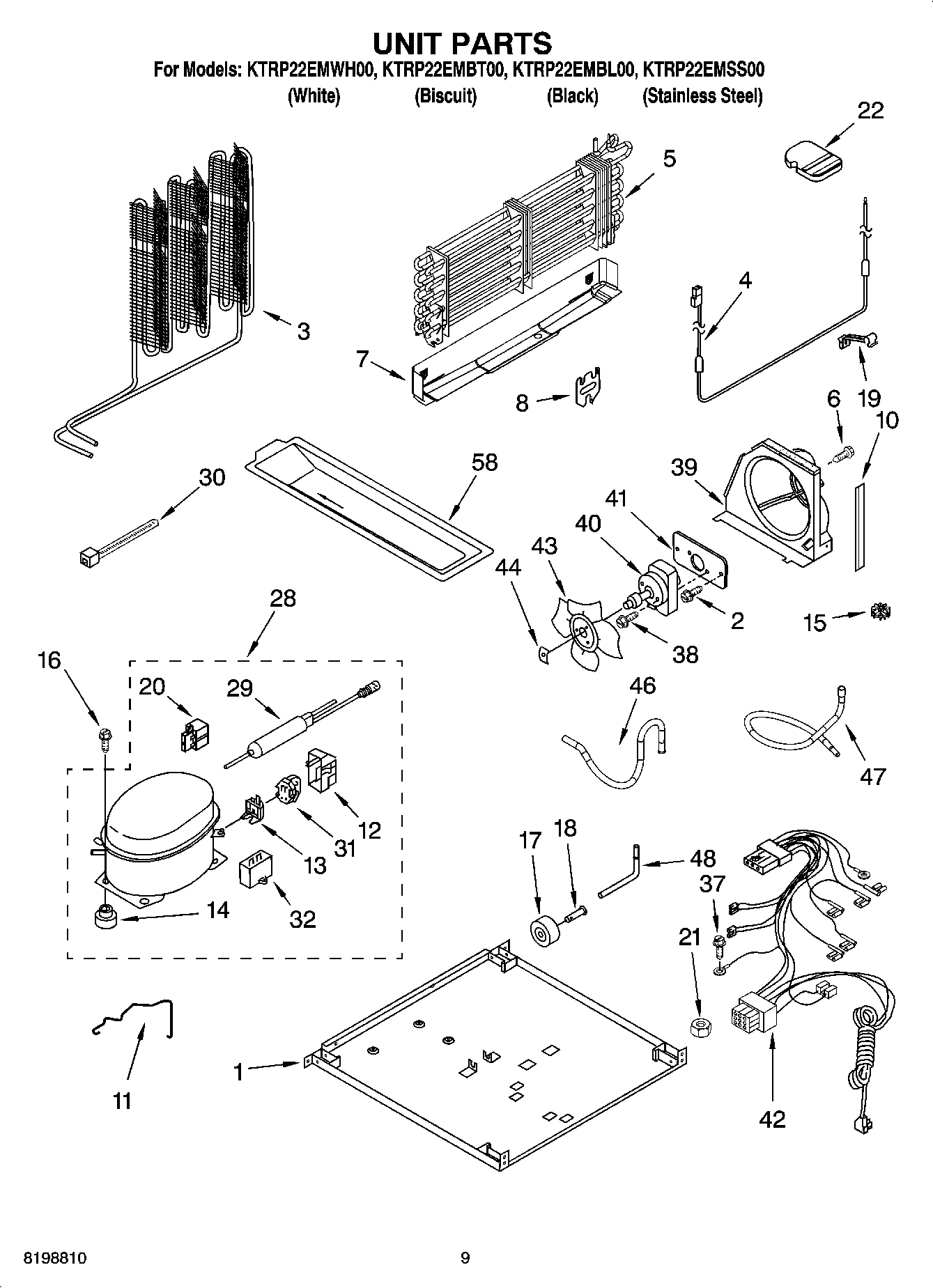

EVAPORATOR ASSY. WPL 2254249 Contact Us For Availability

5

Thermostat Tube Barrier WPL 2212485 Contact Us For Availability

5

Screw, 8 x 1/2 WPL 3400873 Contact Us For Availability

5

Clamp, Tube (Water Supply Line) WPL 2301624 Contact Us For Availability

6

EDR6D1 Whirlpool EveryDrop® Ice and Water Re In Stock WPL EDR6D1 $51.60

6

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.72

6

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $4.98

7

WP2195341 Whirlpool Refrigerator Pan Trim Backorder WPL WP2195341 $55.91

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve In Stock WPL WP2212648 $4.82

7

WP2212649 Whirlpool Refrigerator Button Plug Backorder WPL WP2212649 $4.82

7

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $14.62

7

Drain Pan WPL 2254295 Contact Us For Availability

7

Wire Assembly, Control Box WPL 2187351 Contact Us For Availability

8

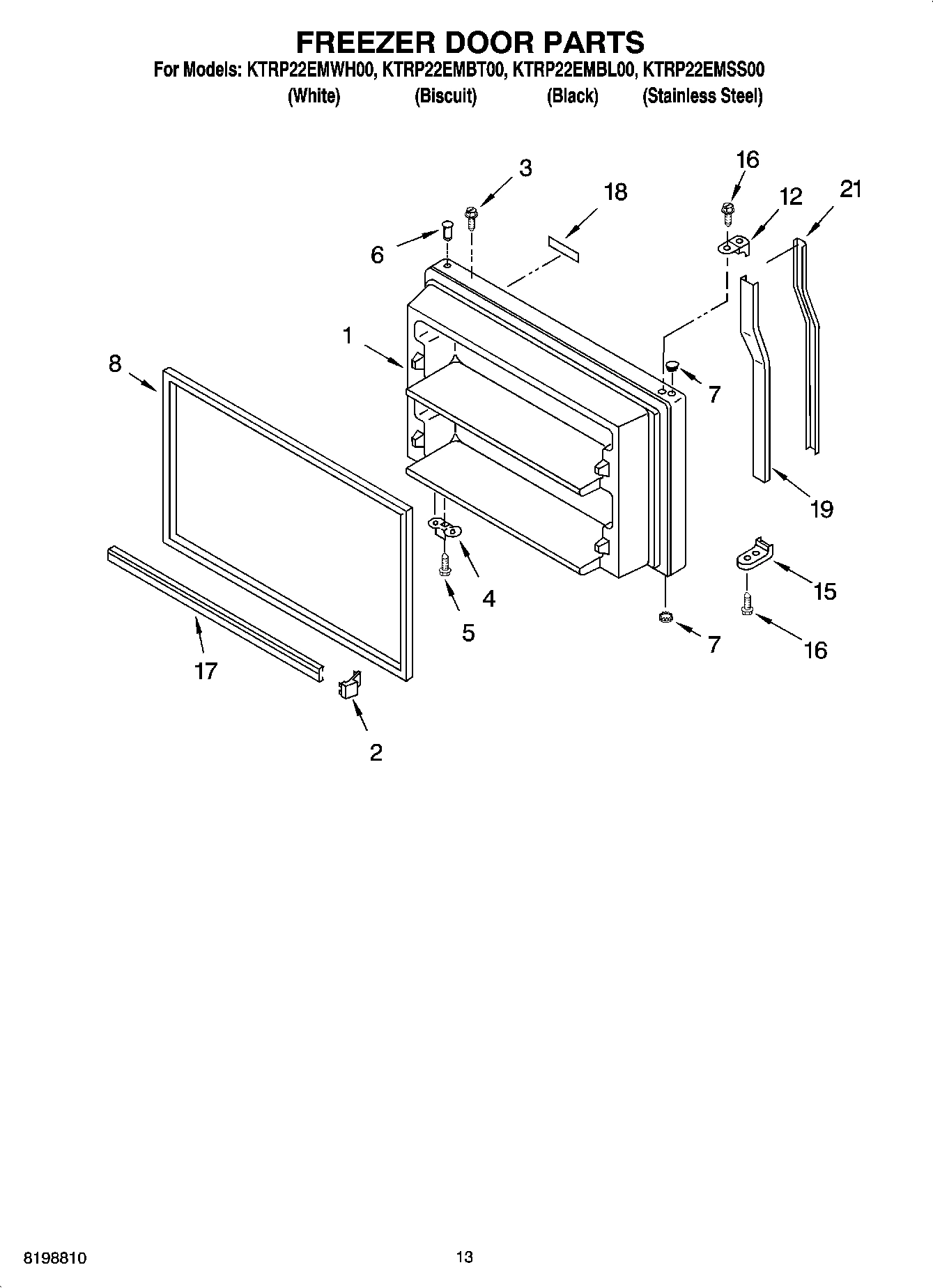

2159061 Whirlpool Refrigerator Door Gasket In Stock WPL 2159061 $112.65

8

2177311 Whirlpool Refrigerator Magnetic Door In Stock WPL 2177311 $253.50

8

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

9

WP2225521 Whirlpool Water Filter Housing In Stock WPL WP2225521 $114.99

9

WP8281206 Whirlpool Refrigerator Screw Backorder WPL WP8281206 $4.82

9

Damper, Air (Slide) WPL 2179858 Contact Us For Availability

WP487576 Whirlpool Washer In Stock WPL WP487576 $5.99

WPW10189703 Whirlpool Refrigerator Evaporator In Stock WPL WPW10189703 $49.76

Retainer, Insert (Black) WPL 2188222B Contact Us For Availability

Retainer, Insert (Biscuit) WPL 2188222T Contact Us For Availability

Retainer, Insert (White) WPL 2188222W Contact Us For Availability

11

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $59.57

11

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $4.82

11

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $4.82

12

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $8.91

12

Endcap, Handle (White) WPL 2195994W Contact Us For Availability

12

Control Box WPL 2212981 Contact Us For Availability

13

W11594405 Whirlpool Axle In Stock WPL W11594405 $8.90

13

Thermostat Assembly (Includes Items 5 & 18) WPL 2210491 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

Insert, Handle (Black) WPL 2188155 Contact Us For Availability

Insert, Handle (White) WPL 2195986 Contact Us For Availability

Insert, Handle (Biscuit) WPL 2200932 Contact Us For Availability

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.75

WP98129 Whirlpool Screw Backorder WPL WP98129 $4.82

Endcap (White) WPL 2195995W Contact Us For Availability

Endcap, Handle (Black) WPL 2188132 Contact Us For Availability

Endcap, Handle (White) WPL 2195990 Contact Us For Availability

Endcap, Handle (Biscuit) WPL 2200930 Contact Us For Availability

16

WP2254618 Whirlpool Center Door Hinge In Stock WPL WP2254618 $49.58

16

WP489357 Whirlpool Recessed Screw In Stock WPL WP489357 $3.52

16

Cover, Evaporator WPL 2254262 Contact Us For Availability

17

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

17

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $6.78

17

Trim, Door Shelf (2) WPL 2195947 Contact Us For Availability

18

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

18

Weight, Thermal WPL 2200831 Contact Us For Availability

18

Spacer, Handle WPL 2188146 Contact Us For Availability

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.77

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $42.99

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $7.99

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $36.34

Clip, Heater WPL 2182338 Contact Us For Availability

End Cap (Black) WPL 2195995B Contact Us For Availability

Endcap (Biscuit) WPL 2195995T Contact Us For Availability

20

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $5.99

20

Wire Assembly, Freezer Compartment WPL 2187690 Contact Us For Availability

20

Bin, Door Shelf (2) WPL 2171064 Contact Us For Availability

21

WPW10421486 Whirlpool Refrigerator Door Trim In Stock WPL WPW10421486 $46.99

21

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

Support Block WPL 2201185 Contact Us For Availability

Cover, Tubing WPL 2225531 Contact Us For Availability

Door, Compartment WPL 2218122 Contact Us For Availability

23

WP2254354 Whirlpool Refrigerator Air Tower Backorder WPL WP2254354 $71.14

23

Shim, Bottom Hinge WPL 2172743 Contact Us For Availability

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $6.49

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $55.70

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $4.82

WP2189009 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189009 $4.55

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $82.12

WP2200936 Whirlpool Refrigerator Handle Plug Backorder WPL WP2200936 $4.82

Fitting, Water Tube (Not Serviced) WPL ARI111194A Contact Us For Availability

26

Air Diffuser, Top WPL 2204690 Contact Us For Availability

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $13.22

WP2151652 Whirlpool Refrigerator Button Plug In Stock WPL WP2151652 $14.52

WP2183998 Whirlpool Refrigerator Button Plug Backorder WPL WP2183998 $11.61

Hole Plug (6) (Biscuit) WPL 2200924 Contact Us For Availability

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

28

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $5.99

28

Gasket, Door Compartment WPL 2159124 Contact Us For Availability

29

Bin, Door Shelf WPL 2171062 Contact Us For Availability

29

Bracket, Fan Motor WPL 2218696 Contact Us For Availability

30

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $5.47

30

Insulation Tube WPL 2301622 Contact Us For Availability

31

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $57.65

31

Shield, heat WPL 2204639 Contact Us For Availability

32

W10829461 Whirlpool Refrigerator Thermal Knob Backorder WPL W10829461 $19.23

32

WP2212446 Whirlpool Refrigerator Control Body In Stock WPL WP2212446 $46.99

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $16.99

33

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

34

Knob, Damper WPL 2176297 Contact Us For Availability

35

W10283958 Whirlpool Refrigerator Filler Backorder WPL W10283958 $15.52

35

W11252732 Whirlpool Refrigerator Filler Backorder WPL W11252732 $7.84

35

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $5.99

WP2205079 Whirlpool Refrigerator Seal Backorder WPL WP2205079 $6.17

Slide, Humidity Control WPL 2176222 Contact Us For Availability

Grille (White) WPL 2301618W Contact Us For Availability

Grille (Black) WPL 2301618B Contact Us For Availability

Grille (Biscuit) WPL 2301618T Contact Us For Availability

37

CLIP, GRILLE WPL 2189356 Contact Us For Availability

37

Damper Post WPL 2179859 Contact Us For Availability

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

8281197 Whirlpool Refrigerator Screw Backorder WPL 8281197 $5.51

WP489467 Whirlpool Hinge Shim In Stock WPL WP489467 $5.99

Bracket, Damper Knob WPL 2163810 Contact Us For Availability

39

Housing Base WPL 2201153 Contact Us For Availability

40

2213364 Whirlpool Refrigerator Cover Backorder WPL 2213364 $11.82

40

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $12.19

40

WP2213363 Whirlpool Refrigerator Cover Backorder WPL WP2213363 $11.53

41

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $6.83

41

Wiring Harness, Freezer Light WPL 2187601 Contact Us For Availability

41

Rail Center (Not Serviced) WPL ARI111195A Contact Us For Availability

42

Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability

43

4396822 Whirlpool Refrigerator Light Bulb In Stock WPL 4396822 $14.99

44

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $20.53

44

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

44

Cover, Unit WPL 2253196 Contact Us For Availability

45

Cabinet (Not A Serviceable Part) WPL ARI111196A Contact Us For Availability

46

2205533 Whirlpool Refrigerator Tube Backorder WPL 2205533 $62.23

46

Tube, Water WPL 2301621 Contact Us For Availability

47

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $42.98

48

Gasket, Rear WPL 2166284 Contact Us For Availability

49

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $62.27

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

60

Bracket, Fan Front WPL 2214979 Contact Us For Availability

61

Bracket, Fan Rear WPL 2214976 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $130.99
