Model Whirlpool KTRP20MDAL02 – Common Parts & Diagrams

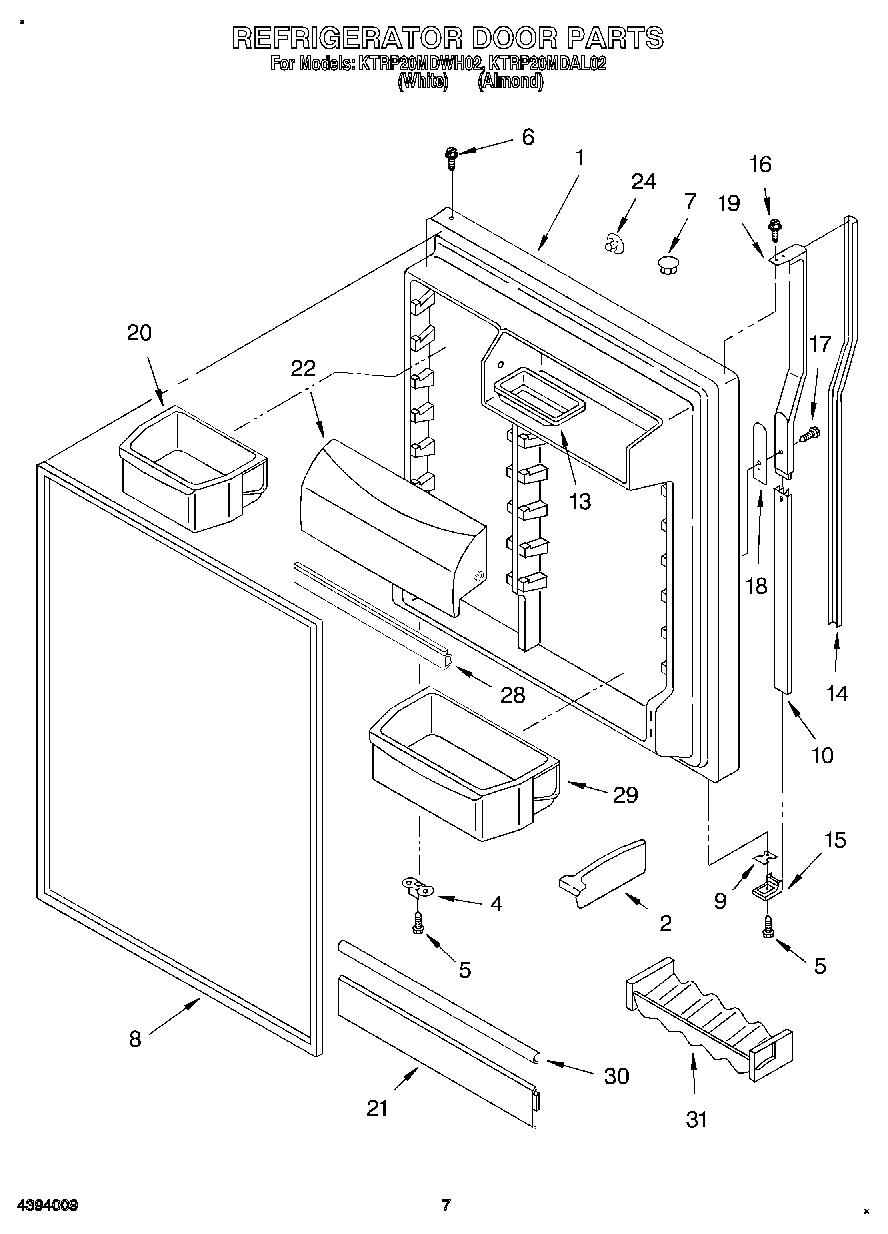

04 - REFRIGERATOR DOOR

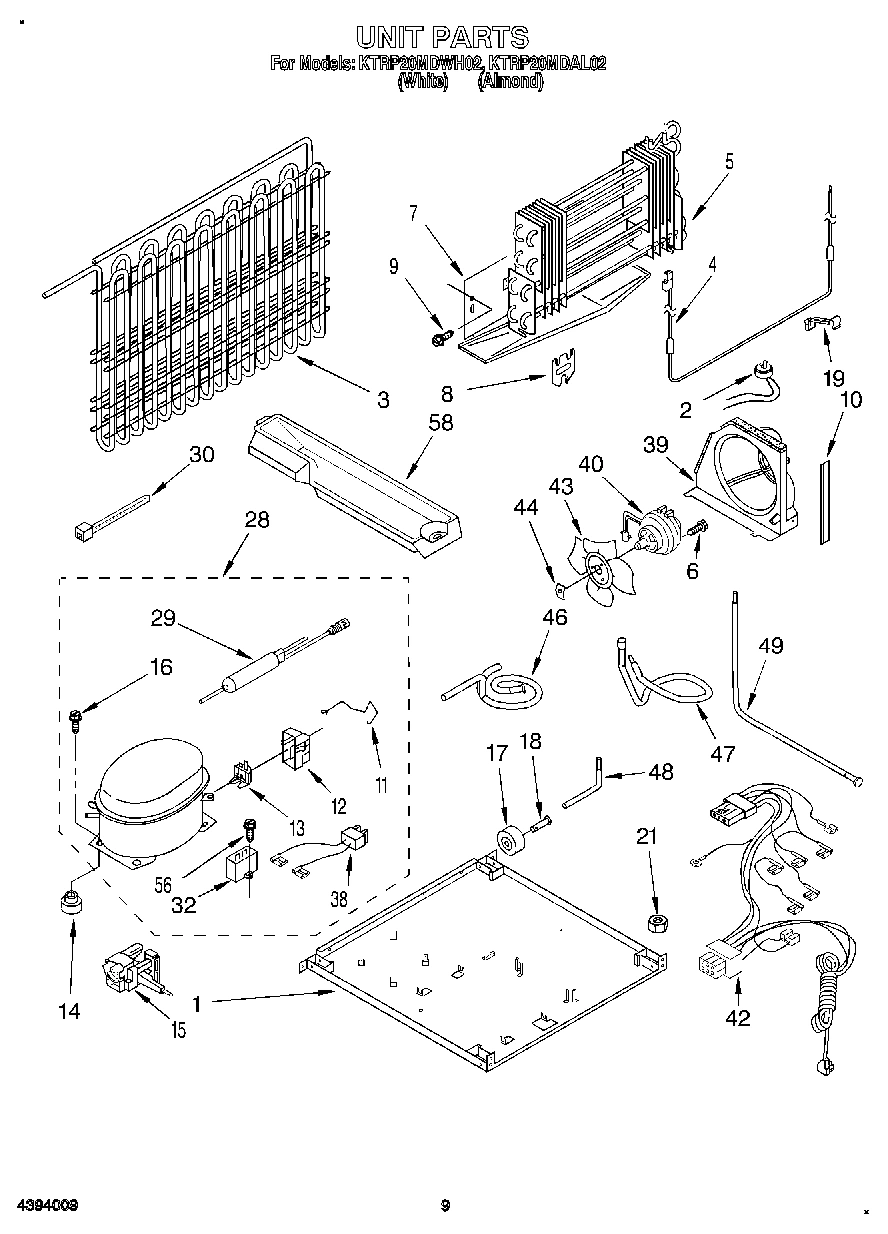

05 - UNIT

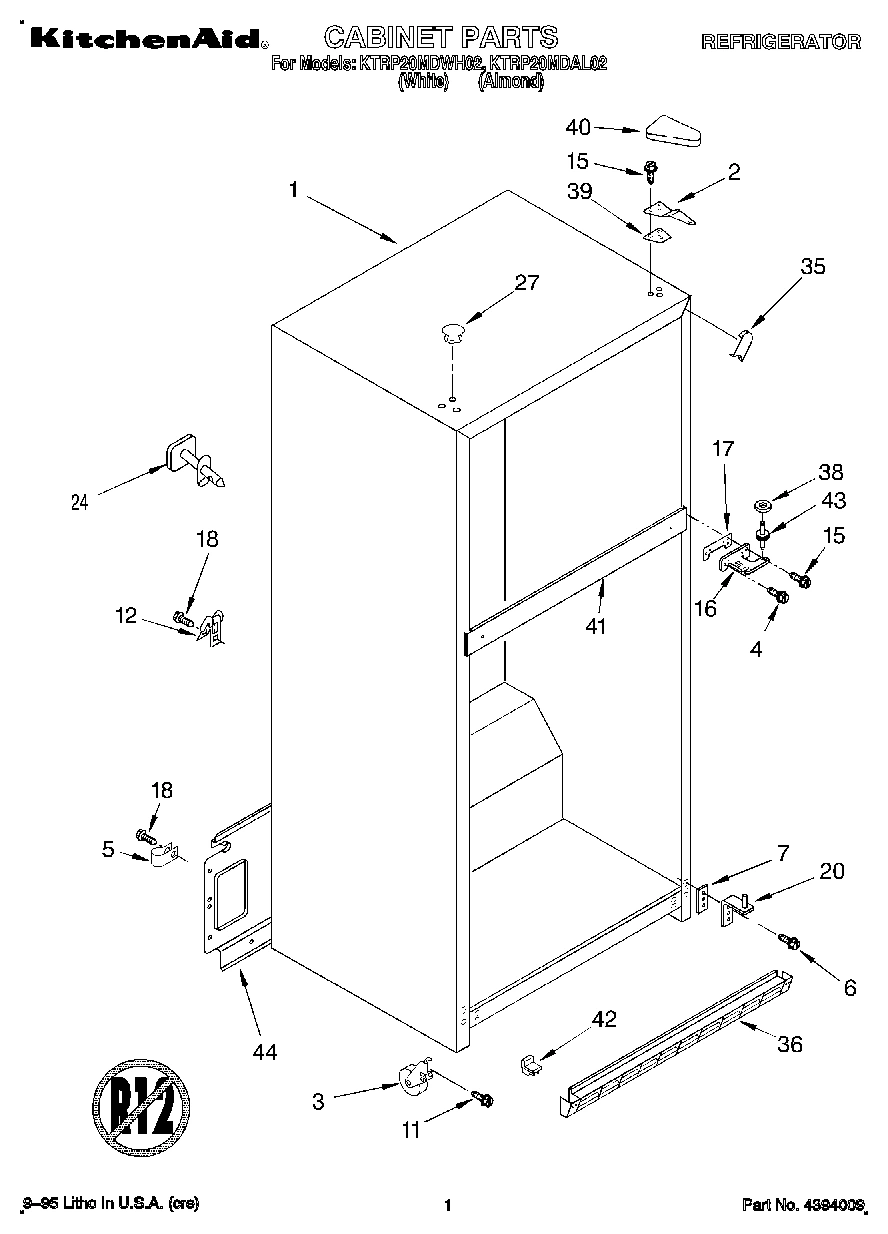

01 - CABINET

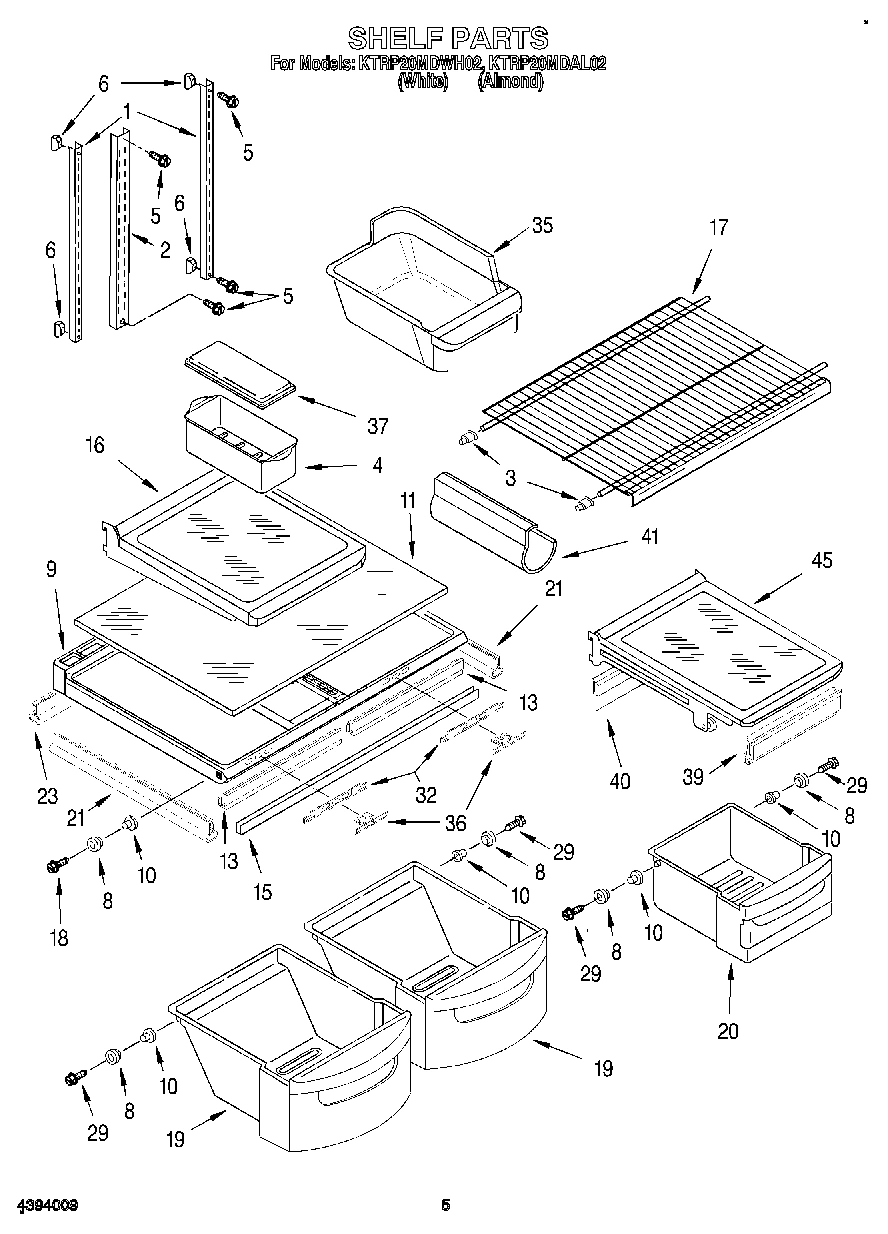

03 - SHELF

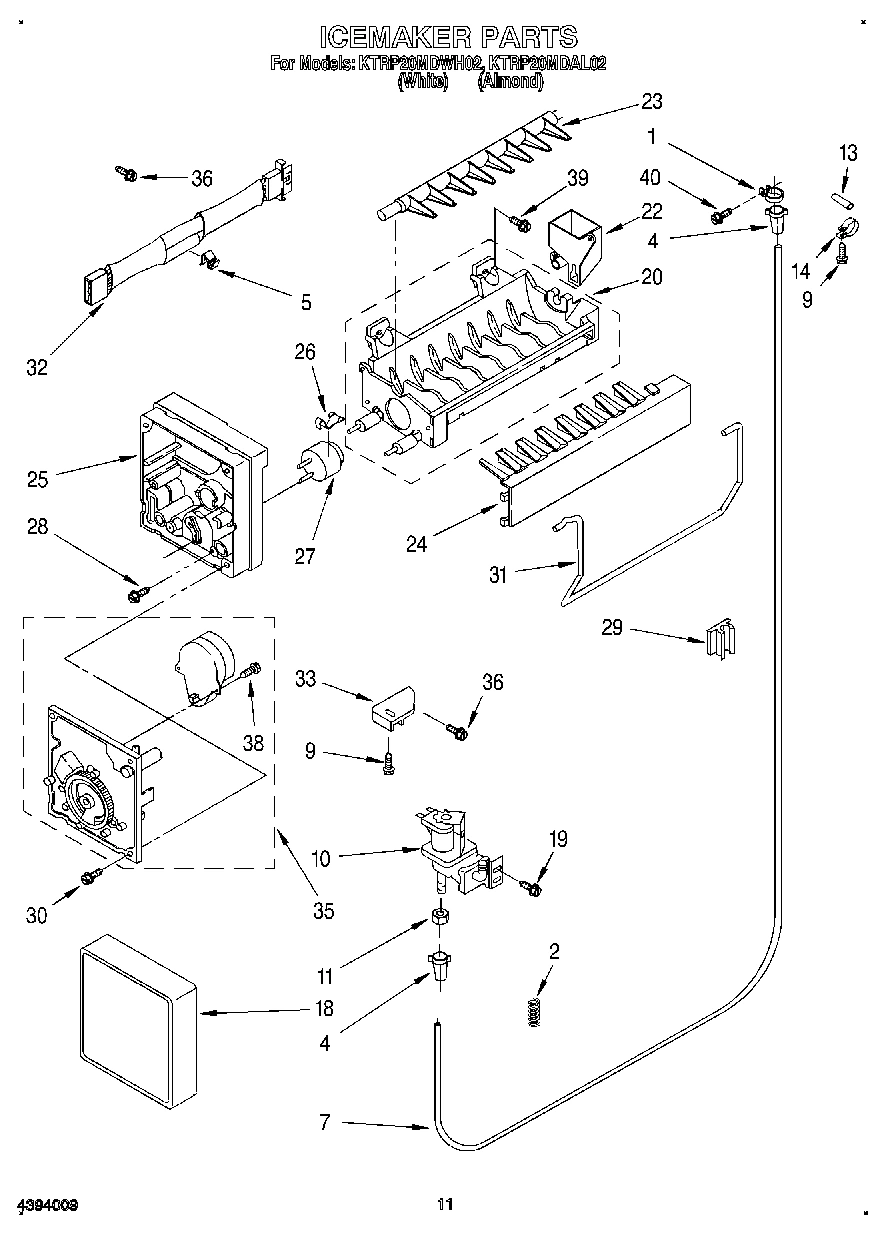

06 - ICEMAKER

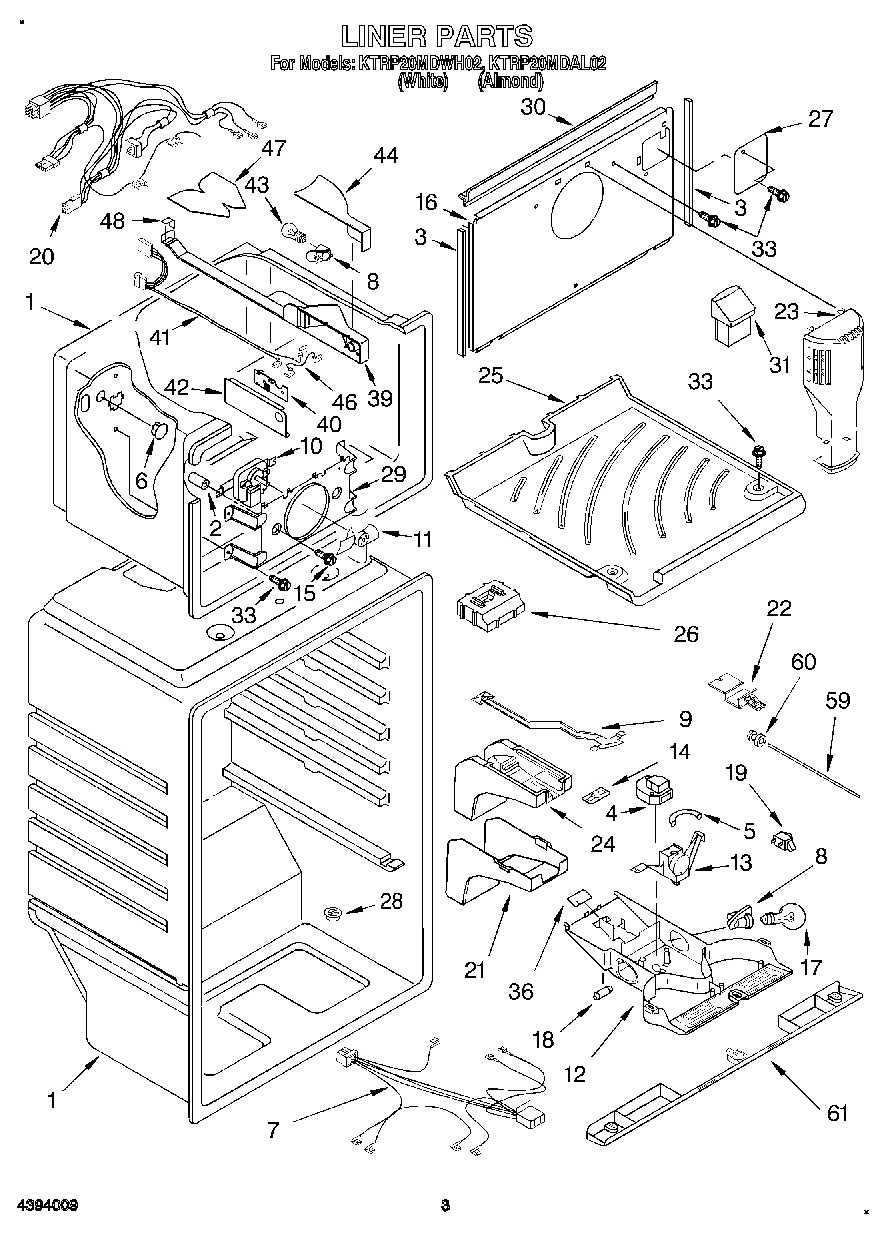

02 - LINER

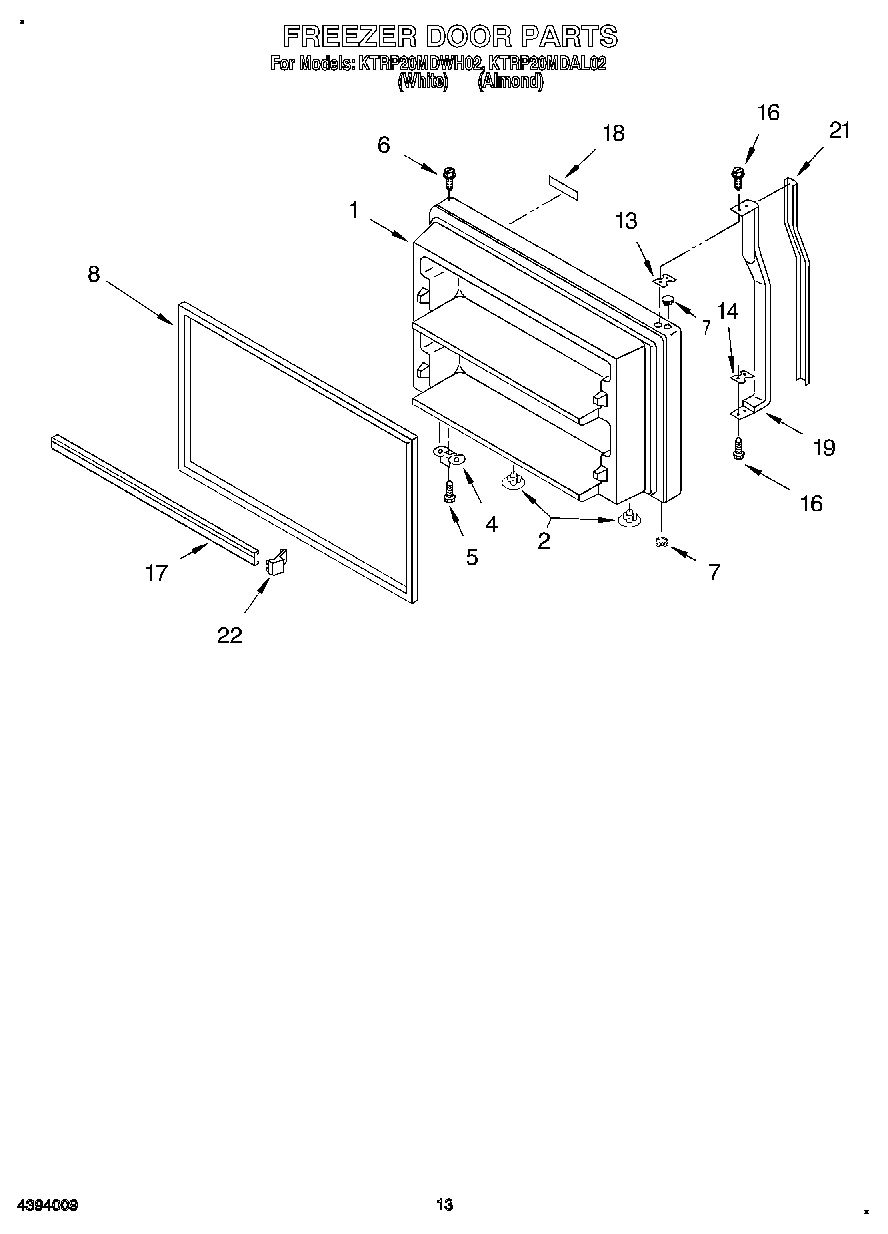

07 - FREEZER DOOR, LIT/OPTIONAL
Common parts from model Whirlpool KTRP20MDAL02
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2172667 WPL LIT2172667 Contact Us For Availability
WPL LIT2179217 WPL LIT2179217 Contact Us For Availability
WPL LIT2180059 WPL LIT2180059 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI110994A Contact Us For Availability
1
Shelf, Ladder (2) WPL 2163756 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI110997A Contact Us For Availability
1
Freezer Door (Includes No.8) (White) WPL 2171226 Contact Us For Availability
1
Freezer Door (Includes No.8) (Almond) WPL 2171227 Contact Us For Availability
2
Shelf, Ladder Center WPL 2163826 Contact Us For Availability
2
Spring WPL 2174719 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
2
Hole Plug (White) WPL 534927 Contact Us For Availability
2
Hole Plug (Almond) WPL 989197 Contact Us For Availability
4
Screw WPL 489426 Contact Us For Availability
4
Bracket, Door Stop WPL 2159367 Contact Us For Availability
6
Screw WPL 489459 Contact Us For Availability
7
Spacer WPL 2172745 Contact Us For Availability
7
Wire Assy. Control Box WPL 2172542 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
8
Roller & Tread Assembly WPL 2174388 Contact Us For Availability
8
Door Gasket, Magnetic (Service) WPL 2177312 Contact Us For Availability
9
Crisper Cover (Includes Rollers) WPL 2174128 Contact Us For Availability
9
Damper, Air WPL 2179855 Contact Us For Availability
10
Eyelet, Roller WPL 2174478 Contact Us For Availability
10
Fan Motor WPL 2176298 Contact Us For Availability
11
Glass, Crisper Cover WPL 2174141 Contact Us For Availability
11
Screw WPL 2174650 Contact Us For Availability
12
Control Box WPL 2174632 Contact Us For Availability
13
Tube, Water Inlet WPL 2174755 Contact Us For Availability
13
Thermostat Assembly (Includes Items 5, 18, & WPL 2176346 Contact Us For Availability
13
Spacer, Handle WPL 1107628 Contact Us For Availability
14
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
14
Shim, Handle WPL 2151813 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Shelf Assembly, Spillguard (3) WPL 2174030 Contact Us For Availability
16
Cover, Evaporator WPL 2183153 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
17
Shelf, Freezer WPL 2163830 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2171265 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
18
Nameplate (White Model) WPL 2168800 Contact Us For Availability
18
Nameplate (Almond Model) WPL 2168991 Contact Us For Availability
19
Clip WPL 2182338 Contact Us For Availability
19
Pan, Crisper (Includes Rollers) WPL 2174062 Contact Us For Availability
19
Handle WPL 2168901 Contact Us For Availability
20
Hinge, Butt WPL 2179829 Contact Us For Availability
20
Pan, Meat (Includes Rollers) WPL 2174080 Contact Us For Availability
20
Wire Assembly, Freezer Compartment WPL 2174610 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Gasket, Crisper Cover (Side) (4) WPL 2179214 Contact Us For Availability
21
Insert, Handle (White) WPL 2168898 Contact Us For Availability
21
Insert, Handle (Almond) WPL 2168899 Contact Us For Availability
22
KIT WPL 876029 Contact Us For Availability
22
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
22
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
22
Slide, Knob (2) WPL 2174633 Contact Us For Availability
22
Door Reversal Instructions WPL 2180007 Contact Us For Availability
22
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
22
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
22
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
22
WPL 978883 WPL 978883 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Gasket, Crisper Cover (Rear) (2) WPL 2179216 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI110995A Contact Us For Availability
25
Freezer Floor WPL 2163825 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
32
Slide, Humidity WPL 2174257 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
35
Ice Cube Pan WPL 2174125 Contact Us For Availability
36
Grille (White) WPL 2182432 Contact Us For Availability
36
Grille (Almond) WPL 2182433 Contact Us For Availability
36
Button, Humidity Control WPL 2174253 Contact Us For Availability
37
Cover WPL 2169935 Contact Us For Availability
39
Shim WPL 1123517 Contact Us For Availability
39
Gasket, Front WPL 2174396 Contact Us For Availability
39
Housing Base WPL 2166269 Contact Us For Availability
40
Cover, Hinge (Almond) WPL 2160404 Contact Us For Availability
40
Gasket, Rear WPL 2174397 Contact Us For Availability
40
PC Board, Freezer Light WPL 2166266 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI110996A Contact Us For Availability
41
Wiring Harness, Freezer Light WPL 2166281 Contact Us For Availability
42
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
42
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
42
Electrical Shield, Freezer Light WPL 2166280 Contact Us For Availability
44
Cover, Unit WPL 2183159 Contact Us For Availability
44
Cover, Freezer Light WPL 2166270 Contact Us For Availability
45
Shelf Assembly, Spillguard (Incl. No.39 & No. WPL 2190504 Contact Us For Availability
46
Wiring Harness, Freezer Light WPL 2166274 Contact Us For Availability
47
Shield, Electrical Heat WPL 2166273 Contact Us For Availability
48
Gasket, Rear WPL 2166284 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2176276 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
59
Light Fiber (2) WPL 2179921 Contact Us For Availability
60
Grommet, Light Fiber (2) WPL 2172906 Contact Us For Availability
61
Cover, Control Box Front WPL 2179719 Contact Us For Availability
× ![]()
