Model Whirlpool KTRD18KAWH20 – Common Parts & Diagrams

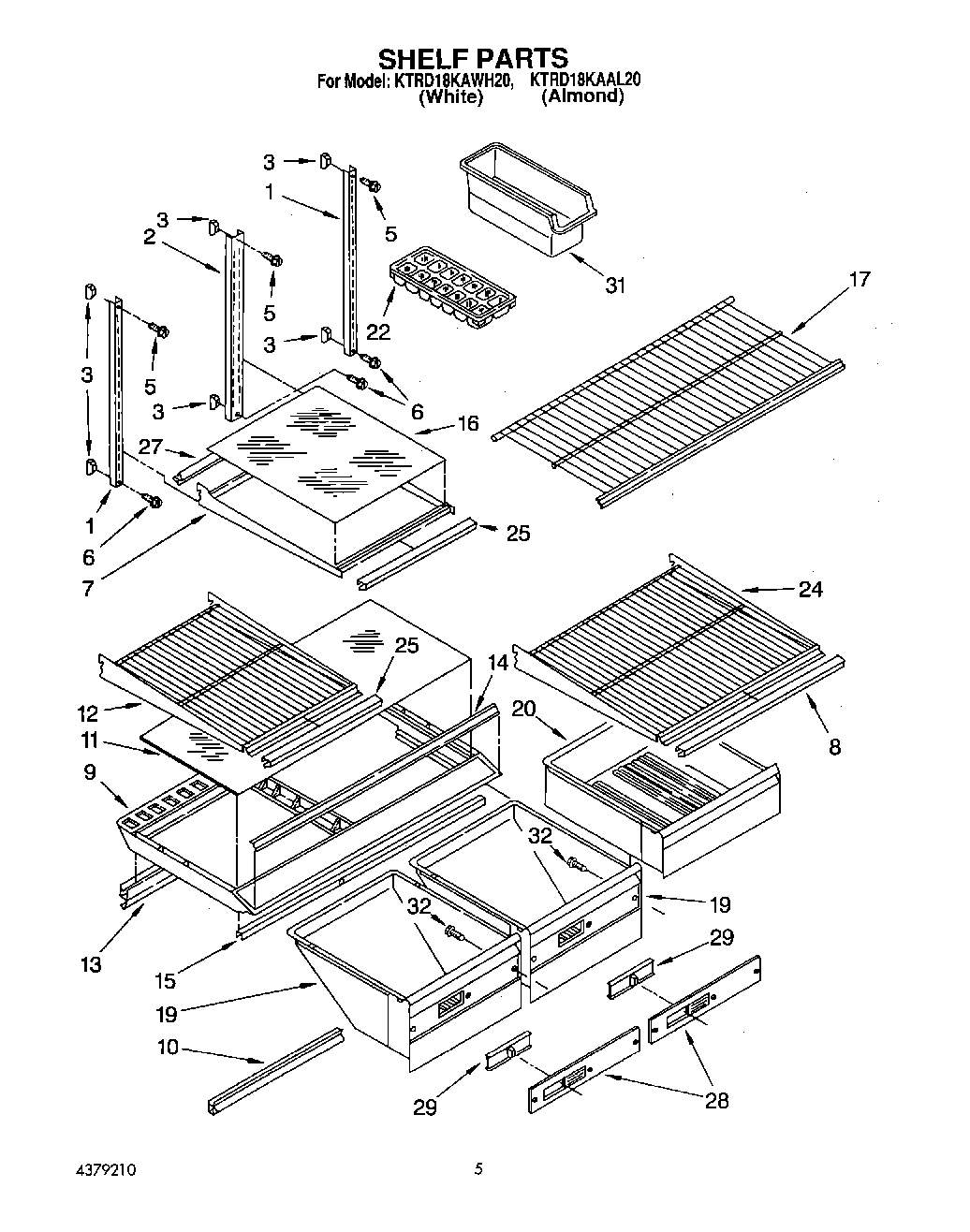

04 - SHELF, LIT/OPTIONAL

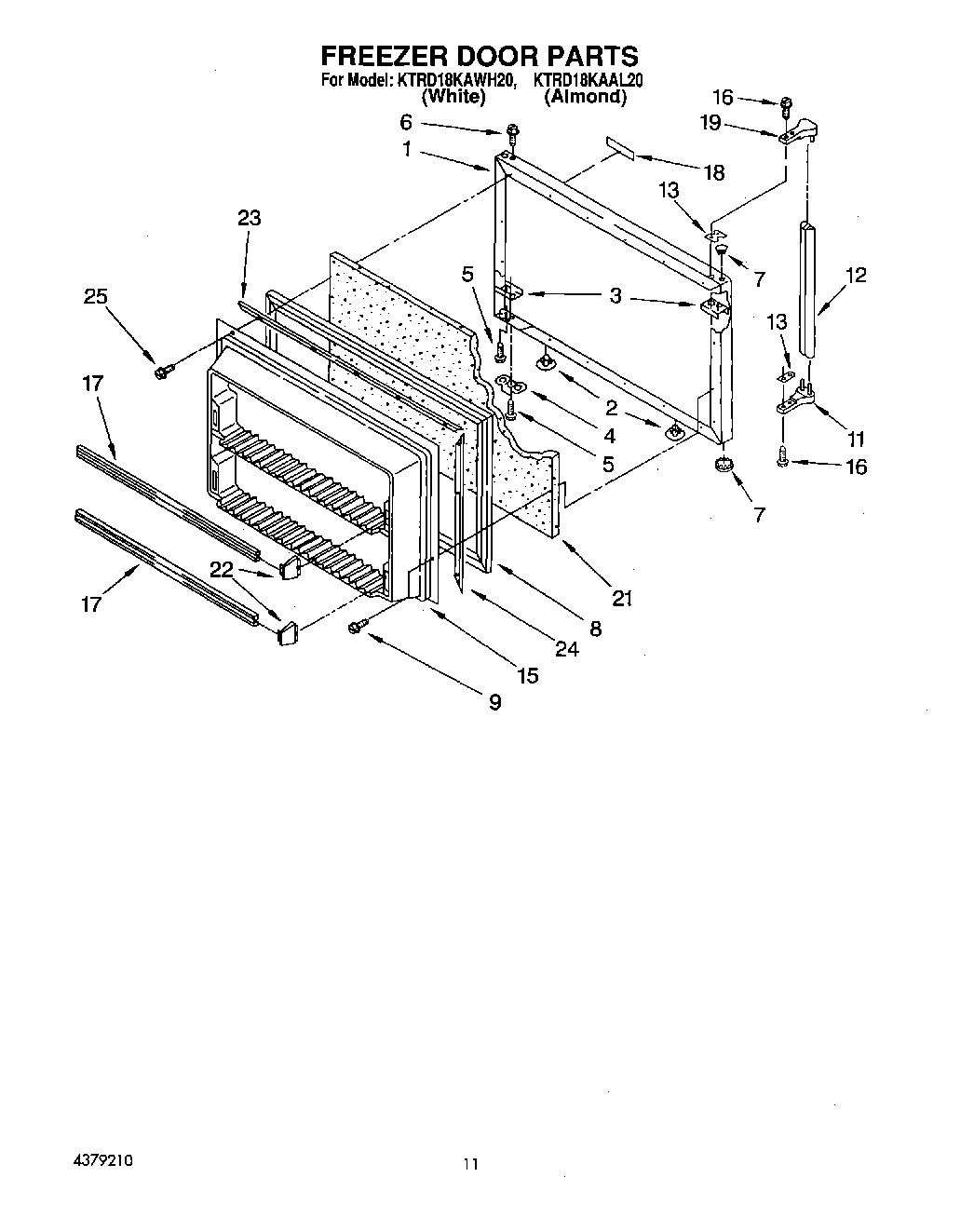

07 - FREEZER DOOR

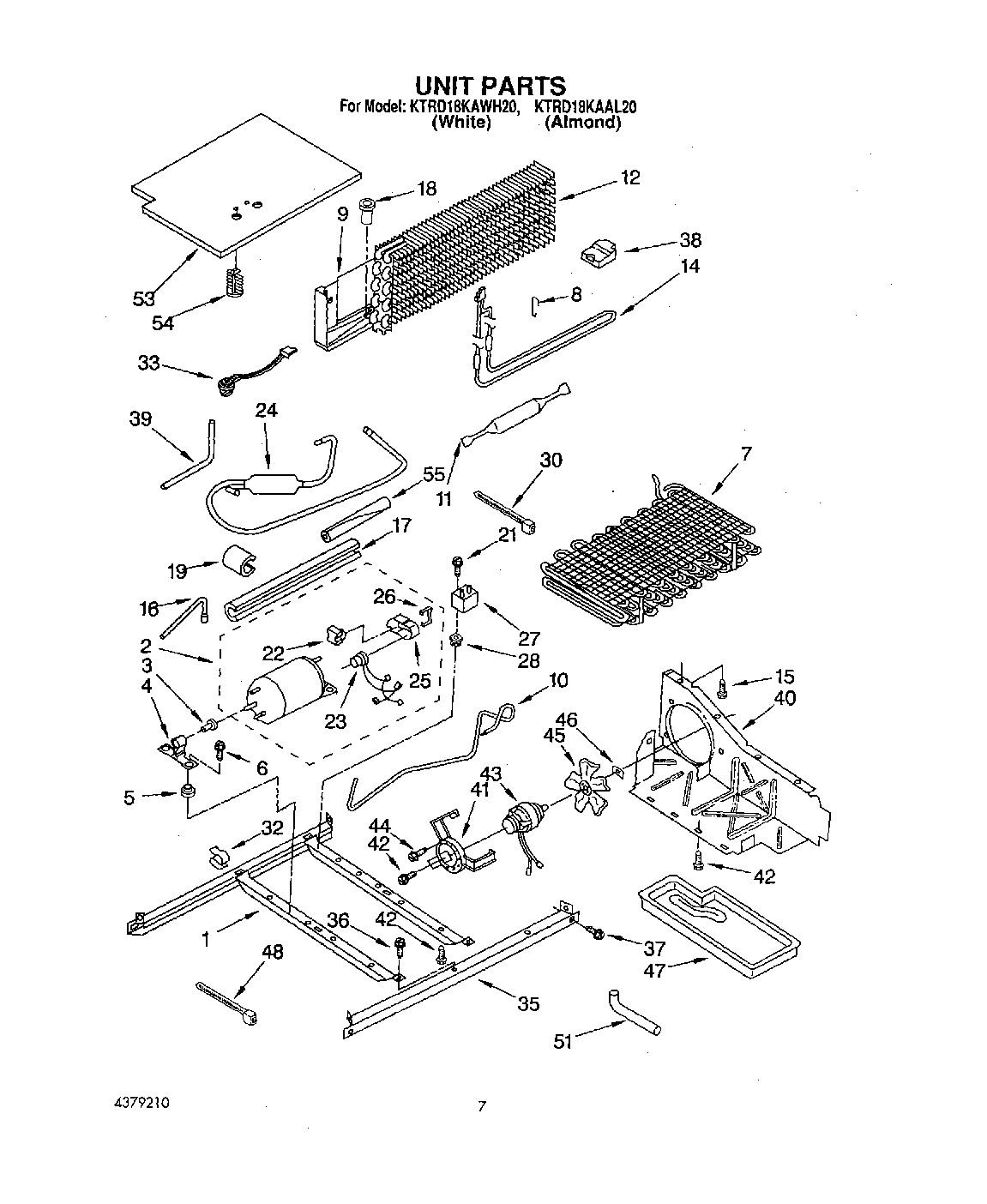

05 - UNIT

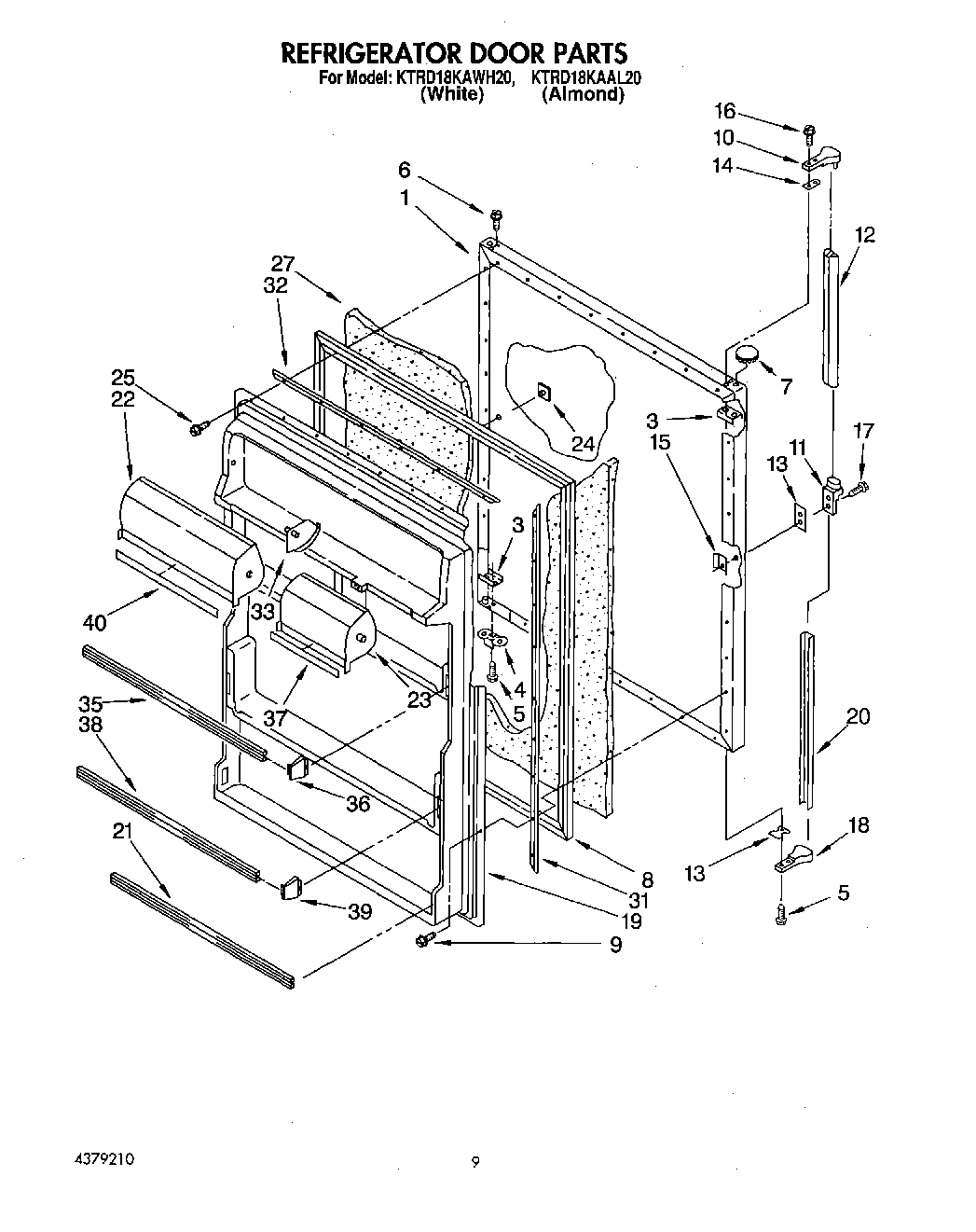

06 - REFRIGERATOR DOOR

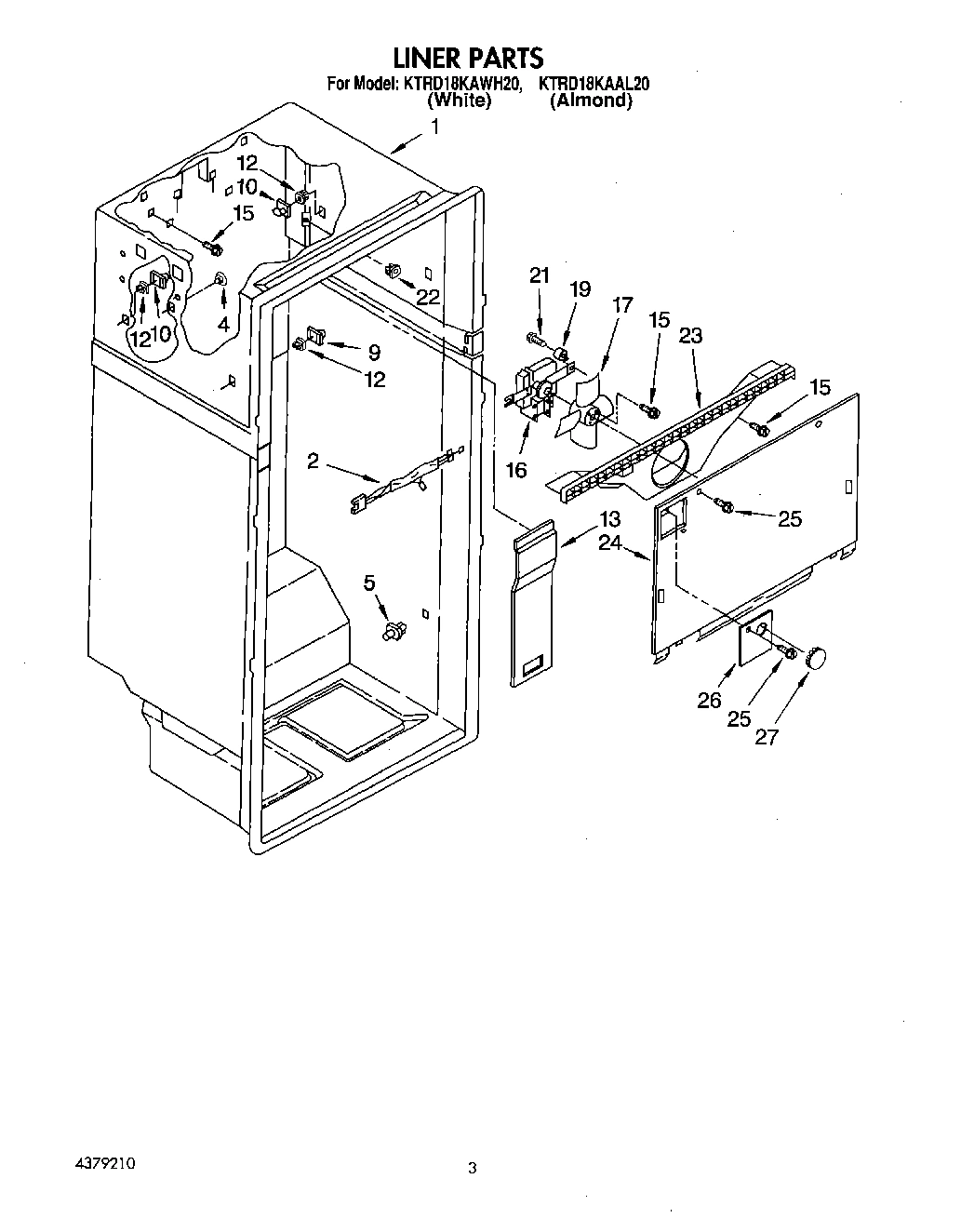

02 - LINER

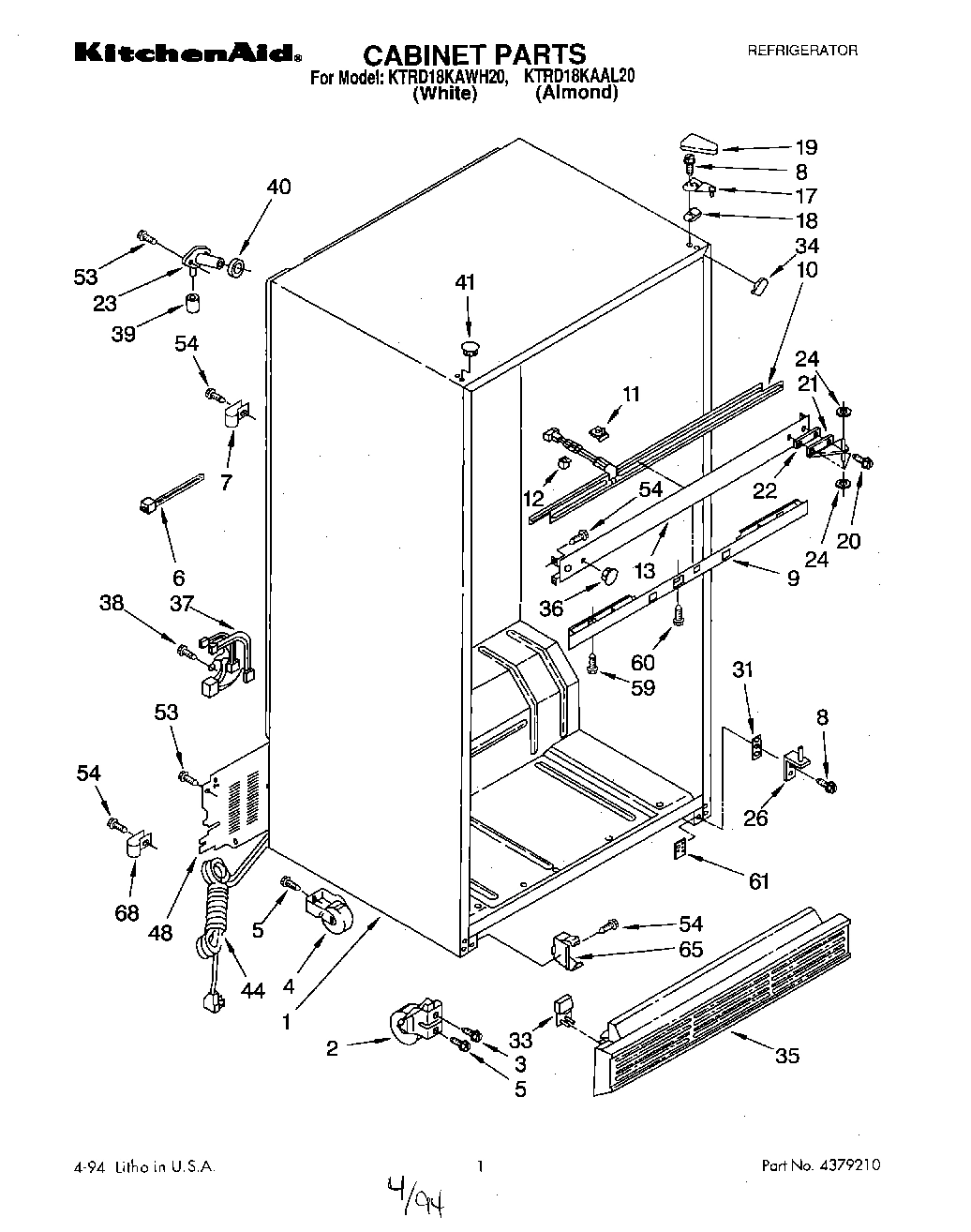

01 - CABINET

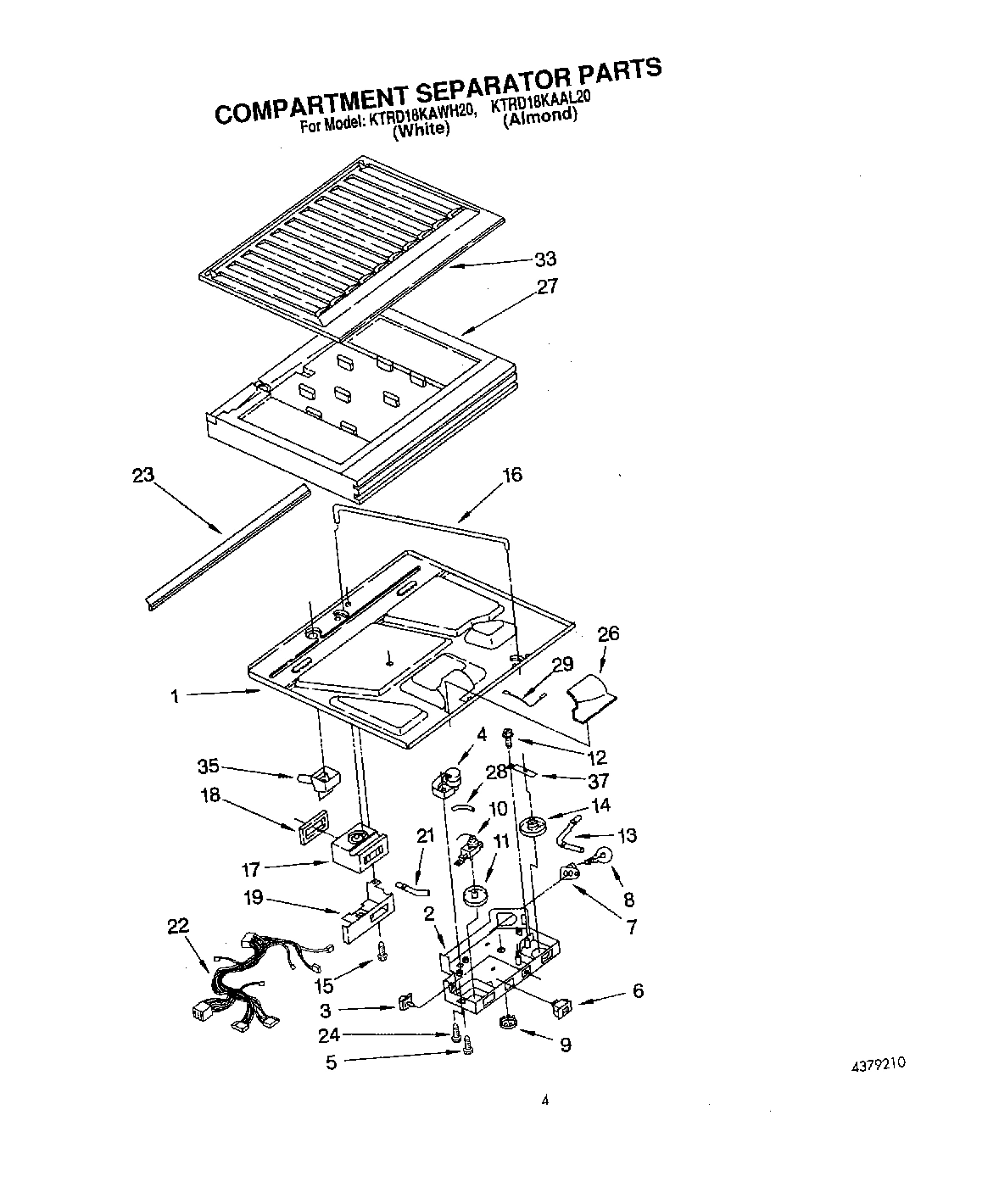

03 - COMPARTMENT SEPARATOR
Common parts from model Whirlpool KTRD18KAWH20
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Unit, Frame WPL 2159747 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1116575 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1116578 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI110556A Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI110555A Contact Us For Availability
1
Bottom, Compartment Separator WPL 1116561 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Compressor KIt Includes Items 22 (23, 25, 26 WPL 2154564 Contact Us For Availability
2
Roller, Front WPL 2152011 Contact Us For Availability
2
Box, Control WPL 1126029 Contact Us For Availability
3
Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489393 Contact Us For Availability
4
Bracket, Mounting WPL 1105220 Contact Us For Availability
4
Bracket, Door Stop WPL 944036 Contact Us For Availability
5
Shelf Stud (2) WPL 1106612 Contact Us For Availability
5
Grommet, Compressor (4) WPL 1105200 Contact Us For Availability
5
Screw, WPL 488454 Contact Us For Availability
6
Switch, Toggle WPL 938213 Contact Us For Availability
6
Screw WPL 489334 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Condenser Assembly WPL 2154008 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1125888 Contact Us For Availability
8
Support, Heater WPL 2149120 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1125889 Contact Us For Availability
9
Drain Pan & Heat Shield WPL 2153973 Contact Us For Availability
9
Stud, Front (2) WPL 946356 Contact Us For Availability
9
Control, Front Cover WPL 1126275 Contact Us For Availability
10
End Cap, Top WPL 944302 Contact Us For Availability
10
Tube, Discharge WPL 2154028 Contact Us For Availability
10
Heater, Mullion WPL 2154064 Contact Us For Availability
11
End Cap WPL 987870 Contact Us For Availability
11
Clip, Center Rail (3) WPL 1129018 Contact Us For Availability
11
Knob, Thermostat WPL 1125831 Contact Us For Availability
12
Handle Center (White) WPL 2161646 Contact Us For Availability
12
Handle Center (Almond) WPL 2161648 Contact Us For Availability
12
Evaporator WPL 2153977 Contact Us For Availability
12
Handle, Center (Almond) WPL 1123133 Contact Us For Availability
12
Handle, Center (White) WPL 2156670 Contact Us For Availability
12
Support Stud (4) WPL 946355 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
13
Shim, End Cap WPL 987872 Contact Us For Availability
13
Cover, Air Duct WPL 1116558 Contact Us For Availability
13
Center Rail WPL 2172701 Contact Us For Availability
13
Light, Bar WPL 1105475 Contact Us For Availability
14
Spacer, Handle WPL 944320 Contact Us For Availability
14
Heater, Defrost WPL 2162020 Contact Us For Availability
14
Knob, Air Control WPL 1125832 Contact Us For Availability
15
Interior Door Panel WPL 1116610 Contact Us For Availability
16
Tube, Process WPL 2154090 Contact Us For Availability
16
Rod, Connecting WPL 1116565 Contact Us For Availability
17
Air Diffuser Assembly WPL 2157252 Contact Us For Availability
18
Nameplate (White Model) WPL 2168802 Contact Us For Availability
18
Nameplate (Almond Model) WPL 2168803 Contact Us For Availability
18
Drain Fitting WPL 981629 Contact Us For Availability
18
End Cap WPL 1123210 Contact Us For Availability
18
Shim, Hinge Top WPL 2157269 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
19
End Cap WPL 944303 Contact Us For Availability
19
Interior Door Panel WPL 1118123 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
20
Handle Extension (White) WPL 2156673 Contact Us For Availability
20
Handle Extension (Almond) WPL 2161645 Contact Us For Availability
21
Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability
21
Trim, Door Shelf WPL 1125857 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Hinge, Center WPL 2147335 Contact Us For Availability
21
Light, Bar WPL 1105476 Contact Us For Availability
22
Relay (See Overload) WPL ARI110557A Contact Us For Availability
22
Compartment Door, Utility WPL 1126234 Contact Us For Availability
22
Grommet WPL 983604 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2153995 Contact Us For Availability
23
Overload (Service (Includes Relay)) WPL 2154945 Contact Us For Availability
23
Overload (Production (Includes Relay)) WPL 2159611 Contact Us For Availability
23
Compartment Door, Butter WPL 1126233 Contact Us For Availability
23
Scroll, Fan WPL 1116598 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159733 Contact Us For Availability
24
Retainer, Gasket Side (2) WPL 1115138 Contact Us For Availability
24
Muffler WPL 2154033 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Evaporator Cover WPL 2151668 Contact Us For Availability
25
Terminal Cover WPL 2154452 Contact Us For Availability
26
Strap, Cover WPL 1105222 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1116569 Contact Us For Availability
28
Screw Grommet WPL 509812 Contact Us For Availability
29
Wire Assembly WPL 2154921 Contact Us For Availability
31
Retainer, Gasket Side (2) WPL 1115136 Contact Us For Availability
31
Spacer WPL 2172744 Contact Us For Availability
32
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
32
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
32
Retainer, Gasket Top & Bottom WPL 1115137 Contact Us For Availability
32
Clip, Wire (2) WPL 548745 Contact Us For Availability
33
Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability
33
Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability
33
Separator, Compartment (Top) WPL 2157398 Contact Us For Availability
34
Filler, Wrapper Corner (2) (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrapper Corner (2) (Almond) WPL 1118059 Contact Us For Availability
35
Trim, Shelf WPL 1125866 Contact Us For Availability
35
Unit, Rail WPL 1116622 Contact Us For Availability
35
Grille (White) WPL 1125664 Contact Us For Availability
35
Grille (Almond) WPL 1125669 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
36
Hole Plug WPL 1129062 Contact Us For Availability
37
Trim, Compartment WPL 2148588 Contact Us For Availability
37
Wiring Assy. Intermediate WPL 2153994 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
38
Wedge, Air Baffle WPL 1118017 Contact Us For Availability
38
Trim, Shelf WPL 1117944 Contact Us For Availability
39
Tube, Condenser To Heat Loop WPL 2154031 Contact Us For Availability
40
Air, Baffle WPL 2154102 Contact Us For Availability
40
Trim, Compartment Door WPL 1121186 Contact Us For Availability
41
Fan, Mounting Bracket WPL 2162060 Contact Us For Availability
41
Hole Plug (Almond) WPL 2151653 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
45
Fan Blade WPL 1115135 Contact Us For Availability
47
Tray, Evaporator WPL 1116604 Contact Us For Availability
48
Cover, Unit WPL 2160514 Contact Us For Availability
51
Drain Extension WPL 2154118 Contact Us For Availability
53
Cover, Unit Bottom WPL 2160517 Contact Us For Availability
55
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
55
Sleeve WPL 2159751 Contact Us For Availability
55
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
× ![]()
