Model Whirlpool KSRS25QAWH02 REFRIGERATOR – Common Parts & Diagrams

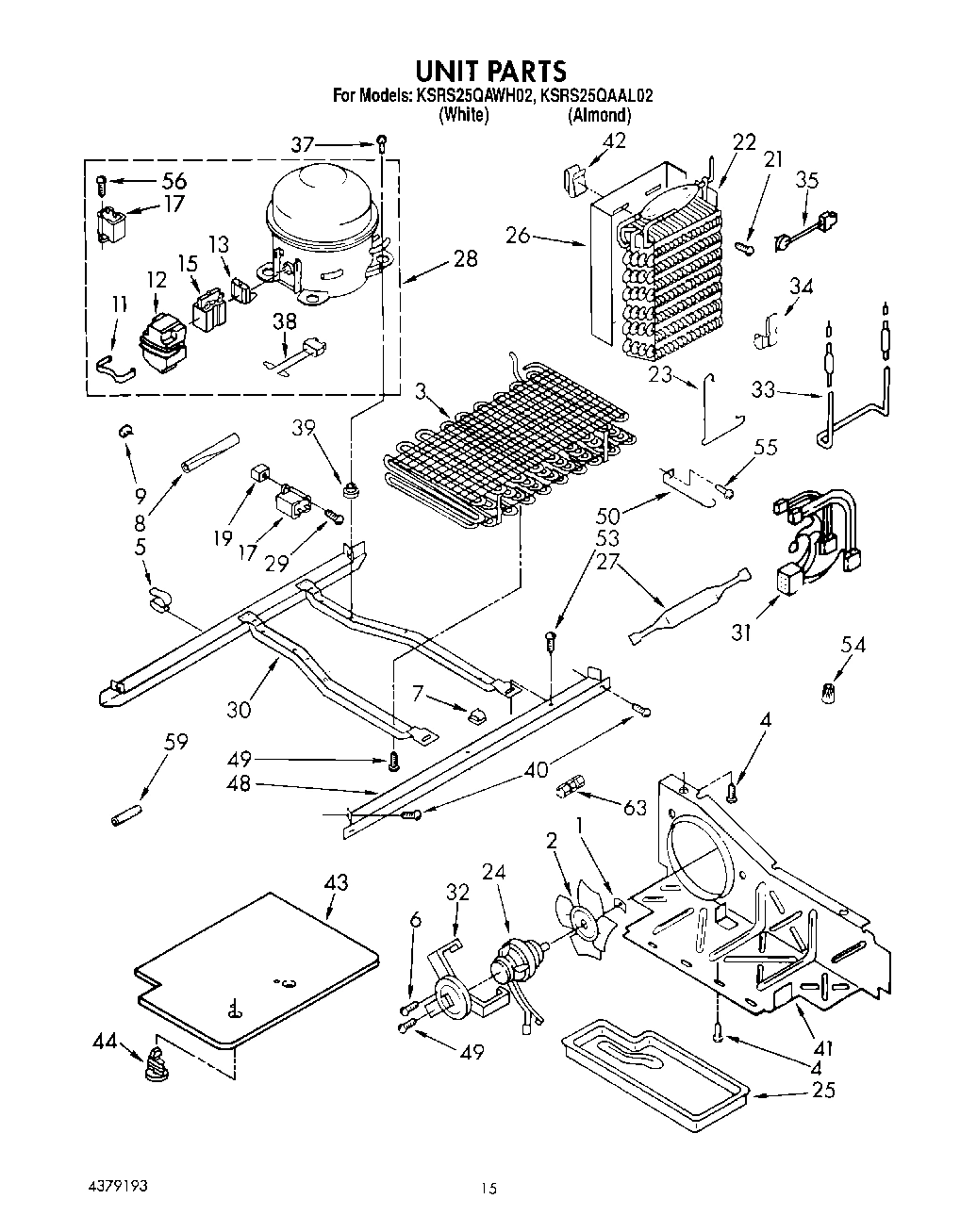

09 - UNIT

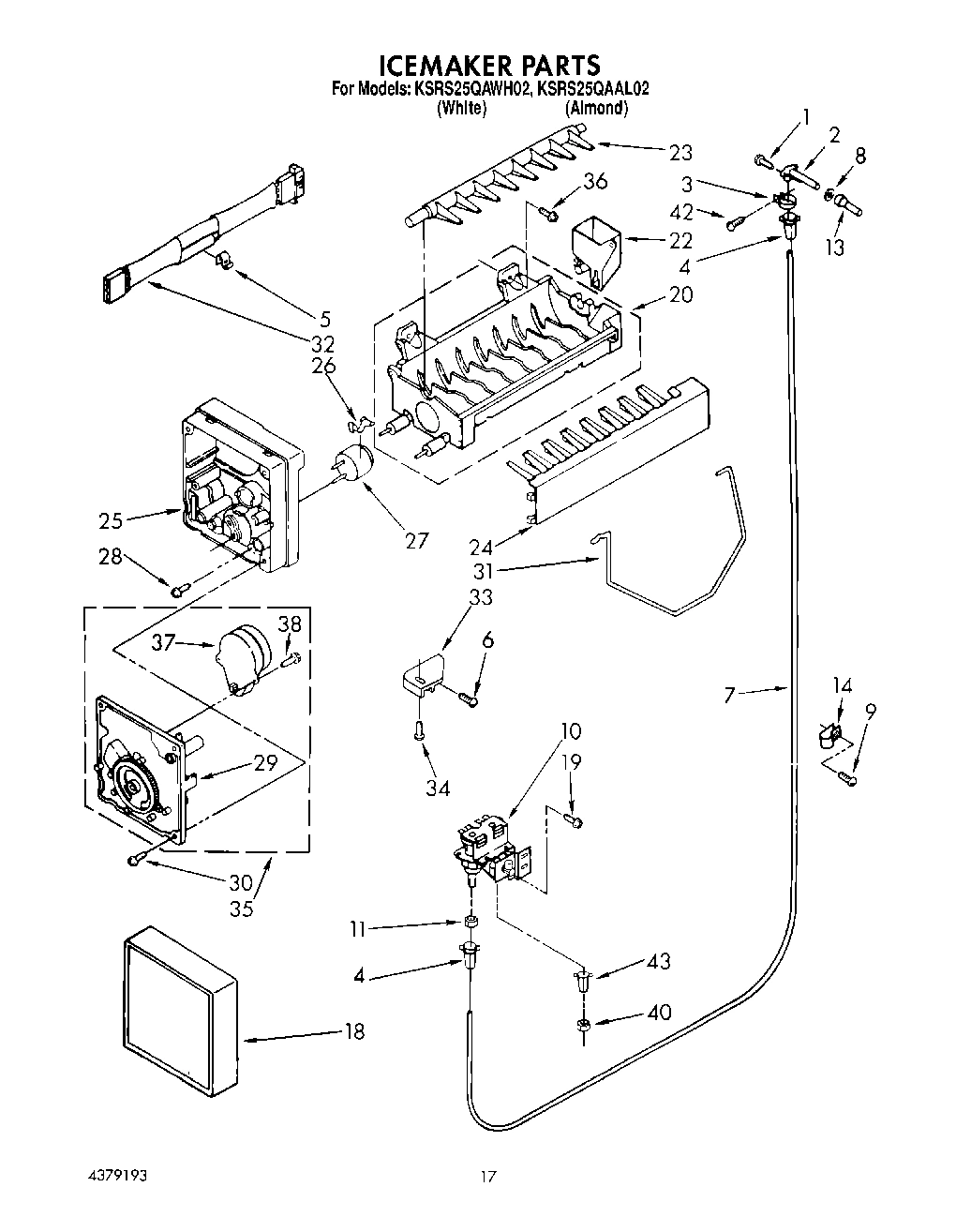

10 - ICEMAKER

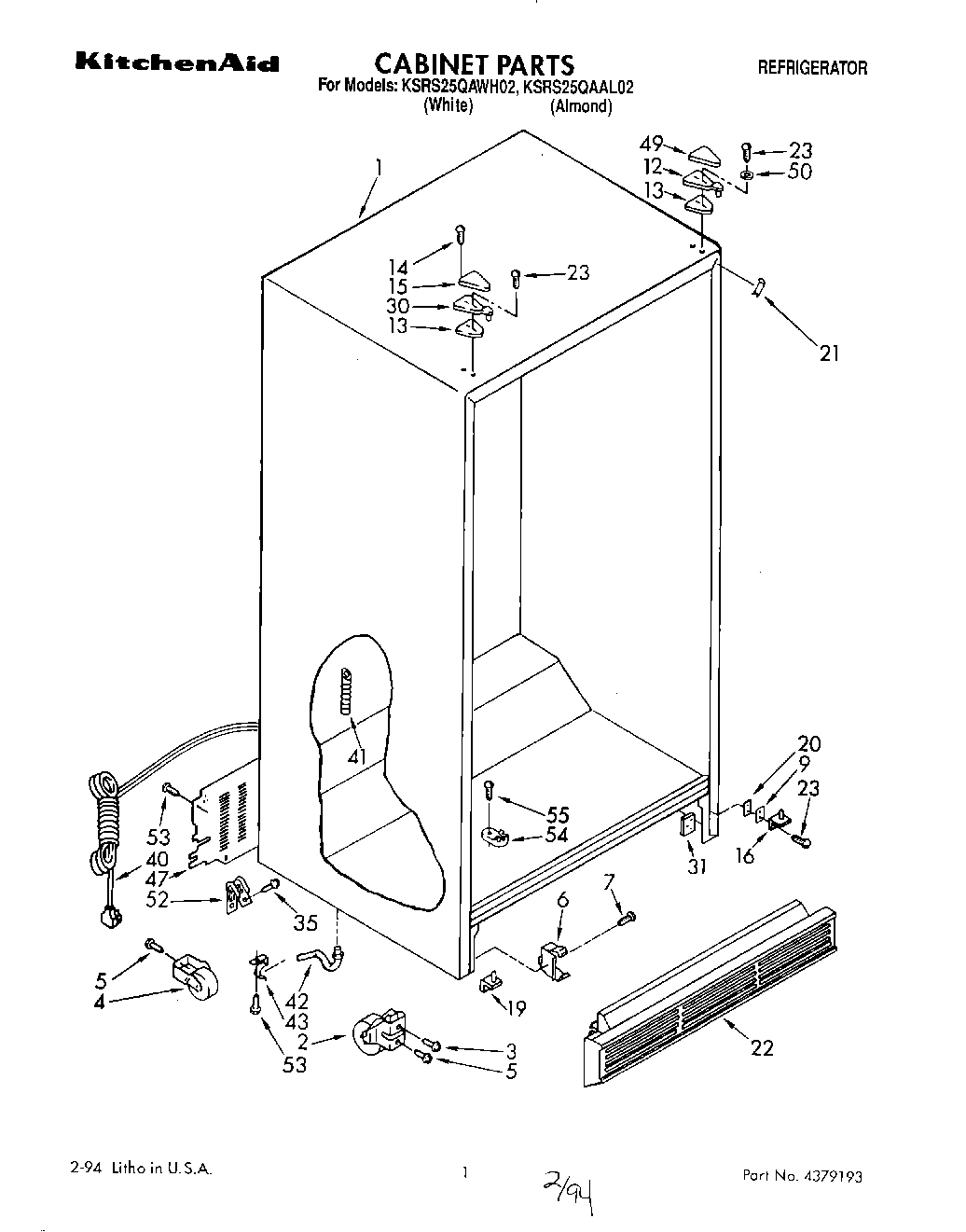

01 - CABINET

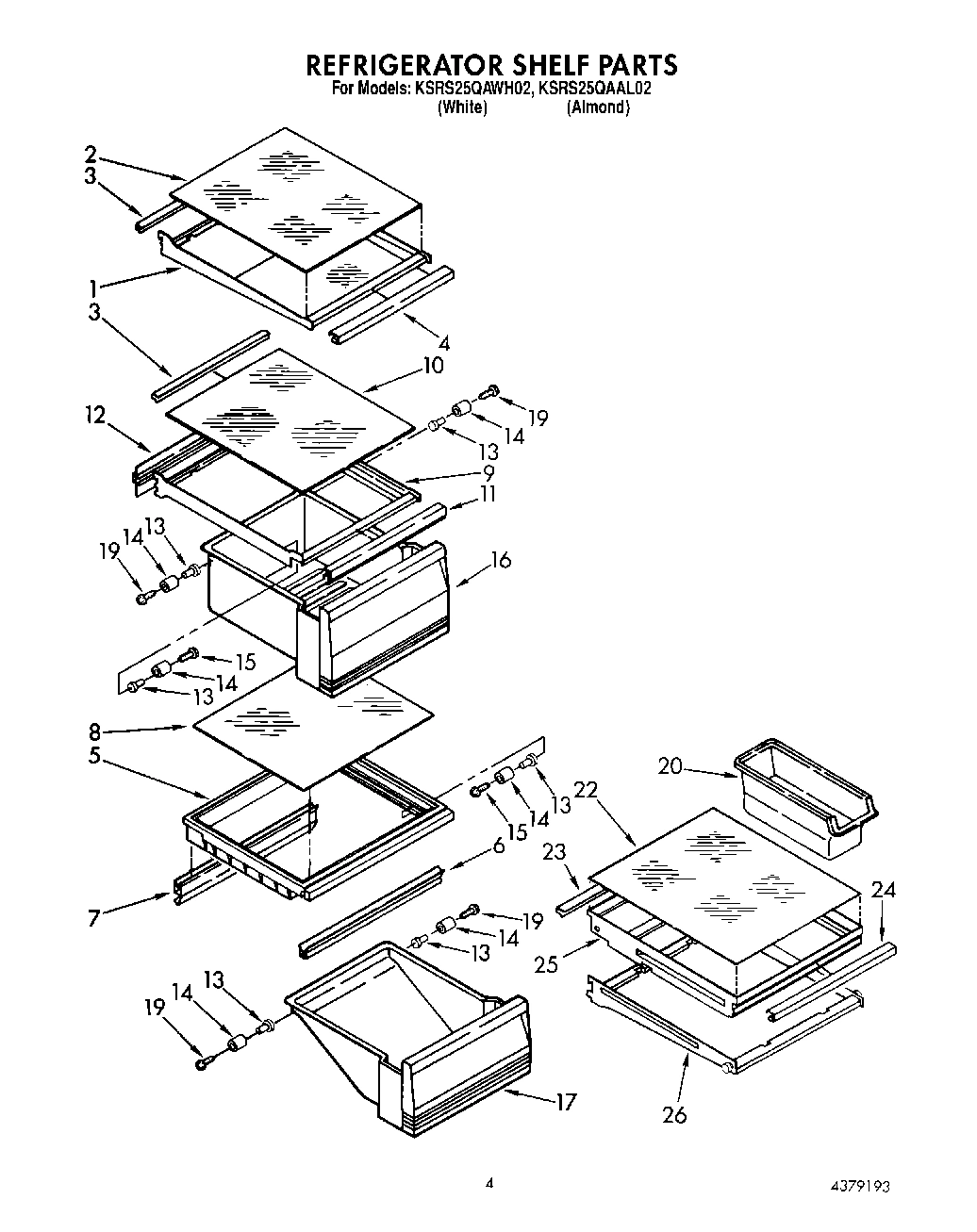

03 - REFRIGERATOR SHELF

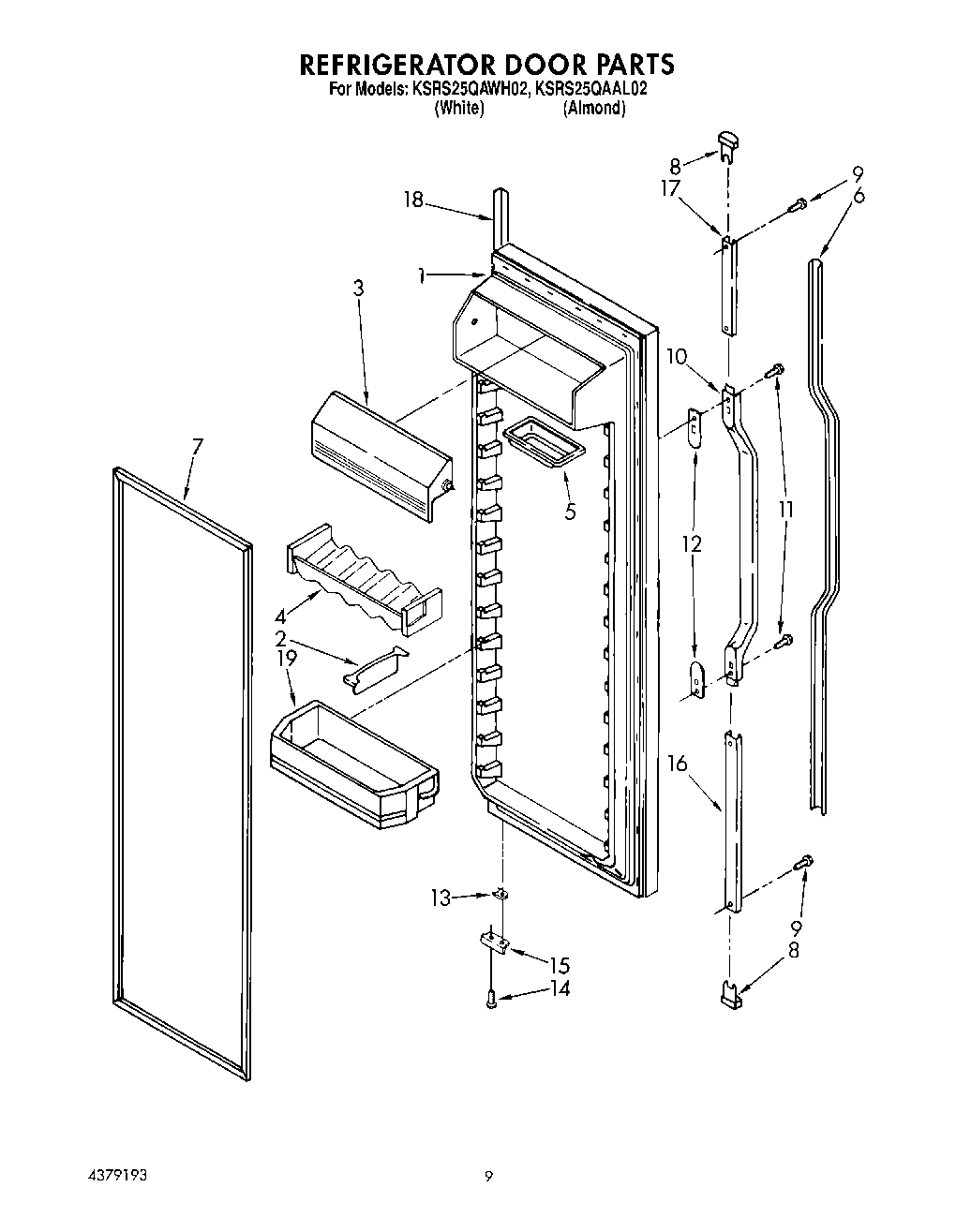

06 - REFRIGERATOR DOOR

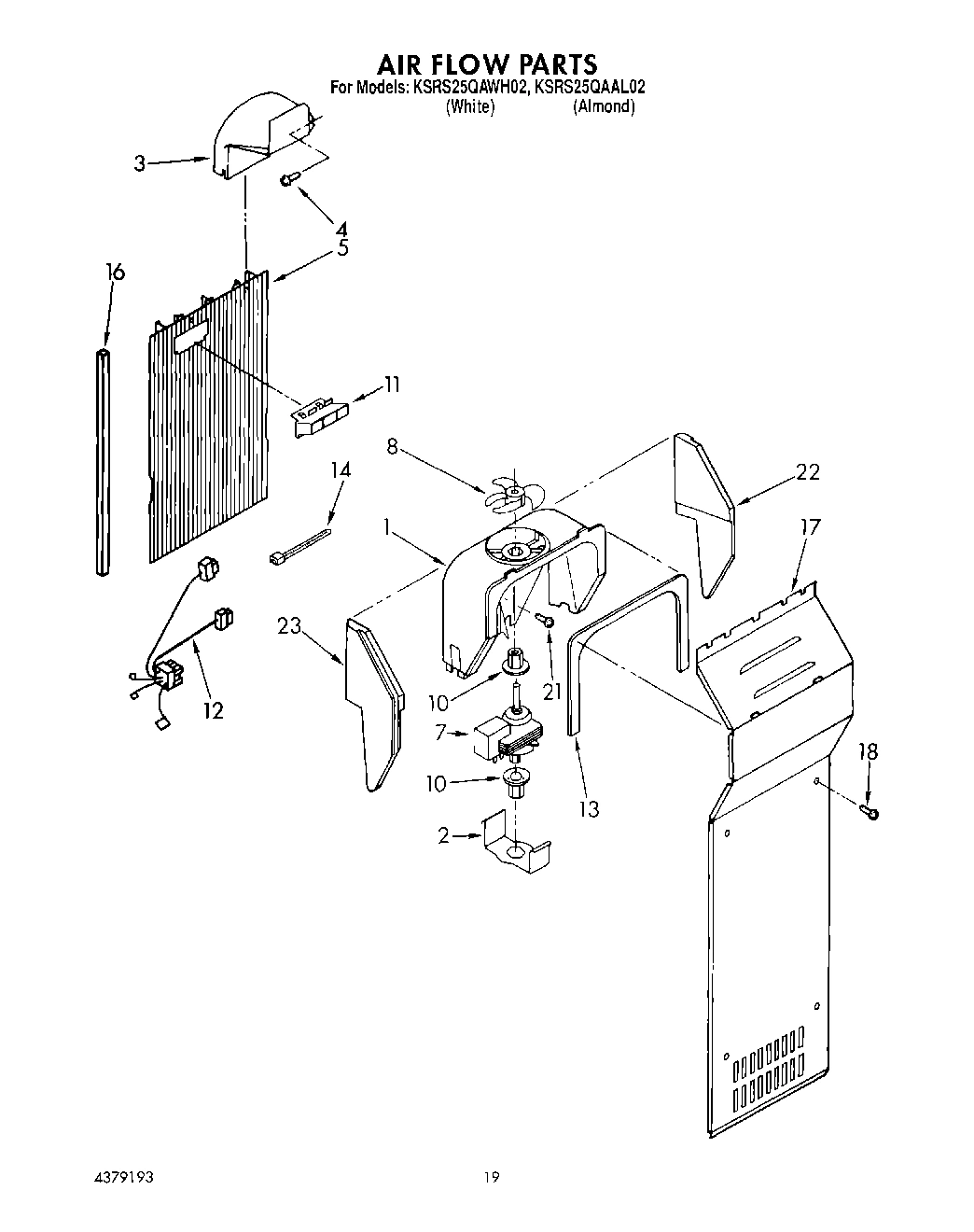

11 - AIR FLOW

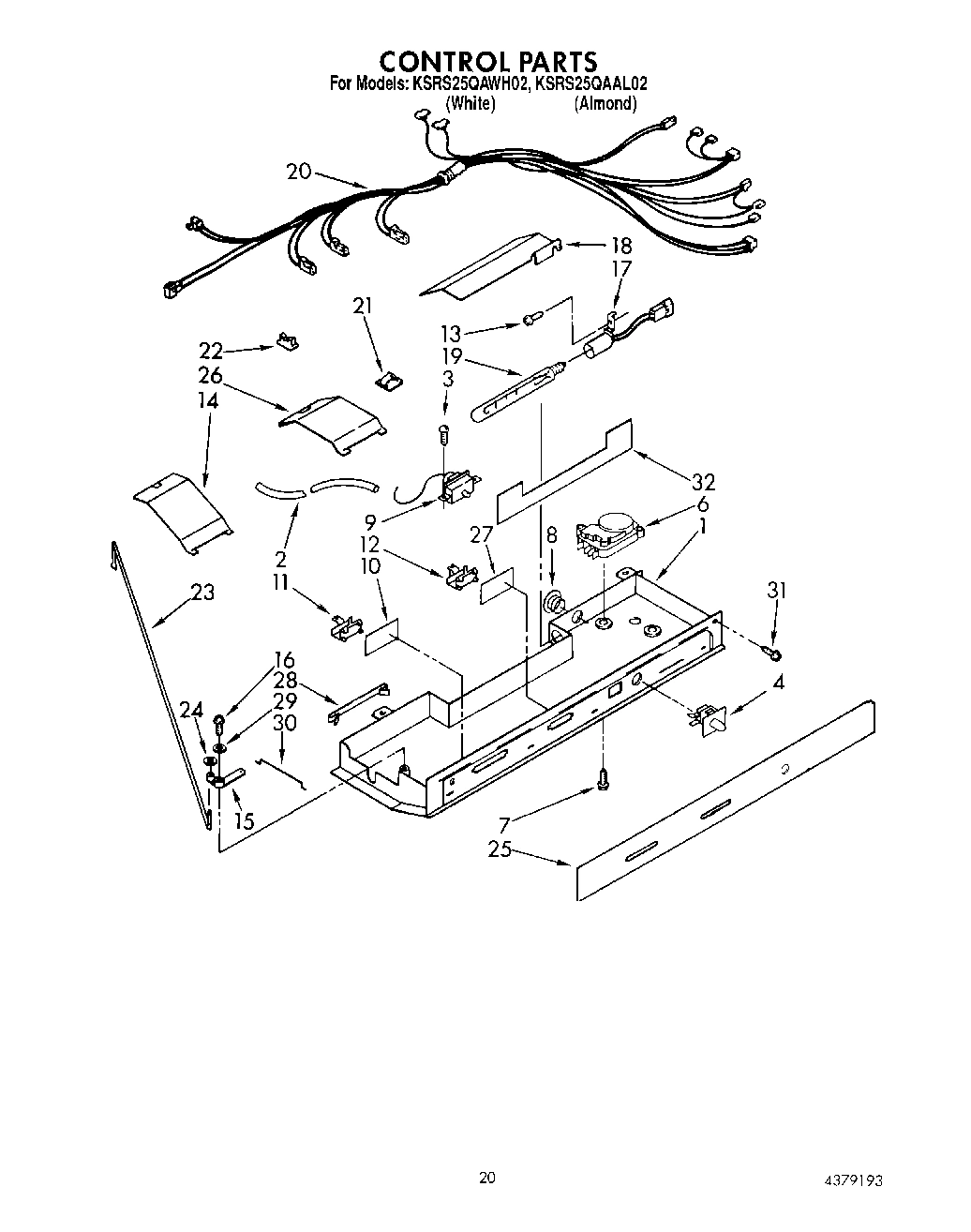

12 - CONTROL

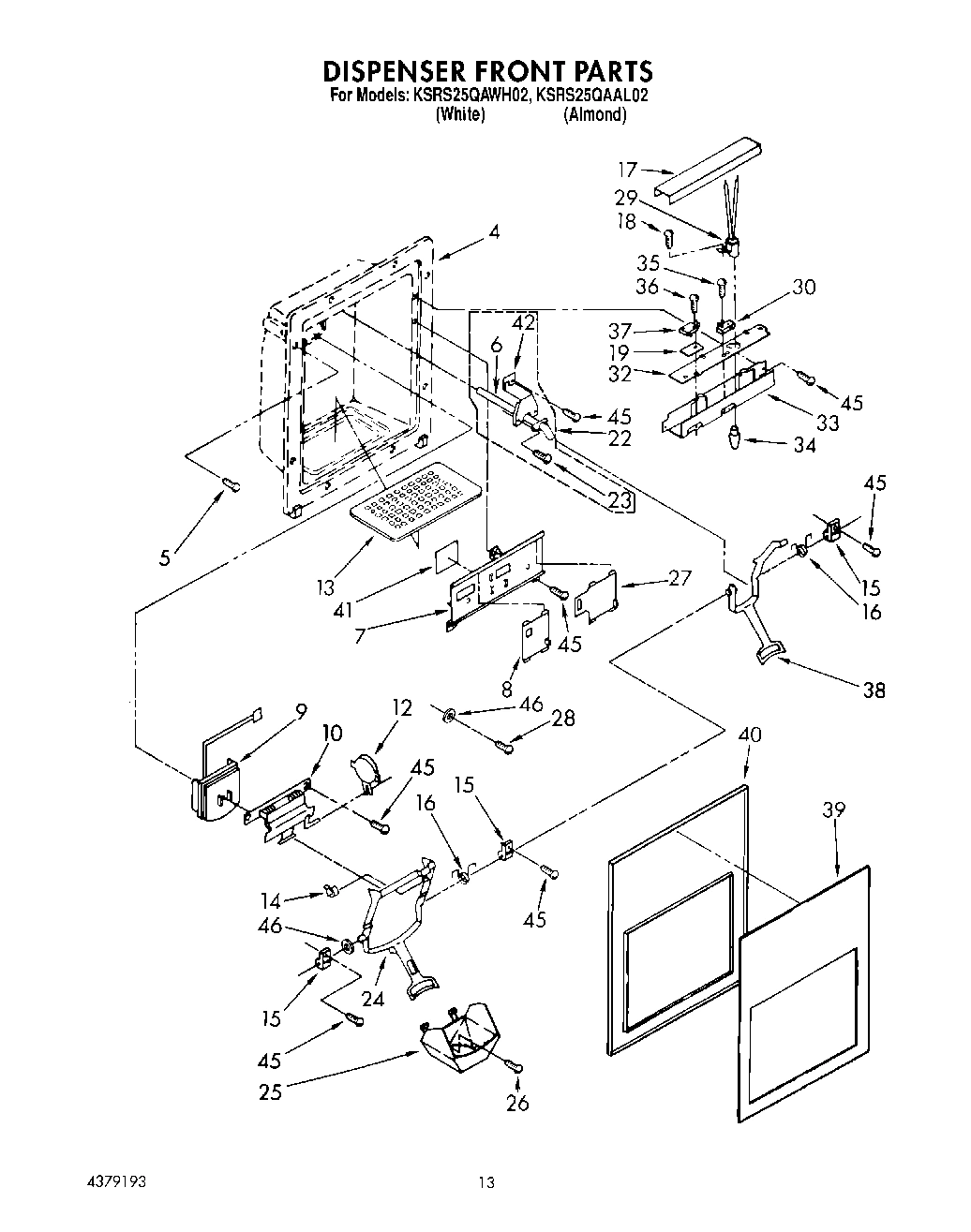

08 - DISPENSER FRONT

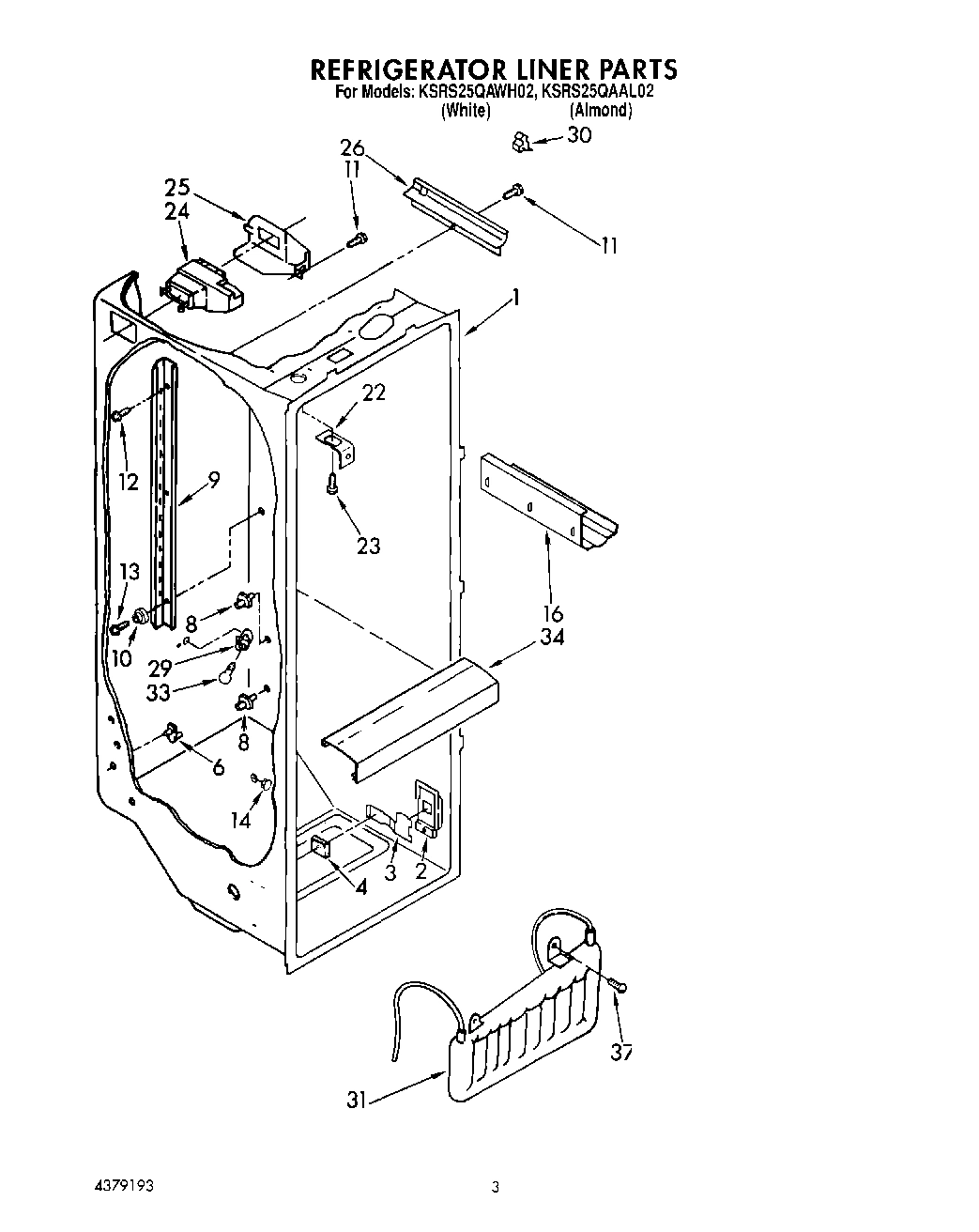

02 - REFRIGERATOR LINER

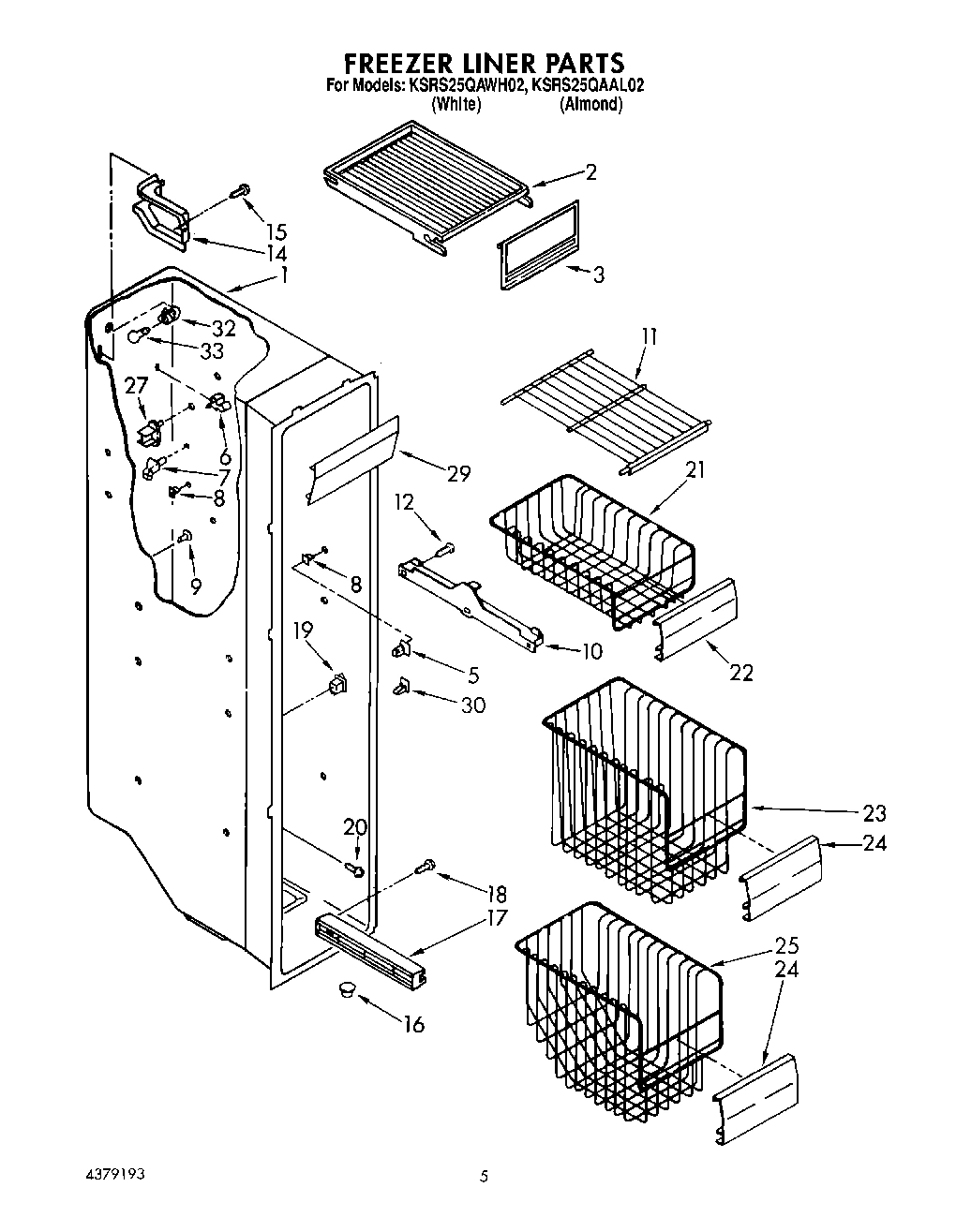

04 - FREEZER LINER

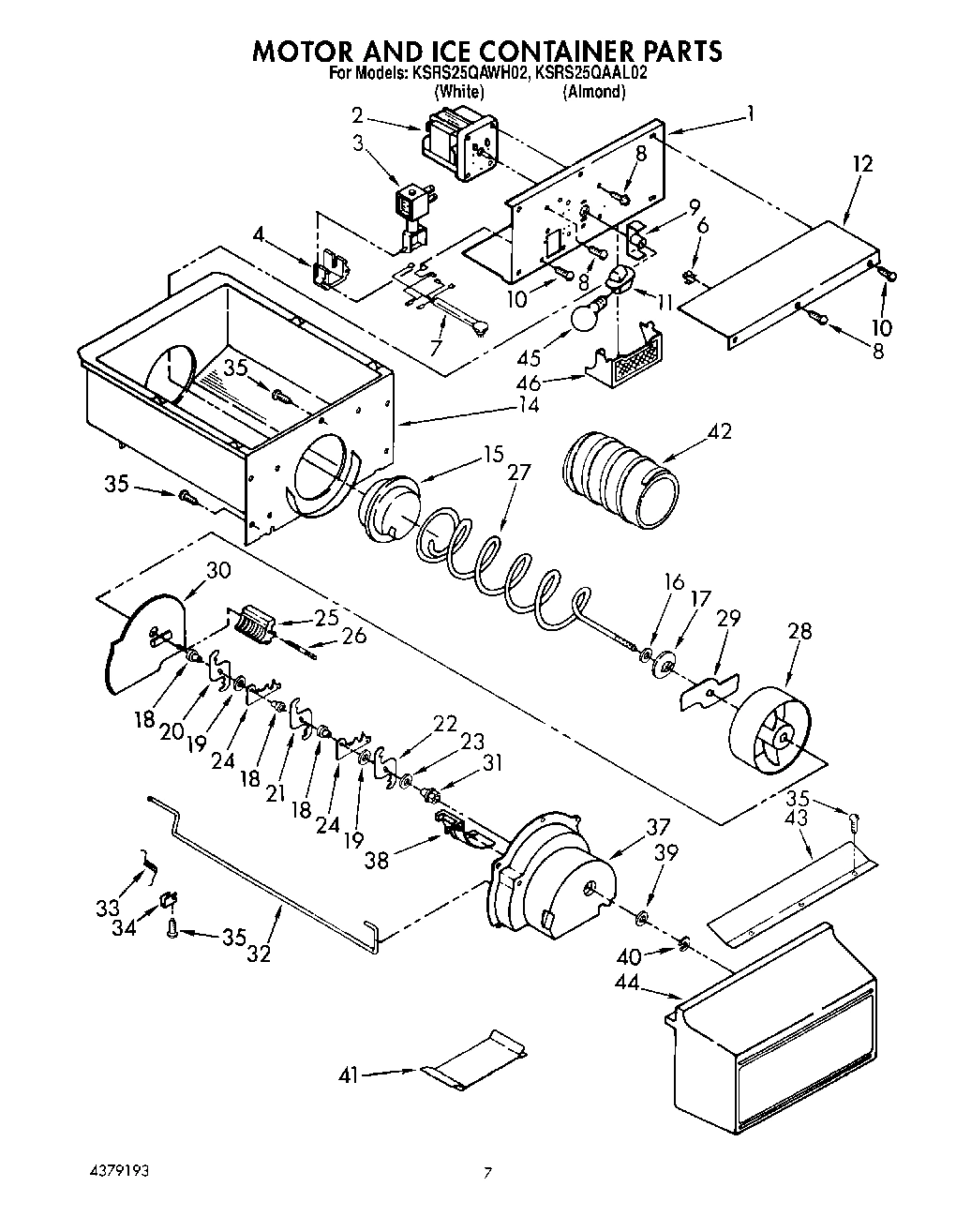

05 - MOTOR AND ICE CONTAINER, LIT/OPTIONAL

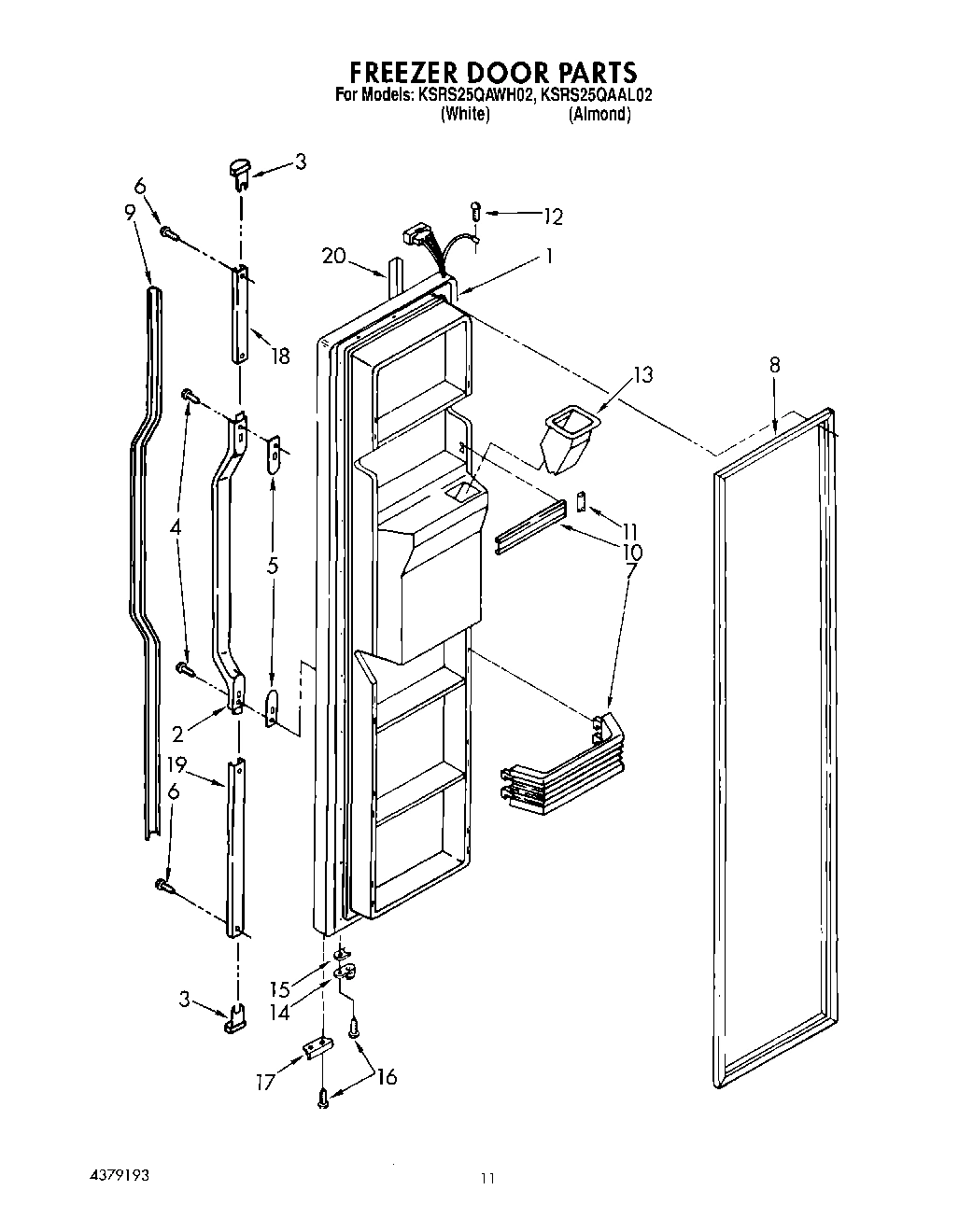

07 - FREEZER DOOR
Common parts from model Whirlpool KSRS25QAWH02 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2155697 WPL LIT2155697 Contact Us For Availability
WPL LIT2161900 WPL LIT2161900 Contact Us For Availability
WPL LIT2168636 WPL LIT2168636 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Shelf Assembly, Cantilever (2) WPL 1125597 Contact Us For Availability
1
Refrigerator Door (Includes No.7) (White) WPL 2159404 Contact Us For Availability
1
Refrigerator Door (Includes No.7) (Almond) WPL 2159405 Contact Us For Availability
1
Control Box WPL 2169149 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI102585A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI102586A Contact Us For Availability
1
Bracket, Motor WPL 1118386 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2159351 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2159352 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Glass, Shelf WPL 1125593 Contact Us For Availability
2
Load Lock (4) WPL 1117999 Contact Us For Availability
2
Handle Assembly WPL 1107215 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
2
Shelf, Top Compartment WPL 1125824 Contact Us For Availability
3
Retainer, Glass WPL 1125594 Contact Us For Availability
3
Door, Compartment WPL 2159136 Contact Us For Availability
3
End Cap (2) WPL 1107341 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Door, Ice Compartment WPL 1125657 Contact Us For Availability
4
Gasket, Front WPL 1125786 Contact Us For Availability
4
Holder, Beverage WPL 1125981 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI102587A Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
5
Butter, Tray WPL 1125936 Contact Us For Availability
5
Spacer, Handle WPL 1107651 Contact Us For Availability
5
Air Duct Freezer WPL 2155575 Contact Us For Availability
5
Stud, R.S. Front WPL 946356 Contact Us For Availability
6
Screw WPL 489075 Contact Us For Availability
6
Defrost Timer WPL 2162046 Contact Us For Availability
6
Tube, Water (See Item No.22) WPL ARI102588A Contact Us For Availability
6
Stud, Pan Cover WPL 1125675 Contact Us For Availability
7
Gasket, Cover (Rear) WPL 1125706 Contact Us For Availability
7
Frame, Slides (White) WPL 2152717 Contact Us For Availability
7
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2149192 Contact Us For Availability
7
Shelf Bin (4) WPL 2156016 Contact Us For Availability
8
Glass, Cover (2) WPL 1125822 Contact Us For Availability
8
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
8
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
8
Support, Stud (2) WPL 946355 Contact Us For Availability
9
Pan Shelf & Slide Assembly (Includes 13, 14, WPL 2161760 Contact Us For Availability
9
Insert, Handle (White) WPL 1117948 Contact Us For Availability
9
Insert, Handle (Almond) WPL 1117949 Contact Us For Availability
9
Ladder, Shelf (2) WPL 1116794 Contact Us For Availability
9
Grommet (2) WPL 1110779 Contact Us For Availability
10
Glass, Shelf WPL 1125595 Contact Us For Availability
10
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
10
Window WPL 1126028 Contact Us For Availability
10
Door Mechanism Assembly WPL 2157650 Contact Us For Availability
10
Stud, Shelf (2) WPL 658944 Contact Us For Availability
10
Trim, Door Shelf WPL 2157603 Contact Us For Availability
11
Gasket (Front) WPL 1125814 Contact Us For Availability
11
Slide, Air Control WPL 1125592 Contact Us For Availability
11
Shelf WPL 2155683 Contact Us For Availability
12
Hinge Top (R.H.) WPL 1117937 Contact Us For Availability
12
Gasket (Rear) WPL 1125817 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161327 Contact Us For Availability
12
Slide, Thermostat WPL 1125591 Contact Us For Availability
12
Cover, Motor WPL 1115339 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Eyelet, Roller WPL 1112308 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
13
Screw (2) WPL 487559 Contact Us For Availability
13
Chute, Ice WPL 2156146 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Roller WPL 2161749 Contact Us For Availability
14
Light Bar WPL 1118072 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Hinge Bottom (R.H) WPL 2151629 Contact Us For Availability
16
Crisper Pan (2) (Includes 13, 14 & 19) WPL 2161893 Contact Us For Availability
16
Rack, Wine & Egg WPL 1126137 Contact Us For Availability
16
Drain Fitting WPL 2155556 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Utility Pan WPL 2161892 Contact Us For Availability
17
Bracket, Door Stop WPL 2157611 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
17
Light Socket WPL 1110690 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Shelf Track (Right Side (3)) WPL 1126354 Contact Us For Availability
17
Shelf Track (Left Side (3)) WPL 1126355 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
18
Retainer, Insert WPL 1107243 Contact Us For Availability
18
Heat Shield WPL 1118033 Contact Us For Availability
19
Spacer WPL 625834 Contact Us For Availability
19
Hinge Bottom (L.H) WPL 2151630 Contact Us For Availability
19
Retainer, Insert WPL 1117952 Contact Us For Availability
19
Shelf Bin (4) WPL 1125555 Contact Us For Availability
19
Trim Kit Panels (Black) WPL 4210348 Contact Us For Availability
19
Almond Handle Inserts WPL 4211147 Contact Us For Availability
19
White WPL 4211148 Contact Us For Availability
19
Trim Kit Acrylic Panel Kit WPL 4318336 Contact Us For Availability
19
Handle Inserts (Black) WPL 4318339 Contact Us For Availability
19
Woodgrain WPL 4318340 Contact Us For Availability
19
Black Grille Kit WPL 4318417 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
20
Trim, Door WPL 1119062 Contact Us For Availability
20
Control Box Harness WPL 2155694 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Basket, Middle WPL 2155685 Contact Us For Availability
22
Grille (White) WPL 1125715 Contact Us For Availability
22
Grille (Almond) WPL 1125717 Contact Us For Availability
22
Glass, Shelf WPL 2161683 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Front, Basket WPL 1125770 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Reflector WPL 2161809 Contact Us For Availability
23
Basket, Upper WPL 2152093 Contact Us For Availability
24
Gasket, Front WPL 2161686 Contact Us For Availability
24
Fastener, Push-On WPL 489391 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Almond) WPL 1125972 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White) WPL 2155815 Contact Us For Availability
24
Front, Basket WPL 1125612 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Frame & Roller WPL 2161706 Contact Us For Availability
25
Escutcheon, Control Box WPL 2155695 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
25
Basket, Lower WPL 2152102 Contact Us For Availability
26
Frame And Roller Assembly (Cantilever) WPL 2161806 Contact Us For Availability
26
Light Bar WPL 1126089 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
27
Window WPL 1126027 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
27
Stud, Shelf (4) Compartment WPL 1115386 Contact Us For Availability
28
Clip, Control Box WPL 1125811 Contact Us For Availability
28
Screw WPL 489360 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
29
Light Lens WPL 1115389 Contact Us For Availability
30
Hinge, Top (L.H.) WPL 1123510 Contact Us For Availability
30
Switch WPL 1127898 Contact Us For Availability
30
Stud, R.S. Rear WPL 1106982 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
32
Heat Shield WPL 1127141 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
33
Heater, Defrost WPL 2161323 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Light Lens WPL 1125586 Contact Us For Availability
35
Screw (2) WPL 488361 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
38
Lever Assembly, Water Dispenser (Almond) WPL 2159198 Contact Us For Availability
38
Lever Assembly, Water Dispenser (White) WPL 2159199 Contact Us For Availability
39
Insert, Cover (White) WPL 1125798 Contact Us For Availability
39
Insert, Cover (Almond) WPL 1125801 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
40
Cover, Housing (Includes Item 39) (White) WPL 1125673 Contact Us For Availability
40
Cover, Housing (Includes Item 39) (Almond) WPL 1125805 Contact Us For Availability
41
Heat Shield, Frame WPL 2147172 Contact Us For Availability
41
Housing Filler WPL 2152700 Contact Us For Availability
42
Bracket, Water WPL 987049 Contact Us For Availability
43
Ice Deflector WPL 1119043 Contact Us For Availability
44
Front Cover, Ice Container WPL 1126036 Contact Us For Availability
46
WPL 876029 WPL 876029 Contact Us For Availability
46
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
46
WPL 799344 WPL 799344 Contact Us For Availability
46
Washer WPL 489336 Contact Us For Availability
46
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
46
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
46
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
46
WPL 799340 WPL 799340 Contact Us For Availability
46
WPL 799833 WPL 799833 Contact Us For Availability
46
WPL 978883 WPL 978883 Contact Us For Availability
46
WPL 983359 WPL 983359 Contact Us For Availability
50
Washer WPL 489366 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
