Model Whirlpool KSRS22QGAL00 – Common Parts & Diagrams

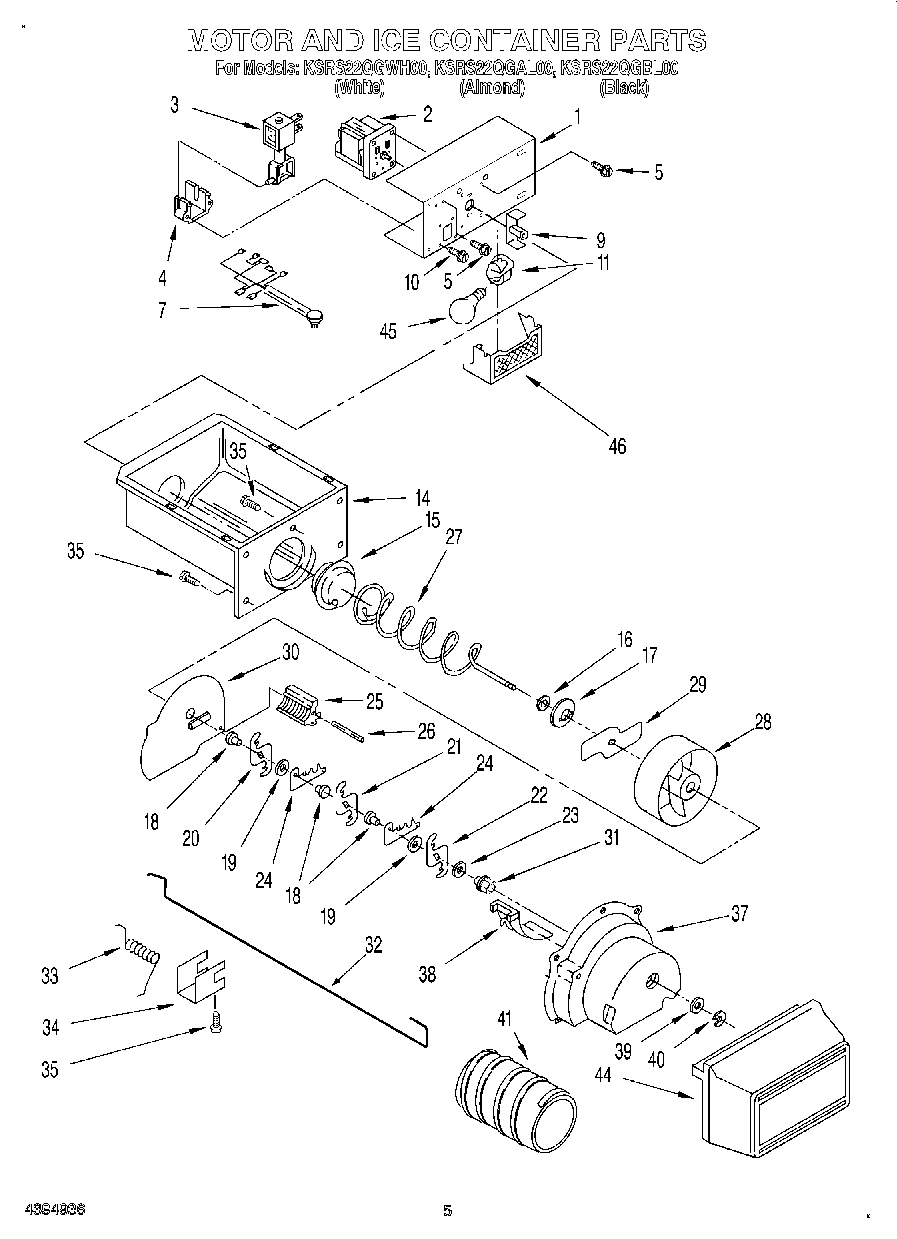

04 - MOTOR AND ICE CONTAINER

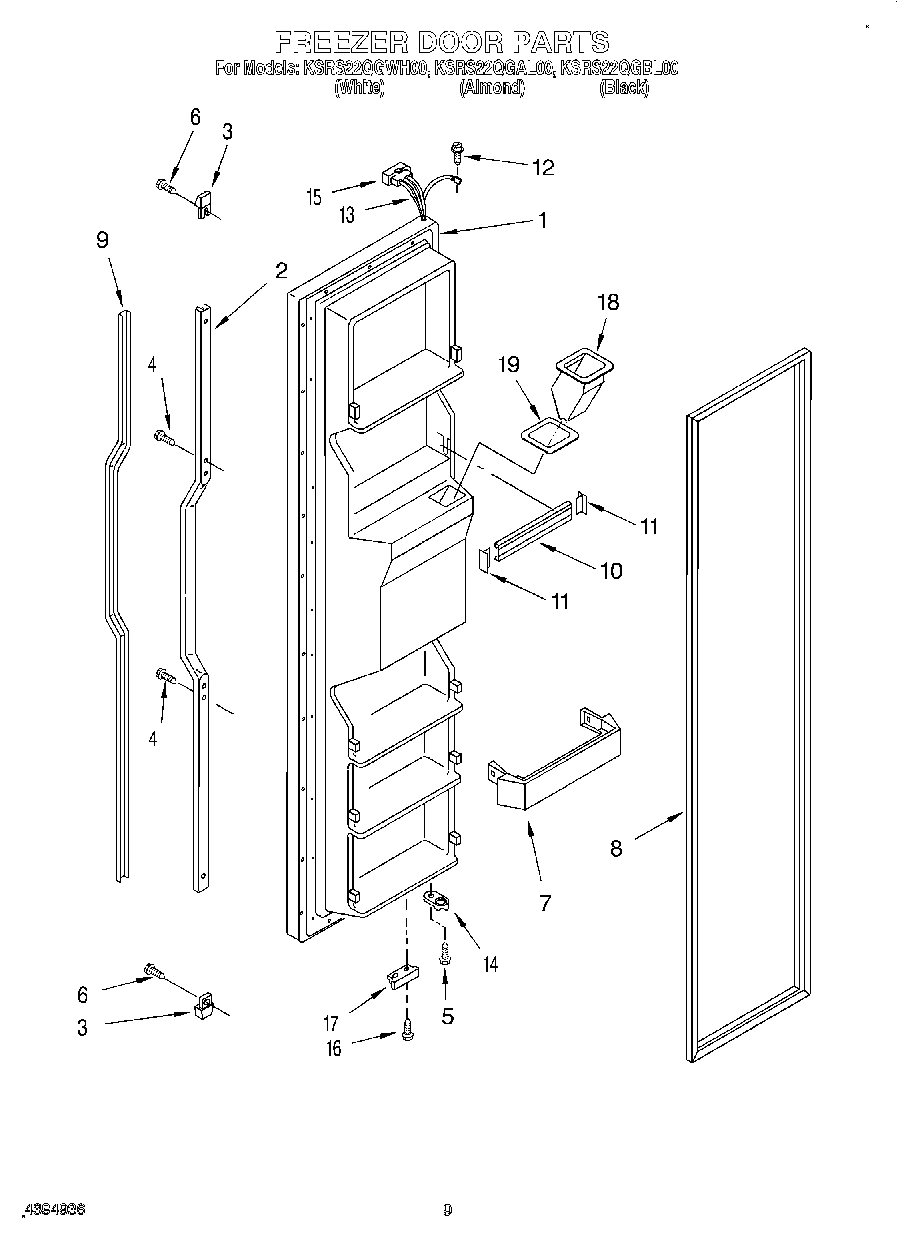

06 - FREEZER DOOR

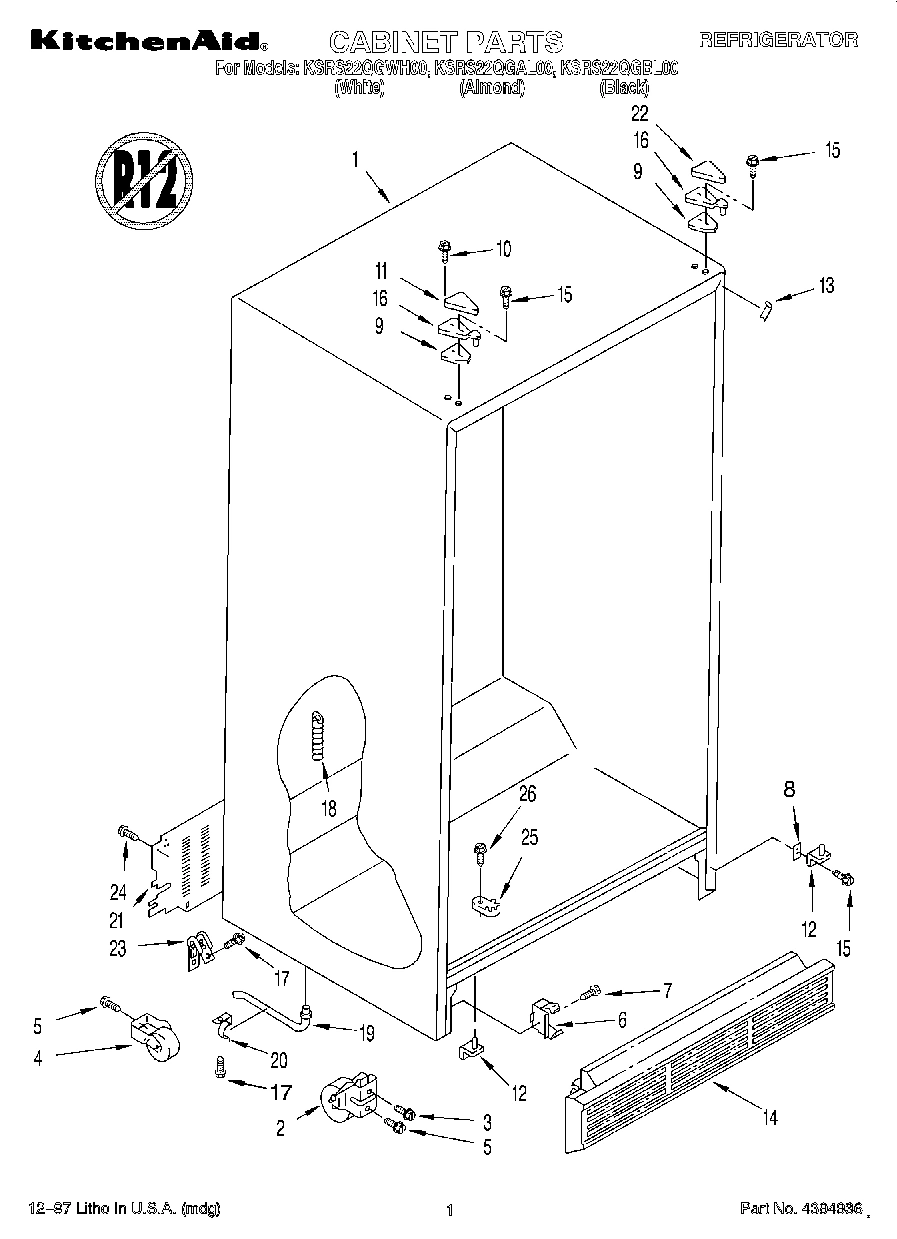

01 - CABINET

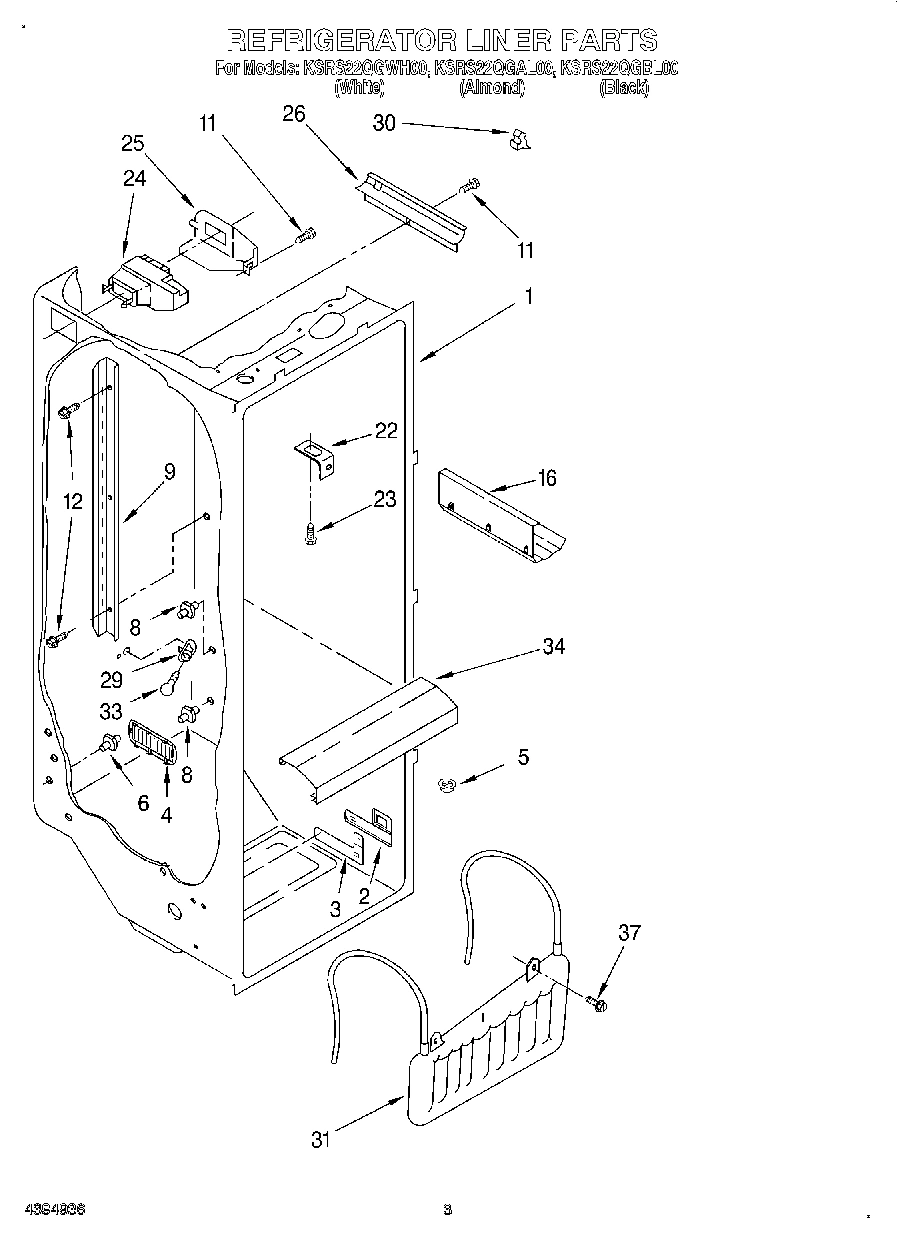

02 - REFRIGERATOR LINER

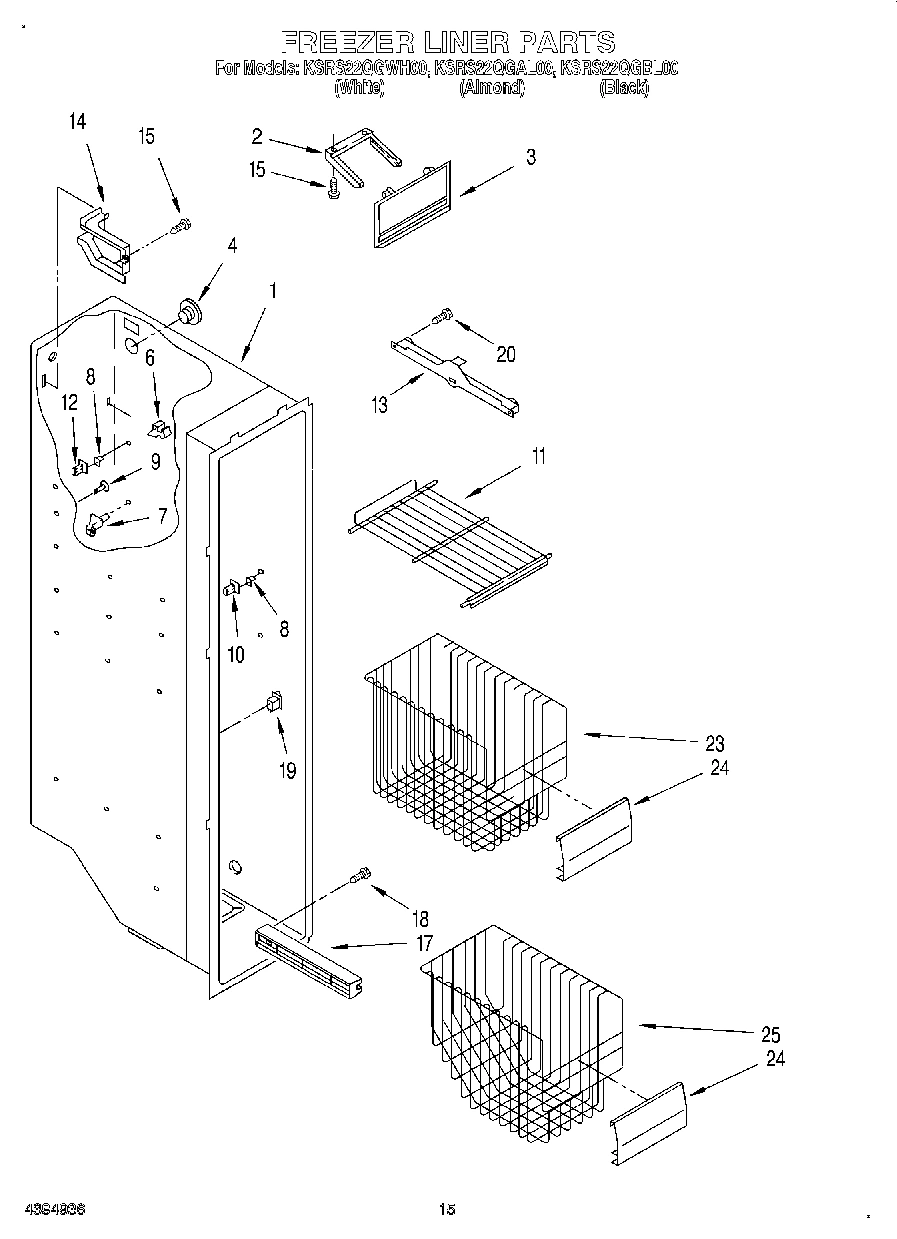

09 - FREEZER LINER

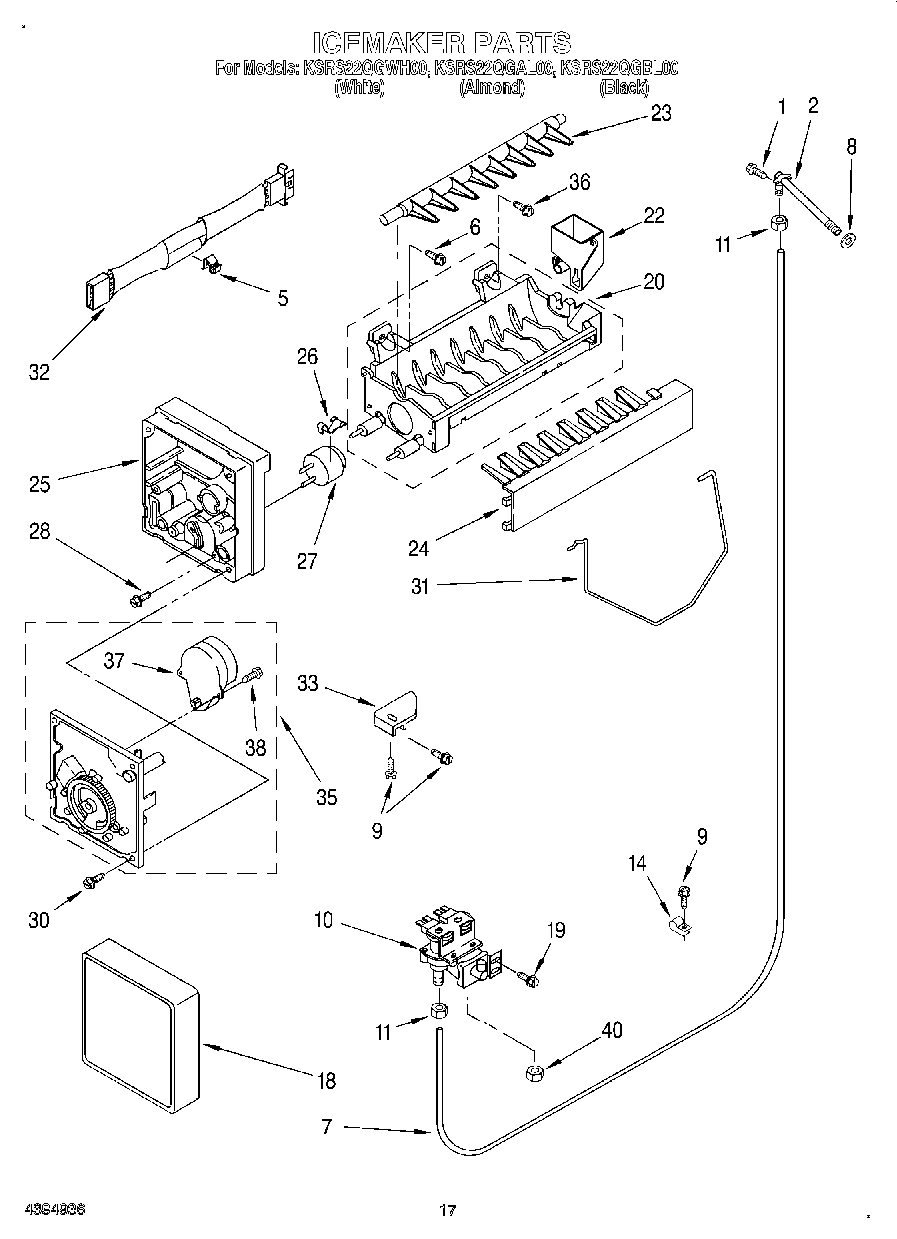

11 - ICEMAKER

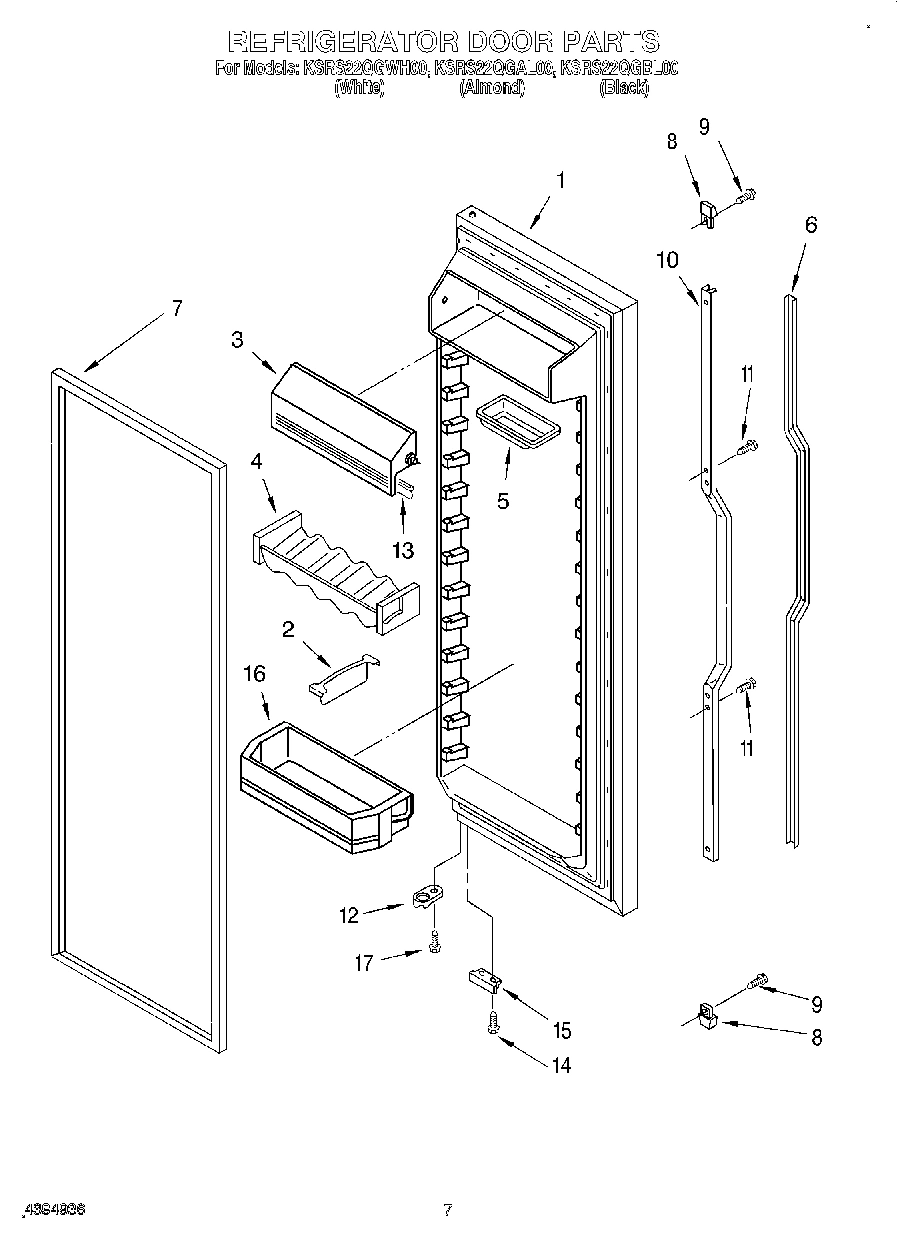

05 - REFRIGERATOR DOOR

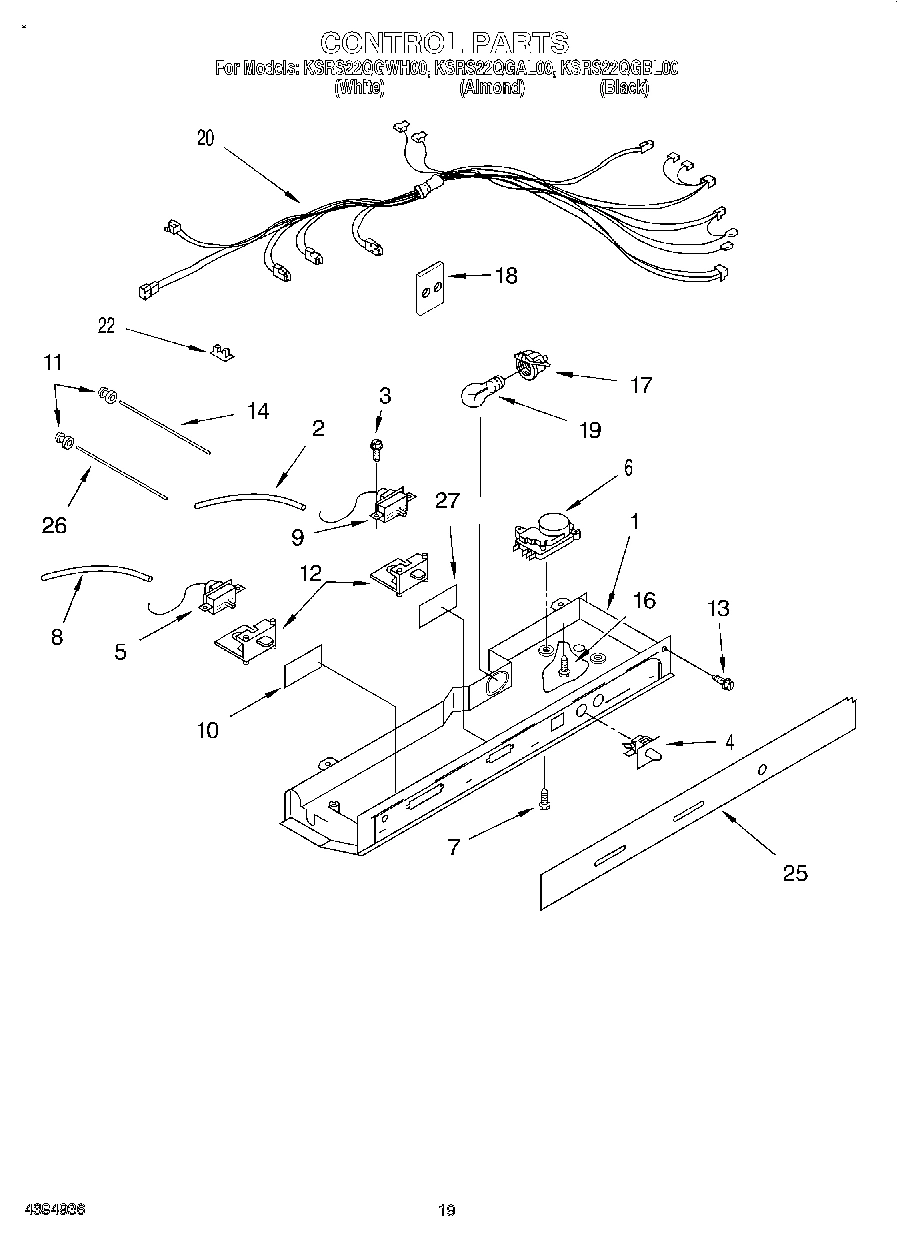

12 - CONTROL, LIT/OPTIONAL

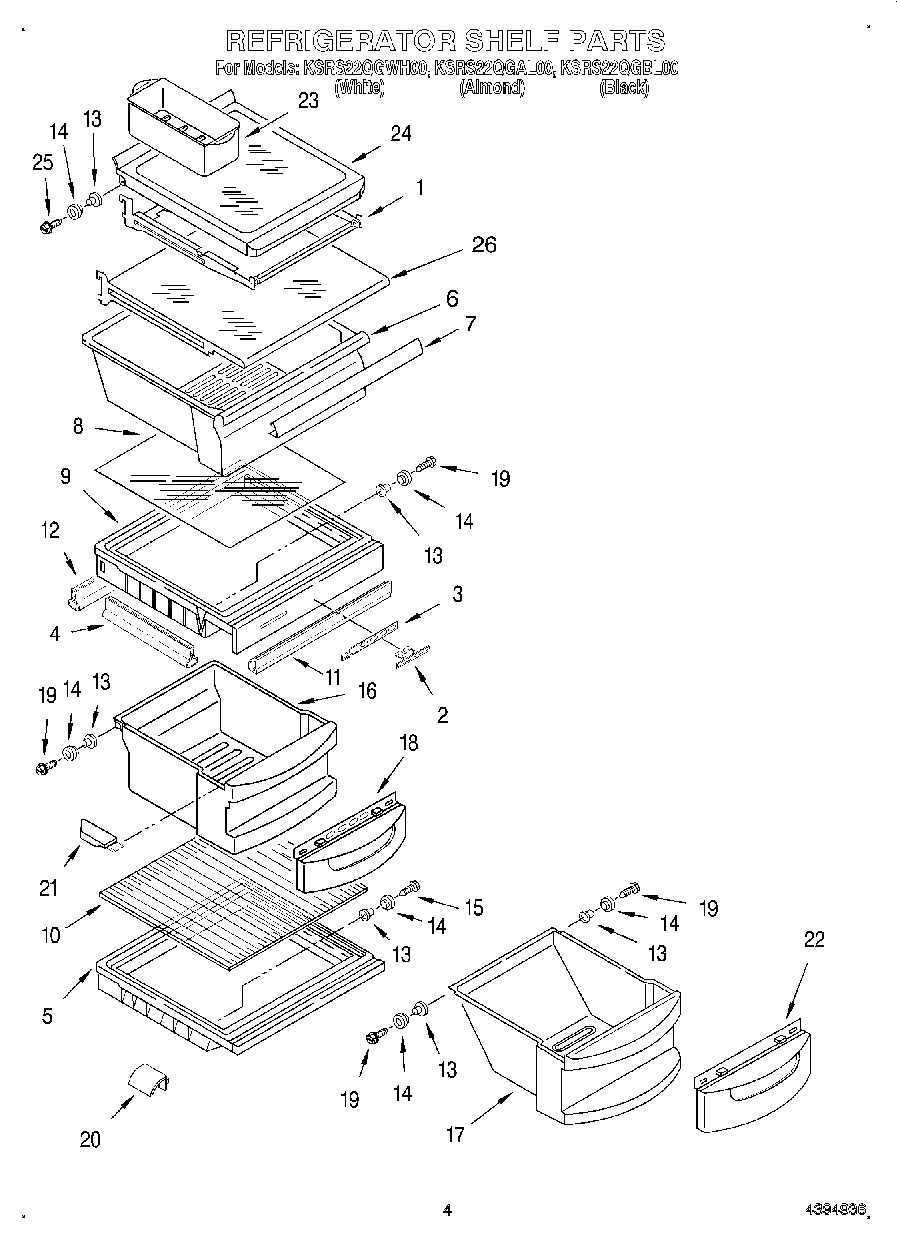

03 - REFRIGERATOR SHELF

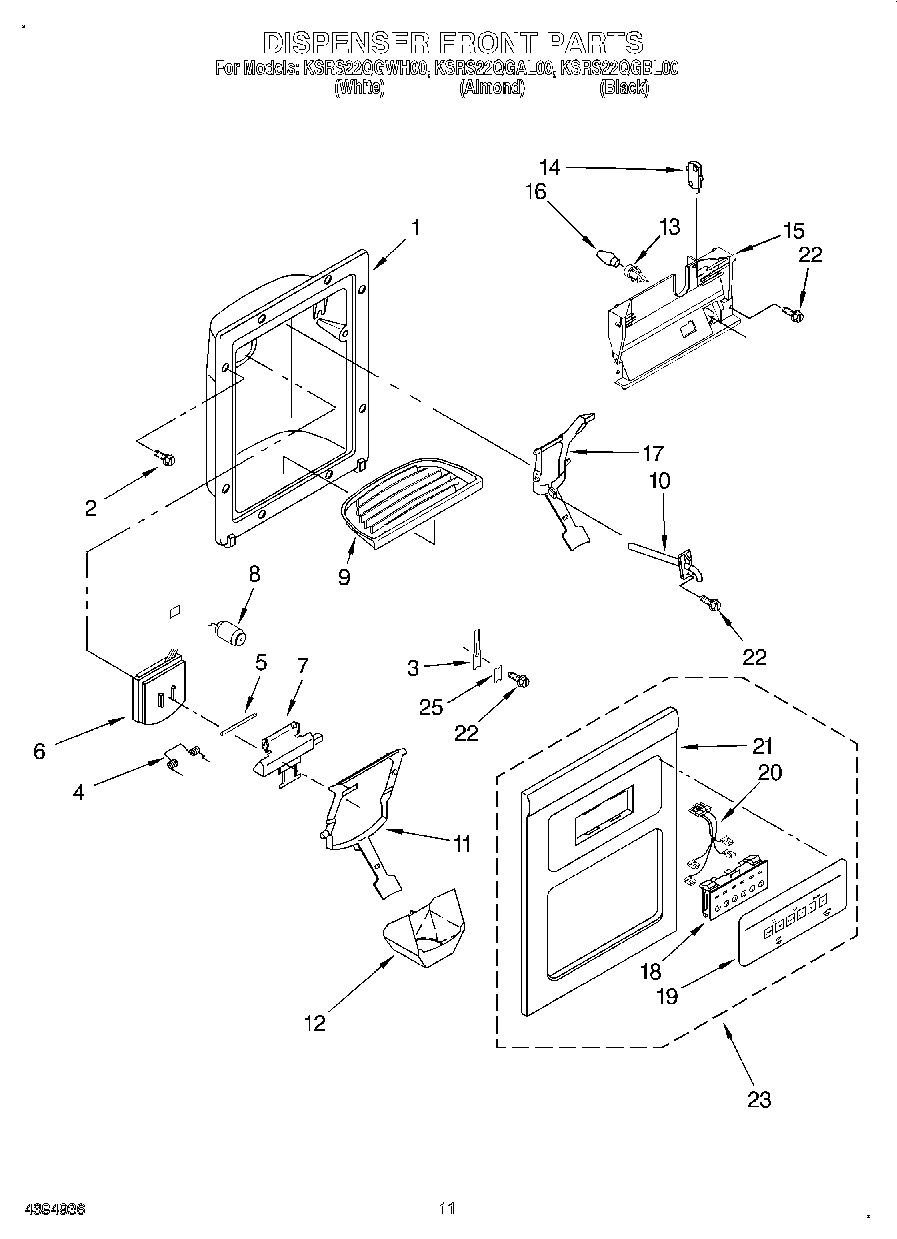

07 - DISPENSER FRONT

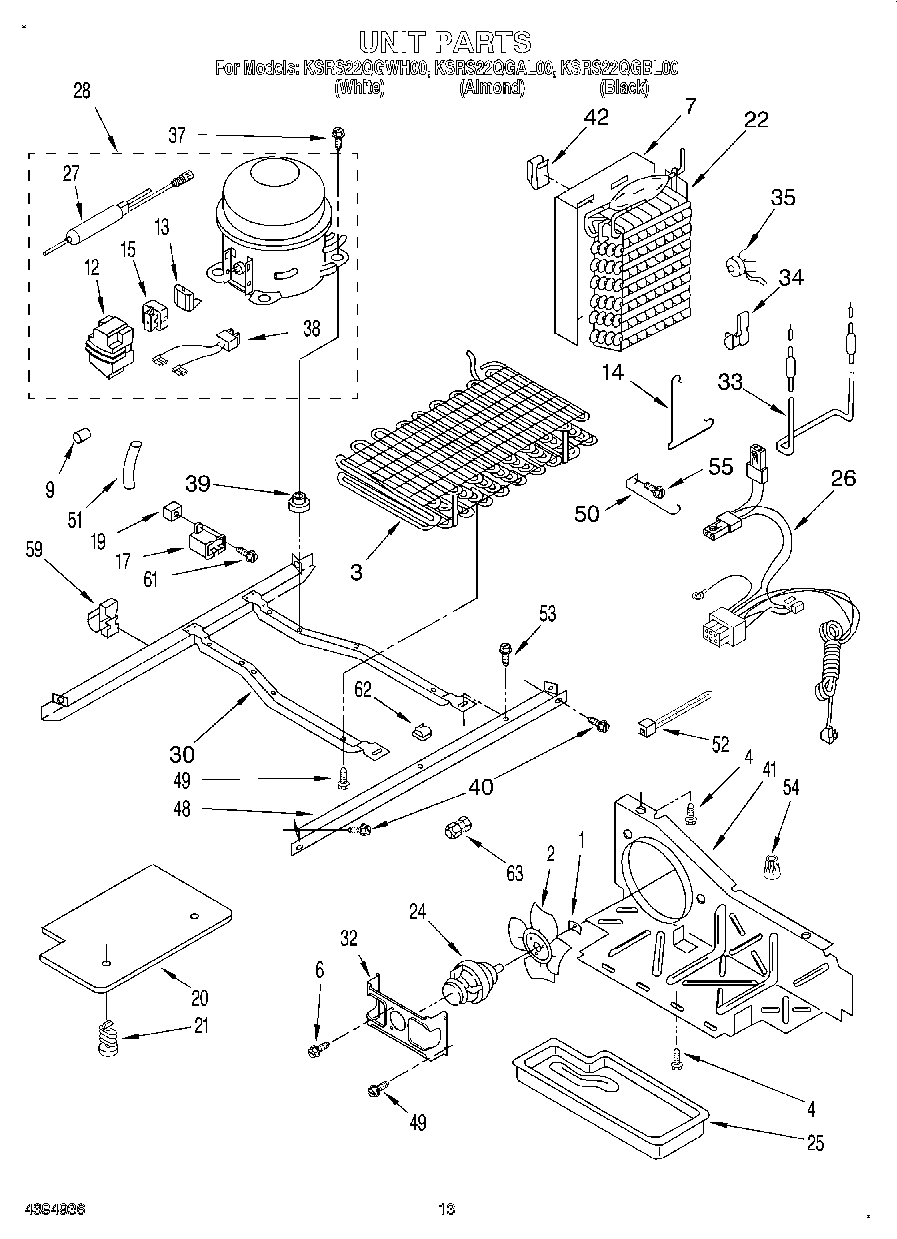

08 - UNIT
10 - AIR FLOW
Common parts from model Whirlpool KSRS22QGAL00
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2186462 WPL LIT2186462 Contact Us For Availability
WPL LIT2186479 WPL LIT2186479 Contact Us For Availability
WPL LIT2198378 WPL LIT2198378 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Shelf Assembly, Cantilever (3) WPL 2174023 Contact Us For Availability
1
Housing, Dispenser (Not a Serviceable Part) WPL ARI101005A Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Button, Humidity WPL 2174253 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Condenser Assembly WPL 2198175 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Gasket, Side (2) WPL 2174273 Contact Us For Availability
6
Defrost Timer (10 Hr.) WPL 2162046 Contact Us For Availability
6
Door, Ice WPL 2180205 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
7
Door Mechanism Assembly WPL 2180208 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
8
Glass, Cover WPL 2189526 Contact Us For Availability
8
Delay Mechanism WPL 2180223 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (4) WPL 2176134 Contact Us For Availability
9
Grille, Overflow (White) WPL 2180323 Contact Us For Availability
9
Grille, Overflow (Almond) WPL 2180324 Contact Us For Availability
10
Retainer, Insert (White) WPL 2194776W Contact Us For Availability
10
Glass, Cover WPL 2174148 Contact Us For Availability
11
Lever, Ice Dispenser (White) WPL 2180259 Contact Us For Availability
11
Hinge Cover (White) WPL 1129262 Contact Us For Availability
11
Grommet, Light Bar WPL 2172906 Contact Us For Availability
11
Lever, Ice Dispenser (Almond) WPL 2180260 Contact Us For Availability
11
Lever, Ice Dispenser (Black) WPL 2180261 Contact Us For Availability
12
Gasket, (Rear) WPL 2174274 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
14
Grille (Black) WPL 2155476 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Roller WPL 2174388 Contact Us For Availability
15
Bracket, Door Stop WPL 2195950 Contact Us For Availability
15
Relay WPL 2183454 Contact Us For Availability
16
Shelf Bin (4) WPL 2171063 Contact Us For Availability
17
Meat Pan (Includes 13, 14, 19, & 22) WPL 2179231 Contact Us For Availability
17
Lever, Water Dispenser (Almond) WPL 2180269 Contact Us For Availability
17
Capacitor WPL 2169137 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
19
Plaque, Front Cover (White) WPL 2180365 Contact Us For Availability
19
Plaque, Front Cover (Almond) WPL 2180366 Contact Us For Availability
19
Plaque, Front Cover (Black) WPL 2180367 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Unit Cover, Bottom WPL 2182057 Contact Us For Availability
20
Control Box Harness WPL 2182130 Contact Us For Availability
21
Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability
21
Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI101006A Contact Us For Availability
22
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Window, Meat Pan WPL 2174362 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2180393 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2180394 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2180395 Contact Us For Availability
24
Shelf & Roller Assembly WPL 2174021 Contact Us For Availability
25
Escutcheon, Control Box WPL 2161486 Contact Us For Availability
25
Screw WPL 489439 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
26
Light Bar (FC) WPL 2179921 Contact Us For Availability
26
Shelf, Snack Pan WPL 2198277 Contact Us For Availability
26
Harness, Intermediate WPL 2194749 Contact Us For Availability
27
KIT, FOAM SL WPL 876029 Contact Us For Availability
27
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
27
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
27
Window WPL 2172941 Contact Us For Availability
27
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
27
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
27
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
27
WPL 978883 WPL 978883 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
42
Clip, Heat WPL 2155547 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171709 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire & Tube WPL 2155658 Contact Us For Availability
62
Clip, Tube (3) WPL 934011 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
