Model Whirlpool KSRS22KGBL04 REFRIGERATOR – Common Parts &amp; Diagrams

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $212.50

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

1

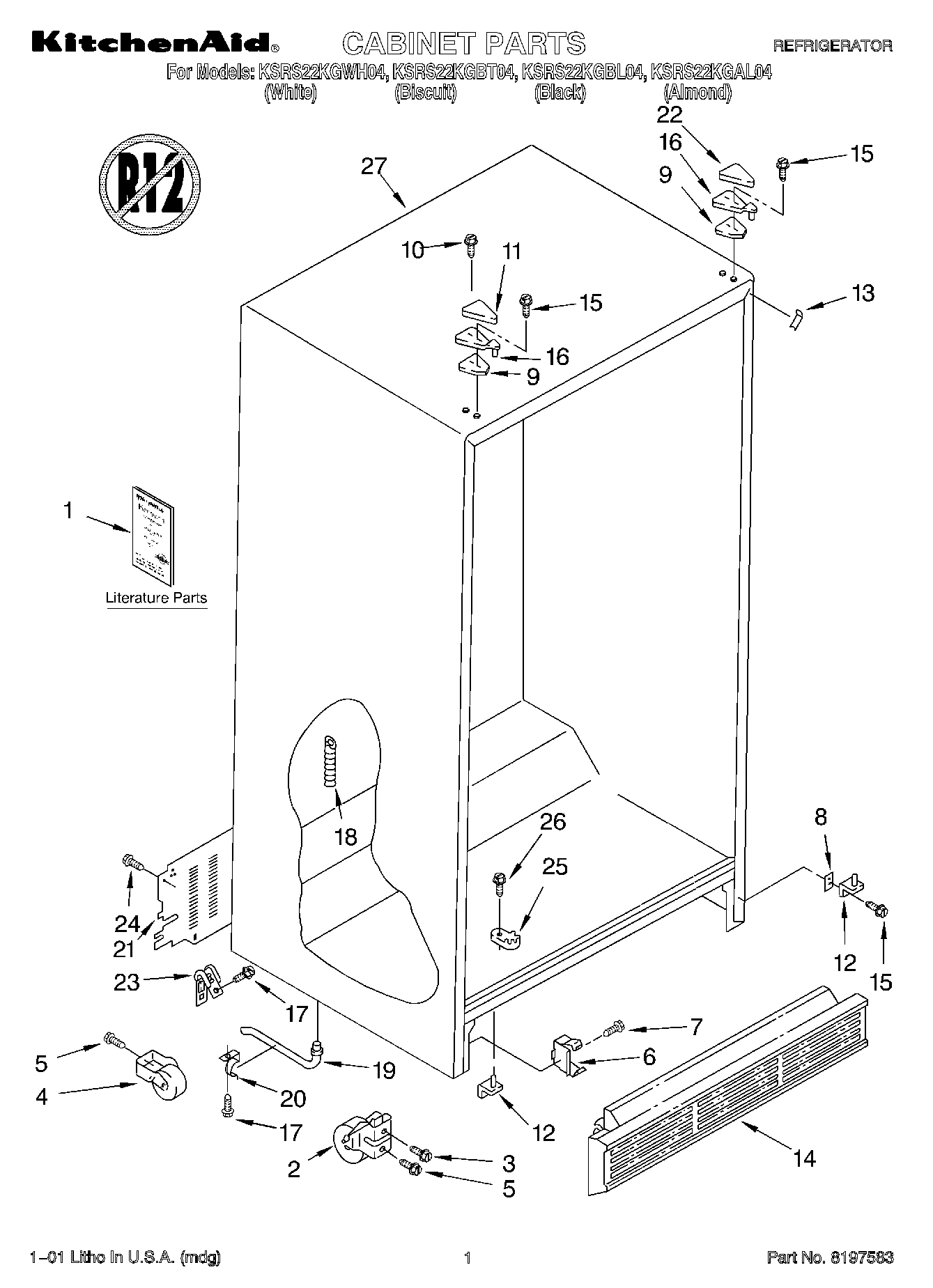

LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2186638 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT2206106 Contact Us For Availability

1

LITERATURE PARTS (Energy Guide) WPL LIT2211863 Contact Us For Availability

1

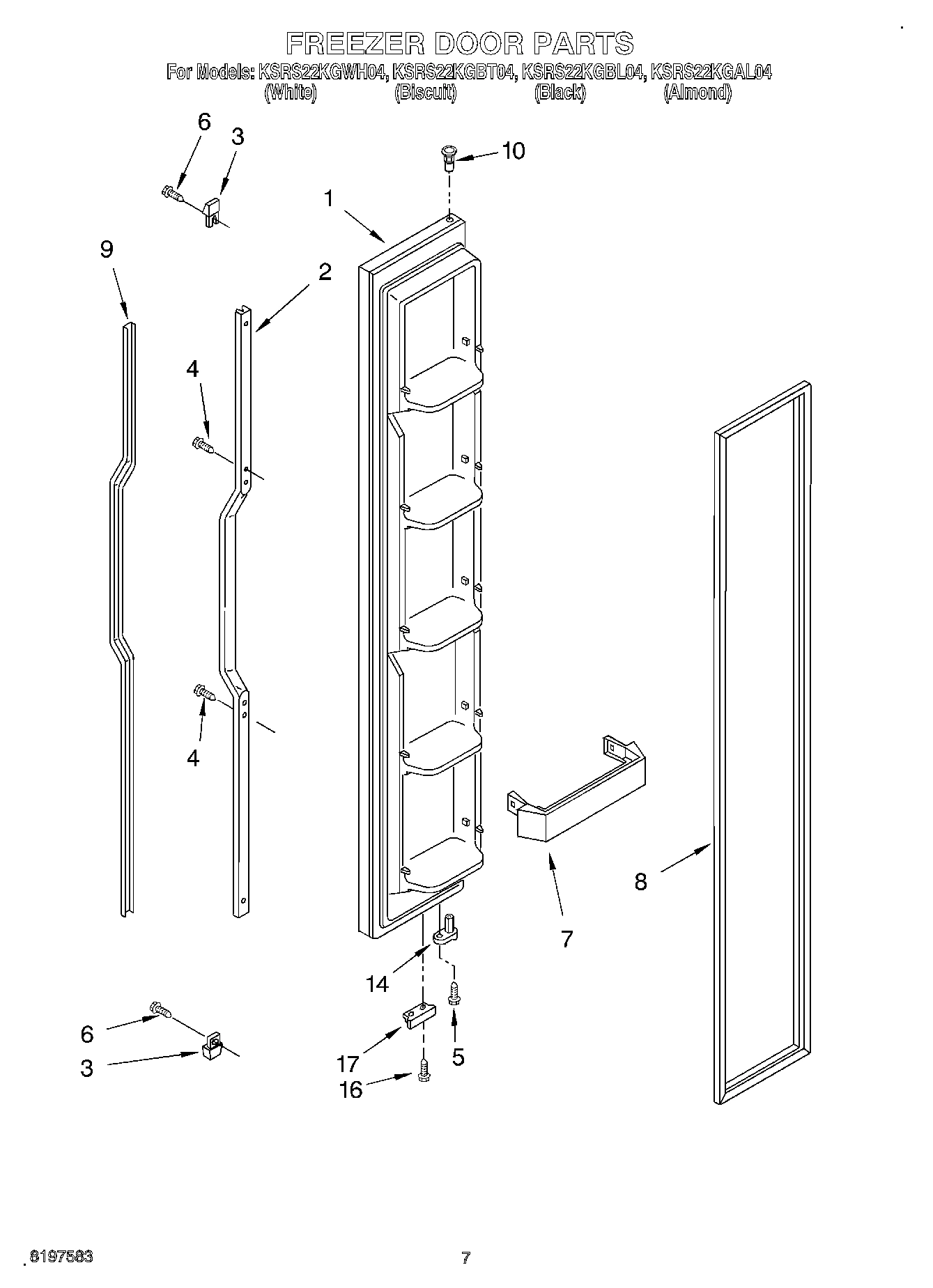

Freezer Door (Includes No.8) (Black) WPL 2194198B Contact Us For Availability

1

Freezer Door (Includes No.8) (Almond) WPL 2194198N Contact Us For Availability

1

Freezer Door (Includes No.8) (Biscuit) WPL 2194198T Contact Us For Availability

1

Freezer Door (Includes No.8) (White) WPL 2194198W Contact Us For Availability

1

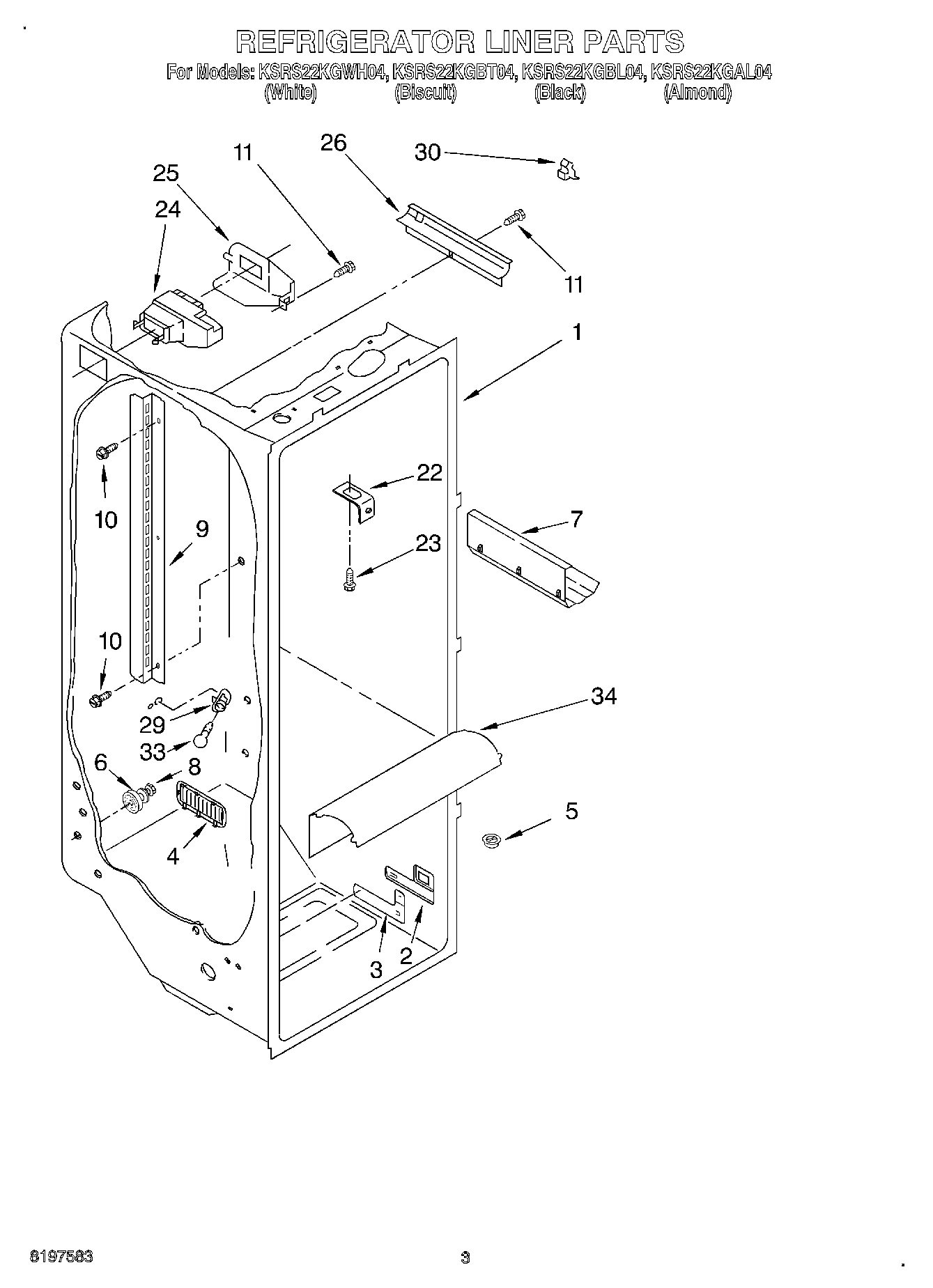

Liner (Not A Serviceable Part) WPL ARI100888A Contact Us For Availability

1

Refrigerator Door (Includes No.7) (Almond) WPL 2194200N Contact Us For Availability

1

Refrigerator Door (Includes No.7) (Biscuit) WPL 2194200T Contact Us For Availability

1

Refrigerator Door (Includes No.7) (White) WPL 2194200W Contact Us For Availability

1

Refrigerator Door (Includes No.7) (Black) WPL 2198267 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $62.28

2

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $9.65

2

Blade, Fan WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $7.08

3

WP2313637 Whirlpool Cutting Grid Assembly In Stock WPL WP2313637 $235.99

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Air Scoop WPL 2161231 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $27.81

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

4

Gasket WPL 2209604 Contact Us For Availability

4

Louver WPL 2182147 Contact Us For Availability

4

Beverage Holder WPL 2193409 Contact Us For Availability

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $14.02

5

WP2161460 Whirlpool Refrigerator Thermostat Backorder WPL WP2161460 $176.93

5

WP2161491 Whirlpool Crisper Drawer Cover In Stock WPL WP2161491 $142.48

5

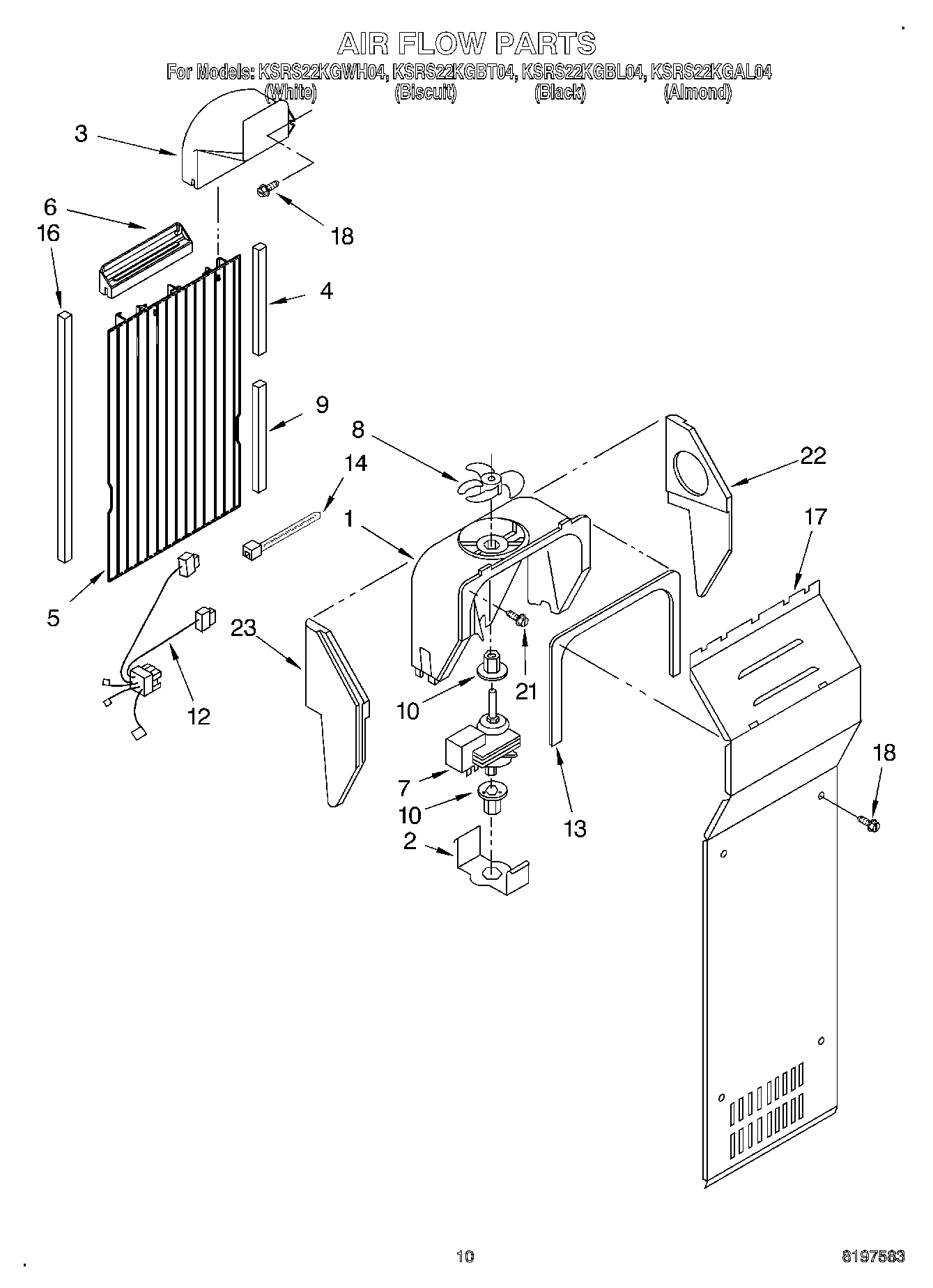

Air Duct Freezer WPL 2203592 Contact Us For Availability

5

Tray, Butter WPL 2165792 Contact Us For Availability

6

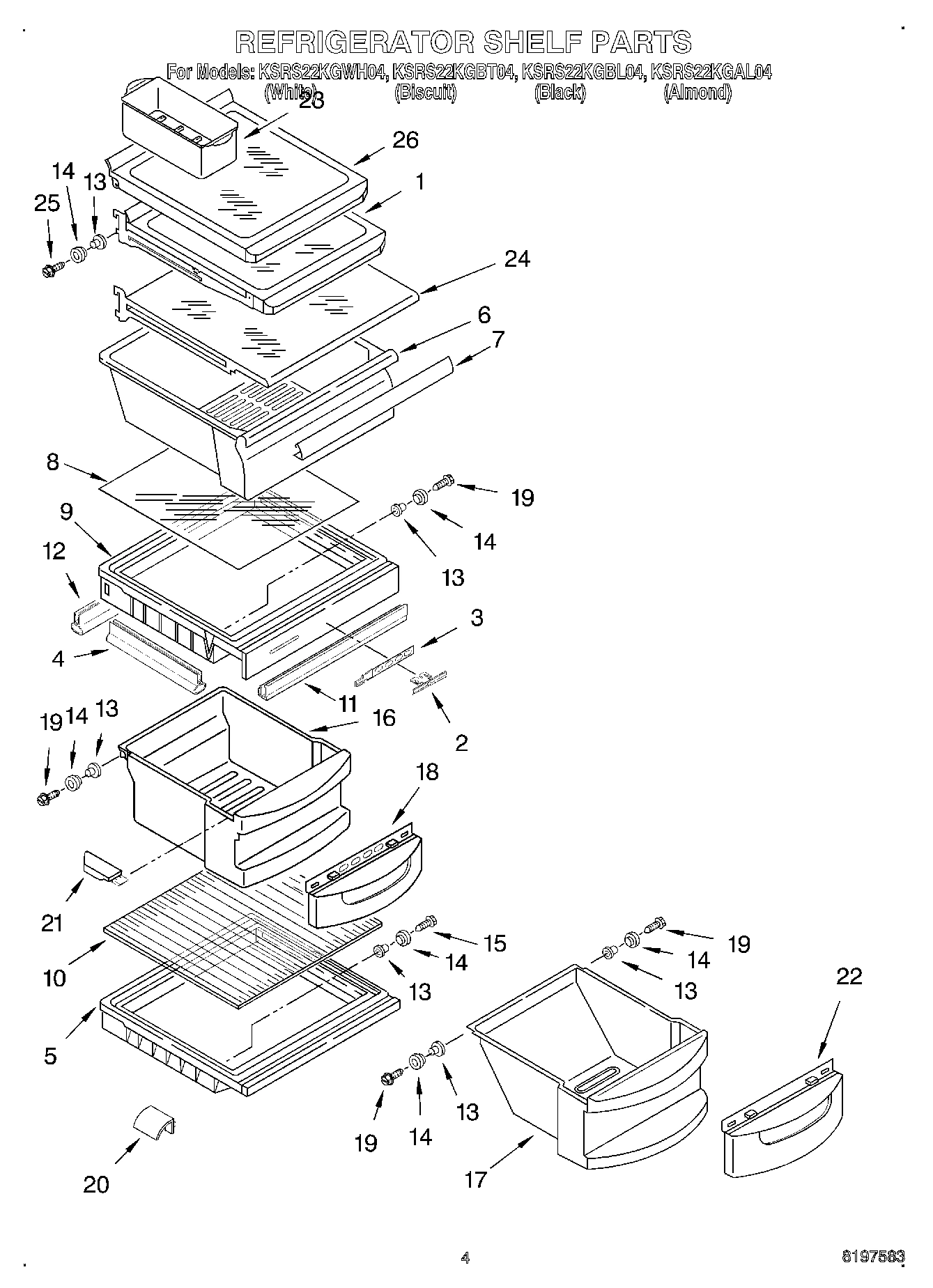

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $14.99

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

Insert, Handle (White) WPL 2173830 Contact Us For Availability

6

Insert, Handle (Almond) WPL 2173831 Contact Us For Availability

6

Insert, Handle (Black) WPL 2173832 Contact Us For Availability

6

Insert, Handle (Biscuit) WPL 2200434 Contact Us For Availability

6

Diffuser, Air Duct WPL 2149544 Contact Us For Availability

7

2159073 Whirlpool Refrigerator Door Gasket In Stock WPL 2159073 $134.99

7

2159081 Whirlpool Refrigerator Door Gasket Backorder WPL 2159081 $242.52

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $62.77

7

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $14.29

7

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $67.13

7

Shelf Bin (5) WPL 2171071 Contact Us For Availability

8

2159072 Whirlpool Refrigerator FIP Gasket In Stock WPL 2159072 $134.99

8

2159080 Whirlpool Refrigerator Door Gasket In Stock WPL 2159080 $219.73

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

8

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $6.50

8

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $4.82

8

Shim WPL 2209697 Contact Us For Availability

8

End Cap, Handle (Black) WPL 2194778B Contact Us For Availability

8

End Cap, Handle (Almond) WPL 2194778N Contact Us For Availability

8

End Cap, Handle (Biscuit) WPL 2194778T Contact Us For Availability

8

End Cap, Handle (White) WPL 2194778W Contact Us For Availability

9

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.83

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability

9

Grommet (4) WPL 2176134 Contact Us For Availability

9

Shim, Hinge Top WPL 2196048 Contact Us For Availability

9

Gasket WPL 2209605 Contact Us For Availability

9

Ladder, Shelf (2) WPL 2206270 Contact Us For Availability

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.96

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

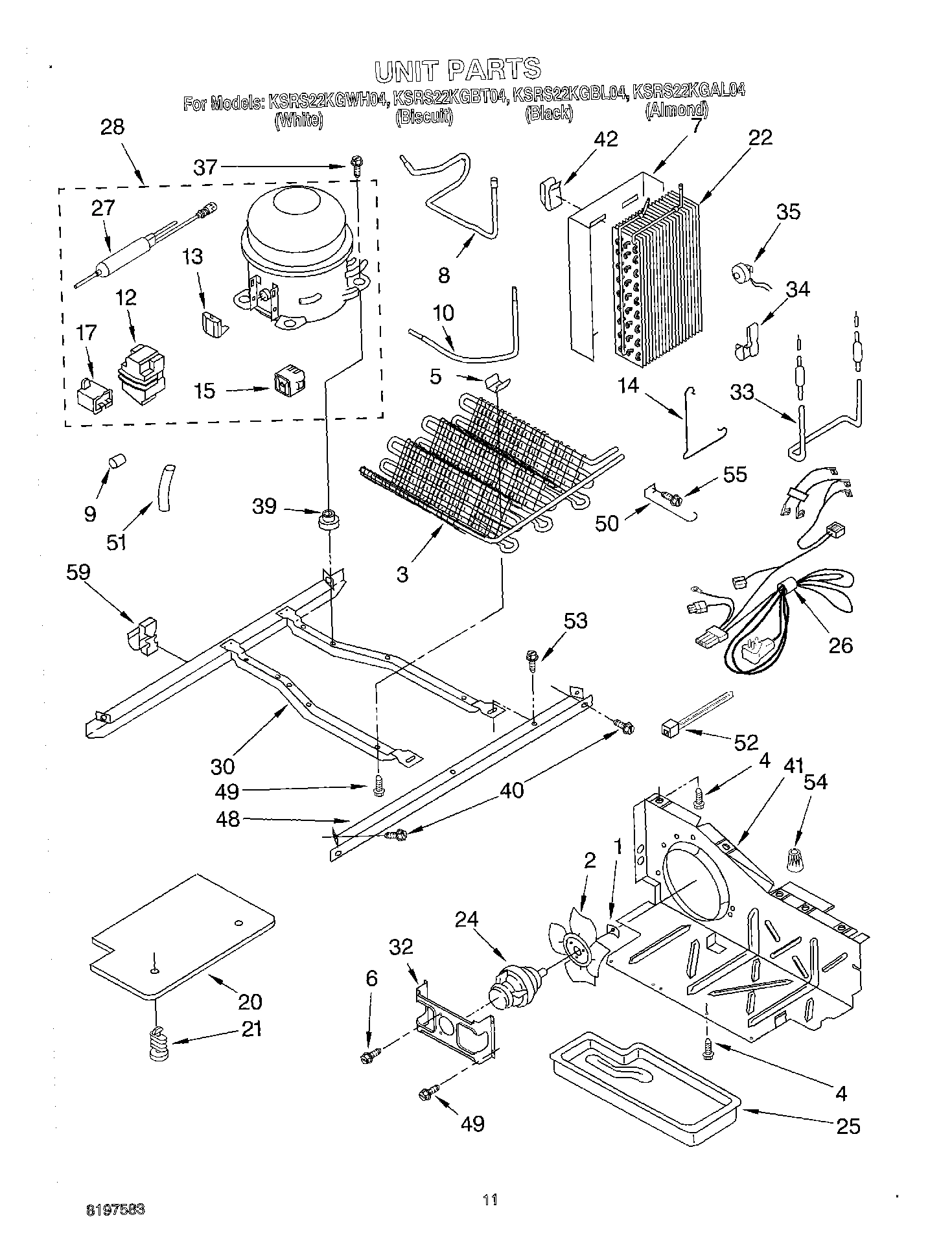

Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability

Screw WPL 489284 Contact Us For Availability

Retainer, Handle (Black) WPL 2194776B Contact Us For Availability

Retainer, Handle (Almond) WPL 2194776N Contact Us For Availability

Retainer, Handle (Biscuit) WPL 2194776T Contact Us For Availability

Retainer, Handle (White) WPL 2194776W Contact Us For Availability

W10759522 Whirlpool Screw Backorder WPL W10759522 $4.82

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $4.99

Hinge Cover (White) WPL 1129262 Contact Us For Availability

Hinge Cover (Almond) WPL 2150343 Contact Us For Availability

Hinge Cover (Black) WPL 2171947 Contact Us For Availability

Hinge Cover (Biscuit) WPL 2186858 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $14.02

8201707 Whirlpool Door Hinge In Stock WPL 8201707 $53.71

W11234406 Whirlpool Refrigerator Wire Harness Backorder WPL W11234406 $83.53

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.60

Support, Stud WPL 2196207 Contact Us For Availability

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $4.82

Eyelet, Roller WPL 2174478 Contact Us For Availability

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Filler, Wrapper (Almond) WPL 2196095 Contact Us For Availability

Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability

Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability

Gasket, Door Compartment WPL 2159124 Contact Us For Availability

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

Light Bar (RC) WPL 2179920 Contact Us For Availability

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

Grille (Black) WPL 2198469B Contact Us For Availability

Grille (Almond) WPL 2198469N Contact Us For Availability

Grille (Biscuit) WPL 2198469T Contact Us For Availability

Grille (White) WPL 2198469W Contact Us For Availability

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.75

15

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $7.55

15

Bracket, Door Stop (Black) WPL 2195952 Contact Us For Availability

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $57.18

WP2179227 Whirlpool Refrigerator Crisper Pan Backorder WPL WP2179227 $132.84

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $70.35

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $5.99

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $122.18

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

Bracket, Door Stop (Chrome) WPL 2195950 Contact Us For Availability

Load Lock WPL 2195497 Contact Us For Availability

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $48.27

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

W11566763 Whirlpool Fitting In Stock WPL W11566763 $31.99

Window, Crisper WPL 2174076 Contact Us For Availability

Nameplate (White) WPL 2188149 Contact Us For Availability

Nameplate (Almond) WPL 2188150 Contact Us For Availability

Nameplate (Black) WPL 2188151 Contact Us For Availability

Nameplate (Biscuit) WPL 2200935 Contact Us For Availability

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.77

19

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $19.72

19

Shelf Bin (4) WPL 2171063 Contact Us For Availability

20

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $6.93

20

Unit Cover, Bottom WPL 2182057 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

WP2188756 Whirlpool Refrigerator Unit Cover Backorder WPL WP2188756 $89.30

Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability

Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $15.75

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $20.18

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $23.85

Hinge Cover (Black) WPL 2155938 Contact Us For Availability

Window, Meat Pan WPL 2174362 Contact Us For Availability

23

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $8.91

23

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $10.99

23

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $4.82

24

WP2209751 Whirlpool Refrigerator Air Diffuser In Stock WPL WP2209751 $243.56

24

NLA:SCREW Backorder WPL WPW10141645 $4.82

24

Shelf, Snack Pan WPL 2206346 Contact Us For Availability

25

WP2212240 Whirlpool Refrigerator Cover Backorder WPL WP2212240 $93.96

25

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $4.60

25

Screw WPL 489439 Contact Us For Availability

26

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

26

Shelf & Roller Assembly WPL 2174021 Contact Us For Availability

27

Cabinet (Not A Serviceable Part) WPL ARI100887A Contact Us For Availability

28

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $49.99

29

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

30

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $6.90

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

33

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

34

Light Lens WPL 2206269 Contact Us For Availability

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
