Model Whirlpool KSRS22KGAL00 – Common Parts & Diagrams

WPL 1117510
WPL 1117510 WPL 1117510 Contact Us For Availability
View on Model
1

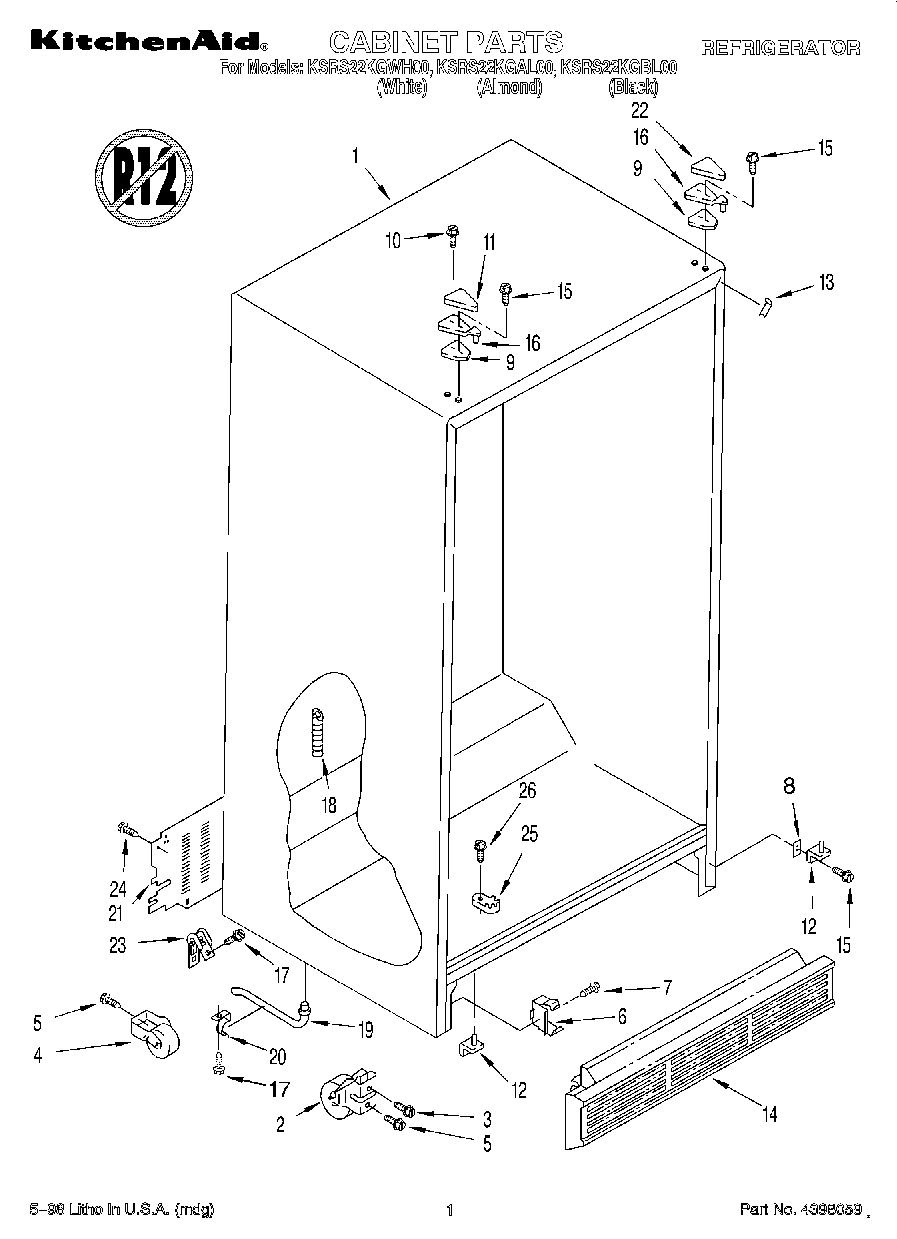

Cabinet (Not A Serviceable Part)
Cabinet (Not A Serviceable Part) WPL ARI100878A Contact Us For Availability
View on Model
1

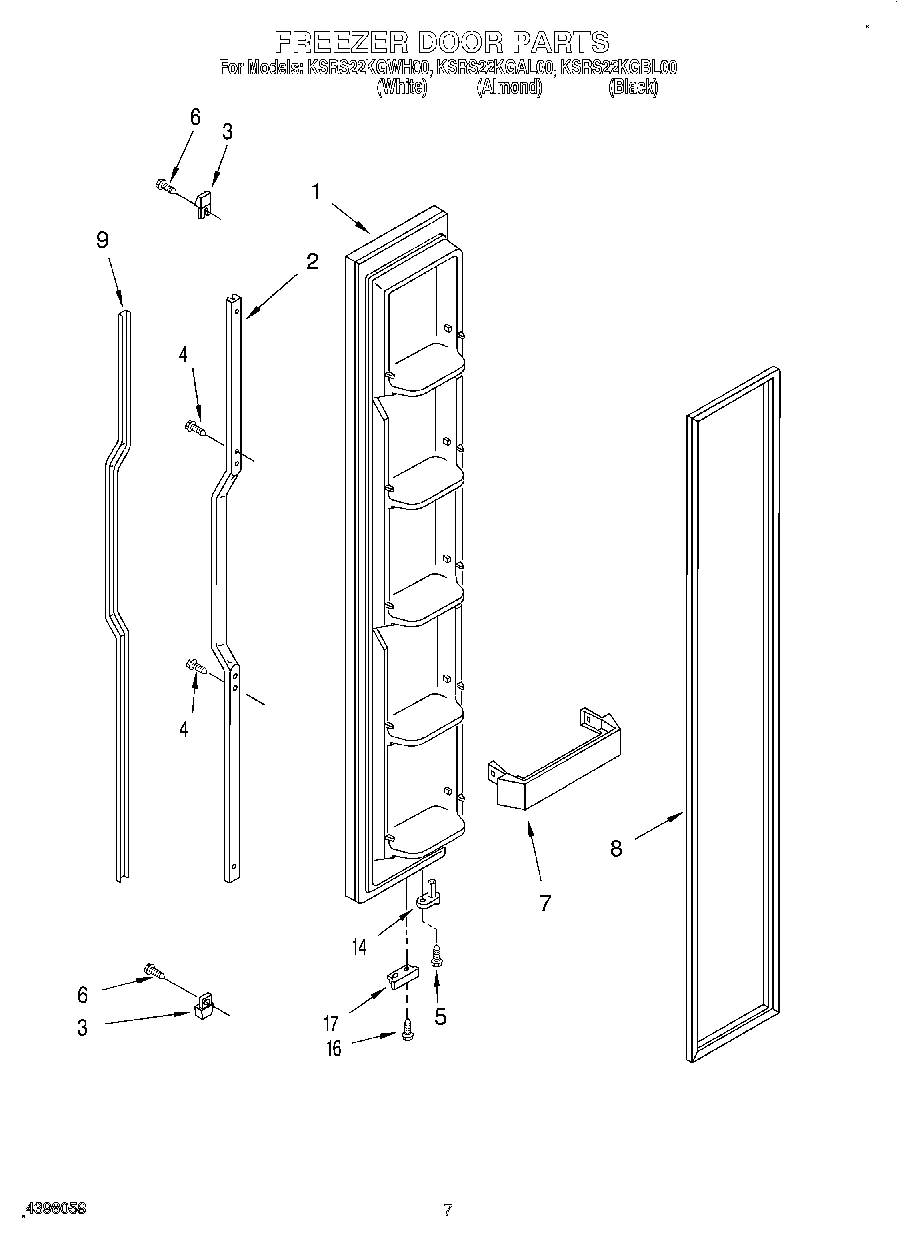

Freezer Door (Includes No.8) (Black)
Freezer Door (Includes No.8) (Black) WPL 2194198B Contact Us For Availability
View on Model
1
Freezer Door (Includes No.8) (Almond)
Freezer Door (Includes No.8) (Almond) WPL 2194198N Contact Us For Availability
View on Model
1
Freezer Door (Includes No.8) (White)
Freezer Door (Includes No.8) (White) WPL 2194198W Contact Us For Availability
View on Model
1

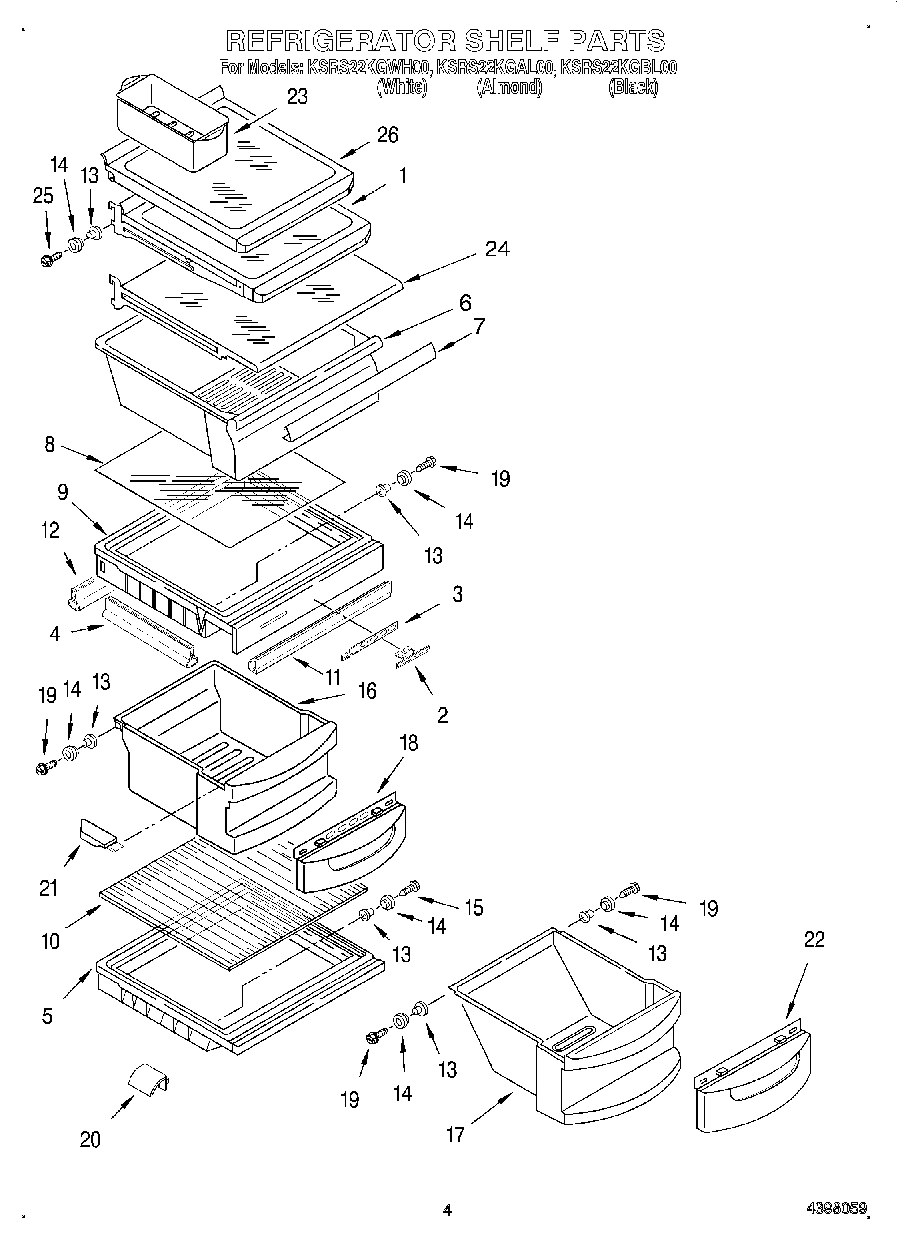

Shelf Assembly, Cantilever (2)
Shelf Assembly, Cantilever (2) WPL 2195978 Contact Us For Availability
View on Model
1

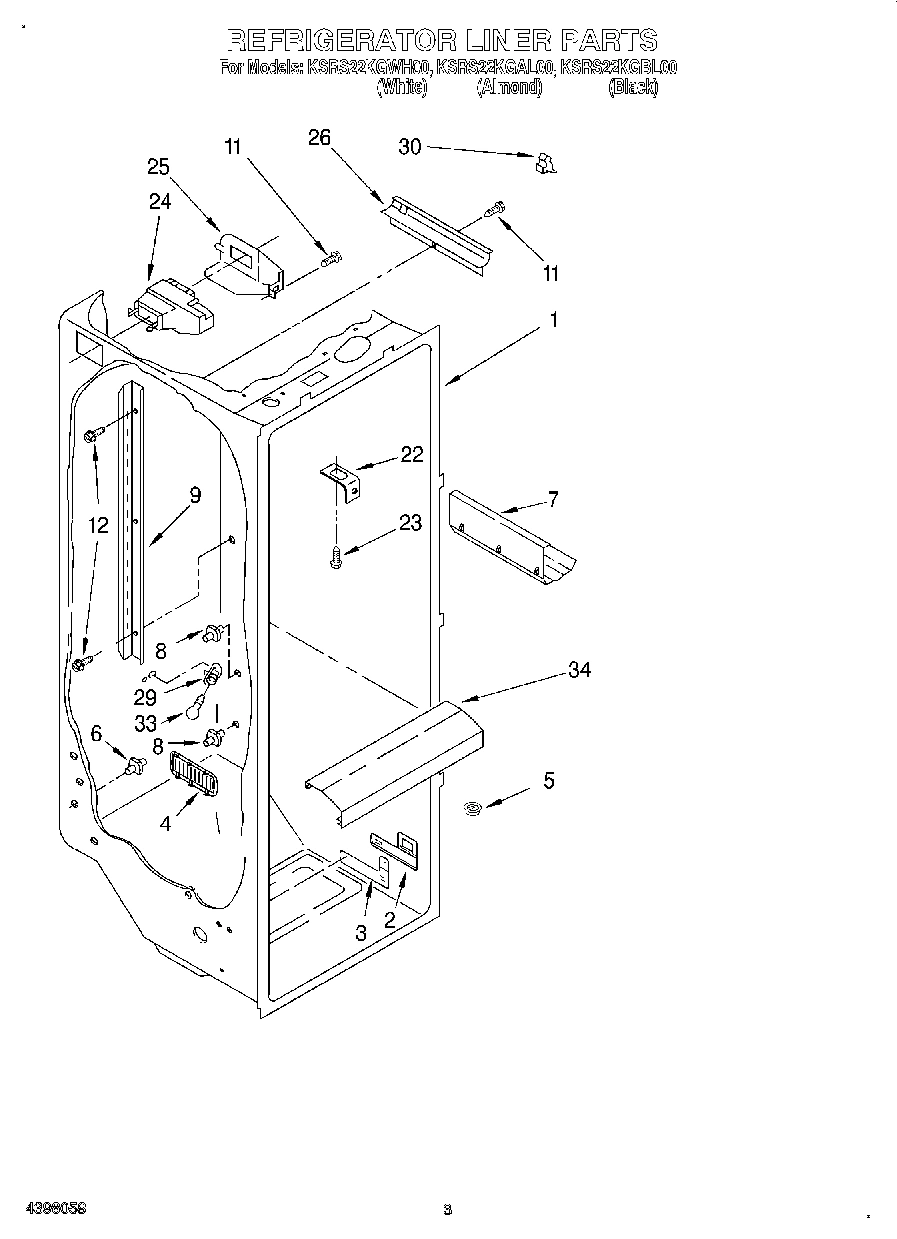

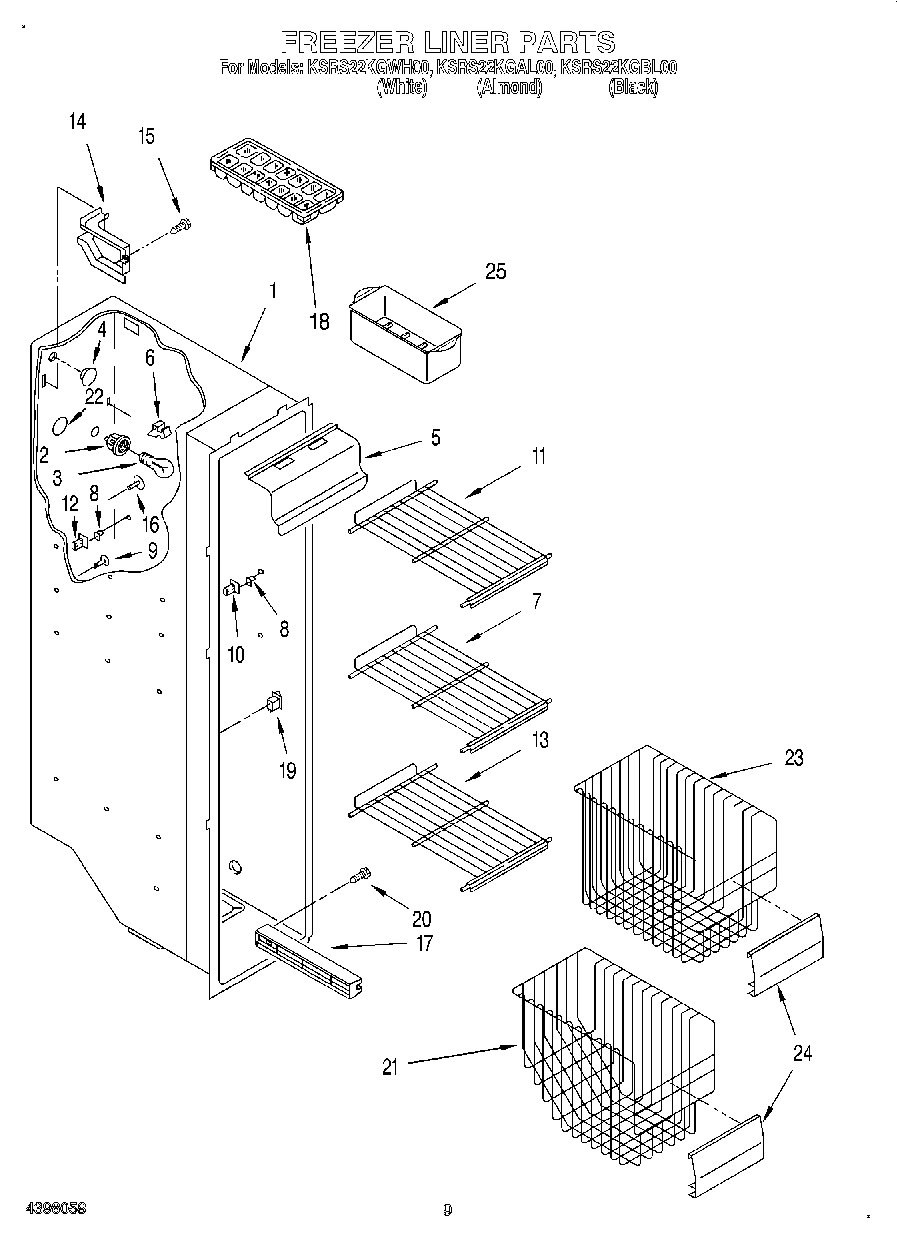

Liner (Not A Serviceable Part)
Liner (Not A Serviceable Part) WPL ARI100879A Contact Us For Availability
View on Model
2
RETAINER, FAN MOTOR
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
View on Model
2
Fan, Blade
Fan, Blade WPL 1108179 Contact Us For Availability
View on Model
2
Front Roller (2)
Front Roller (2) WPL 2174748 Contact Us For Availability
View on Model
2
Retainer, Insert (Black)
Retainer, Insert (Black) WPL 2194776B Contact Us For Availability
View on Model
2
Retainer, Insert (Almond)
Retainer, Insert (Almond) WPL 2194776N Contact Us For Availability
View on Model
2
Retainer, Insert (White)
Retainer, Insert (White) WPL 2194776W Contact Us For Availability
View on Model
2
Button, Humidity
Button, Humidity WPL 2174253 Contact Us For Availability
View on Model
3
SLIDE MEAT PAN CONTROL
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
View on Model
3
End Cap (2) (Black)
End Cap (2) (Black) WPL 2194778B Contact Us For Availability
View on Model
3
End Cap (2) (Almond)
End Cap (2) (Almond) WPL 2194778N Contact Us For Availability
View on Model
3
End Cap (2) (White)
End Cap (2) (White) WPL 2194778W Contact Us For Availability
View on Model
3
Air Scoop
Air Scoop WPL 2161231 Contact Us For Availability
View on Model
4
Gasket, Side (2)
Gasket, Side (2) WPL 2174273 Contact Us For Availability
View on Model
4
Louver
Louver WPL 2182147 Contact Us For Availability
View on Model
6

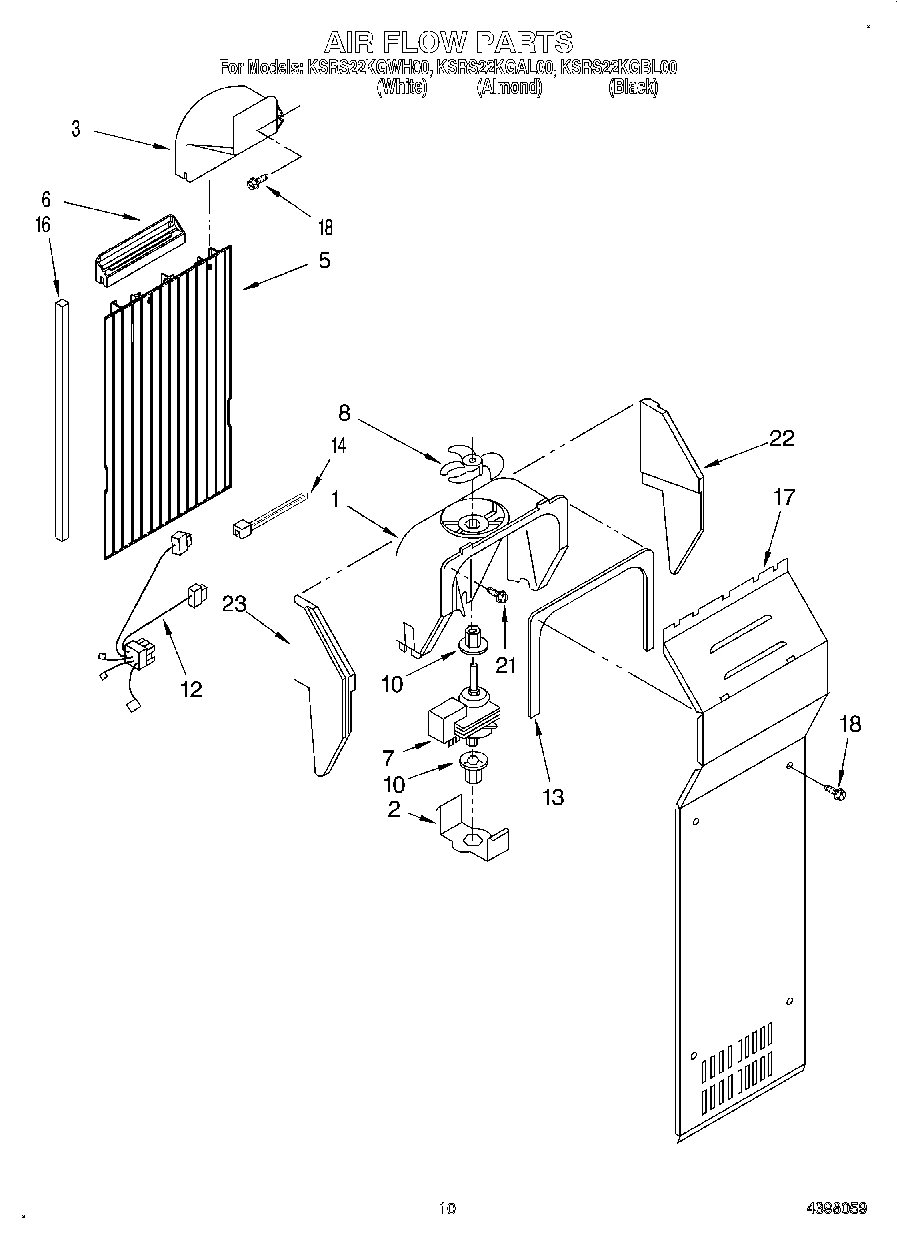

Diffuser, Air Duct
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
View on Model
7
Shelf Bin (5)
Shelf Bin (5) WPL 2171071 Contact Us For Availability
View on Model
8
Glass, Cover
Glass, Cover WPL 2189526 Contact Us For Availability
View on Model
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13,
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
View on Model
9
Grommet (4)
Grommet (4) WPL 2176134 Contact Us For Availability
View on Model
9
Shim, Hinge Top
Shim, Hinge Top WPL 2196048 Contact Us For Availability
View on Model
9
Insert, Handle (White)
Insert, Handle (White) WPL 2173830 Contact Us For Availability
View on Model
9
Insert, Handle (Almond)
Insert, Handle (Almond) WPL 2173831 Contact Us For Availability
View on Model
9
Insert, Handle (Black)
Insert, Handle (Black) WPL 2173832 Contact Us For Availability
View on Model
9
Ladder, Shelf (2)
Ladder, Shelf (2) WPL 2181796 Contact Us For Availability
View on Model
10
Screw
Screw WPL 489284 Contact Us For Availability
View on Model
10
Glass, Cover
Glass, Cover WPL 2174148 Contact Us For Availability
View on Model
11
Hinge Cover (White)
Hinge Cover (White) WPL 1129262 Contact Us For Availability
View on Model
11
Hinge Cover (Almond)
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
View on Model
11
Hinge Cover (Black)
Hinge Cover (Black) WPL 2171947 Contact Us For Availability
View on Model
12
Harness, Fan Evaporator, And Heater, Bi-Metal
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
View on Model
12
Gasket, (Rear)
Gasket, (Rear) WPL 2174274 Contact Us For Availability
View on Model
13
Eyelet, Roller
Eyelet, Roller WPL 2174478 Contact Us For Availability
View on Model
13
Filler, Wrapper (White)
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
View on Model
13
Filler, Wrapper (Almond)
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
View on Model
13
Filler, Wrapper (Black)
Filler, Wrapper (Black) WPL 1127272 Contact Us For Availability
View on Model
14
Grille (Black)
Grille (Black) WPL 2155476 Contact Us For Availability
View on Model
14
Light Bar (RC)
Light Bar (RC) WPL 2179920 Contact Us For Availability
View on Model
14
Clip, Defrost Heater
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
View on Model
14
Grille (White)
Grille (White) WPL 2155477 Contact Us For Availability
View on Model
14
Grille (Almond)
Grille (Almond) WPL 2155478 Contact Us For Availability
View on Model
14
Roller
Roller WPL 2174388 Contact Us For Availability
View on Model
15
Bracket, Door Stop
Bracket, Door Stop WPL 2195950 Contact Us For Availability
View on Model
17
Meat Pan (Includes 13, 14, 19, & 22)
Meat Pan (Includes 13, 14, 19, & 22) WPL 2179231 Contact Us For Availability
View on Model
18
Window, Crisper
Window, Crisper WPL 2174076 Contact Us For Availability
View on Model
20

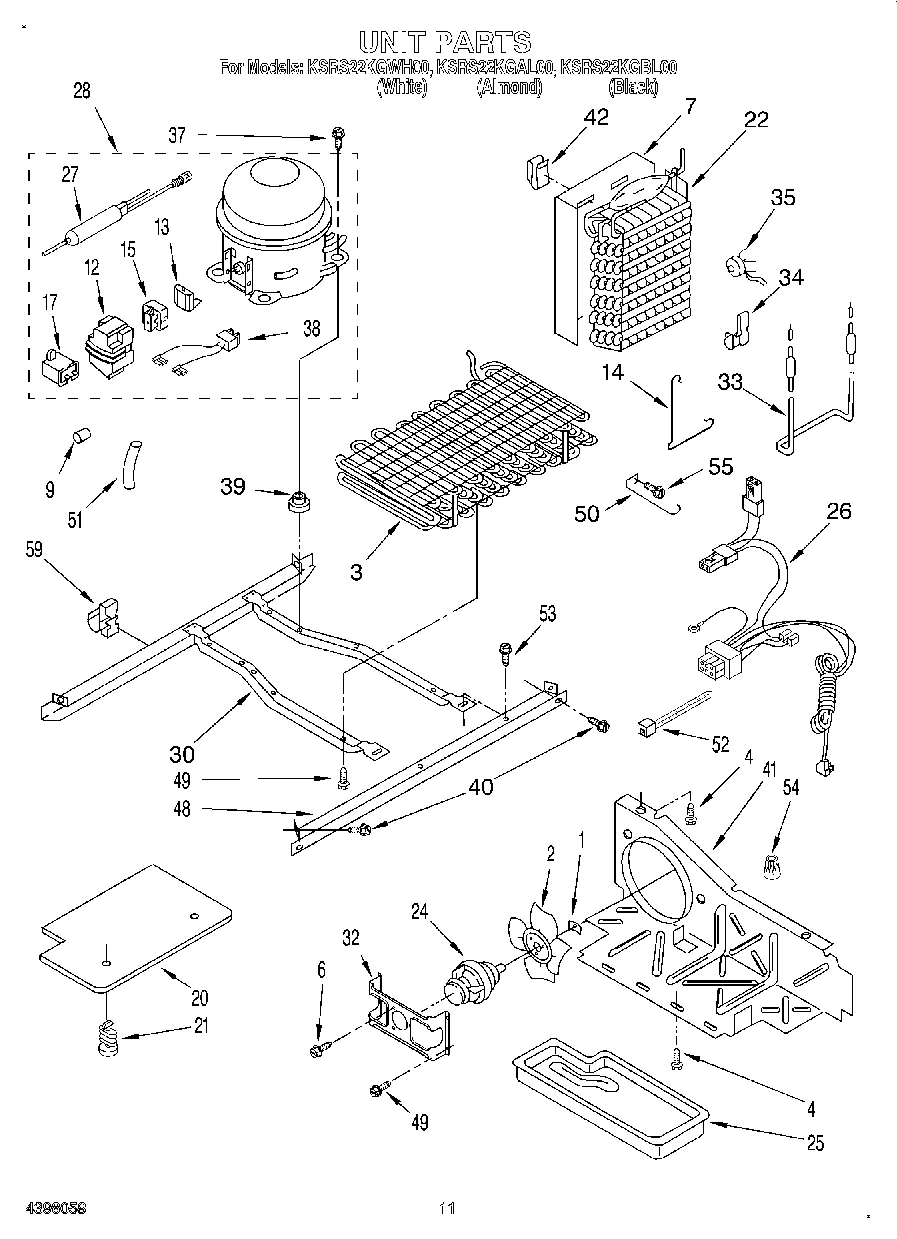

Unit Cover, Bottom
Unit Cover, Bottom WPL 2182057 Contact Us For Availability
View on Model
20
Control Box Harness
Control Box Harness WPL 2182130 Contact Us For Availability
View on Model
21
Cap, Crisper Pan (Left Side)
Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability
View on Model
21
Cap, Crisper Pan (Right Side)
Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability
View on Model
22
Hinge Cover (Black)
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
View on Model
22
CLIP, WIRING
CLIP, WIRING WPL 1115375 Contact Us For Availability
View on Model
22
Window, Meat Pan
Window, Meat Pan WPL 2174362 Contact Us For Availability
View on Model
24
Shelf, Snack Pan
Shelf, Snack Pan WPL 2198277 Contact Us For Availability
View on Model
25
Escutcheon, Control Box
Escutcheon, Control Box WPL 2161486 Contact Us For Availability
View on Model
25
Screw
Screw WPL 489439 Contact Us For Availability
View on Model
26
Light Bar (FC)
Light Bar (FC) WPL 2179921 Contact Us For Availability
View on Model
26
Shelf & Roller Assembly
Shelf & Roller Assembly WPL 2174021 Contact Us For Availability
View on Model
27
Window
Window WPL 2172941 Contact Us For Availability
View on Model
31
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``)
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
View on Model
31
TAPE, VINYL (3/4 X 108``)
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
View on Model
31
PAINT, BULK (1 QT.) (WHITE (UNCUT))
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
View on Model
31
CEMENT, ALUMILASTIC (1 1/4 OZ.)
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
View on Model
31
Enamel, Black (1 Qt. Uncut)
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
View on Model
31
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY)
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
View on Model
31
WPL 978883
WPL 978883 WPL 978883 Contact Us For Availability
View on Model
34
Light Lens
Light Lens WPL 2174436 Contact Us For Availability
View on Model
59
VALVE, ACCESS (5/8``)
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
View on Model
