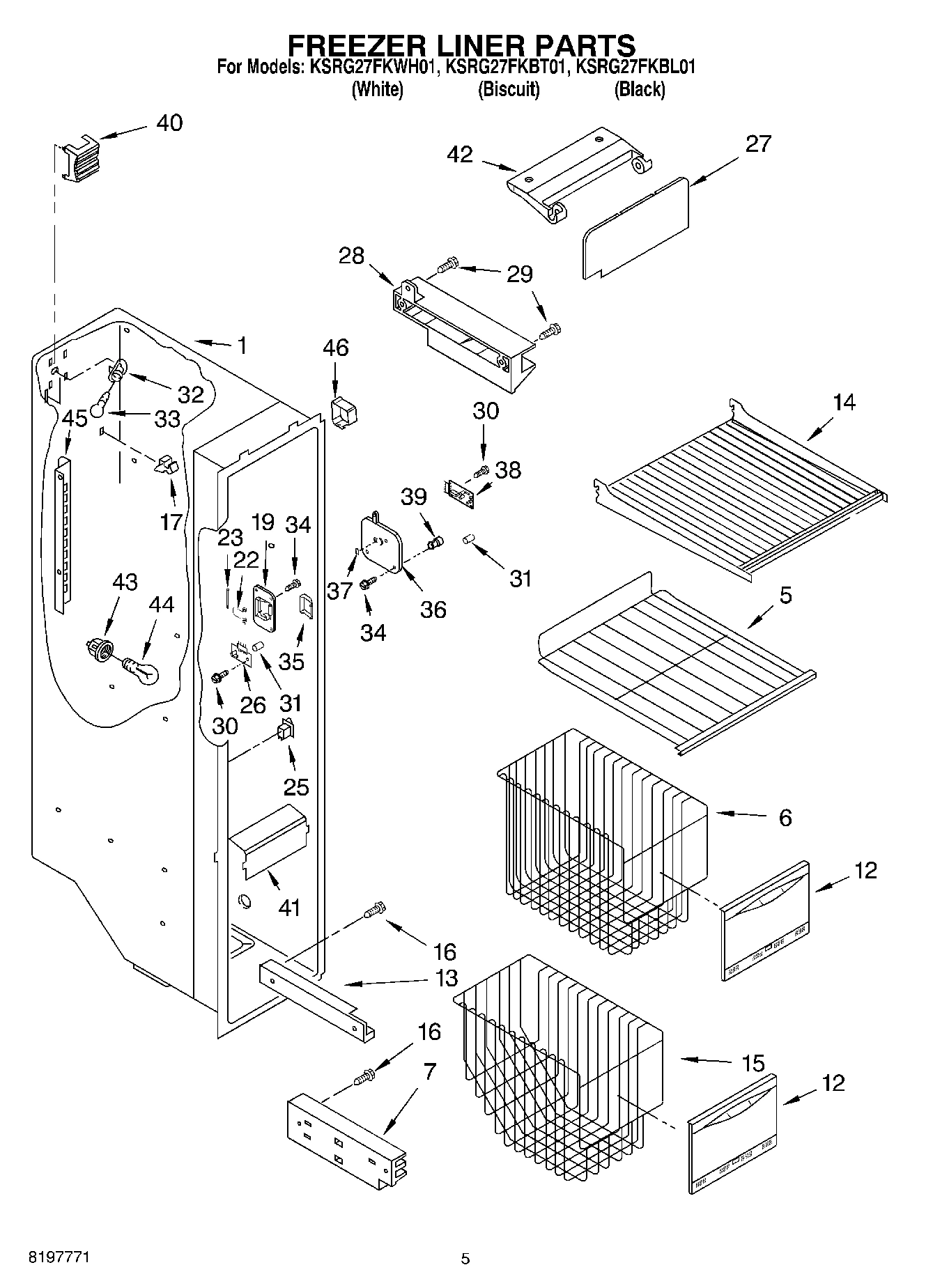

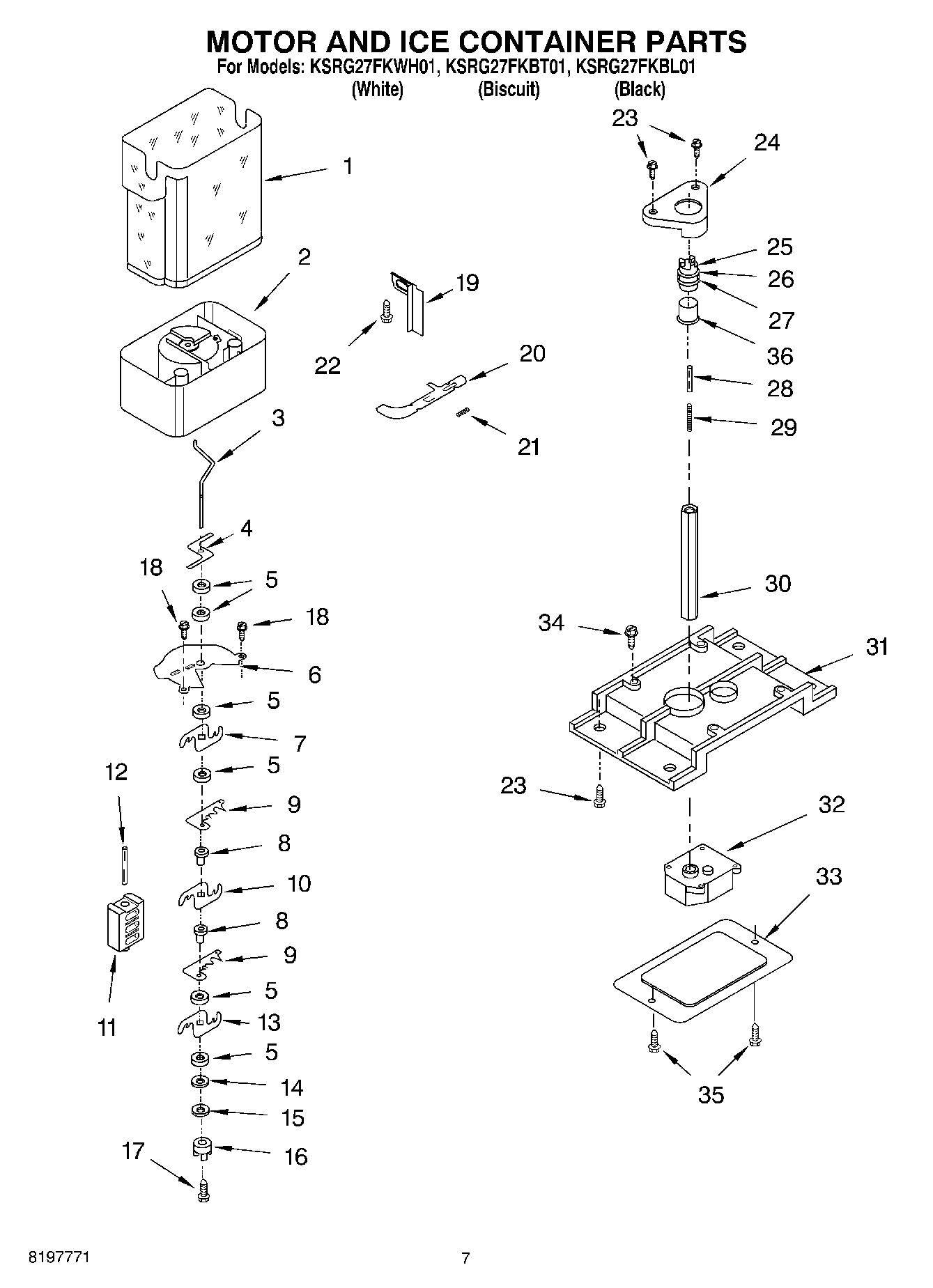

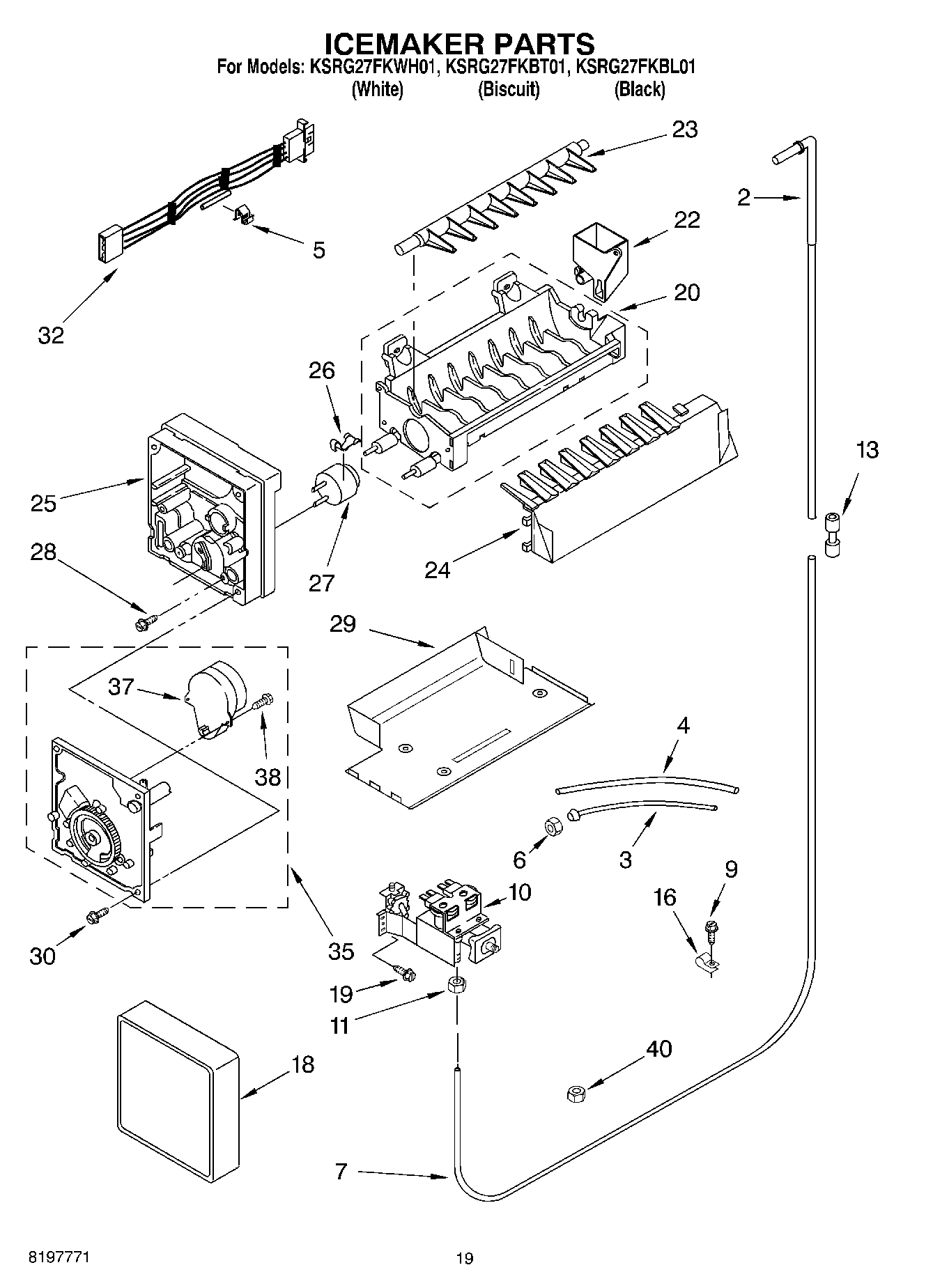

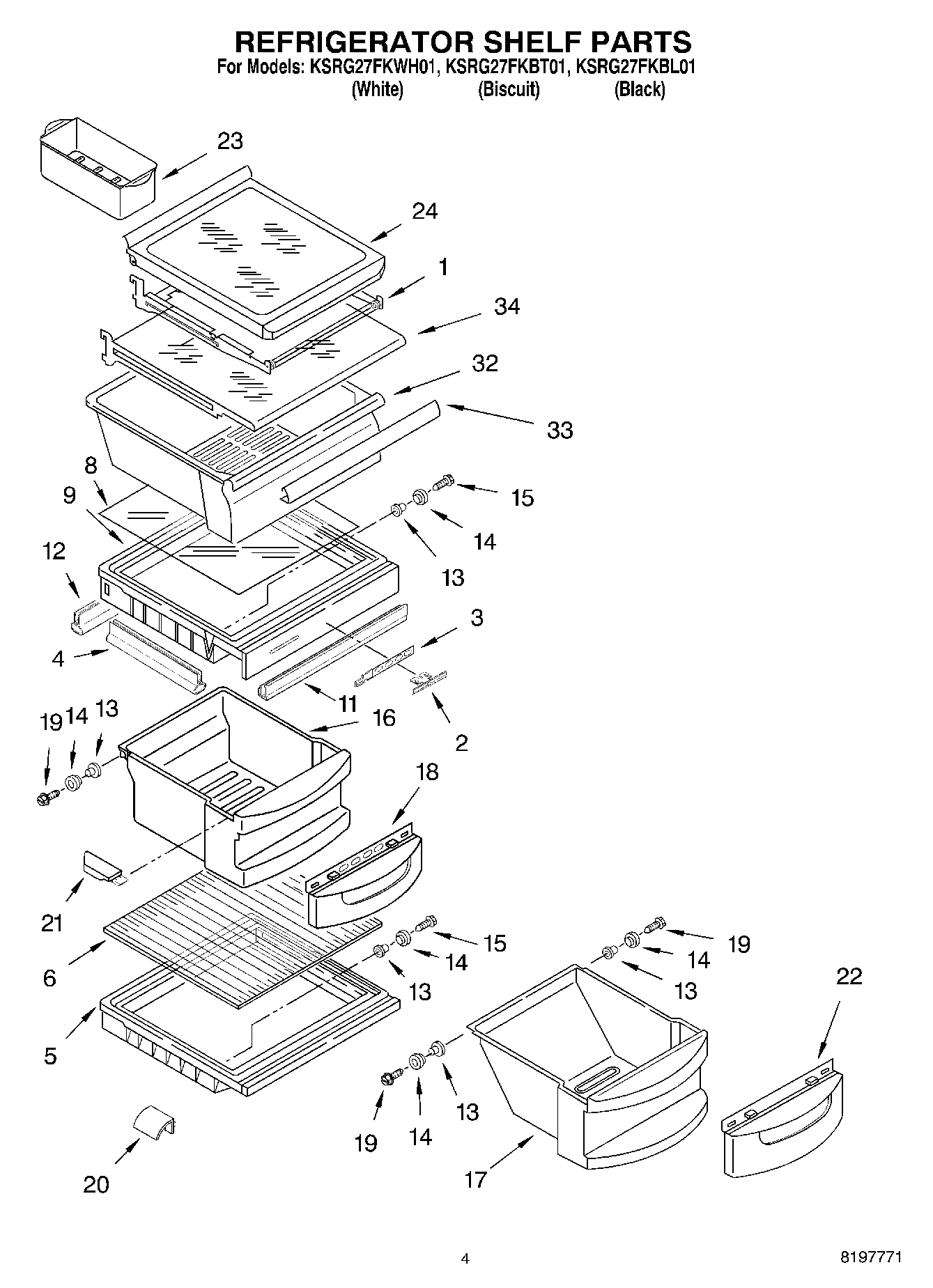

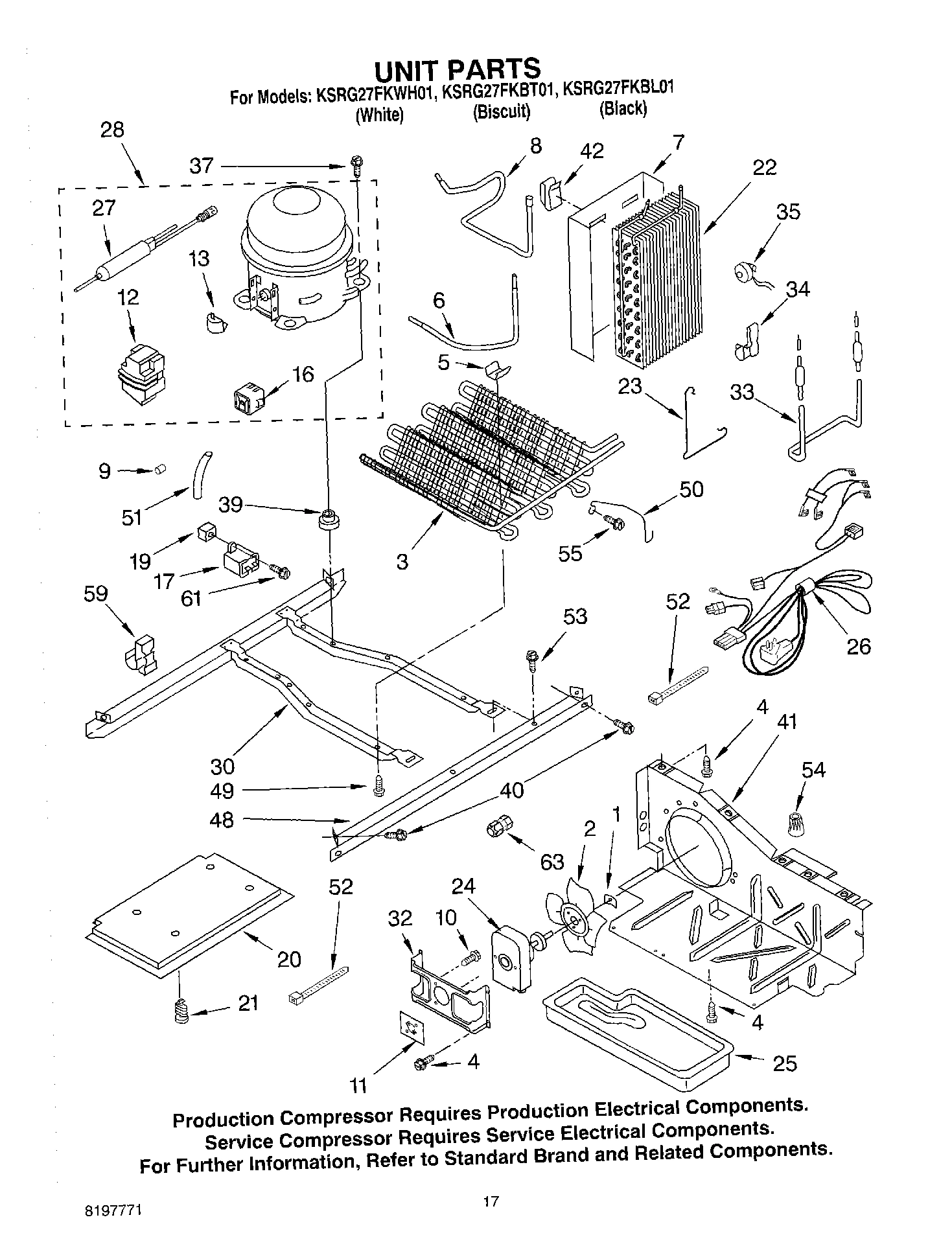

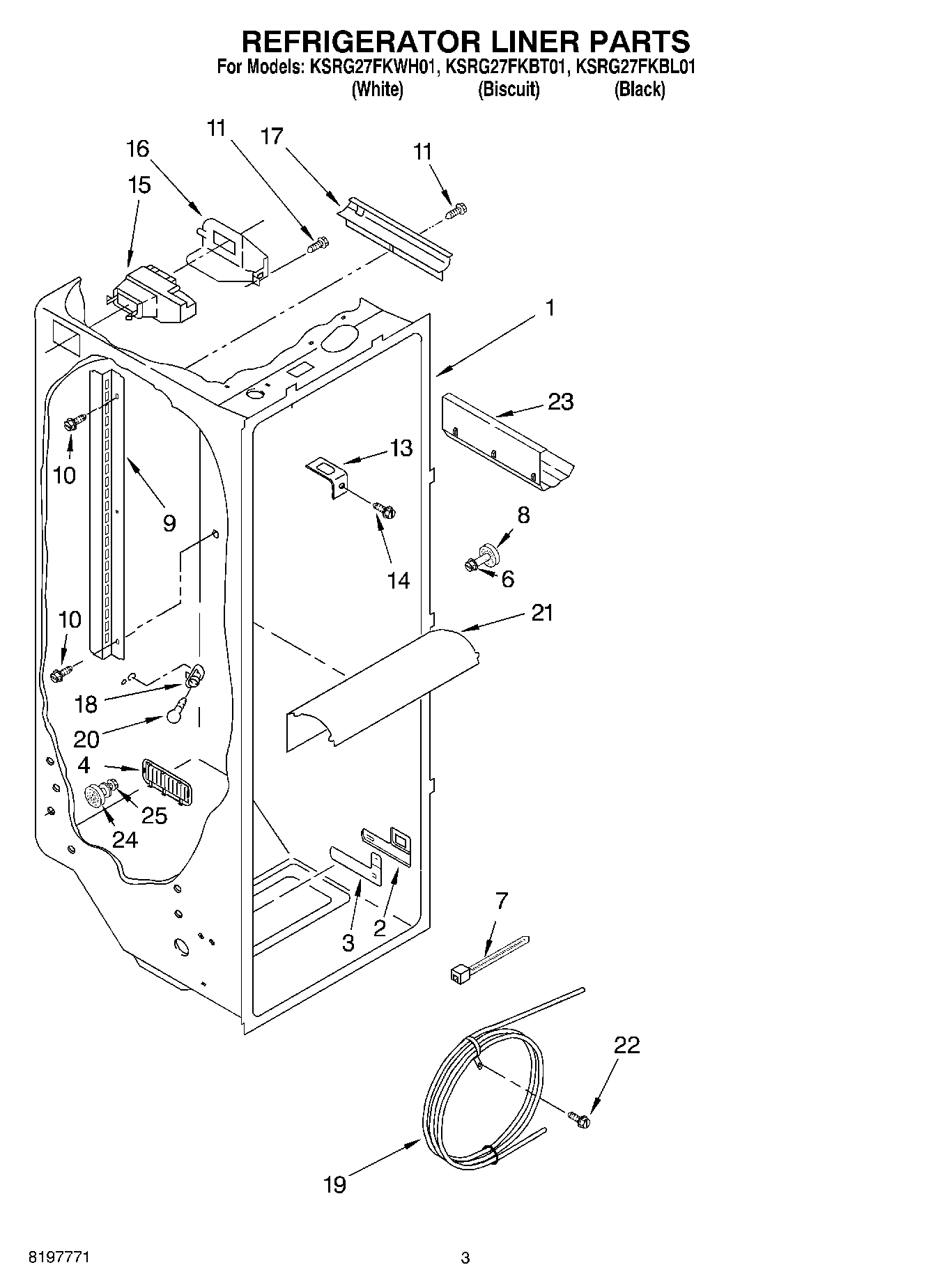

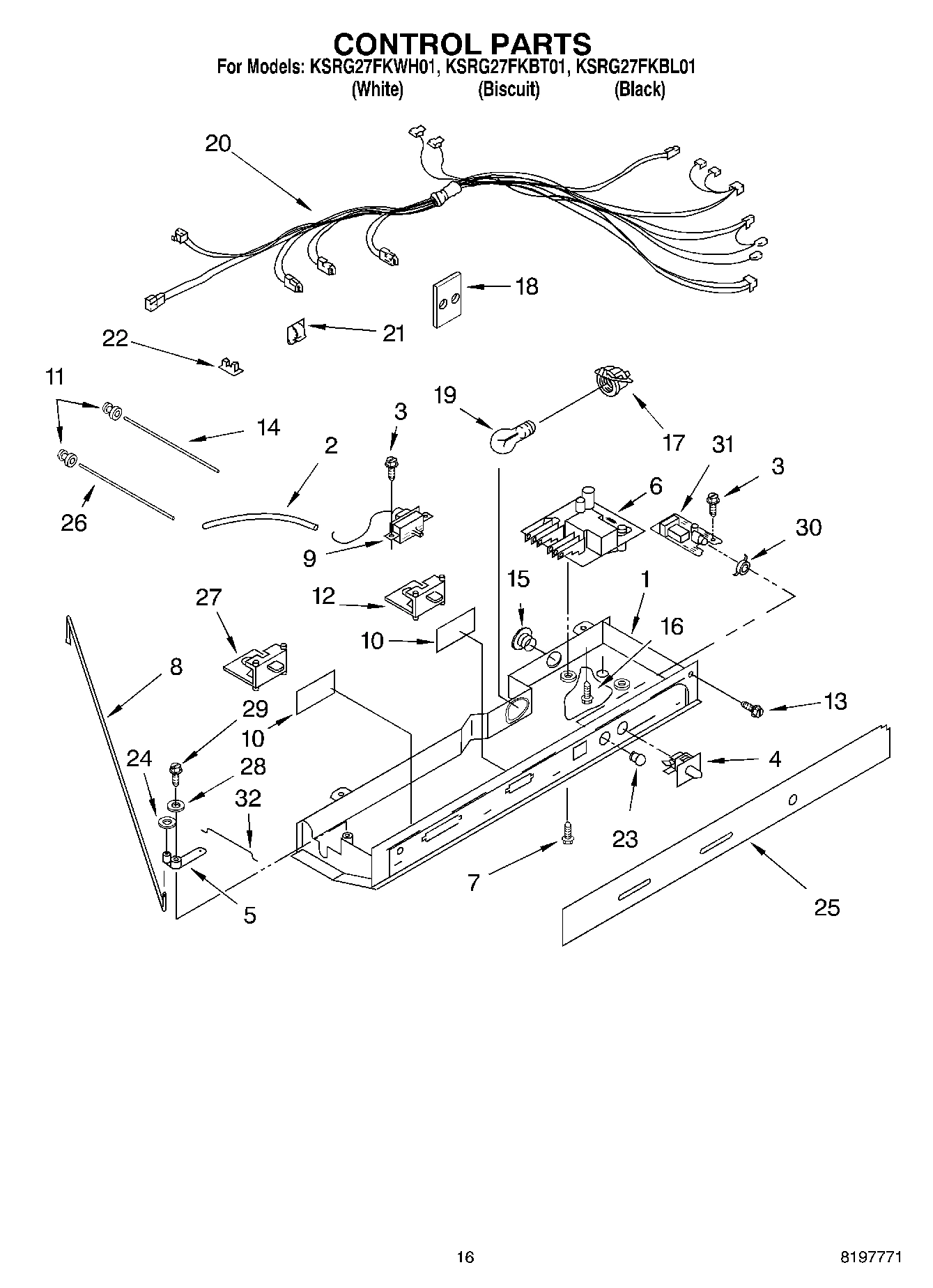

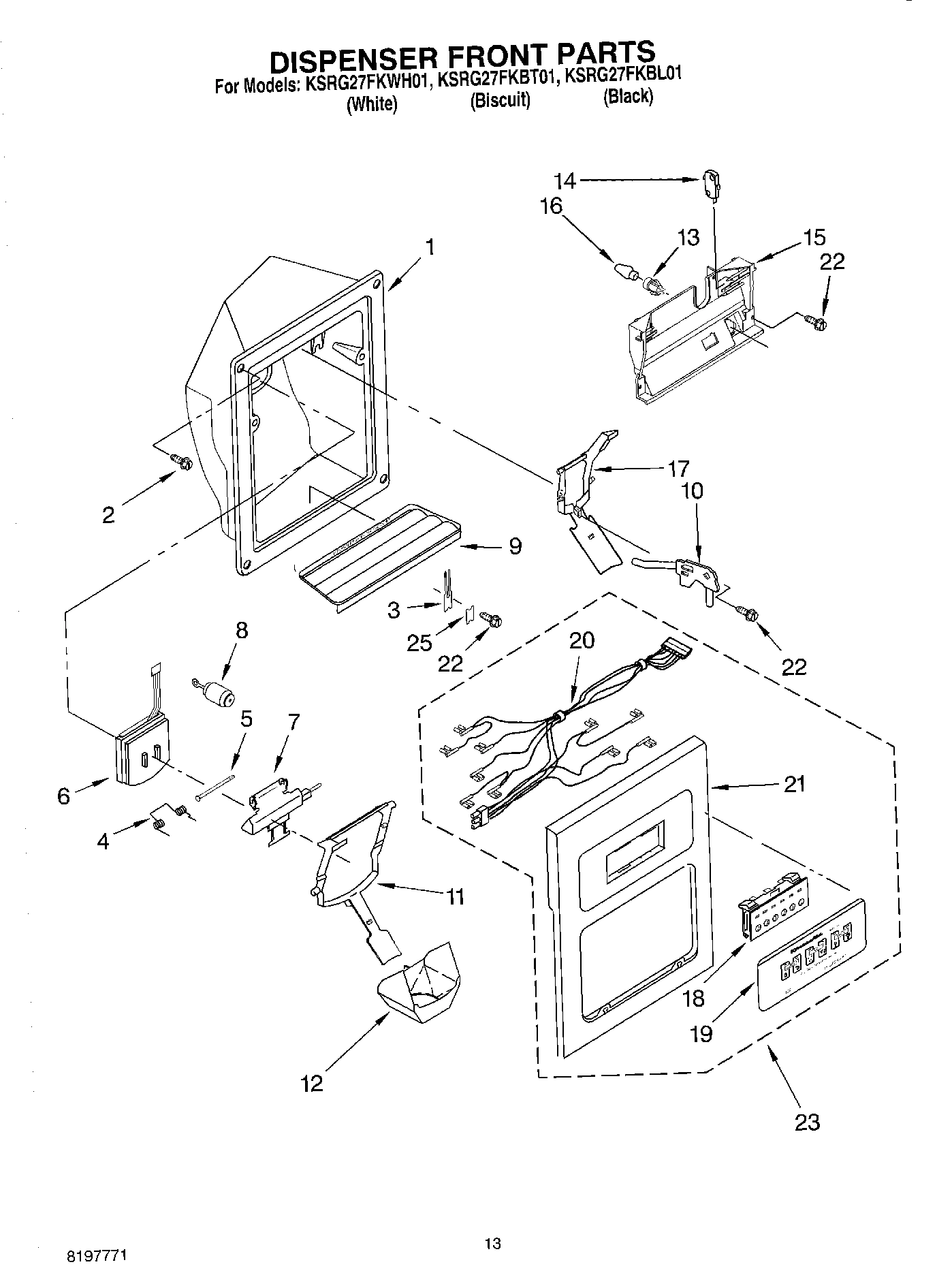

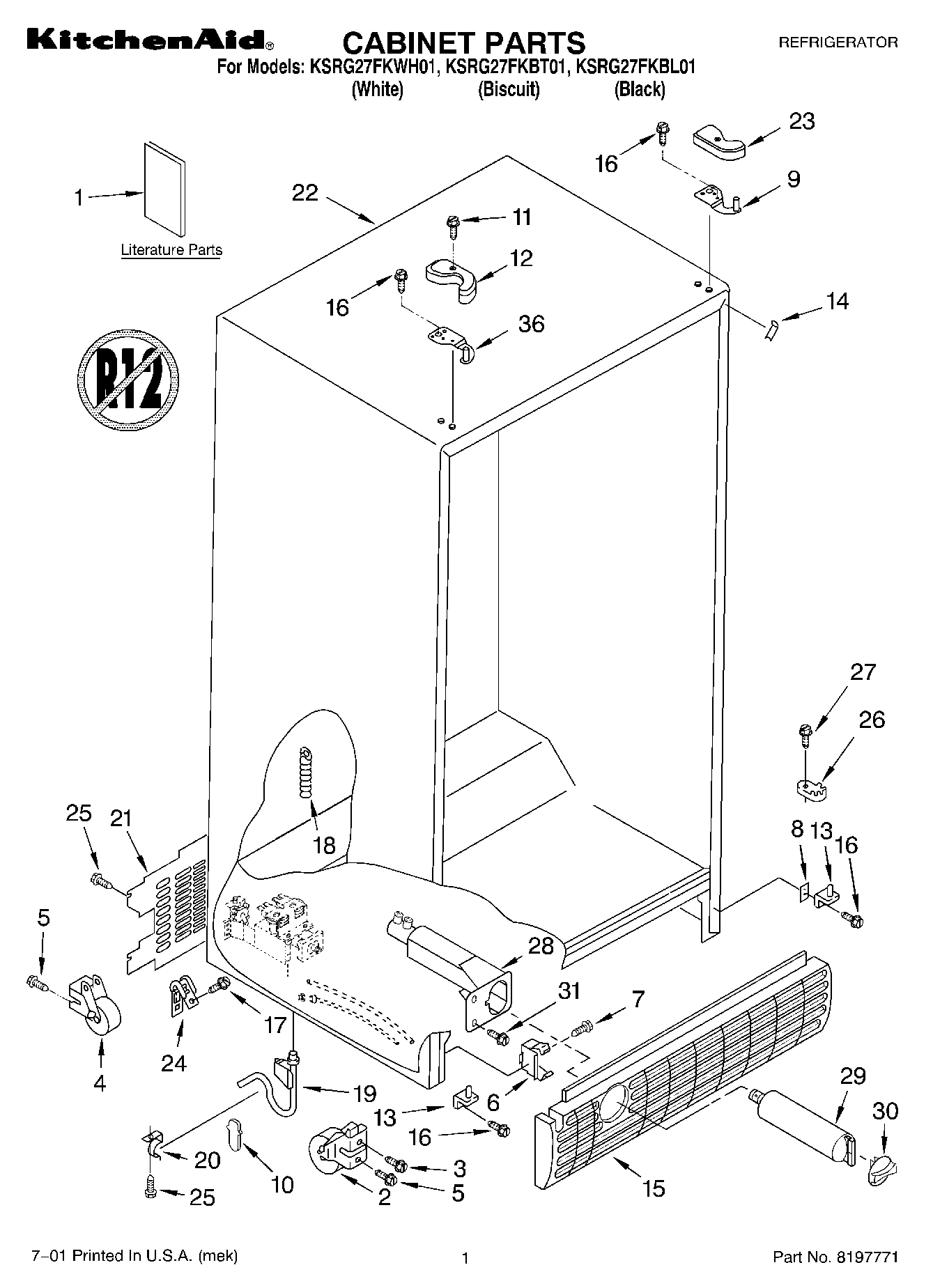

Model Whirlpool KSRG27FKBT01 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

1

Liner (Not A Serviceable Part) WPL ARI97670A9 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI97671A1 Contact Us For Availability

1

Shelf Assembly, Cantilever (2) WPL 2195975 Contact Us For Availability

1

Ice Bin WPL 2198646 Contact Us For Availability

1

Refrigerator Door (Includes Item No.6) (Black WPL 2207328B Contact Us For Availability

1

Refrigerator Door (Includes Item No.6) (Biscu WPL 2207328T Contact Us For Availability

1

Refrigerator Door (Includes Item No.6) (White WPL 2207328W Contact Us For Availability

1

Control Box WPL 2181738 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $62.28

2

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $4.82

2

WP2313637 Whirlpool Cutting Grid Assembly In Stock WPL WP2313637 $235.99

2

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $4.99

2

Blade, Fan WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Button, Humidity WPL 2174253 Contact Us For Availability

2

Crusher Bin WPL 2212368 Contact Us For Availability

3

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.68

3

2174252 Whirlpool Refrigerator Slide Backorder WPL 2174252 $9.71

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $11.99

3

WP2198574 Whirlpool Refrigerator Ice Auger Backorder WPL WP2198574 $110.79

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Shelf Bin (4) WPL 2171062 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $27.81

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

4

Louver WPL 2182147 Contact Us For Availability

4

Gasket, Side (2) WPL 2174273 Contact Us For Availability

4

Blade, Stirring WPL 2198603 Contact Us For Availability

5

2161306 Whirlpool Refrigerator Arm Pivot Backorder WPL 2161306 $7.10

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

5

WP2161491 Whirlpool Crisper Drawer Cover In Stock WPL WP2161491 $142.48

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

Dispenser Harness WPL 2206178 Contact Us For Availability

5

Shelf, Slide Out Upper WPL 2211746 Contact Us For Availability

6

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $240.61

6

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $254.76

6

4388932 Whirlpool Refrigerator Adaptive Defro In Stock WPL 4388932 $239.48

6

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $15.58

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $4.99

6

Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability

6

Basket, Tall WPL 2181765 Contact Us For Availability

6

Glass, Cover WPL 2174148 Contact Us For Availability

6

Cover, Crusher WPL 2198591 Contact Us For Availability

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $8.89

7

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $57.37

7

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

7

Track, Basket-Dual (Right Side) WPL 2216106 Contact Us For Availability

7

Track, Basket-Dual (Left Side) WPL 2216107 Contact Us For Availability

7

Beverage Holder WPL 2193409 Contact Us For Availability

8

2161308 Whirlpool Refrigerator Rod Backorder WPL 2161308 $118.15

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

8

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $6.50

8

Glass, Cover WPL 2189526 Contact Us For Availability

8

Handle, Insert (White) WPL 2173825 Contact Us For Availability

8

Handle, Insert (Black) WPL 2173829 Contact Us For Availability

8

Insert, Handle (Biscuit) WPL 2186863T Contact Us For Availability

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $62.99

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $24.99

9

WP2206670T Whirlpool Refrigerator Grille Backorder WPL WP2206670T $44.34

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $54.67

9

WP2315562 Whirlpool Refrigerator Thermostat In Stock WPL WP2315562 $69.81

9

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.83

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability

9

Shelf Ladder WPL 2206273 Contact Us For Availability

9

Blade, Fixed WPL 2198601 Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $57.37

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.96

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.60

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

Window WPL 2175513 Contact Us For Availability

WP1125528 Whirlpool Refrigerator Gasket Backorder WPL WP1125528 $100.57

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $7.60

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability

Block, Blade WPL 2198602 Contact Us For Availability

Grommet, Light Bar WPL 2172906 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $14.02

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $12.83

2305580K Whirlpool Refrigerator Basket Trim Backorder WPL 2305580K $38.71

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.65

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.97

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $13.08

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $14.39

Gasket, (Rear) WPL 2174274 Contact Us For Availability

Bracket, Door Stop WPL 2206630 Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $67.59

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $57.30

WP2198677 Whirlpool Refrigerator Connector In Stock WPL WP2198677 $15.57

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $23.85

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $74.99

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $4.99

NLA:SCREW Backorder WPL WPW10141645 $4.82

Eyelet, Roller WPL 2174478 Contact Us For Availability

Shelf Track (Left Side) WPL 2181759 Contact Us For Availability

Shelf Track (Right Side) WPL 2181760 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.72

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

Light Bar (RC) WPL 2179920 Contact Us For Availability

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Shelf WPL 2205837 Contact Us For Availability

Roller WPL 2188212 Contact Us For Availability

Retainer, Insert (Black) WPL 2194777B Contact Us For Availability

Retainer, Insert (Biscuit) WPL 2194777T Contact Us For Availability

Retainer, Insert (White) WPL 2194777W Contact Us For Availability

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $13.22

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $6.90

WPW10151375 Whirlpool Refrigerator Diffuser Backorder WPL WPW10151375 $82.15

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $7.55

Basket, Sloped WPL 2181764 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $58.83

W10759522 Whirlpool Screw Backorder WPL W10759522 $4.82

WP2179227 Whirlpool Refrigerator Crisper Pan In Stock WPL WP2179227 $132.84

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $12.79

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $4.82

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.75

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $6.90

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $122.18

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $6.74

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $62.59

Meat Pan (Includes 13, 14, 19, & 22) WPL 2179231 Contact Us For Availability

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $48.27

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $4.82

Window, Crisper WPL 2174076 Contact Us For Availability

Tray, Butter WPL 2165792 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $67.24

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $123.79

WP2315403 Whirlpool Refrigerator Bin Button In Stock WPL WP2315403 $16.99

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $4.82

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

2176095 Whirlpool Refrigerator Deflector Backorder WPL 2176095 $59.87

Latch, Bin WPL 2212371 Contact Us For Availability

Gasket WPL 2159124 Contact Us For Availability

Harness, Control Box WPL 2211318 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $4.82

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $4.82

Light Lens WPL 2206269 Contact Us For Availability

Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability

Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability

End Cap (Black) WPL 2194778B Contact Us For Availability

End Cap (Biscuit) WPL 2194778T Contact Us For Availability

End Cap (White) WPL 2194778W Contact Us For Availability

2198671 Whirlpool Refrigerator Screw In Stock WPL 2198671 $6.84

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $59.45

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

Screw WPL 488280 Contact Us For Availability

Window, Meat Pan WPL 2174362 Contact Us For Availability

CLIP, WIRING WPL 1115375 Contact Us For Availability

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $10.99

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $14.29

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $10.62

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $19.99

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $14.54

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $6.83

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

Clip WPL 2161324 Contact Us For Availability

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $14.99

Holder WPL 2212369 Contact Us For Availability

Shelf & Roller Assembly WPL 2216102 Contact Us For Availability

Fastener, Push-On WPL 489391 Contact Us For Availability

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $17.77

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $14.99

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $4.82

Escutcheon, Control Box WPL 2211959 Contact Us For Availability

26

W11629974-includeCORE Whirlpool W11629974 Ref Backorder WPL W11629974-includeCORE $263.39

26

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $6.59

26

Light Bar (FC) WPL 2179921 Contact Us For Availability

27

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $64.64

27

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $14.75

27

WP2255720 Whirlpool Refrigerator Ice Maker Do Backorder WPL WP2255720 $53.45

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $6.47

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $49.99

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $68.99

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

Pin WPL 2198666 Contact Us For Availability

29

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $8.05

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $15.99

29

WP2212322 Whirlpool Refrigerator Bracket In Stock WPL WP2212322 $70.78

30

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $69.83

30

Retainer, Light Lens WPL 2200097 Contact Us For Availability

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.82

Tube, P.C. Board WPL 2198665 Contact Us For Availability

Bracket, Motor WPL 2198655 Contact Us For Availability

P.C. Board Filter Indicator WPL 2203384 Contact Us For Availability

2161307 Whirlpool Refrigerator Rod Backorder WPL 2161307 $8.63

W11497323 Whirlpool Snack Pan Backorder WPL W11497323 $139.99

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

Dispenser, Motor WPL 2198594 Contact Us For Availability

33

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $67.13

33

Cover WPL 2198626 Contact Us For Availability

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $7.55

34

Shelf, Snack Pan WPL 2206346 Contact Us For Availability

34

Screw WPL 8281162 Contact Us For Availability

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $28.99

36

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $62.57

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $20.81

36

Cover, Receiver WPL 2198588 Contact Us For Availability

37

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $7.18

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $4.99

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $49.86

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WPL 80051 WPL 80051 Contact Us For Availability

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Enamel, WPL 799340 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 8171358 WPL 8171358 Contact Us For Availability

Light Shield WPL 2198589 Contact Us For Availability

41

Light Lens WPL 2212340 Contact Us For Availability

42

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $6.99

43

WPW10119935 Whirlpool Refrigerator Socket In Stock WPL WPW10119935 $66.40

45

Ladder (Left Side) WPL 2198609 Contact Us For Availability

45

Ladder (Right Side) WPL 2198610 Contact Us For Availability

46

Shield, Wiring WPL 2219878 Contact Us For Availability

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
