Model Whirlpool KSCS23FTSS00 REFRIGERATOR – Common Parts &amp; Diagrams

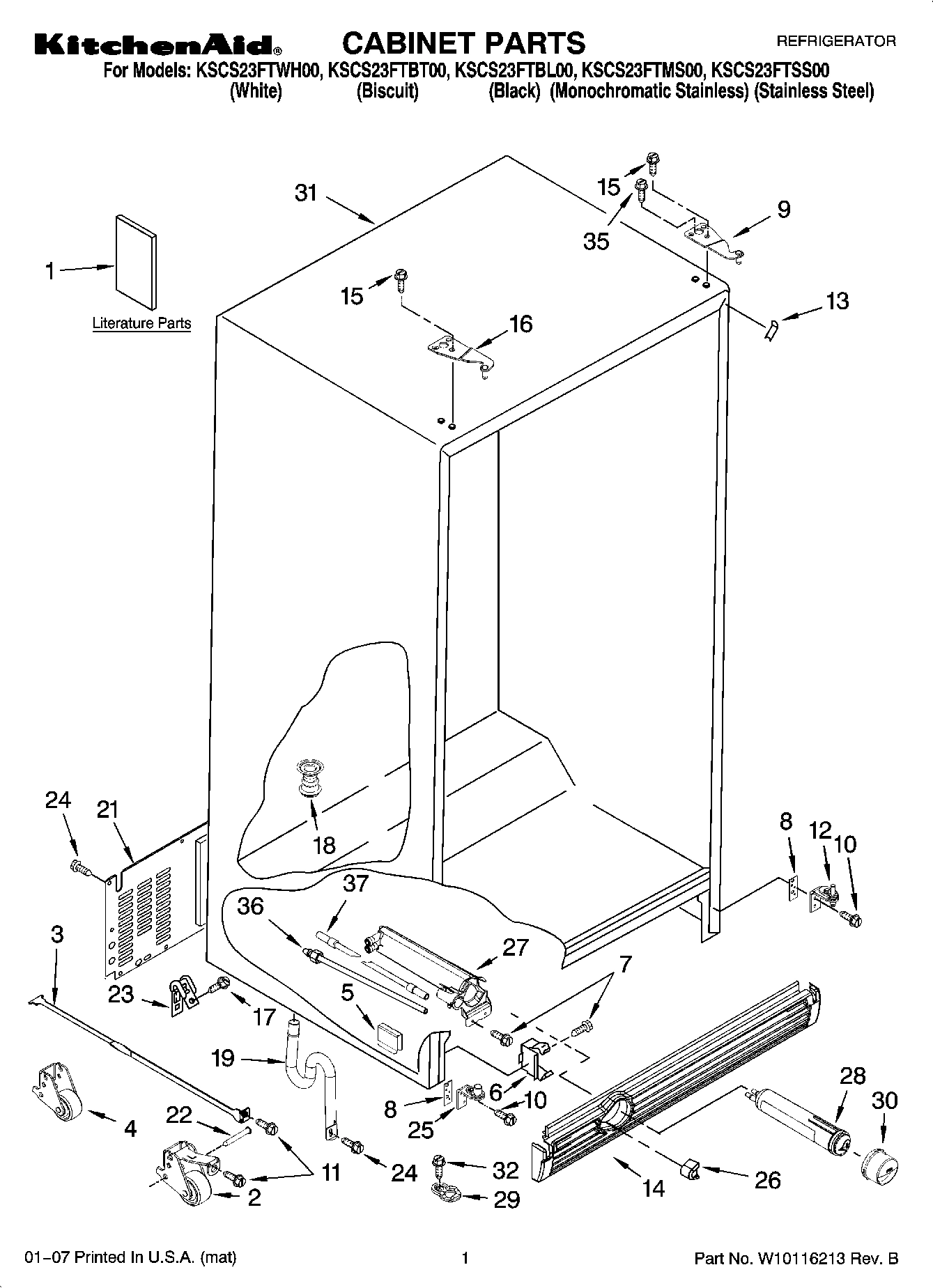

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.72

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.73

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.51

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.92

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $6.37

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $49.39

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.19

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $47.27

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $70.54

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.40

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

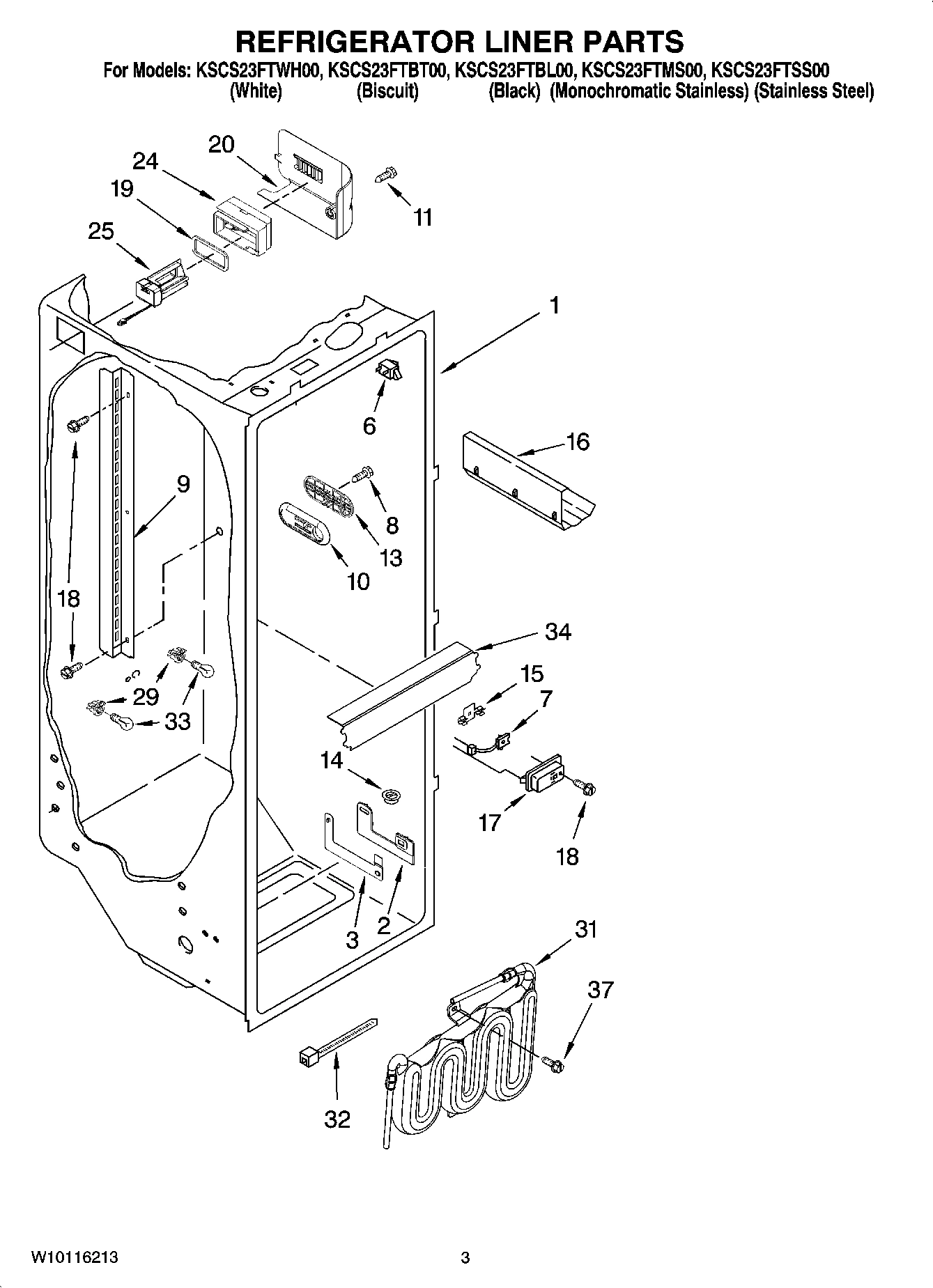

1

WP2182120 Whirlpool Refrigerator Scroll Fan In Stock WPL WP2182120 $39.77

1

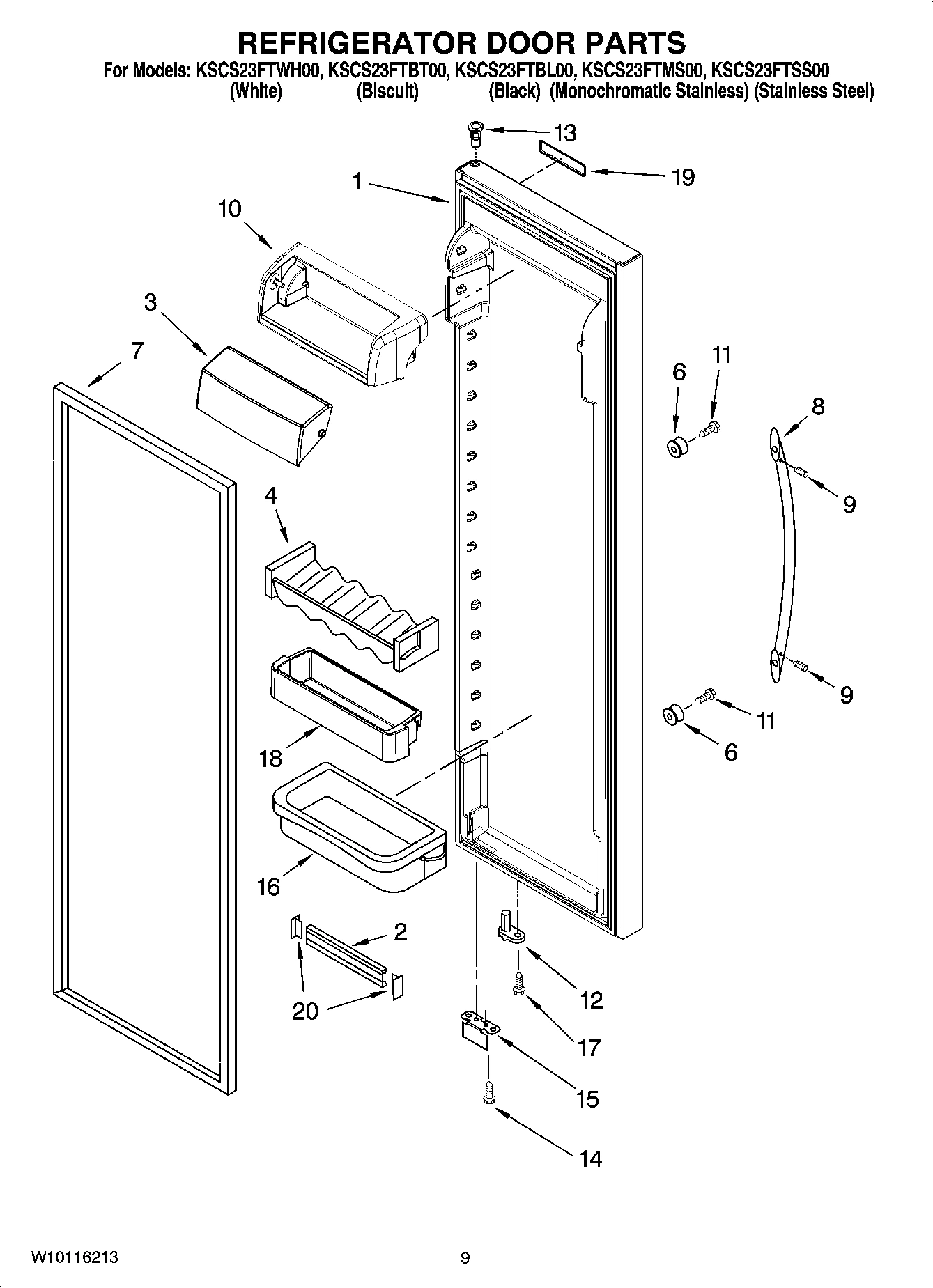

Refrigerator Door (Includes 7) (Black) WPL 2307199B Contact Us For Availability

1

Refrigerator Door (Includes 7) (Stainless Ste WPL 2307199S Contact Us For Availability

1

Refrigerator Door (Includes 7) (Monochromatic WPL 2307199SU Contact Us For Availability

1

Refrigerator Door (Includes 7) (Biscuit) WPL 2307199T Contact Us For Availability

1

Refrigerator Door (Includes 7) (White) WPL 2307199W Contact Us For Availability

1

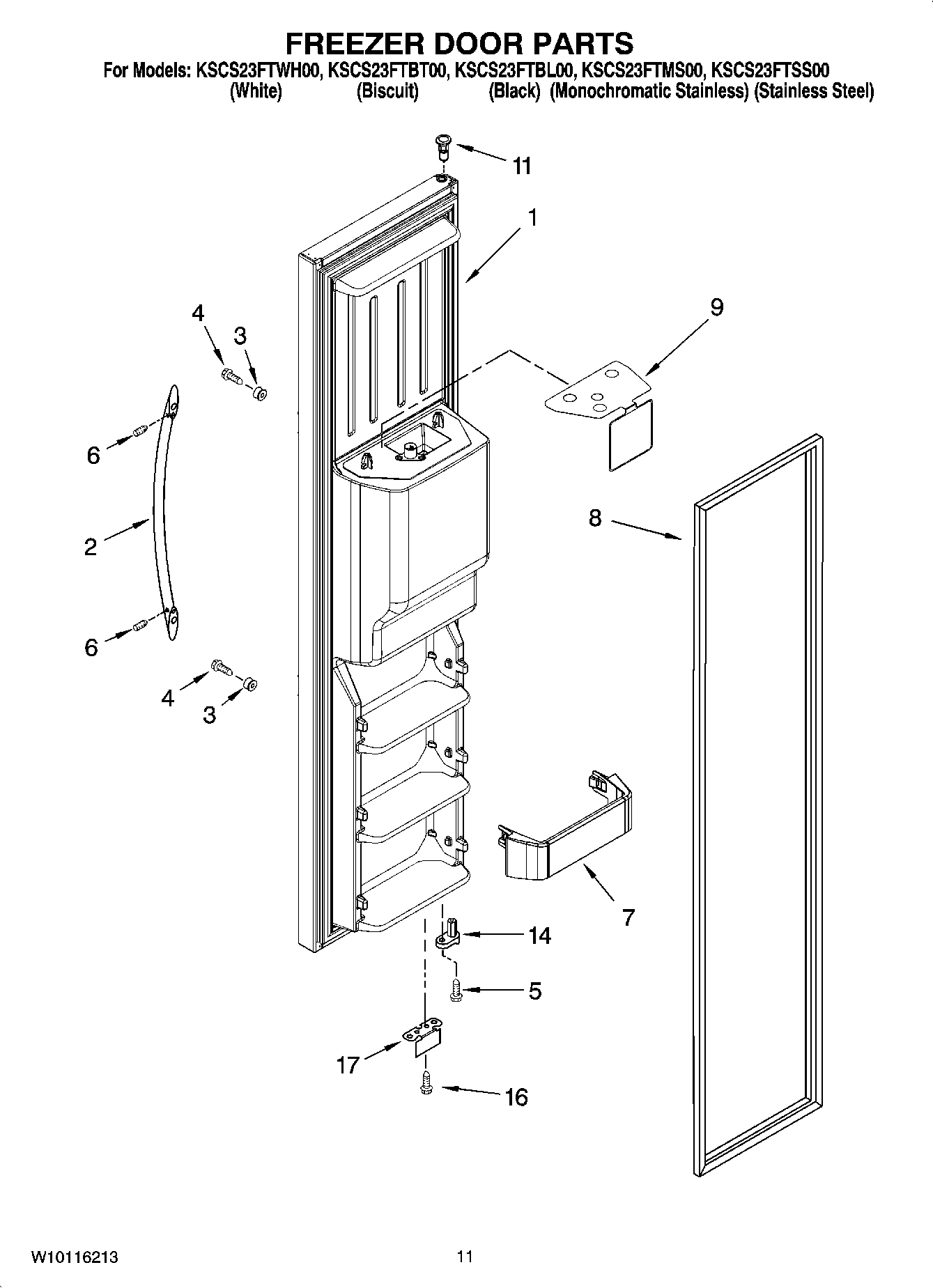

Freezer Door (Includes 8 And Dispenser Front WPL 2319797B Contact Us For Availability

1

Freezer Door (Includes 8 And Dispenser Front WPL 2319797S Contact Us For Availability

1

Freezer Door (Includes 8 And Dispenser Front WPL 2319797SB Contact Us For Availability

1

Freezer Door (Includes 8 And Dispenser Front WPL 2319797T Contact Us For Availability

1

Freezer Door (Includes 8 And Dispenser Front WPL 2319797W Contact Us For Availability

2

8201663 Whirlpool Refrigerator Primary Fan Bl Backorder WPL 8201663 $60.29

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $65.59

2

WP2319727W Whirlpool Refrigerator Handle Backorder WPL WP2319727W $178.81

2

Handle (Stainless Steel) WPL 2319727S Contact Us For Availability

2

Trim, Shelf WPL 2203087K Contact Us For Availability

2

Handle (Biscuit) WPL 2319727T Contact Us For Availability

3

WP2305202 Whirlpool Refrigerator Bracket Backorder WPL WP2305202 $43.66

3

Dairy Door WPL 2255421 Contact Us For Availability

3

Air Scoop WPL 2223298 Contact Us For Availability

4

8281197 Whirlpool Refrigerator Screw Backorder WPL 8281197 $5.89

4

WP2305242 Whirlpool Refrigerator Connector In Stock WPL WP2305242 $36.68

4

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $5.76

4

Washer WPL 2258220 Contact Us For Availability

4

Caddy, Can WPL 2223883 Contact Us For Availability

4

Air Duct, Upper WPL 2223303 Contact Us For Availability

5

2223771 Whirlpool Refrigerator Air Duct Backorder WPL 2223771 $125.67

5

3400524 Whirlpool Refrigerator Screw Backorder WPL 3400524 $12.14

5

W11545866 Whirlpool Refrigerator Clip Backorder WPL W11545866 $5.62

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $6.23

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $5.91

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.32

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $4.51

6

WP2305258 Whirlpool Dispenser Door Assembly Backorder WPL WP2305258 $10.59

6

WPW10010150 Whirlpool Refrigerator Screw Backorder WPL WPW10010150 $4.77

6

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $6.30

6

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $23.89

6

Control Board Asm WPL 2307037 Contact Us For Availability

6

Housing, Control Board WPL 2223703 Contact Us For Availability

7

2301548 Whirlpool Refrigerator Glide Backorder WPL 2301548 $176.74

7

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $25.76

7

WP2305204 Whirlpool Refrigerator Support In Stock WPL WP2305204 $33.40

7

Door Gasket, Magnetic (Mist Beige) WPL 2223841 Contact Us For Availability

7

Door Gasket, Magnetic (Black) WPL 2223911 Contact Us For Availability

7

Shelf Bin (3) WPL 2304925K Contact Us For Availability

7

Fan Motor WPL 2259385 Contact Us For Availability

8

2223545 Whirlpool Refrigerator Shim Backorder WPL 2223545 $63.41

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $5.11

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $35.14

8

WP2319727B Whirlpool Refrigerator Handle Backorder WPL WP2319727B $151.36

8

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $4.77

8

Window, Crisper Pan WPL 2301001 Contact Us For Availability

8

Door Gasket, Magnetic (Mist Beige) WPL 2223850 Contact Us For Availability

8

Door Gasket, Magnetic (Black) WPL 2223912 Contact Us For Availability

9

2307008B Whirlpool Refrigerator Butt Hinge Backorder WPL 2307008B $29.93

9

2307008T Whirlpool Refrigerator Butt Hinge Backorder WPL 2307008T $89.81

9

W11366418 Whirlpool Screw In Stock WPL W11366418 $11.39

9

WP2304241 Whirlpool Refrigerator Gasket Backorder WPL WP2304241 $31.62

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2301567 Contact Us For Availability

9

Ladder, Shelf (2) WPL 2319866 Contact Us For Availability

9

Tray Assembly (Black) WPL 2315109B Contact Us For Availability

9

Tray Assembly (White) WPL 2315109W Contact Us For Availability

9

Safety Barrier WPL 2304895 Contact Us For Availability

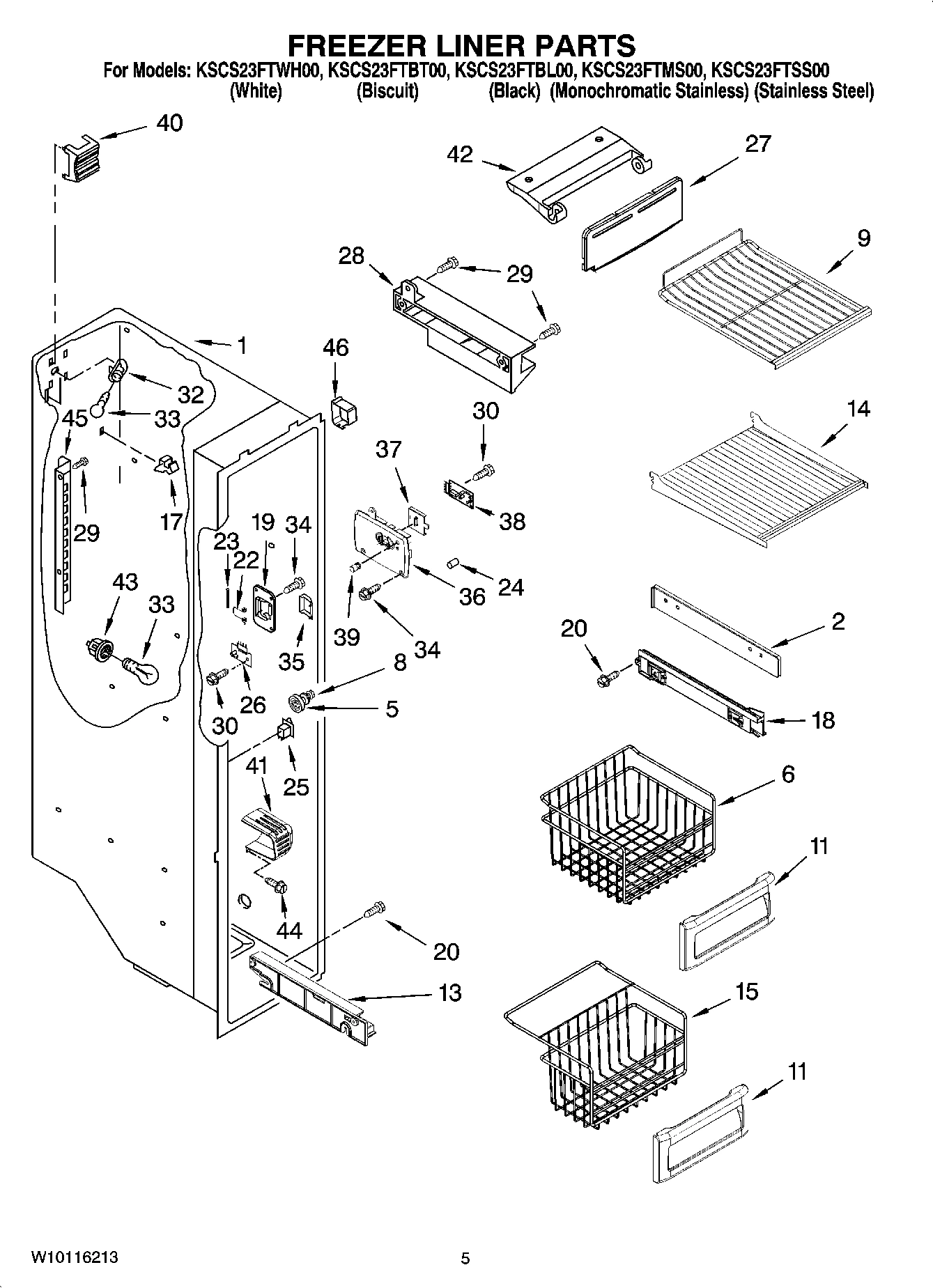

2301234 Whirlpool Refrigerator Control Backorder WPL 2301234 $57.88

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $56.83

W11669856 Whirlpool Grommet Backorder WPL W11669856 $7.05

WP2223506 Whirlpool Refrigerator Light Lens Backorder WPL WP2223506 $58.49

WP2223879 Whirlpool Refrigerator Compressor D Backorder WPL WP2223879 $85.47

Plate, Mounting WPL 2301979 Contact Us For Availability

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $4.53

Block, Blade WPL 2198602 Contact Us For Availability

Front, Basket WPL 2224053 Contact Us For Availability

Thimble, Top WPL 2308050 Contact Us For Availability

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $60.77

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $42.24

Door Closer, Upper Cam WPL 2307048 Contact Us For Availability

Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2310236 Contact Us For Availability

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $36.53

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $4.51

WP2321746 Whirlpool Refrigerator Electronic C Backorder WPL WP2321746 $199.48

Eyelet, Roller WPL 2174478 Contact Us For Availability

14

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $16.76

14

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $5.88

14

Door Closer, Upper Cam WPL 2307050 Contact Us For Availability

15

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $5.91

15

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.71

15

Clip, Thermistor WPL 2209204 Contact Us For Availability

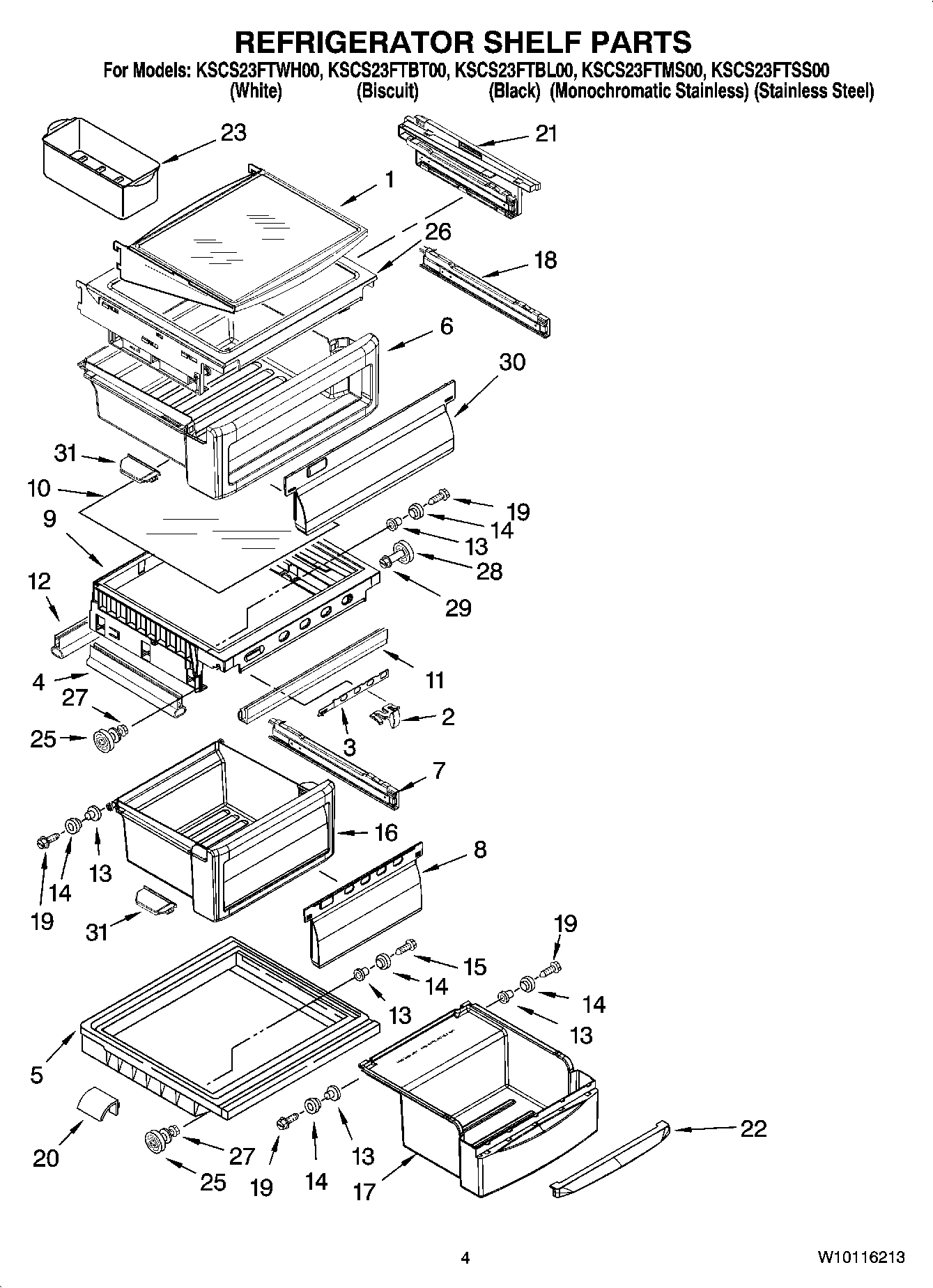

2307007B Whirlpool Refrigerator Butt Hinge Backorder WPL 2307007B $89.81

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $32.28

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $14.15

W10916292 Whirlpool Refrigerator Crisper Pan Backorder WPL W10916292 $106.03

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $12.34

WP2223860 Whirlpool Refrigerator Door Shelf B In Stock WPL WP2223860 $58.22

WP489483 Whirlpool Screw In Stock WPL WP489483 $5.85

Pad, Water (For White Model) WPL 2305307CE Contact Us For Availability

2223413 Whirlpool Refrigerator Evaporator Cov Backorder WPL 2223413 $221.15

2306940 Whirlpool Refrigerator Bracket Backorder WPL 2306940 $64.88

2306940B Whirlpool Refrigerator Bracket Backorder WPL 2306940B $24.02

2310224 Whirlpool Dispense Harness Backorder WPL 2310224 $92.07

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.59

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.19

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $6.29

Meat Pan (Includes 13, 14, 19 & 22) WPL 2223790 Contact Us For Availability

Pad, Ice (For White Model) WPL 2305306CE Contact Us For Availability

Tube, Door WPL 2317707 Contact Us For Availability

Following Parts Not Illustrated WPL ARI90574A3 Contact Us For Availability

2301544 Whirlpool Refrigerator Glide Backorder WPL 2301544 $199.39

2301545 Whirlpool Refrigerator Glide Backorder WPL 2301545 $98.28

4389654 Whirlpool Screw Backorder WPL 4389654 $10.90

WP2224173 Whirlpool Refrigerator Cantilever B In Stock WPL WP2224173 $50.13

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $3.22

Glide Assembly (Snack Pan) (Left Side) WPL 2301551 Contact Us For Availability

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $12.28

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $51.53

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $55.66

Cover, Emitter WPL 2259487 Contact Us For Availability

Tube, Extension WPL 2254566 Contact Us For Availability

Gasket, Air Baffle WPL 2304597 Contact Us For Availability

Nameplate (Gray) WPL W10046610 Contact Us For Availability

Nameplate (Biscuit) WPL W10046700 Contact Us For Availability

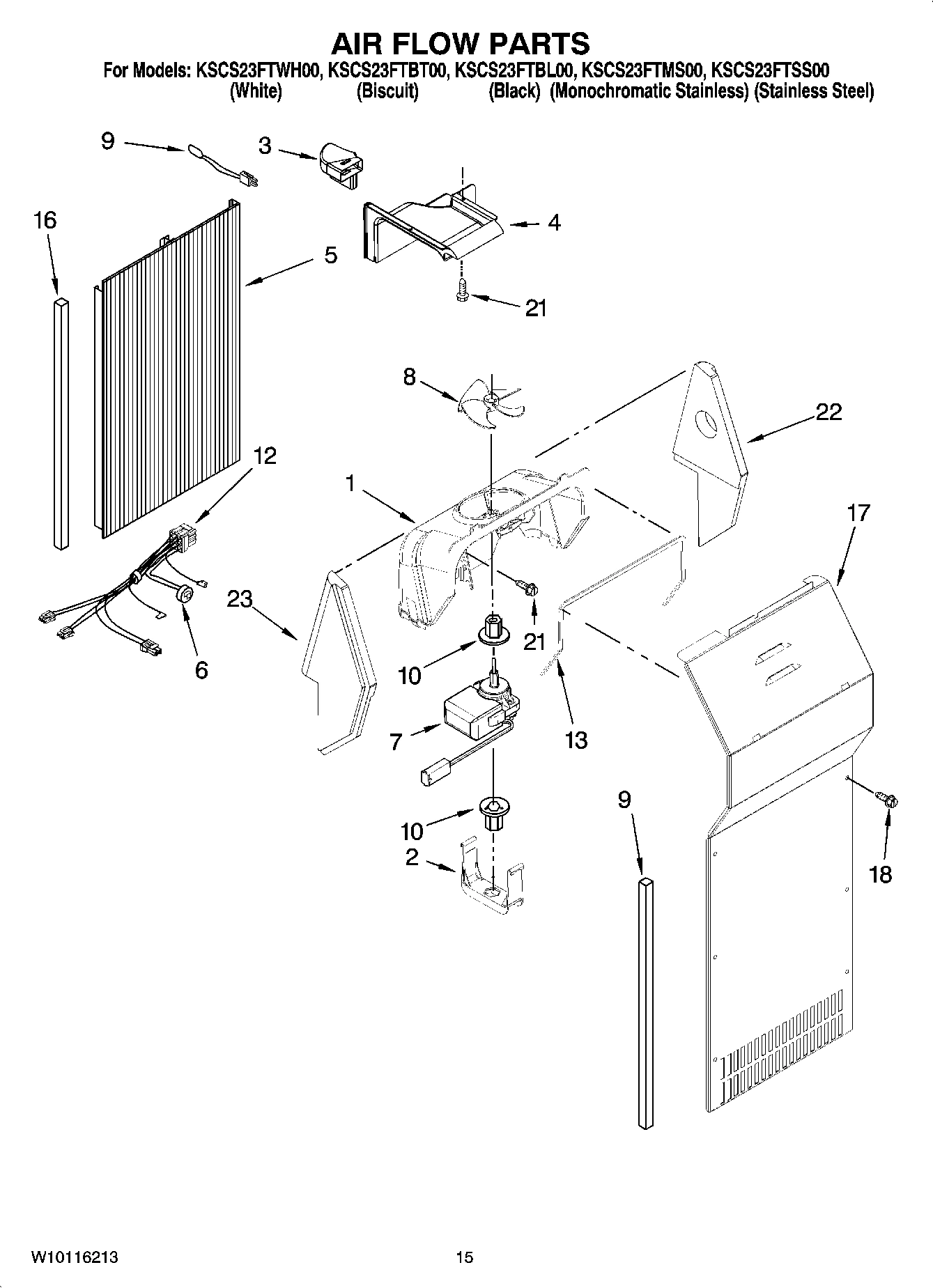

20

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $5.02

20

Latch, Bin WPL 2305441 Contact Us For Availability

21

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $4.19

21

Support Assembly (Right Side) WPL 2301569 Contact Us For Availability

21

Cover, Unit WPL 2223409 Contact Us For Availability

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $275.26

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $31.00

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $19.04

Wire Assembly, IDI Motor WPL 2187813 Contact Us For Availability

Handle WPL 2203031 Contact Us For Availability

Support, R.S WPL 2223395 Contact Us For Availability

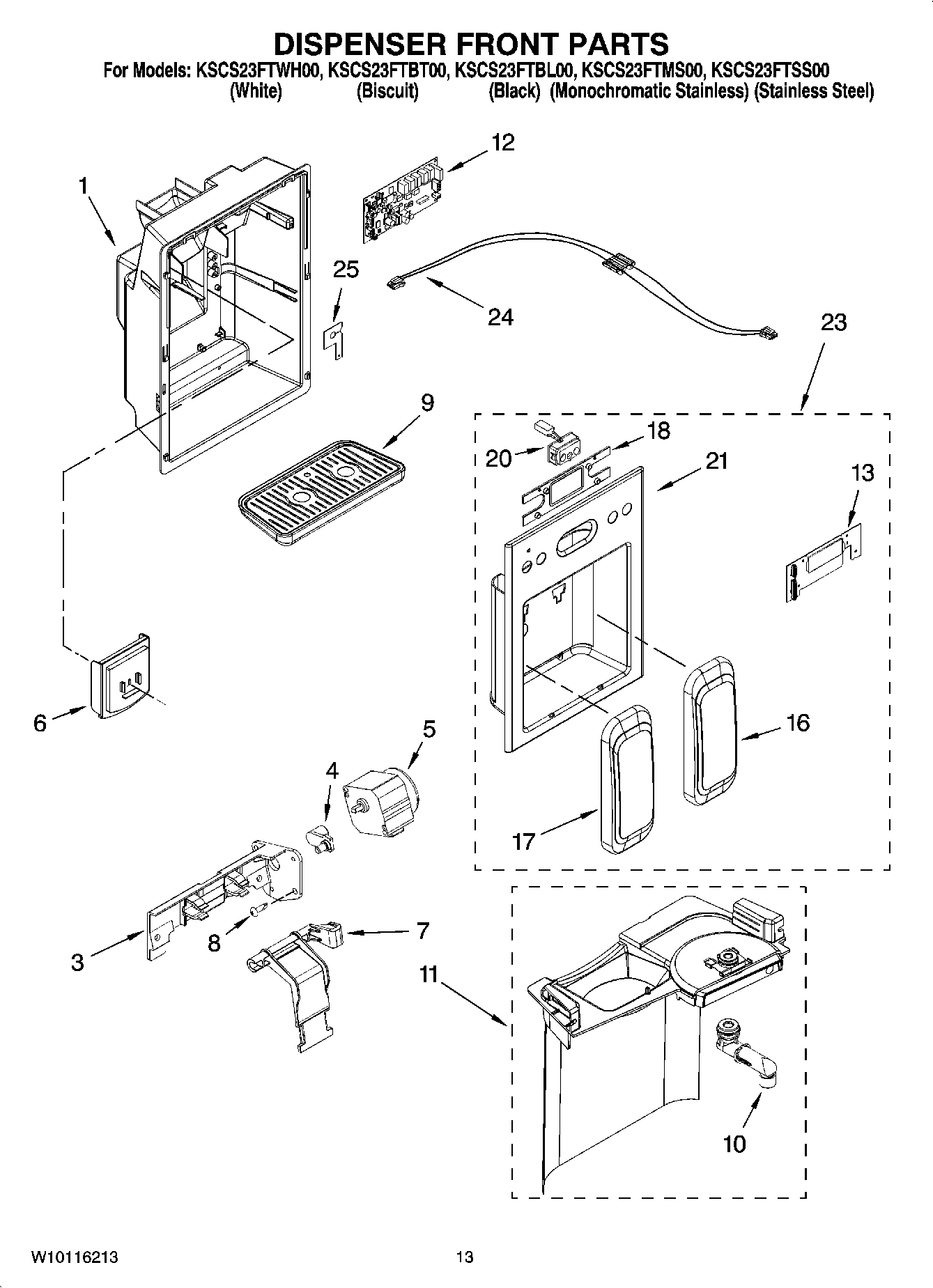

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $17.42

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $6.96

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $59.14

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $5.84

Front Cover Assembly (Includes Items 13, 16, WPL 2326256W Contact Us For Availability

Clamp WPL 2161324 Contact Us For Availability

Front Cover Assembly (Includes Items 13, 16, WPL 2326256B Contact Us For Availability

24

Holder WPL 2212369 Contact Us For Availability

24

Air Diffuser Assembly WPL 2224076 Contact Us For Availability

24

Wire Assembl WPL 2187814 Contact Us For Availability

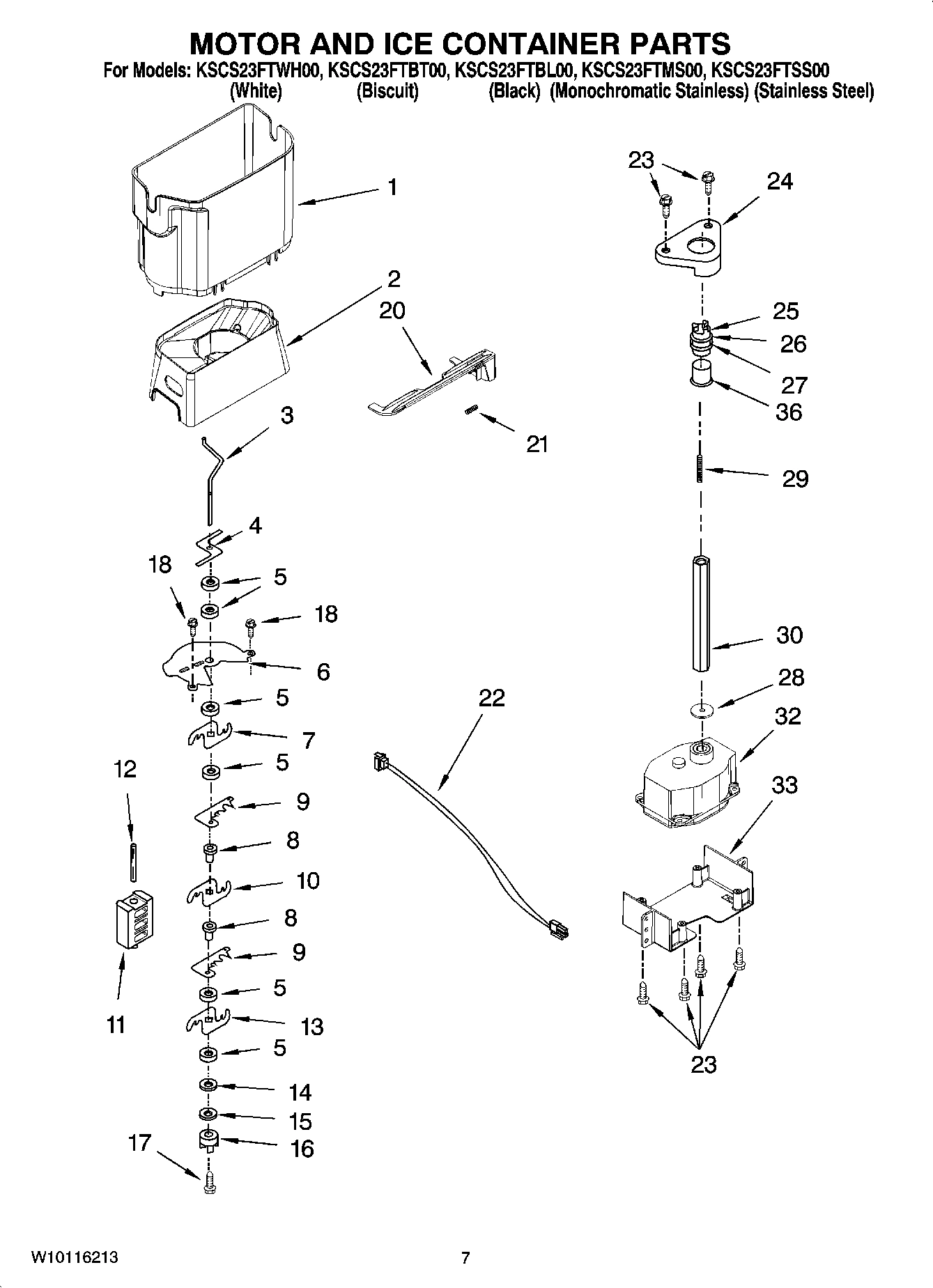

25

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $10.90

25

WP2220377 Whirlpool Refrigerator Air Baffle In Stock WPL WP2220377 $245.91

25

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $14.65

26

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $23.46

26

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $6.14

26

Shelf, Snack Pan WPL 2301566 Contact Us For Availability

27

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $14.61

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $50.57

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.88

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $65.34

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $5.56

WP2305382 Whirlpool Refrigerator Washer In Stock WPL WP2305382 $5.37

Slide, Ice Maker Mounting (Right Side) WPL 2212321 Contact Us For Availability

29

W10846218 Whirlpool Refrigerator Door Cam Backorder WPL W10846218 $12.14

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $10.42

29

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $3.22

WP2260518AP Whirlpool Filter Cap Assembly In Stock WPL WP2260518AP $32.93

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $22.87

WP2260518W Whirlpool Refrigerator Filter Cap In Stock WPL WP2260518W $19.91

WP2305243 Whirlpool Refrigerator Shaft Backorder WPL WP2305243 $101.48

Window, Snack Pan WPL 2301006 Contact Us For Availability

Cap, Water Filter WPL 2260518T Contact Us For Availability

31

WP2310122 Whirlpool Refrigerator Wire Harness Backorder WPL WP2310122 $229.88

32

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $55.72

32

WP2252130 Whirlpool Refrigerator Motor In Stock WPL WP2252130 $133.66

33

WP2210737 Whirlpool Refrigerator Heater Backorder WPL WP2210737 $77.34

33

Bracket, Motor WPL 2305208 Contact Us For Availability

33

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $6.29

34

Light Lens WPL 2223663 Contact Us For Availability

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $16.40

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $13.34

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $7.10

38

Tube, Discharge WPL 2223352 Contact Us For Availability

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.59

42

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $3.22

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.43

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $33.30

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $40.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $42.85

WP2300868 Whirlpool Refrigerator Fitting In Stock WPL WP2300868 $12.13

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $31.24

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

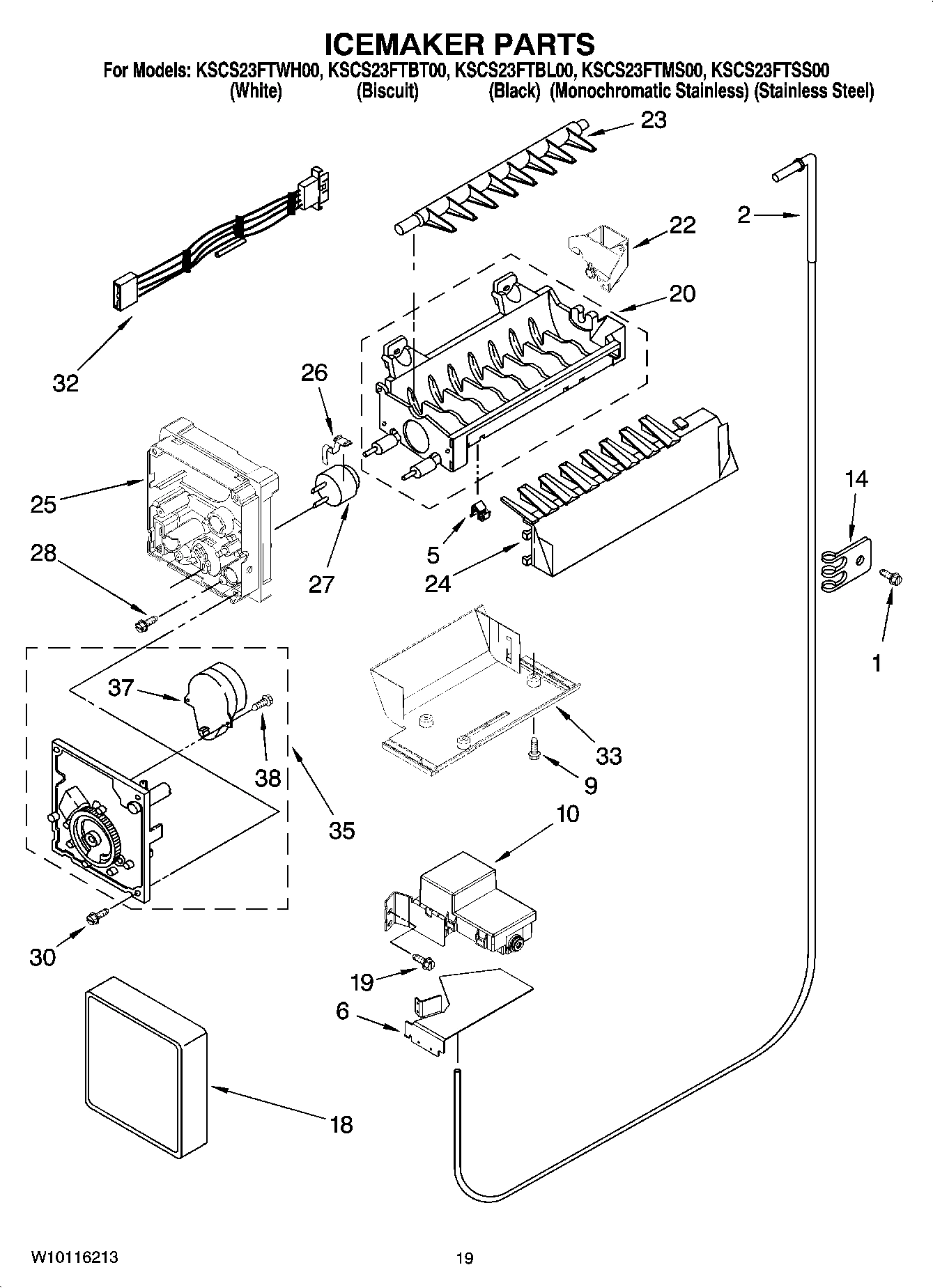

100

2198597 Whirlpool Refrigerator Ice Maker In Stock WPL 2198597 $150.35

100

Ice Container (Complete) WPL 2317748 Contact Us For Availability
