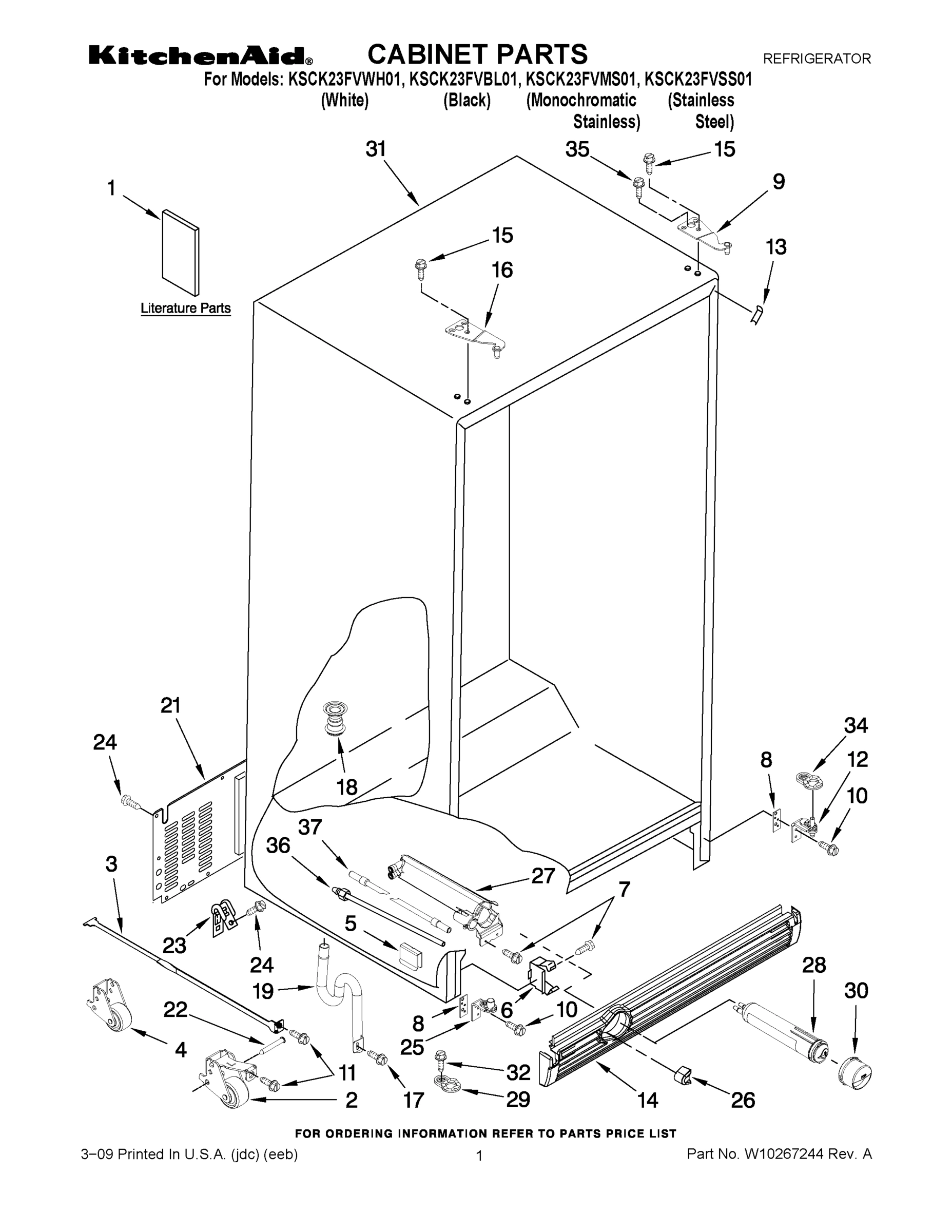

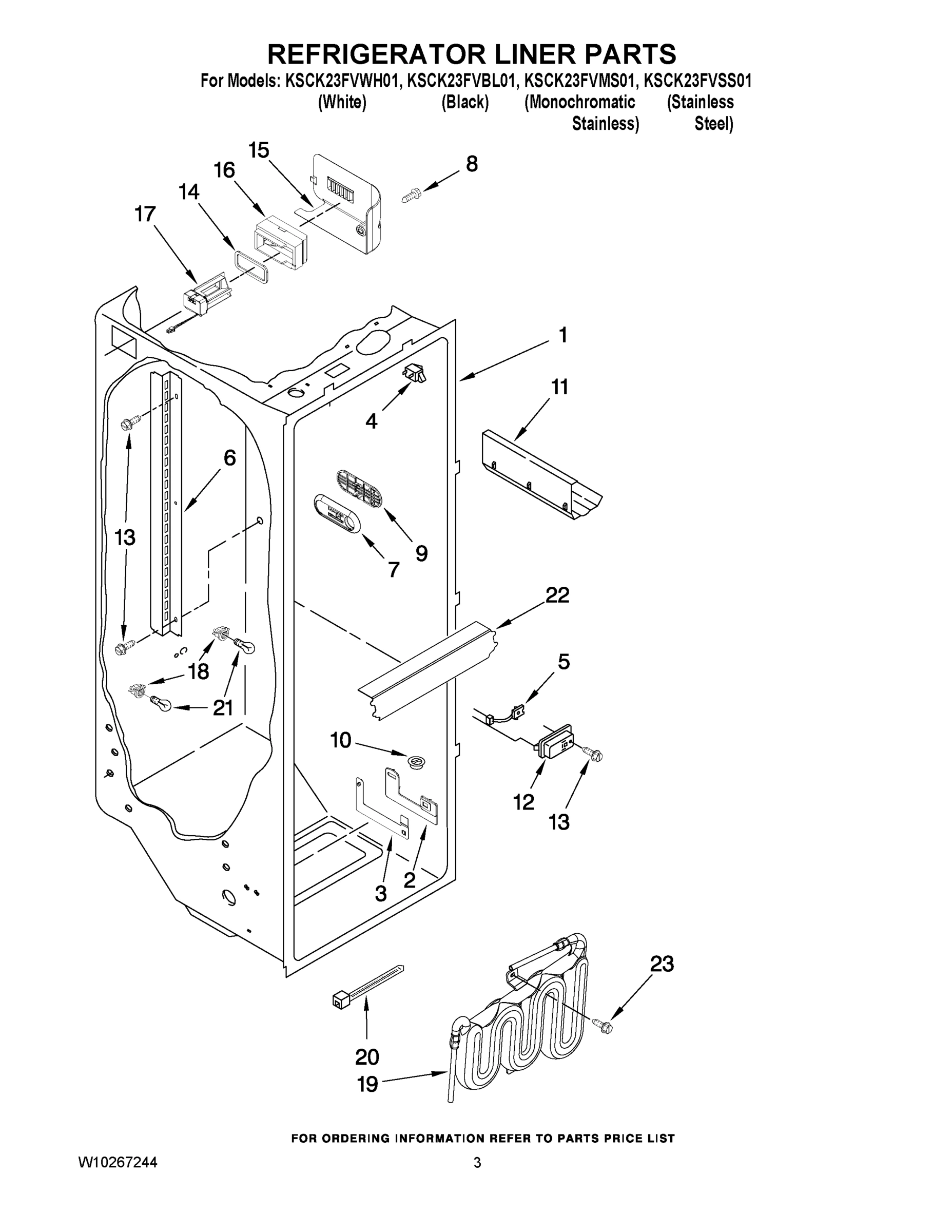

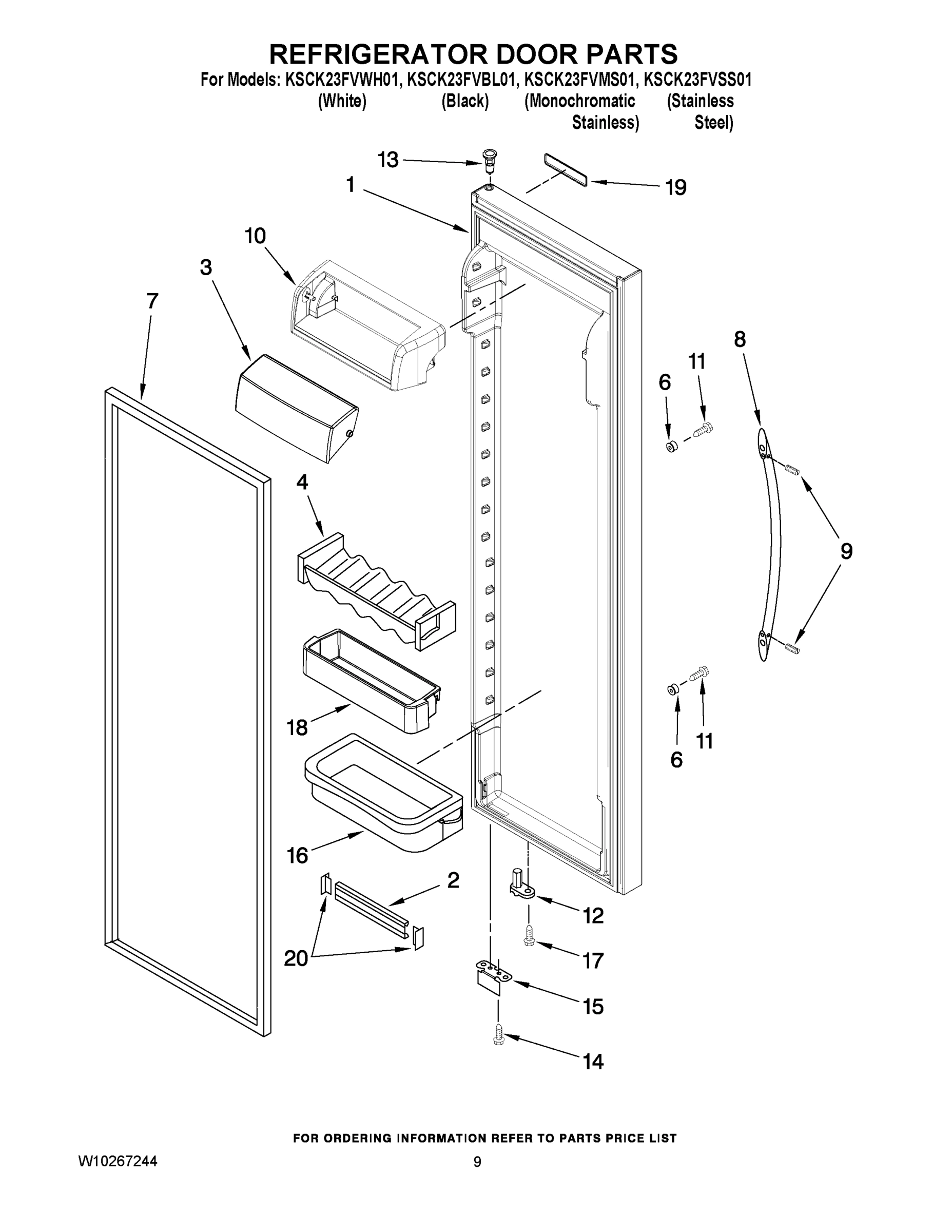

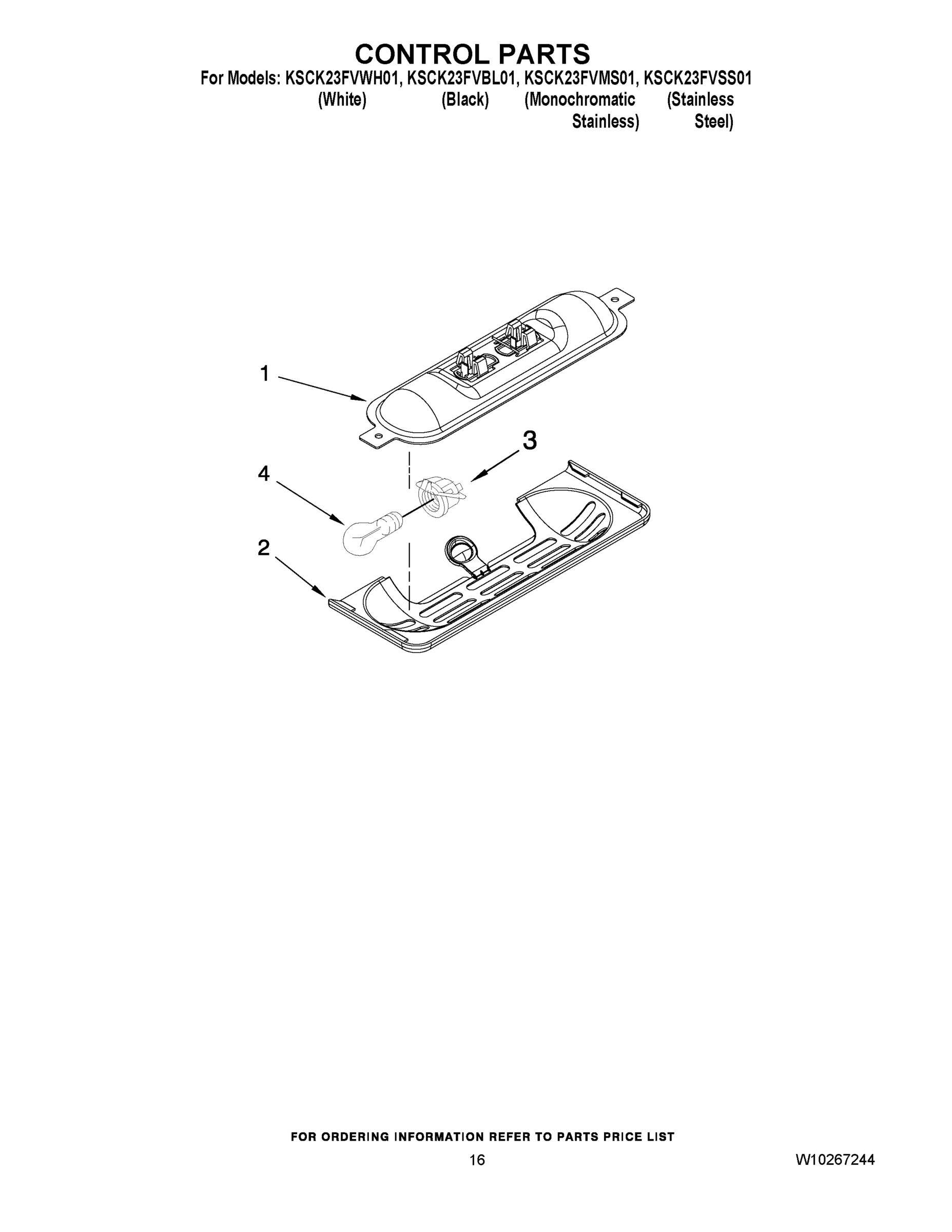

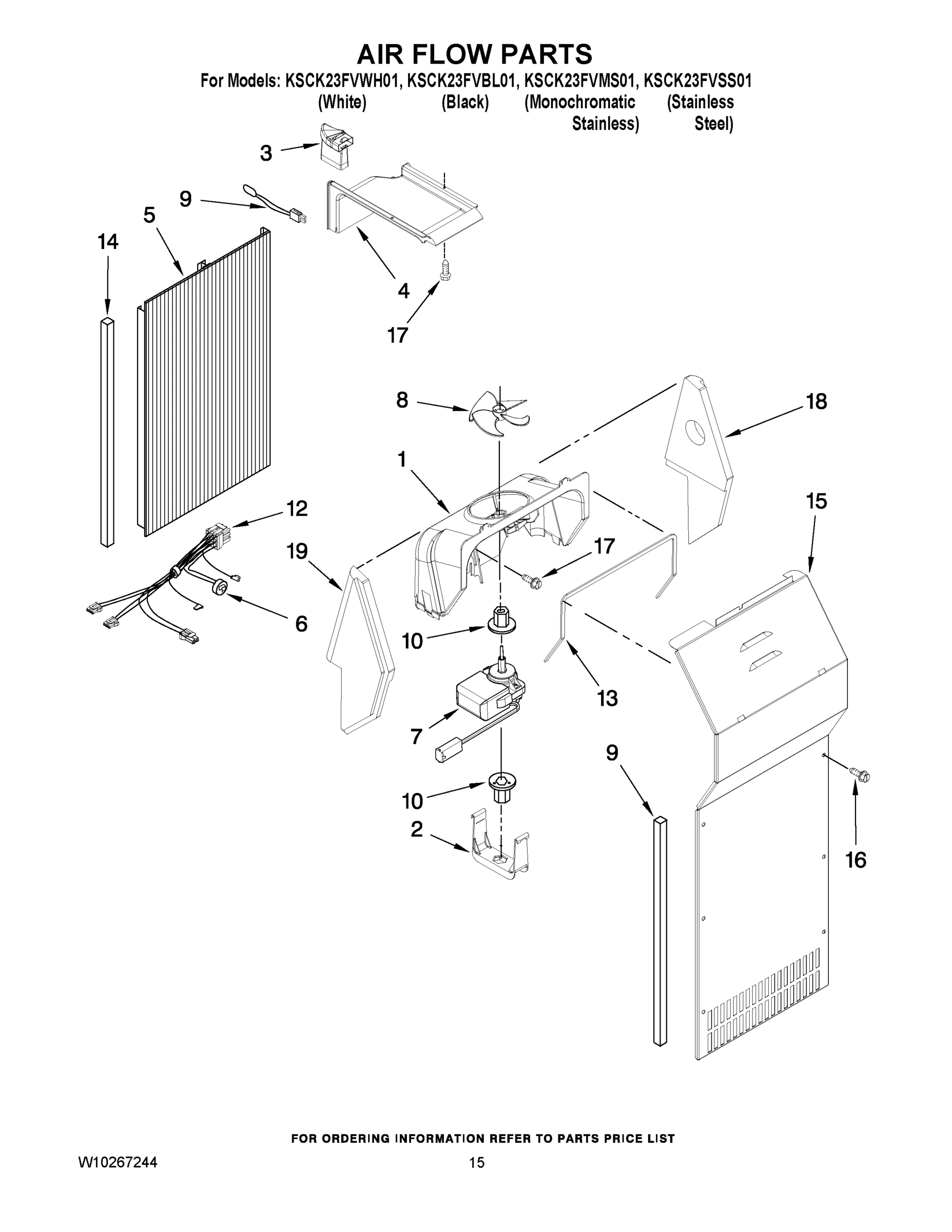

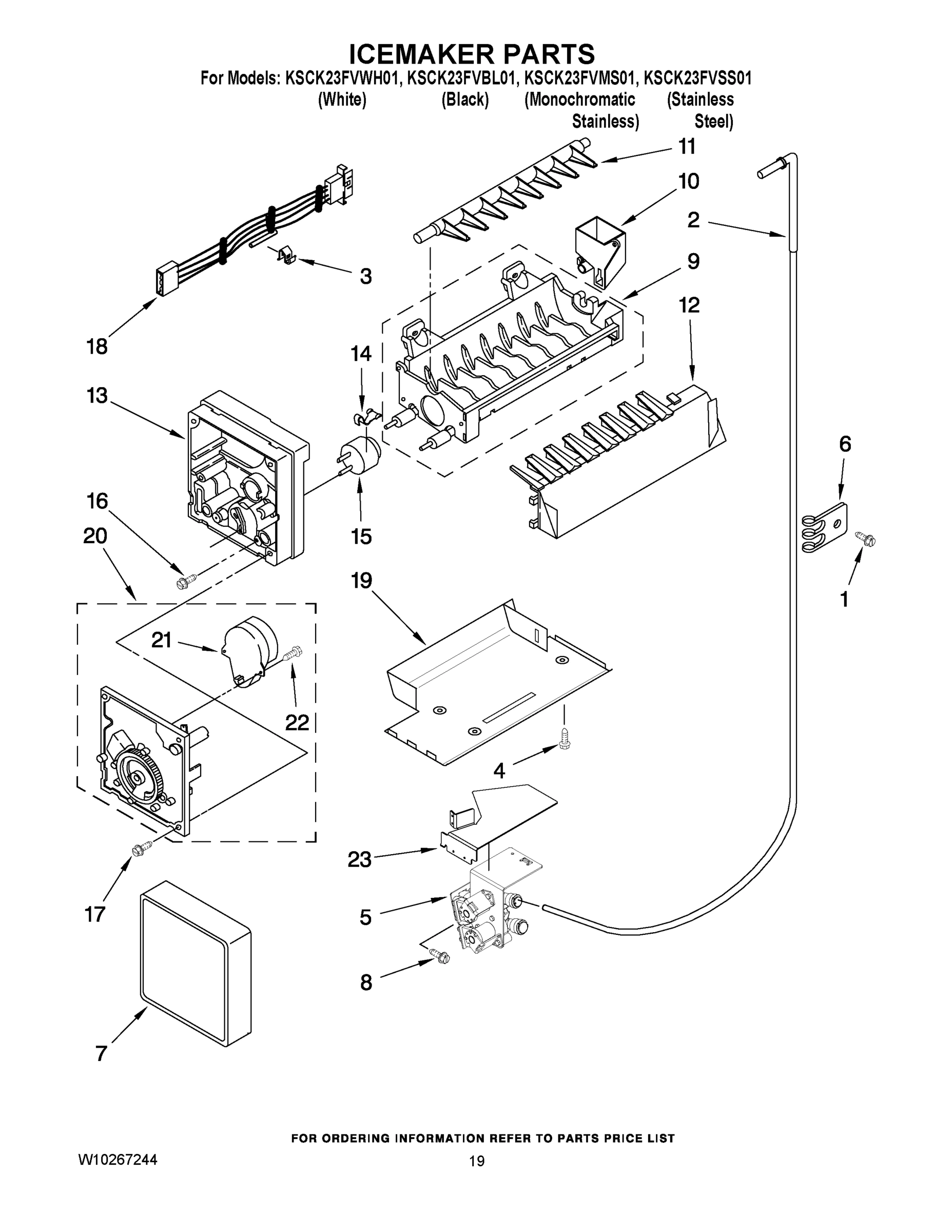

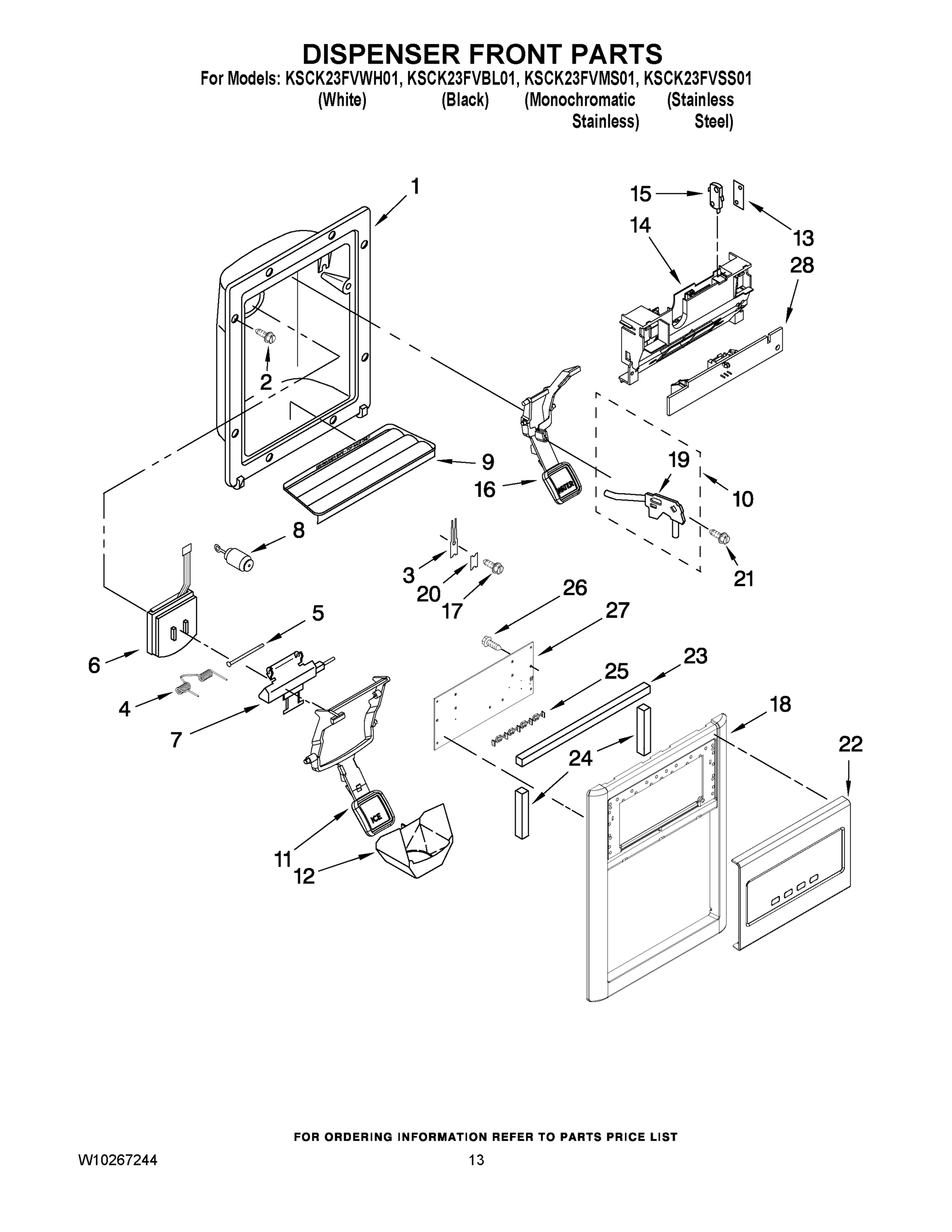

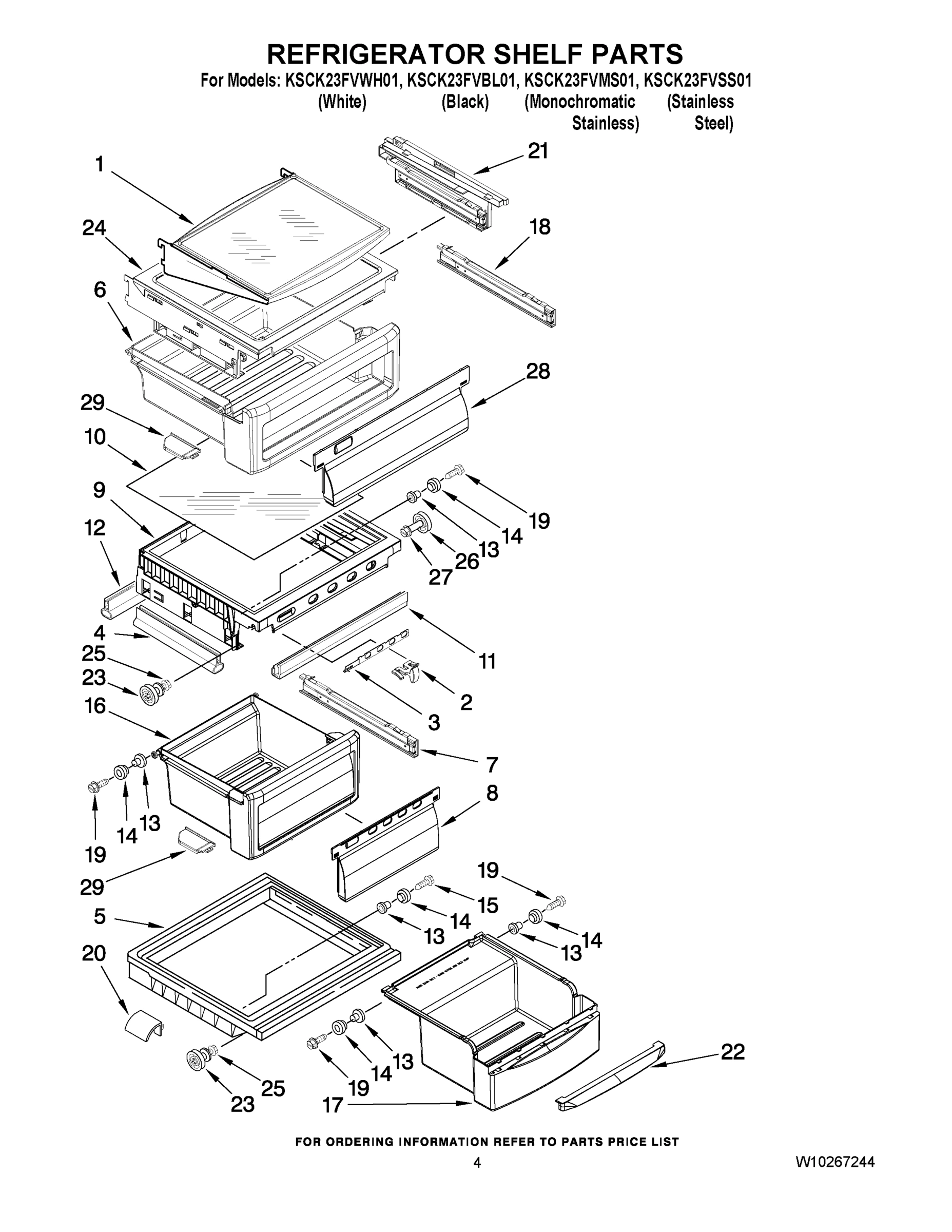

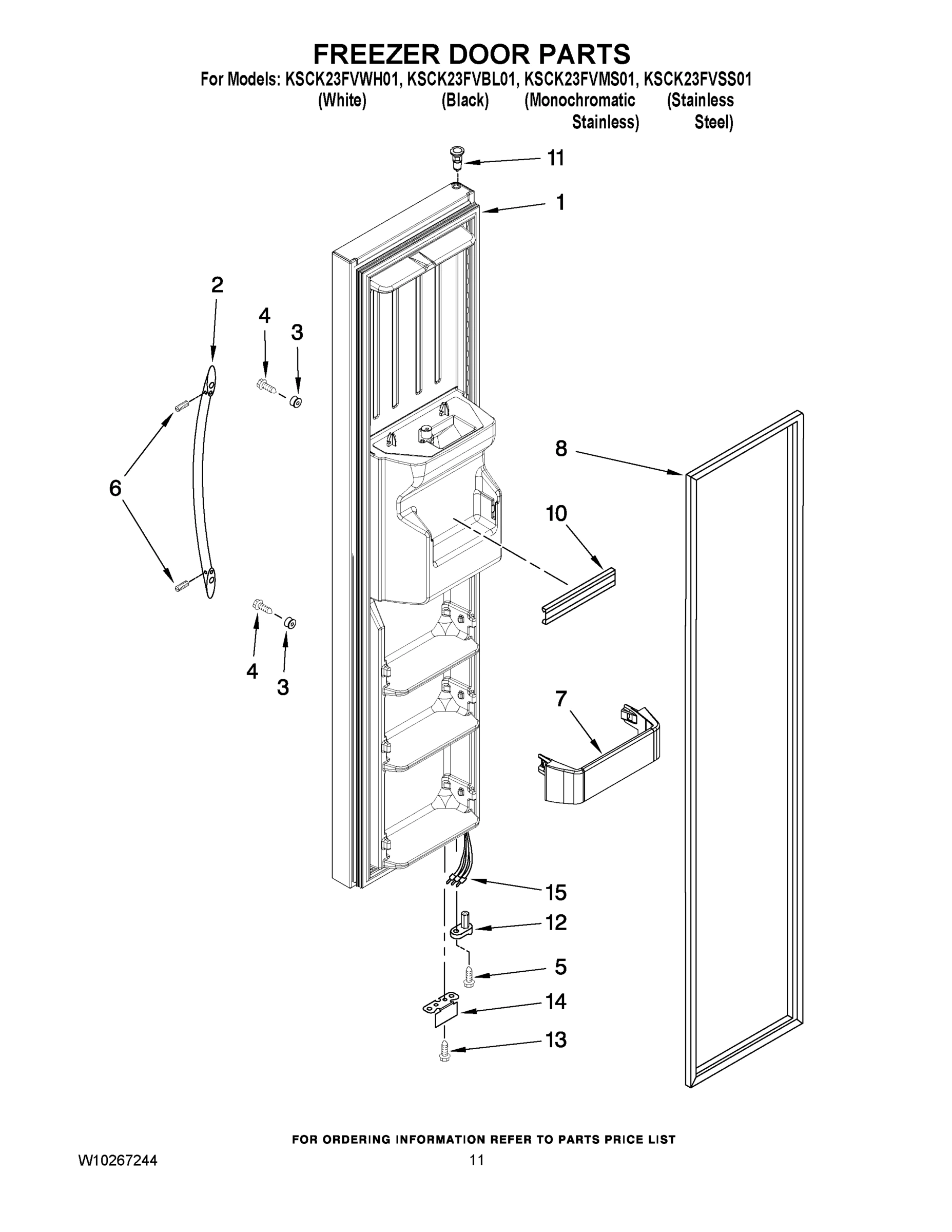

Model Whirlpool KSCK23FVBL01 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $71.16

1

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

1

Ice Bin WPL 2223317 Contact Us For Availability

2

8201663 Whirlpool Refrigerator Primary Fan Bl Backorder WPL 8201663 $102.33

2

WP2223506 Whirlpool Refrigerator Light Lens Backorder WPL WP2223506 $61.50

2

WPW10139483 Whirlpool Refrigerator Condenser In Stock WPL WPW10139483 $54.88

2

FRONT ROLLER ASM (LEFT SIDE) WPL W10199222 Contact Us For Availability

2

FRONT ROLLER ASM (RIGHT SIDE) WPL W10199223 Contact Us For Availability

2

Fitting, Water Tube WPL 2303216 Contact Us For Availability

2

TRIM, SHELF WPL 2203087 Contact Us For Availability

3

W10193018 Whirlpool Refrigerator Condenser Backorder WPL W10193018 $220.30

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $11.99

3

WP2317240 Whirlpool Refrigerator Ice Auger In Stock WPL WP2317240 $130.99

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

3

Dairy Door WPL 2255421 Contact Us For Availability

3

Air Scoop WPL 2223298 Contact Us For Availability

3

Front, Basket WPL 2224053 Contact Us For Availability

4

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.77

4

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.91

4

WPA3073101 Whirlpool Light Bulb In Stock WPL WPA3073101 $14.95

4

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $60.55

4

Washer WPL 2258220 Contact Us For Availability

4

Air Duct, Upper WPL 2223303 Contact Us For Availability

5

W11545866 Whirlpool Refrigerator Clip Backorder WPL W11545866 $7.27

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

5

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $25.99

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

WPW10210603 Whirlpool Refrigerator Inlet Valv Backorder WPL WPW10210603 $177.46

5

Air Duct Freezer WPL 2223771 Contact Us For Availability

5

Screw (6) WPL W10142287 Contact Us For Availability

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.99

6

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $6.75

6

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $23.99

6

Cover, Crusher WPL 2317248 Contact Us For Availability

6

Ladder, Shelf (2) WPL 2319866 Contact Us For Availability

6

HOUSING, CONTROL BOARD WPL W10199261 Contact Us For Availability

7

2301234 Whirlpool Refrigerator Control Backorder WPL 2301234 $58.43

7

W10141518 Whirlpool Refrigerator Screw Backorder WPL W10141518 $5.85

7

W10528579 Whirlpool Refrigerator Tube Backorder WPL W10528579 $210.88

7

Glide Assembly (Crisper Pan) (Right Side) WPL 2301548 Contact Us For Availability

7

Fan Motor WPL 2259385 Contact Us For Availability

8

2223545 Whirlpool Refrigerator Shim Backorder WPL 2223545 $64.02

8

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $13.22

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

8

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $7.55

8

Handle (Stainless Steel) WPL 2319727S Contact Us For Availability

8

Handle (Black) WPL 2319727B Contact Us For Availability

8

Window, Crisper Pan WPL 2301001 Contact Us For Availability

9

2307008B Whirlpool Refrigerator Butt Hinge Backorder WPL 2307008B $30.22

9

W11366418 Whirlpool Screw In Stock WPL W11366418 $11.84

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $24.99

9

WP2304241 Whirlpool Refrigerator Gasket Backorder WPL WP2304241 $54.59

9

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $4.67

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2301567 Contact Us For Availability

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $14.02

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $57.37

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $5.99

W11669856 Whirlpool Grommet Backorder WPL W11669856 $9.12

Glass, Cover WPL 2301028 Contact Us For Availability

Dairy Compartment WPL 2223879 Contact Us For Availability

2317239 Whirlpool Refrigerator Blade Block Backorder WPL 2317239 $7.18

W11456069 Whirlpool Refrigerator Clamp In Stock WPL W11456069 $16.99

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

WPW10152853 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152853 $61.47

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.65

W10132977 Whirlpool Refrigerator Door Cam Backorder WPL W10132977 $8.90

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.97

Hinge Assembly, Bottom-RC WPL 2307179 Contact Us For Availability

Glide Assembly, Basket (2) (Right Side) WPL 2301544 Contact Us For Availability

Glide Assembly, Basket (2) (Left Side) WPL 2301545 Contact Us For Availability

Screw WPL W10141645 Contact Us For Availability

Harness, Fan Evaporator, And Heater, Bi-Metal WPL W10129813 Contact Us For Availability

W10858105 Whirlpool Refrigerator Tube Backorder WPL W10858105 $161.69

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $4.82

Cover, Emitter WPL 2259487 Contact Us For Availability

Spacer, Switch WPL 625834 Contact Us For Availability

Eyelet, Roller WPL 2174478 Contact Us For Availability

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $57.18

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

WPW10209635-includeCORE Whirlpool WPW10209635 Backorder WPL WPW10209635-includeCORE $284.04

Grille (Apollo Gray) WPL W10194061 Contact Us For Availability

Gasket, Air Baffle WPL 2304597 Contact Us For Availability

Screw WPL W10191952 Contact Us For Availability

2306940 Whirlpool Refrigerator Bracket Backorder WPL 2306940 $65.50

2306940B Whirlpool Refrigerator Bracket Backorder WPL 2306940B $24.26

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.72

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $59.45

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $6.90

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $7.55

COVER, EVAPORATOR (INCLUDES No.9) WPL 2223413 Contact Us For Availability

Baseplate WPL 2306932 Contact Us For Availability

2307007B Whirlpool Refrigerator Butt Hinge Backorder WPL 2307007B $90.68

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

W10916292 Whirlpool Refrigerator Crisper Pan In Stock WPL W10916292 $116.03

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $10.99

W11629923 Whirlpool Coupling In Stock WPL W11629923 $15.99

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $10.62

WP2223860 Whirlpool Refrigerator Door Shelf B In Stock WPL WP2223860 $86.98

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

Air Diffuser Assembly WPL 2224076 Contact Us For Availability

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $287.76

WP2220377 Whirlpool Refrigerator Air Baffle In Stock WPL WP2220377 $245.99

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $6.74

Meat Pan (Includes 13, 14, 19 & 22) WPL 2223790 Contact Us For Availability

W10136850 Whirlpool Refrigerator Front Cover Backorder WPL W10136850 $119.93

W11566763 Whirlpool Fitting In Stock WPL W11566763 $31.99

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $88.98

WP2224173 Whirlpool Refrigerator Cantilever B Backorder WPL WP2224173 $52.75

Bezel, Disp (Stainless) WPL W10139842 Contact Us For Availability

Glide Assembly (Snack Pan) (Left Side) WPL 2301551 Contact Us For Availability

Clamp WPL 2161324 Contact Us For Availability

Support, R.S WPL 2223395 Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $20.18

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $85.91

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $9.19

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $50.14

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $47.62

WPW10276792 Whirlpool Refrigerator Water Rese In Stock WPL WPW10276792 $69.99

Latch, Bin WPL 2317277 Contact Us For Availability

Tube, Extension WPL 2254566 Contact Us For Availability

Nameplate (Gray) WPL W10046610 Contact Us For Availability

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $5.47

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $4.82

WPW10185438 Whirlpool Ice Maker Cover In Stock WPL WPW10185438 $67.84

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

Tray, Evaporator WPL 2223398 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $4.82

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $6.83

Slide, Ice Maker Mounting (Right Side) WPL 2212321 Contact Us For Availability

Support Assembly (Right Side) WPL 2301569 Contact Us For Availability

Cover, Unit WPL 2223409 Contact Us For Availability

Heat Shield WPL 2224022 Contact Us For Availability

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $5.99

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $17.56

Handle WPL 2203031 Contact Us For Availability

Light Lens WPL 2223663 Contact Us For Availability

Fascia Assy, Disp (Stainless) WPL W10144818 Contact Us For Availability

23

2317243 Whirlpool Refrigerator Wiper Backorder WPL 2317243 $64.24

23

8201675 Whirlpool Refrigerator Compressor In Stock WPL 8201675 $407.52

24

2223800 Whirlpool Refrigerator Spacer Backorder WPL 2223800 $11.64

24

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $6.59

24

Shelf, Snack Pan WPL 2301566 Contact Us For Availability

25

2317250 Whirlpool Refrigerator Divider Backorder WPL 2317250 $22.62

25

WPW10356040-includeCORE Whirlpool WPW10356040 Backorder WPL WPW10356040-includeCORE $256.19

25

Hinge Assembly, Bottom-FC WPL 2307152 Contact Us For Availability

26

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $23.69

26

Harness, Main Control WPL W10129751 Contact Us For Availability

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $28.99

WPW10121140 Whirlpool Refrigerator Housing In Stock WPL WPW10121140 $193.47

Enclosure, Motor WPL 2322488 Contact Us For Availability

Fan, Motor Bracket WPL 2224024 Contact Us For Availability

28

Window, Snack Pan WPL 2301006 Contact Us For Availability

28

Cover, Receiver WPL W10173569 Contact Us For Availability

28

Heater, Defrost WPL 2323199 Contact Us For Availability

29

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $7.18

29

W11623163 Whirlpool Refrigerator Clip Backorder WPL W11623163 $7.27

29

Door Closer, FC WPL 2307051 Contact Us For Availability

30

WP2260518MG Whirlpool Water Filter Cap Backorder WPL WP2260518MG $36.91

30

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $50.80

30

Cover, Housing WPL W10180645 Contact Us For Availability

31

W10893917 Whirlpool Refrigerator Inverter Box In Stock WPL W10893917 $307.58

31

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $4.99

33

Tube, Discharge WPL W10181542 Contact Us For Availability

34

876811 Whirlpool Grommet Backorder WPL 876811 $4.82

34

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $6.99

34

Door Closer (RC) WPL 2307049 Contact Us For Availability

35

2223394 Whirlpool Extension Backorder WPL 2223394 $65.59

36

Clip, Heat Shield WPL 2155547 Contact Us For Availability

37

2187737 Whirlpool Refrigerator Wire Harness Backorder WPL 2187737 $112.14

38

WPW10334458 Whirlpool Refrigerator Connector Backorder WPL WPW10334458 $14.46

100

Ice Container (Complete) WPL 2317268 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $49.86

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

W10134625 Whirlpool Refrigerator Touch-Up Pai Backorder WPL W10134625 $12.92

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

REFRIGERANT CHARGE 6.00 oz. (R-134A) WPL ARI90124A9 Contact Us For Availability
