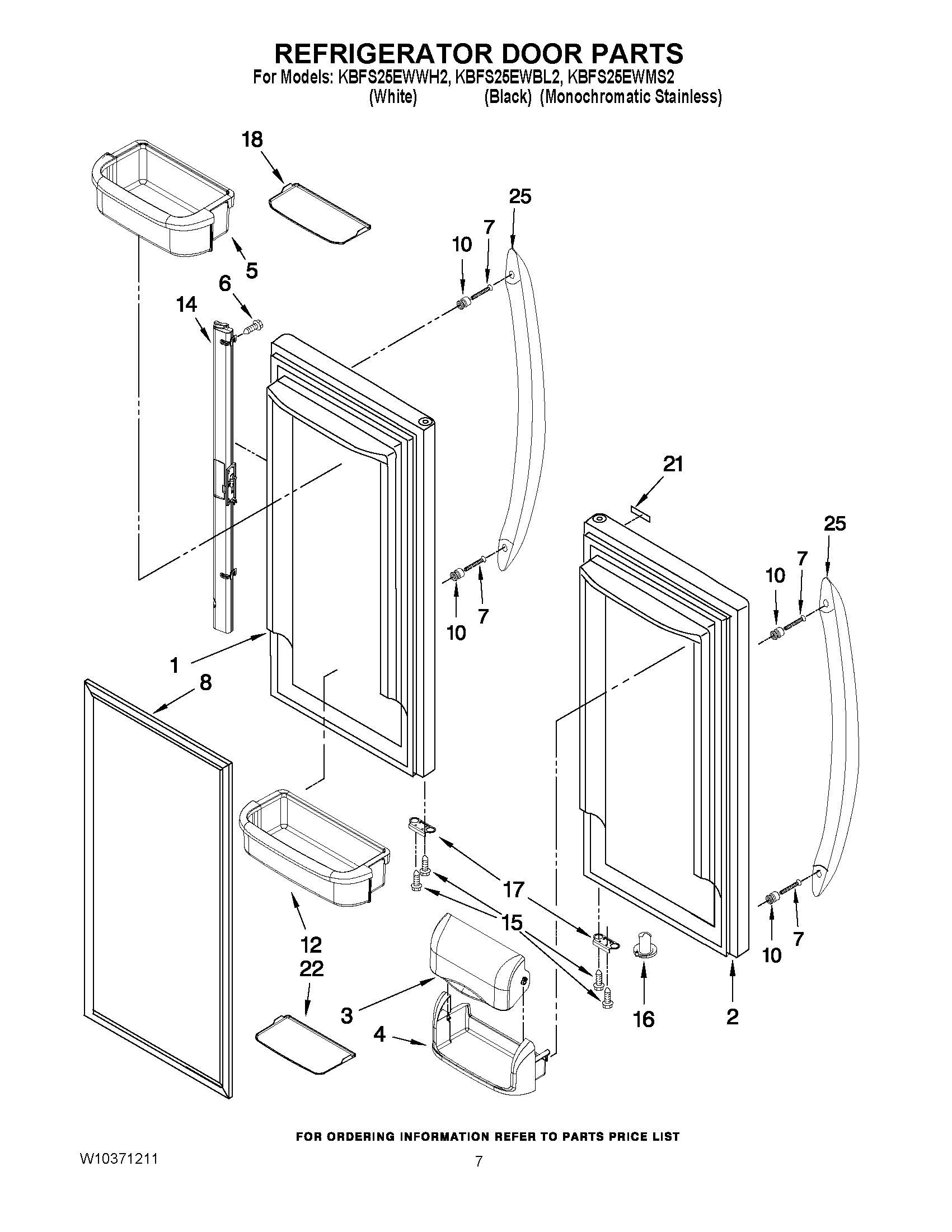

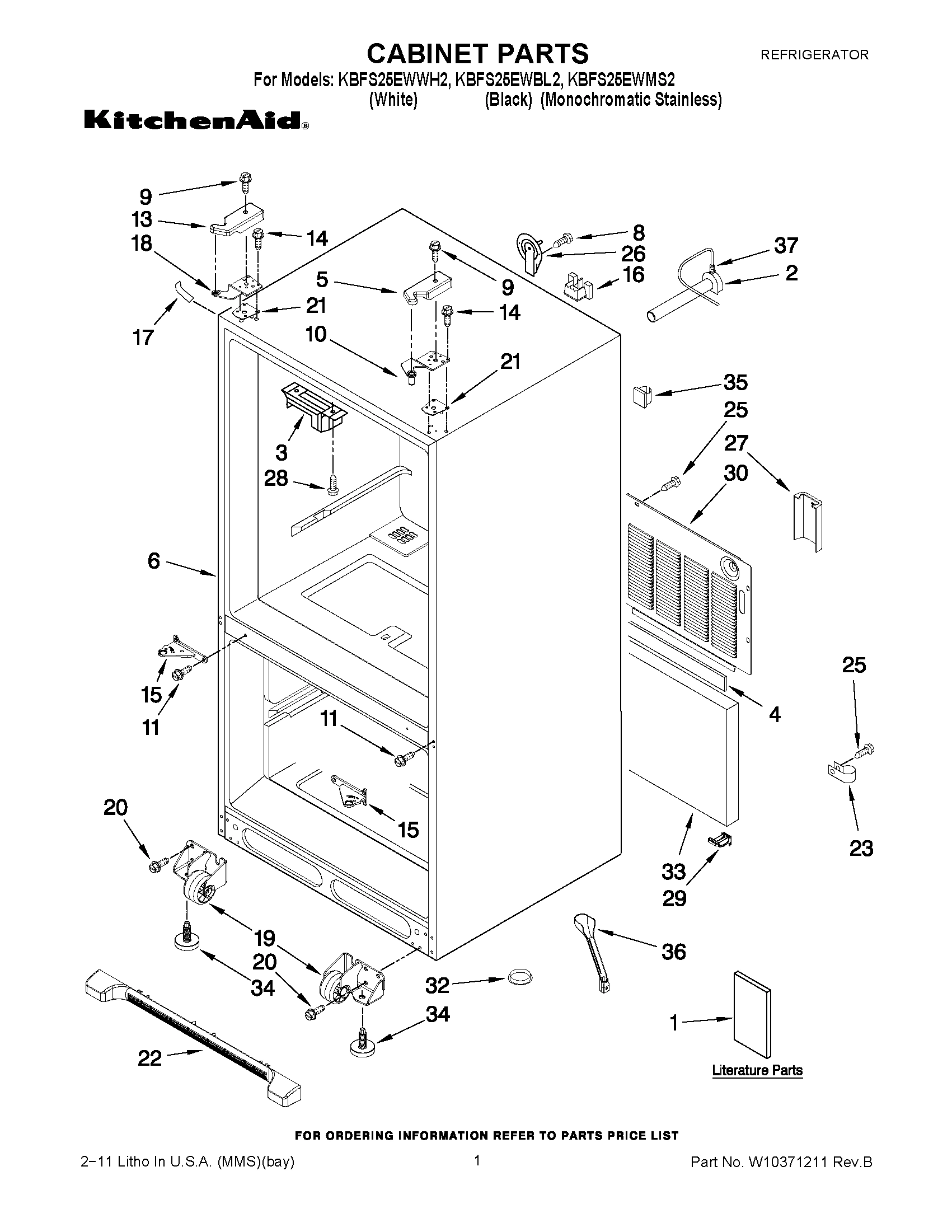

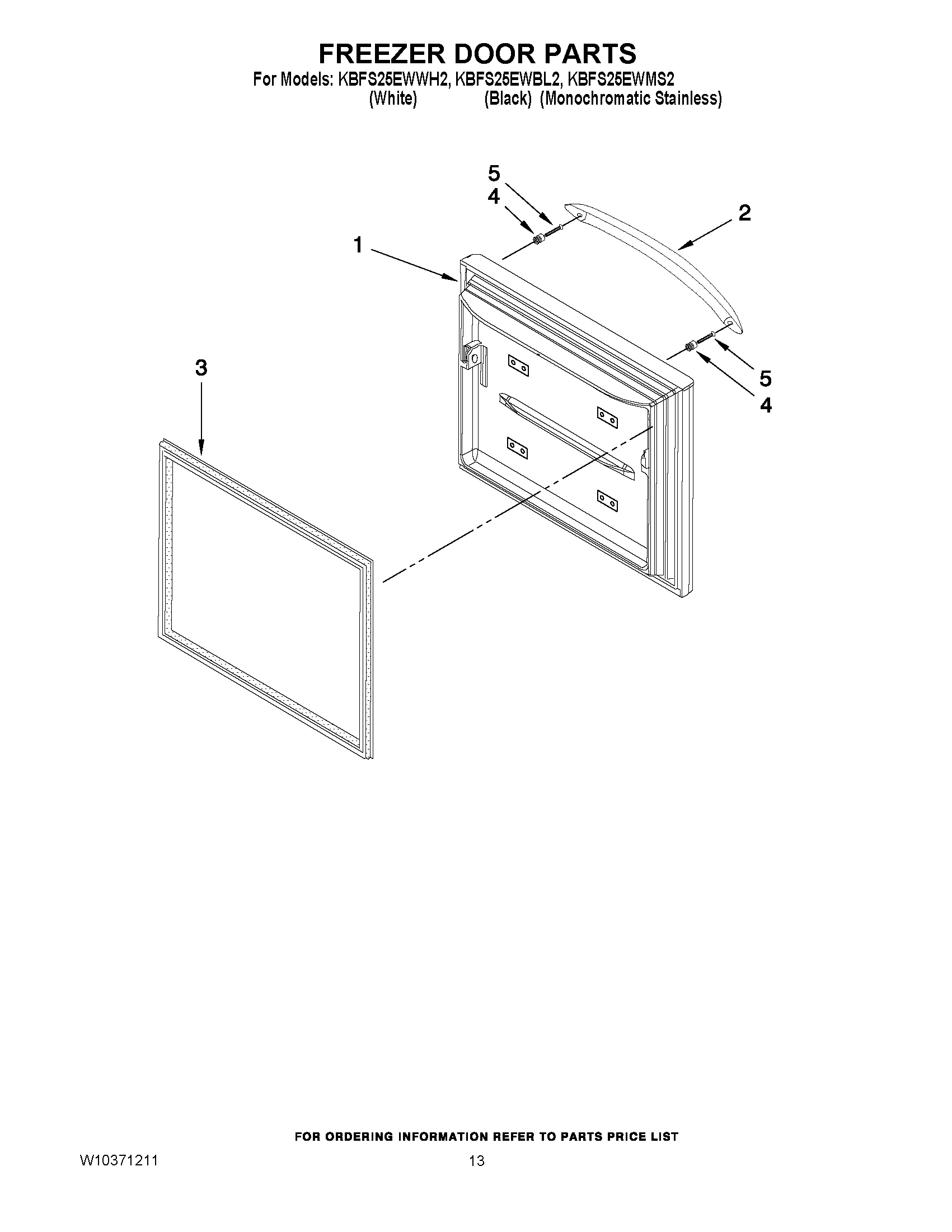

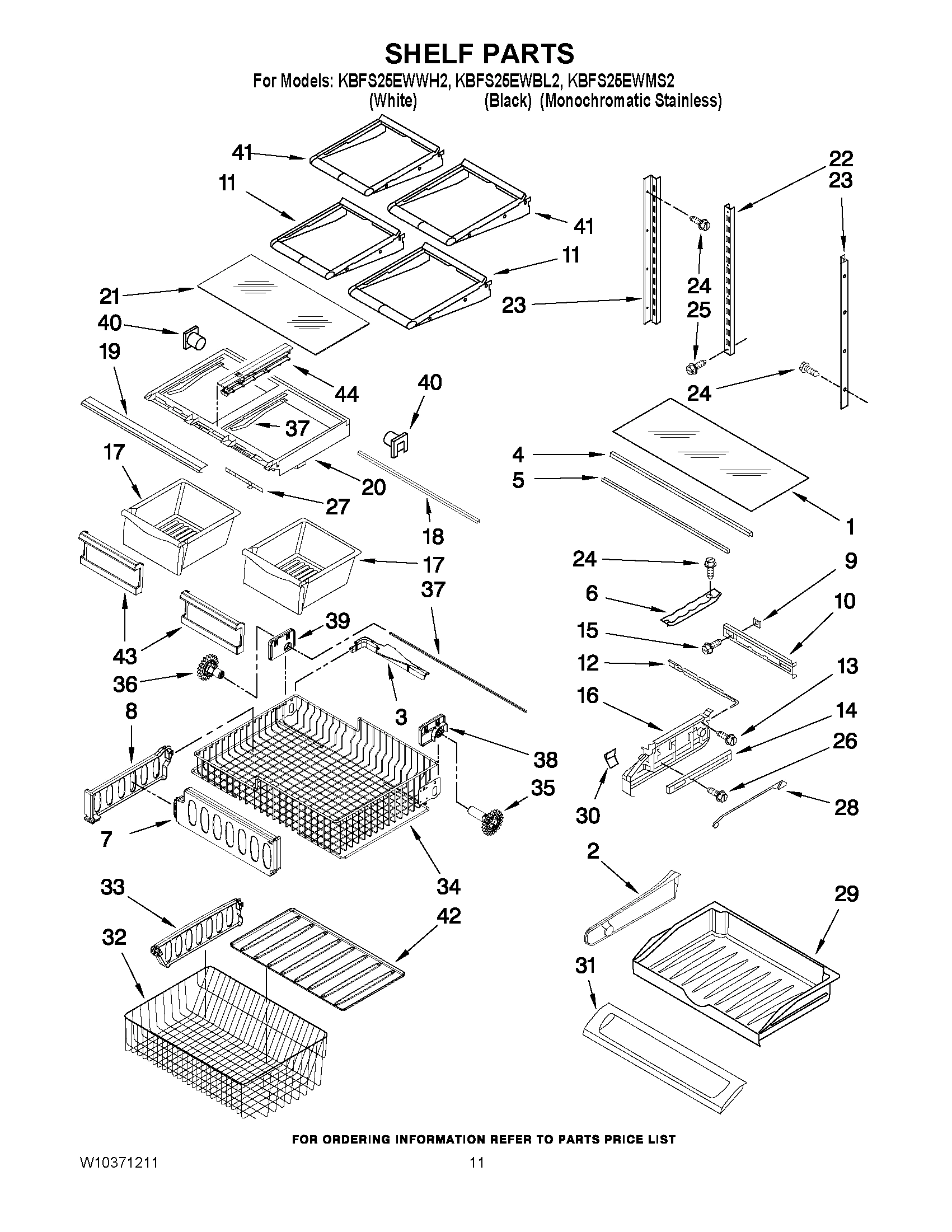

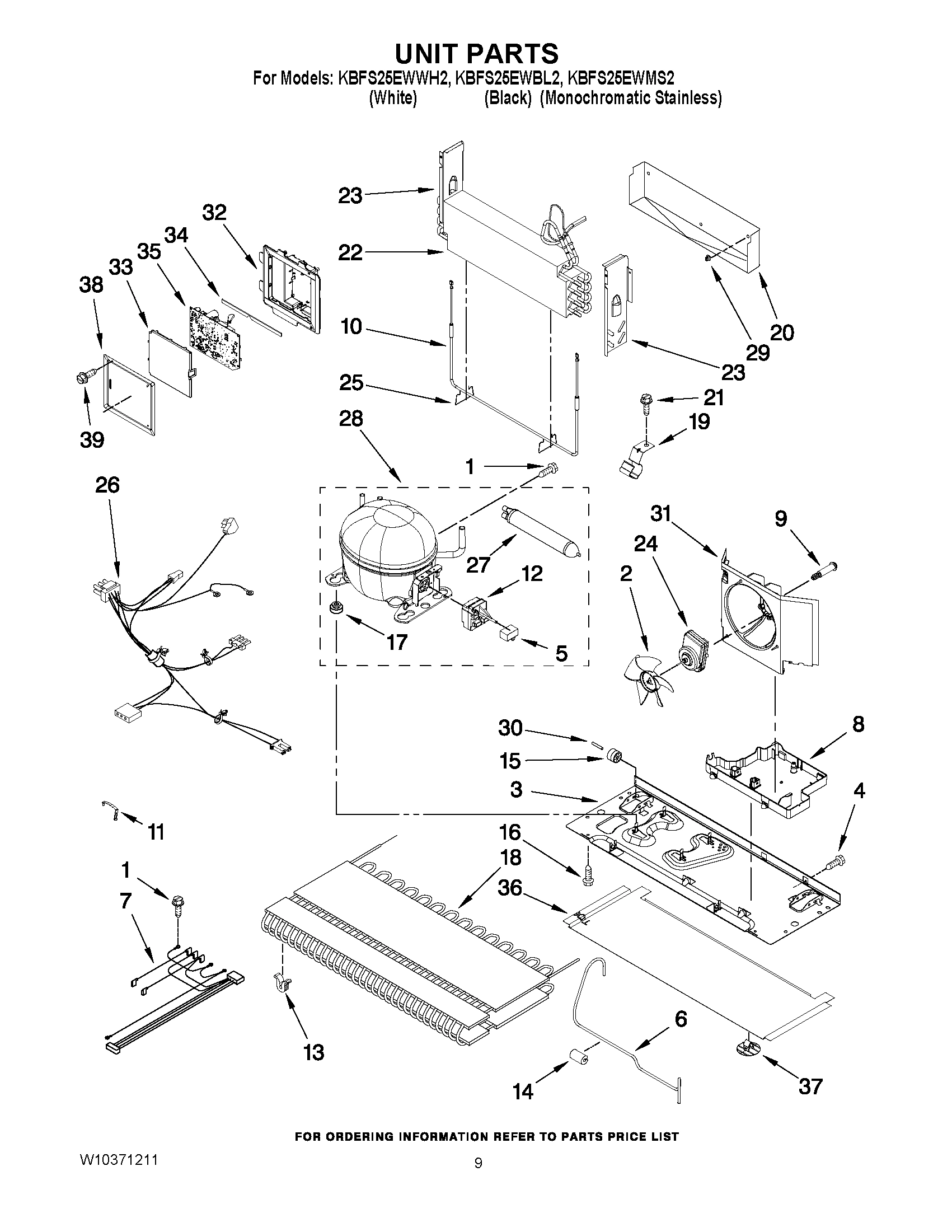

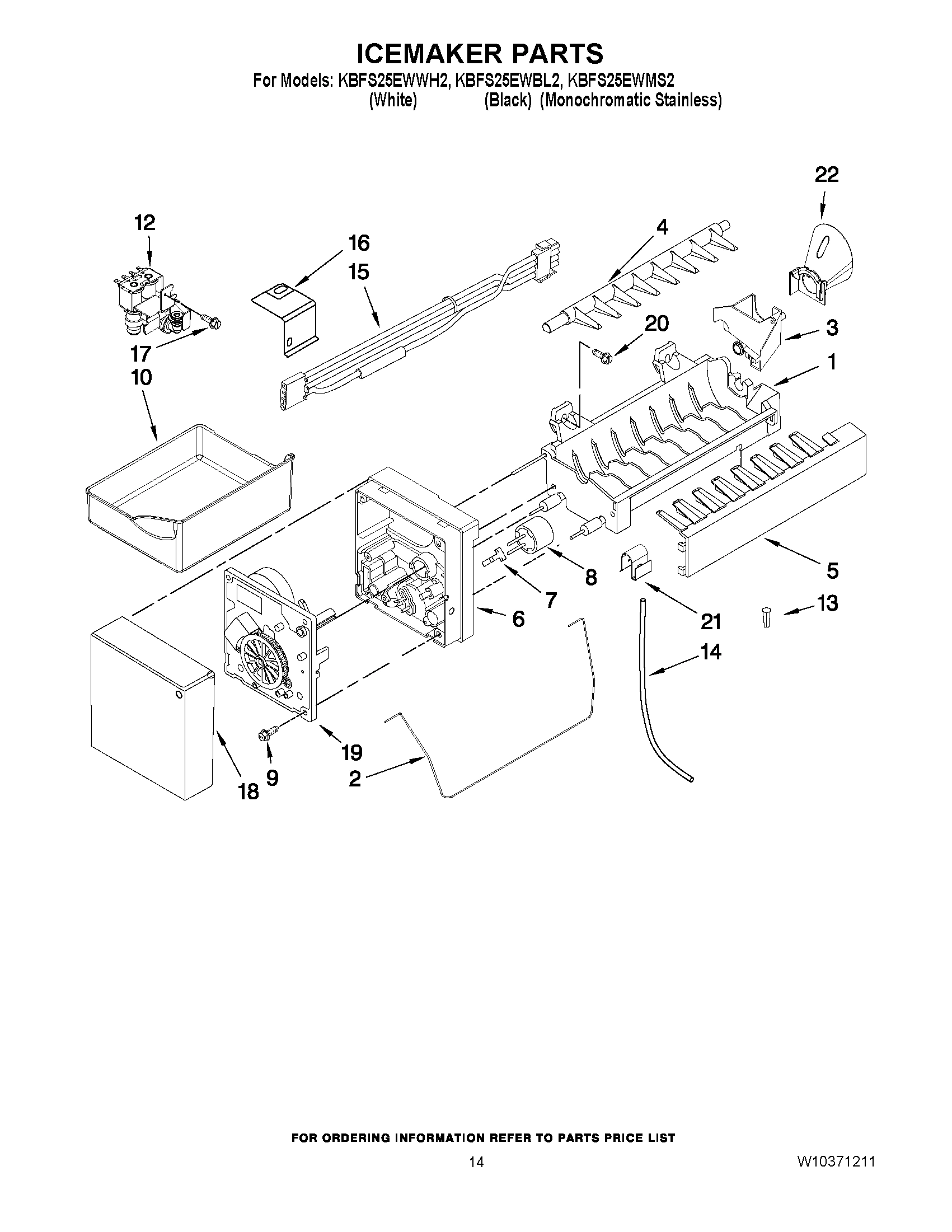

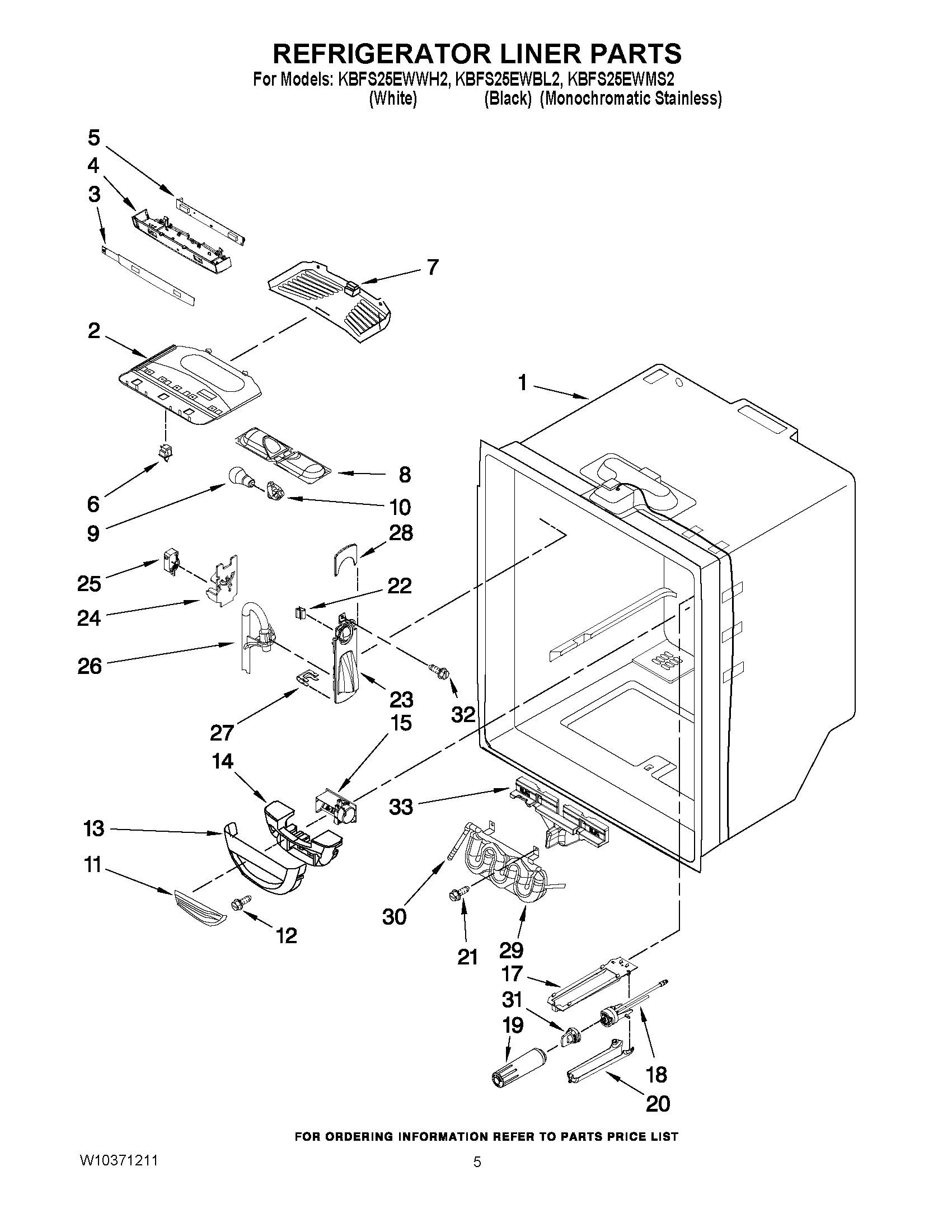

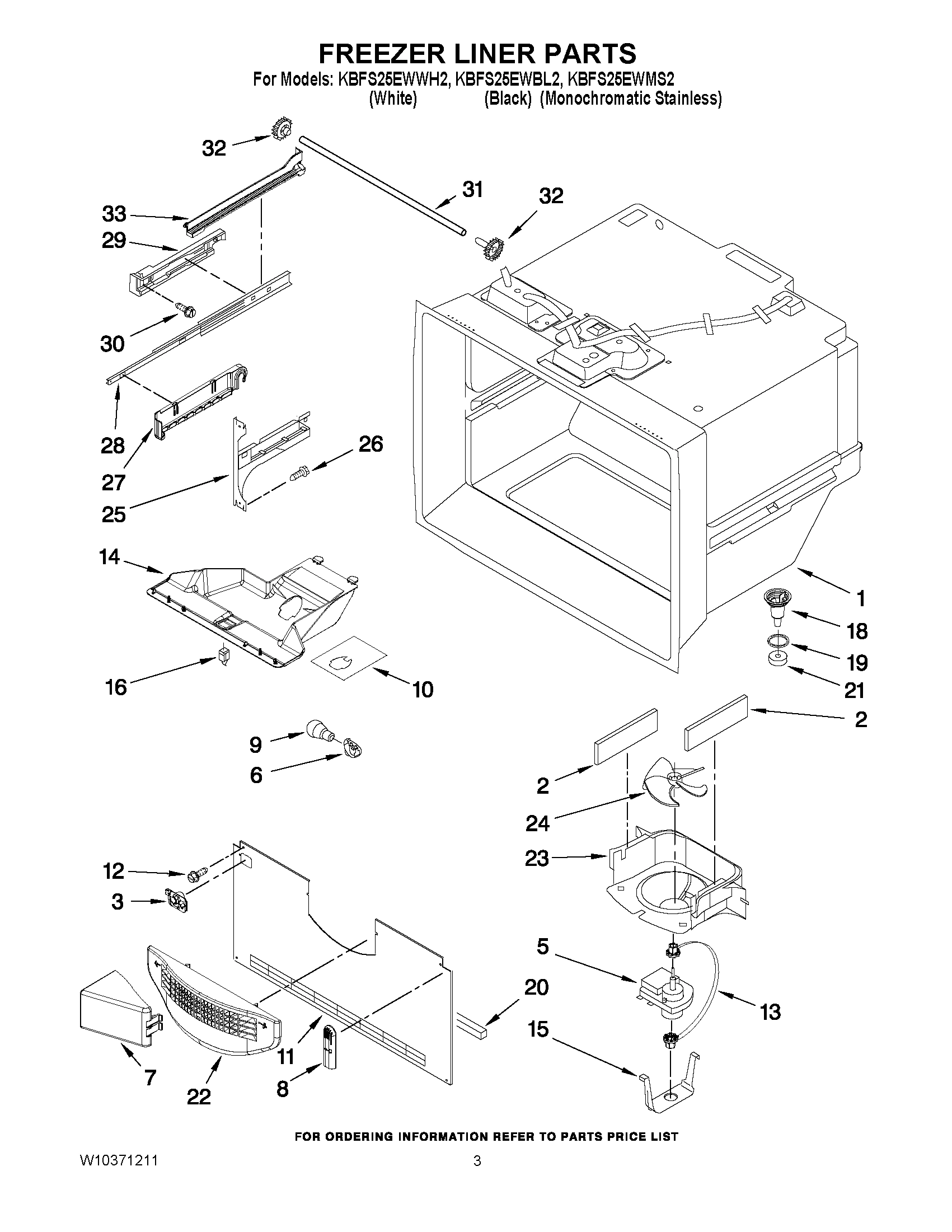

Model Whirlpool KBFS25EWMS2 REFRIGERATOR – Common Parts &amp; Diagrams

1

W11033333 Whirlpool Glass Shelf Backorder WPL W11033333 $154.65

1

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $146.27

1

Owners Manual WPL W10187309 Contact Us For Availability

1

ENERGY GUIDE WPL W10273820 Contact Us For Availability

1

TECH SHEET WPL W10308614 Contact Us For Availability

2

W11176463 Whirlpool Refrigerator Water Tube In Stock WPL W11176463 $73.97

2

W11285509 Whirlpool Refrigerator Shut-Off Arm Backorder WPL W11285509 $57.33

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $68.22

3

W10122561 Whirlpool Refrigerator Cup Fill In Stock WPL W10122561 $17.79

3

W10149389 Whirlpool Refrigerator Handle Backorder WPL W10149389 $58.43

3

WP67003405 Whirlpool Pivot Block In Stock WPL WP67003405 $4.82

3

WPW10317125 Whirlpool Refrigerator Overlay Backorder WPL WPW10317125 $172.64

4

B5759655 Whirlpool Refrigerator Gasket In Stock WPL B5759655 $8.23

4

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

5

67005958 Whirlpool Refrigerator Top Hinge Cov In Stock WPL 67005958 $13.53

5

W11024089 Whirlpool Refrigerator Evaporator F In Stock WPL W11024089 $66.51

5

WP12227305WD Whirlpool Drawer Support Backorder WPL WP12227305WD $67.67

5

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $55.70

5

WP67005956 Whirlpool Refrigerator Cover Backorder WPL WP67005956 $13.55

5

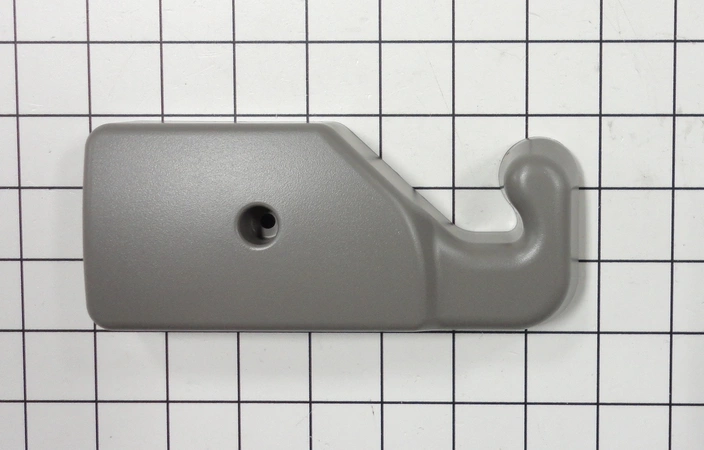

WPW10191117 Whirlpool Refrigerator Cover Backorder WPL WPW10191117 $13.73

5

WPW10319823-includeCORE Whirlpool WPW10319823 Backorder WPL WPW10319823-includeCORE $254.14

6

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $68.41

6

WPW10233569 Whirlpool Refrigerator Tube Backorder WPL WPW10233569 $82.29

6

CABINET (NOT A SERVICEABLE PART) WPL NP Contact Us For Availability

7

W10157765 Whirlpool Refrigerator Deflector Backorder WPL W10157765 $58.43

7

W10171558 Whirlpool Refrigerator Divider Backorder WPL W10171558 $27.13

7

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $6.88

7

SCREW, MOUNT WPL W10290759 Contact Us For Availability

8

W10241046 Whirlpool Refrigerator Divider Backorder WPL W10241046 $17.48

8

W11368721 Whirlpool Refrigerator French Door In Stock WPL W11368721 $188.23

8

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $71.32

8

WP98165 Whirlpool Screw In Stock WPL WP98165 $4.82

9

W10829281 Whirlpool Refrigerator Screw In Stock WPL W10829281 $7.98

9

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.82

9

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $4.82

12656202 Whirlpool Refrigerator Housing Backorder WPL 12656202 $96.92

W10825088 Whirlpool Refrigerator Defrost Heat In Stock WPL W10825088 $109.20

W11469652 Whirlpool Refrigerator Shield Backorder WPL W11469652 $14.02

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $28.86

WPW10171529 Whirlpool Refrigerator Ice Pan In Stock WPL WPW10171529 $114.81

11

W11661170 Whirlpool Clip Backorder WPL W11661170 $7.27

11

W11727809 Whirlpool Evaporator Cover Backorder WPL W11727809 $54.77

11

WP67006380 Whirlpool Screw Backorder WPL WP67006380 $4.82

12

WP12544124 Whirlpool Refrigerator Valve In Stock WPL WP12544124 $185.10

12

WPW10194431 Whirlpool Start Device In Stock WPL WPW10194431 $112.29

12

BUCKET, GALLON WPL W10289496 Contact Us For Availability

W10337647 Whirlpool Refrigerator Cover Backorder WPL W10337647 $14.03

W11690160 Whirlpool Grommet Backorder WPL W11690160 $4.67

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $71.86

WPA3223101 Whirlpool Refrigerator Insert PL Backorder WPL WPA3223101 $4.82

WPW10337634 Whirlpool Refrigerator Cover Backorder WPL WPW10337634 $14.03

WPW10337648 Whirlpool Refrigerator Cover Backorder WPL WPW10337648 $13.72

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $4.82

W11120581 Whirlpool Refrigerator Water Tube Backorder WPL W11120581 $77.68

Backorder WPL W11750607 $29.99

WP12722803AP Whirlpool Refrigerator Mullion R In Stock WPL WP12722803AP $197.32

WP12722803B Whirlpool Door Guide In Stock WPL WP12722803B $197.23

WP12722803W Whirlpool Door Support In Stock WPL WP12722803W $197.95

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $4.82

WPW10235370 Whirlpool Refrigerator Glide Backorder WPL WPW10235370 $195.91

WPW10277025 Whirlpool Refrigerator Housing Backorder WPL WPW10277025 $81.80

13000002WD Whirlpool Refrigerator Door Hinge Backorder WPL 13000002WD $102.89

W10917988 Whirlpool Refrigerator Door Hinge Backorder WPL W10917988 $54.08

W10918113 Whirlpool Refrigerator Door Hinge Backorder WPL W10918113 $57.65

W10918164 Whirlpool Refrigerator Door Hinge Backorder WPL W10918164 $54.14

W10918168 Whirlpool Refrigerator Door Hinge Backorder WPL W10918168 $48.80

WPD7813010 Whirlpool Refrigerator Wire Harnes In Stock WPL WPD7813010 $52.84

WPW10594329 Whirlpool Control Damper In Stock WPL WPW10594329 $146.33

CLIP, EVAP. MOTOR WPL 13058002 Contact Us For Availability

W10874836 Whirlpool Endcap Assembly Left Hand In Stock WPL W10874836 $17.81

WP12028505AP Whirlpool Closing Cam In Stock WPL WP12028505AP $57.62

WP12777701 Whirlpool Refrigerator Filler Bloc Backorder WPL WP12777701 $6.20

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $63.44

12587703W Whirlpool Refrigerator Cover Backorder WPL 12587703W $14.02

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $43.50

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $14.02

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $4.82

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

18

WP12566607ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566607ED $56.62

18

WP12642303WD Whirlpool Refrigerator Drawer Su Backorder WPL WP12642303WD $68.00

18

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

19

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $116.15

19

WPW10515762 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515762 $70.05

19

WPW10515763 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515763 $70.80

67006564 Whirlpool Refrigerator Screw Backorder WPL 67006564 $4.82

W11159728 Whirlpool Refrigerator Gasket In Stock WPL W11159728 $16.73

W11547653 Whirlpool Refrigerator Drip Tray Backorder WPL W11547653 $33.38

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $4.82

WPW10329866 Whirlpool Frame In Stock WPL WPW10329866 $181.67

12999501 Whirlpool Refrigerator Hinge Shim Backorder WPL 12999501 $64.97

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

WPW10243391 Whirlpool Refrigerator Nameplate Backorder WPL WPW10243391 $39.67

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $50.14

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $47.62

12918001 Whirlpool Refrigerator Funnel Backorder WPL 12918001 $8.23

W10273463 Whirlpool Refrigerator Ladder Backorder WPL W10273463 $18.89

W11256565 Whirlpool Refrigerator Evaporator In Stock WPL W11256565 $215.59

WPW10534153 Whirlpool Refrigerator Black Kick In Stock WPL WPW10534153 $94.67

WPW10534154 Whirlpool Refrigerator Front Gril Backorder WPL WPW10534154 $94.05

WPW10534155 Whirlpool Refrigerator Gray Kickp In Stock WPL WPW10534155 $87.65

23

W11456069 Whirlpool Refrigerator Clamp In Stock WPL W11456069 $14.02

23

Dam (Left Side) WPL 12225602 Contact Us For Availability

23

FACADE, DISP. WPL 12706909SP Contact Us For Availability

24

12707303SP Whirlpool Refrigerator Plate Backorder WPL 12707303SP $52.38

24

W11613295 Whirlpool Condenser Motor In Stock WPL W11613295 $85.07

24

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $35.48

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $4.82

W10215666 Whirlpool Refrigerator Screw Backorder WPL W10215666 $5.85

W11673433 Whirlpool Clip Backorder WPL W11673433 $92.88

WPW10314515 Whirlpool Refrigerator Handle Backorder WPL WPW10314515 $162.24

26

12726003 Whirlpool Refrigerator Water Cover Backorder WPL 12726003 $12.01

W10208593 Whirlpool Refrigerator Valve Cover In Stock WPL W10208593 $9.90

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $22.43

WPW10280608 Whirlpool Refrigerator Bracket Backorder WPL WPW10280608 $56.63

WPW10280613 Whirlpool Refrigerator Bracket Backorder WPL WPW10280613 $56.63

28

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $127.64

28

WP7101P126-60 Whirlpool Screw Backorder WPL WP7101P126-60 $4.82

12831101 Whirlpool Refrigerator Tube Clamp Backorder WPL 12831101 $8.23

W11229977 Whirlpool Refrigerator Reservoir In Stock WPL W11229977 $108.01

WPW10284684 Whirlpool Refrigerator Bracket In Stock WPL WPW10284684 $24.26

WPW10284685 Whirlpool Refrigerator Bracket In Stock WPL WPW10284685 $24.42

30

WPW10211855 Whirlpool Refrigerator Back Cover Backorder WPL WPW10211855 $127.74

31

W11028221 Whirlpool Refrigerator Shaft In Stock WPL W11028221 $18.52

31

W11556315 Whirlpool Shroud In Stock WPL W11556315 $48.14

32

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $13.01

32

A3076901 Whirlpool Refrigerator Plug Backorder WPL A3076901 $5.83

32

Basket, Freezer (Lower) WPL W10150039 Contact Us For Availability

W10847995 Whirlpool Divider Assembly Backorder WPL W10847995 $57.02

W11714300 Whirlpool Insulation In Stock WPL W11714300 $34.01

INSULATION, SOUND WPL 12820505 Contact Us For Availability

LID, HV BOX WPL 12957702 Contact Us For Availability

34

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $4.82

34

GASKET, HV BOX WPL 12957801 Contact Us For Availability

35

WPM0104106 Whirlpool Refrigerator Clip Backorder WPL WPM0104106 $4.82

35

WPW10317076-includeCORE Whirlpool WPW10317076 Backorder WPL WPW10317076-includeCORE $299.39

36

W10619951 Whirlpool Drain Tube with Grommet In Stock WPL W10619951 $41.17

36

EXTENSION-BASEPAN WPL W10206338 Contact Us For Availability

37

W10206339 Whirlpool Fastener Backorder WPL W10206339 $7.09

37

W11173556 Whirlpool Refrigerator Shaft Backorder WPL W11173556 $17.99

37

WPM0114003 Whirlpool Microwave Speed Clip Cla Backorder WPL WPM0114003 $6.89

38

12961602 Whirlpool Refrigerator Wire Cover Backorder WPL 12961602 $75.11

38

W10348260 Whirlpool Refrigerator Bracket Backorder WPL W10348260 $56.53

39

W10348259 Whirlpool Refrigerator Bracket Asse Backorder WPL W10348259 $56.54

39

W11686675 Whirlpool Screw Backorder WPL W11686675 $8.89

40

WP13062602 Whirlpool Refrigerator Support Backorder WPL WP13062602 $55.26

44

WPW10326469 Whirlpool Drawer Slide Rail In Stock WPL WPW10326469 $17.76

100

D7824706Q Whirlpool Refrigerator Ice Maker As In Stock WPL D7824706Q $121.75

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $59.84

350930 Whirlpool White Spray Paint In Stock WPL 350930 $20.46

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $43.04

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $9.44

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $14.16

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $58.05

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $80.50

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $44.05

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $67.21

WPW10224292 Whirlpool Refrigerator Wire Harne In Stock WPL WPW10224292 $88.98

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
