Model Maytag JFC2089HPF3 REFRIGERATOR – Common Parts & Diagrams

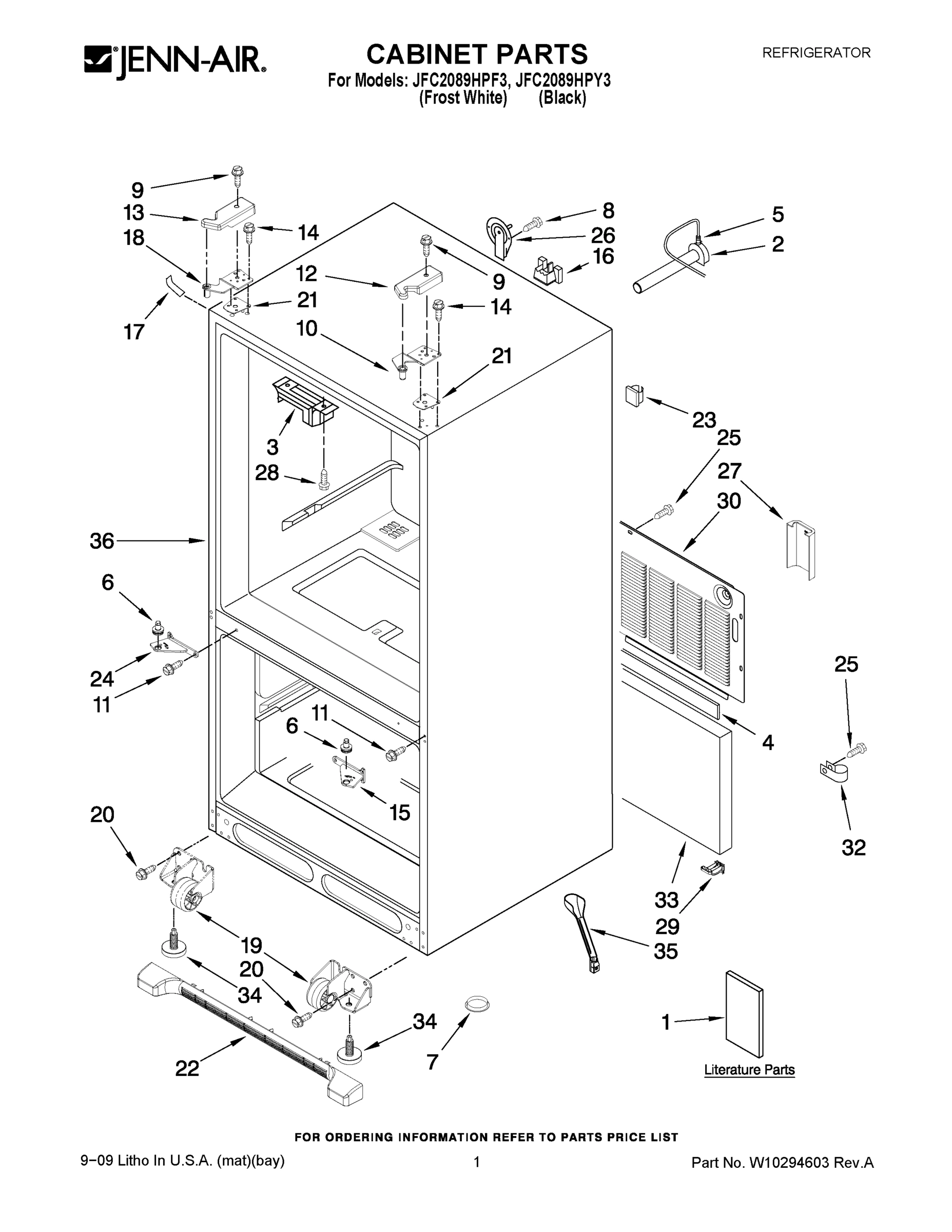

01 - CABINET PARTS

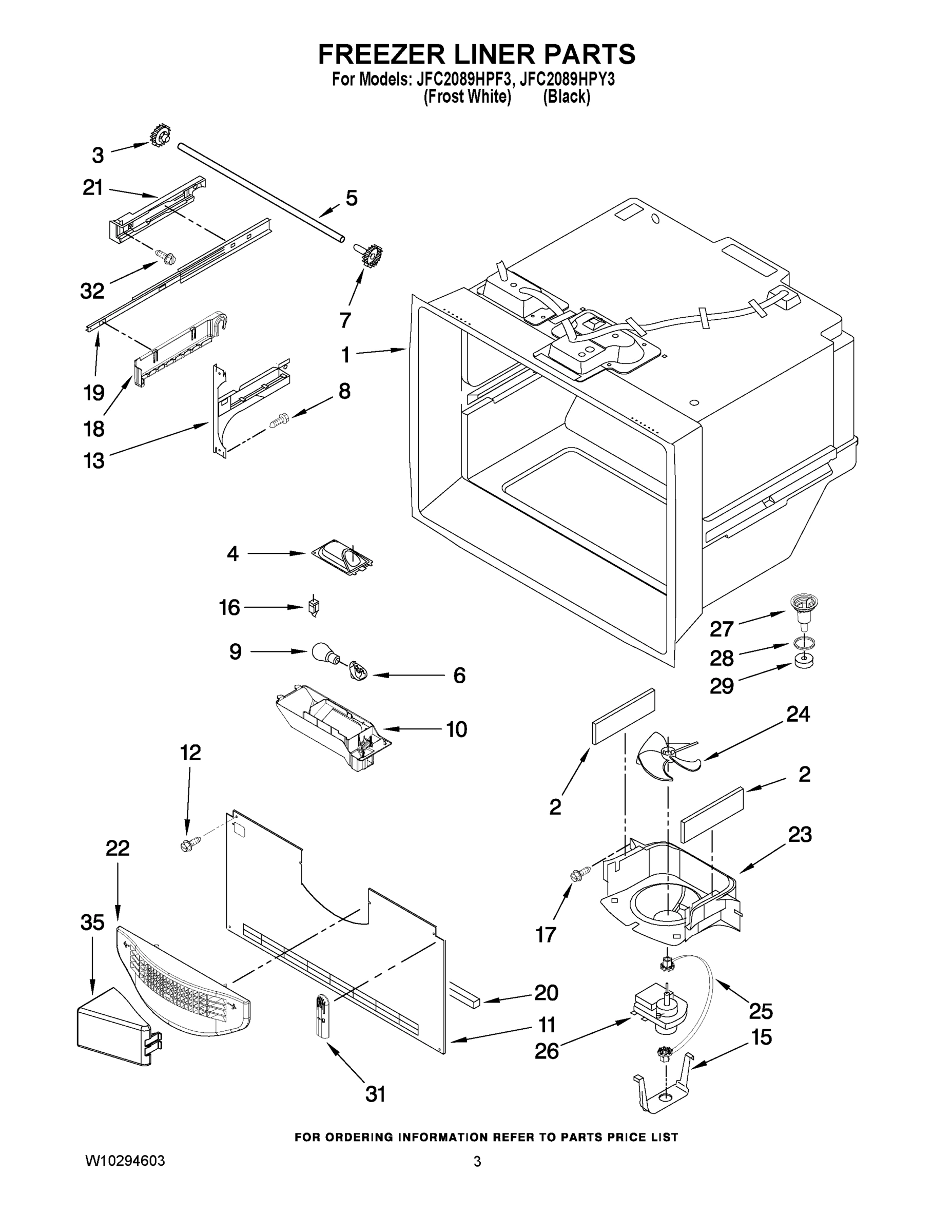

02 - FREEZER LINER PARTS

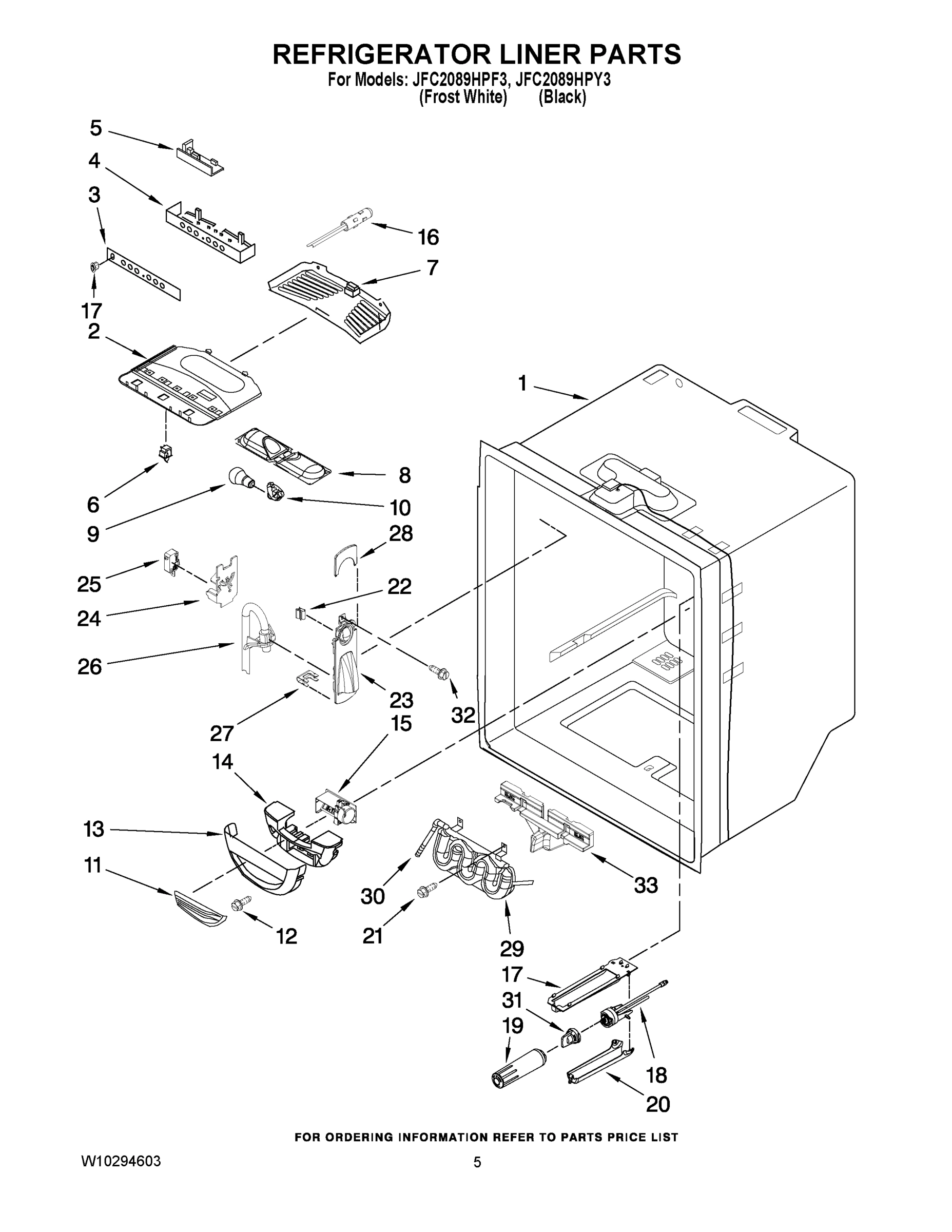

03 - REFRIGERATOR LINER PARTS

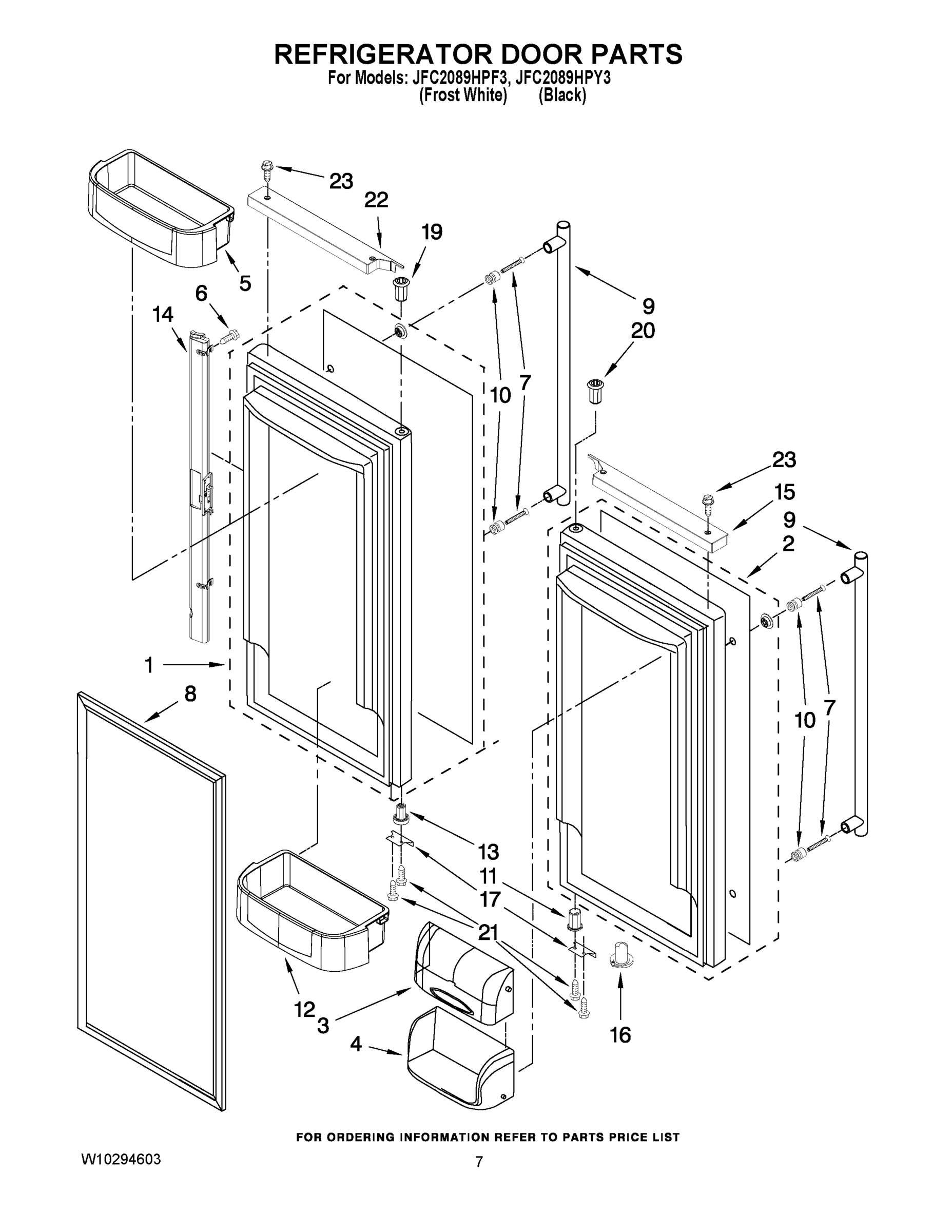

04 - REFRIGERATOR DOOR PARTS

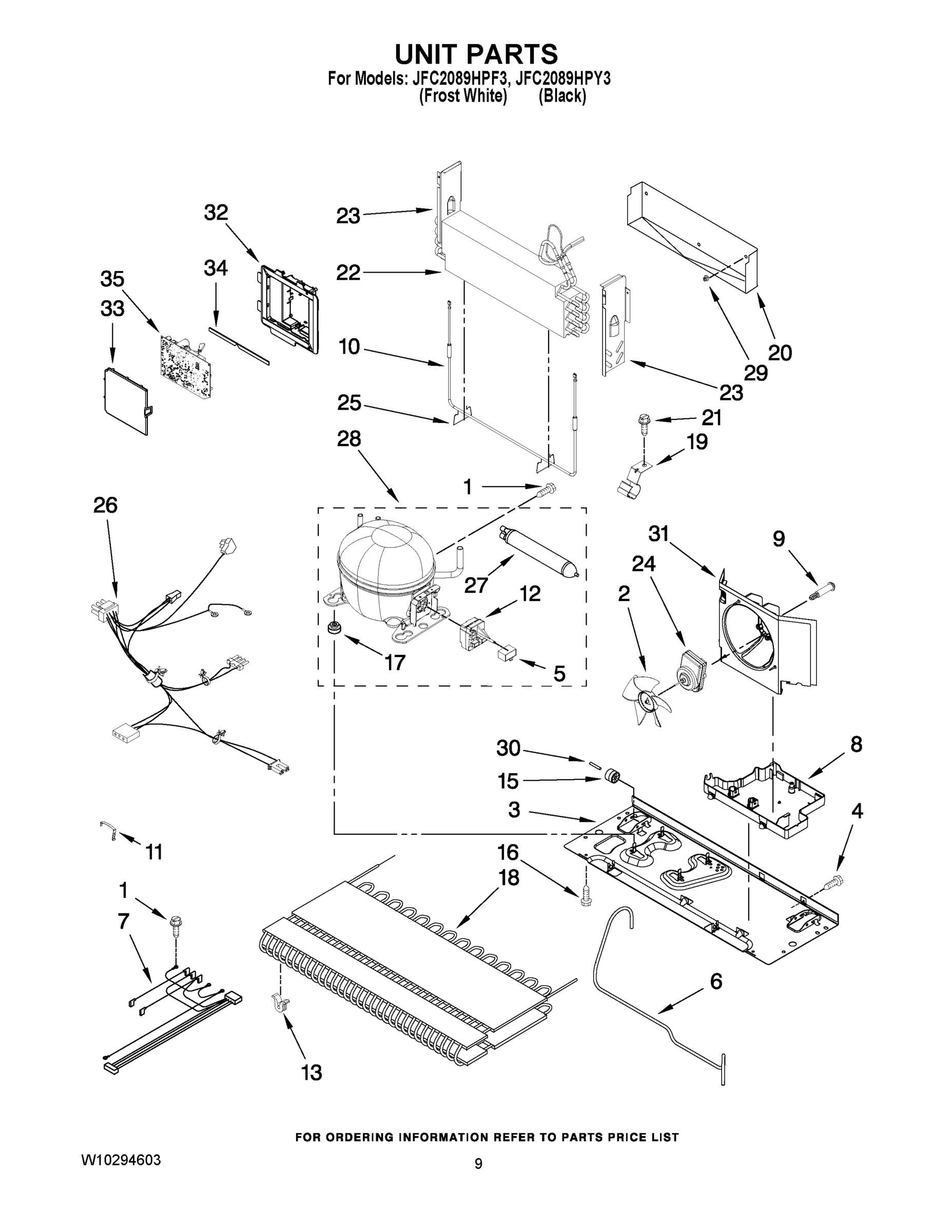

05 - UNIT PARTS

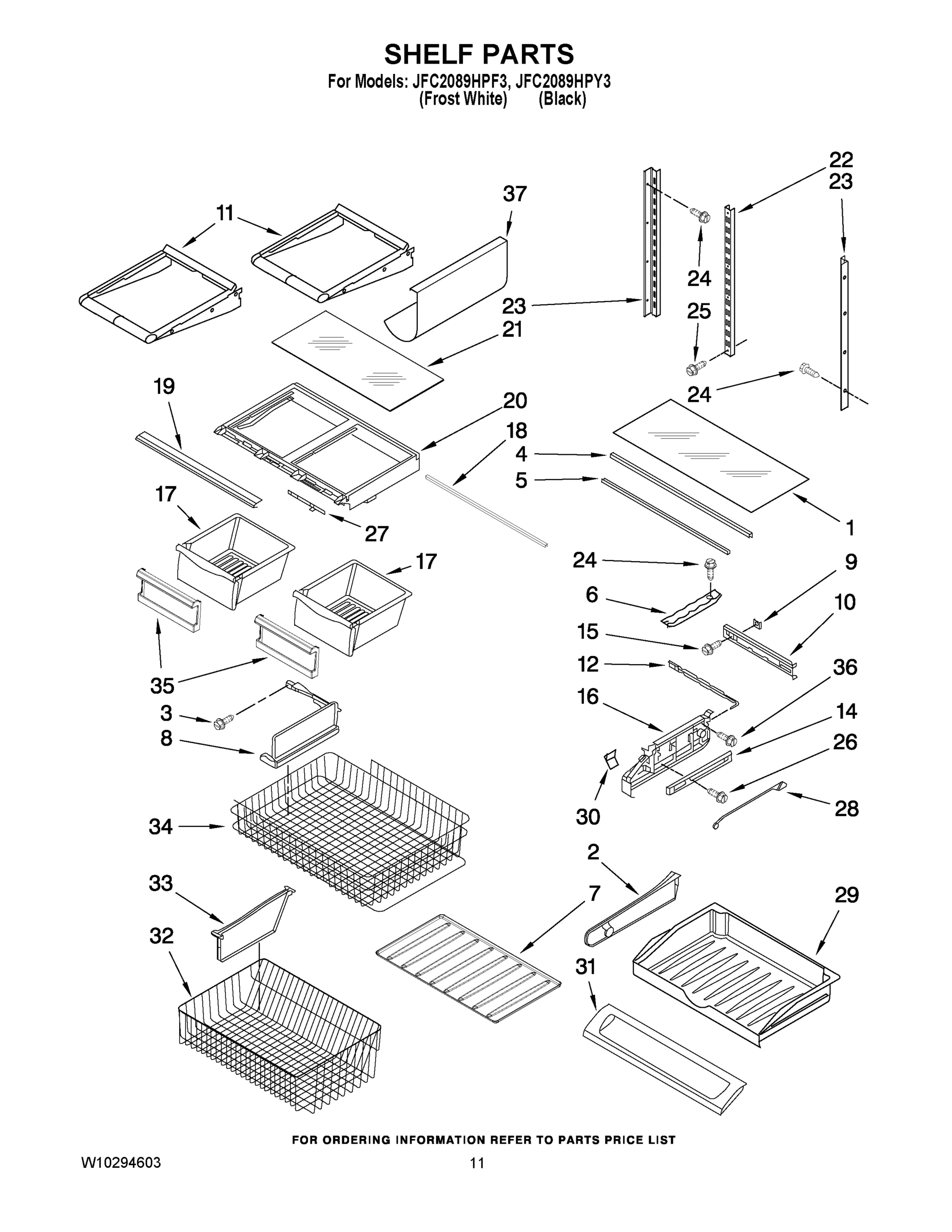

06 - SHELF PARTS

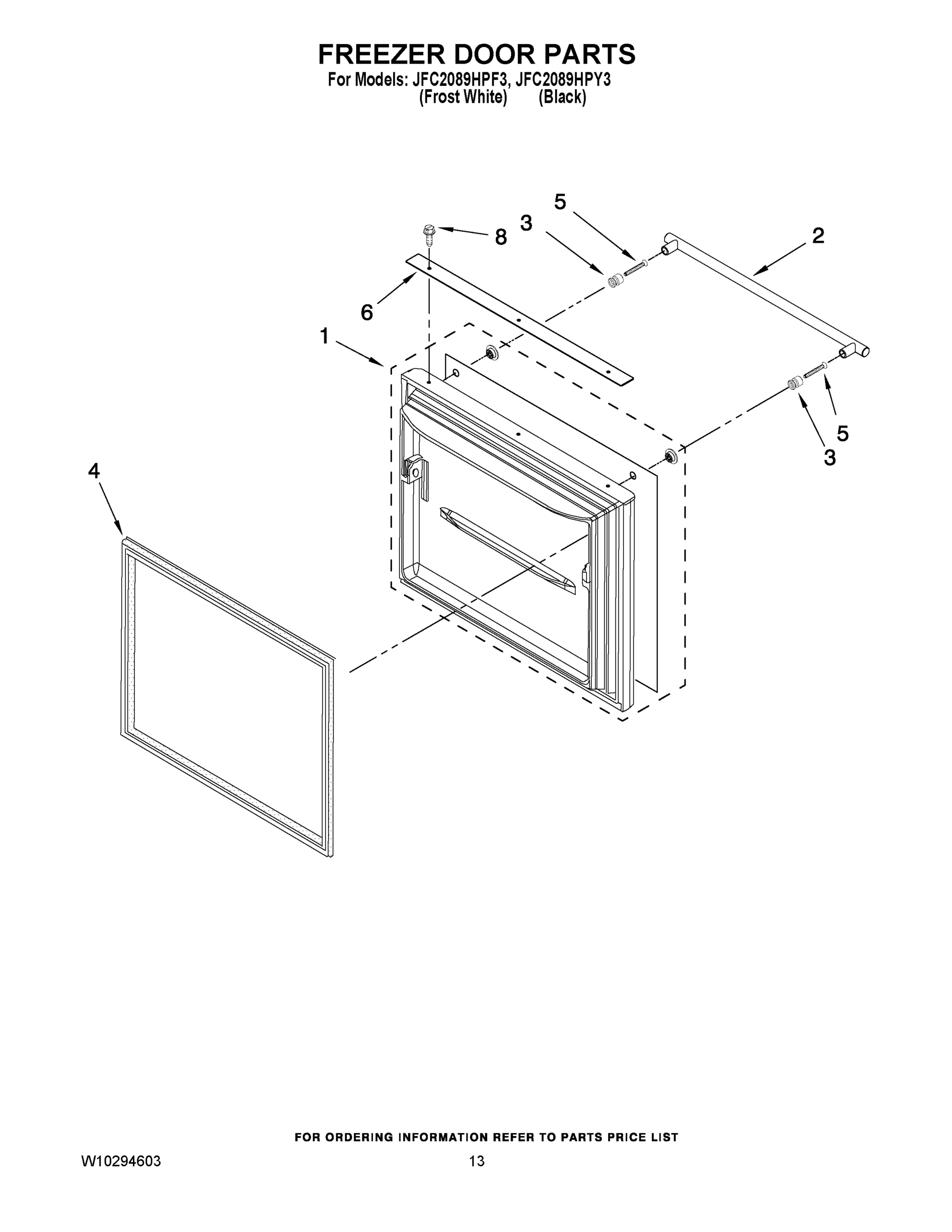

07 - FREEZER DOOR PARTS

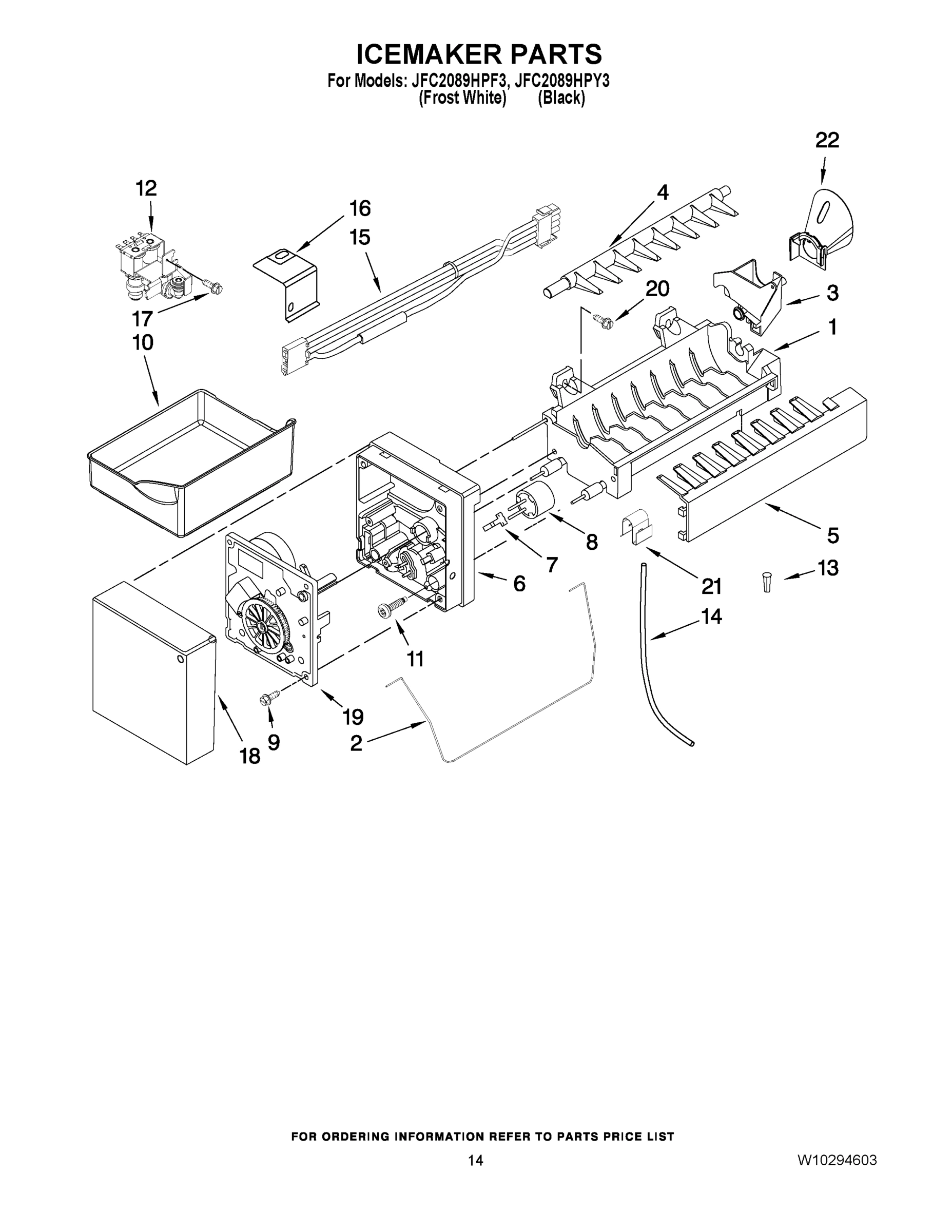

08 - ICEMAKER PARTS
09 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JFC2089HPF3 REFRIGERATOR
1
MAY 12894208F MAY 12894208F Contact Us For Availability
1
MAY 12894208YQ MAY 12894208YQ Contact Us For Availability
1
MAY 12992301 MAY 12992301 Contact Us For Availability
1
MAY 12894212FQ MAY 12894212FQ Contact Us For Availability
1
MAY 12894212YQ MAY 12894212YQ Contact Us For Availability
1
MOLD & HEATER ASSEMBLY (ALSO ORDER 542638 GRE MAY W10122527 Contact Us For Availability
2
MAY A3189392 MAY A3189392 Contact Us For Availability
2
MODULE, LIGHT MAY 12806302 Contact Us For Availability
2
MAY 12894207F MAY 12894207F Contact Us For Availability
2
MAY 12894207YQ MAY 12894207YQ Contact Us For Availability
2
MAY 12825803 MAY 12825803 Contact Us For Availability
2
DIVIDER, PANTRY DRAWER MAY 12709301 Contact Us For Availability
2
HANDLE (STAINLESS) MAY 12850918 Contact Us For Availability
2
ARM, SHUTOFF MAY 12868001 Contact Us For Availability
3
MAY W10269084 MAY W10269084 Contact Us For Availability
3
MAY 12804701SP MAY 12804701SP Contact Us For Availability
3
MAY 12945201 MAY 12945201 Contact Us For Availability
3
MAY W10210985 MAY W10210985 Contact Us For Availability
3
MAY 12990601 MAY 12990601 Contact Us For Availability
3
Cup, Fill MAY 628515 Contact Us For Availability
4
MAY 12990511 MAY 12990511 Contact Us For Availability
4
MAY 12804901 MAY 12804901 Contact Us For Availability
4
HOUSING, CONTROL MAY W10203324 Contact Us For Availability
4
MAY 12369502SP MAY 12369502SP Contact Us For Availability
4
MAY 12655902SP MAY 12655902SP Contact Us For Availability
4
MAY W10164040 MAY W10164040 Contact Us For Availability
4
MAY W10164041 MAY W10164041 Contact Us For Availability
4
MAY 627843 MAY 627843 Contact Us For Availability
5
SHAFT MAY 12812903WD Contact Us For Availability
5
MAY W10217475 MAY W10217475 Contact Us For Availability
5
BIN, SHELF (3) (MEDIUM) MAY 12801904 Contact Us For Availability
5
MAY 12991202 MAY 12991202 Contact Us For Availability
5
MAY 2264017 MAY 2264017 Contact Us For Availability
5
MAY 12227305WD MAY 12227305WD Contact Us For Availability
5
MAY 2182124 MAY 2182124 Contact Us For Availability
6
SWITCH, LIGHT (2) MAY C3680310V Contact Us For Availability
6
MAY 12990204 MAY 12990204 Contact Us For Availability
6
MAY W10233569 MAY W10233569 Contact Us For Availability
6
TRACK, PANTRY MAY 12531901 Contact Us For Availability
6
MAY 12881202B MAY 12881202B Contact Us For Availability
6
MAY 12881202W MAY 12881202W Contact Us For Availability
6
MAY 2194712 MAY 2194712 Contact Us For Availability
7
MAY 12806501 MAY 12806501 Contact Us For Availability
7
MAY W10280418 MAY W10280418 Contact Us For Availability
7
MAY 12727303 MAY 12727303 Contact Us For Availability
7
MAY 2315522 MAY 2315522 Contact Us For Availability
8
Screw (8) MAY 12990521 Contact Us For Availability
8
MAY 12806601V MAY 12806601V Contact Us For Availability
8
Gasket, Door (2) (White) MAY W10163894 Contact Us For Availability
8
MAY W10163895 MAY W10163895 Contact Us For Availability
8
MAY W10215085 MAY W10215085 Contact Us For Availability
8
Divider, Upper Basket MAY 12693802 Contact Us For Availability
8
SCREW (3) MAY 12990901 Contact Us For Availability
8
Thermostat (Also Order 542369 Cement) MAY 628397 Contact Us For Availability
9
MAY 12992602 MAY 12992602 Contact Us For Availability
9
Bulb, Light (2) MAY W10194422V Contact Us For Availability
9
DOOR HANDLE (STAINLESS) MAY 12850919 Contact Us For Availability
9
MAY W10216919 MAY W10216919 Contact Us For Availability
9
MAY 12656901 MAY 12656901 Contact Us For Availability
9
Screw (3) MAY 489464 Contact Us For Availability
10
Hinge, Top Right MAY 12626910ED Contact Us For Availability
10
MAY 12570701V MAY 12570701V Contact Us For Availability
10
MAY 12476401V MAY 12476401V Contact Us For Availability
10
MAY 12729129 MAY 12729129 Contact Us For Availability
10
MAY 12656202 MAY 12656202 Contact Us For Availability
10
MAY 12695001 MAY 12695001 Contact Us For Availability
11
SCREW (6) MAY 12992201 Contact Us For Availability
11
MAY 12226112 MAY 12226112 Contact Us For Availability
11
MAY 12806801 MAY 12806801 Contact Us For Availability
11
BUSHING, DOOR (BOTTOM RIGHT) (BLACK) MAY 12028601B Contact Us For Availability
11
BUSHING, DOOR BOTTOM RIGHT (WHITE) MAY 12028601W Contact Us For Availability
11
MAY W10174384 MAY W10174384 Contact Us For Availability
11
SHELF, GLIDE (4) MAY 12463911 Contact Us For Availability
11
Screw (2) MAY 8533917 Contact Us For Availability
12
Cover, Right Hinge (Black) MAY 12629801B Contact Us For Availability
12
Cover, Right Hinge (White) MAY 12629801W Contact Us For Availability
12
MAY 12990604 MAY 12990604 Contact Us For Availability
12
BIN, SHELF (2) (GALLON) MAY 12840002 Contact Us For Availability
12
Start Device MAY W10194431 Contact Us For Availability
12
SLIDE, TEMPERATURE MAY 12655402 Contact Us For Availability
12
VALVE, WATER INLET MAY 12544124 Contact Us For Availability
13
MAY W10217484 MAY W10217484 Contact Us For Availability
13
MAY W10217485 MAY W10217485 Contact Us For Availability
13
MAY W10119064 MAY W10119064 Contact Us For Availability
13
MAY W10119295 MAY W10119295 Contact Us For Availability
13
MAY 12806701 MAY 12806701 Contact Us For Availability
13
BUSHING, DOOR (BOTTOM LEFT) (BLACK) MAY 12699301B Contact Us For Availability
13
BUSHING, DOOR BOTTOM LEFT (WHITE) MAY 12699301W Contact Us For Availability
13
GROMMET, COND (4) MAY W10137529 Contact Us For Availability
13
MAY A3223101SP MAY A3223101SP Contact Us For Availability
14
SCREW (6) MAY 12992403 Contact Us For Availability
14
INSULATION MAY 13012402 Contact Us For Availability
14
MAY 12722803B MAY 12722803B Contact Us For Availability
14
MAY 12722803W MAY 12722803W Contact Us For Availability
14
MAY 13058101V MAY 13058101V Contact Us For Availability
14
TUBING, PLASTIC MAY B5705333SP Contact Us For Availability
15
CLIP, EVAP. MOTOR MAY 13058002 Contact Us For Availability
15
Control, Damper MAY W10127429 Contact Us For Availability
15
MAY 12881001B MAY 12881001B Contact Us For Availability
15
MAY 12881001W MAY 12881001W Contact Us For Availability
15
Roller (2) MAY 12477102 Contact Us For Availability
15
MAY D7813011 MAY D7813011 Contact Us For Availability
16
MAY 12777701 MAY 12777701 Contact Us For Availability
16
MAY 12466105 MAY 12466105 Contact Us For Availability
16
MAY 12028505B MAY 12028505B Contact Us For Availability
16
MAY 12028505W MAY 12028505W Contact Us For Availability
16
MAY 12992101 MAY 12992101 Contact Us For Availability
16
MAY 12656020 MAY 12656020 Contact Us For Availability
16
TRACK, PANTRY (LEFT) MAY 12656105 Contact Us For Availability
16
MAY 2256086 MAY 2256086 Contact Us For Availability
17
COVER, CORNER (2) (BLACK) MAY 12587703B Contact Us For Availability
17
Cover, Corner (2) (White) MAY 12587703W Contact Us For Availability
17
PLATE MAY 12704801 Contact Us For Availability
17
MAY 10447111 MAY 10447111 Contact Us For Availability
17
Stop, Door (Black) MAY 10447112 Contact Us For Availability
17
Grommet (4) MAY 10835903SP Contact Us For Availability
17
Pan, Crisper (2) MAY 12531105SP Contact Us For Availability
17
MAY 12991604 MAY 12991604 Contact Us For Availability
18
Hinge, Top Left MAY 12626911ED Contact Us For Availability
18
CRADLE, BASKET (LEFT) MAY W10281115 Contact Us For Availability
18
CRADLE, BASKET (RIGHT) MAY W10281116 Contact Us For Availability
18
MAY 12590620 MAY 12590620 Contact Us For Availability
18
MAY W10135026 MAY W10135026 Contact Us For Availability
18
Brace, Crisper MAY 12227304WD Contact Us For Availability
18
Cover MAY 12582501 Contact Us For Availability
19
ROLLER ASSY.(FRONT) (RIGHT) MAY W10130459 Contact Us For Availability
19
ROLLER ASSY.(FRONT) (LEFT) MAY W10130460 Contact Us For Availability
19
Slide, Drawer (2) MAY 13055901 Contact Us For Availability
19
MAY 12395501B MAY 12395501B Contact Us For Availability
19
BUSHING, DOOR UPPER LEFT (WHITE) MAY 12395501W Contact Us For Availability
19
MAY 10547003 MAY 10547003 Contact Us For Availability
19
MAY W10231478 MAY W10231478 Contact Us For Availability
19
MAY W10223929 MAY W10223929 Contact Us For Availability
20
Screw (8) MAY 12991302 Contact Us For Availability
20
GASKET, BOTTOM MAY A3189396 Contact Us For Availability
20
BUSHING, DOOR UPPER RIGHT (BLACK) MAY 10961006B Contact Us For Availability
20
BUSHING, DOOR UPPER RIGHT (WHITE) MAY 10961006W Contact Us For Availability
20
MAY 12225403WD MAY 12225403WD Contact Us For Availability
20
MAY 12531202SP MAY 12531202SP Contact Us For Availability
20
Screw (3) MAY 489276 Contact Us For Availability
21
MAY 12579702 MAY 12579702 Contact Us For Availability
21
MAY 12846605 MAY 12846605 Contact Us For Availability
21
MAY 12846606 MAY 12846606 Contact Us For Availability
21
MAY 12990701 MAY 12990701 Contact Us For Availability
21
Glass, Crisper Cover MAY 12204821 Contact Us For Availability
21
Clip MAY 628379 Contact Us For Availability
22
MAY W10244559 MAY W10244559 Contact Us For Availability
22
MAY W10244561 MAY W10244561 Contact Us For Availability
22
Grille, Fz Air MAY 13024803 Contact Us For Availability
22
MAY B8390302SP MAY B8390302SP Contact Us For Availability
22
MAY 12881002B MAY 12881002B Contact Us For Availability
22
MAY 12881002W MAY 12881002W Contact Us For Availability
22
MAY 12726403 MAY 12726403 Contact Us For Availability
22
MAY W10273463 MAY W10273463 Contact Us For Availability
22
MAY 12918001 MAY 12918001 Contact Us For Availability
23
SHROUD, EVAP.FAN MAY 13057901 Contact Us For Availability
23
MAY 12706909SP MAY 12706909SP Contact Us For Availability
23
MAY 12990509 MAY 12990509 Contact Us For Availability
23
DAM (LEFT SIDE) MAY 12225602 Contact Us For Availability
23
Dam (Right Side) MAY 12225702 Contact Us For Availability
23
MAY W10251971 MAY W10251971 Contact Us For Availability
24
HINGE, CENTER (LT) (BLACK) MAY 12692301ED Contact Us For Availability
24
HINGE, CENTER (LT) (WHITE) MAY 12692301WD Contact Us For Availability
24
Blade, Fan (Evaporator) MAY 2169142 Contact Us For Availability
24
MAY 12707303SP MAY 12707303SP Contact Us For Availability
24
Screw (6) MAY 12990513 Contact Us For Availability
24
MAY 12825101 MAY 12825101 Contact Us For Availability
25
MAY W10121318 MAY W10121318 Contact Us For Availability
25
MAY 12990515 MAY 12990515 Contact Us For Availability
26
Screw (4) MAY 12990504 Contact Us For Availability
26
MAY 12726003 MAY 12726003 Contact Us For Availability
26
MAY W10128551 MAY W10128551 Contact Us For Availability
26
MAY 12707206SP MAY 12707206SP Contact Us For Availability
26
MAY W10234025 MAY W10234025 Contact Us For Availability
27
GUARD-WATER VALVE MAY W10208593 Contact Us For Availability
27
MAY D7753903 MAY D7753903 Contact Us For Availability
27
MAY 12251001SP MAY 12251001SP Contact Us For Availability
27
Drier MAY W10143759 Contact Us For Availability
27
MAY 12530805SP MAY 12530805SP Contact Us For Availability
28
SCREW (2) MAY 12990303 Contact Us For Availability
28
MAY M0500703 MAY M0500703 Contact Us For Availability
28
FACADE, DISP (TOP) MAY 12707005 Contact Us For Availability
28
COMPRESSOR (INCLUDES ITEMS 11,12,17,27) MAY W10164016 Contact Us For Availability
28
ROD, TEMPERATURE CONTROL MAY 12655303 Contact Us For Availability
29
MAY 12831101 MAY 12831101 Contact Us For Availability
29
Gasket MAY B8381501 Contact Us For Availability
29
MAY 12706112 MAY 12706112 Contact Us For Availability
29
MAY 10623002 MAY 10623002 Contact Us For Availability
29
MAY 12655702 MAY 12655702 Contact Us For Availability
30
MAY W10211855 MAY W10211855 Contact Us For Availability
30
Axle, Roller (2) MAY 12477202 Contact Us For Availability
30
MAY 12655204V MAY 12655204V Contact Us For Availability
31
MAY 12815301 MAY 12815301 Contact Us For Availability
31
PLUG, BYPASS MAY 12664501SP Contact Us For Availability
31
SHROUD MAY W10189184 Contact Us For Availability
31
DOOR, PANTRY DRAWER MAY 12656813 Contact Us For Availability
32
Screw (6) MAY 12990501 Contact Us For Availability
32
MAY W10257665 MAY W10257665 Contact Us For Availability
32
MAY W10143564 MAY W10143564 Contact Us For Availability
33
Insulation, Sound MAY 12820505 Contact Us For Availability
33
Insulation, Water Tank MAY W10163893 Contact Us For Availability
33
LID, HV BOX MAY 12957702 Contact Us For Availability
33
MAY 12727202 MAY 12727202 Contact Us For Availability
34
Brake, Foot MAY W10141622 Contact Us For Availability
34
GASKET-HV BOX MAY 12957801 Contact Us For Availability
34
MAY W10143526 MAY W10143526 Contact Us For Availability
35
MAY W10210988 MAY W10210988 Contact Us For Availability
35
MAY W10157765 MAY W10157765 Contact Us For Availability
35
BOARD, CONTROL MAY W10205552 Contact Us For Availability
35
FRONT, CRISPER PAN MAY 12727402SP Contact Us For Availability
36
Screw (4) MAY 12990512 Contact Us For Availability
37
MAY 10448905 MAY 10448905 Contact Us For Availability
100
ICEMAKER ASSEMBLY MAY W10190978 Contact Us For Availability
NI
REFRIGERANT CHARGE (5.25 OZS. (R-134A)) MAY N/P Contact Us For Availability
NI
MAY W10235312 MAY W10235312 Contact Us For Availability
NI
HARNESS, CONTROL (REFRIGERATOR) MAY W10224292 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
Cleaner, Stnls Steel Magic MAY 20000008 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
MAY 606755 MAY 606755 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
NI
MAY 876029 MAY 876029 Contact Us For Availability
NI
MAY 876305 MAY 876305 Contact Us For Availability
NI
MAY 876370 MAY 876370 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
× ![]()
