Model Huebsch HE4030 Dryer – Common Parts & Diagrams

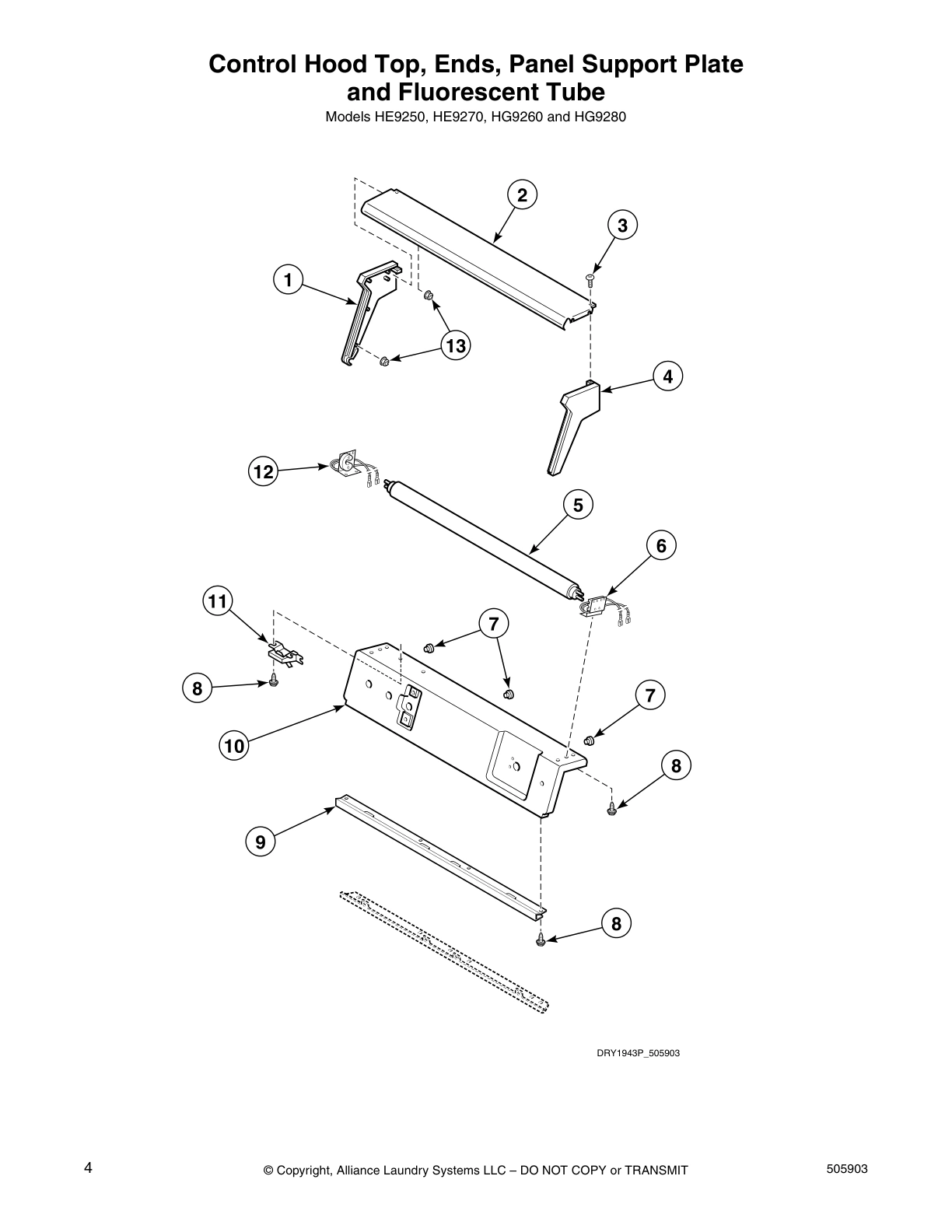

Control Hood Top, Ends, Panel Support Plate
and Fluorescent Tube

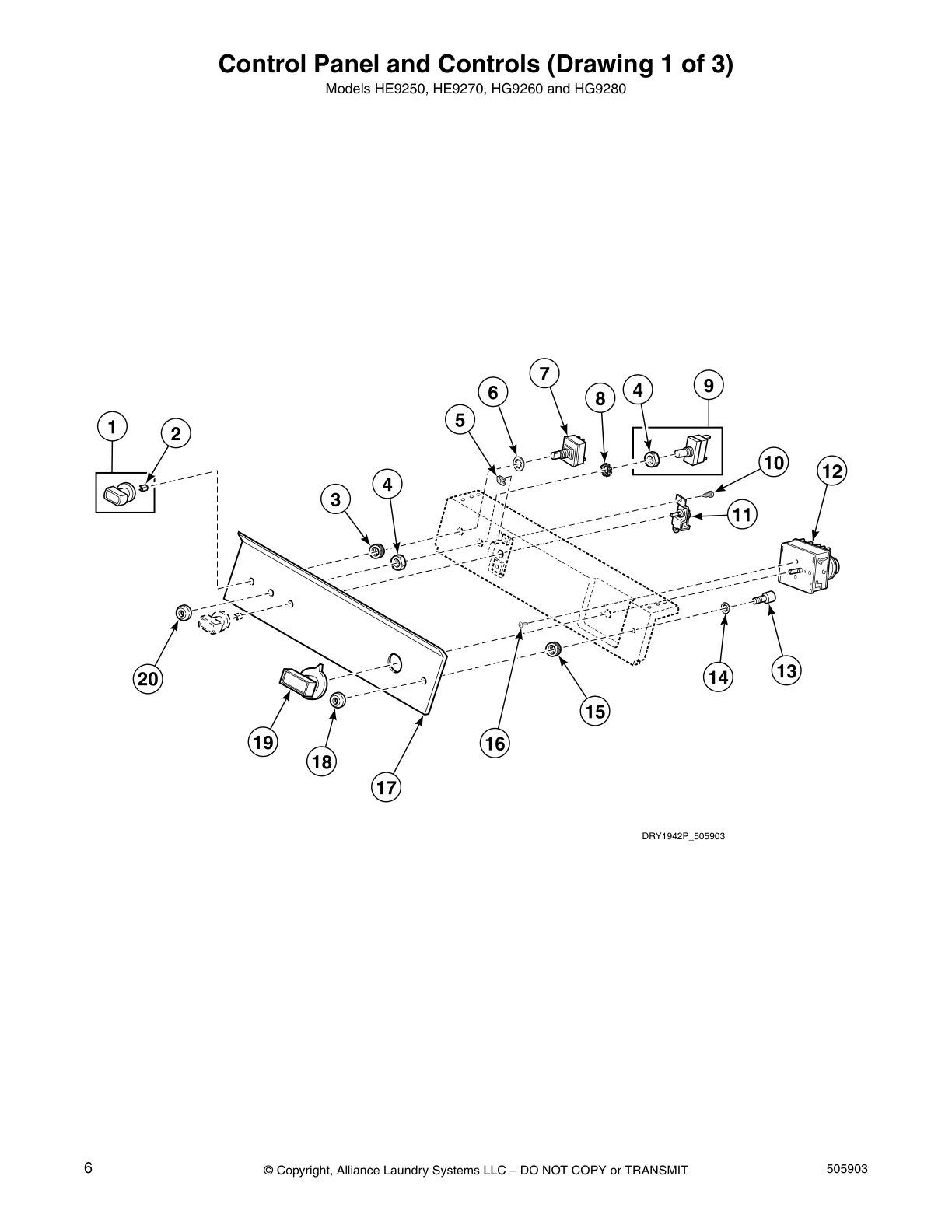

Control Panel and Controls (Drawing 1 of 3)

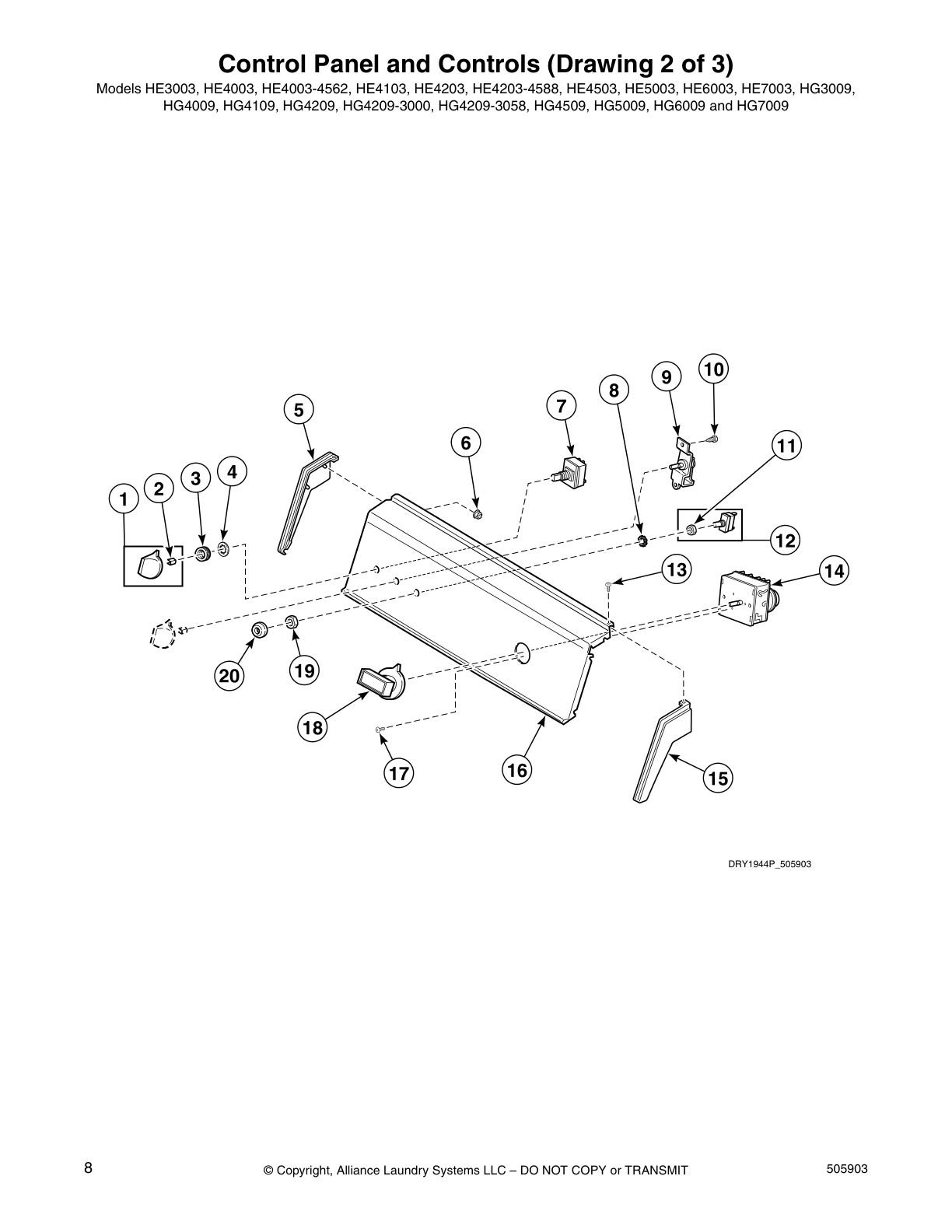

Control Panel and Controls (Drawing 2 of 3)

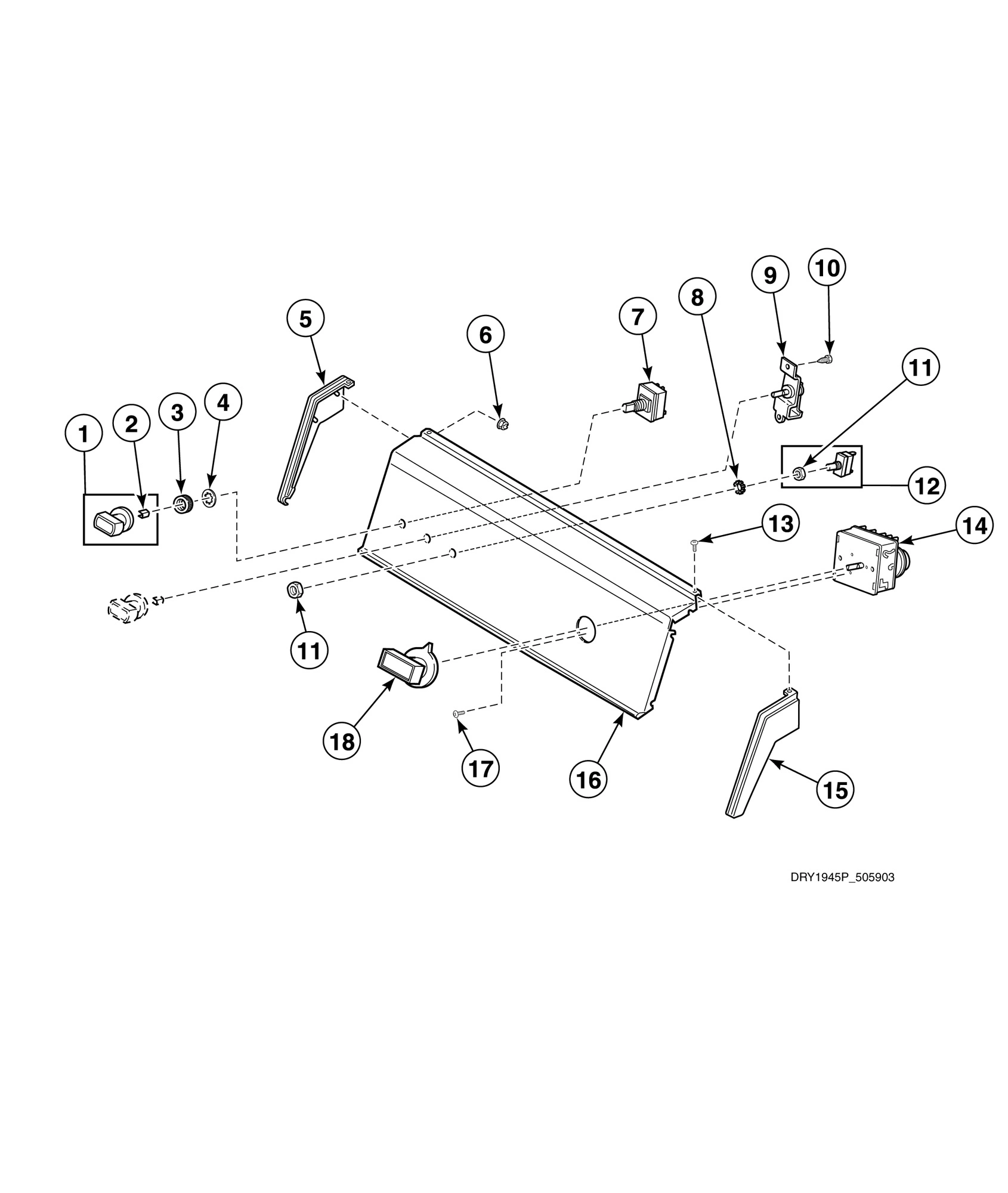

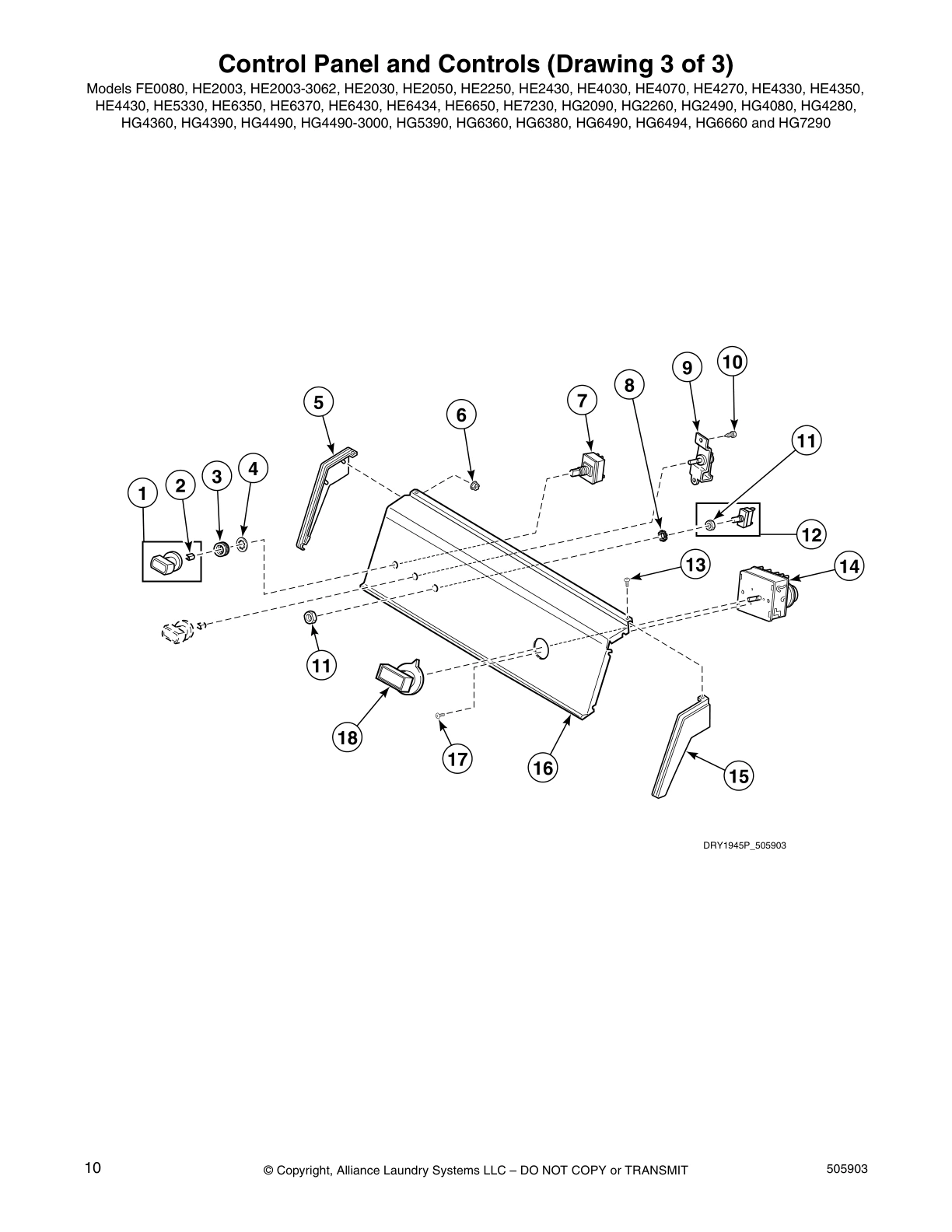

Control Panel and Controls (Drawing 3 of 3)

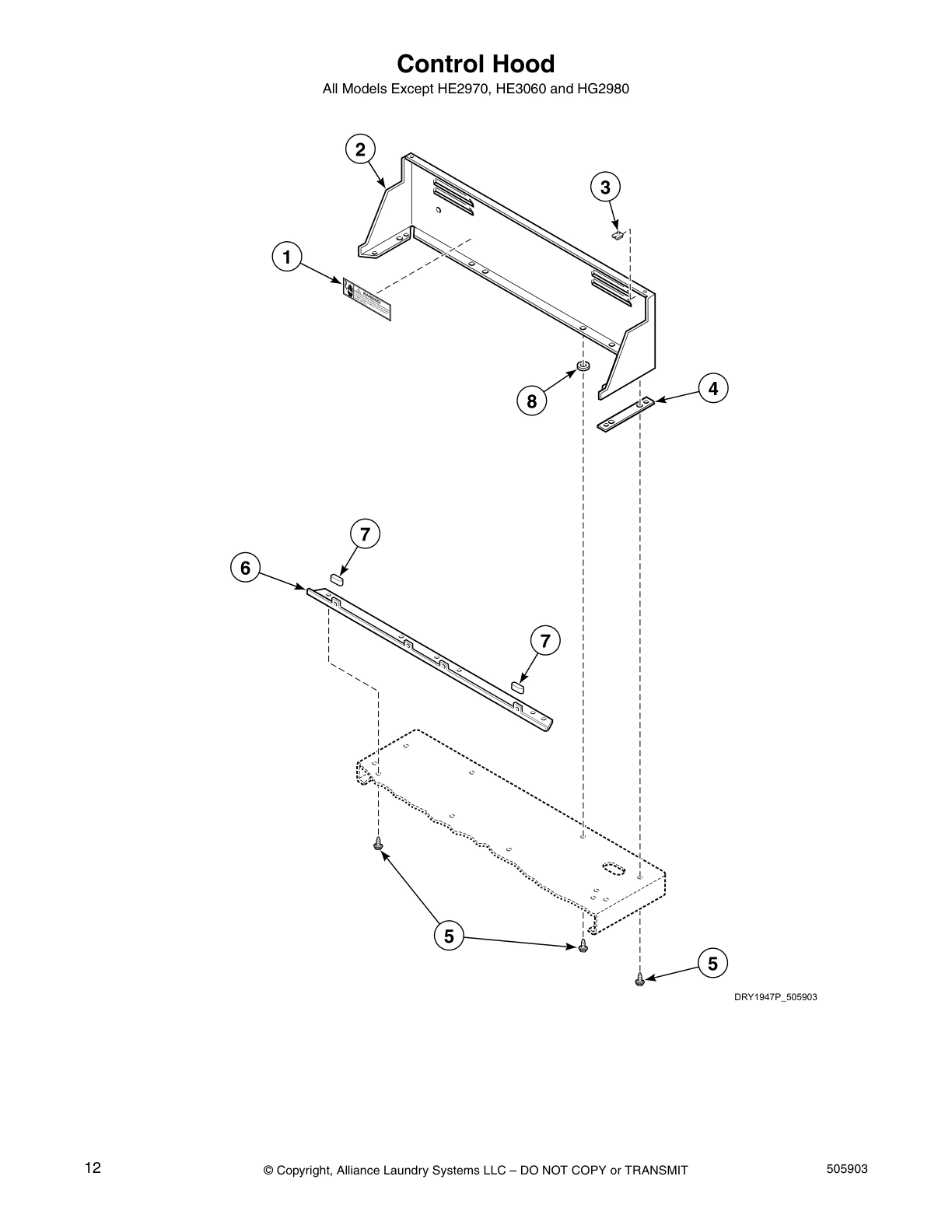

Control Hood

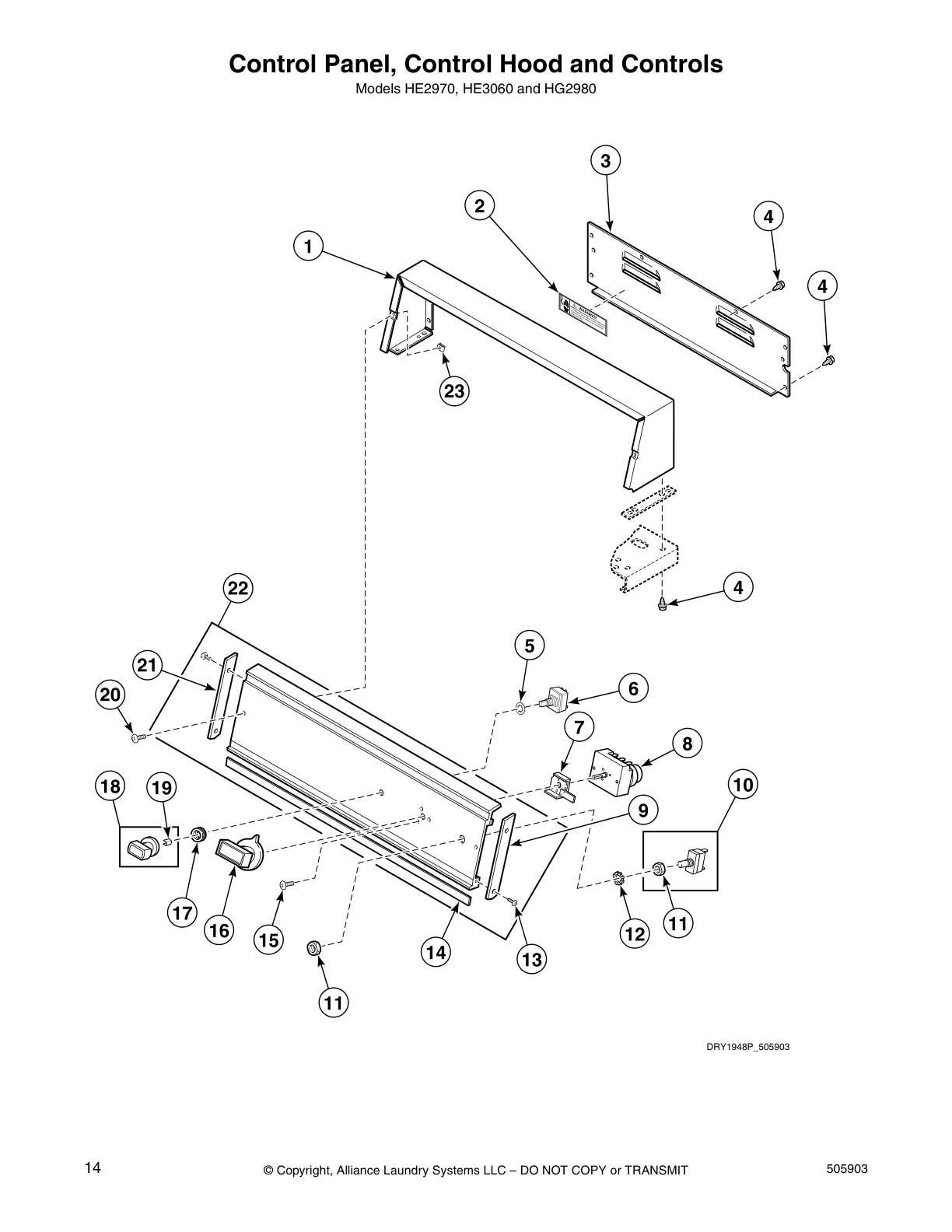

Control Panel, Control Hood and Controls

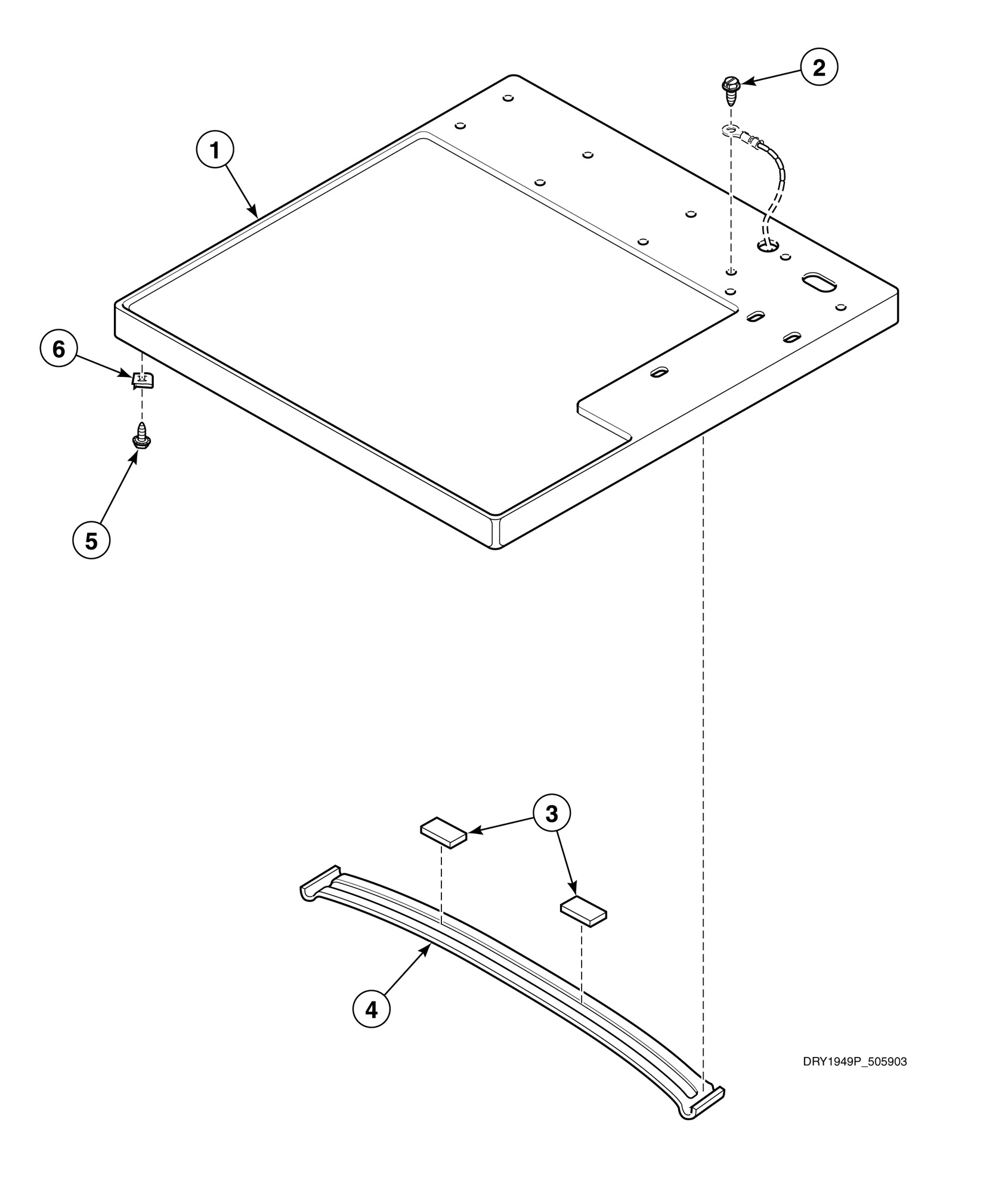

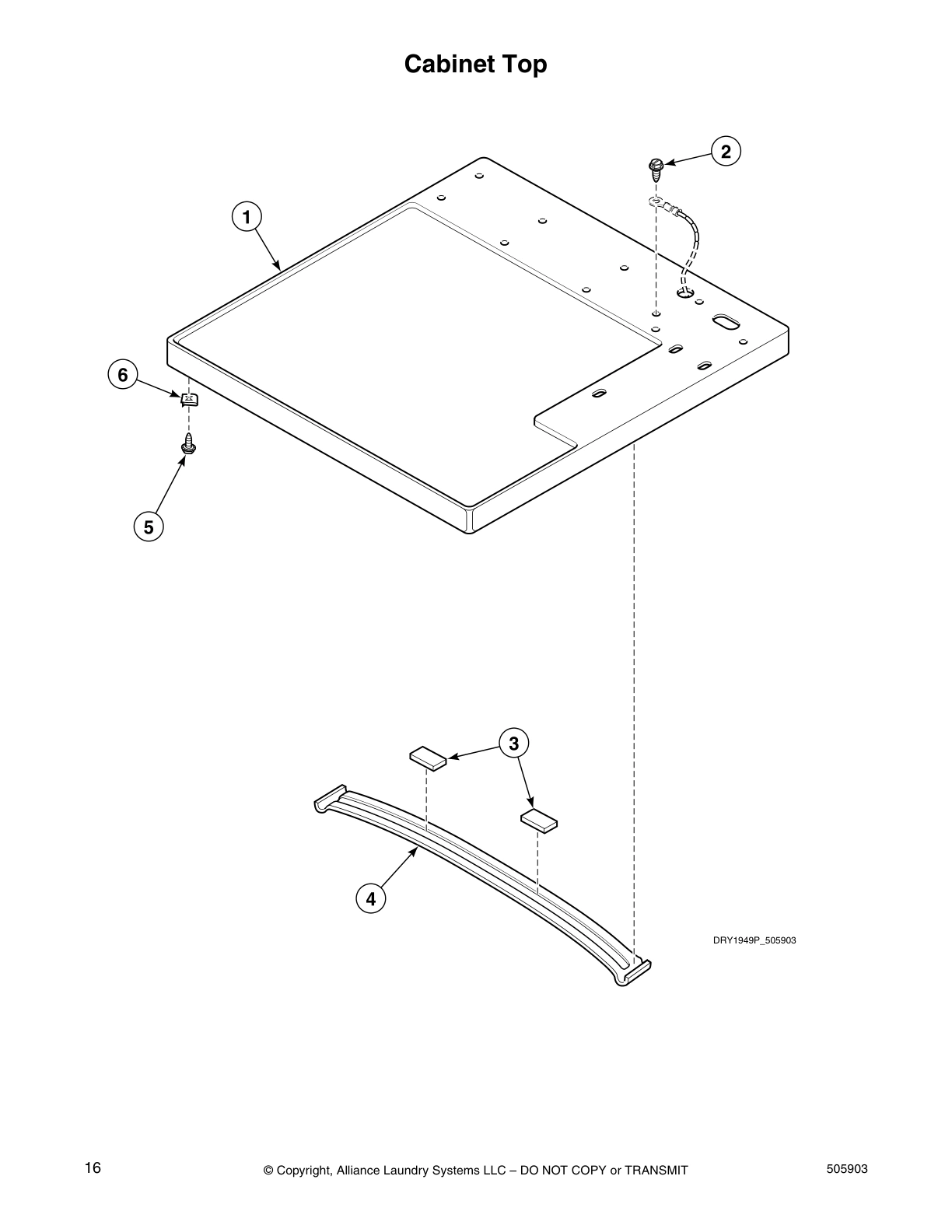

Cabinet Top

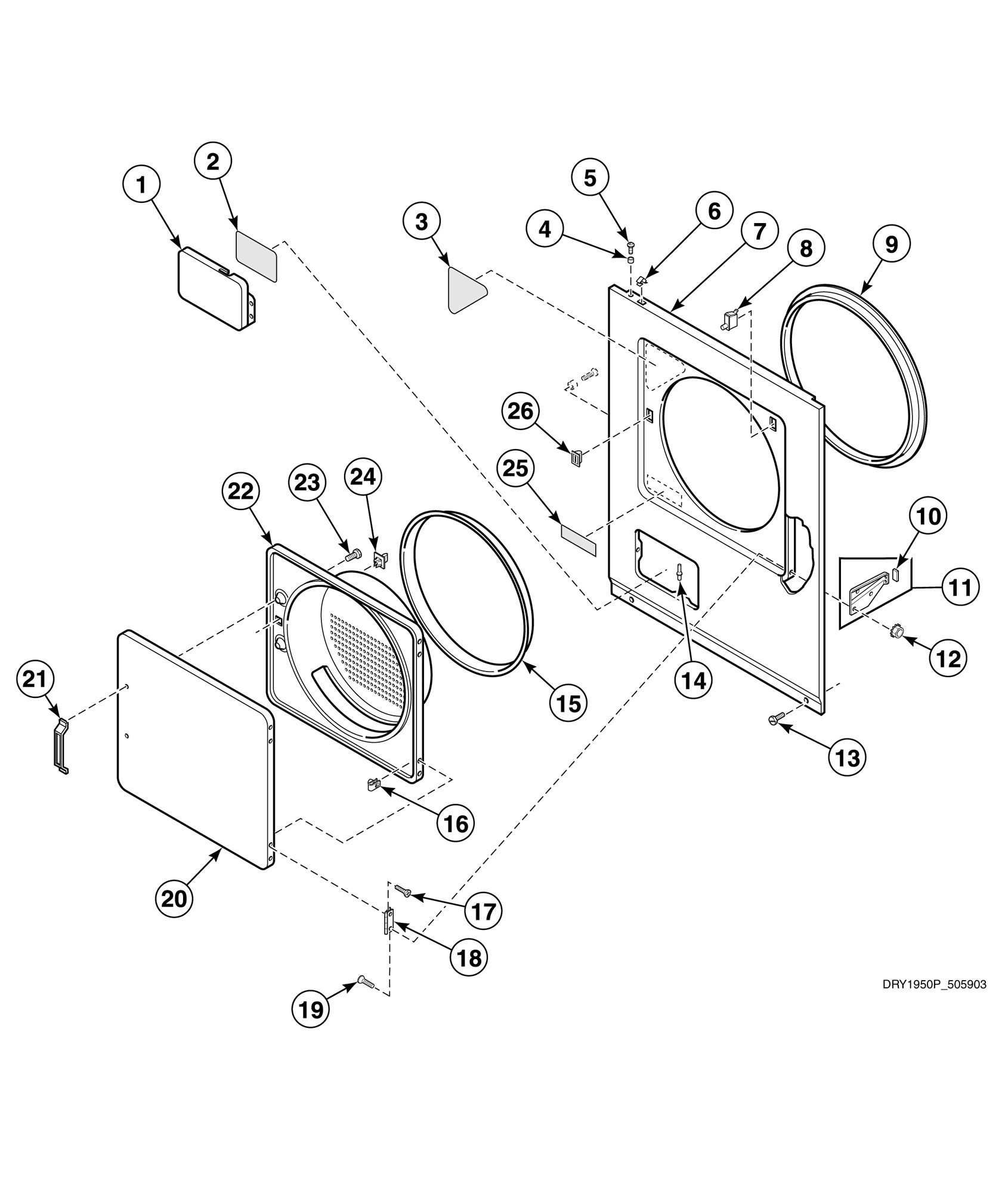

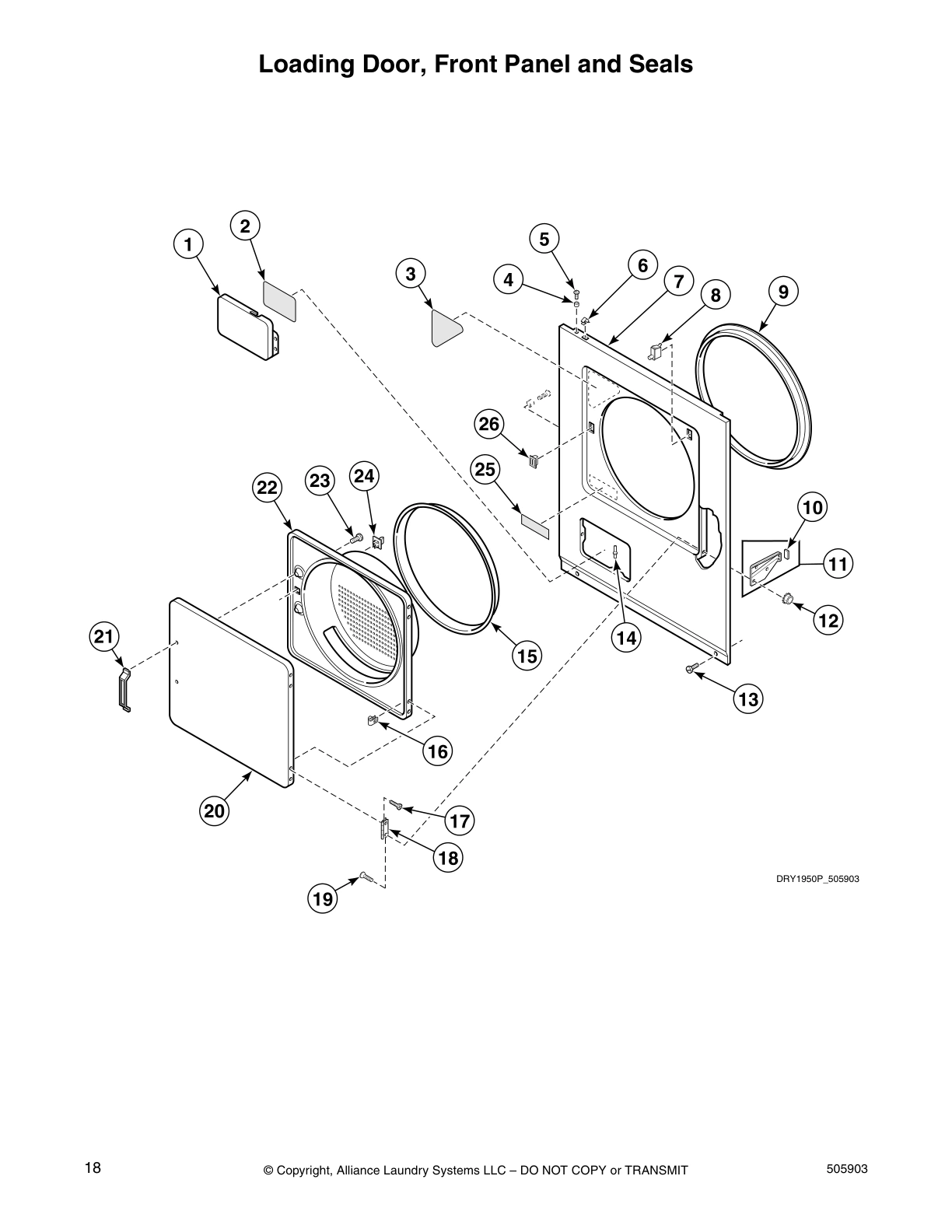

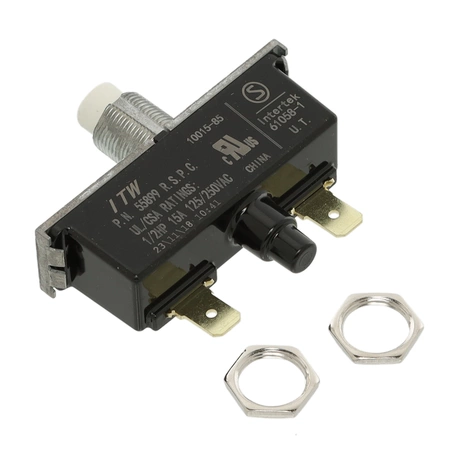

Loading Door, Front Panel and Seals

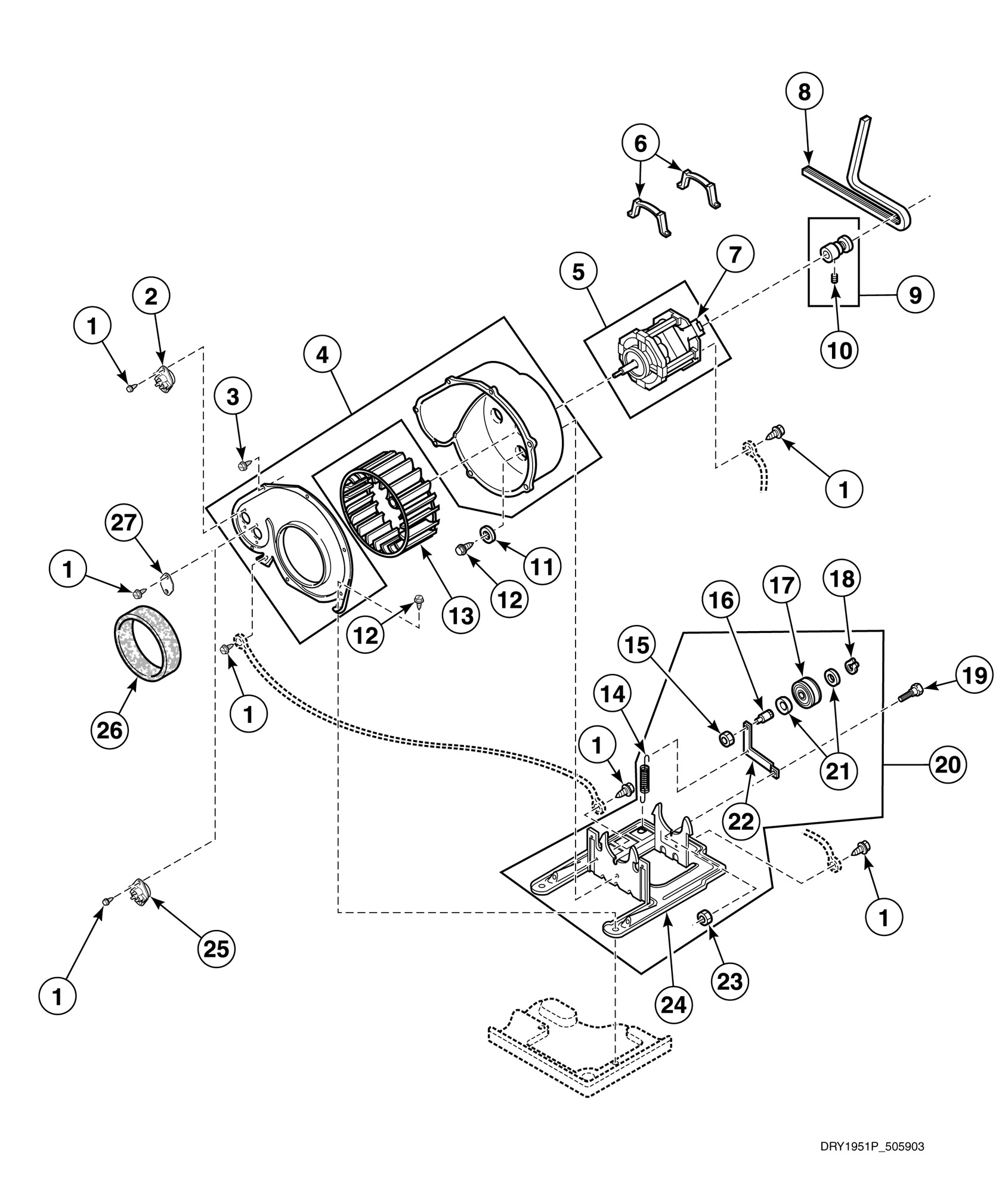

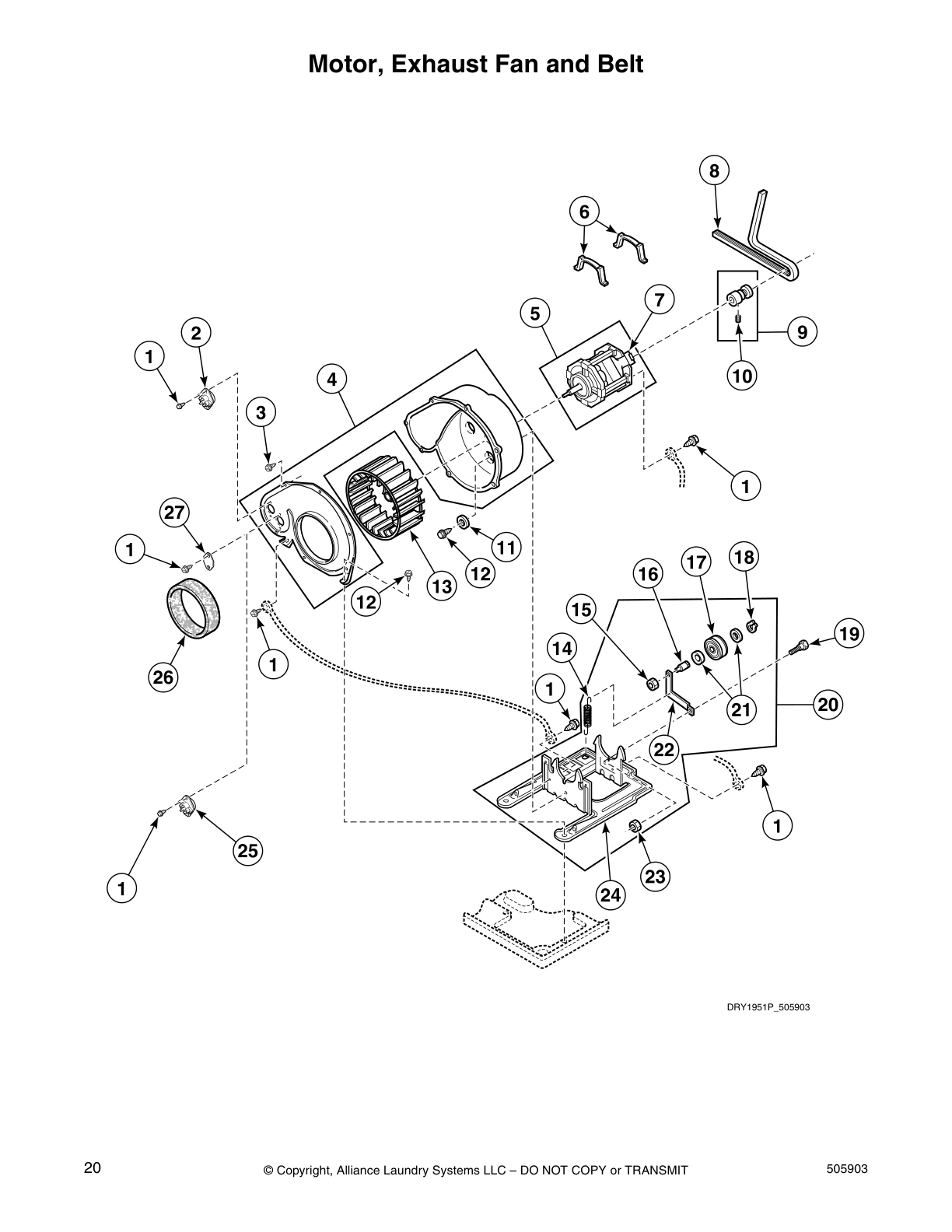

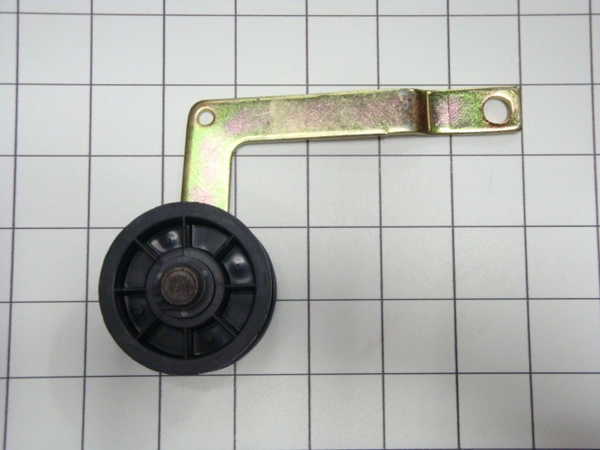

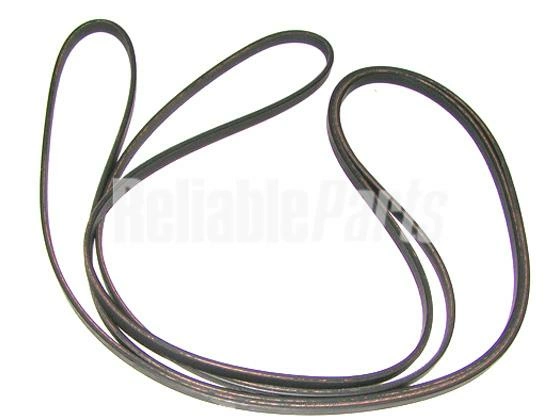

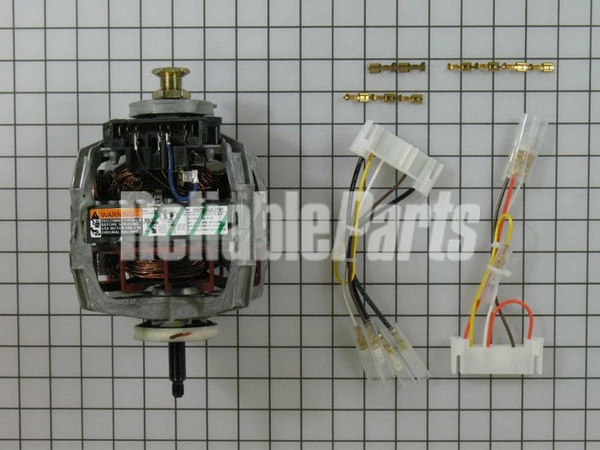

Motor, Exhaust Fan and Belt

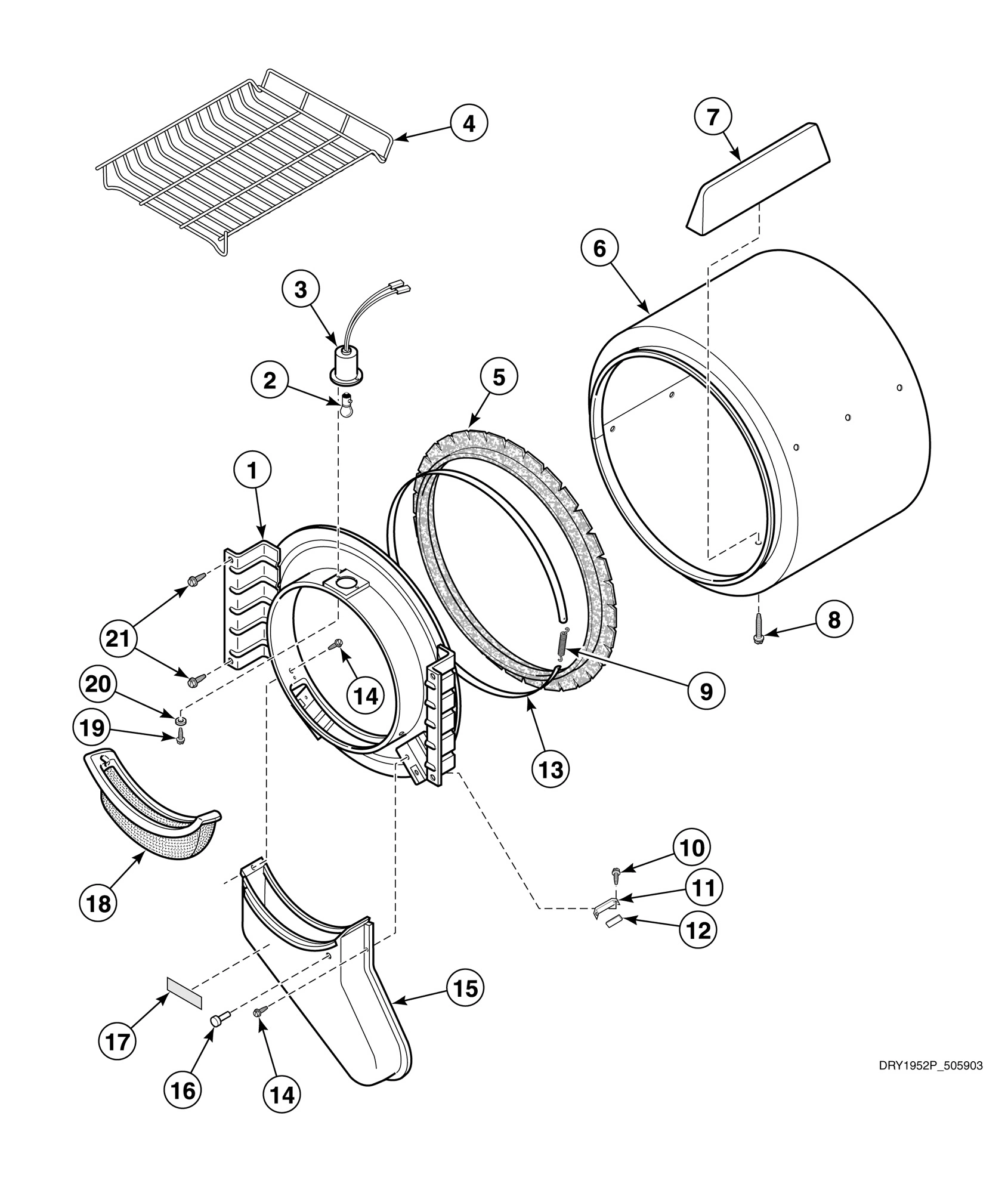

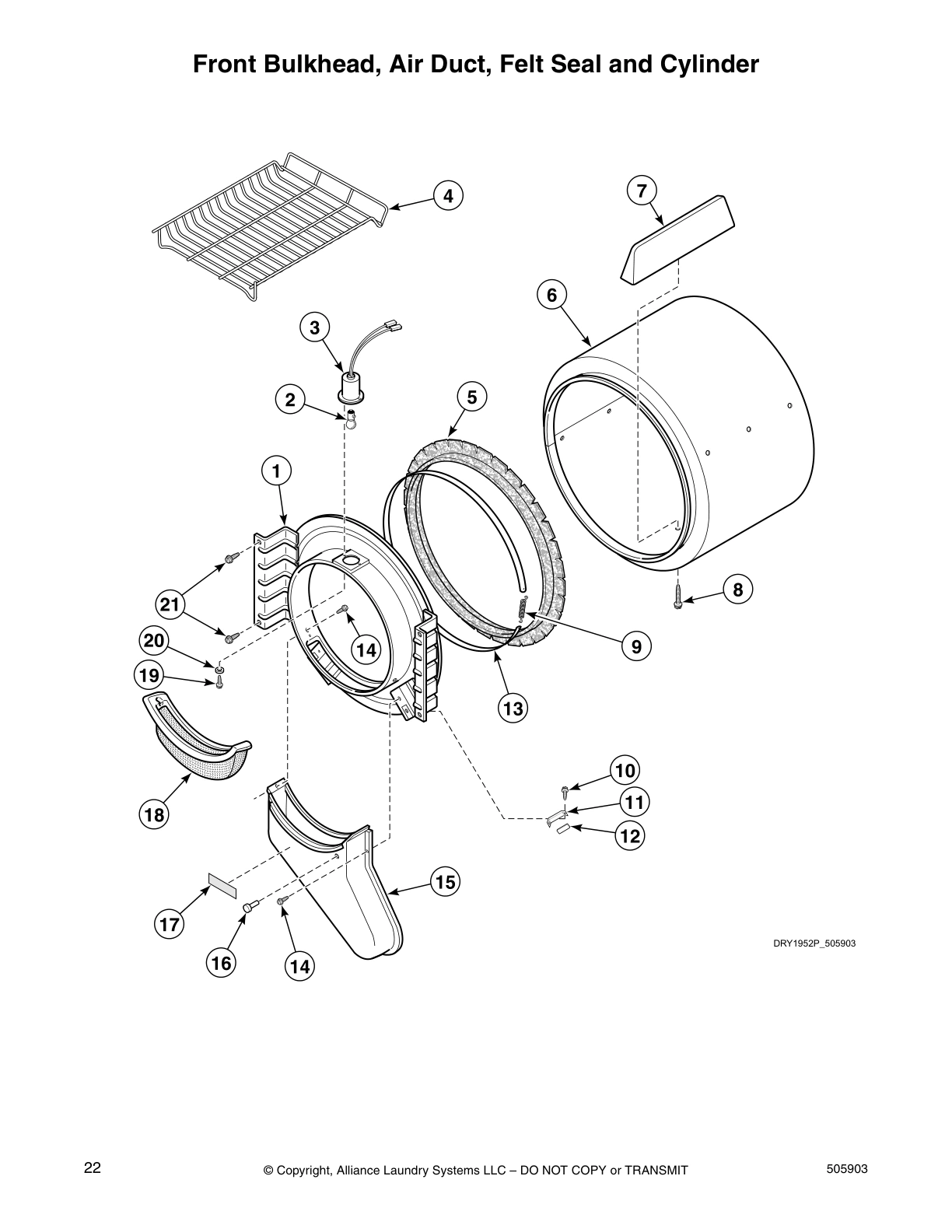

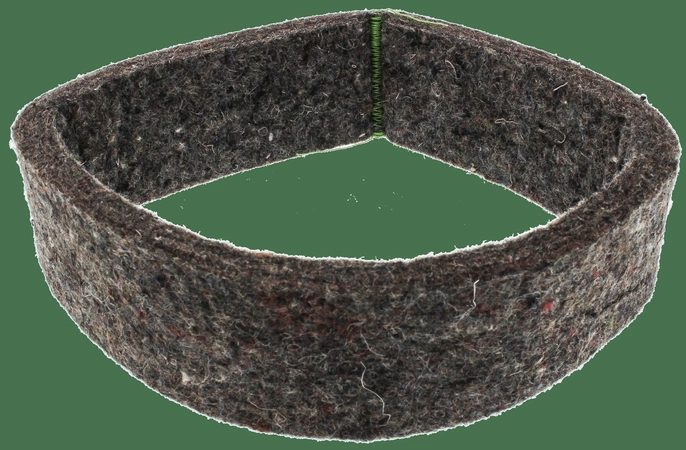

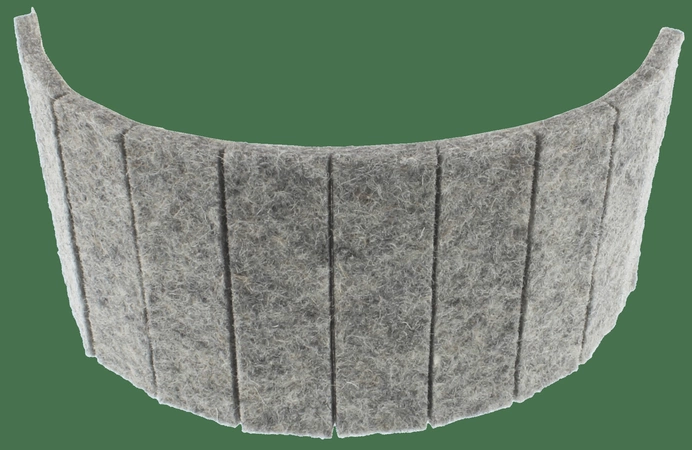

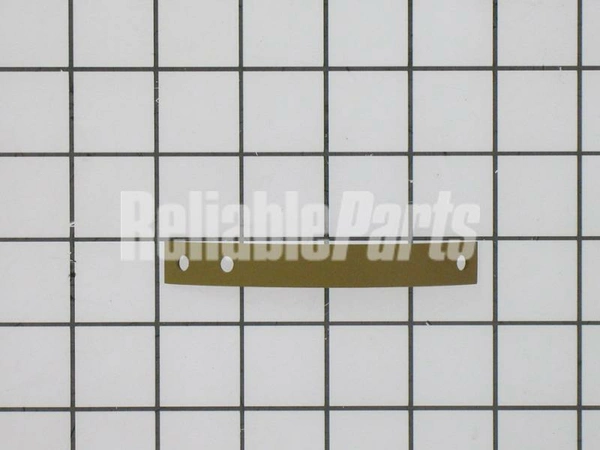

Front Bulkhead, Air Duct, Felt Seal and Cylinder

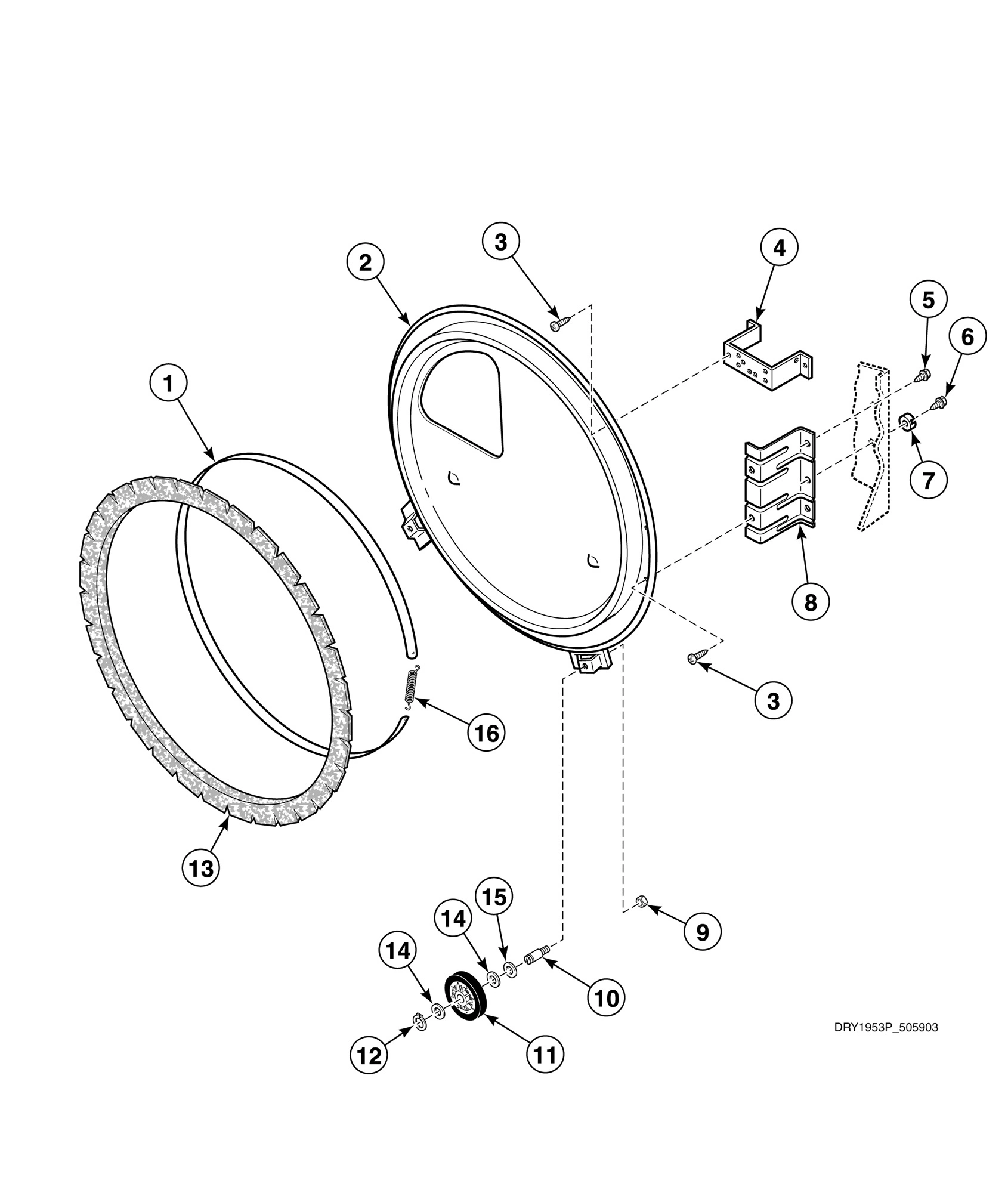

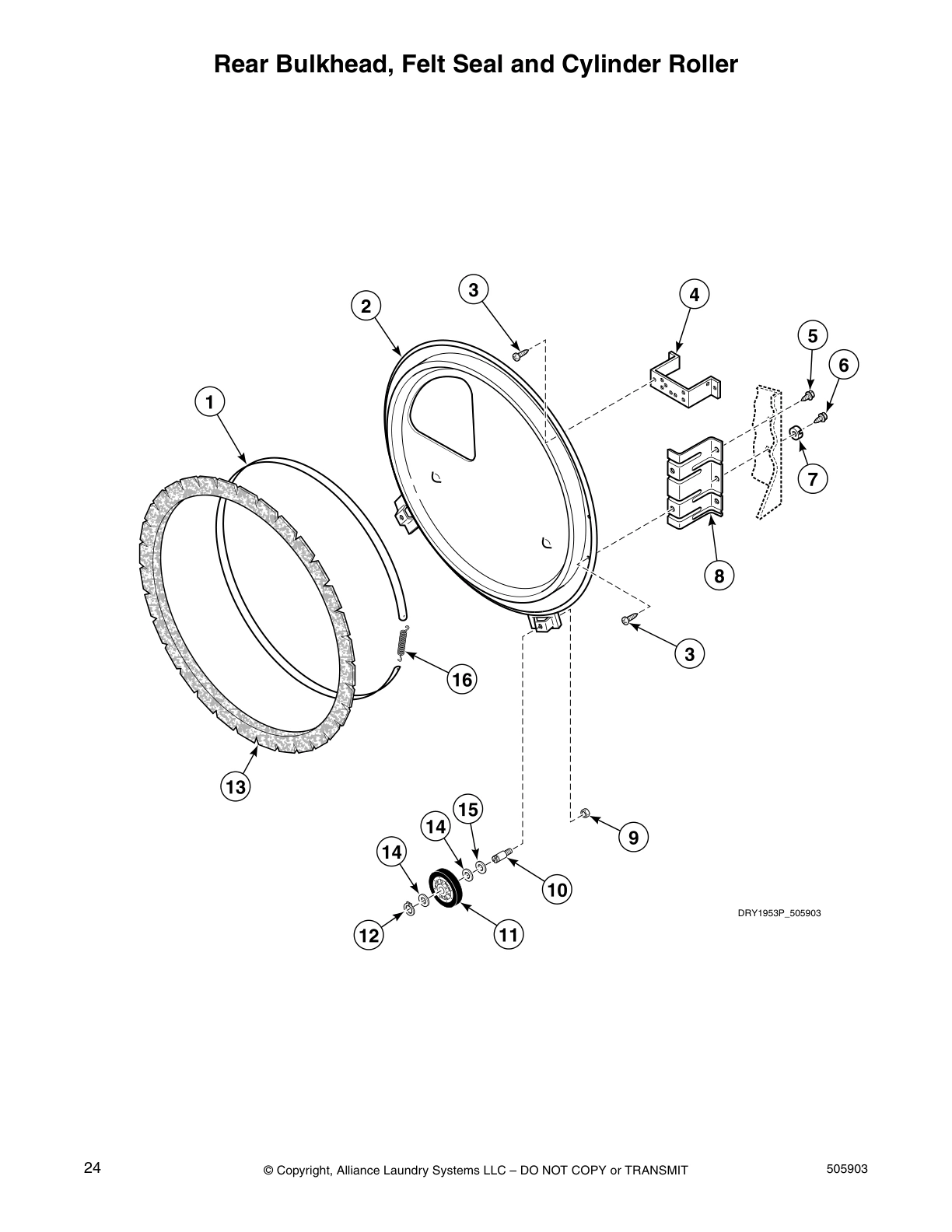

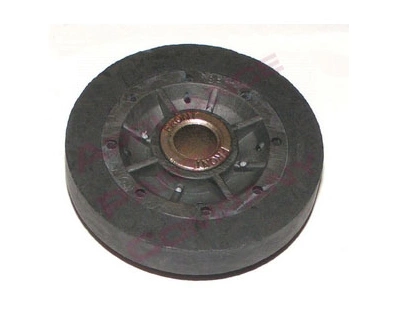

Rear Bulkhead, Felt Seal and Cylinder Roller

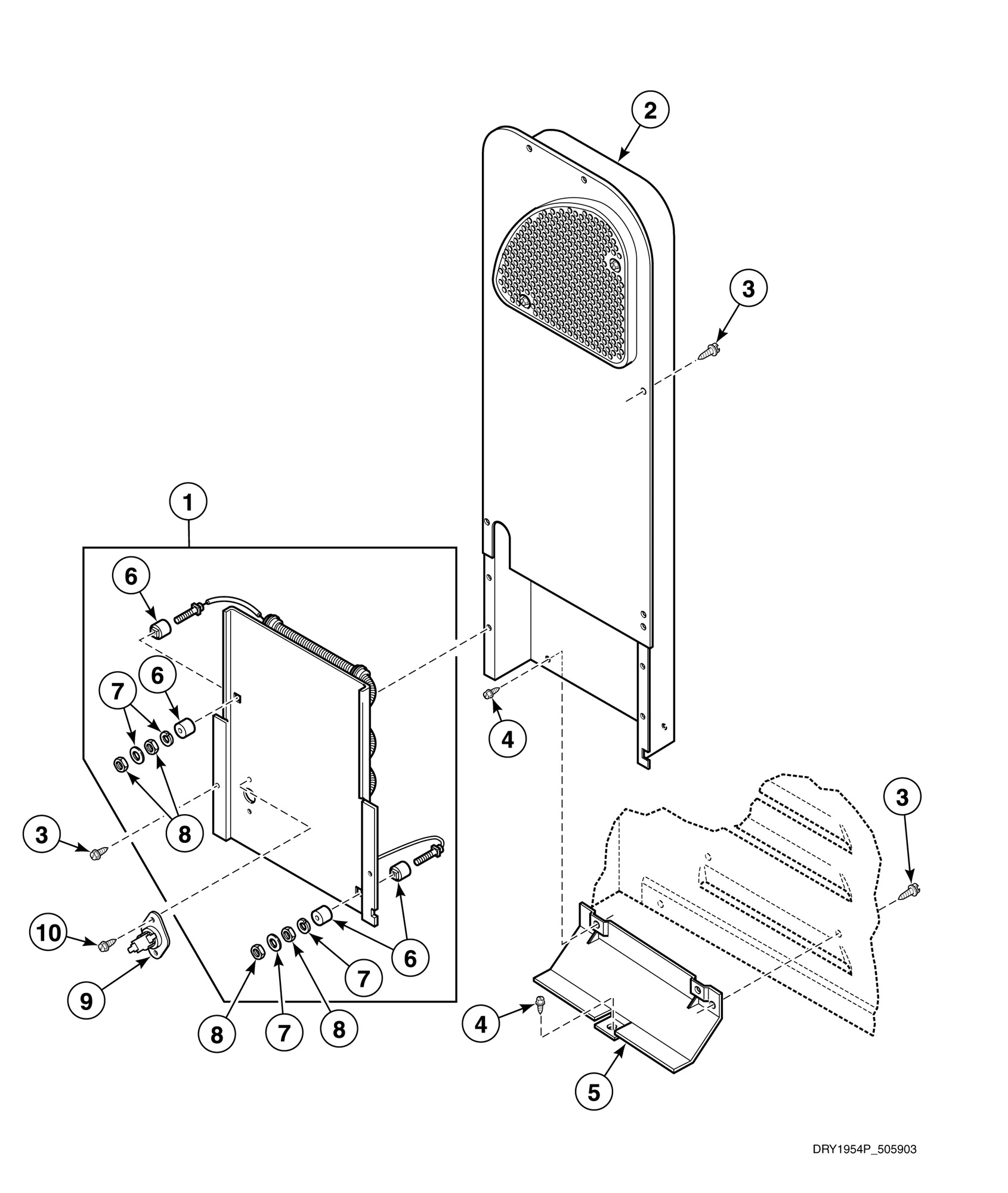

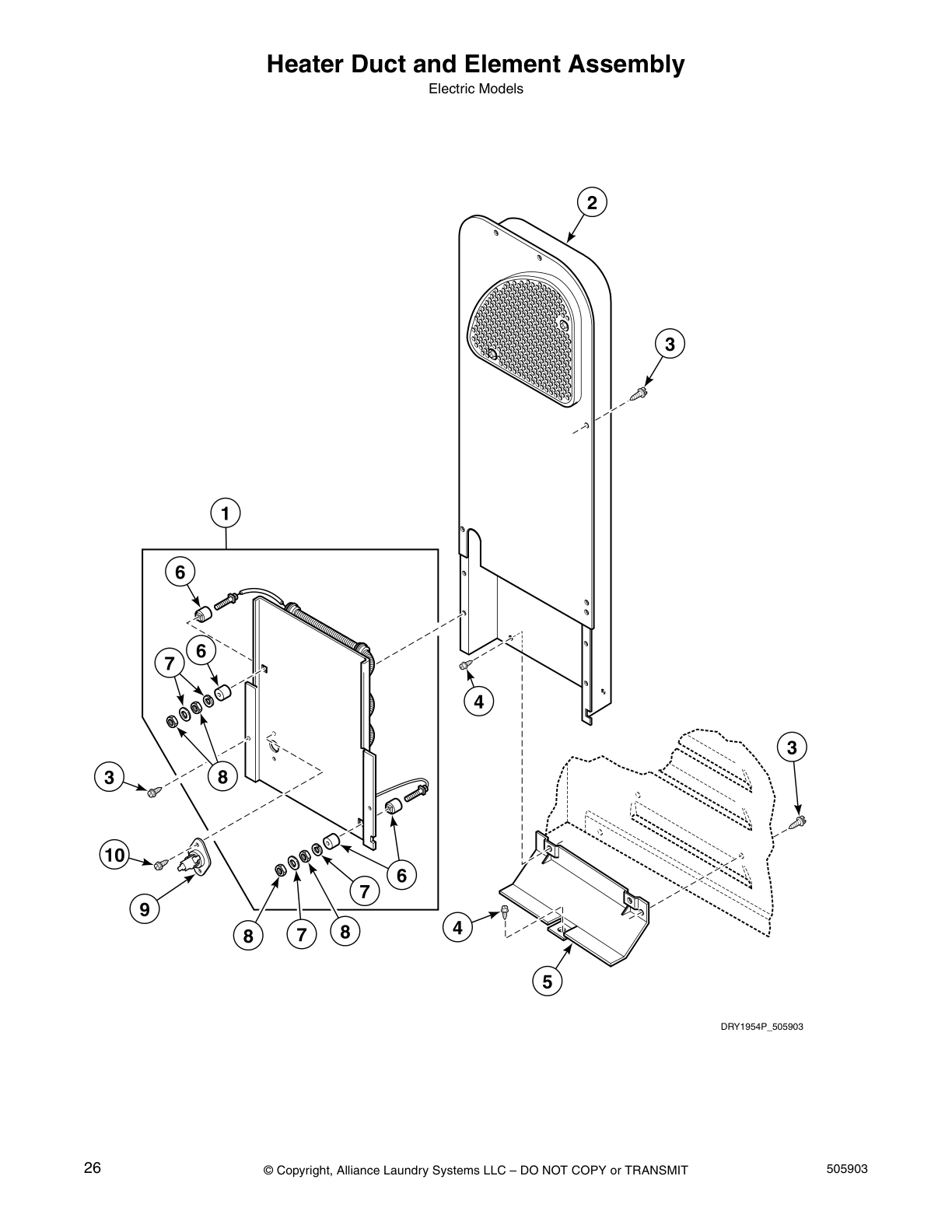

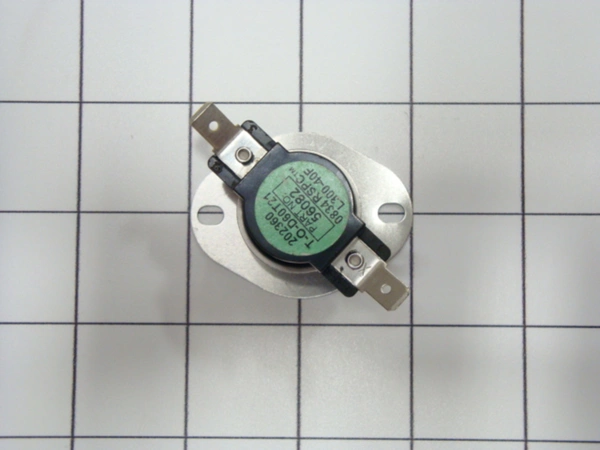

Heater Duct and Element Assembly

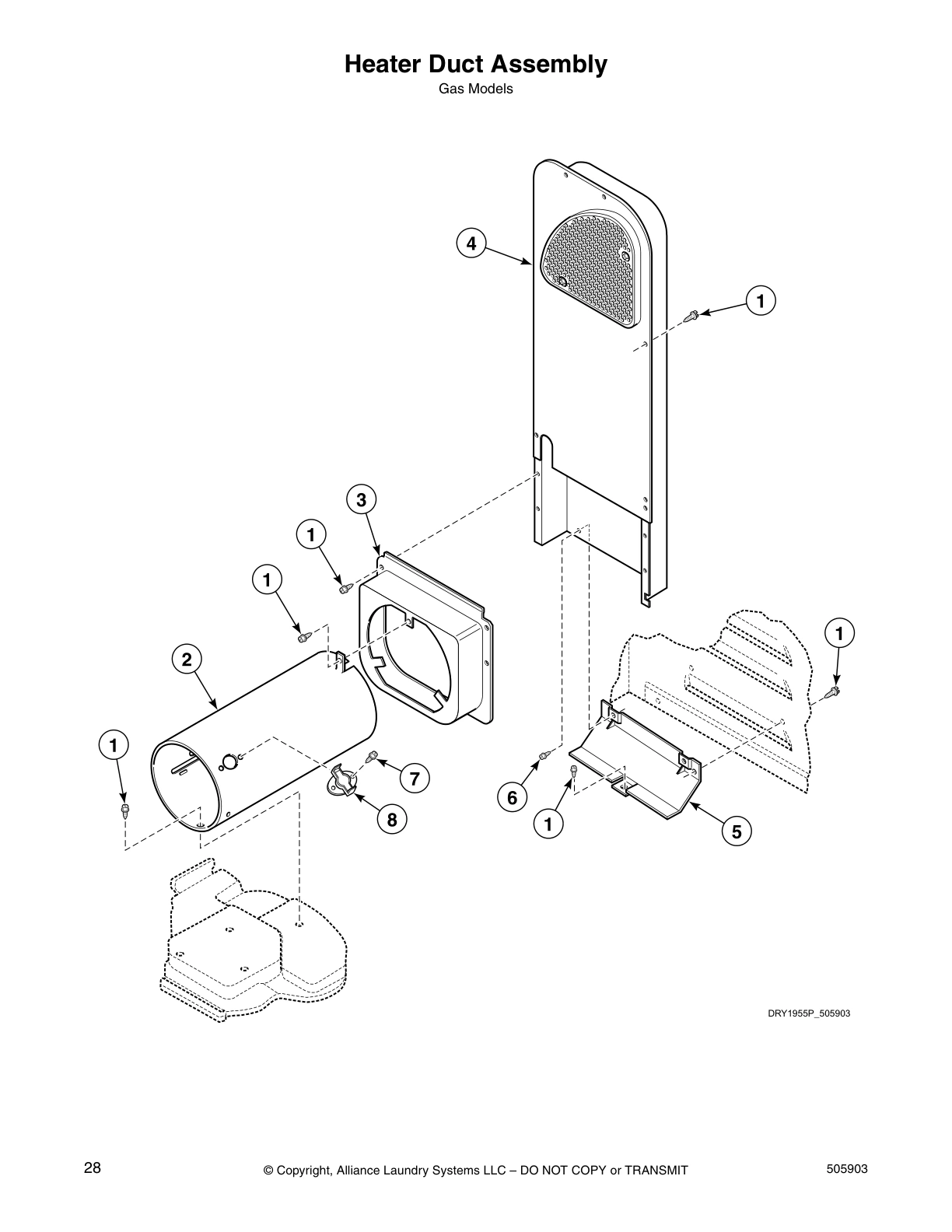

Heater Duct Assembly

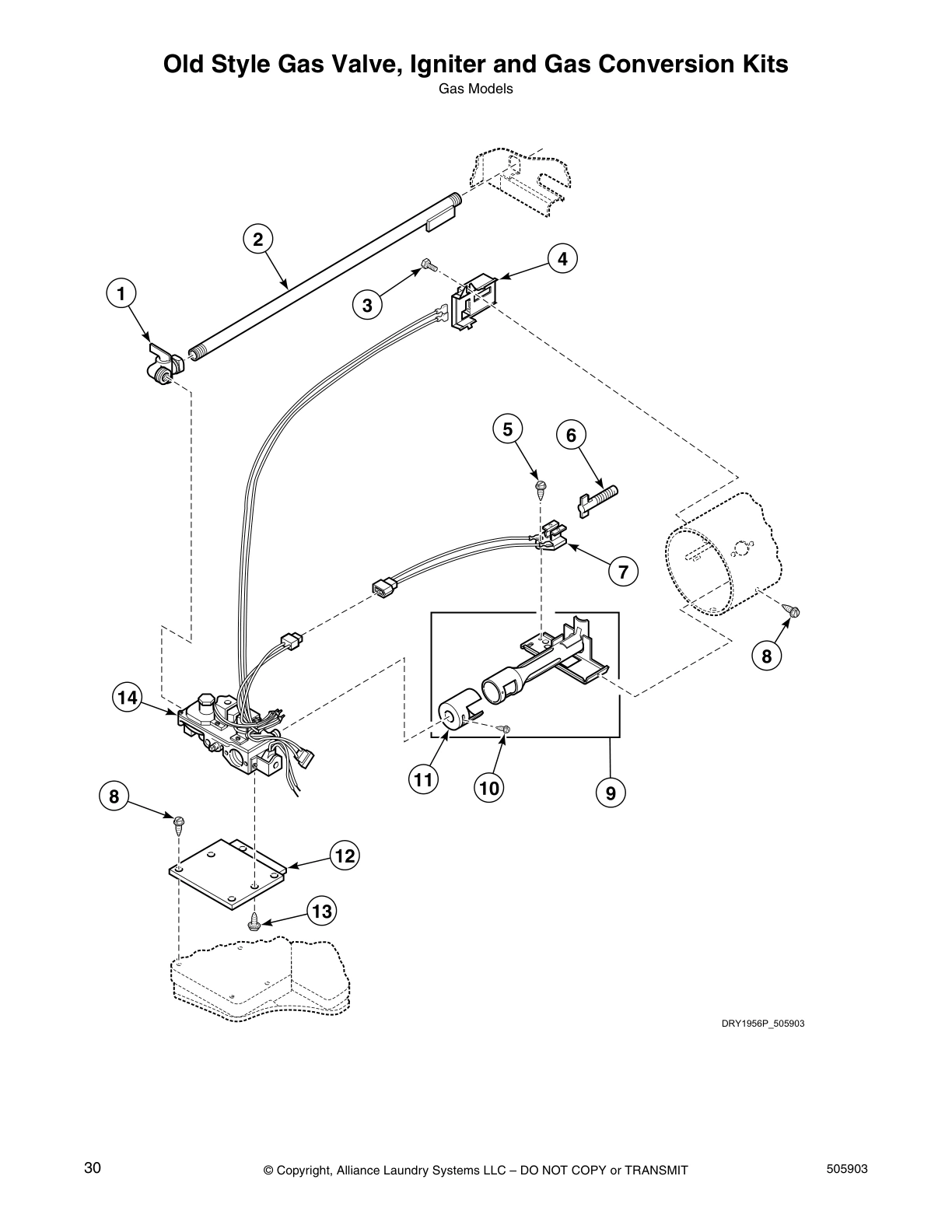

Old Style Gas Valve, Igniter and Gas Conversion Kits

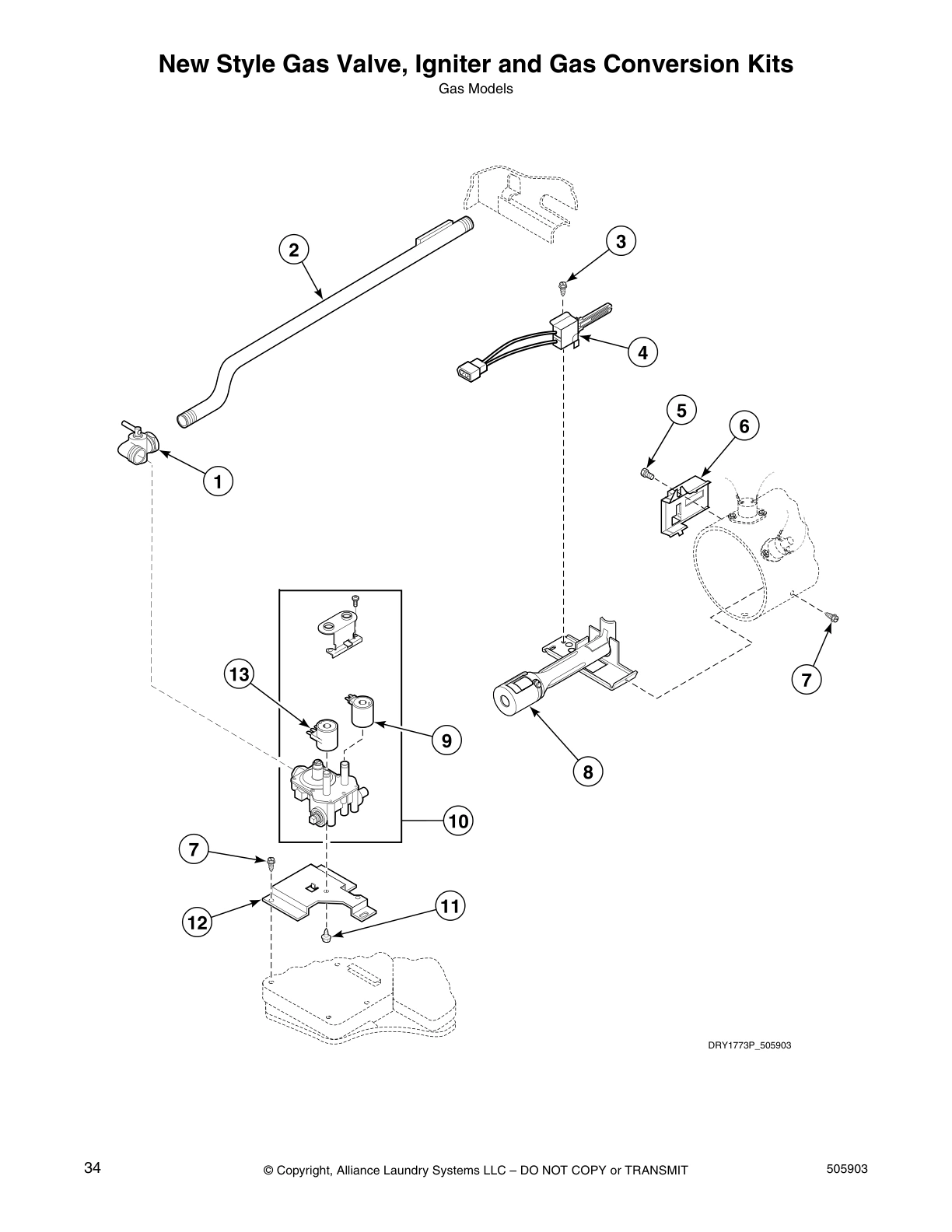

New Style Gas Valve, Igniter and Gas Conversion Kits

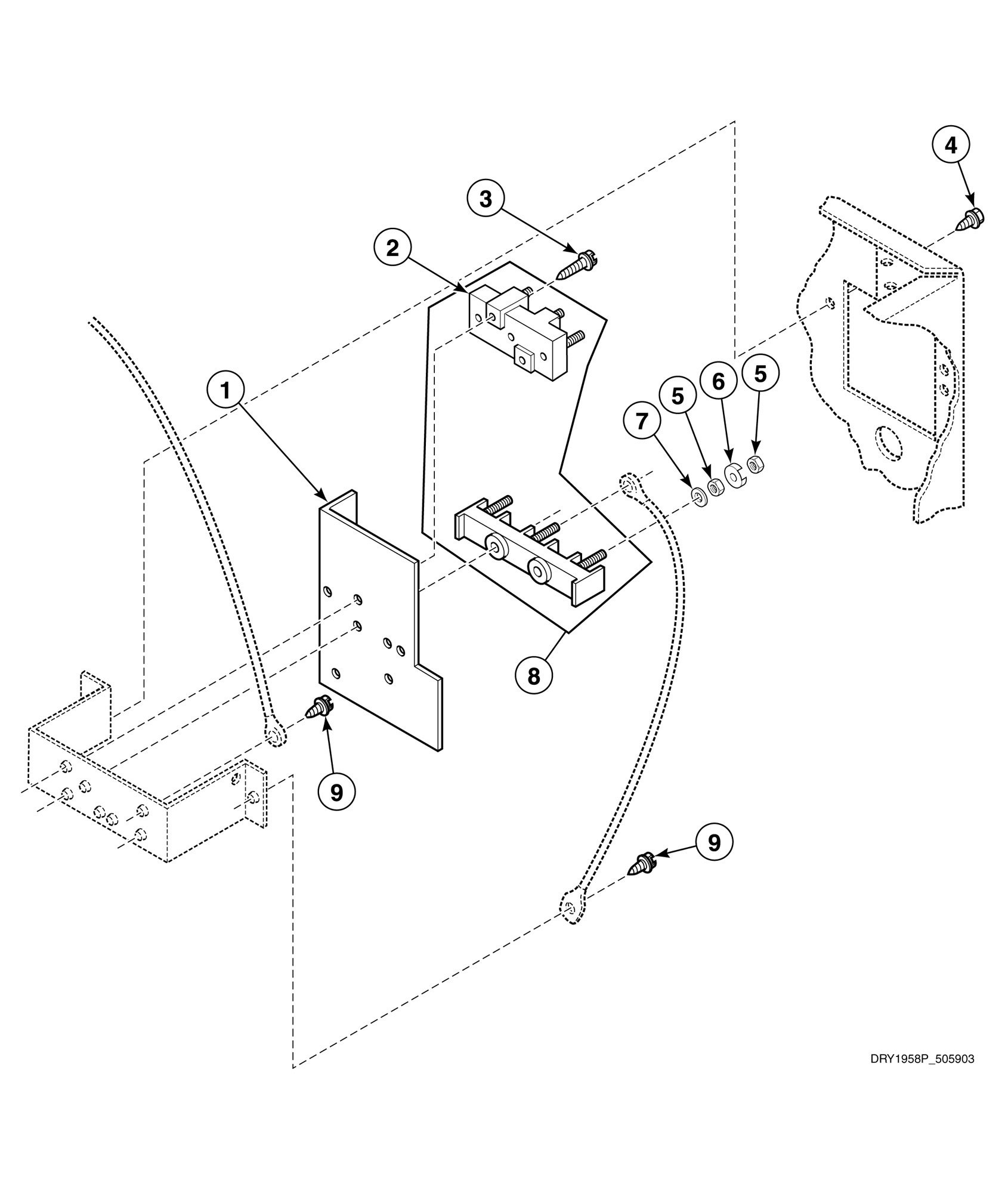

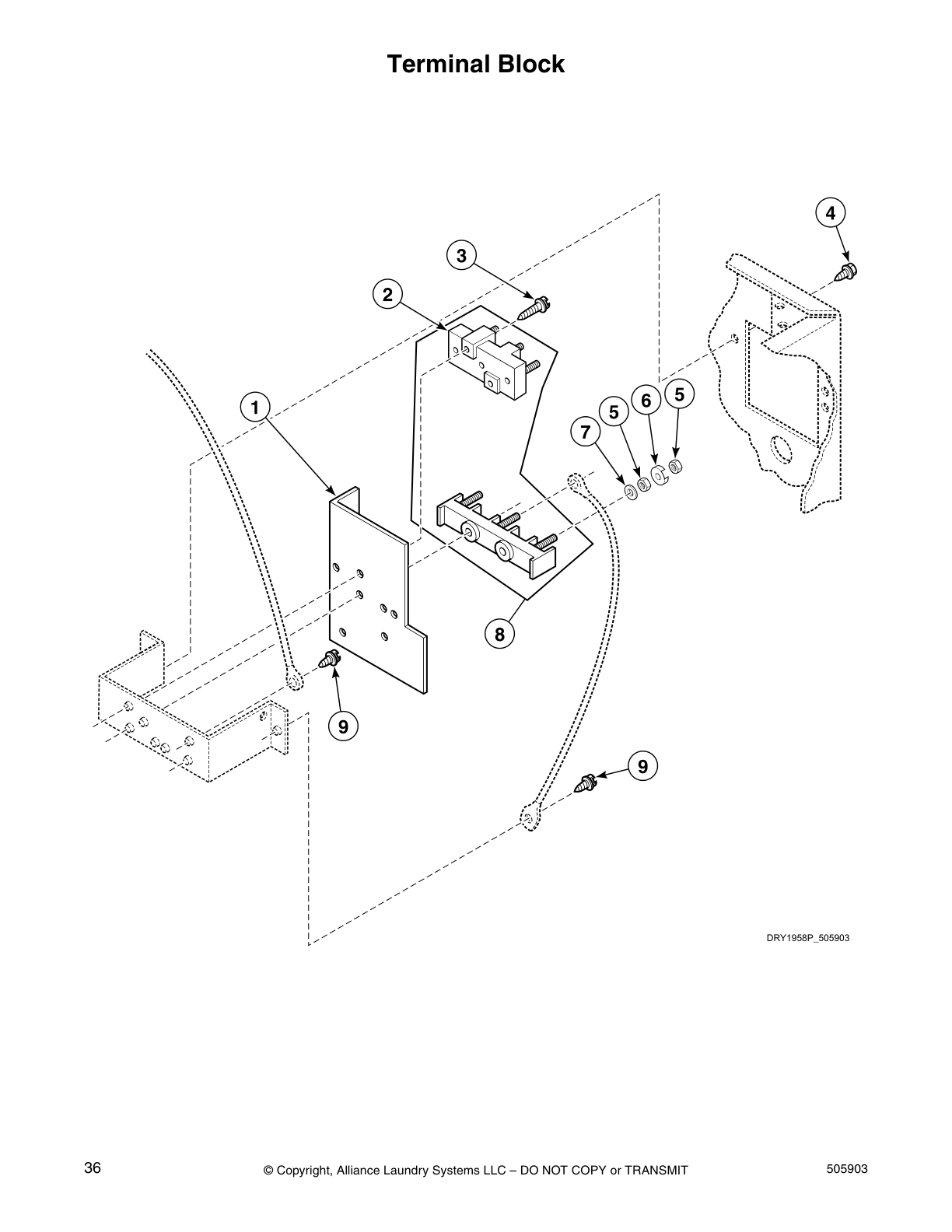

Terminal Block

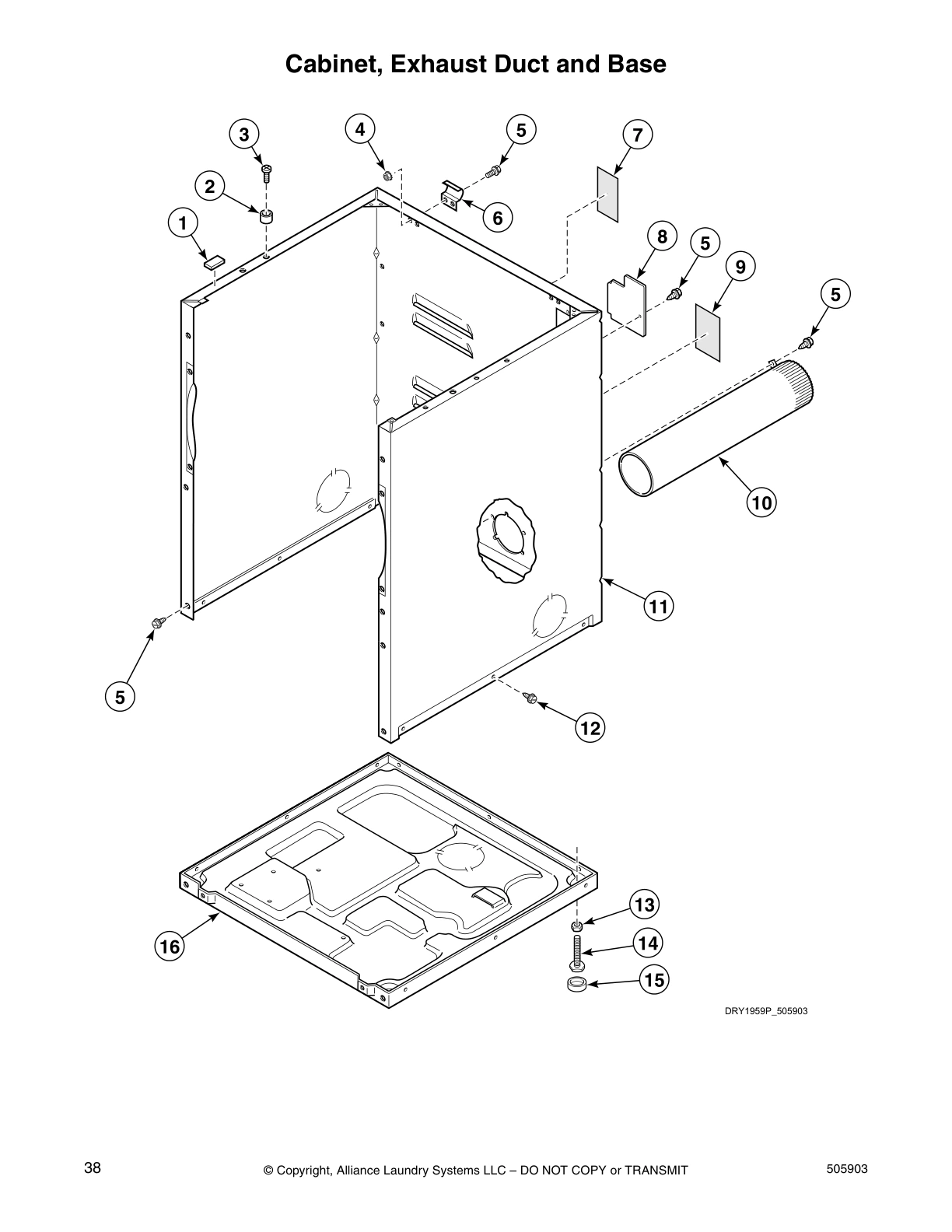

Cabinet, Exhaust Duct and Base

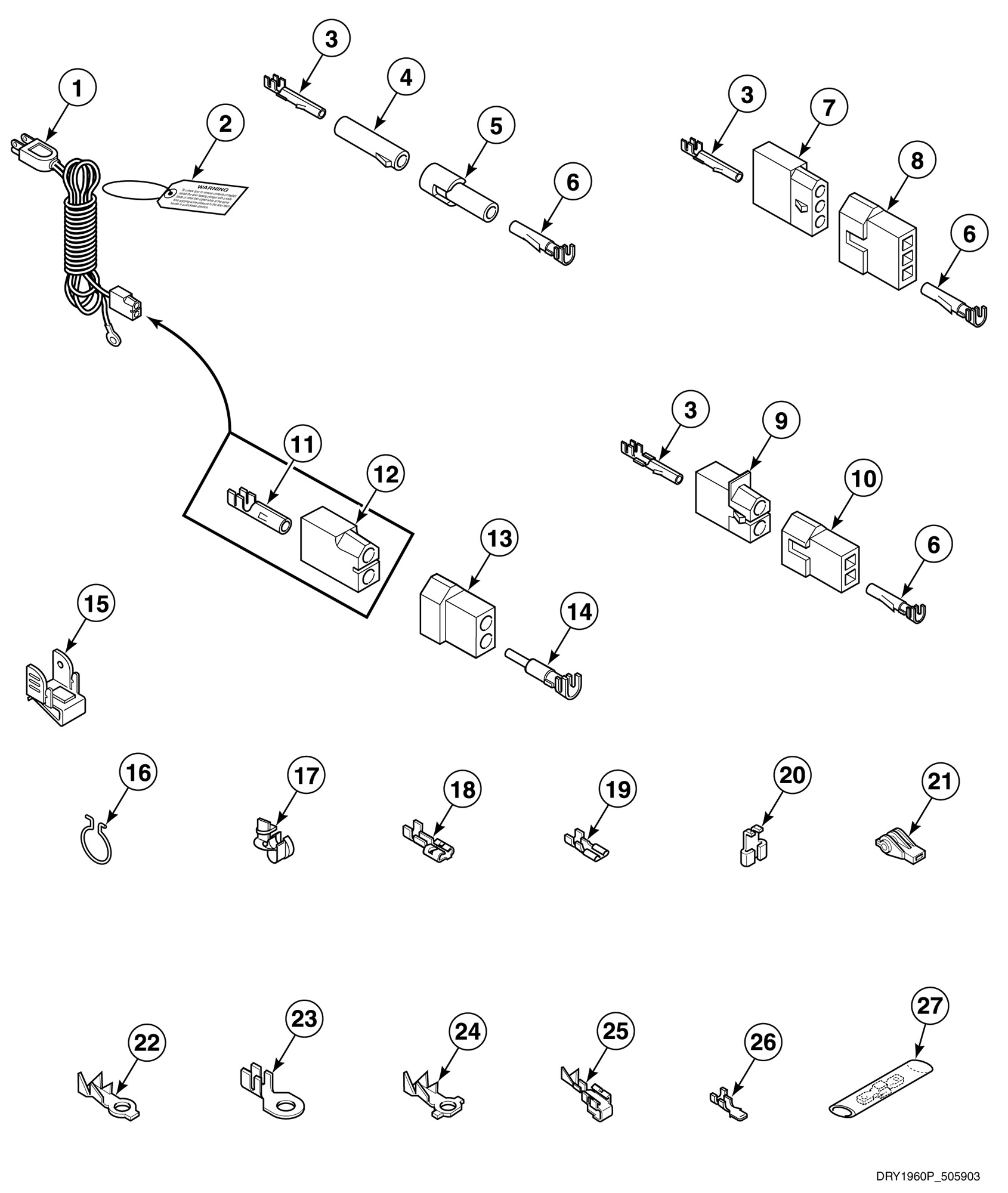

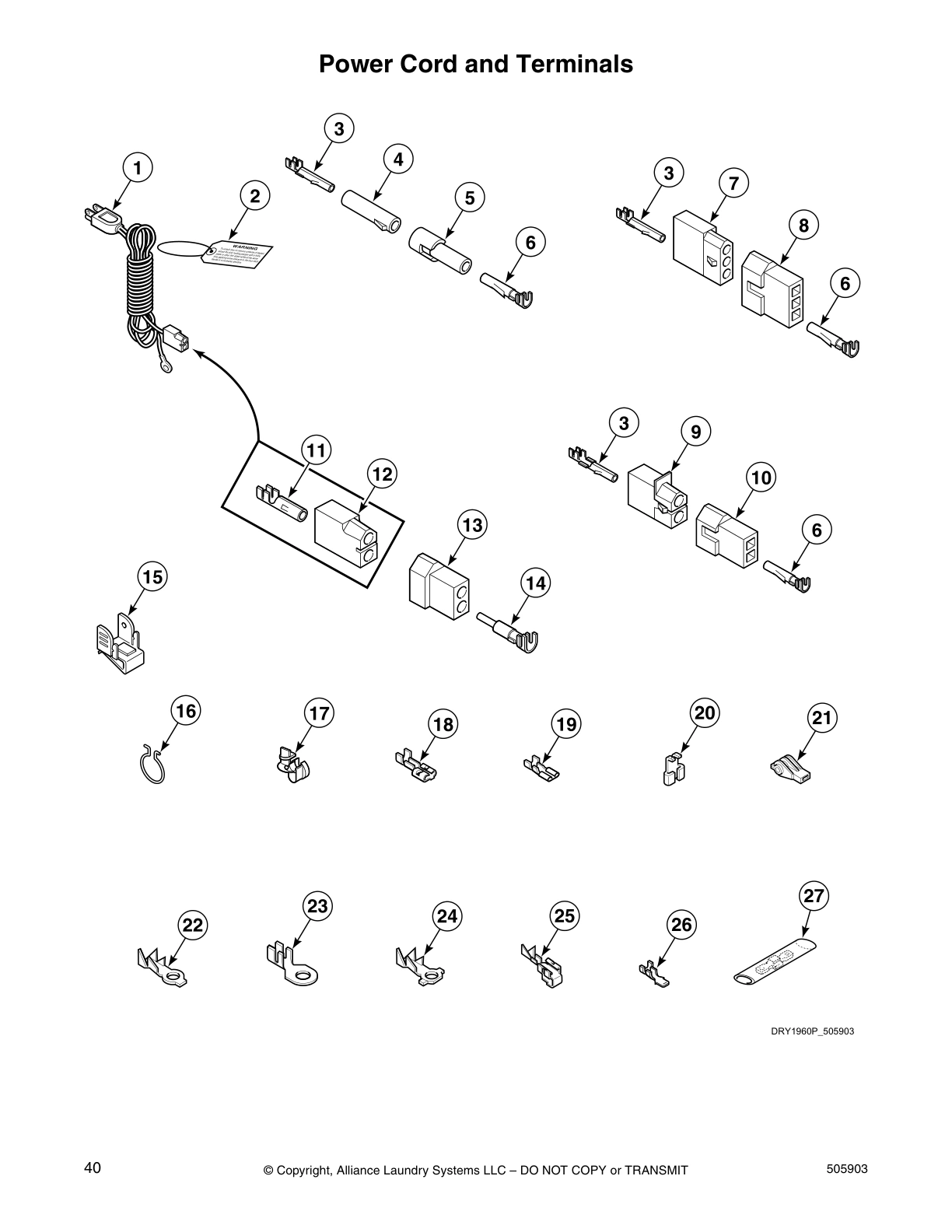

Power Cord and Terminals

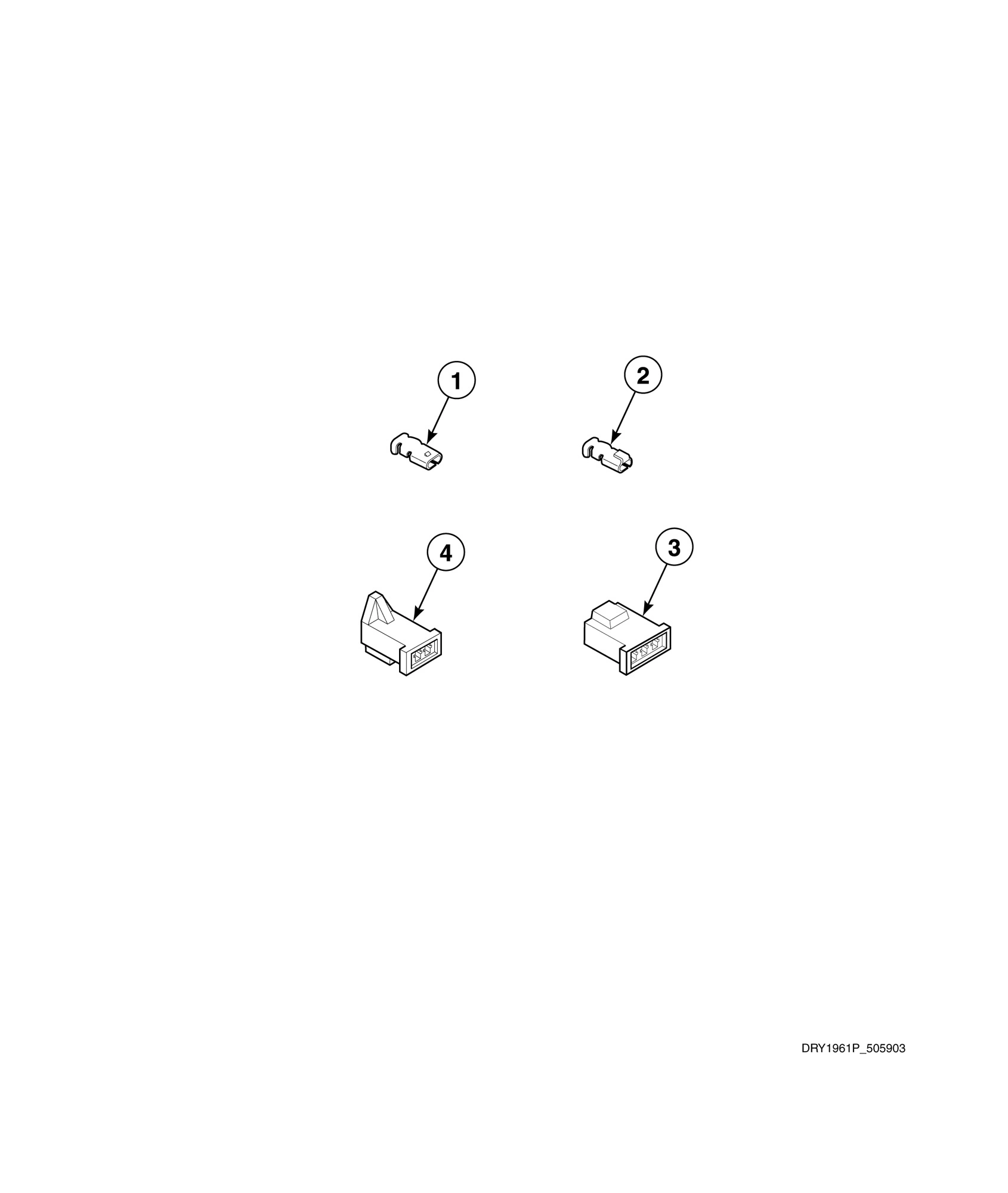

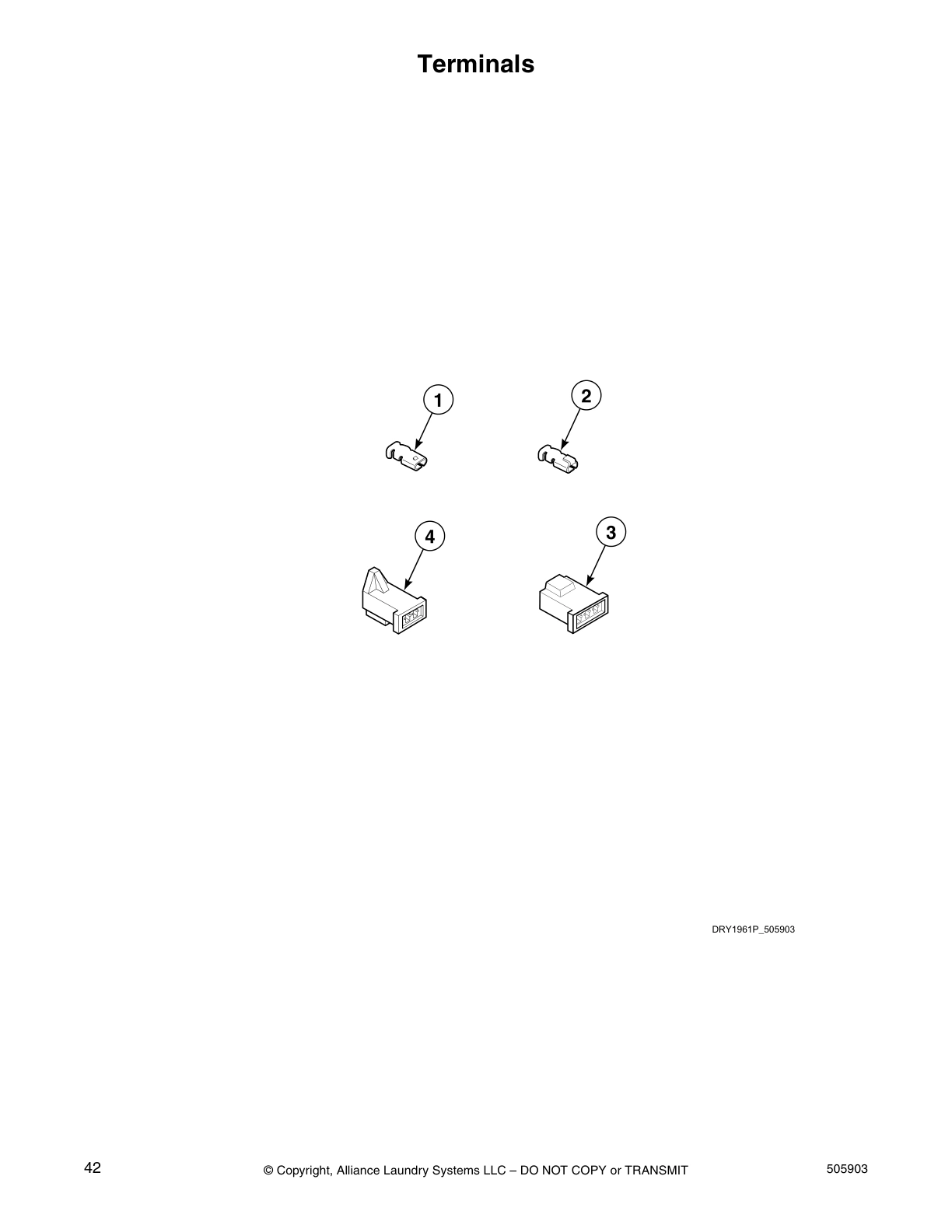

Terminals
Cabinet, Exhaust Duct And Base
Cabinet Top
Power Cord And Terminals
Loading Door, Front Panel And Seals
Cabinet, Exhaust Duct And Base
Loading Door, Front Panel And Seals
Power Cord And Terminals
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Terminal Block
Rear Bulkhead, Felt Seal And Cylinder Roller
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Rear Bulkhead, Felt Seal And Cylinder Roller
Motor, Exhaust Fan And Belt
Loading Door, Front Panel And Seals
Terminal Block
Rear Bulkhead, Felt Seal And Cylinder Roller
Cabinet Top
Cabinet, Exhaust Duct And Base
Control Panel And Controls (drawing 3 Of 3)
Loading Door, Front Panel And Seals
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Motor, Exhaust Fan And Belt
Loading Door, Front Panel And Seals
Cabinet, Exhaust Duct And Base
Heater Duct And Element Assembly
Terminal Block
Loading Door, Front Panel And Seals
Cabinet, Exhaust Duct And Base
Rear Bulkhead, Felt Seal And Cylinder Roller
Motor, Exhaust Fan And Belt
Power Cord And Terminals
Motor, Exhaust Fan And Belt
Power Cord And Terminals
Loading Door, Front Panel And Seals
Terminal Block
Heater Duct And Element Assembly
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Terminals
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Cabinet, Exhaust Duct And Base
Heater Duct And Element Assembly
Motor, Exhaust Fan And Belt
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Loading Door, Front Panel And Seals
Heater Duct And Element Assembly
Motor, Exhaust Fan And Belt
Terminal Block
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Power Cord And Terminals
Control Panel And Controls (drawing 3 Of 3)
Motor, Exhaust Fan And Belt
Rear Bulkhead, Felt Seal And Cylinder Roller
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Rear Bulkhead, Felt Seal And Cylinder Roller
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Motor, Exhaust Fan And Belt
Rear Bulkhead, Felt Seal And Cylinder Roller
Motor, Exhaust Fan And Belt
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Rear Bulkhead, Felt Seal And Cylinder Roller
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Loading Door, Front Panel And Seals
Rear Bulkhead, Felt Seal And Cylinder Roller
Motor, Exhaust Fan And Belt
Loading Door, Front Panel And Seals
Control Panel And Controls (drawing 3 Of 3)
Control Hood
Loading Door, Front Panel And Seals
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Terminal Block
Rear Bulkhead, Felt Seal And Cylinder Roller
Motor, Exhaust Fan And Belt
Loading Door, Front Panel And Seals
Heater Duct And Element Assembly
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Cabinet, Exhaust Duct And Base
Loading Door, Front Panel And Seals
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Control Hood
Heater Duct And Element Assembly
Motor, Exhaust Fan And Belt
Loading Door, Front Panel And Seals
Motor, Exhaust Fan And Belt
Loading Door, Front Panel And Seals
Motor, Exhaust Fan And Belt
Loading Door, Front Panel And Seals
Motor, Exhaust Fan And Belt
Cabinet, Exhaust Duct And Base
Terminal Block
Heater Duct And Element Assembly
Terminal Block
Motor, Exhaust Fan And Belt
Heater Duct And Element Assembly
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Terminal Block
Heater Duct And Element Assembly
Cabinet, Exhaust Duct And Base
Motor, Exhaust Fan And Belt
Cabinet, Exhaust Duct And Base
Common parts from model Huebsch HE4030 Dryer
1

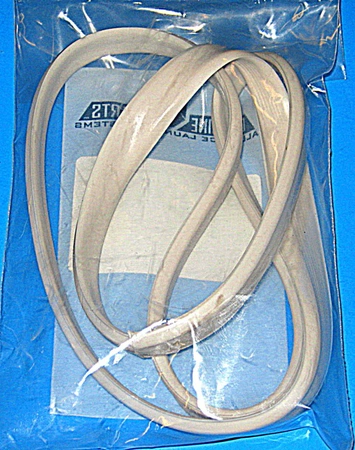

Seal Strap SPQ 56090P Contact Us For Availability
13

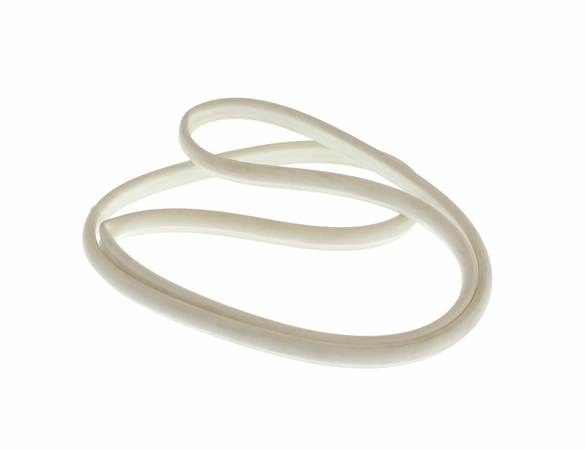

Seal Assembly SPQ 56088P Contact Us For Availability
14
Washer SPQ 91176 Contact Us For Availability
16
Spring SPQ 52310 Contact Us For Availability
21
Panel Locator SPQ 61925 Contact Us For Availability
24
Motor Mount Clamp SPQ 510060 Contact Us For Availability
× ![]()
