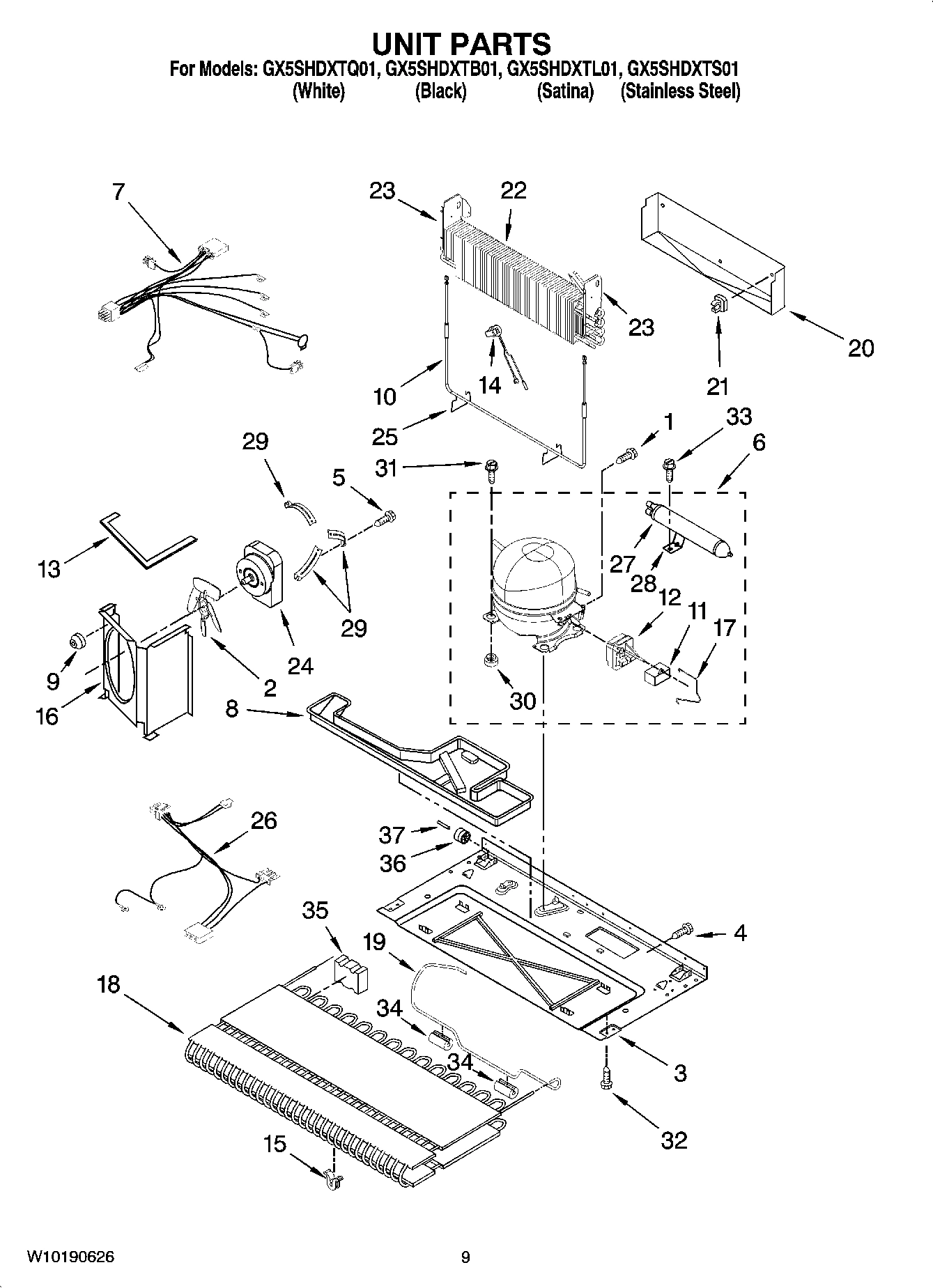

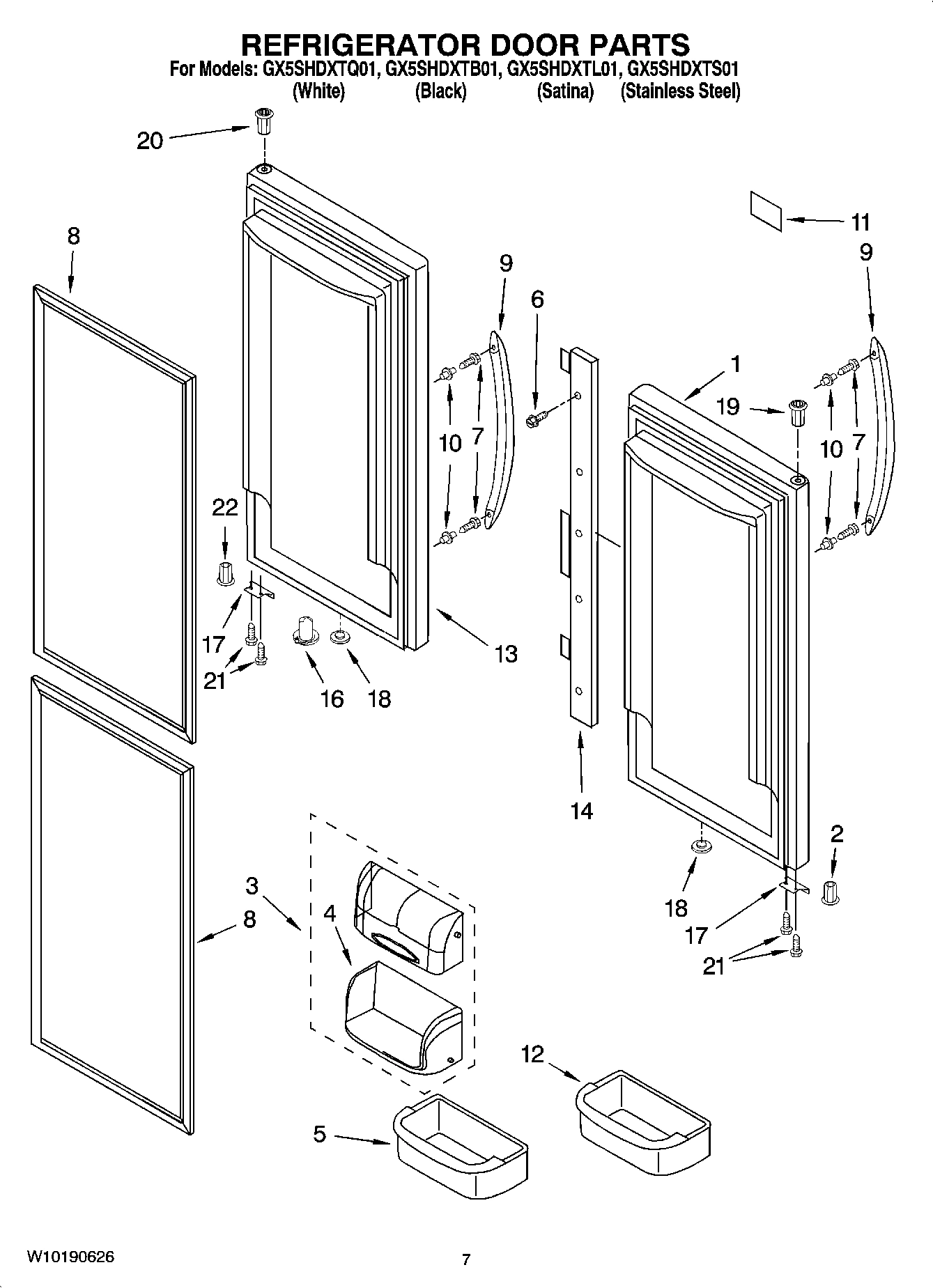

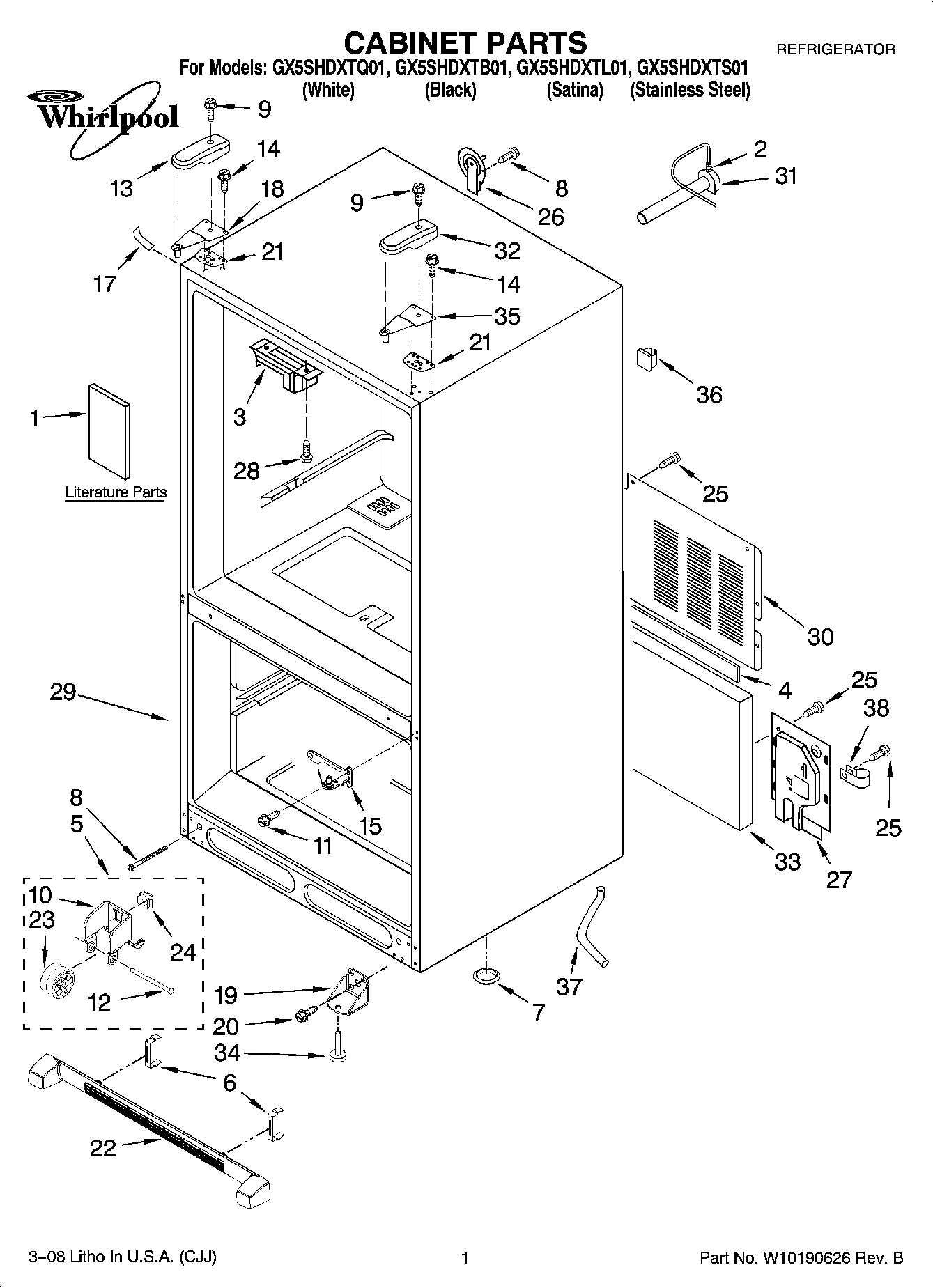

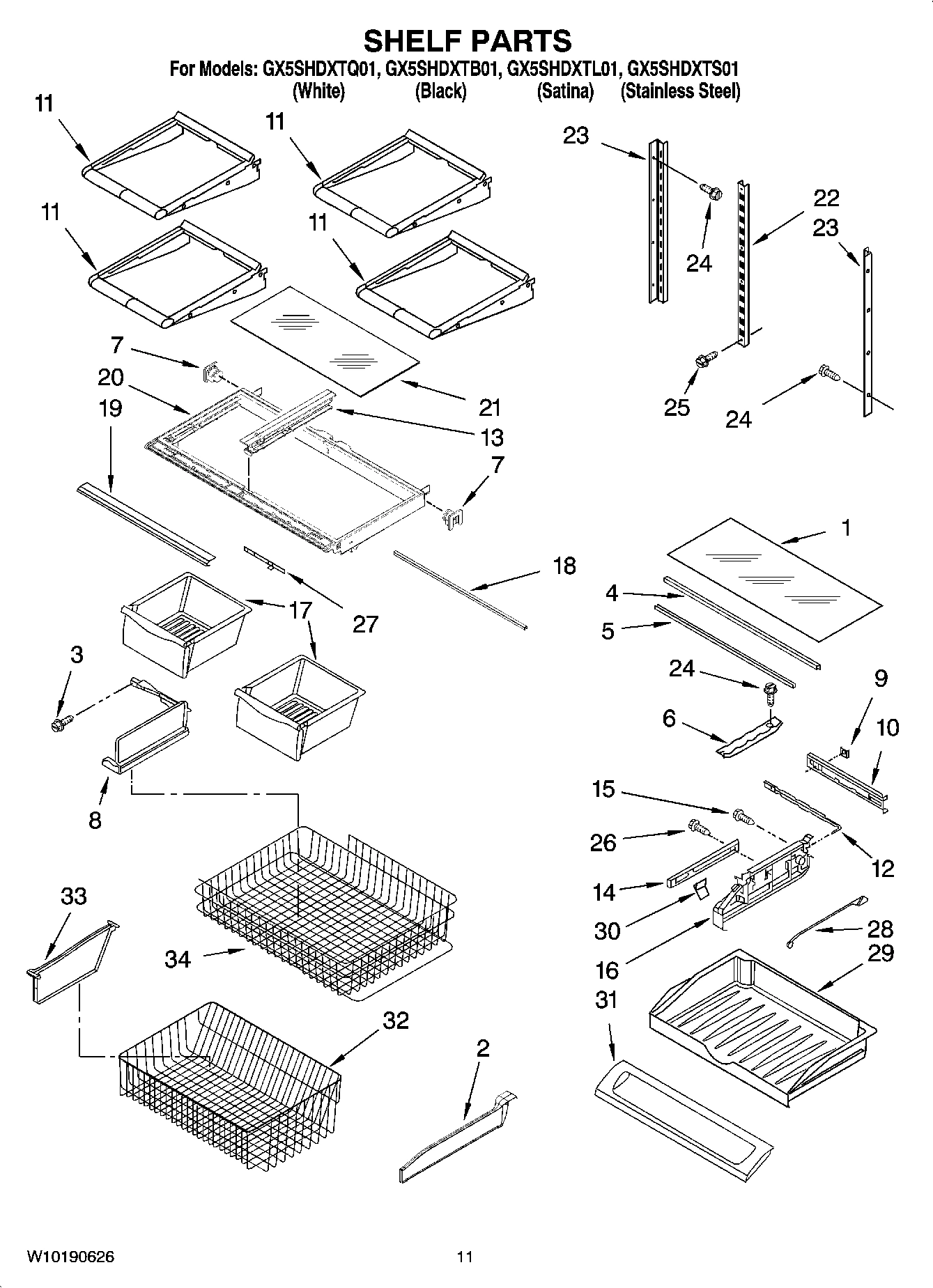

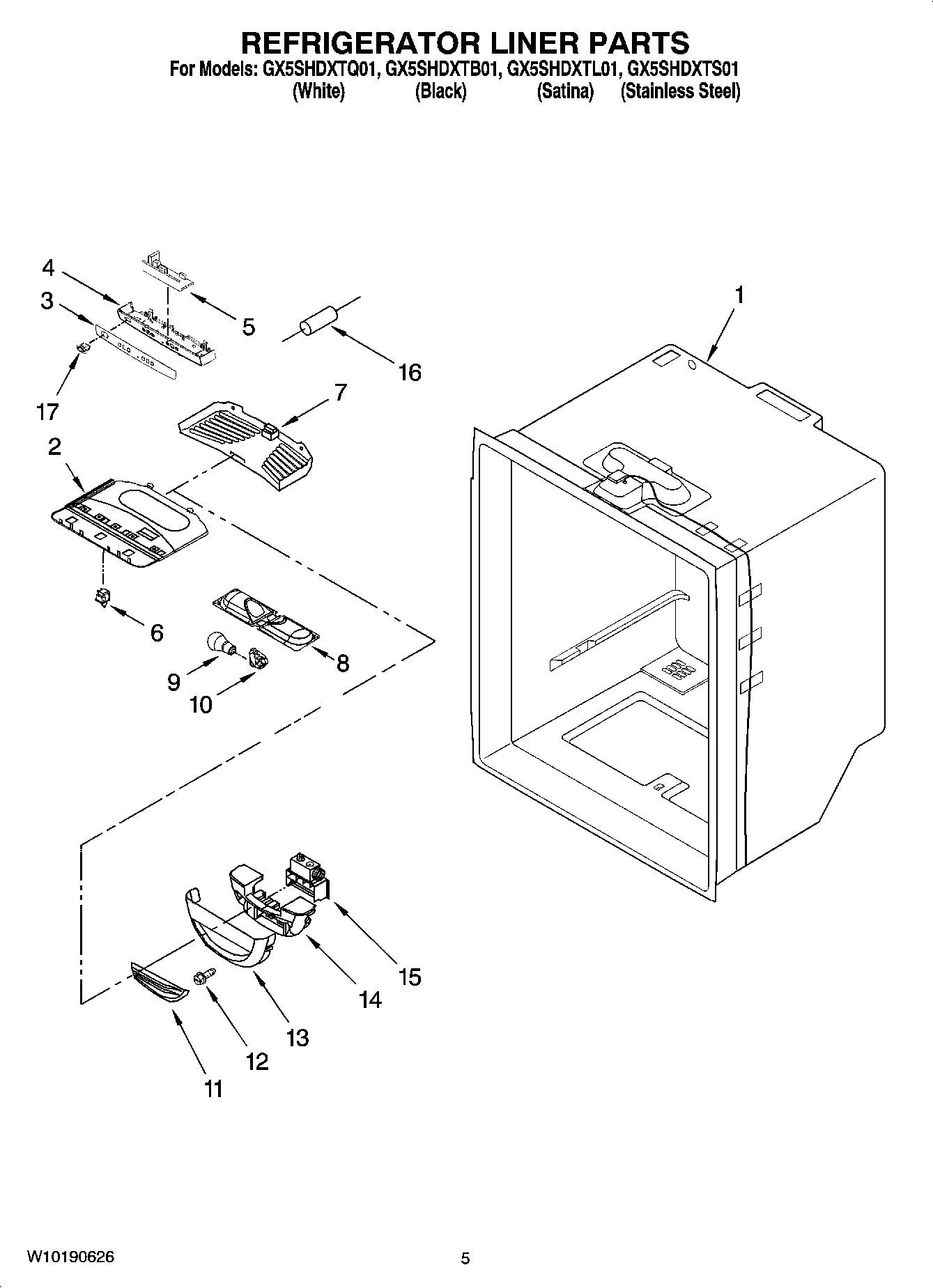

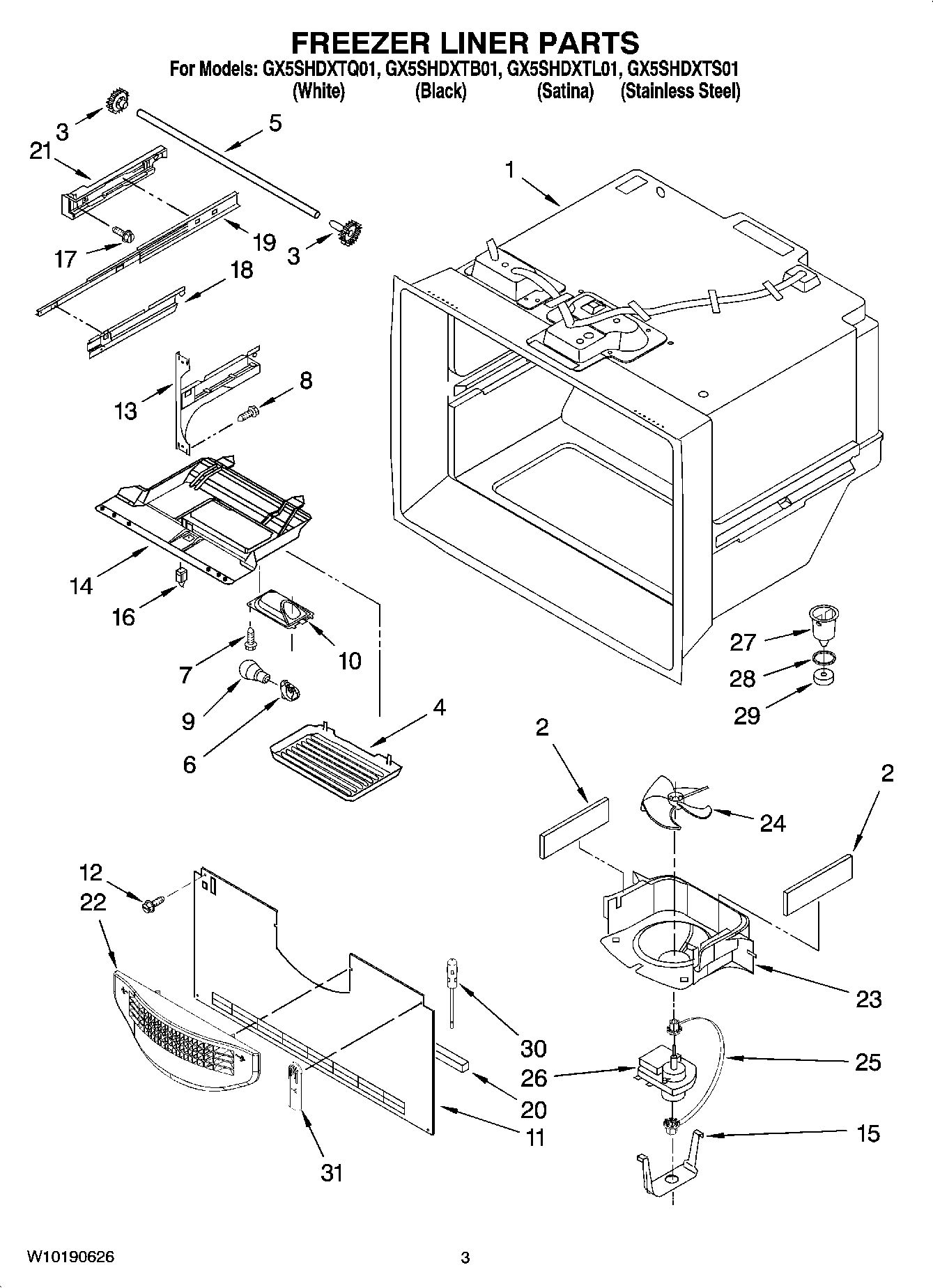

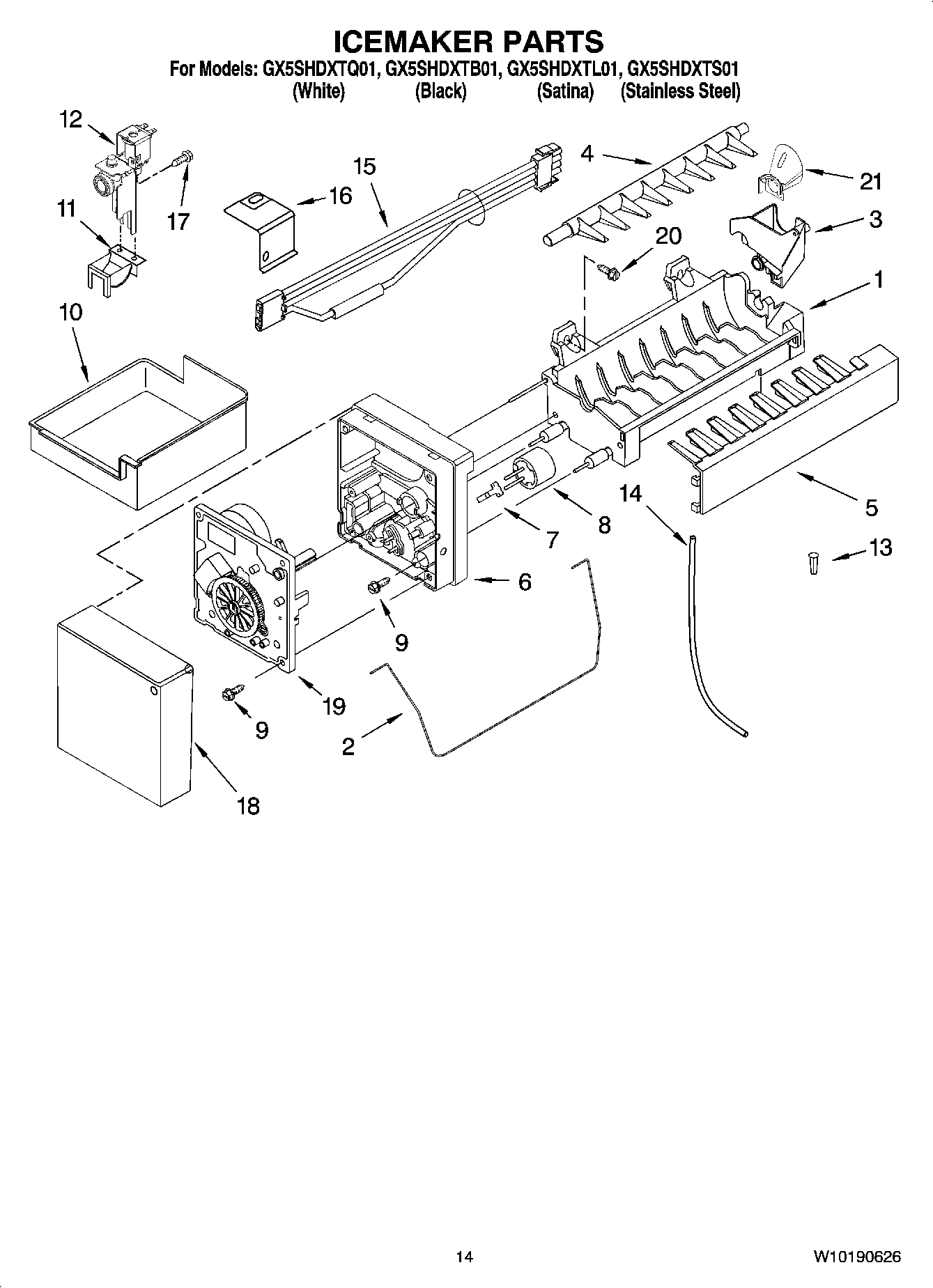

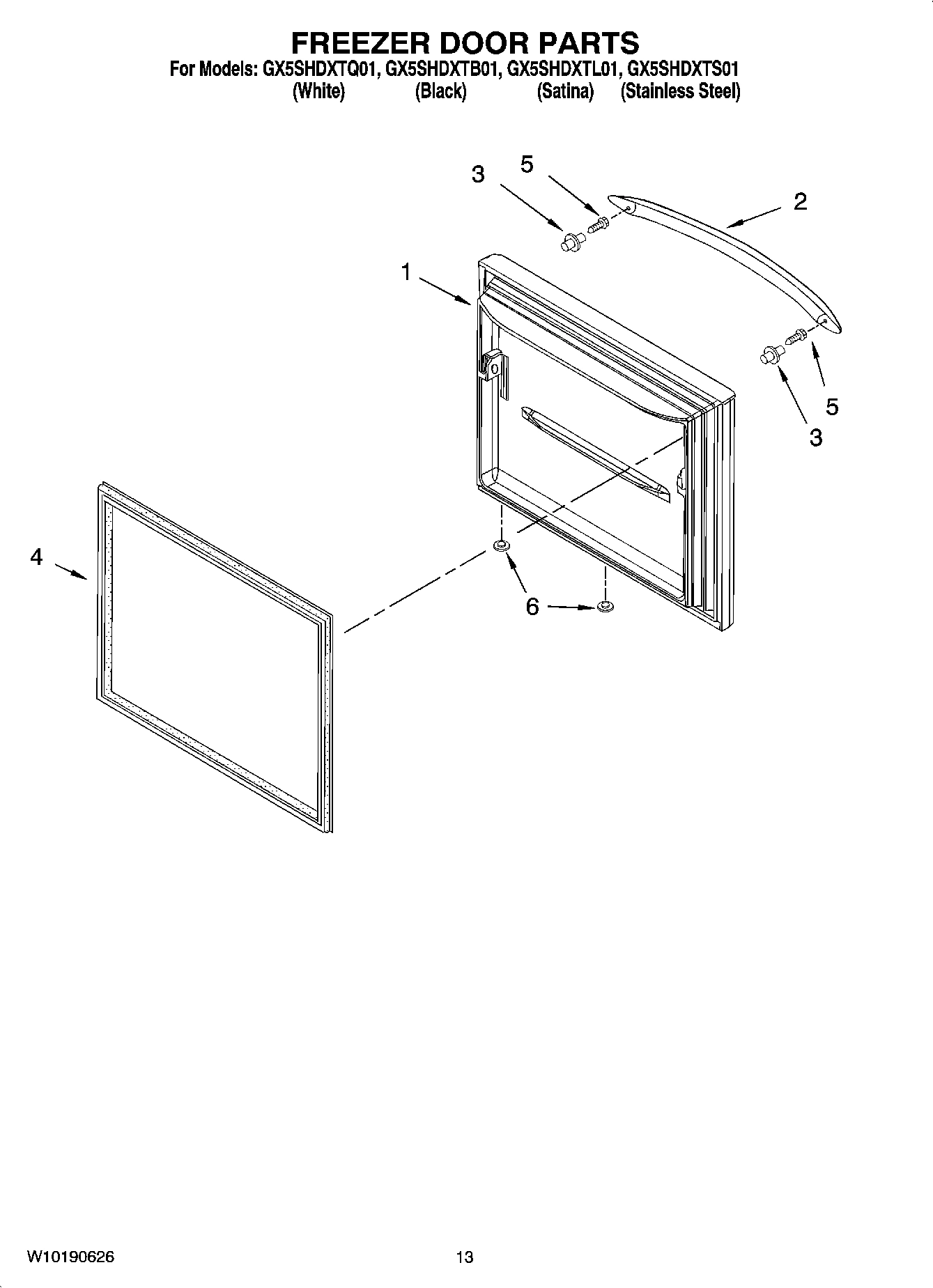

Model Whirlpool GX5SHDXTL01 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $31.20

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.72

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.73

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $24.57

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $52.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $6.37

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $22.65

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.19

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $118.74

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.43

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $33.30

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $40.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $42.85

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $47.27

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $70.54

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.40

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $31.24

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Harness, Lights (Freezer) WPL 67006095 Contact Us For Availability

Following Parts Not Illustrated WPL ARI152057A Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL ARI152065A WPL ARI152065A Contact Us For Availability

WPL ARI152066A WPL ARI152066A Contact Us For Availability

WPL ARI152067A WPL ARI152067A Contact Us For Availability

WPL ARI152068A WPL ARI152068A Contact Us For Availability

WPL ARI152069A WPL ARI152069A Contact Us For Availability

WPL ARI152070A WPL ARI152070A Contact Us For Availability

1

Liner (Not A Seviceable Part) WPL ARI152056A Contact Us For Availability

1

Door, Left (Black) WPL 13024006B Contact Us For Availability

1

Door, Left (White) WPL 13024006W Contact Us For Availability

1

Door, Left (Stainless Steel) WPL W10185727 Contact Us For Availability

1

Freezer Door (Includes Insulation) (White) WPL W10184822 Contact Us For Availability

1

Freezer Door (Includes Insulation) (Black) WPL W10184823 Contact Us For Availability

1

Freezer Door (Includes Insulation) (Stainless WPL W10190019 Contact Us For Availability

1

Glass, Pantry WPL 67002761 Contact Us For Availability

1

Mold & Heater Assembly (Not Available Order D WPL ARI152062A Contact Us For Availability

2

67002722 Whirlpool Refrigerator White Door Bu Backorder WPL 67002722 $16.76

2

W10156818 Whirlpool Refrigerator Fan Blade In Stock WPL W10156818 $37.72

2

W10856123 Whirlpool Refrigerator Gasket Backorder WPL W10856123 $4.51

2

WP2254600B Whirlpool Refrigerator Handle Backorder WPL WP2254600B $174.02

2

WP2254600W Whirlpool Refrigerator Handle Backorder WPL WP2254600W $162.75

2

WP67002721 Whirlpool Refrigerator Door Bushin Backorder WPL WP67002721 $4.19

2

WP67002759 Whirlpool Refrigerator Divider In Stock WPL WP67002759 $35.21

2

WP67004028 Whirlpool Refrigerator Shut-Off Ar In Stock WPL WP67004028 $40.88

2

Handle (Stainless) WPL 2254600S Contact Us For Availability

3

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $10.84

3

WP12744905 Whirlpool Refrigerator Compressor Backorder WPL WP12744905 $64.71

3

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $19.04

3

WP67006113 Whirlpool Stud Bolt In Stock WPL WP67006113 $6.12

3

Basepan WPL 67005889 Contact Us For Availability

3

Screw WPL 67006608 Contact Us For Availability

4

W10436252 Whirlpool Door Gasket In Stock WPL W10436252 $150.60

4

W10443319 Whirlpool Door Gasket In Stock WPL W10443319 $227.17

4

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $59.14

4

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $53.02

4

WP67006010 Whirlpool Refrigerator Shelf Trim Backorder WPL WP67006010 $106.83

4

Cover, Light WPL 67003905 Contact Us For Availability

5

W11028221 Whirlpool Refrigerator Shaft In Stock WPL W11028221 $12.86

5

WP12227305WD Whirlpool Drawer Support Backorder WPL WP12227305WD $51.68

5

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $32.35

5

WP67004954 Whirlpool Refrigerator Screw Backorder WPL WP67004954 $4.77

5

WPW10371194 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10371194 $50.42

6

10712401 Whirlpool Refrigerator Vent Plug (Wh Backorder WPL 10712401 $7.01

6

67004838 Whirlpool Refrigerator Button Vent P Backorder WPL 67004838 $7.35

6

W10160407 Whirlpool Refrigerator Compressor In Stock WPL W10160407 $453.21

6

W11311945 Whirlpool Refrigerator Screw Backorder WPL W11311945 $10.64

6

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $5.85

6

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $44.78

6

WP67001719 Whirlpool Refrigerator Track Backorder WPL WP67001719 $3.22

7

67006901 Whirlpool Refrigerator Screw Backorder WPL 67006901 $2.59

7

W10709797 Whirlpool Refrigerator Screw Backorder WPL W10709797 $14.93

7

WP12603701 Whirlpool Refrigerator Support In Stock WPL WP12603701 $5.53

7

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $5.88

7

Harness, Evap. Heater WPL W10119856 Contact Us For Availability

8

W10830189 Whirlpool Refrigerator Door Gasket In Stock WPL W10830189 $145.32

8

W11368721 Whirlpool Refrigerator French Door In Stock WPL W11368721 $121.03

8

WP12579803 Whirlpool Refrigerator Drain Pan Backorder WPL WP12579803 $161.52

8

Divider, Upper Basket WPL 67004127 Contact Us For Availability

8

Thermostat (Not Available Order D7824706Q) WPL ARI152063A Contact Us For Availability

9

67002329 Whirlpool Refrigerator Pantry Gasket Backorder WPL 67002329 $16.76

9

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $4.33

9

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.46

9

Grommet (3) WPL 61004743 Contact Us For Availability

12656202 Whirlpool Refrigerator Housing Backorder WPL 12656202 $84.64

WP67001255 Whirlpool Ice Bucket In Stock WPL WP67001255 $85.52

WP67002493 Whirlpool Refrigerator Defrost Hea In Stock WPL WP67002493 $78.91

Housing, Light WPL 67001035 Contact Us For Availability

12831101 Whirlpool Refrigerator Tube Clamp Backorder WPL 12831101 $11.97

67003900 Whirlpool Refrigerator Insert Damper In Stock WPL 67003900 $4.20

W11727809 Whirlpool Evaporator Cover Backorder WPL W11727809 $37.89

Nameplate WPL 67002684 Contact Us For Availability

Shelf, Sta (4) WPL 12654709 Contact Us For Availability

W10613606 Whirlpool Refrigerator Start Device In Stock WPL W10613606 $75.16

WP67003753 Whirlpool Refrigerator Inlet Valve In Stock WPL WP67003753 $73.43

WP67003793 Whirlpool Refrigerator Temperature Backorder WPL WP67003793 $32.53

WPW10289497 Whirlpool Refrigerator Shelf Bin In Stock WPL WPW10289497 $47.10

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $8.89

WPA3223101 Whirlpool Refrigerator Insert PL Backorder WPL WPA3223101 $4.19

WPW10326469 Whirlpool Drawer Slide Rail In Stock WPL WPW10326469 $13.92

WPW10330991 Whirlpool Refrigerator Bracket In Stock WPL WPW10330991 $67.83

WPW10330993 Whirlpool Refrigerator Bracket Backorder WPL WPW10330993 $72.57

Door, Right (Black) WPL 13024005B Contact Us For Availability

Door, Right (White) WPL 13024005W Contact Us For Availability

Door, Right (Stainless Steel) WPL W10190627 Contact Us For Availability

67003906 Whirlpool Refrigerator Control Modul Backorder WPL 67003906 $76.82

WP12722803B Whirlpool Door Guide In Stock WPL WP12722803B $155.02

WP12722803W Whirlpool Door Support In Stock WPL WP12722803W $165.75

WPB5705307 Whirlpool Refrigerator Tube Backorder WPL WPB5705307 $7.62

WPW10165425 Whirlpool Bimetal Defrost Thermos In Stock WPL WPW10165425 $47.01

WPW10235370 Whirlpool Refrigerator Glide In Stock WPL WPW10235370 $134.37

15

WPD7813010 Whirlpool Refrigerator Wire Harnes In Stock WPL WPD7813010 $38.87

15

WPW10137529 Whirlpool Refrigerator Grommet Backorder WPL WPW10137529 $4.19

W10874836 Whirlpool Endcap Assembly Left Hand In Stock WPL W10874836 $21.73

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $17.32

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $62.84

WP67003638 Whirlpool Closing Cam In Stock WPL WP67003638 $4.51

WP67003639 Whirlpool Refrigerator Closer In Stock WPL WP67003639 $33.57

Shroud, Condenser WPL W10158508 Contact Us For Availability

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $43.15

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $14.22

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $5.76

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $3.51

WP67004515 Whirlpool Crisper Drawer In Stock WPL WP67004515 $90.73

Clip, Capacitor WPL 67007052 Contact Us For Availability

WP12642303WD Whirlpool Refrigerator Drawer Su Backorder WPL WP12642303WD $44.43

WP67006131 Whirlpool Refrigerator Condenser Backorder WPL WP67006131 $245.73

WPW10280608 Whirlpool Refrigerator Bracket Backorder WPL WPW10280608 $42.36

WPW10280613 Whirlpool Refrigerator Bracket Backorder WPL WPW10280613 $42.36

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $3.46

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $86.05

WP12866903 Whirlpool Refrigerator Discharge T Backorder WPL WP12866903 $90.37

Bushing, Door (Upper Left) (Black) WPL 12395501B Contact Us For Availability

Bushing, Door (Upper Left) (White) WPL 12395501W Contact Us For Availability

Trim, Crisper WPL 67004009 Contact Us For Availability

Module Assembly (Not Available Order D7824706 WPL ARI152064A Contact Us For Availability

67004978 Whirlpool Refrigerator Black Door Bu Backorder WPL 67004978 $12.24

67006564 Whirlpool Refrigerator Screw Backorder WPL 67006564 $3.22

W11451451 Whirlpool Refrigerator Gasket Backorder WPL W11451451 $6.21

W11547653 Whirlpool Refrigerator Drip Tray Backorder WPL W11547653 $45.77

WP67003854 Whirlpool Shelf Frame In Stock WPL WP67003854 $189.19

WP67004977 Whirlpool Refrigerator Door Hinge Backorder WPL WP67004977 $4.19

WP98165 Whirlpool Screw Backorder WPL WP98165 $3.46

12918001 Whirlpool Refrigerator Funnel Backorder WPL 12918001 $8.42

WP67006704 Whirlpool Glass Crisper Cover In Stock WPL WP67006704 $148.30

WPW10284681 Whirlpool Refrigerator Bracket Backorder WPL WPW10284681 $188.19

Clip, Evaporator WPL 10623002 Contact Us For Availability

Bracket, Slide (Left) WPL W10128118 Contact Us For Availability

12002041 Whirlpool Refrigerator Evaporator Re In Stock WPL 12002041 $221.47

12028601W Whirlpool Refrigerator Hinge Bushin Backorder WPL 12028601W $10.35

67001073 Whirlpool Refrigerator Center Ladder Backorder WPL 67001073 $43.86

WP67002731 Whirlpool Refrigerator Door Bushin Backorder WPL WP67002731 $4.19

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $34.95

67002489 Whirlpool Refrigerator Ladder Left/R Backorder WPL 67002489 $45.04

WPW10167023 Whirlpool Refrigerator Shroud Backorder WPL WPW10167023 $44.34

Dam (Left Side) WPL 67001083 Contact Us For Availability

Dam (Right Side) WPL 67001084 Contact Us For Availability

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $3.22

M0286708 Whirlpool Refrigerator Holder Nut As Backorder WPL M0286708 $41.67

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $35.14

Motor, Fan WPL 67004432 Contact Us For Availability

25

W10121318 Whirlpool Refrigerator Grommet Backorder WPL W10121318 $29.16

25

W10709795 Whirlpool Refrigerator Screw Backorder WPL W10709795 $12.17

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $69.92

26

WP67006415 Whirlpool Refrigerator Screw Backorder WPL WP67006415 $4.05

26

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $53.43

26

Harness, Unit Includes Cord WPL 13060202 Contact Us For Availability

27

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $29.53

27

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $4.19

27

WPB2150504 Whirlpool Refrigerator Dryer Backorder WPL WPB2150504 $67.70

28

10547003 Whirlpool Refrigerator Dryer Clip Backorder WPL 10547003 $7.15

28

WP67003795 Whirlpool Refrigerator Temperature Backorder WPL WP67003795 $5.76

28

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $6.05

29

WP67003531 Whirlpool Drawer Assembly In Stock WPL WP67003531 $97.01

29

WP67004953 Whirlpool Refrigerator Bracket Backorder WPL WP67004953 $45.92

29

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $4.19

30

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $29.84

30

67003493 Whirlpool Refrigerator Compressor Gr Backorder WPL 67003493 $16.76

30

W11498983 Whirlpool Refrigerator Knob Backorder WPL W11498983 $14.27

12846902 Whirlpool Refrigerator Screw Backorder WPL 12846902 $14.22

W10827015 Whirlpool Refrigerator Pantry Drawe In Stock WPL W10827015 $131.33

W11176463 Whirlpool Refrigerator Water Tube In Stock WPL W11176463 $47.57

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $4.19

32

WPW10503184 Whirlpool Refrigerator Freezer Ba Backorder WPL WPW10503184 $201.47

32

Screw (4) WPL 67006573 Contact Us For Availability

33

67003796 Whirlpool Refrigerator Fiber Acousti Backorder WPL 67003796 $13.18

33

WP33001882 Whirlpool Screw Backorder WPL WP33001882 $56.40

33

Divider, Lower Basket WPL 67006644 Contact Us For Availability

34

67004987 Whirlpool Refrigerator Upper Basket Backorder WPL 67004987 $299.14

34

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $16.76

35

Block, Condenser WPL 67005491 Contact Us For Availability

36

WP67005149 Whirlpool Roller Backorder WPL WP67005149 $12.24

37

67006434 Whirlpool Axle Pin Backorder WPL 67006434 $4.20

37

W10164397 Whirlpool Refrigerator Drain Tube Backorder WPL W10164397 $13.59

100

D7824706Q Whirlpool Refrigerator Ice Maker As In Stock WPL D7824706Q $123.26
