Model Whirlpool GX5FHTXTS01 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $31.20

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.72

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.73

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $24.57

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $52.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $6.37

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $22.65

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.19

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $118.74

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.43

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $33.30

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $40.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $42.85

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $47.27

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $70.54

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.40

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $31.24

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL ARI151983A WPL ARI151983A Contact Us For Availability

WPL ARI151984A WPL ARI151984A Contact Us For Availability

WPL ARI151985A WPL ARI151985A Contact Us For Availability

WPL ARI151986A WPL ARI151986A Contact Us For Availability

WPL ARI151987A WPL ARI151987A Contact Us For Availability

WPL ARI151988A WPL ARI151988A Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI151978A Contact Us For Availability

REFRIGERANT CHARGE 5.0 Ozs. (R-134A) WPL ARI151979A Contact Us For Availability

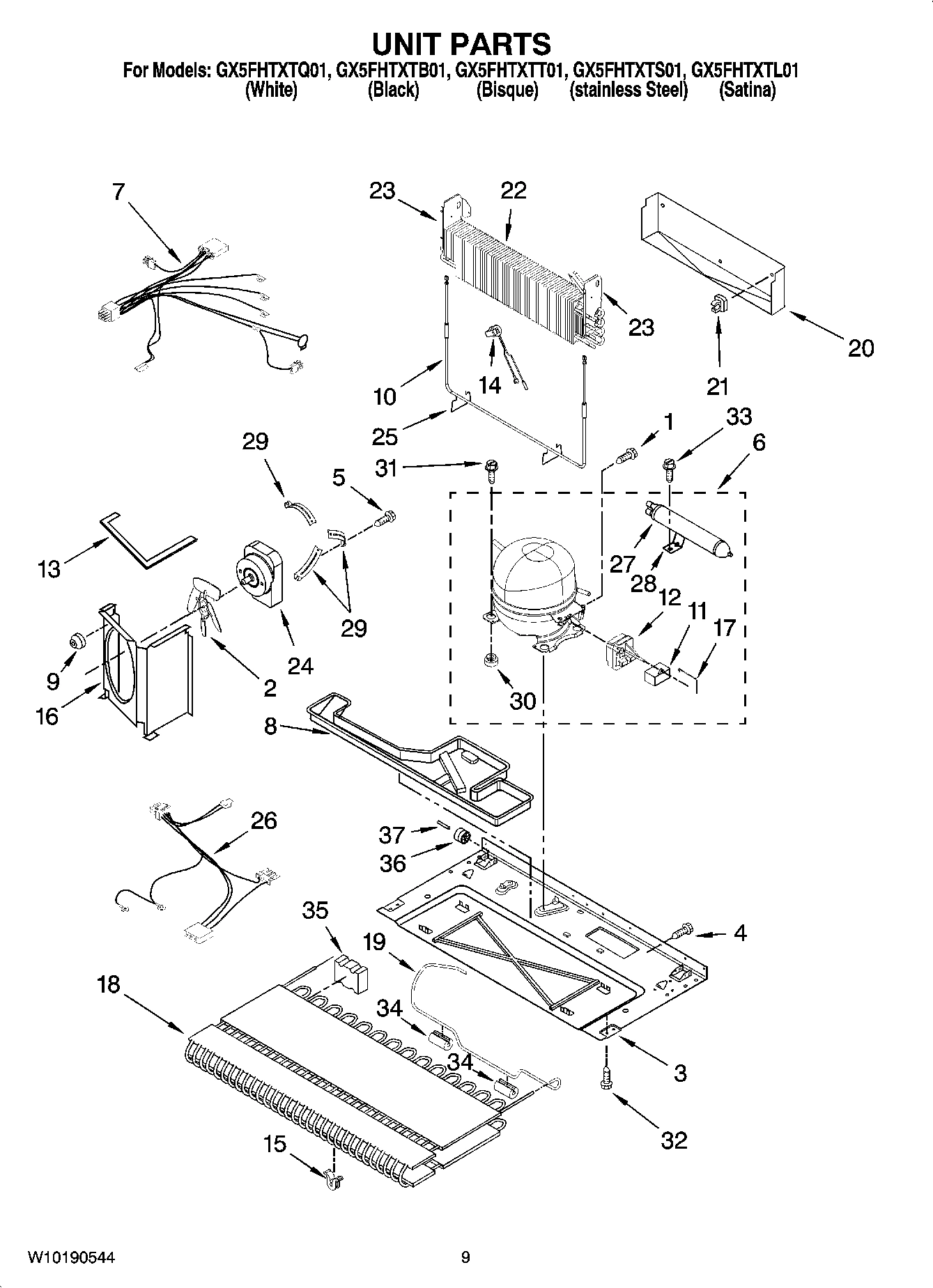

1

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $21.63

1

Tech Sheet WPL 12827952 Contact Us For Availability

1

Tag, Energy WPL W10133057 Contact Us For Availability

1

Owners Manual WPL W10137645 Contact Us For Availability

1

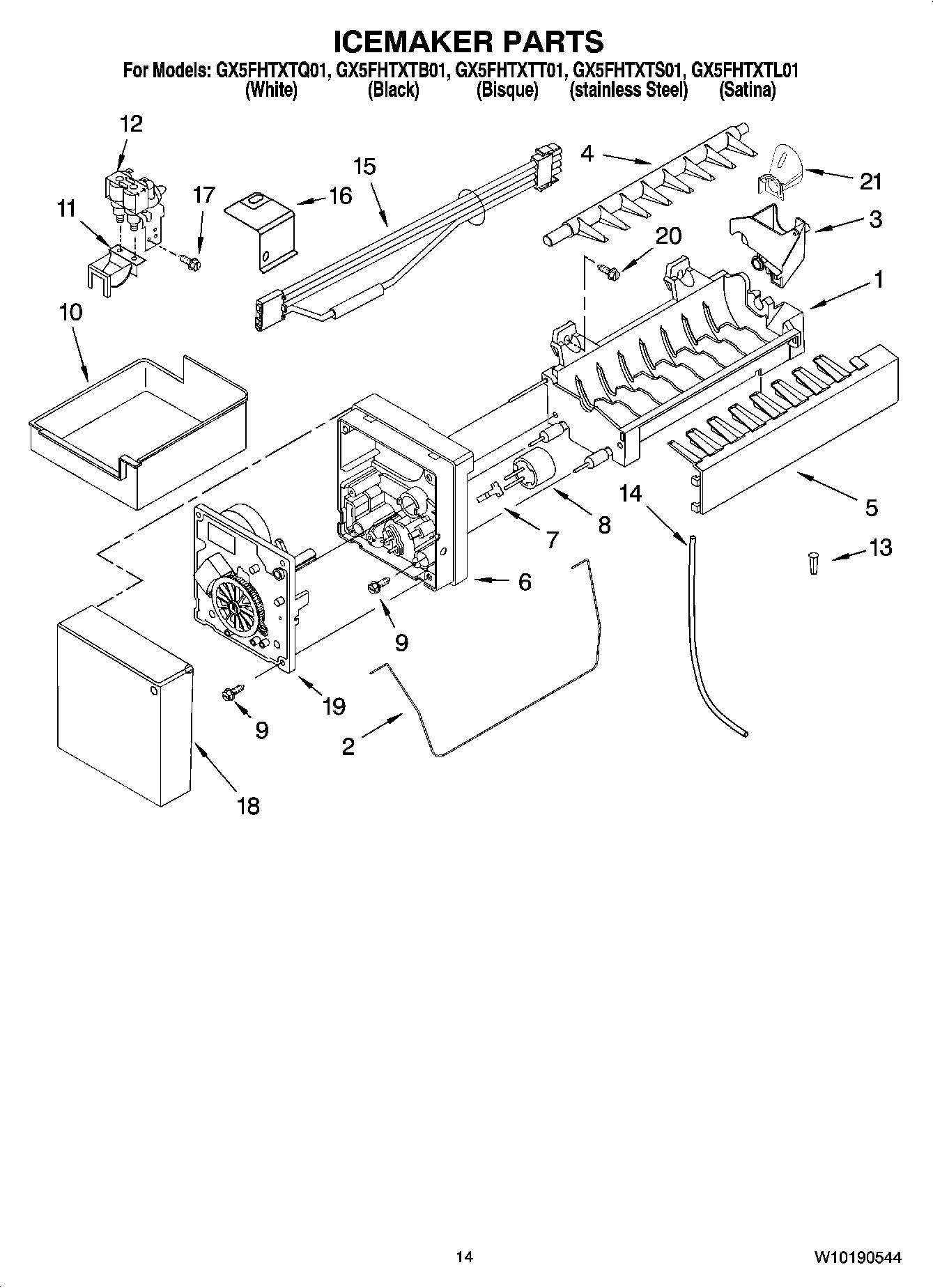

Mold & Heater Assembly (Not Available Order D WPL ARI151980A Contact Us For Availability

1

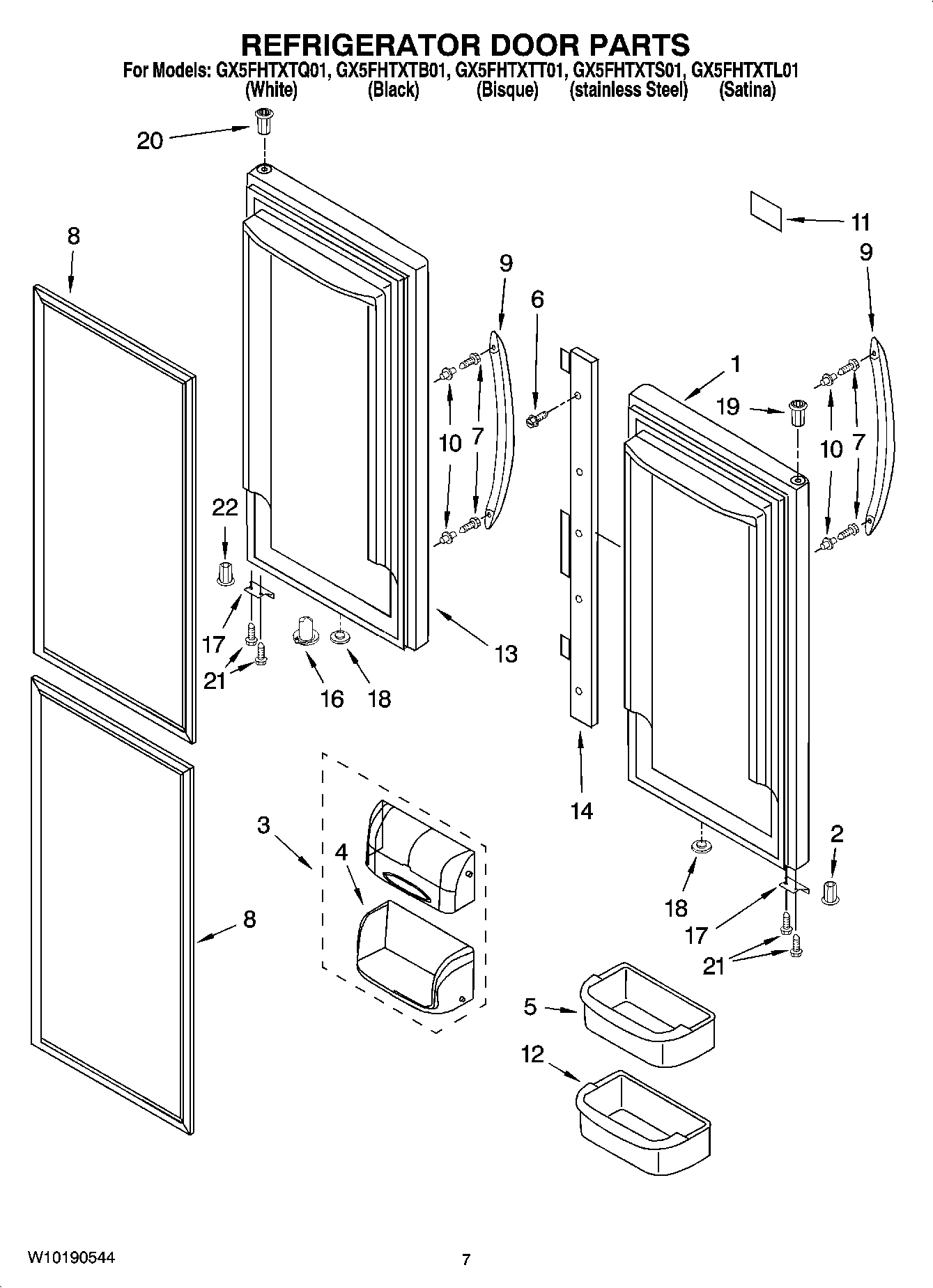

Door, Left (Black) WPL 13024006B Contact Us For Availability

1

Door, Left (Bisque) WPL 13024006Q Contact Us For Availability

1

Door, Left (White) WPL 13024006W Contact Us For Availability

1

Door, Left (Stainless Steel) WPL W10185727 Contact Us For Availability

1

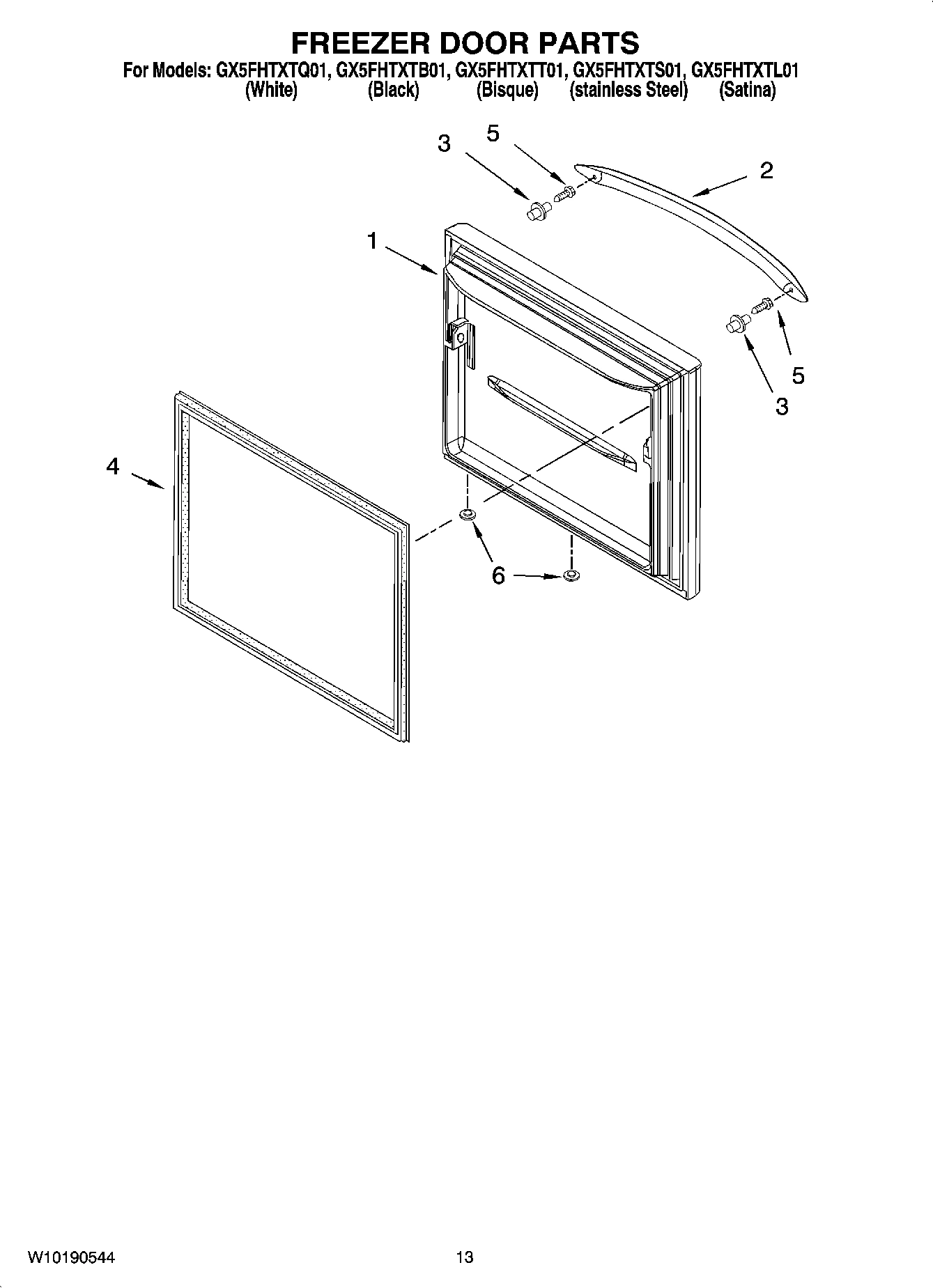

Freezer Door (Includes Insulation) (Stainless WPL W10184150 Contact Us For Availability

1

Freezer Door (Includes Insulation) (White) WPL W10184822 Contact Us For Availability

1

Freezer Door (Includes Insulation) (Black) WPL W10184823 Contact Us For Availability

1

Freezer Door (Includes Insulation) (Bisque) WPL W10190545 Contact Us For Availability

2

67002722 Whirlpool Refrigerator White Door Bu Backorder WPL 67002722 $16.76

2

W10156818 Whirlpool Refrigerator Fan Blade In Stock WPL W10156818 $37.72

2

WP2254600B Whirlpool Refrigerator Handle Backorder WPL WP2254600B $174.02

2

WP2254600W Whirlpool Refrigerator Handle Backorder WPL WP2254600W $162.75

2

WP67002721 Whirlpool Refrigerator Door Bushin Backorder WPL WP67002721 $4.19

2

WP67004028 Whirlpool Refrigerator Shut-Off Ar In Stock WPL WP67004028 $40.88

2

WPM0114003 Whirlpool Microwave Speed Clip Cla Backorder WPL WPM0114003 $5.88

2

Handle (Stainless) WPL 2254600S Contact Us For Availability

2

Handle (Bisque) WPL 2254600T Contact Us For Availability

3

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $10.84

3

WP12744905 Whirlpool Refrigerator Compressor Backorder WPL WP12744905 $64.71

3

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $19.04

3

WP67003405 Whirlpool Pivot Block In Stock WPL WP67003405 $4.51

3

WP67006113 Whirlpool Stud Bolt In Stock WPL WP67006113 $6.12

3

Basepan WPL 67005889 Contact Us For Availability

4

W10436252 Whirlpool Door Gasket In Stock WPL W10436252 $150.60

4

W10443319 Whirlpool Door Gasket In Stock WPL W10443319 $227.17

4

WP12806407 Whirlpool Refrigerator Housing Backorder WPL WP12806407 $76.24

4

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $59.14

4

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $53.02

4

Gasket WPL B5759649 Contact Us For Availability

5

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $32.35

5

WP67004954 Whirlpool Refrigerator Screw Backorder WPL WP67004954 $4.77

5

WPW10371194 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10371194 $50.42

5

WPW10503278 Whirlpool Refrigerator Electronic In Stock WPL WPW10503278 $150.54

5

Roller Assembly WPL 67006118 Contact Us For Availability

6

10712401 Whirlpool Refrigerator Vent Plug (Wh Backorder WPL 10712401 $7.01

6

67004838 Whirlpool Refrigerator Button Vent P Backorder WPL 67004838 $7.35

6

W10160407 Whirlpool Refrigerator Compressor In Stock WPL W10160407 $453.21

6

W11311945 Whirlpool Refrigerator Screw Backorder WPL W11311945 $10.64

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.32

6

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $44.78

6

Clip, Grille WPL 12627302 Contact Us For Availability

7

67006901 Whirlpool Refrigerator Screw Backorder WPL 67006901 $2.59

7

A3076901 Whirlpool Refrigerator Plug Backorder WPL A3076901 $6.28

7

W11284721 Whirlpool Refrigerator Cover Backorder WPL W11284721 $43.81

7

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $5.88

7

Harness, Evap. Heater WPL W10119856 Contact Us For Availability

8

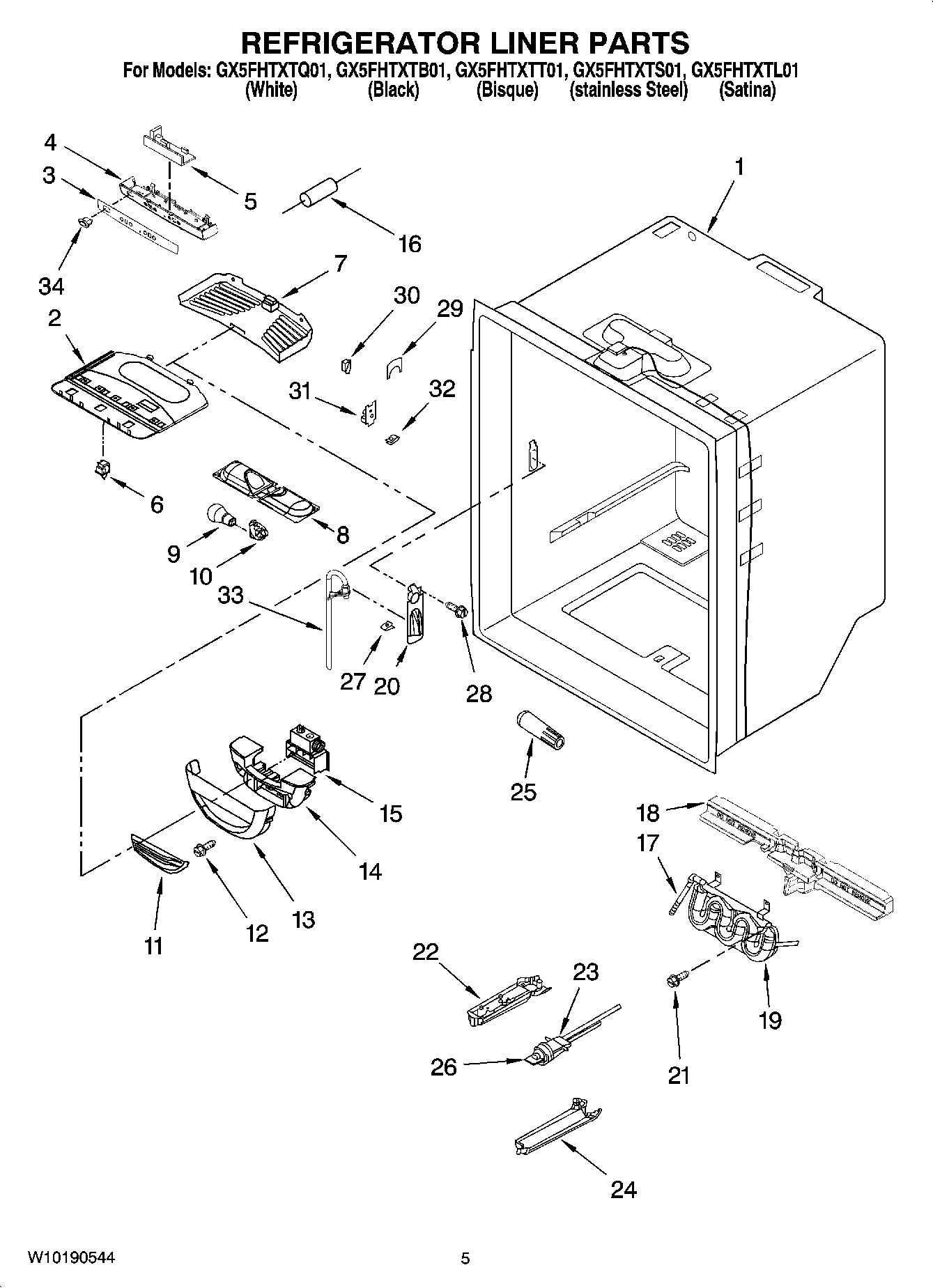

12806601 Whirlpool Refrigerator Light Housing Backorder WPL 12806601 $70.32

8

71003131 Whirlpool Oven Screw Backorder WPL 71003131 $7.55

8

W10830189 Whirlpool Refrigerator Door Gasket In Stock WPL W10830189 $145.32

8

W11368721 Whirlpool Refrigerator French Door In Stock WPL W11368721 $121.03

8

WP12579803 Whirlpool Refrigerator Drain Pan Backorder WPL WP12579803 $161.52

8

Thermostat (Not Available Order D7824706Q) WPL ARI151981A Contact Us For Availability

9

67002329 Whirlpool Refrigerator Pantry Gasket Backorder WPL 67002329 $16.76

9

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $4.33

9

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.46

9

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $4.53

9

Grommet (3) WPL 61004743 Contact Us For Availability

12456801V Whirlpool Refrigerator Bracket Backorder WPL 12456801V $46.54

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $5.85

WP67001255 Whirlpool Ice Bucket In Stock WPL WP67001255 $85.52

WP67002493 Whirlpool Refrigerator Defrost Hea In Stock WPL WP67002493 $78.91

12831101 Whirlpool Refrigerator Tube Clamp Backorder WPL 12831101 $11.97

67003900 Whirlpool Refrigerator Insert Damper In Stock WPL 67003900 $4.20

WP67006380 Whirlpool Screw Backorder WPL WP67006380 $3.22

Nameplate WPL 67002684 Contact Us For Availability

W10613606 Whirlpool Refrigerator Start Device In Stock WPL W10613606 $75.16

WP400021-1 Whirlpool Screw In Stock WPL WP400021-1 $5.58

WP67003793 Whirlpool Refrigerator Temperature Backorder WPL WP67003793 $32.53

WP67006531 Whirlpool Water Inlet Valve In Stock WPL WP67006531 $132.73

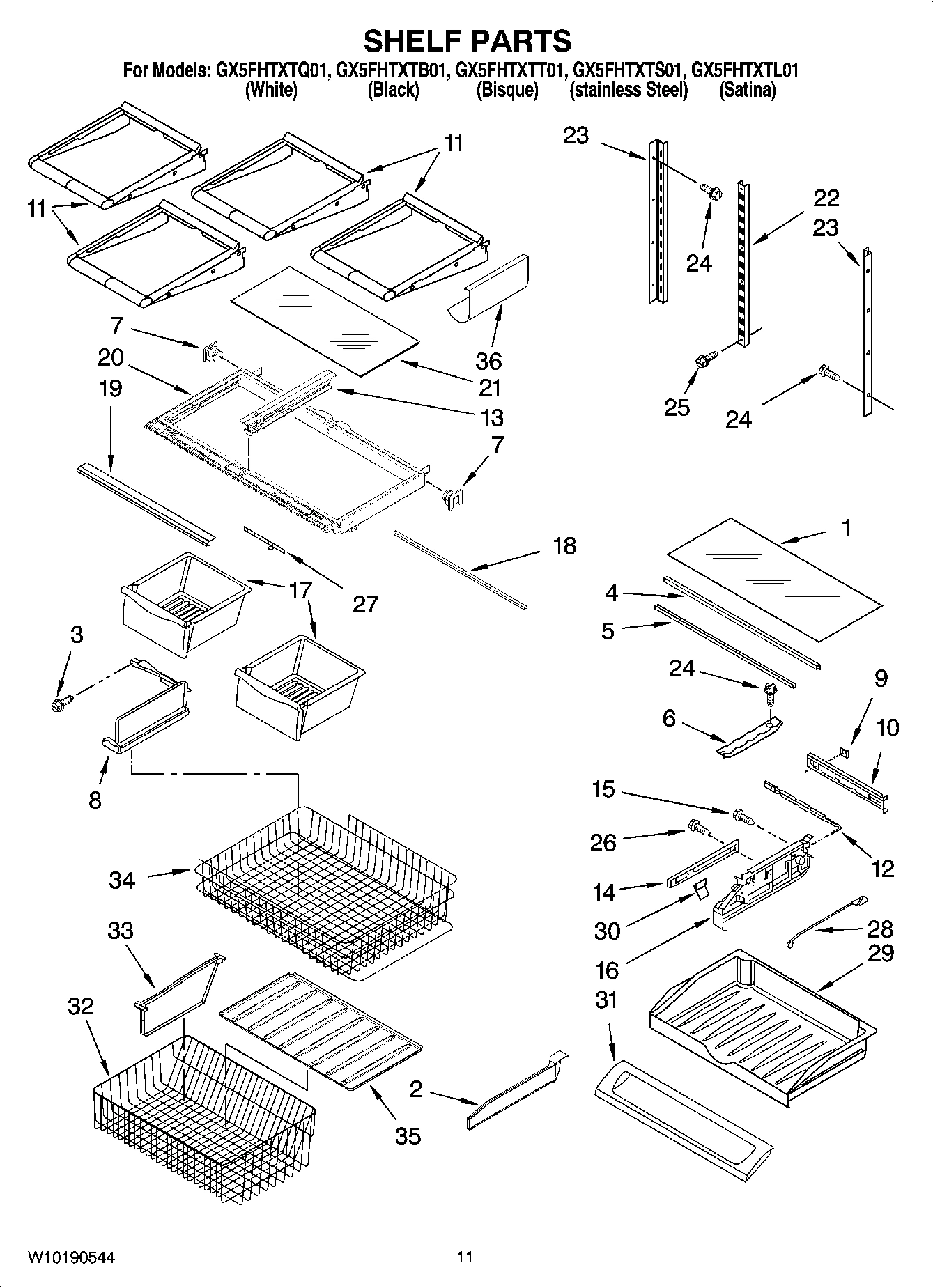

WPW10289497 Whirlpool Refrigerator Shelf Bin In Stock WPL WPW10289497 $47.10

Pin, Roller WPL M1205302 Contact Us For Availability

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $45.66

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $8.89

WPA3223101 Whirlpool Refrigerator Insert PL Backorder WPL WPA3223101 $4.19

Cover, Left Hinge (Black) WPL 12684201B Contact Us For Availability

Cover, Left Hinge (Bisque) WPL 12684201C Contact Us For Availability

Cover, Left Hinge (White) WPL 12684201W Contact Us For Availability

Door, Right (Black) WPL 13024005B Contact Us For Availability

Door, Right (Bisque) WPL 13024005Q Contact Us For Availability

Door, Right (White) WPL 13024005W Contact Us For Availability

Door Right (Stainless Steel) WPL W10185728 Contact Us For Availability

Backorder WPL W11750607 $29.70

WP12722803B Whirlpool Door Guide In Stock WPL WP12722803B $155.02

WP12722803W Whirlpool Door Support In Stock WPL WP12722803W $165.75

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $3.22

WPB5705307 Whirlpool Refrigerator Tube Backorder WPL WPB5705307 $7.62

WPW10165425 Whirlpool Bimetal Defrost Thermos In Stock WPL WPW10165425 $47.01

WPW10235370 Whirlpool Refrigerator Glide In Stock WPL WPW10235370 $134.37

67006442 Whirlpool Refrigerator Center Hinge Backorder WPL 67006442 $52.98

W10918113 Whirlpool Refrigerator Door Hinge Backorder WPL W10918113 $40.66

W10918164 Whirlpool Refrigerator Door Hinge Backorder WPL W10918164 $50.48

WPD7813010 Whirlpool Refrigerator Wire Harnes In Stock WPL WPD7813010 $38.87

WPW10137529 Whirlpool Refrigerator Grommet Backorder WPL WPW10137529 $4.19

WPW10196393 Whirlpool Control Damper In Stock WPL WPW10196393 $108.00

Hinge, Center (2) (White (RT)) WPL 67006379 Contact Us For Availability

WP12777701 Whirlpool Refrigerator Filler Bloc Backorder WPL WP12777701 $5.73

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $62.84

WP67003638 Whirlpool Closing Cam In Stock WPL WP67003638 $4.51

WP67003639 Whirlpool Refrigerator Closer In Stock WPL WP67003639 $33.57

Shroud, Condenser WPL W10158508 Contact Us For Availability

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $43.15

67003484 Whirlpool Refrigerator White Corner Backorder WPL 67003484 $15.96

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $12.24

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $14.22

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $5.76

WP2300868 Whirlpool Refrigerator Fitting In Stock WPL WP2300868 $12.13

Cover, Corner (Bisque) WPL 67003486 Contact Us For Availability

Stop, Door (Bisque) WPL 12968202Q Contact Us For Availability

Clip, Capacitor WPL 67007052 Contact Us For Availability

W11714300 Whirlpool Insulation In Stock WPL W11714300 $21.84

WP12566607ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566607ED $35.53

WP67006131 Whirlpool Refrigerator Condenser Backorder WPL WP67006131 $245.73

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $3.46

W11361728 Whirlpool Reservoir Assembly In Stock WPL W11361728 $70.31

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $86.05

WP12866903 Whirlpool Refrigerator Discharge T Backorder WPL WP12866903 $90.37

Bracket, Foot WPL 67007174 Contact Us For Availability

Module Assembly (Not Available Order D7824706 WPL ARI151982A Contact Us For Availability

Bushing, Door (Upper Left) (Black) WPL 12395501B Contact Us For Availability

Bushing, Door (Upper Left) (White) WPL 12395501W Contact Us For Availability

67004978 Whirlpool Refrigerator Black Door Bu Backorder WPL 67004978 $12.24

67006564 Whirlpool Refrigerator Screw Backorder WPL 67006564 $3.22

W11451451 Whirlpool Refrigerator Gasket Backorder WPL W11451451 $6.21

W11547653 Whirlpool Refrigerator Drip Tray Backorder WPL W11547653 $45.77

WP67004977 Whirlpool Refrigerator Door Hinge Backorder WPL WP67004977 $4.19

Dispenser WPL W10158503 Contact Us For Availability

12918001 Whirlpool Refrigerator Funnel Backorder WPL 12918001 $8.42

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $3.22

WP98165 Whirlpool Screw Backorder WPL WP98165 $3.46

Shim, Hinge WPL 12579702 Contact Us For Availability

Clip, Evaporator WPL 10623002 Contact Us For Availability

12002041 Whirlpool Refrigerator Evaporator Re In Stock WPL 12002041 $221.47

12028601W Whirlpool Refrigerator Hinge Bushin Backorder WPL 12028601W $10.35

WP67001668 Whirlpool Water Filter Housing In Stock WPL WP67001668 $7.65

WP67002731 Whirlpool Refrigerator Door Bushin Backorder WPL WP67002731 $4.19

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $34.95

WPW10534153 Whirlpool Refrigerator Black Kick In Stock WPL WPW10534153 $67.54

WPW10534154 Whirlpool Refrigerator Front Gril Backorder WPL WPW10534154 $67.15

Grille Assembly (Includes Clips) (Bisque) WPL 67006376 Contact Us For Availability

WP10450603 Whirlpool Refrigerator Roller In Stock WPL WP10450603 $4.20

WP67006524 Whirlpool Refrigerator Housing In Stock WPL WP67006524 $89.69

WPW10167023 Whirlpool Refrigerator Shroud Backorder WPL WPW10167023 $44.34

Dam (Left Side) WPL 67001083 Contact Us For Availability

Dam (Right Side) WPL 67001084 Contact Us For Availability

M0286708 Whirlpool Refrigerator Holder Nut As Backorder WPL M0286708 $41.67

WP12568001 Whirlpool Filter Cover In Stock WPL WP12568001 $53.79

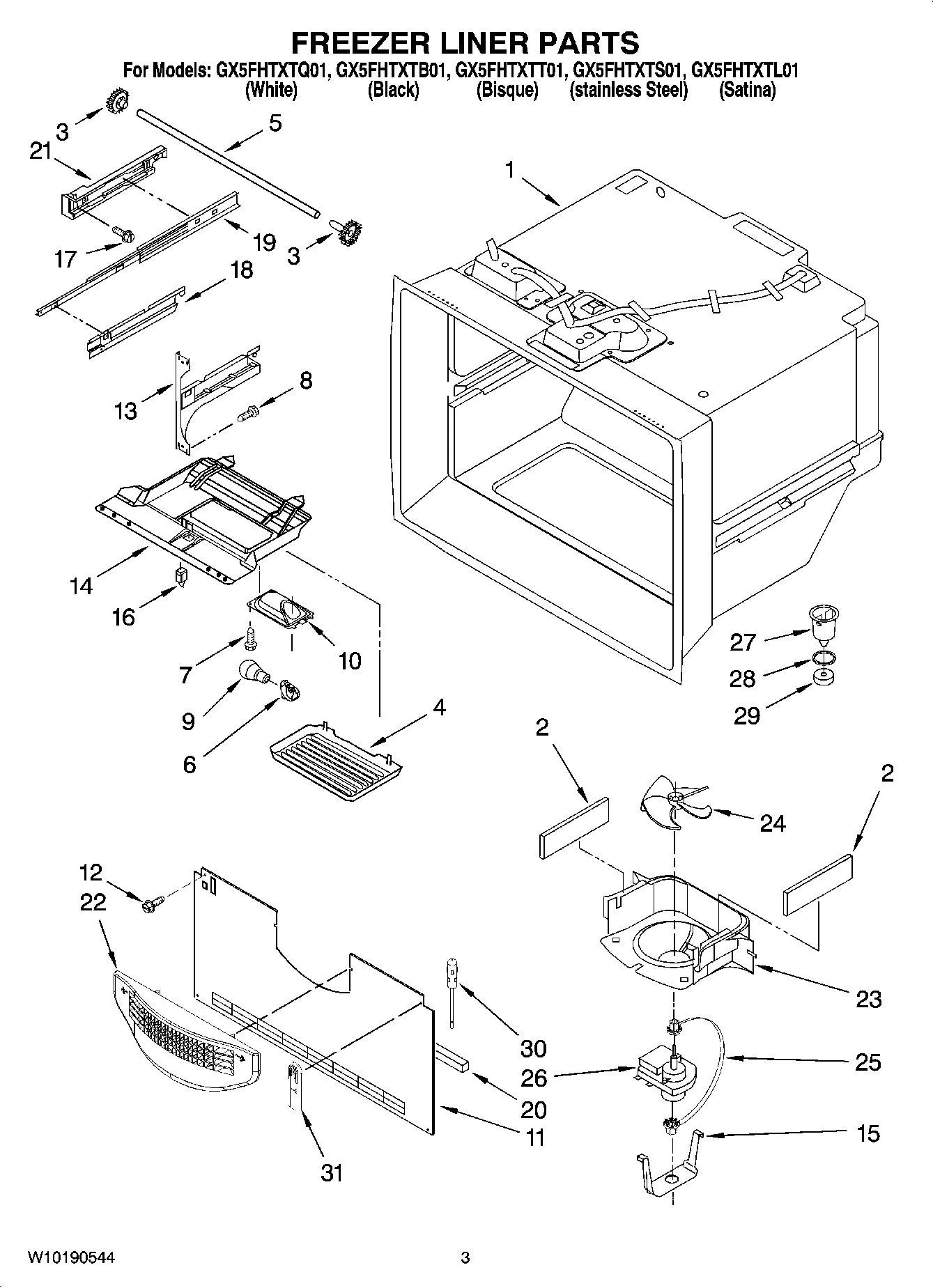

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $35.14

Motor, Fan WPL 67004432 Contact Us For Availability

25

EDR4RXD1 Whirlpool EveryDrop„¢ Filter 4 Re In Stock WPL EDR4RXD1 $65.34

25

W10121318 Whirlpool Refrigerator Grommet Backorder WPL W10121318 $29.16

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $69.92

26

12726003 Whirlpool Refrigerator Water Cover Backorder WPL 12726003 $9.16

26

Plug, Filter Bypass WPL 12664501 Contact Us For Availability

26

Harness, Unit (Includes Cord) WPL W10188474 Contact Us For Availability

W10819546 Whirlpool Refrigerator Clip Backorder WPL W10819546 $8.08

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $4.19

WPB2150504 Whirlpool Refrigerator Dryer Backorder WPL WPB2150504 $67.70

Cover, Water Valve WPL 67004098 Contact Us For Availability

28

10547003 Whirlpool Refrigerator Dryer Clip Backorder WPL 10547003 $7.15

28

WP67006415 Whirlpool Refrigerator Screw Backorder WPL WP67006415 $4.05

28

WP7101P126-60 Whirlpool Screw Backorder WPL WP7101P126-60 $3.22

29

W11519867 Whirlpool Refrigerator Cover In Stock WPL W11519867 $13.49

29

WP67004953 Whirlpool Refrigerator Bracket Backorder WPL WP67004953 $45.92

29

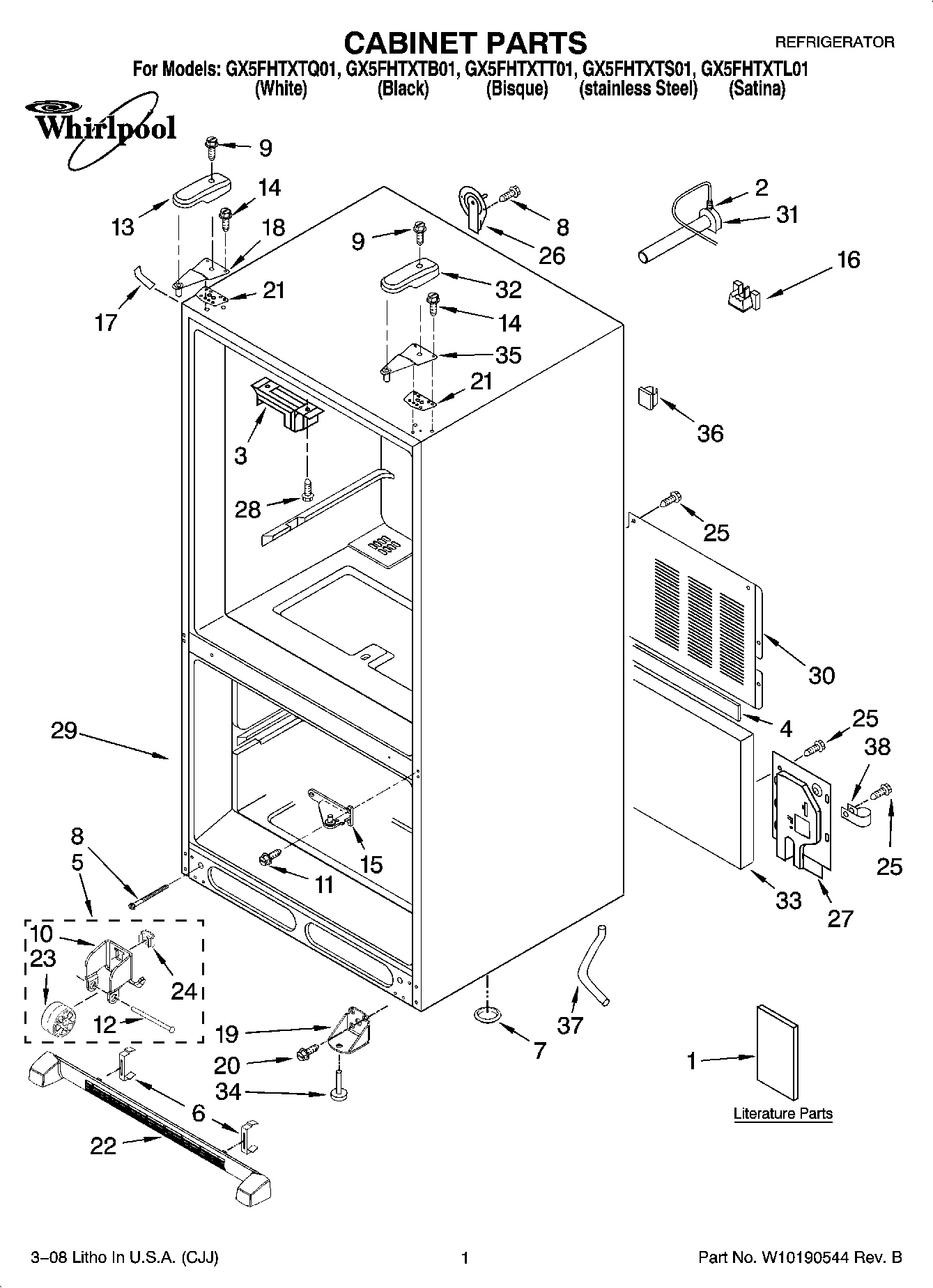

Cabinet, (Not A Serviceable Part) WPL ARI151973A Contact Us For Availability

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $29.84

67003493 Whirlpool Refrigerator Compressor Gr Backorder WPL 67003493 $16.76

WP12575501 Whirlpool Refrigerator Micro Switc Backorder WPL WP12575501 $36.15

Cover, Unit WPL 12575101ED Contact Us For Availability

31

12707303SP Whirlpool Refrigerator Plate Backorder WPL 12707303SP $51.89

31

12846902 Whirlpool Refrigerator Screw Backorder WPL 12846902 $14.22

31

W11176463 Whirlpool Refrigerator Water Tube In Stock WPL W11176463 $47.57

67002816 Whirlpool Refrigerator Waterline Cli Backorder WPL 67002816 $17.13

Cover, Right Hinge (Black) WPL 12684202B Contact Us For Availability

Cover, Right Hinge (Bisque) WPL 12684202C Contact Us For Availability

Cover, Right Hinge (White) WPL 12684202W Contact Us For Availability

Screw (4) WPL 67006573 Contact Us For Availability

33

67003796 Whirlpool Refrigerator Fiber Acousti Backorder WPL 67003796 $13.18

33

W11677725 Whirlpool Refrigerator Guide Backorder WPL W11677725 $14.41

33

WP33001882 Whirlpool Screw Backorder WPL WP33001882 $56.40

67004987 Whirlpool Refrigerator Upper Basket Backorder WPL 67004987 $299.14

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $16.76

W11177593 Whirlpool Leveling Feet Backorder WPL W11177593 $8.00

W11478401 Whirlpool Refrigerator Housing Backorder WPL W11478401 $101.64

35

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $19.53

35

Block, Condenser WPL 67005491 Contact Us For Availability

36

WP67005149 Whirlpool Roller Backorder WPL WP67005149 $12.24

36

WPM0104106 Whirlpool Refrigerator Clip Backorder WPL WPM0104106 $4.77

37

67006434 Whirlpool Axle Pin Backorder WPL 67006434 $4.20

37

W10164397 Whirlpool Refrigerator Drain Tube Backorder WPL W10164397 $13.59

38

67001067 Whirlpool Refrigerator Drain Tube Cl Backorder WPL 67001067 $6.87

100

D7824706Q Whirlpool Refrigerator Ice Maker As In Stock WPL D7824706Q $123.26
