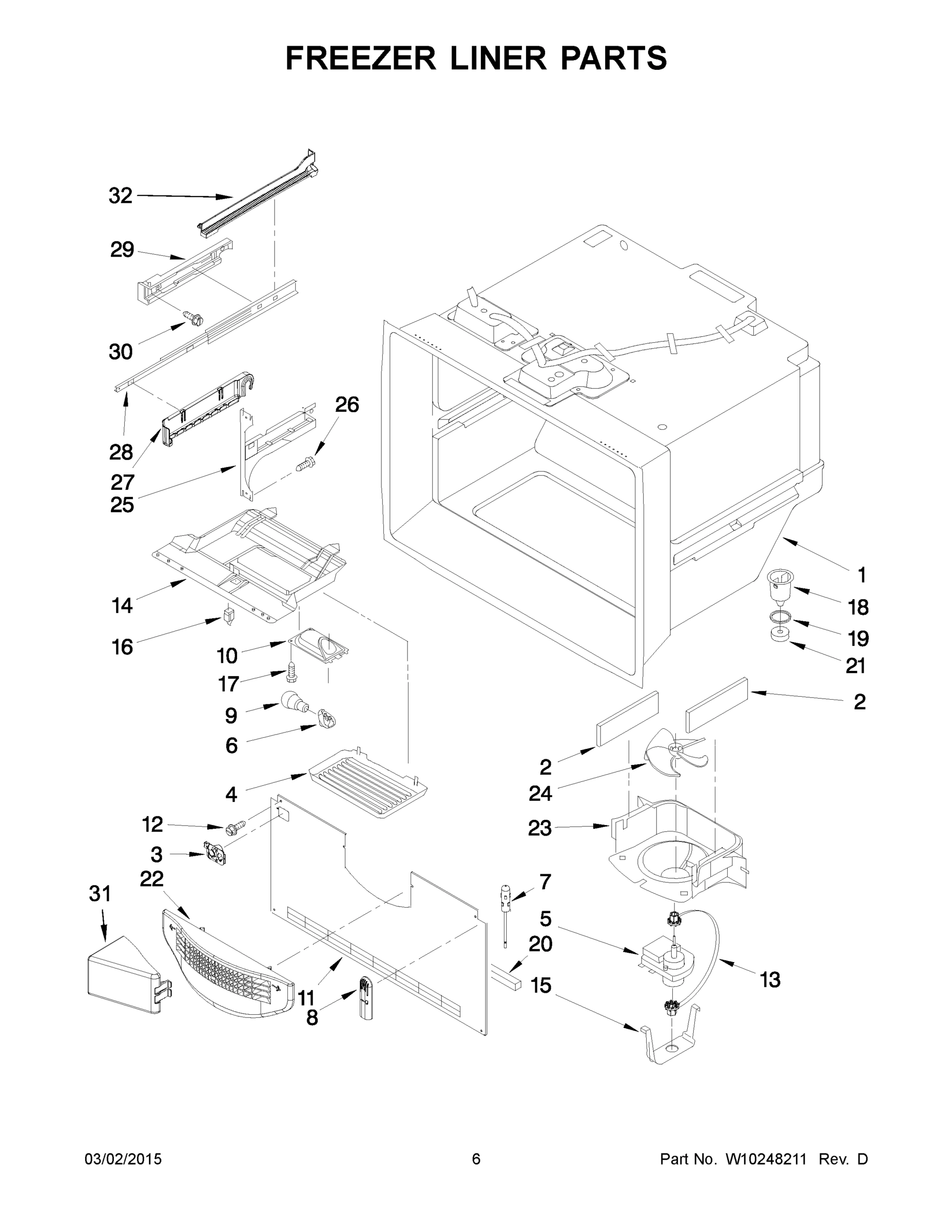

Model Whirlpool GX2FHDXVB00 REFRIGERATOR – Common Parts &amp; Diagrams

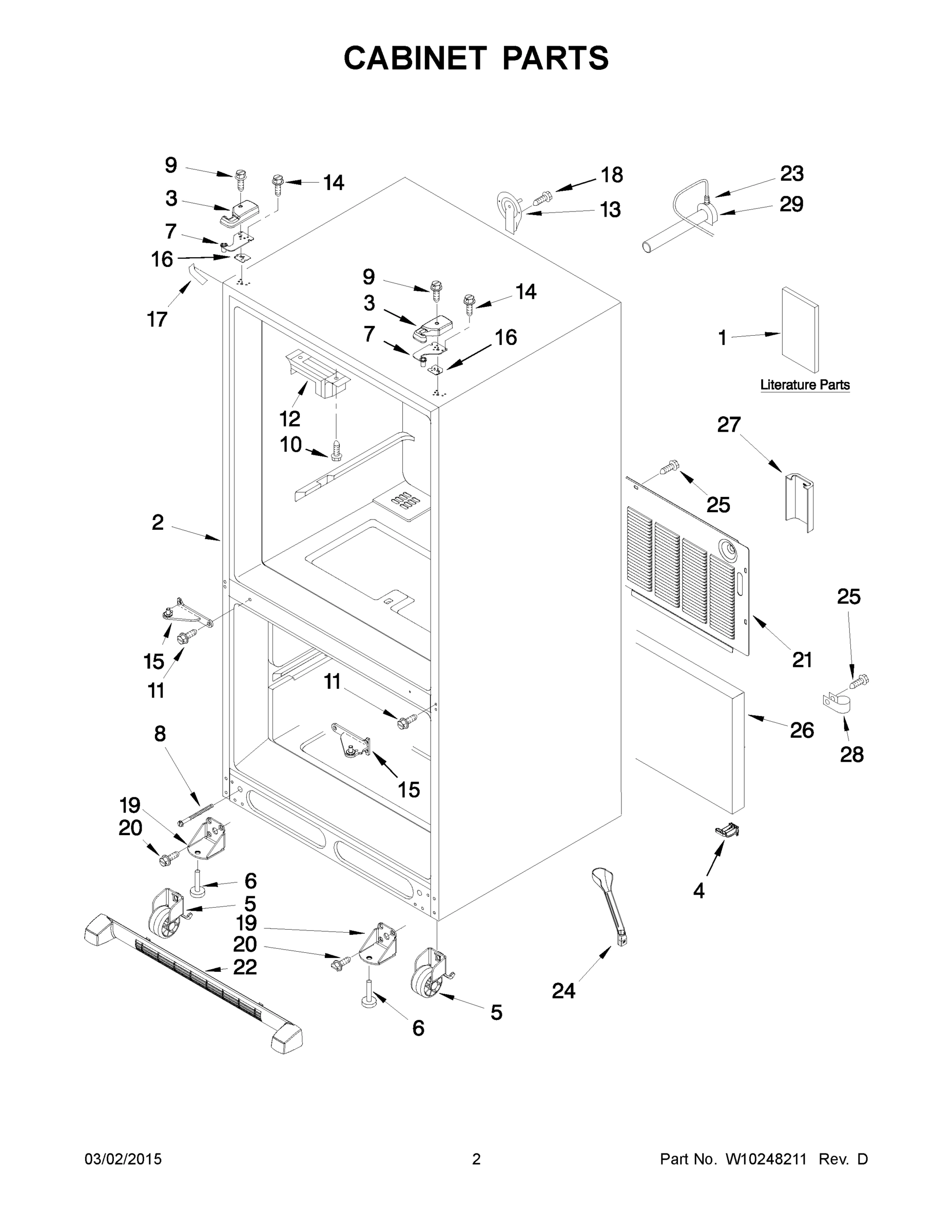

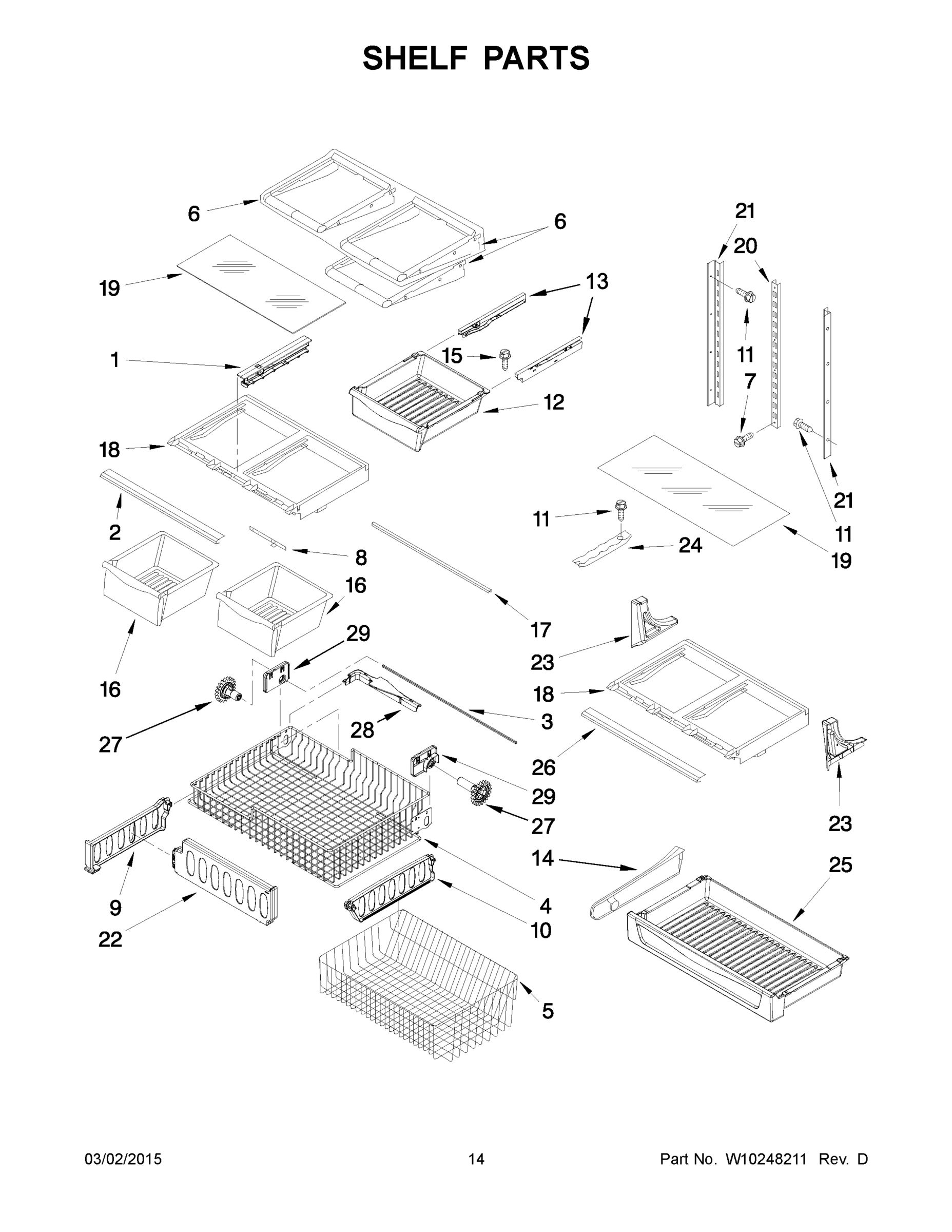

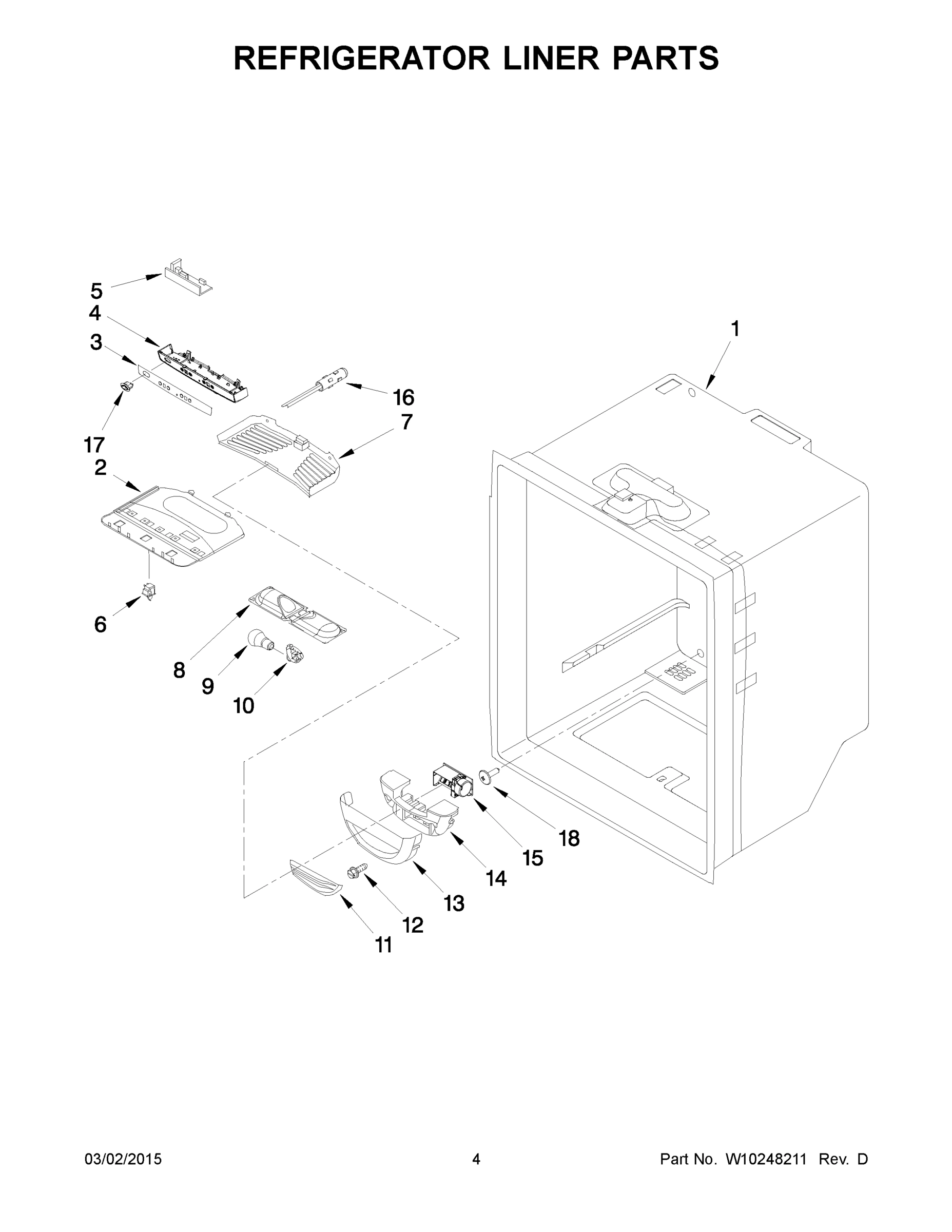

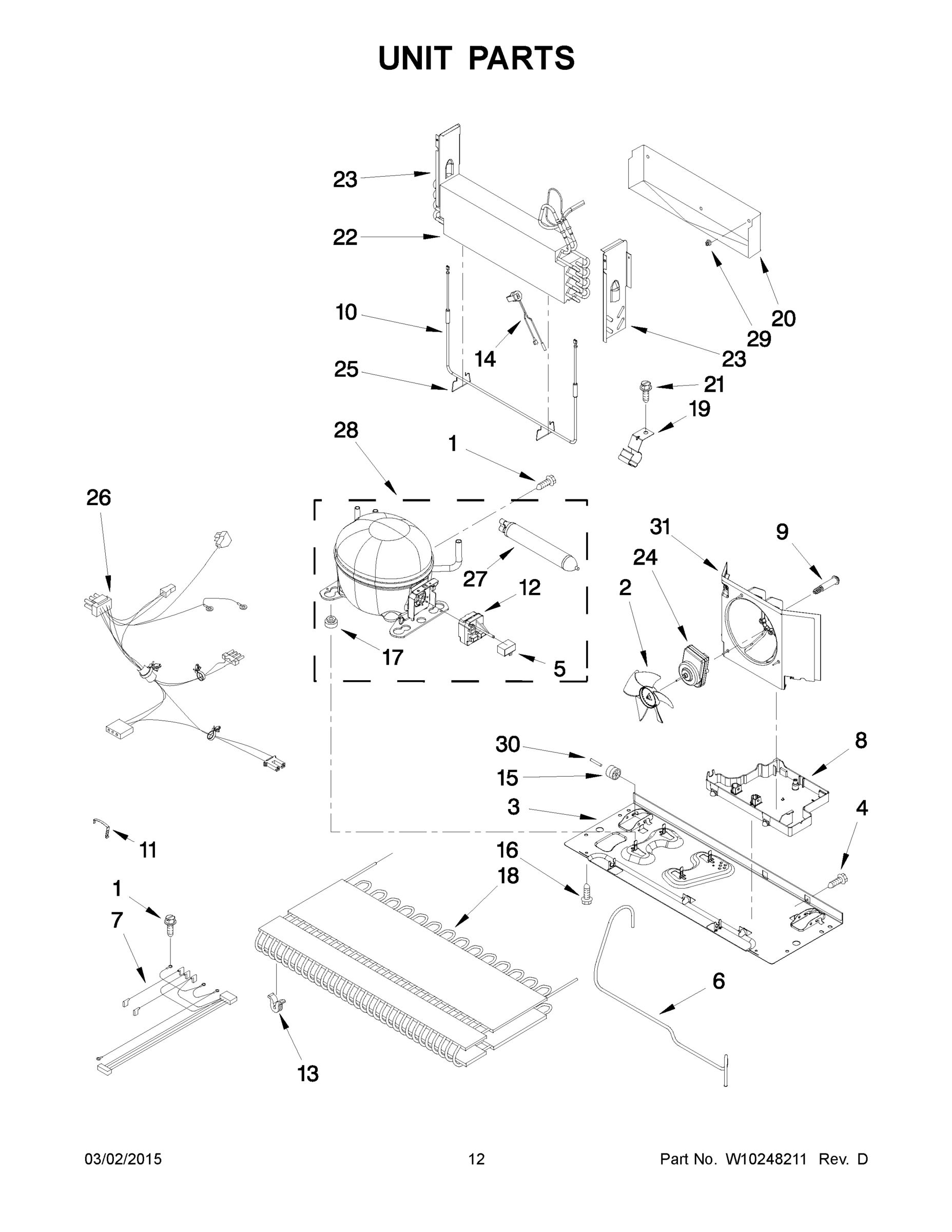

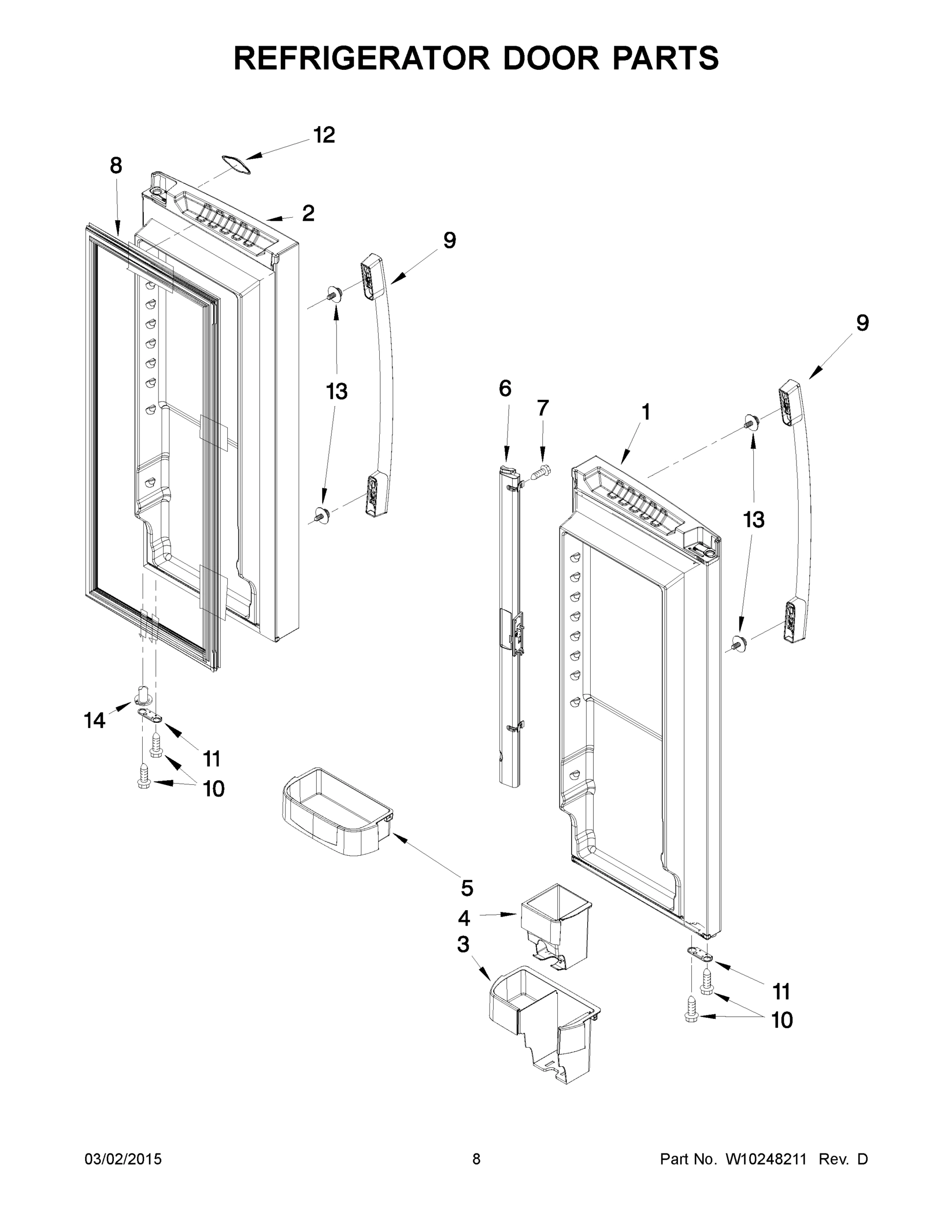

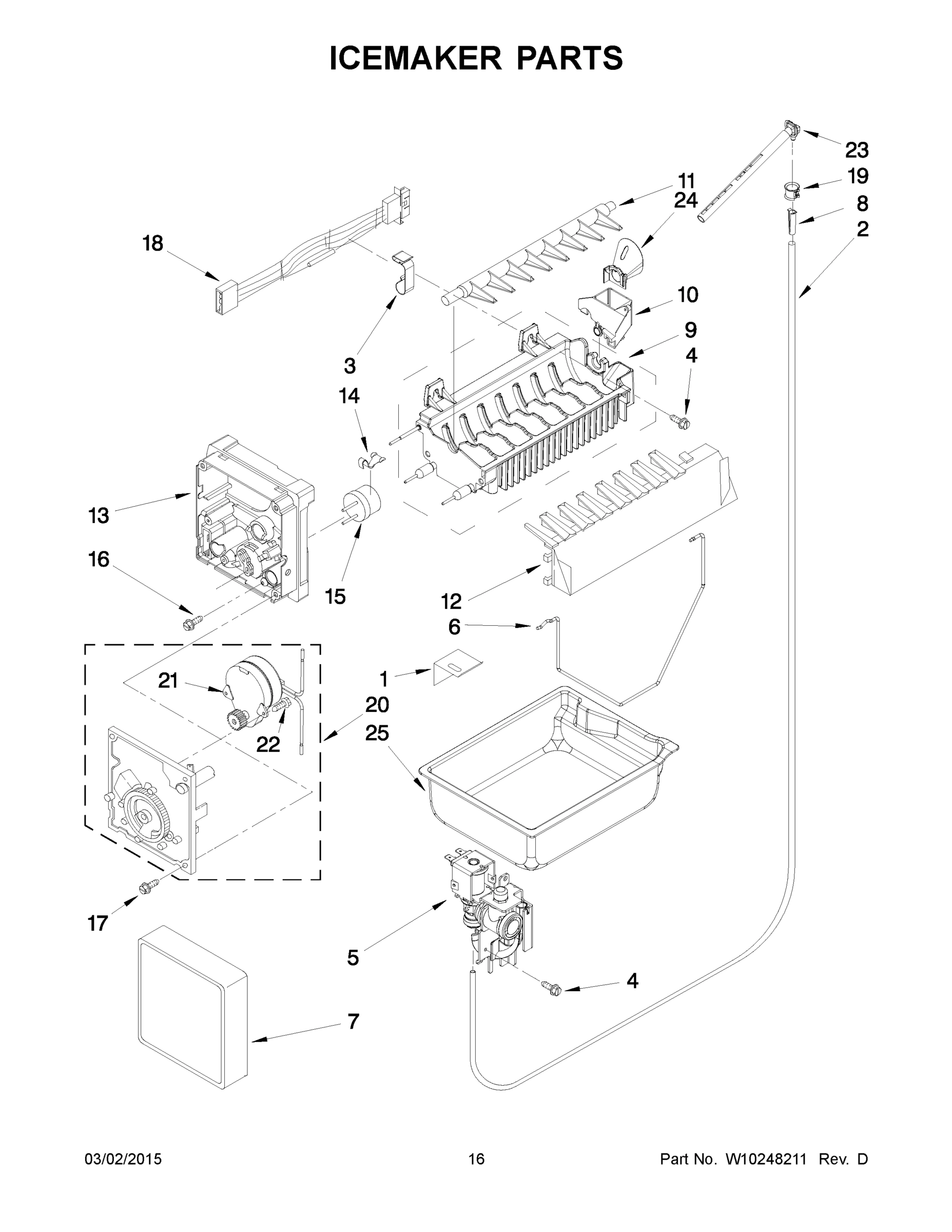

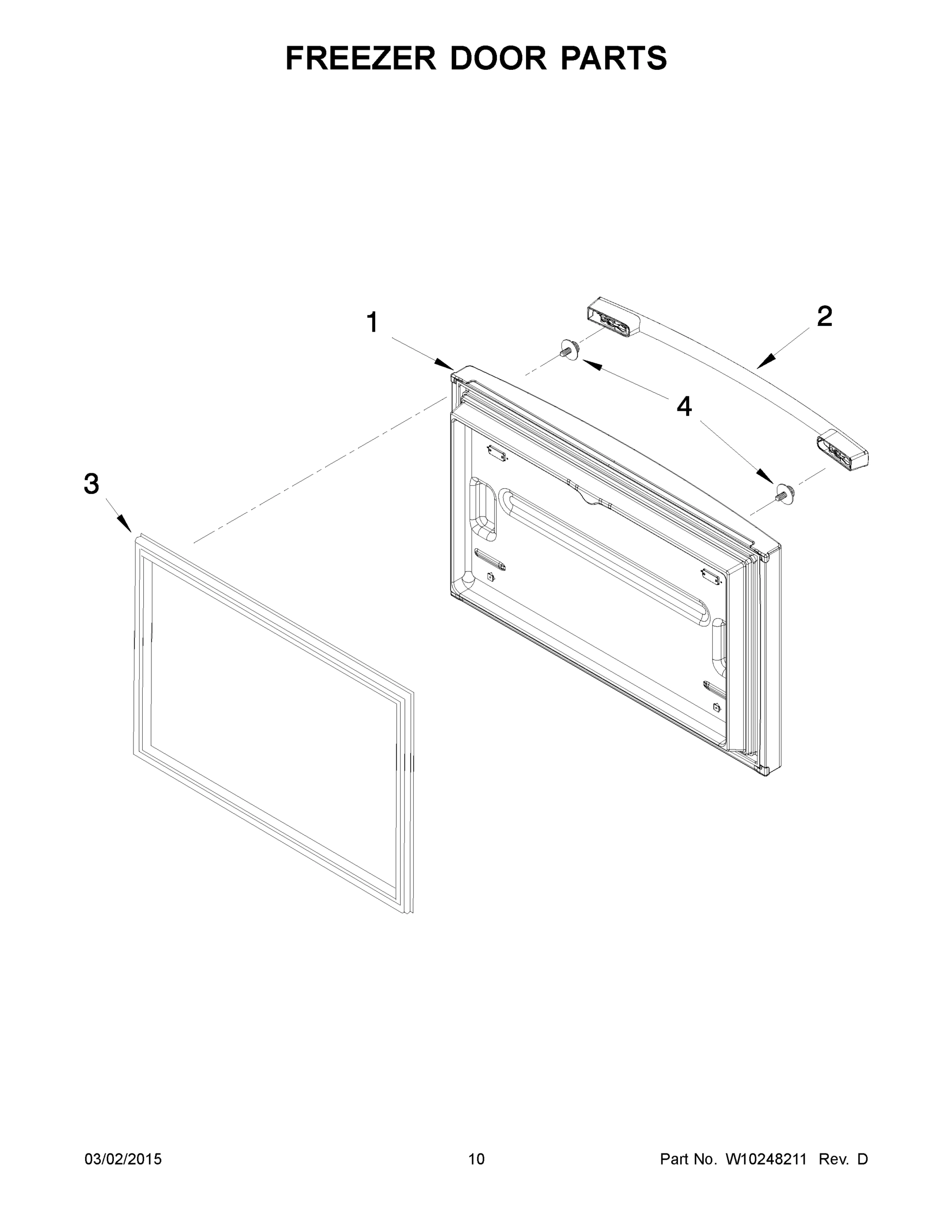

1

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $20.12

1

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $63.44

1

DOOR, LEFT (WHITE) WPL W10258326 Contact Us For Availability

1A

DOOR, LEFT (BLACK) WPL W10258327 Contact Us For Availability

1A

DOOR, FREEZER (BLACK) WPL W10258325 Contact Us For Availability

1B

DOOR, LEFT (BISCUIT/BISQUE) WPL W10270614 Contact Us For Availability

1B

DOOR, FREEZER (BISCUIT/BISQUE) WPL W10270616 Contact Us For Availability

1C

DOOR, LEFT (UNIVERSAL SILVER) WPL 12978044DQ Contact Us For Availability

1C

DOOR, FREEZER (UNIVERSAL SILVER) WPL 12977821DQ Contact Us For Availability

1D

DOOR, LEFT (SATINA) WPL 12978046LQ Contact Us For Availability

1D

DOOR, FREEZER (SATINA) WPL 12977822LQ Contact Us For Availability

1E

DOOR, LEFT (STAINLESS) WPL 12978046SQ Contact Us For Availability

1E

DOOR, FREEZER (STAINLESS) WPL 12977822SQ Contact Us For Availability

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $68.99

2

WPB5705307 Whirlpool Refrigerator Tube In Stock WPL WPB5705307 $6.80

2

WPW10231482 Whirlpool Refrigerator Shelf Trim Backorder WPL WPW10231482 $78.02

2

HANDLE, DOOR (WHITE) WPL W10189639 Contact Us For Availability

2

DOOR, RIGHT (WHITE) WPL W10258328 Contact Us For Availability

2A

DOOR, RIGHT (BLACK) WPL W10258329 Contact Us For Availability

2A

HANDLE, DOOR (BLACK) WPL W10189640 Contact Us For Availability

2B

DOOR, RIGHT (BISCUIT/BISQUE) WPL W10270615 Contact Us For Availability

2B

HANDLE, DOOR (BISCUIT/BISQUE) WPL W10189641 Contact Us For Availability

2C

DOOR, RIGHT (UNIVERSAL SILVER) WPL 12978043DQ Contact Us For Availability

2C

HANDLE, DOOR (STAINLESS) WPL W10189642 Contact Us For Availability

2D

DOOR, RIGHT (SATINA) WPL 12978045LQ Contact Us For Availability

2E

DOOR, RIGHT (STAINLESS) WPL 12978045SQ Contact Us For Availability

3

W10443315 Whirlpool Door Gasket In Stock WPL W10443315 $177.56

3

W10480110 Whirlpool Refrigerator Plate Backorder WPL W10480110 $106.89

3

OVERLAY, CONTROL WPL W10180451 Contact Us For Availability

3

BUCKET, CAN DISPENSER WPL W10169347 Contact Us For Availability

3

CLAMP, WIRE WPL 10526702 Contact Us For Availability

3A

WPW10436250 Whirlpool Refrigerator Freezer Do In Stock WPL WPW10436250 $202.86

3B

W10443316 Whirlpool Refrigerator Door Gasket In Stock WPL W10443316 $175.99

4

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $4.99

4

WP13005401SP Whirlpool Can Rack In Stock WPL WP13005401SP $49.63

4

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.91

5

WP2315576 Whirlpool Water Inlet Valve In Stock WPL WP2315576 $51.99

5

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $53.88

5

WPW10371194 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10371194 $57.99

5

WPW10503183 Whirlpool Refrigerator Basket Backorder WPL WPW10503183 $155.51

5

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $34.99

5

ASSEMBLY, ROLLER BRACKET WPL 12580304 Contact Us For Availability

5A

WPW10351081 Whirlpool Refrigerator Cantilever Backorder WPL WPW10351081 $50.33

6

W10306059 Whirlpool Refrigerator Tube Backorder WPL W10306059 $83.49

6

W11402523 Whirlpool Refrigerator Glass Shelf Backorder WPL W11402523 $140.94

6

WP12722803W Whirlpool Door Support In Stock WPL WP12722803W $224.51

6

WP67004028 Whirlpool Refrigerator Shut-Off Ar In Stock WPL WP67004028 $40.99

6A

WP12722803B Whirlpool Door Guide In Stock WPL WP12722803B $201.78

6B

WP12722803AP Whirlpool Refrigerator Mullion R In Stock WPL WP12722803AP $198.51

7

W10224241 Whirlpool Refrigerator Wire Harness Backorder WPL W10224241 $90.20

7

W11311945 Whirlpool Refrigerator Screw Backorder WPL W11311945 $8.89

7

W11592375 Whirlpool Door Hinge Backorder WPL W11592375 $16.65

7

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

7A

W11592374 Whirlpool Refrigerator Top Door Hin In Stock WPL W11592374 $16.94

8

W10830287 Whirlpool Refrigerator FIP Gasket Backorder WPL W10830287 $181.99

8

WPA3223101 Whirlpool Refrigerator Insert PL Backorder WPL WPA3223101 $4.82

8

WPW10655367 Whirlpool Refrigerator Drip Pan In Stock WPL WPW10655367 $96.98

8A

W10830289 Whirlpool Refrigerator Gasket FIP Backorder WPL W10830289 $203.57

8B

W10830283 Whirlpool Refrigerator Left Hand Do In Stock WPL W10830283 $190.99

8C

W10830189 Whirlpool Refrigerator Door Gasket In Stock WPL W10830189 $201.99

8D

W11368721 Whirlpool Refrigerator French Door In Stock WPL W11368721 $172.99

8E

W10830162 Whirlpool Refrigerator Right Hand D In Stock WPL W10830162 $203.90

9

W10241046 Whirlpool Refrigerator Divider Backorder WPL W10241046 $17.48

9

W10829281 Whirlpool Refrigerator Screw In Stock WPL W10829281 $7.98

9

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $176.99

9

WPW10222984K Whirlpool Refrigerator Handle As Backorder WPL WPW10222984K $135.04

9A

W11351146 Whirlpool Refrigerator Handle Backorder WPL W11351146 $119.22

9B

HANDLE, DOOR (BISCUIT/BISQUE) WPL W10222986 Contact Us For Availability

9C

W11351147 Whirlpool Refrigerator Handle Backorder WPL W11351147 $119.22

10

W10122561 Whirlpool Refrigerator Cup Fill In Stock WPL W10122561 $17.79

10

WP12729128 Whirlpool Defrost Heater In Stock WPL WP12729128 $82.99

10

WP98165 Whirlpool Screw In Stock WPL WP98165 $4.82

11

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $43.50

11

W10204187 Whirlpool Refrigerator Retainer Backorder WPL W10204187 $5.90

11

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

11A

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $8.39

11B

STOP, DOOR (BISCUIT/BISQUE) WPL 12968202Q Contact Us For Availability

11C

W11703060 Whirlpool Door Stop Backorder WPL W11703060 $8.99

12

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $55.70

12

WPW10194431 Whirlpool Start Device In Stock WPL WPW10194431 $72.58

12

NAMEPLATE WPL 2220214 Contact Us For Availability

12726003 Whirlpool Refrigerator Water Cover Backorder WPL 12726003 $12.01

W10121318 Whirlpool Refrigerator Grommet In Stock WPL W10121318 $31.89

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $71.86

WP12992902 Whirlpool Refrigerator Screw Backorder WPL WP12992902 $6.84

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $68.41

WP67001054 Whirlpool Left Glide In Stock WPL WP67001054 $6.49

WPW10137529 Whirlpool Refrigerator Grommet Backorder WPL WPW10137529 $4.82

Backorder WPL W11750607 $29.99

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $6.88

WP67003638 Whirlpool Closing Cam In Stock WPL WP67003638 $4.96

WPW10165425 Whirlpool Bimetal Defrost Thermos In Stock WPL WPW10165425 $75.73

14A

WP67003639 Whirlpool Refrigerator Closer In Stock WPL WP67003639 $56.88

14B

WP12028505AP Whirlpool Closing Cam In Stock WPL WP12028505AP $53.99

W10854958 Whirlpool Refrigerator Screw Backorder WPL W10854958 $4.80

W10918113 Whirlpool Refrigerator Door Hinge Backorder WPL W10918113 $57.65

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $71.99

WP67005149 Whirlpool Roller In Stock WPL WP67005149 $14.02

WPW10196393 Whirlpool Control Damper In Stock WPL WPW10196393 $108.45

CLIP, EVAPORATOR MOTOR WPL 13058002 Contact Us For Availability

15A

W10918164 Whirlpool Refrigerator Door Hinge Backorder WPL W10918164 $54.14

15B

W10917988 Whirlpool Refrigerator Door Hinge Backorder WPL W10917988 $54.08

15C

13000002WD Whirlpool Refrigerator Door Hinge Backorder WPL 13000002WD $102.89

15D

W10918168 Whirlpool Refrigerator Door Hinge Backorder WPL W10918168 $48.80

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $29.99

12999501 Whirlpool Refrigerator Hinge Shim Backorder WPL 12999501 $64.97

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

SCREW WPL 12992101 Contact Us For Availability

16A

12999502 Whirlpool Refrigerator Hinge Shim Backorder WPL 12999502 $65.67

12587703W Whirlpool Refrigerator Cover Backorder WPL 12587703W $14.02

WP12227303WD Whirlpool Refrigerator Crisper B Backorder WPL WP12227303WD $66.97

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $5.99

17B

COVER, CORNER (BISCUIT/BISQUE) WPL 12587703C Contact Us For Availability

17C

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $4.82

18

WPD7813010 Whirlpool Refrigerator Wire Harnes In Stock WPL WPD7813010 $38.99

18

WPW10346420 Whirlpool Refrigerator Condenser In Stock WPL WPW10346420 $200.25

19

10547003 Whirlpool Refrigerator Dryer Clip Backorder WPL 10547003 $6.89

19

12906303WD Whirlpool Refrigerator Bracket Backorder WPL 12906303WD $55.49

19

WPM0114003 Whirlpool Microwave Speed Clip Cla Backorder WPL WPM0114003 $6.89

20

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $115.71

20

W11159742 Whirlpool Refrigerator Gasket Backorder WPL W11159742 $16.73

20

WPW10292802 Whirlpool Refrigerator Drip Tray In Stock WPL WPW10292802 $117.82

21

WP33001882 Whirlpool Screw In Stock WPL WP33001882 $56.94

21

MOTOR (NOT AVAILABLE, ORDER #20) WPL NP Contact Us For Availability

22

12001919 Whirlpool Refrigerator Evaporator Re Backorder WPL 12001919 $242.42

22

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

23

W11176463 Whirlpool Refrigerator Water Tube In Stock WPL W11176463 $67.99

23

DAM (LEFT HAND) WPL 12225602 Contact Us For Availability

23A

DAM (RIGHT HAND) WPL 12225702 Contact Us For Availability

24

12918001 Whirlpool Refrigerator Funnel Backorder WPL 12918001 $8.23

24

W11613295 Whirlpool Condenser Motor In Stock WPL W11613295 $73.99

24

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $92.88

25

WPW10171529 Whirlpool Refrigerator Ice Pan In Stock WPL WPW10171529 $113.99

26

WPW10234024 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10234024 $209.77

26

INSULATION WPL 12820505 Contact Us For Availability

27

W10208592 Whirlpool Refrigerator Valve Cover Backorder WPL W10208592 $56.92

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $17.56

27A

WPW10280613 Whirlpool Refrigerator Bracket Backorder WPL WPW10280613 $56.63

28

W10149389 Whirlpool Refrigerator Handle Backorder WPL W10149389 $58.43

28

W10160407 Whirlpool Refrigerator Compressor In Stock WPL W10160407 $453.66

28

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $110.99

29

WPW10284684 Whirlpool Refrigerator Bracket In Stock WPL WPW10284684 $19.99

29

CLIP, EVAPORATOR WPL 10623002 Contact Us For Availability

29A

WPW10284685 Whirlpool Refrigerator Bracket In Stock WPL WPW10284685 $20.45

30

67006434 Whirlpool Axle Pin In Stock WPL 67006434 $4.82

30

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $4.92

31

W10157765 Whirlpool Refrigerator Deflector Backorder WPL W10157765 $58.43

31

W11556315 Whirlpool Shroud In Stock WPL W11556315 $47.99

32

W11489993 Whirlpool Refrigerator Rail In Stock WPL W11489993 $13.79

32A

W11489994 Whirlpool Refrigerator Rail In Stock WPL W11489994 $13.79

100

D7824706Q Whirlpool Refrigerator Ice Maker As In Stock WPL D7824706Q $125.99

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

285006 Whirlpool Spray In Stock WPL 285006 $31.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS WPL 978029 Contact Us For Availability

MISCELLANEOUS, TAPE, VINYL (3/4 X 108") WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE) WPL 799344 Contact Us For Availability

TORX SCREW WRENCH, TORX KEY WPL 1117510 Contact Us For Availability

HARNESS, LIGHTS (FREEZER) WPL 13014801 Contact Us For Availability

VALVE, ACCESS WPL 978028 Contact Us For Availability

ACCESSORIES, CLEANER, STAINLESS STEEL WPL 31462 Contact Us For Availability

PAINT, BULK (1 QT. BISCUIT/BISQUE) WPL 4392900 Contact Us For Availability

MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. WPL 542639 Contact Us For Availability
