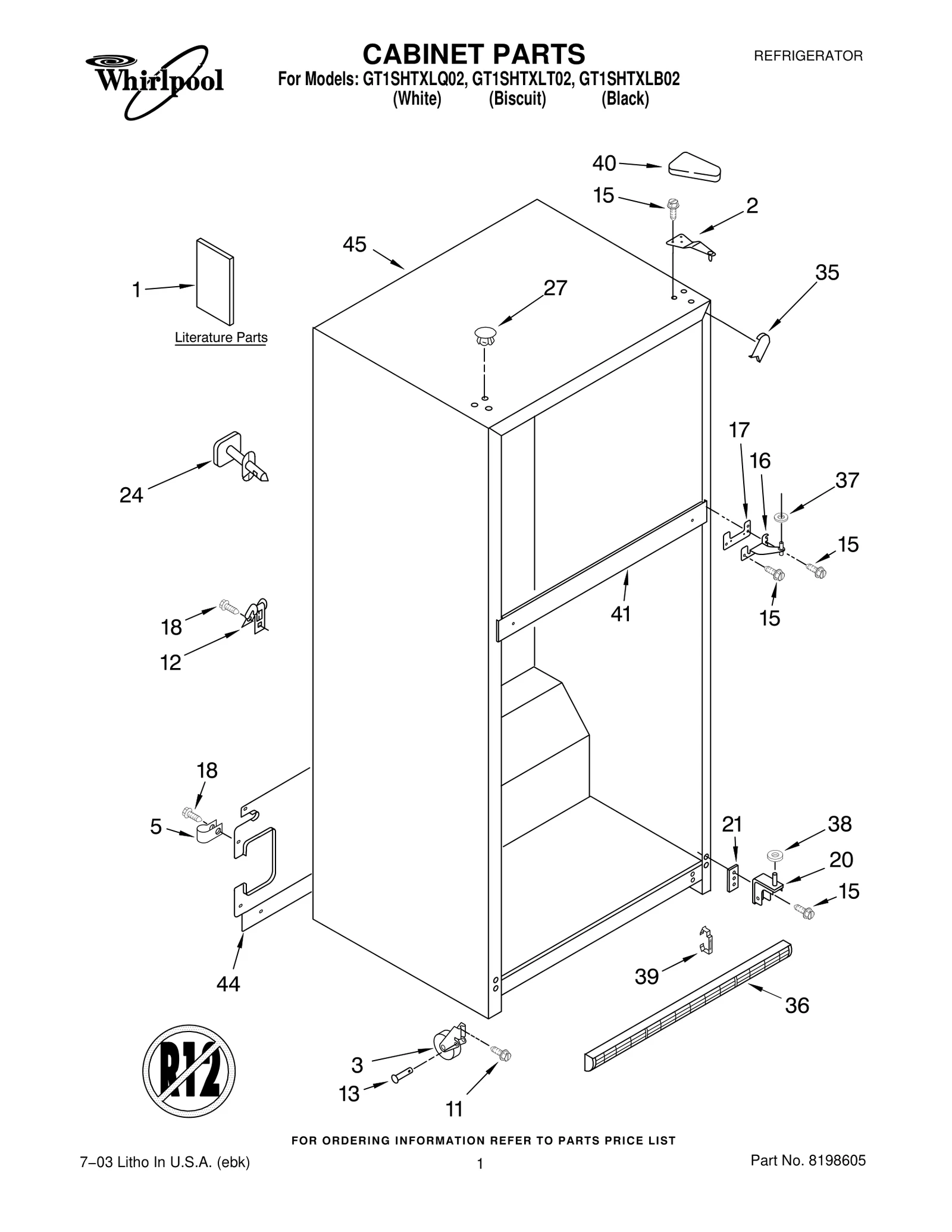

Model Whirlpool GT1SHTXLT02 Refrigerator – Common Parts &amp; Diagrams

1

W11023687 Whirlpool Refrigerator Door Assembl Backorder WPL W11023687 $582.11

1

W11023688 Whirlpool Refrigerator Door Assembl Backorder WPL W11023688 $450.46

1

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $7.20

1

Housing, Dispenser WPL 2210500 Contact Us For Availability

2

WP2193353W Whirlpool Refrigerator Trim Handle In Stock WPL WP2193353W $5.99

2

Button, Dispenser WPL 2210567 Contact Us For Availability

3

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $6.49

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $18.65

3

WP2254360 Whirlpool Refrigerator Gasket Backorder WPL WP2254360 $16.47

3

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $4.82

3

WP8281146 Whirlpool Screw Backorder WPL WP8281146 $4.82

3

Condenser WPL 2214960 Contact Us For Availability

3

Reservoir, Tube WPL 2210513 Contact Us For Availability

4

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $5.99

4

W11745278 Whirlpool Bracket In Stock WPL W11745278 $9.42

4

Flange, Tube WPL 2210523 Contact Us For Availability

5

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $4.82

5

WP2189009 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189009 $4.55

5

WP2200936 Whirlpool Refrigerator Handle Plug Backorder WPL WP2200936 $4.82

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

Evaporator Assy. WPL 2254249 Contact Us For Availability

5

Wire Assembly WPL 2187291 Contact Us For Availability

6

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $13.13

6

WP8281206 Whirlpool Refrigerator Screw Backorder WPL WP8281206 $4.82

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $5.99

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $17.24

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $4.82

7

WP2212649 Whirlpool Refrigerator Button Plug Backorder WPL WP2212649 $4.82

7

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $14.62

7

Drain Pan WPL 2254295 Contact Us For Availability

7

Shield, Switch WPL 2210547 Contact Us For Availability

8

2159060 Whirlpool Refrigerator Gasket In Stock WPL 2159060 $151.99

8

2177310 Whirlpool Refrigerator Door Gasket In Stock WPL 2177310 $143.75

8

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

9

WP489357 Whirlpool Recessed Screw In Stock WPL WP489357 $5.30

10

WPW10498990 Whirlpool Refrigerator Inlet Valv In Stock WPL WPW10498990 $101.30

11

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $45.89

11

WP2176225 Whirlpool Glass Shelf Backorder WPL WP2176225 $214.54

11

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $4.82

12

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $4.53

W11594405 Whirlpool Axle In Stock WPL W11594405 $9.85

WP2188236 Whirlpool Refrigerator Shelf Door In Stock WPL WP2188236 $51.28

WP2188785 Whirlpool Water Inlet Valve In Stock WPL WP2188785 $179.86

Thermostat Assembly (Includes Items 5, 18, & WPL 2210491 Contact Us For Availability

14

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $6.83

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.10

17

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $6.78

17

Trim, Door Shelf (2) WPL 2195947 Contact Us For Availability

18

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

18

Nameplate WPL 2220214 Contact Us For Availability

4388947 Whirlpool Refrigerator Door Handle Ki Backorder WPL 4388947 $174.76

4388950 Whirlpool Refrigerator Handle Backorder WPL 4388950 $164.81

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $23.68

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

Clip, Heater WPL 2182338 Contact Us For Availability

20

WP2204812 Whirlpool Refrigerator Door Bin In Stock WPL WP2204812 $55.08

20

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $187.20

20

Wire Assembly, Freezer Compartment WPL 2187690 Contact Us For Availability

21

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

21

Shim, Bottom Hinge WPL 2172743 Contact Us For Availability

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $8.58

WP2218118 Whirlpool Refrigerator Door Compres Backorder WPL WP2218118 $57.60

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

Support Block WPL 2201185 Contact Us For Availability

23

WP2201061 Whirlpool Refrigerator Door Trim In Stock WPL WP2201061 $51.27

23

WP2254354 Whirlpool Refrigerator Air Tower Backorder WPL WP2254354 $76.11

23

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $63.89

24

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $59.60

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $87.86

25

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $73.20

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $6.88

26

Air Diffuser, Top WPL 2204690 Contact Us For Availability

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $52.34

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.46

30

Bracket Evap. Fan, Front WPL 2214979 Contact Us For Availability

31

WP627792 Whirlpool Refrigerator Shut Off Arm In Stock WPL WP627792 $61.68

32

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $95.20

32

Slide, Crisper WPL 2176222 Contact Us For Availability

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $22.41

35

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $62.13

35

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $5.99

WP2212446 Whirlpool Refrigerator Control Body In Stock WPL WP2212446 $46.03

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

Grille — White WPL 2254313 Contact Us For Availability

Grille — Biscuit WPL 2254316 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

38

WP2156007 Whirlpool Refrigerator Endcap Trim In Stock WPL WP2156007 $4.08

38

WP487576 Whirlpool Washer In Stock WPL WP487576 $7.54

39

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $7.04

39

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $4.82

39

Clip, Grille WPL 2189356 Contact Us For Availability

2213364 Whirlpool Refrigerator Cover Backorder WPL 2213364 $11.82

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $142.80

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $12.19

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $6.83

42

Wire Assembly Unit WPL 2187385 Contact Us For Availability

43

WP2195341 Whirlpool Refrigerator Pan Trim Backorder WPL WP2195341 $59.83

43

Fan Blade WPL 2190685 Contact Us For Availability

44

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

46

Tube, Discharge WPL 2205384 Contact Us For Availability

47

Tube, Suction WPL 2225237 Contact Us For Availability

48

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $53.08

8201826 Whirlpool Refrigerator Evaporator Tra Backorder WPL 8201826 $107.80

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $29.55

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $87.85

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $92.18

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

Valve, Access WPL 978029 Contact Us For Availability

Valve, Access WPL 978028 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $108.21

OPT-2

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $34.42

OPT-3

Tape, Vinyl WPL 479502 Contact Us For Availability

OPT-4

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $151.82

OPT-6

Kit, Foam Slab WPL 876029 Contact Us For Availability

OPT-7

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $119.63

OPT-8

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

OPT-9

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $39.72

OPT-10

Cement, WPL 542639 Contact Us For Availability

OPT-11

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $56.74

OPT-12

Kit, Evaporator WPL 799833 Contact Us For Availability

OPT-13

Kit, Porcelain WPL 799832 Contact Us For Availability

OPT-14

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $80.29

OPT-15

350942 Whirlpool Spray Paint Backorder WPL 350942 $64.04

OPT-16

285006 Whirlpool Spray In Stock WPL 285006 $52.65

OPT-17

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

OPT-18

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $52.10

OPT-19

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

OPT-20

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $12.67

OPT-21

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $13.08

OPT-22

Enamel, White WPL 799344 Contact Us For Availability

OPT-23

Enamel, Biscuit WPL 4392900 Contact Us For Availability

OPT-24

Enamel, Black WPL 799340 Contact Us For Availability

OPT-25

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

OPT-26

W11729596 Whirlpool Ice Maker Field Install K In Stock WPL W11729596 $103.56

OPT-27

Torx Key WPL 1117510 Contact Us For Availability
