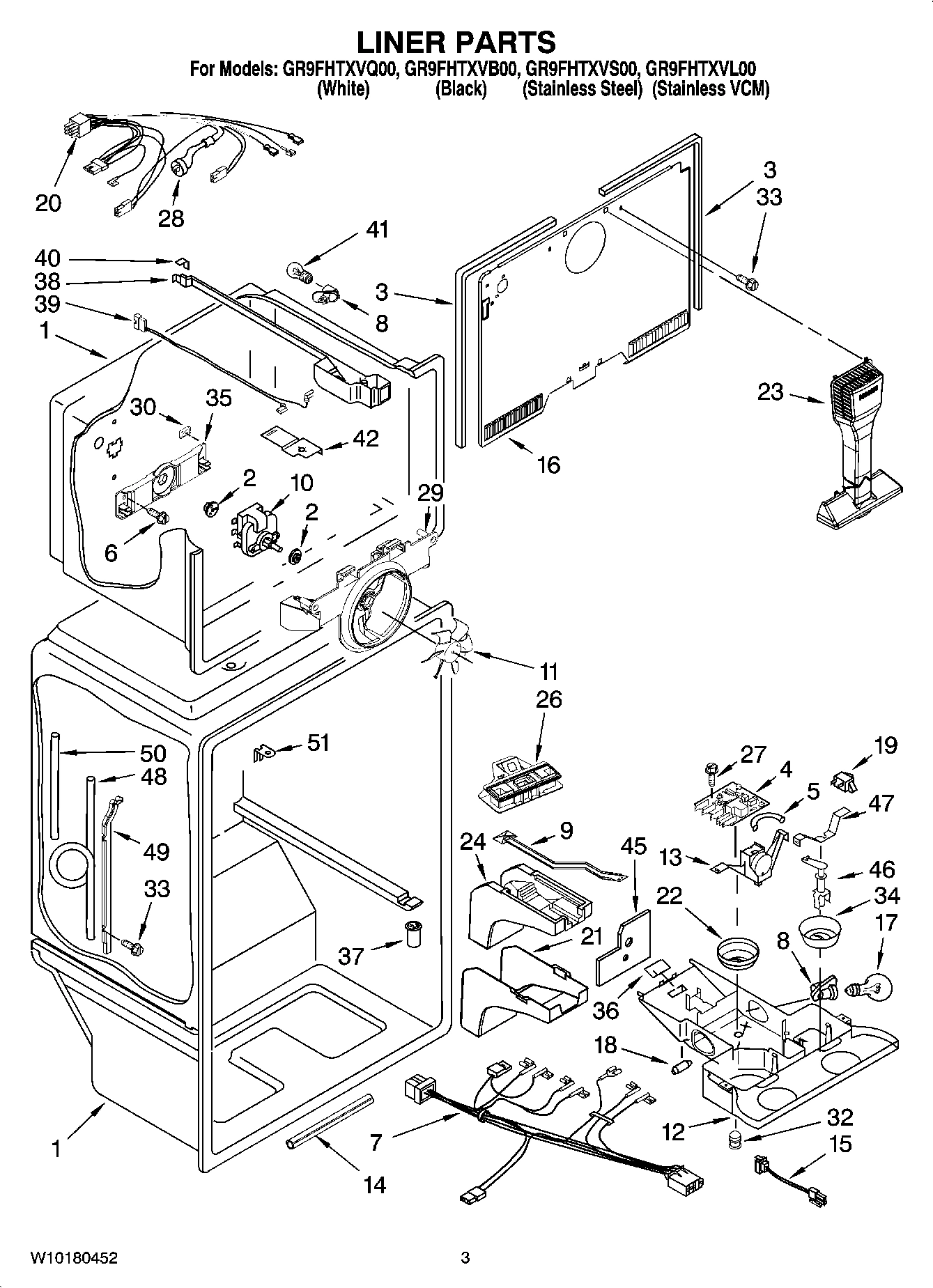

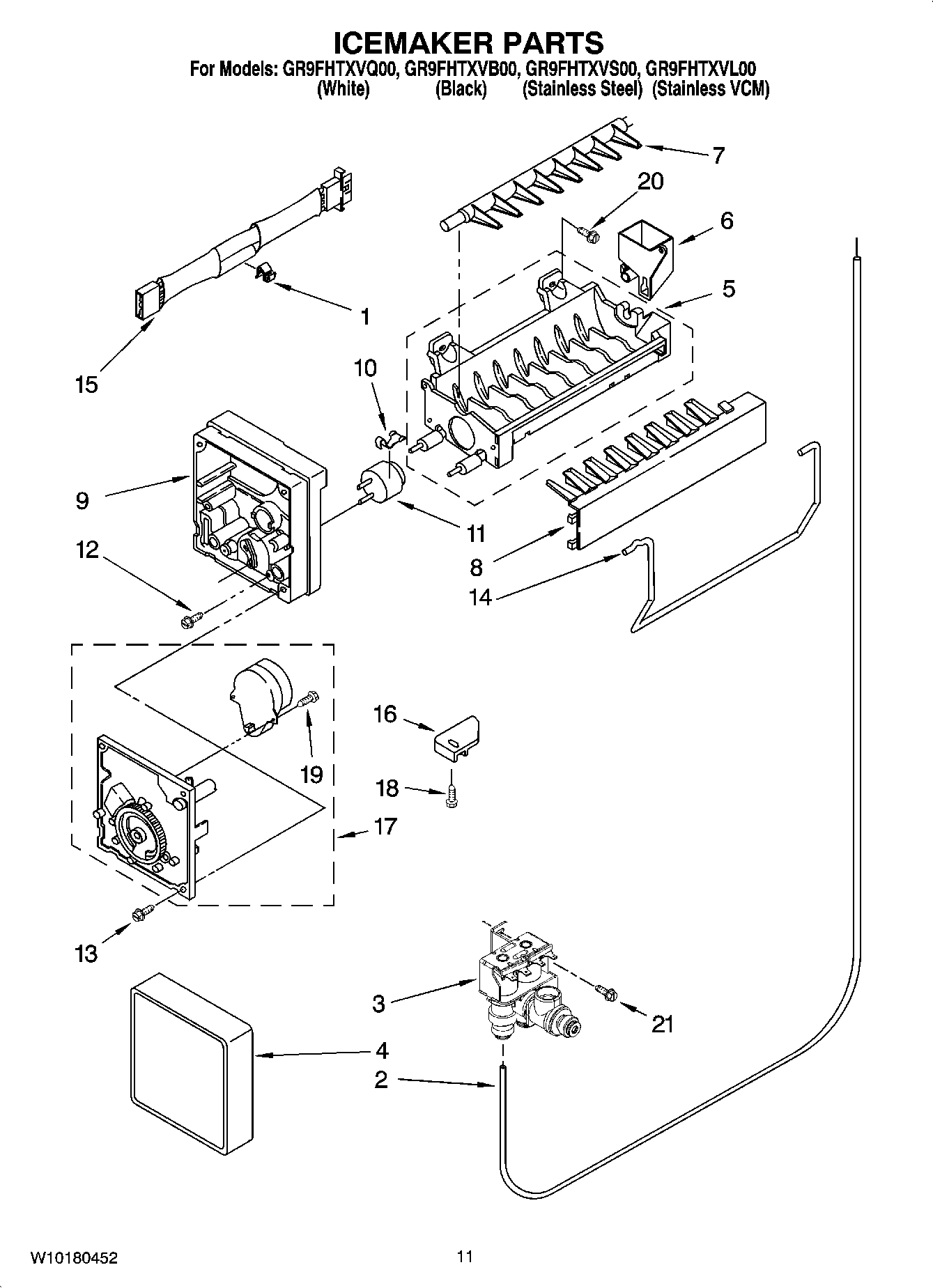

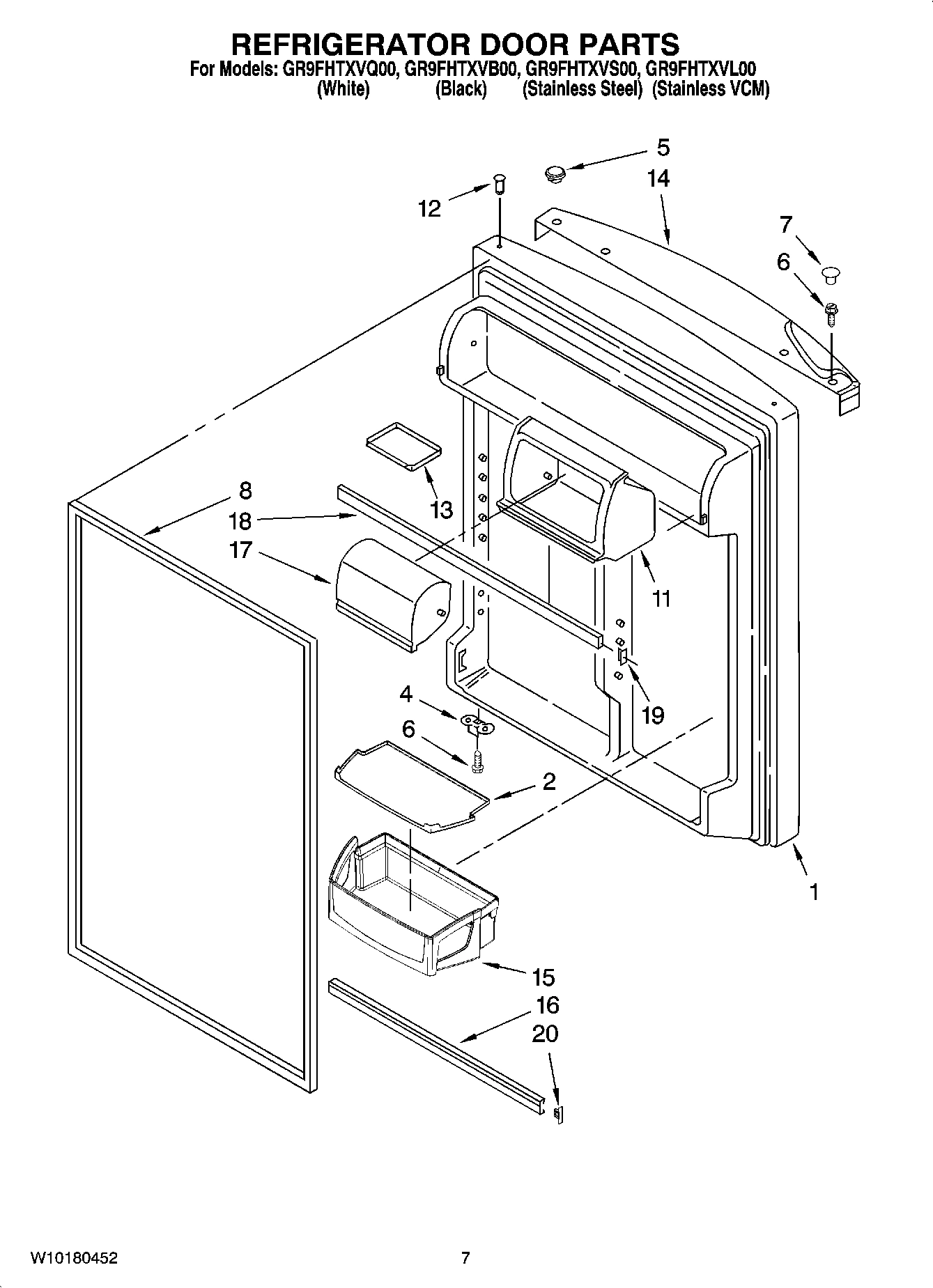

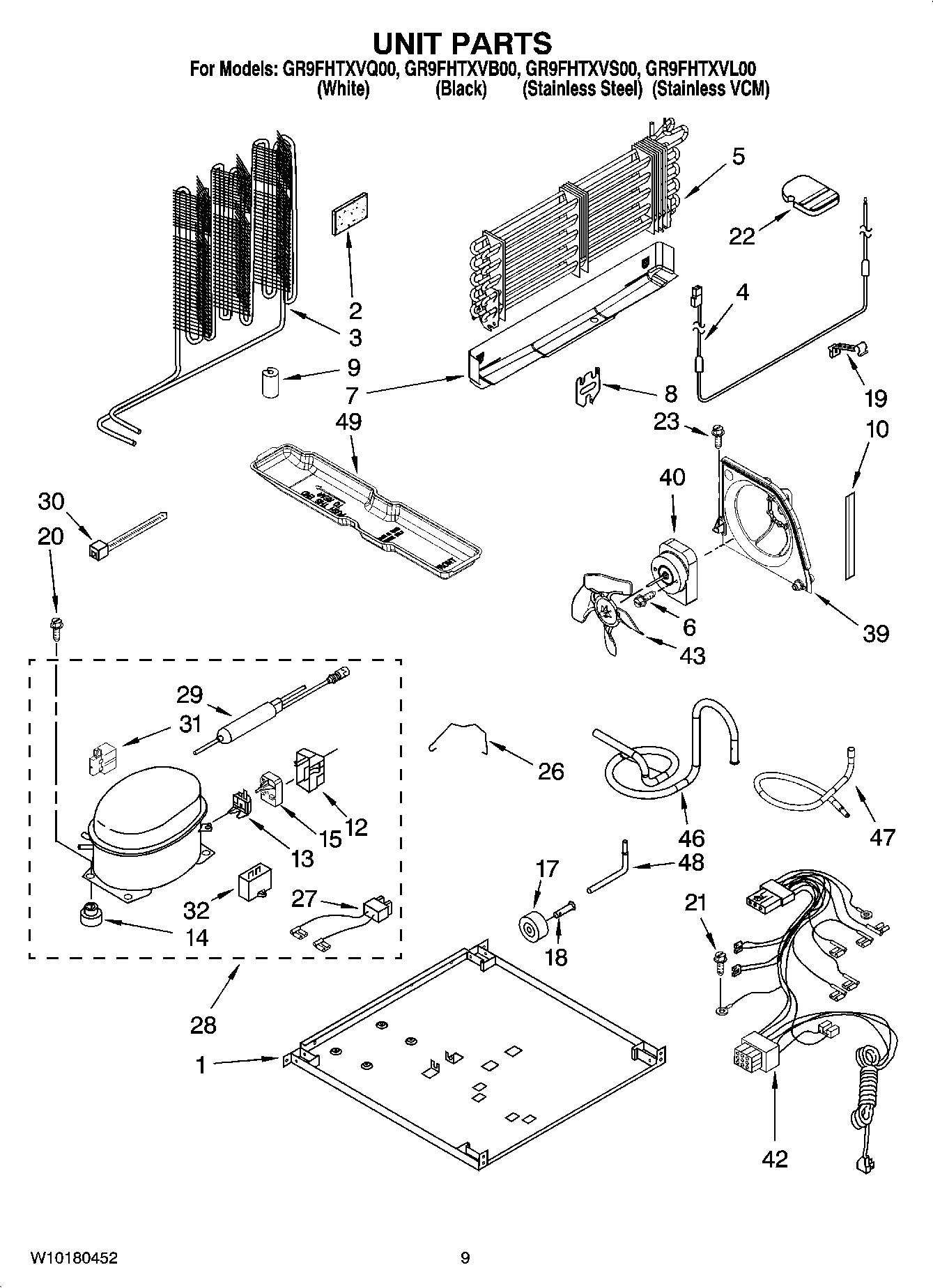

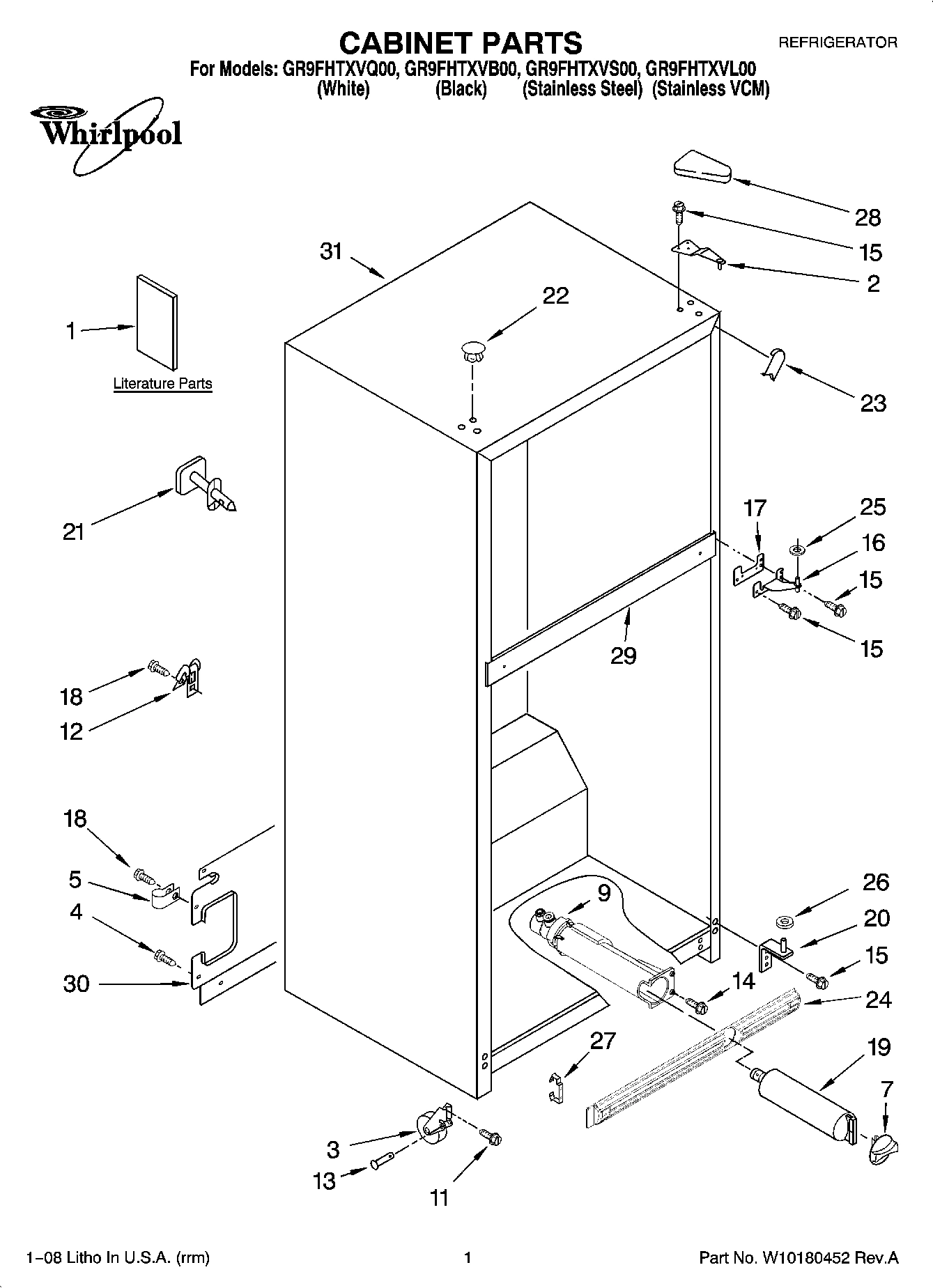

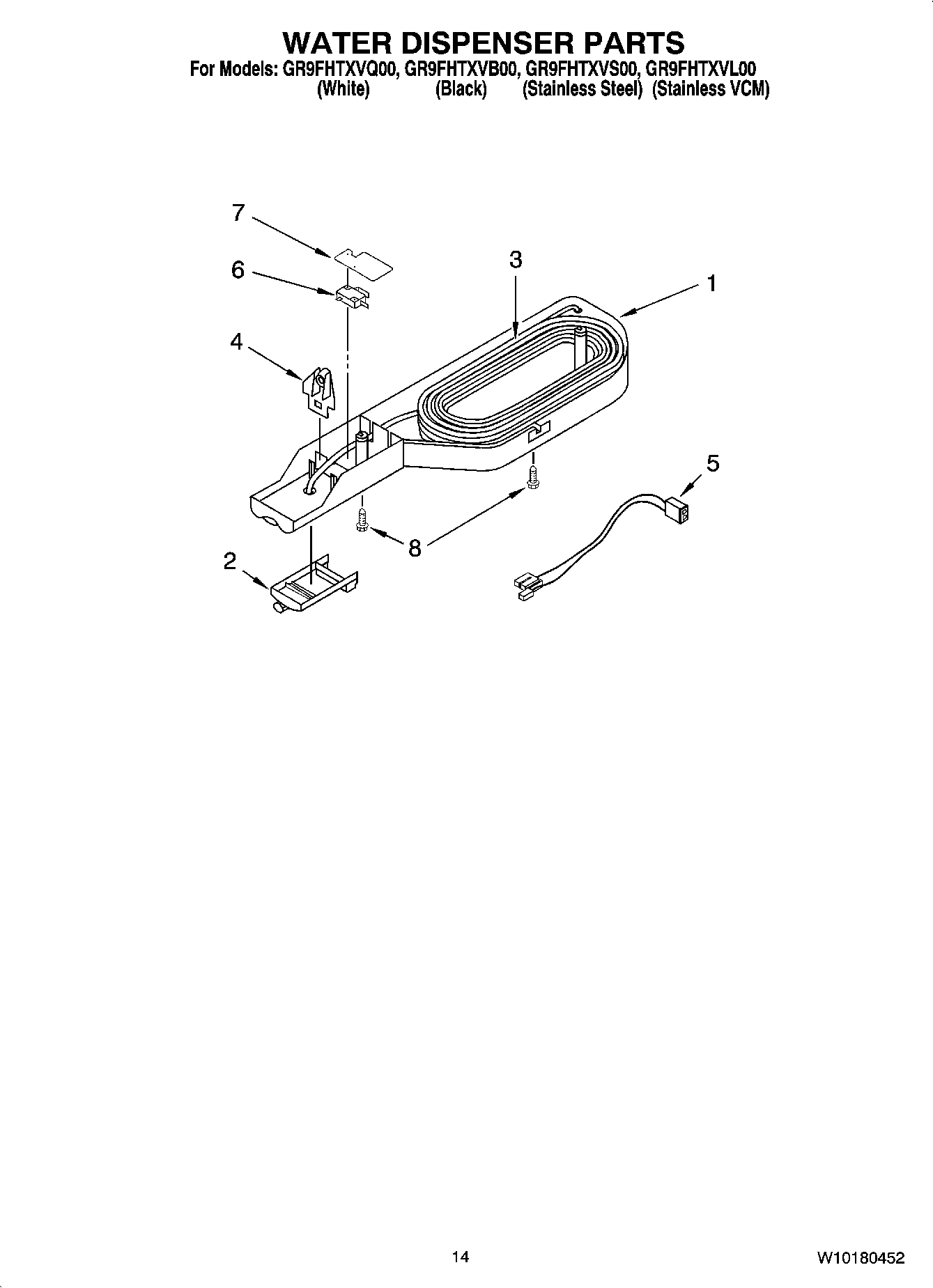

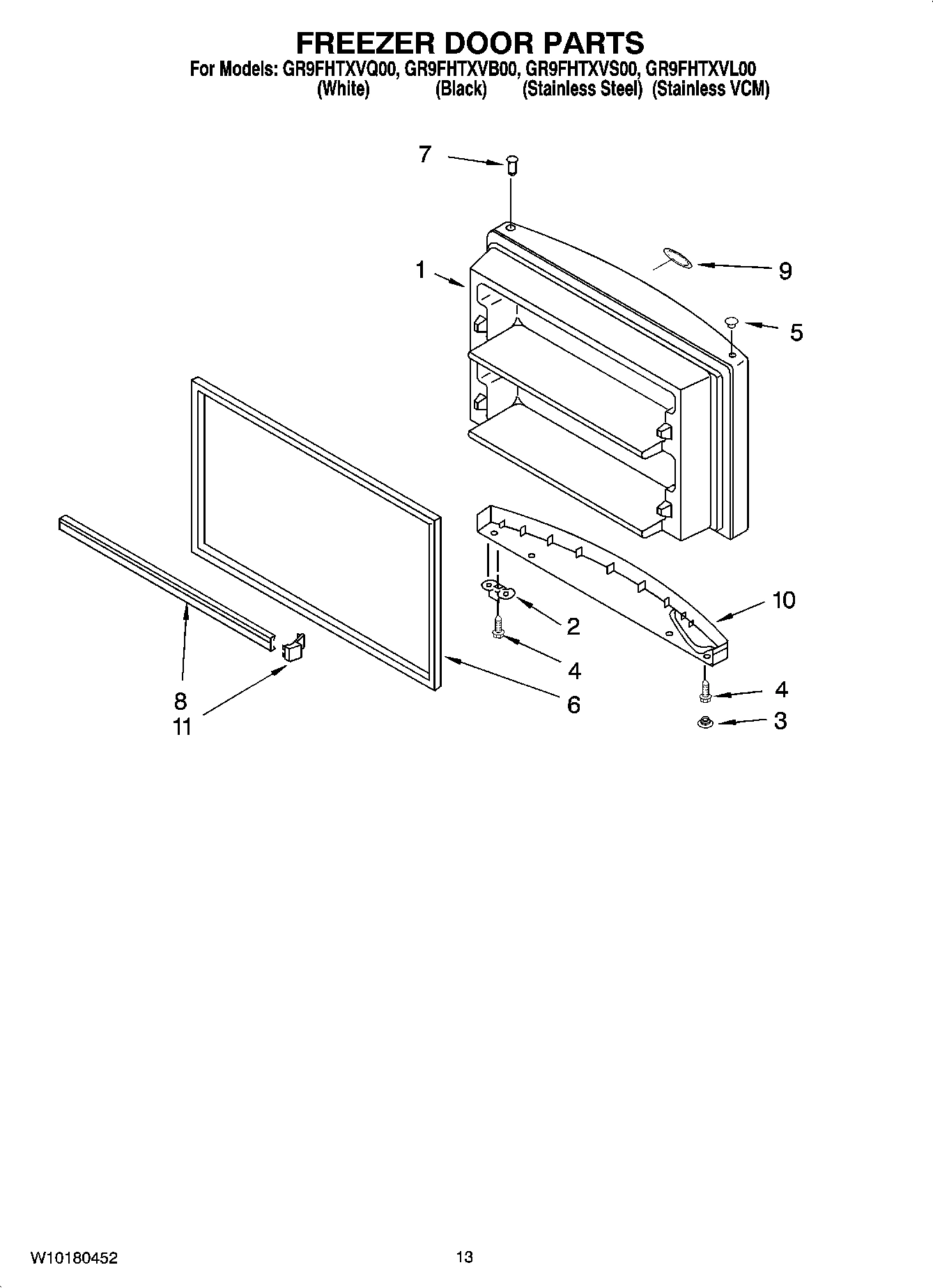

Model Whirlpool GR9FHTXVQ00 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $31.20

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.72

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.73

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.51

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.92

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $24.57

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $52.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $6.37

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.19

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $118.74

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.43

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $33.30

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $40.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $42.85

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $47.27

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $70.54

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.40

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $31.24

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

Parts Not Illustrated and Optional Parts (Not WPL ARI68902A8 Contact Us For Availability

WPL ARI68903A6 WPL ARI68903A6 Contact Us For Availability

WPL ARI68904A8 WPL ARI68904A8 Contact Us For Availability

WPL ARI68905A5 WPL ARI68905A5 Contact Us For Availability

WPL ARI68906A8 WPL ARI68906A8 Contact Us For Availability

1

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $5.91

1

Modular Icemaker Service Sheet WPL 2225623 Contact Us For Availability

1

Customer Instruct Sheet, Wtr Filter WPL 2302485 Contact Us For Availability

1

DO-IT-YOURSELF MANUAL, REF./ FZR. WPL 677969 Contact Us For Availability

1

Following May Be Purchased DO-IT-YOURSELF REP WPL ARI68895A2 Contact Us For Availability

1

Use & Care Guide (Bilingual) WPL W10131411 Contact Us For Availability

1

Use & Care Guide (Trilingual) WPL W10131419 Contact Us For Availability

1

Service & Wiring Sheet WPL W10142144 Contact Us For Availability

1

Energy Label WPL W10178120 Contact Us For Availability

1

Housing, Dispenser WPL 2219617 Contact Us For Availability

2

WP2261963 Whirlpool Refrigerator Door Hinge In Stock WPL WP2261963 $52.56

2

Button, Dispenser WPL 2210567 Contact Us For Availability

3

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $6.73

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $18.65

3

WP2188808 Whirlpool Refrigerator Inlet Valve In Stock WPL WP2188808 $110.87

3

WP2214960 Whirlpool Refrigerator Condenser Backorder WPL WP2214960 $216.12

3

Reservoir, Tube WPL 2320316 Contact Us For Availability

4

WP2304093 Whirlpool Refrigerator Electronic C Backorder WPL WP2304093 $271.25

4

WP2315531 Whirlpool Refrigerator Heater In Stock WPL WP2315531 $67.83

4

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $5.76

4

Flange, Tube WPL 2210523 Contact Us For Availability

5

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $7.50

5

Wire Assembly WPL 2187291 Contact Us For Availability

6

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.27

6

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $3.22

7

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $28.71

7

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $34.57

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $4.51

7

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $13.13

7

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $59.14

7

Shield, Switch WPL 2210547 Contact Us For Availability

8

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $14.93

8

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $32.35

9

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $4.50

9

WP2225521 Whirlpool Water Filter Housing In Stock WPL WP2225521 $114.78

9

Nameplate WPL 2220214 Contact Us For Availability

10

WP2315539 Whirlpool Refrigerator Evaporator F In Stock WPL WP2315539 $51.05

11

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $36.53

11

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $4.19

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $10.80

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.88

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $4.53

Control Box WPL 2218304 Contact Us For Availability

13

W11594405 Whirlpool Axle In Stock WPL W11594405 $8.45

13

Tray, Door WPL 2159302 Contact Us For Availability

13

Thermostat Assembly (Includes Illus. 5 & 18) WPL 2314594 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $10.90

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $42.48

Trim-Crisper Pan (10 Inch) (Crisper Cover) WPL 2195340 Contact Us For Availability

Insulation, Water Tube WPL 2301622 Contact Us For Availability

15

W10853646 Whirlpool Indicator Light Backorder WPL W10853646 $88.13

15

WP2225929 Whirlpool Refrigerator Start Device Backorder WPL WP2225929 $68.35

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.30

16

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $16.97

16

WP2254618 Whirlpool Center Door Hinge In Stock WPL WP2254618 $32.06

16

Cover, Evaporator WPL 2320191 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $10.08

WP2176275 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2176275 $82.58

WP2183852 Whirlpool Refrigerator Shim Backorder WPL WP2183852 $5.76

WP2218109 Whirlpool Refrigerator Door Compres Backorder WPL WP2218109 $49.55

18

WP2159312 Whirlpool Refrigerator Door Trim Backorder WPL WP2159312 $77.84

18

Weight, Thermal WPL 2200831 Contact Us For Availability

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $7.10

EDR6D1 Whirlpool EveryDrop® Ice and Water Re In Stock WPL EDR6D1 $51.15

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.32

Clip, Heater WPL 2182338 Contact Us For Availability

20

W10129791 Whirlpool Refrigerator Wire Harness Backorder WPL W10129791 $80.61

20

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $5.02

20

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $4.19

WP2176222 Whirlpool Refrigerator Slide In Stock WPL WP2176222 $13.74

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.19

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

Fitting, Water Tube (Not Serviced) WPL ARI68896A4 Contact Us For Availability

W10829461 Whirlpool Refrigerator Thermal Knob Backorder WPL W10829461 $15.45

WP2151652 Whirlpool Refrigerator Button Plug Backorder WPL WP2151652 $8.45

WP2183998 Whirlpool Refrigerator Button Plug Backorder WPL WP2183998 $11.50

WP2212446 Whirlpool Refrigerator Control Body In Stock WPL WP2212446 $33.30

Support Block WPL 2201184 Contact Us For Availability

W11252732 Whirlpool Refrigerator Filler Backorder WPL W11252732 $11.14

WP2195341 Whirlpool Refrigerator Pan Trim Backorder WPL WP2195341 $55.38

WP2254354 Whirlpool Refrigerator Air Tower Backorder WPL WP2254354 $62.12

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $4.19

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $51.42

24

Grille (Includes Illus. 27) (Black) WPL 2301619B Contact Us For Availability

24

Grille (Includes Illus. 27) (White) WPL 2301619W Contact Us For Availability

25

WP489467 Whirlpool Hinge Shim In Stock WPL WP489467 $5.63

26

WP487576 Whirlpool Washer In Stock WPL WP487576 $5.60

26

Air Separator Assembly WPL 2210390 Contact Us For Availability

27

CLIP, GRILLE (2) WPL 2189356 Contact Us For Availability

27

Screw WPL 8534009 Contact Us For Availability

28

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $13.33

28

WP2213363 Whirlpool Refrigerator Cover Backorder WPL WP2213363 $17.58

28

WP2321800 Whirlpool Refrigerator Bimetallic D In Stock WPL WP2321800 $37.96

29

BRACKET, FAN MOTOR WPL 2254453 Contact Us For Availability

29

Rail, Center (Not Serviced) WPL ARI68897A9 Contact Us For Availability

30

Cover, Unit WPL 2254578 Contact Us For Availability

30

Retainer-Screw WPL 2320183 Contact Us For Availability

31

Cabinet, (Not A Serviceable Part) WPL ARI68898A5 Contact Us For Availability

32

Lens-LED WPL 2213495 Contact Us For Availability

33

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $3.22

34

Knob, Damper WPL 2302536 Contact Us For Availability

35

2254454 Whirlpool Refrigerator Bracket Backorder WPL 2254454 $38.37

36

WP2205079 Whirlpool Refrigerator Seal Backorder WPL WP2205079 $6.44

37

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $37.43

38

Housing Base WPL 2300417 Contact Us For Availability

39

WP2315541 Whirlpool Refrigerator Air Baffle Backorder WPL WP2315541 $52.36

39

Wiring Harness, Freezer Light WPL 2187601 Contact Us For Availability

40

Gasket, Rear WPL 2166284 Contact Us For Availability

41

4396822 Whirlpool Refrigerator Light Bulb In Stock WPL 4396822 $6.74

42

Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability

45

Shield, heat WPL 2204639 Contact Us For Availability

46

Post, Damper WPL 2179859 Contact Us For Availability

47

Bracket, Damper Knob WPL 2163810 Contact Us For Availability

48

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $28.79

49

WP2254574 Whirlpool Refrigerator Evaporator T In Stock WPL WP2254574 $70.54

49

Cover, Tubing WPL 2225531 Contact Us For Availability

50

Tube, Water Filter WPL 2301621 Contact Us For Availability

51

Clip, Retainer WPL 2210563 Contact Us For Availability
